Rear Seat Number 2 Folding Actuator Seat Position Switch Replacement. Cadillac SRX 2005

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2005 🢒 SRX 🢒 Body 🢒 Seats 🢒 Rear Seat Number 2 Folding Actuator Seat Position Switch Replacement

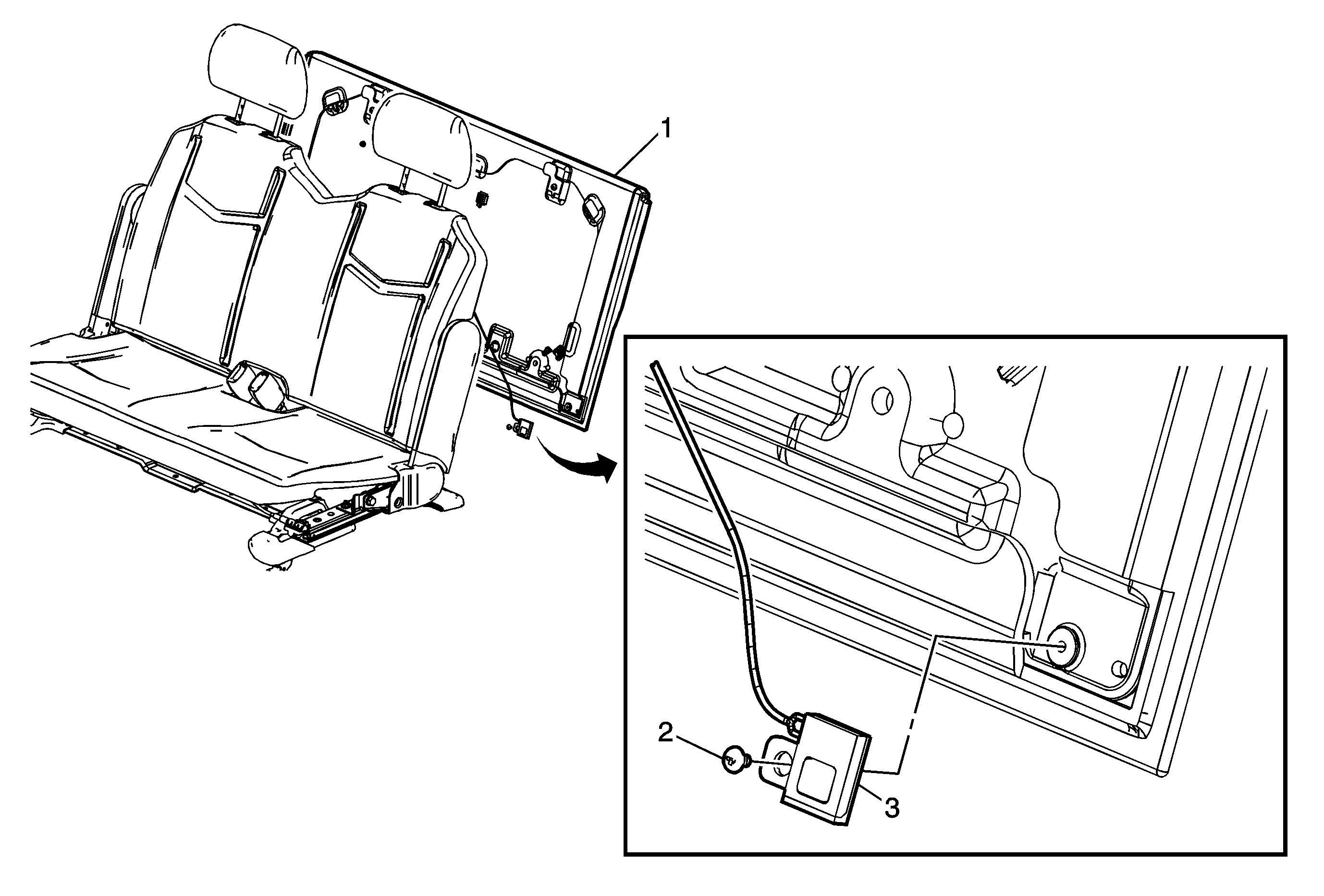

Callout	Component Name
1	Rear Seat No. 2 Back Panel Refer to Rear Seat Number 2 Back Cushion Panel Replacement. Tip Move the back panel away from the rear seat to enough to gain access to the switch.
2	Rear Seat No. 2 Folding Actuator Switch Screw Notice: Refer to Fastener Notice in the Preface section. Tighten 2 N·m (18 lb in)
3	Rear Seat No. 2 Folding Actuator Switch Tip Disconnect the electrical connector.

Callout

Component Name

Rear Seat No. 2 Back Panel

Tip
Move the back panel away from the rear seat to enough to gain access to the switch.

Rear Seat No. 2 Folding Actuator Switch Screw

Notice: Refer to Fastener Notice in the Preface section.

Tighten
2 N·m (18 lb in)

Rear Seat No. 2 Folding Actuator Switch

Tip
Disconnect the electrical connector.
