Makes 🢒 Cadillac 🢒 2005 🢒 SRX 🢒 Body 🢒 Seats 🢒 Rear Seat Number 2 Cushion Frame Replacement

Removal Procedure
  1. Remove the seat from the vehicle. Refer to Rear Number 2 Folding Seat Replacement .
  2. Lay the seat down on the seat back.

    3. Object Number: 1260911 Size: SH
  3. Disconnect the J-channel retainers (1) from the sides of the seat cover.

    4. Object Number: 1260914 Size: SH
  4. Remove the seat cover (1) from the seat bottom.

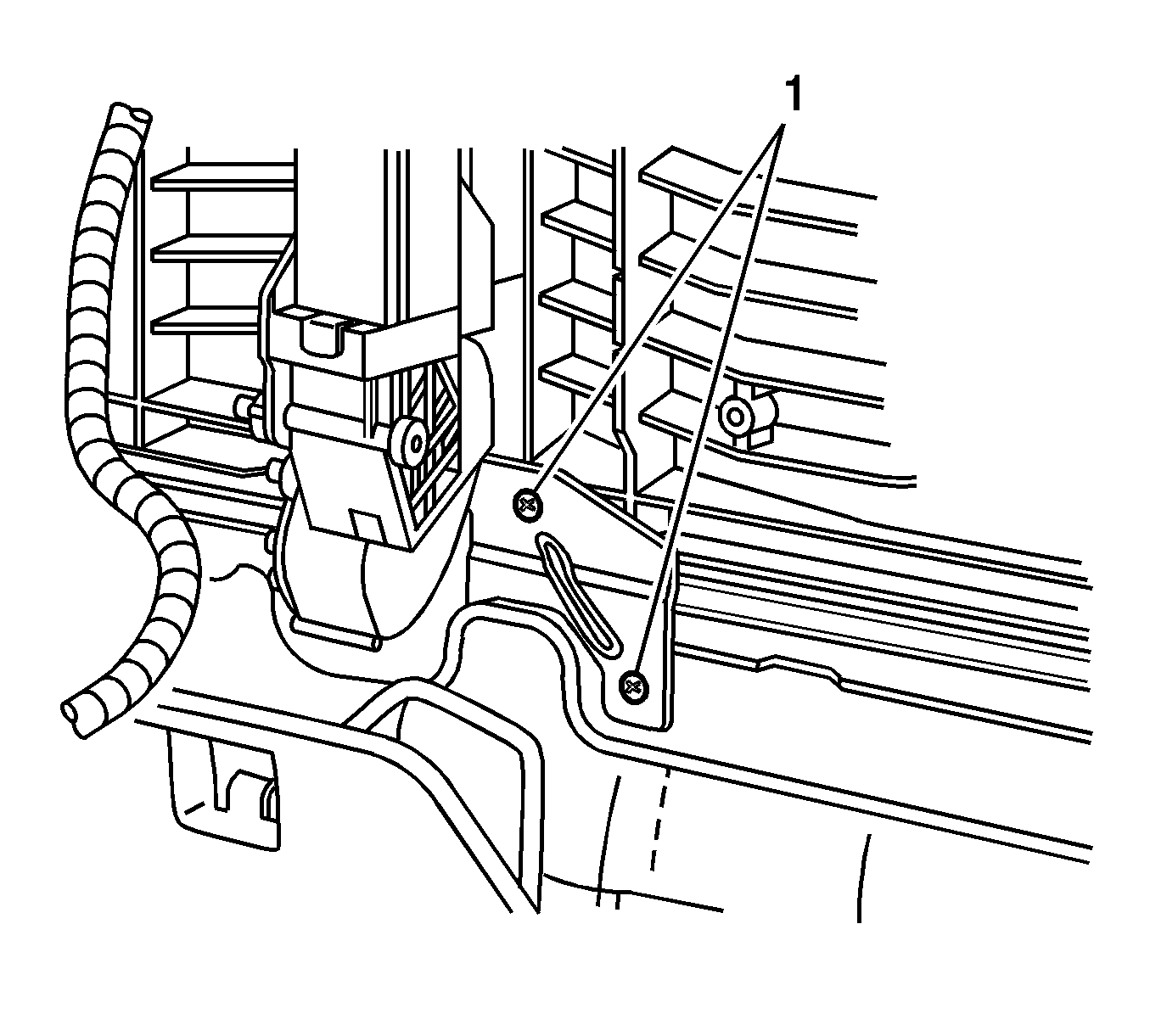

    5. Object Number: 1260928 Size: SH
  5. Remove the recliner motor screws (1) from the seat frame.

    6. Object Number: 1261000 Size: SH
  6. Remove the screws from the horizontal motor (1).

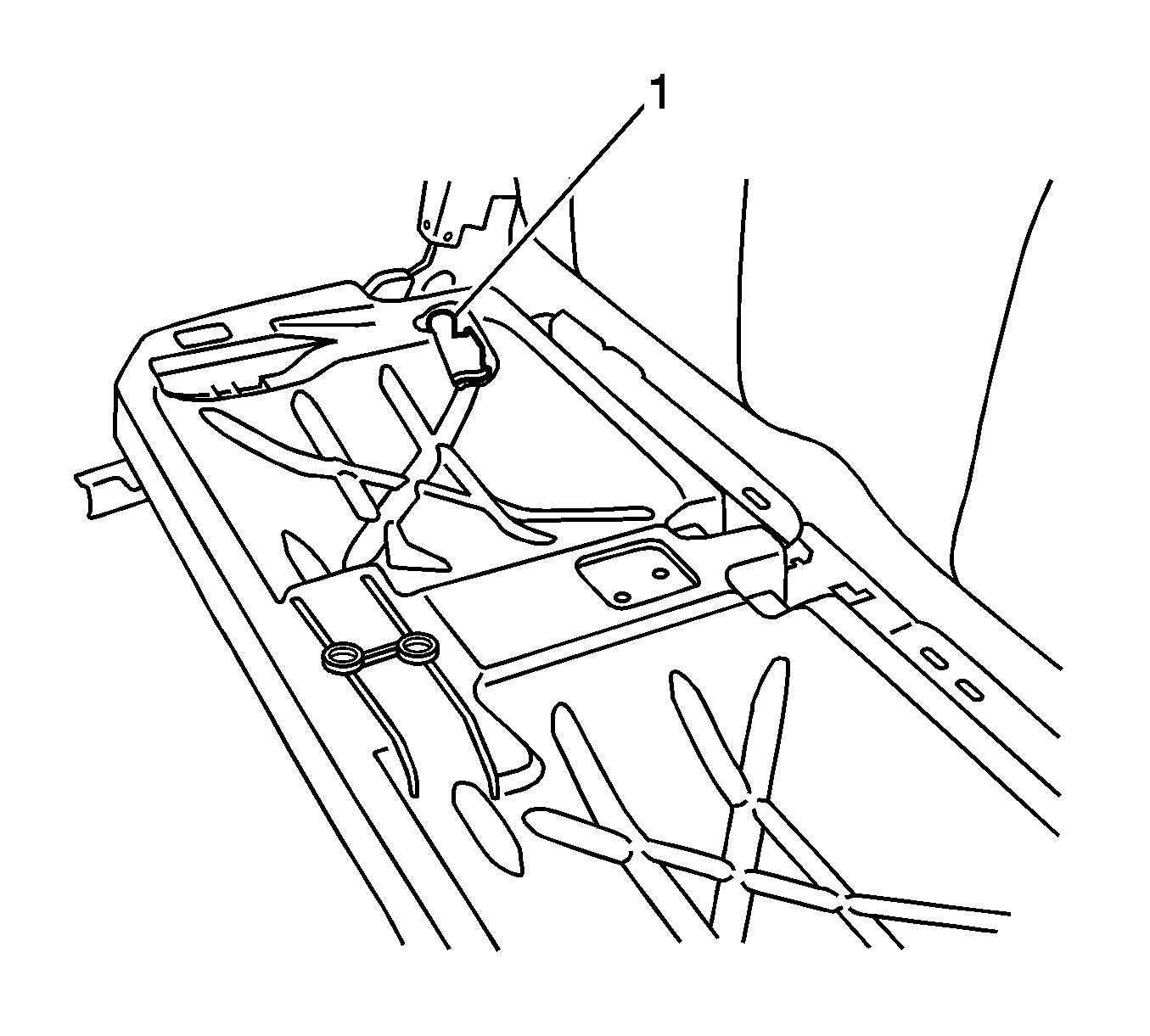

    7. Object Number: 1261003 Size: SH
  7. Remove the seat frame bolts (1).
  8. Remove the seat frame.

Installation Procedure
  1. Place the seat frame onto the seat adjuster.

    2. Notice: Refer to Fastener Notice in the Preface section.


    Object Number: 1261003 Size: SH
  2. Install the seat frame retaining bolts (1).

    3. Tighten
    Tighten the bolts to 35 N·m (26 lb ft).


    Object Number: 1261000 Size: SH
  3. Install the horizontal motor (1).

    4. Tighten
    Tighten the horizontal motor screws to 10 N·m (88 lb in).


    Object Number: 1260928 Size: SH
  4. Install the recliner motor to the seat frame.

    5. Tighten
    Tighten the recliner motor screws (1) to 10 N·m (88 lb in).


    Object Number: 1260914 Size: SH
  5. Install the seat cover (1) on to the seat bottom.

    6. Object Number: 1260911 Size: SH
  6. Connect all J channel retainers (1).
  7. Install the seat into the vehicle. Refer to Rear Number 2 Folding Seat Replacement .
