Door Control Module Schematics. Cadillac SRX 2005

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2005 🢒 SRX 🢒 Body 🢒 Wiring Systems 🢒 Door Control Module Schematics

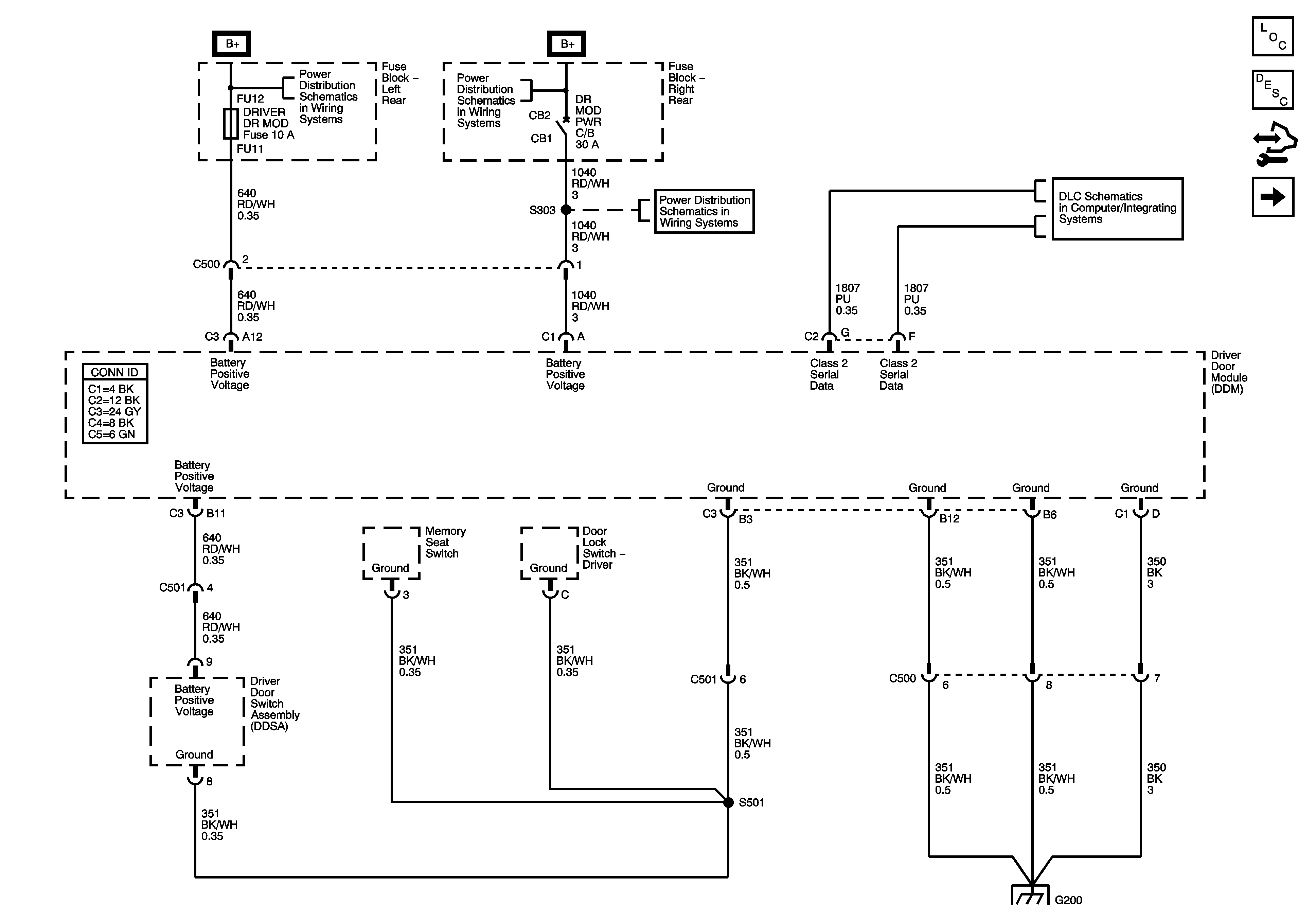

Figure 1:	DDM Power, Ground and Serial Data Master Electrical Component List Power Windows Description and Operation Control Module References DDM Signals/Controls - 1 of 2 Fuse Block - Left Rear B+ Bus Fuse Block - Right Rear B+ Bus CANISTER VENT, DR MOD PWR, REAR HATCH, R FRT HTD SEAT MOD, and SUNROOF MOD Fuses Class 2 Serial Data - 1 of 2 G200

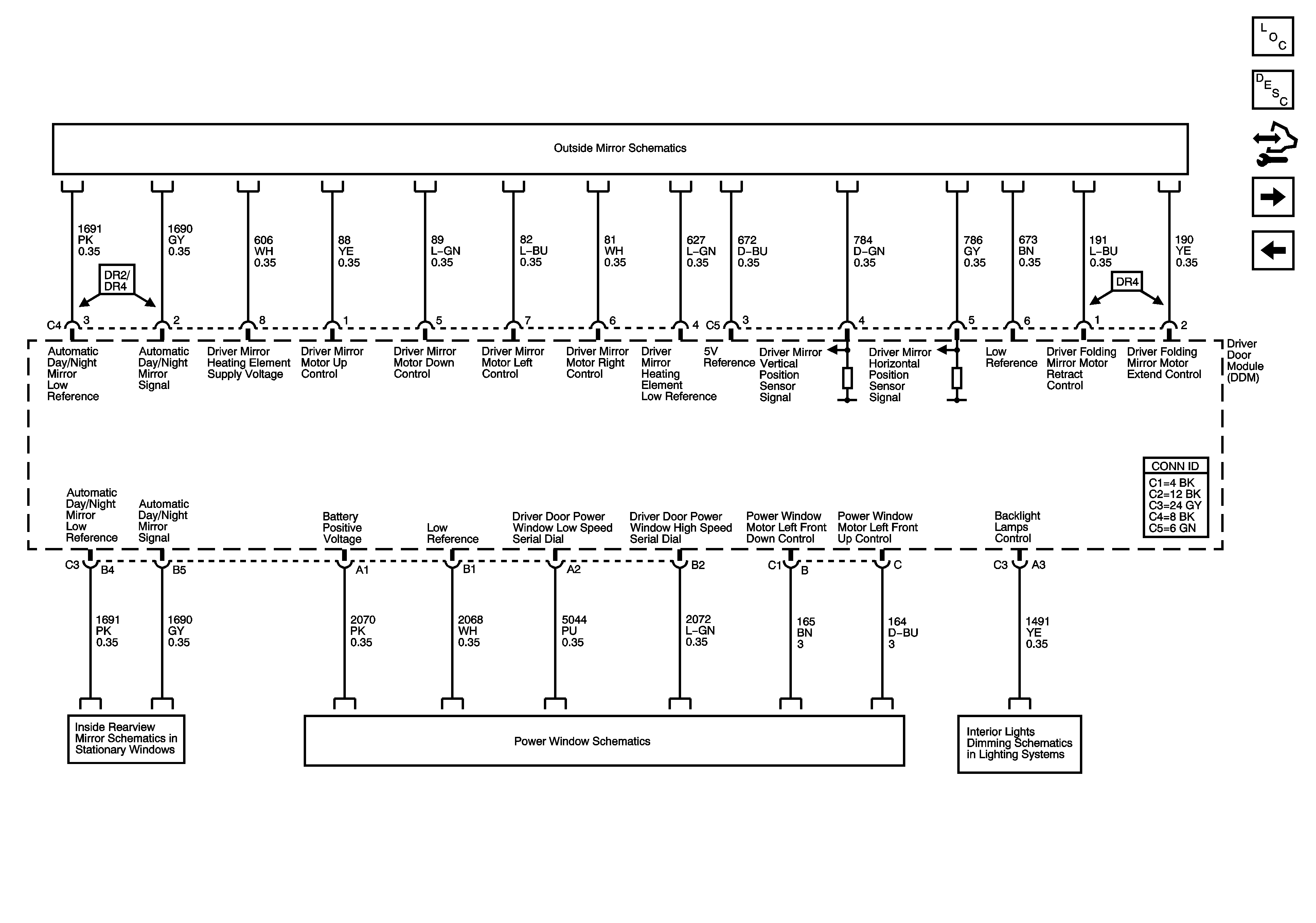

Figure 2:	DDM Signals/Controls - 1 of 2 Master Electrical Component List Power Windows Description and Operation Control Module References DDM Signals/Controls - 2 of 2 DDM Power, Ground and Serial Data Driver and Passenger Power Outside Mirrors (w/o A45) Inside Rearview Mirror Schematic Front Power Windows Dimming Lamps - 2 of 2

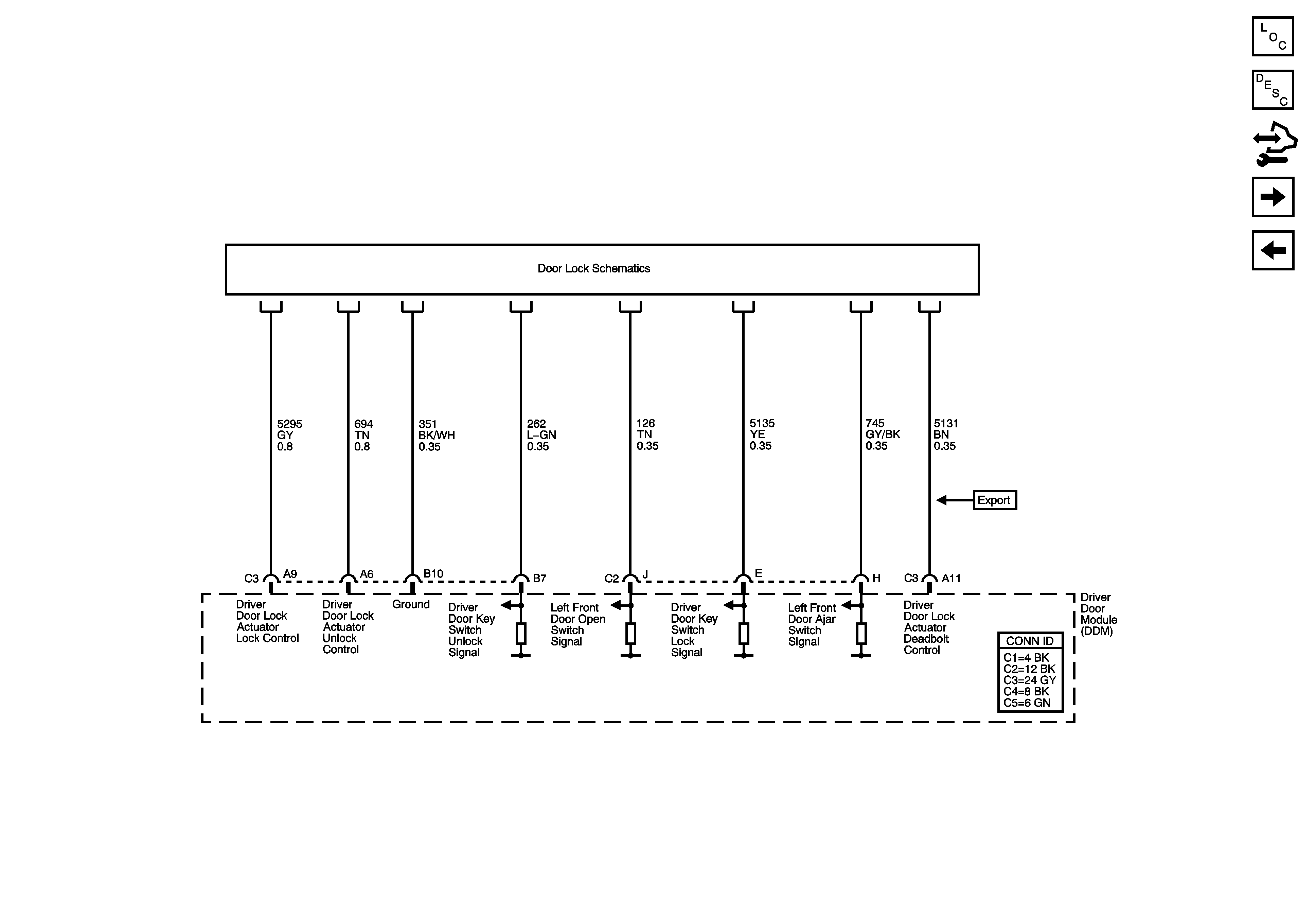

Figure 3:	DDM Signals/Controls - 2 of 2 Master Electrical Component List Power Windows Description and Operation Control Module References FPDM Power, Ground and Serial Data DDM Signals/Controls - 1 of 2 Driver Door Lock
Figure 4:	FPDM Power, Ground and Serial Data Master Electrical Component List Power Windows Description and Operation Control Module References FPDM Signals/Controls - 1 of 2 DDM Signals/Controls - 2 of 2 Front Passenger Door Lock Fuse Block - Right Rear B+ Bus Fuse Block - Right Rear B+ Bus Class 2 Serial Data - 2 of 2 CANISTER VENT, DR MOD PWR, REAR HATCH, R FRT HTD SEAT MOD, and SUNROOF MOD Fuses G201 Front Passenger Door Lock Front Power Windows

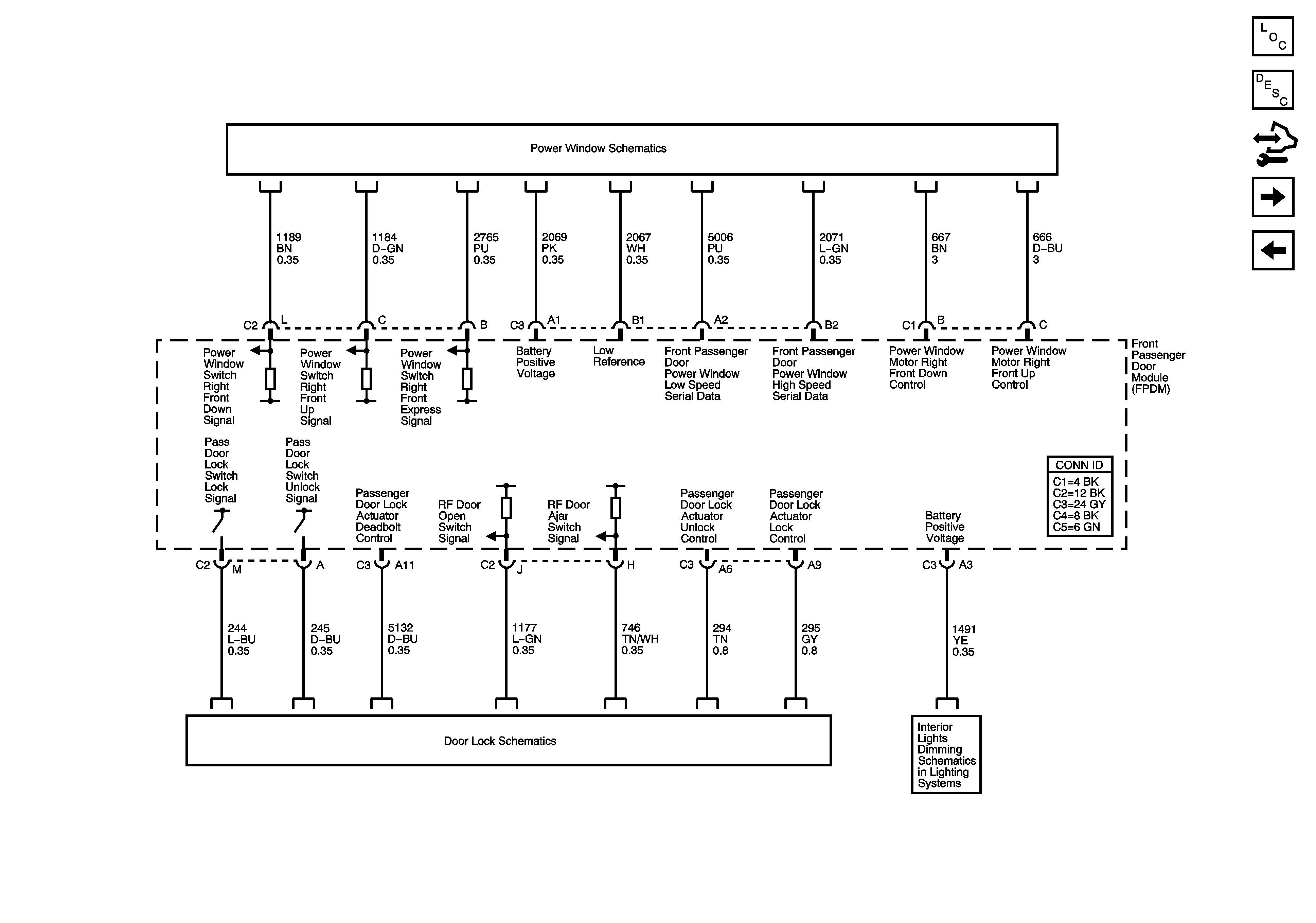

Figure 5:	FPDM Signals/Controls - 1 of 2 Master Electrical Component List Power Windows Description and Operation Control Module References FPDM Signals/Controls - 2 of 2 FPDM Power, Ground and Serial Data Front Power Windows Front Passenger Door Lock Dimming Lamps - 2 of 2

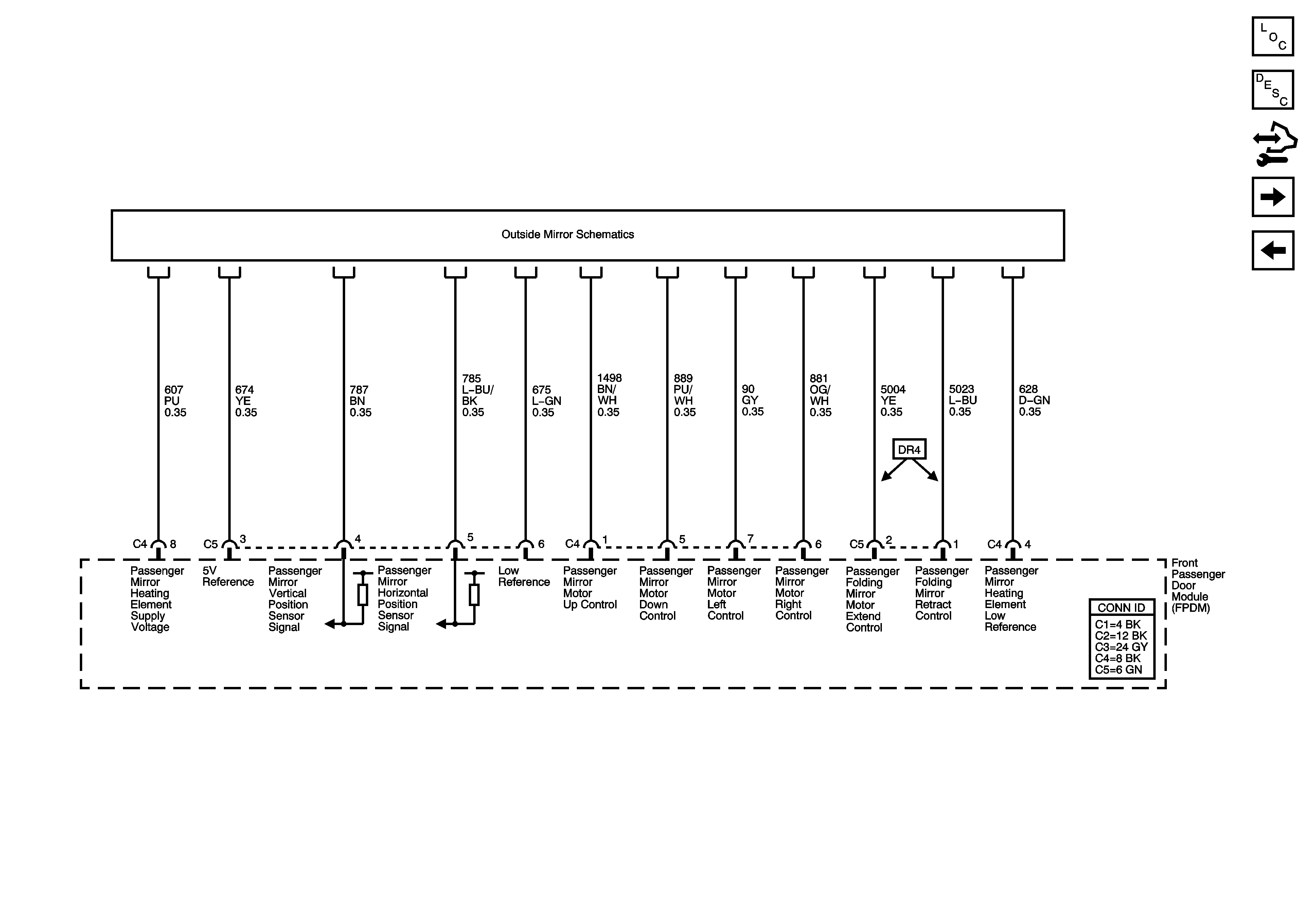

Figure 6:	FPDM Signals/Controls - 2 of 2 Master Electrical Component List Power Windows Description and Operation Control Module References LRDM Power, Ground and Serial Data FPDM Signals/Controls - 1 of 2 Driver and Passenger Power Outside Mirrors (w/o A45)

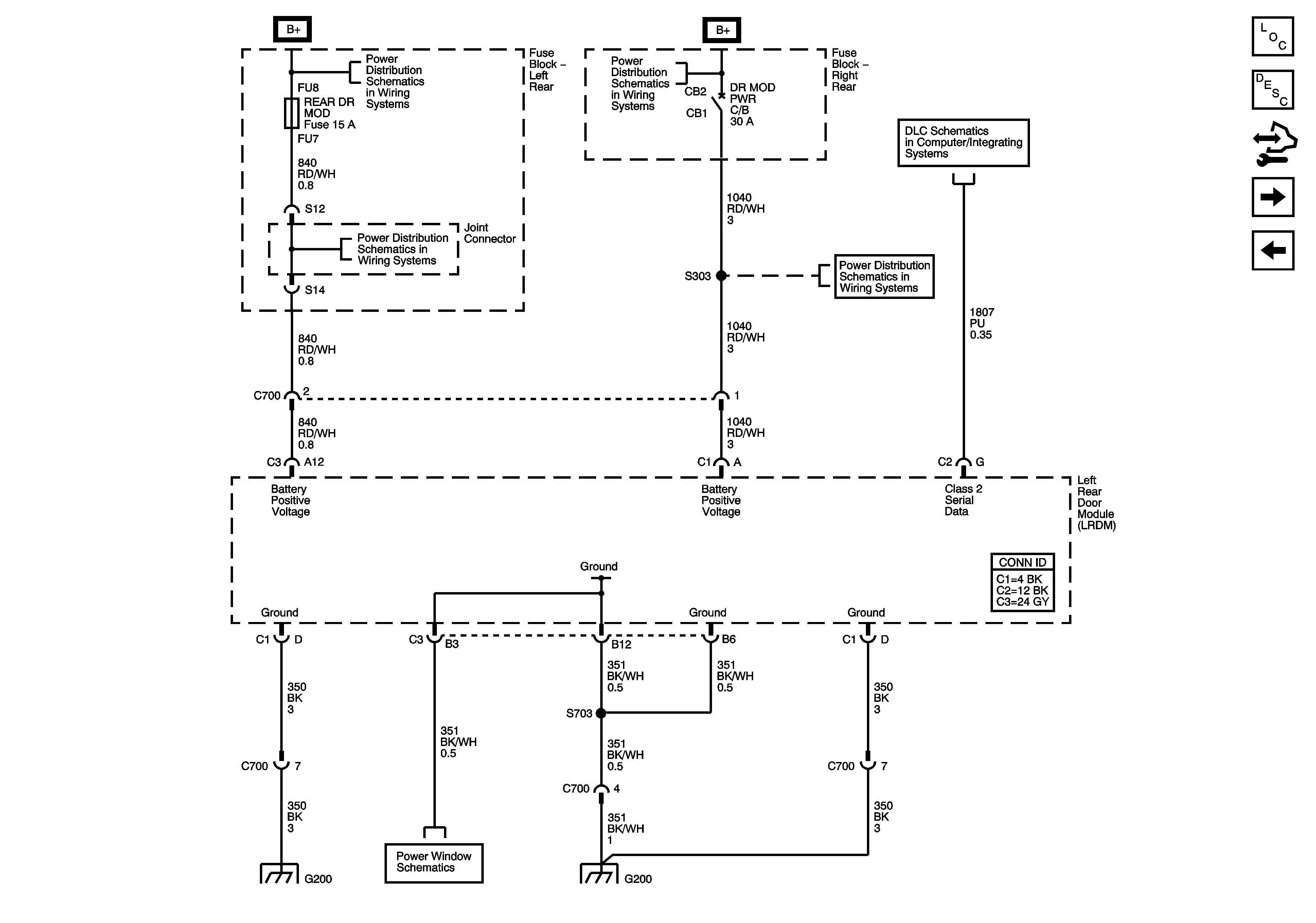

Figure 7:	LRDM Power, Ground and Serial Data Master Electrical Component List Power Windows Description and Operation Control Module References LRDM Signals/Controls FPDM Signals/Controls - 2 of 2 Fuse Block - Left Rear B+ Bus Fuse Block - Right Rear B+ Bus Class 2 Serial Data - 1 of 2 AMP, AUDIO, DRIVER DR MOD, ELC COMP, L FRT HTD SEAT MOD, MEM/ADAPT SEAT, and REAR DR MOD Fuses CANISTER VENT, DR MOD PWR, REAR HATCH, R FRT HTD SEAT MOD, and SUNROOF MOD Fuses G200 Rear Power Windows G200

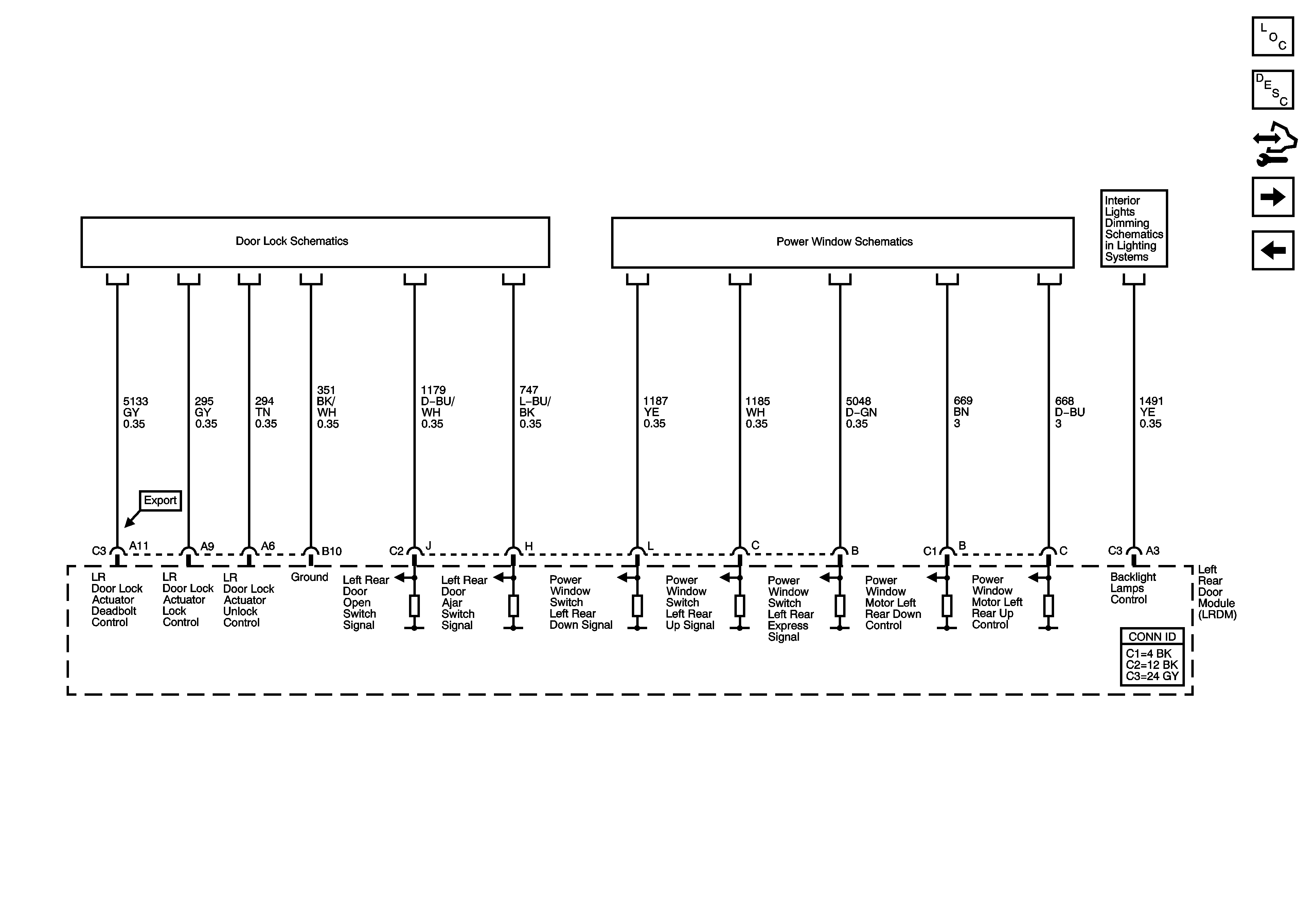

Figure 8:	LRDM Signals/Controls Master Electrical Component List Power Windows Description and Operation Control Module References RRDM Power, Ground and Serial Data LRDM Power, Ground and Serial Data Left Rear and Right Rear Door Lock Rear Power Windows Dimming Lamps - 2 of 2

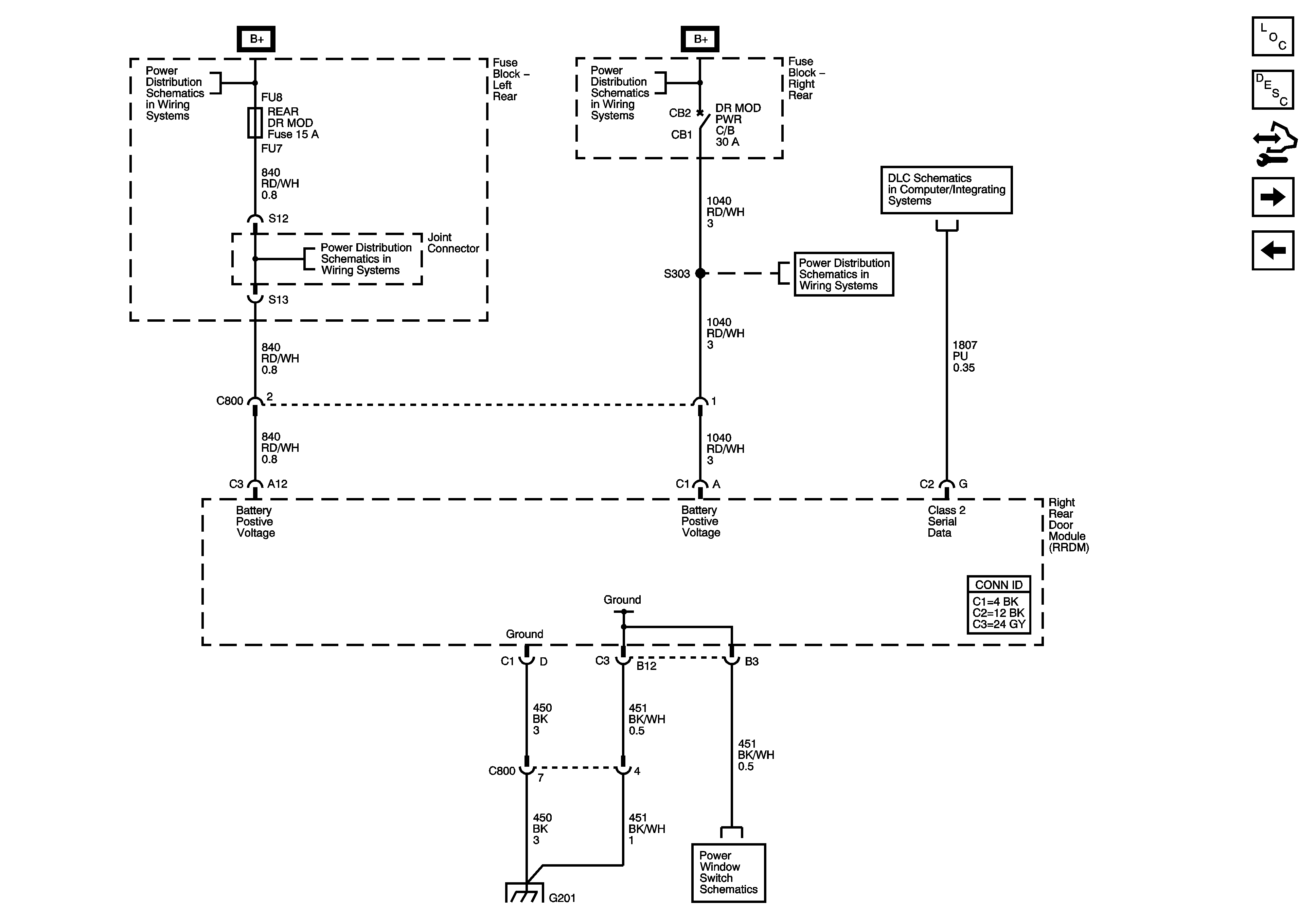

Figure 9:	RRDM Power, Ground and Serial Data Master Electrical Component List Power Windows Description and Operation Control Module References RRDM Signals/Controls LRDM Signals/Controls Fuse Block - Left Rear B+ Bus Fuse Block - Right Rear B+ Bus Class 2 Serial Data - 2 of 2 AMP, AUDIO, DRIVER DR MOD, ELC COMP, L FRT HTD SEAT MOD, MEM/ADAPT SEAT, and REAR DR MOD Fuses CANISTER VENT, DR MOD PWR, REAR HATCH, R FRT HTD SEAT MOD, and SUNROOF MOD Fuses G201 Rear Power Windows

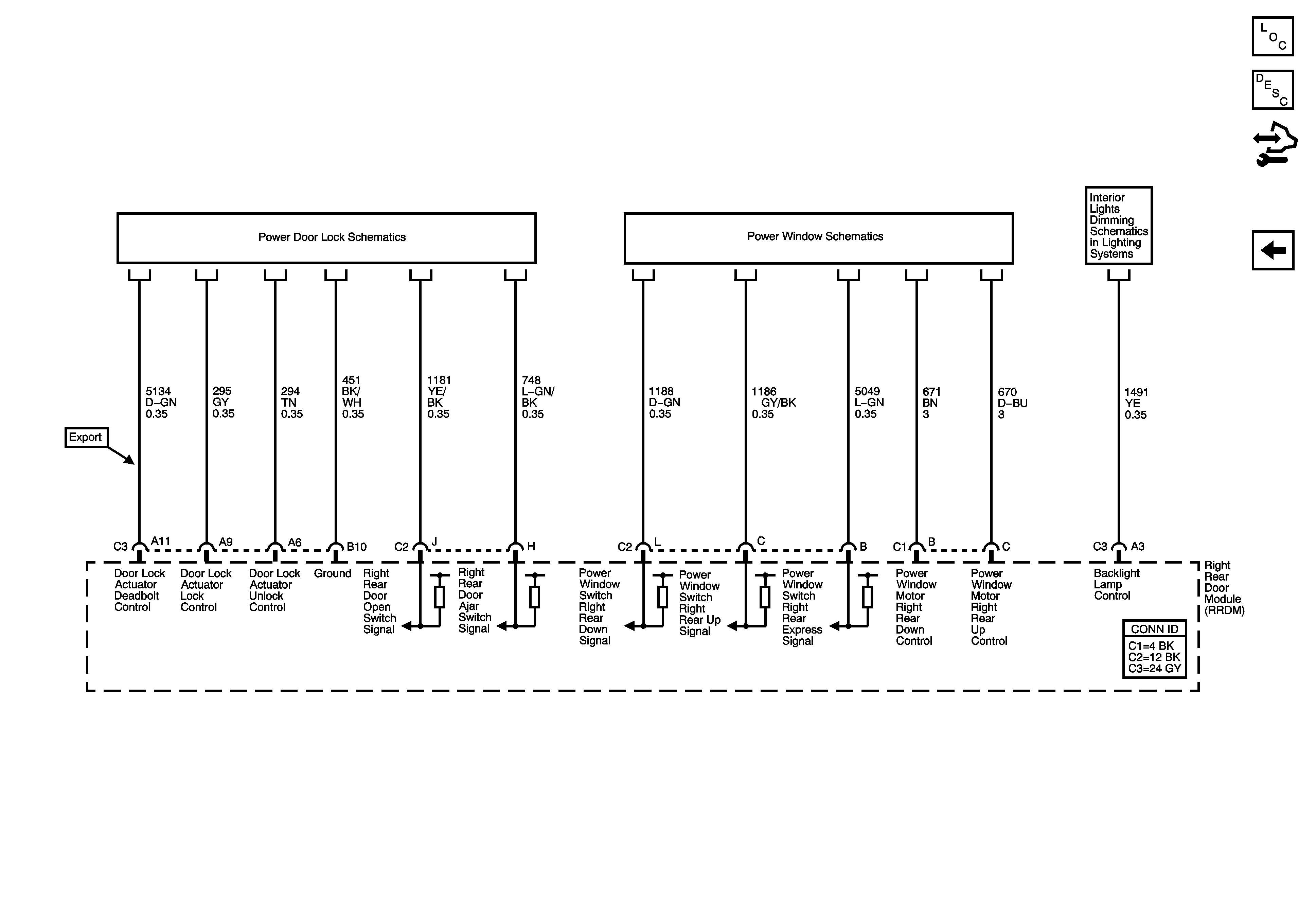

Figure 10:	RRDM Signals/Controls Master Electrical Component List Power Windows Description and Operation Control Module References RRDM Power, Ground and Serial Data Left Rear and Right Rear Door Lock Rear Power Windows Dimming Lamps - 2 of 2
