Ground Distribution Schematics. Cadillac SRX 2005

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2005 🢒 SRX 🢒 Body 🢒 Wiring Systems 🢒 Ground Distribution Schematics

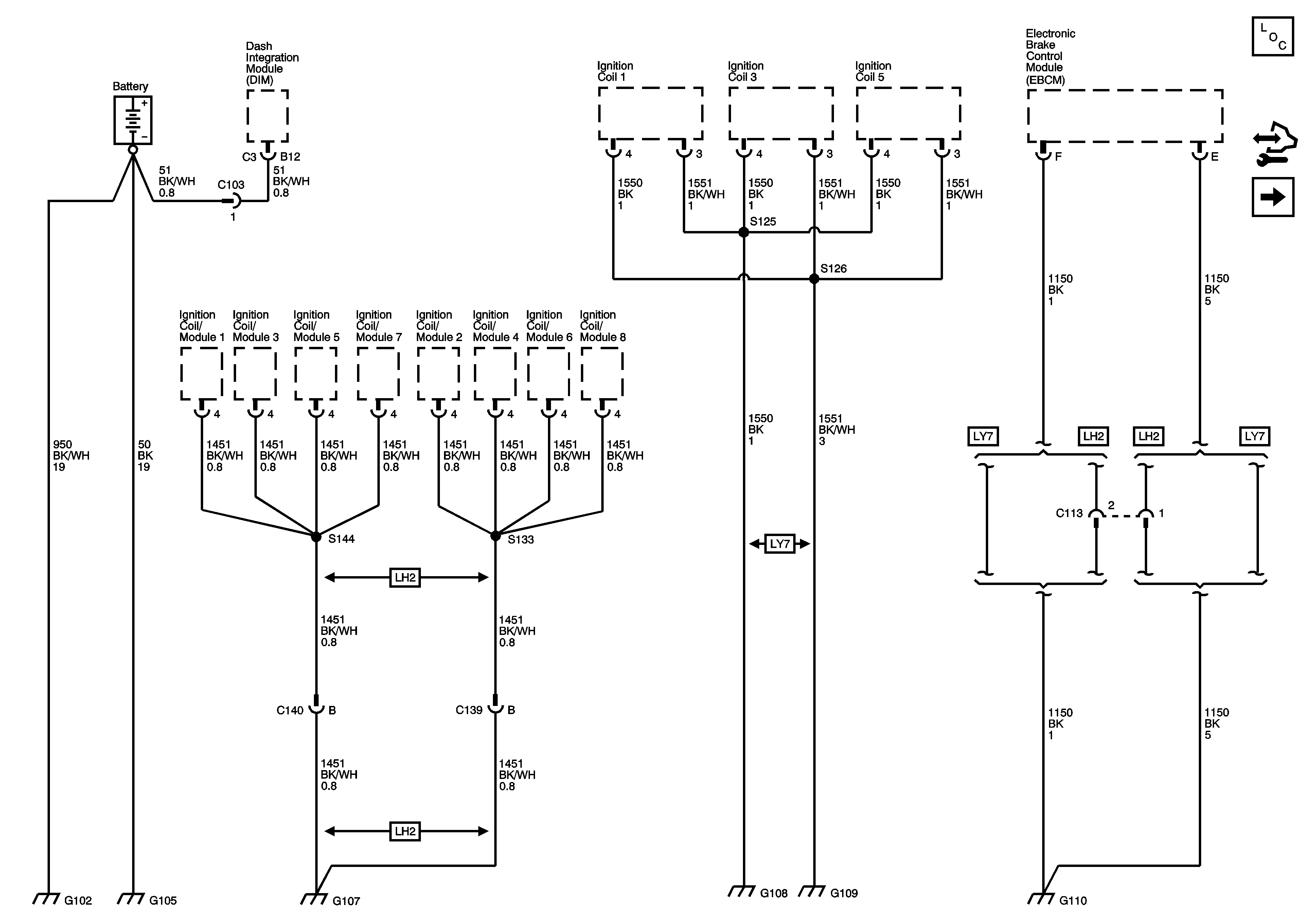

Figure 1:	G102, G105, G107, G108, G109 and G110 Master Electrical Component List Control Module References G111, G112, G113, G114 and G306

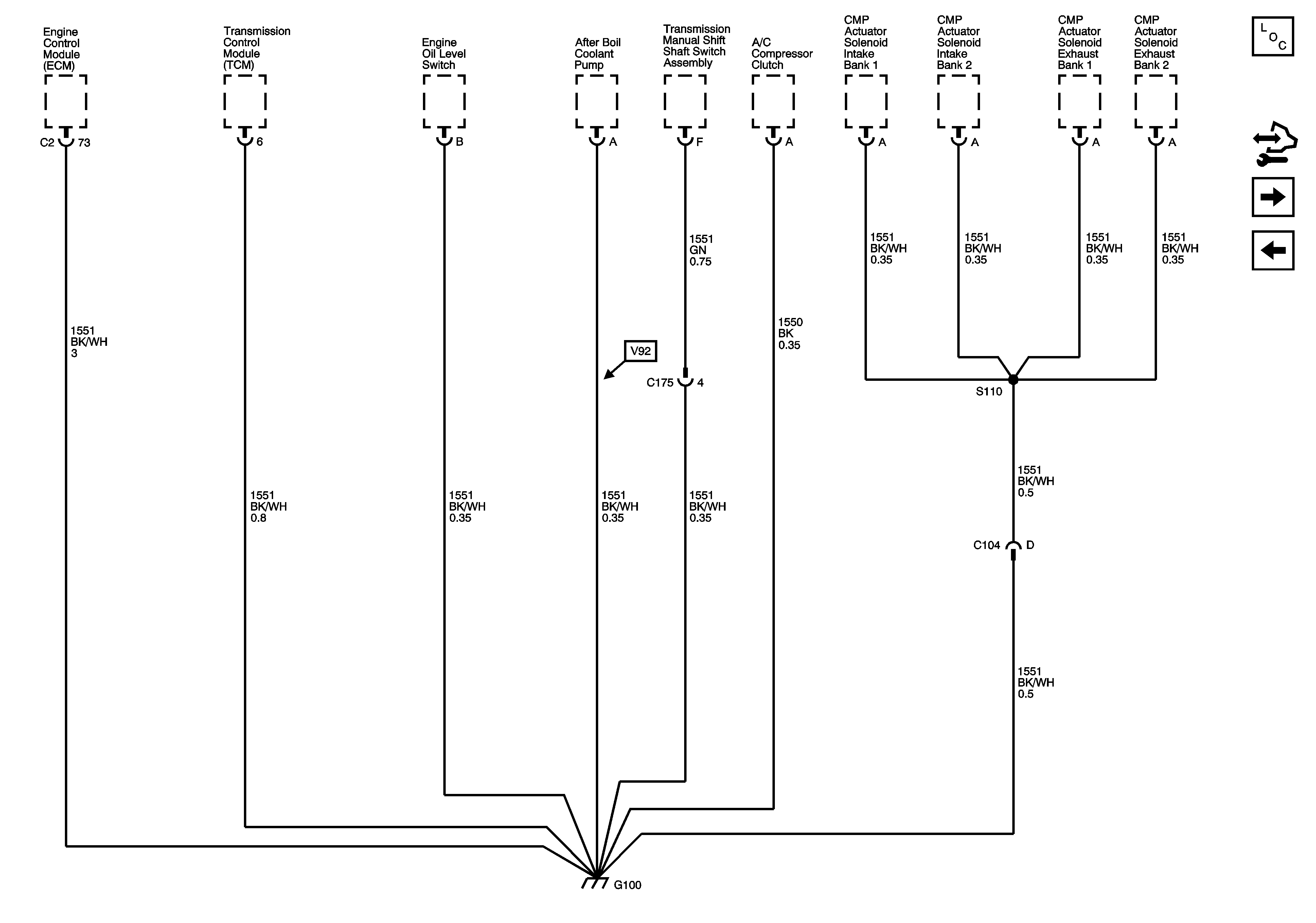

Figure 2:	G111, G112, G113, G114 and G306 Master Electrical Component List Control Module References G100 - LH2 G102, G105, G107, G108, G109, and G110 SIR Caution for Zoning
Figure 3:	G100 - LH2 Master Electrical Component List Control Module References G101 G111, G112, G113, G114 and G306

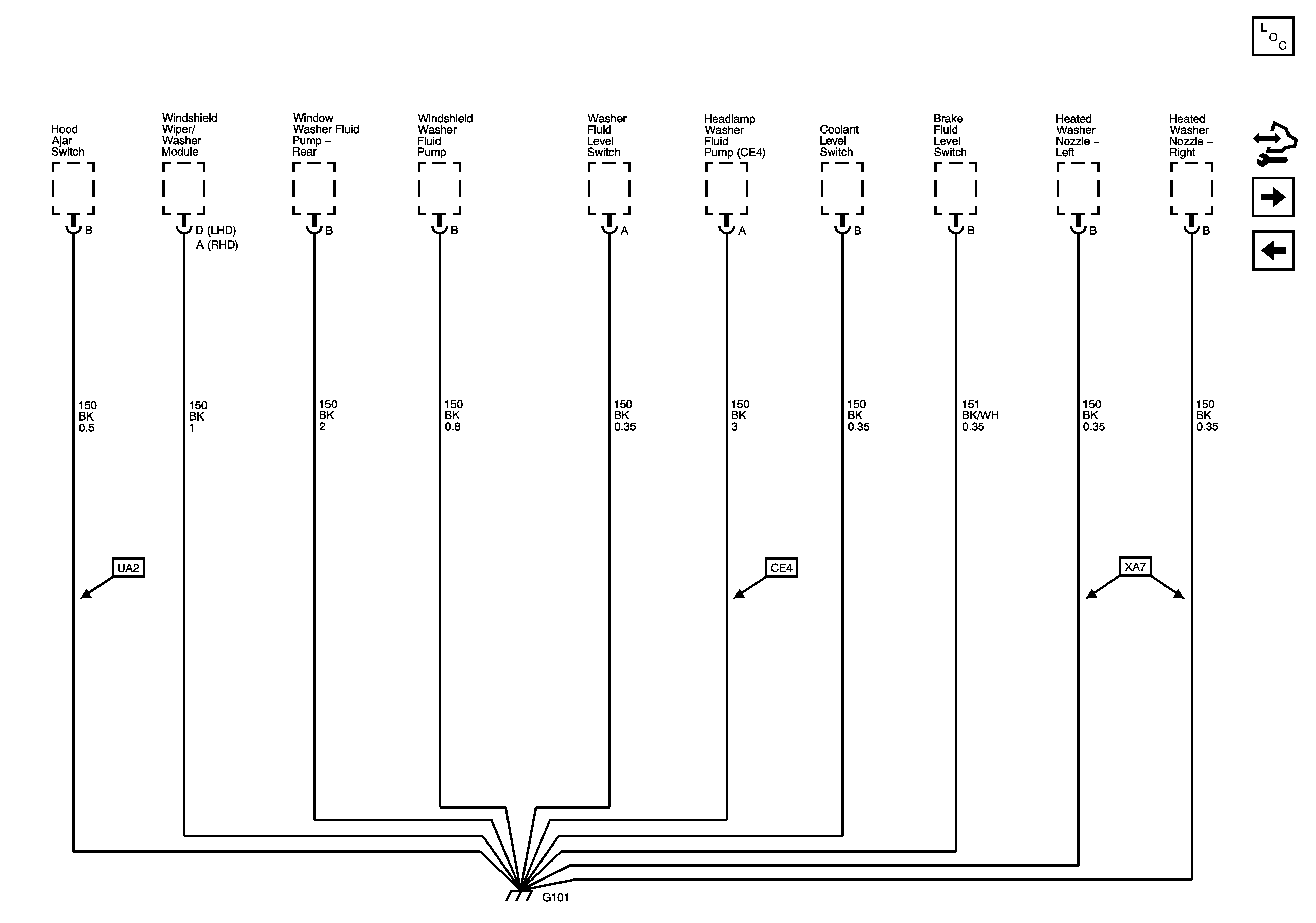

Figure 4:	G101 Master Electrical Component List Control Module References G104 G100 - LH2
Figure 5:	G104 Master Electrical Component List Control Module References G200 G101
Figure 6:	G200 Master Electrical Component List Control Module References G201 G104 SIR Caution for Zoning
Figure 7:	G201 Master Electrical Component List Control Module References G307 G200
Figure 8:	G307 Master Electrical Component List Control Module References G401 - 1 of 2 G201
Figure 9:	G401 - 1 of 2 Master Electrical Component List Control Module References G401 - 2 of 2 G307
Figure 10:	G401 - 2 of 2 Master Electrical Component List Control Module References G402 - 1 of 2 G401 - 1 of 2
Figure 11:	G402 - 1 of 2 Master Electrical Component List Control Module References G402 - 2 of 2 G401 - 2 of 2
Figure 12:	G402 - 2 of 2 Master Electrical Component List Control Module References G402 - 1 of 2
