Radio/Audio System Schematics. Cadillac SRX 2005

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2005 🢒 SRX 🢒 Accessories 🢒 Entertainment 🢒 Radio/Audio System Schematics

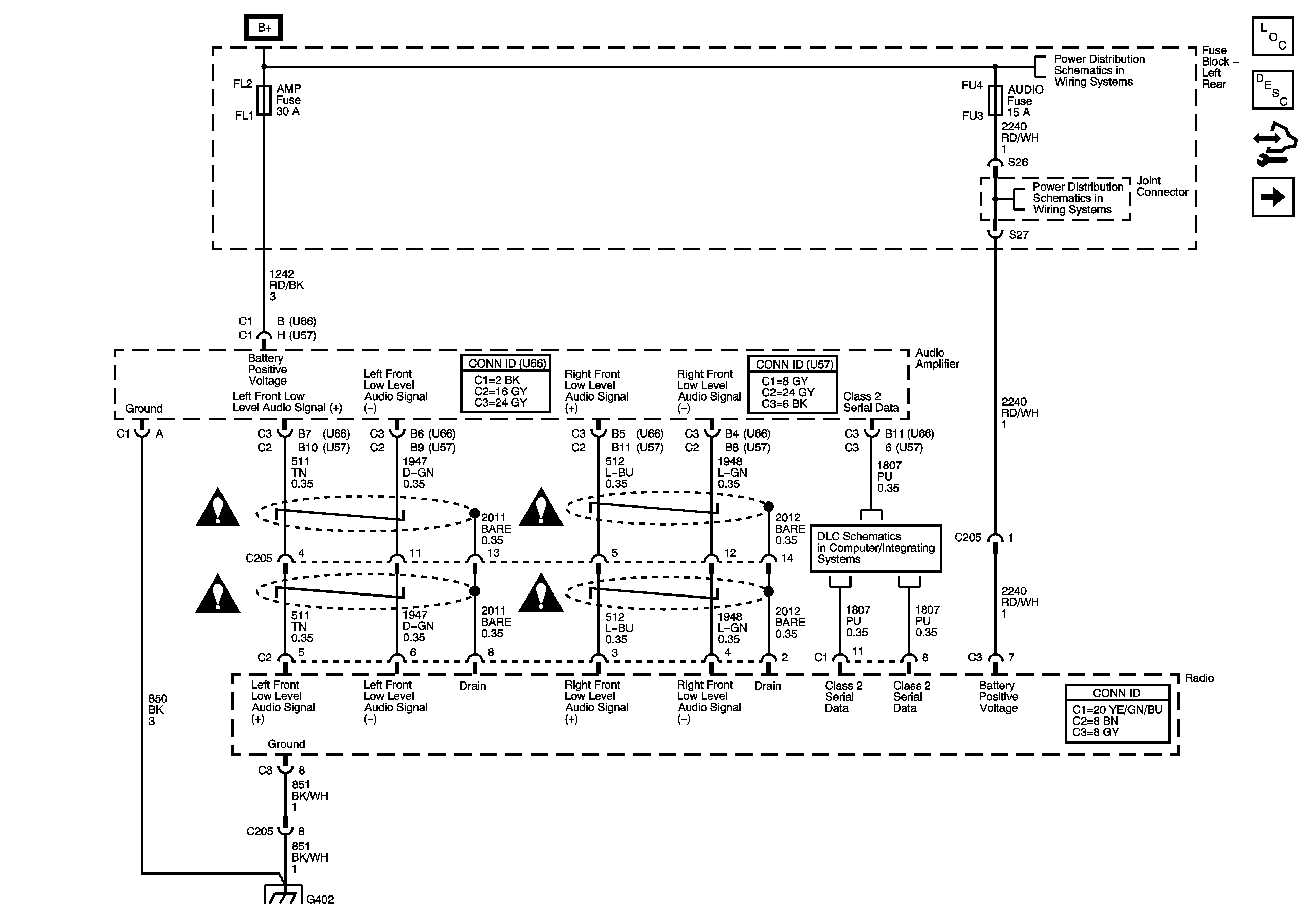

Figure 1:	Radio and Audio Amplifier (U2R/U2S) Master Electrical Component List Radio/Audio System Description and Operation Control Module References Radio and CD Changer (U2V/U2X/U2Y) Fuse Block - Left Rear B+ Bus AMP, AUDIO, DRIVER DR MOD, ELC COMP, L FRT HTD SEAT MOD, MEM/ADAPT SEAT, and REAR DR MOD Fuses Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Class 2 Serial Data - 1 of 2 G402 - 1 of 2

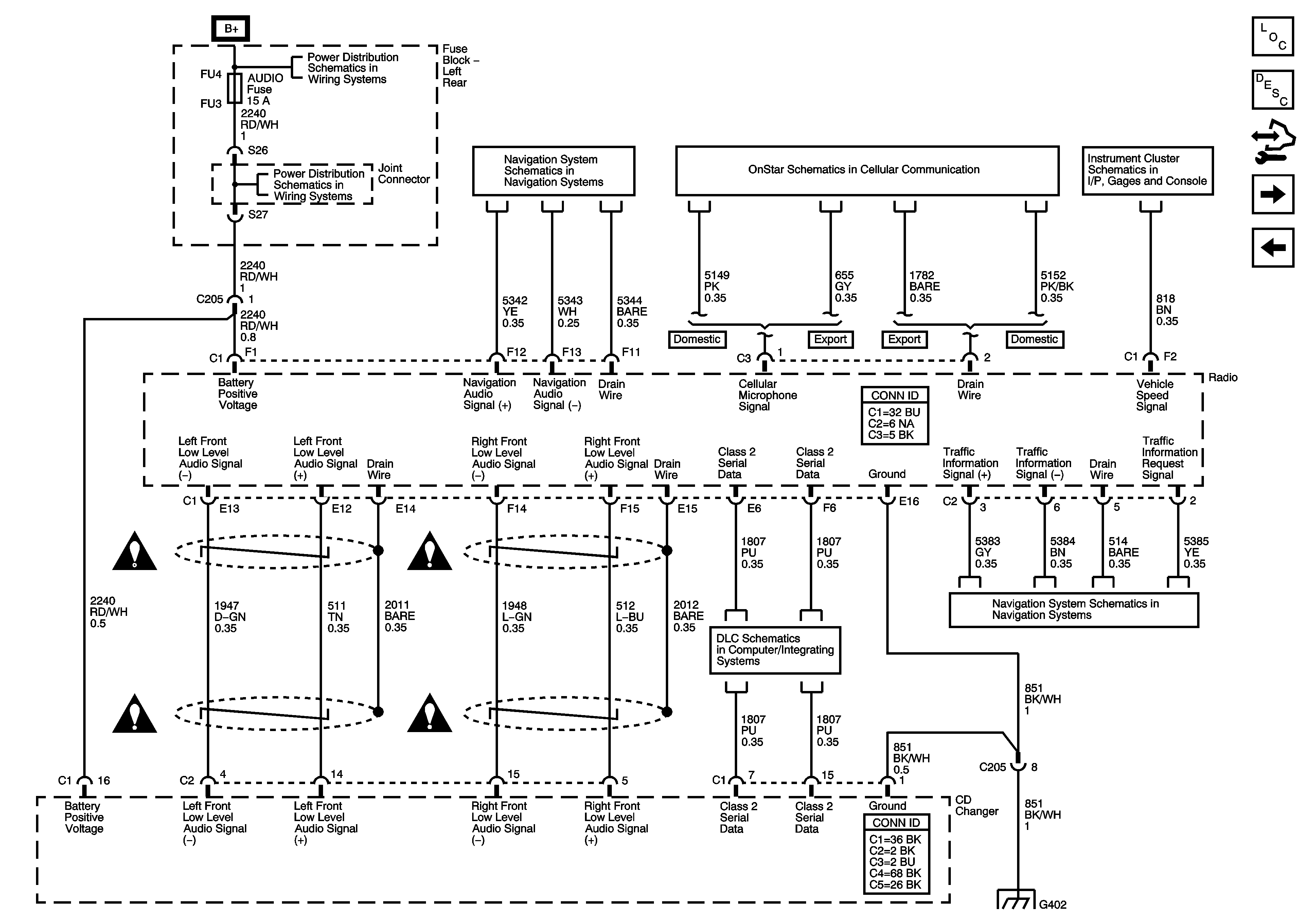

Figure 2:	Radio and CD Changer (U2V/U2X/U2Y) Master Electrical Component List Radio/Audio System Description and Operation Control Module References CD Changer to Audio Amplifier (U2V/U2X/U2Y) Radio and Audio Amplifier (U2R/U2S) Fuse Block - Left Rear B+ Bus AMP, AUDIO, DRIVER DR MOD, ELC COMP, L FRT HTD SEAT MOD, MEM/ADAPT SEAT, and REAR DR MOD Fuses Navigation Controls (U2V/U2X/U2Y) Onstar Schematic Gages Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Class 2 Serial Data - 1 of 2 Traffic Information Receiver (U2X) G402 - 1 of 2
Figure 3:	CD Changer to Audio Amplifier (U2V/U2X/U2Y) Master Electrical Component List Radio/Audio System Description and Operation Control Module References Speaker (U66) Radio and CD Changer (U2V/U2X/U2Y) Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons

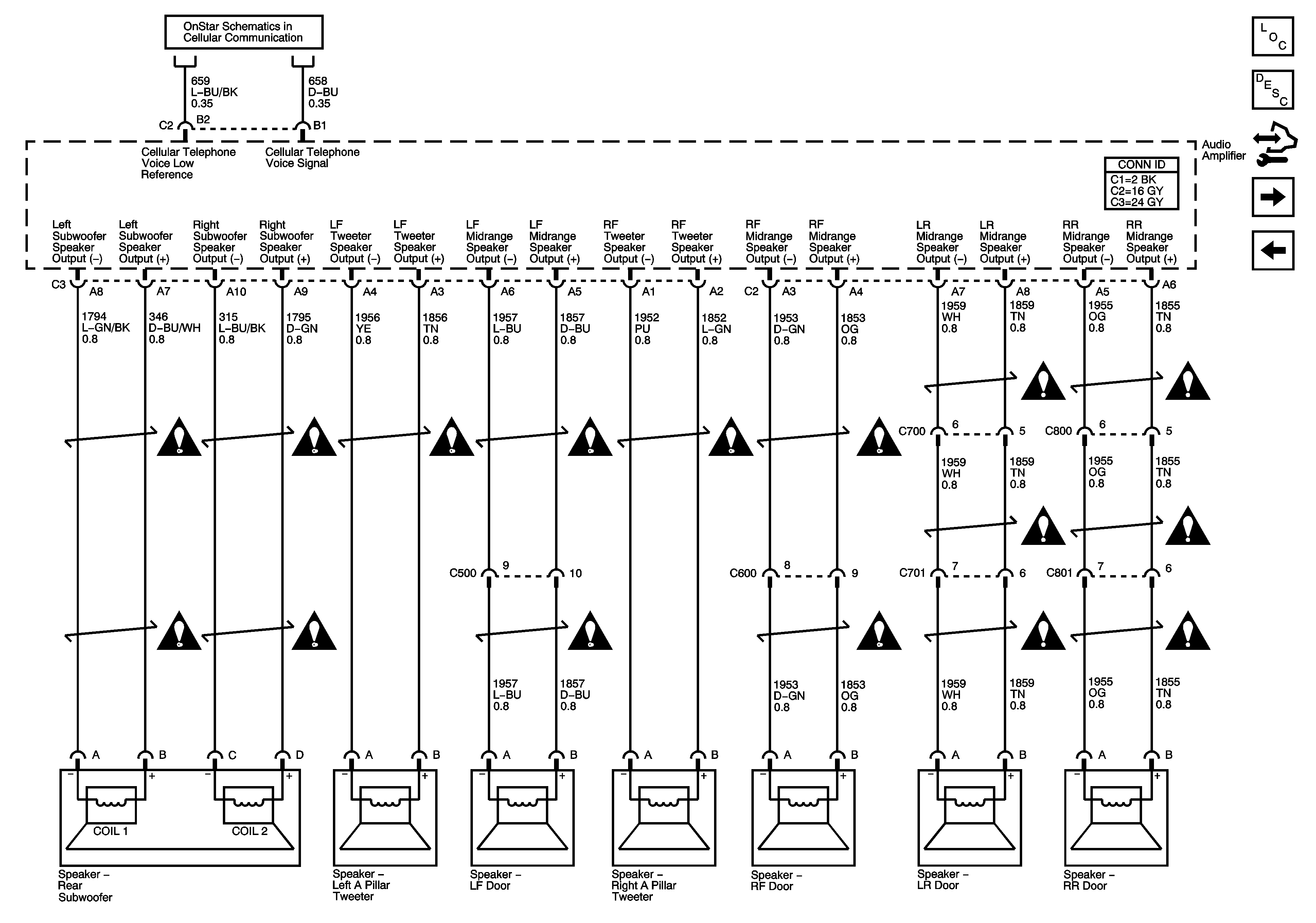

Figure 4:	Speakers (U66) Master Electrical Component List Radio/Audio System Description and Operation Control Module References Speaker (U57) CD Changer to Audio Amplifier (U2V/U2X/U2Y) Onstar Schematic Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons

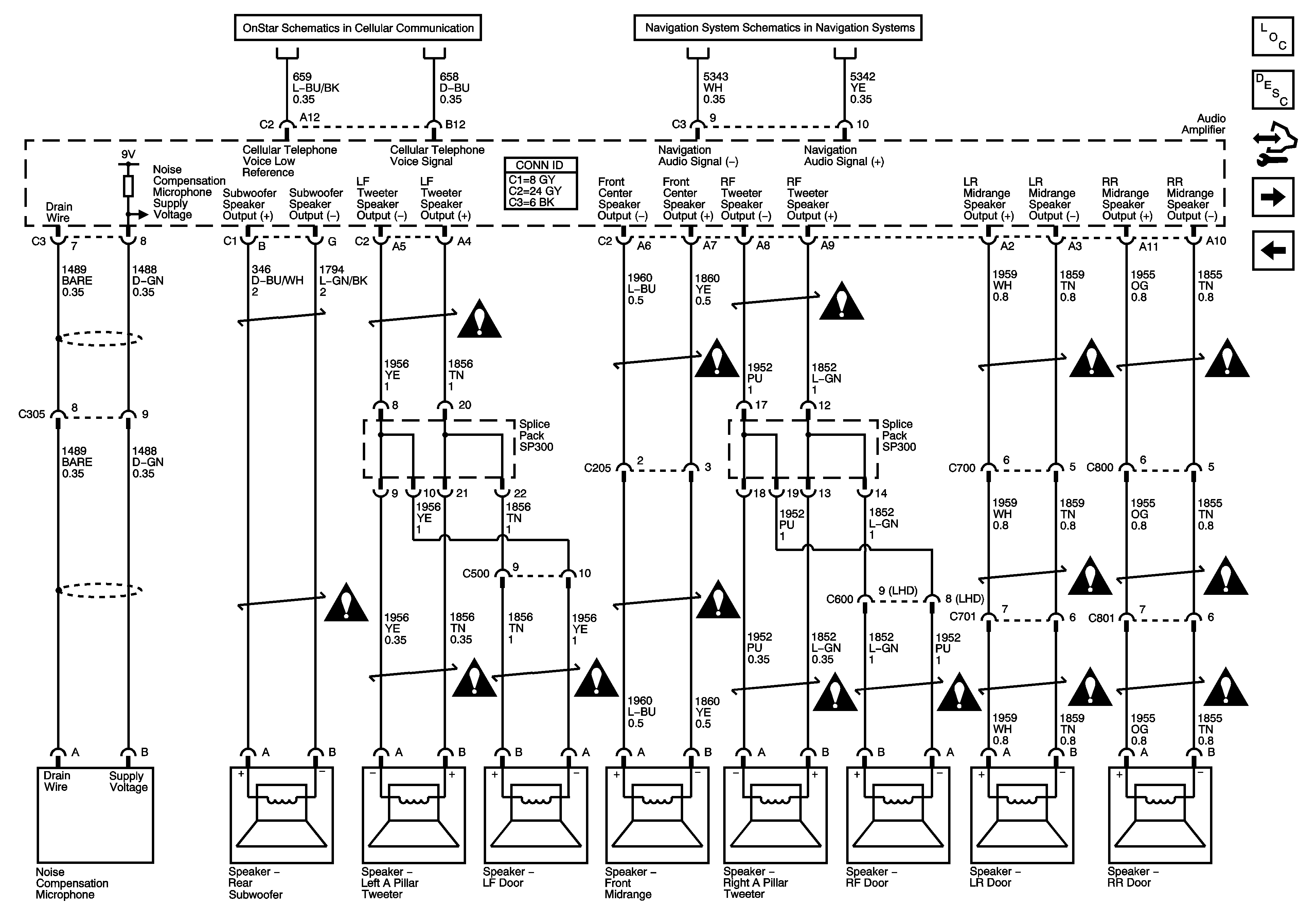

Figure 5:	Speakers (U57) Master Electrical Component List Radio/Audio System Description and Operation Control Module References Radio Antenna Speaker (U66) Onstar Schematic Navigation Controls (U2V/U2X/U2Y) Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons

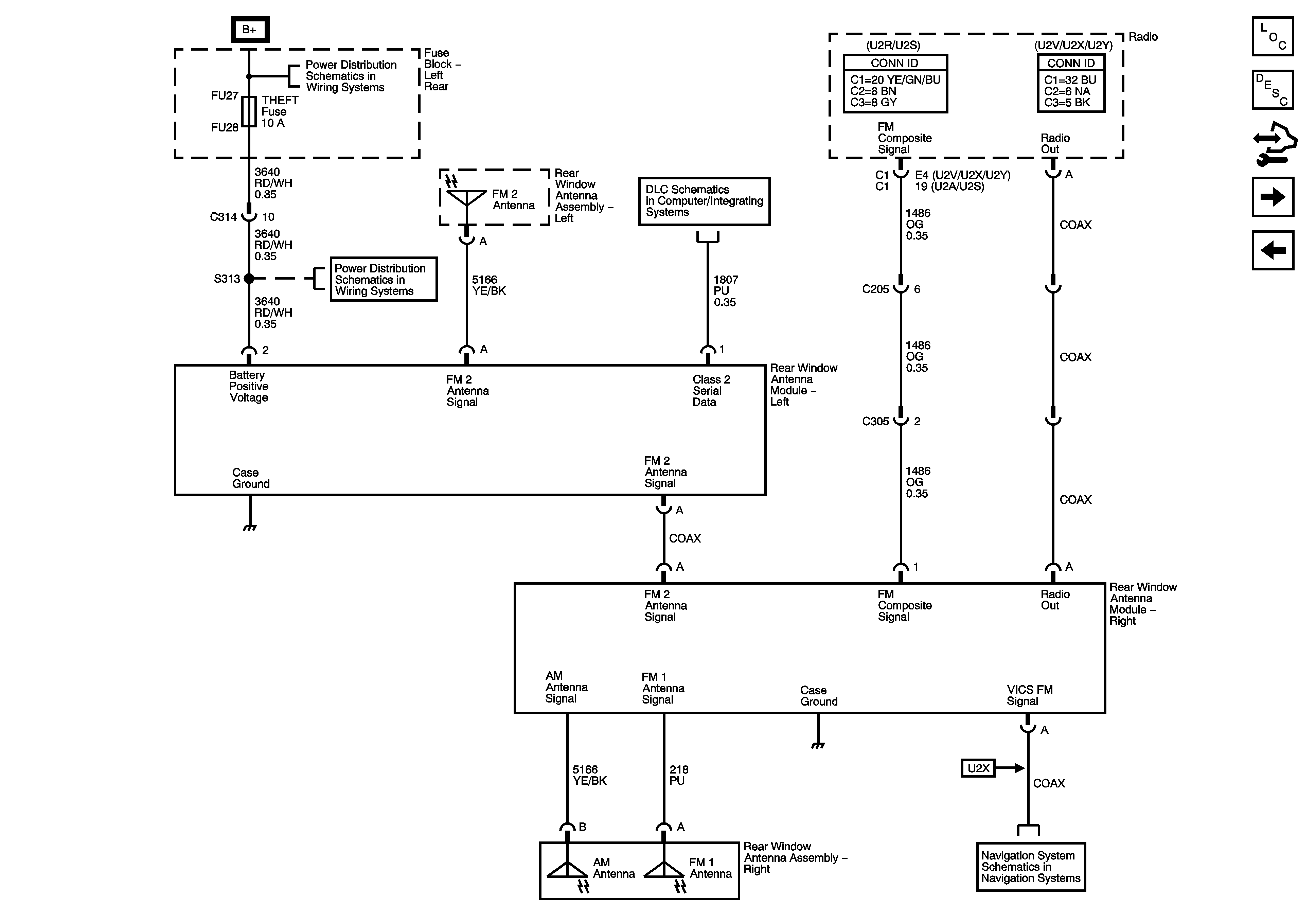

Figure 6:	Radio Antenna Master Electrical Component List Radio/Audio System Description and Operation Control Module References Digital Radio (U2K) Speaker (U57) Fuse Block - Left Rear B+ Bus FFSM, FFS SW, and THEFT Fuses and SEAT Circuit Breaker Class 2 Serial Data - 2 of 2 Traffic Information Receiver (U2X)

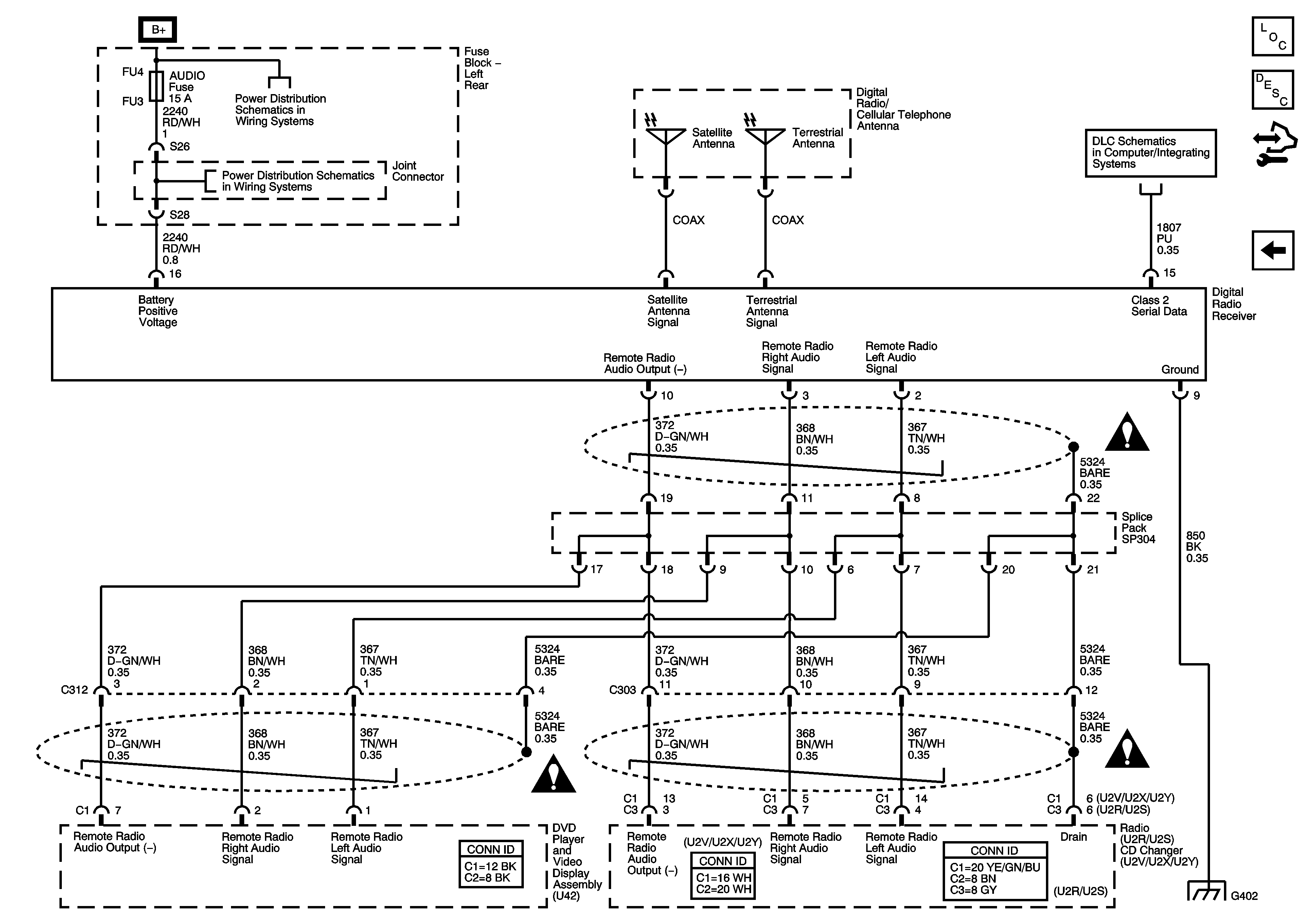

Figure 7:	Digital Radio (U2K) Master Electrical Component List Radio/Audio System Description and Operation Control Module References Radio Antenna Fuse Block - Underhood B+ Bus Schematic AMP, AUDIO, DRIVER DR MOD, ELC COMP, L FRT HTD SEAT MOD, MEM/ADAPT SEAT, and REAR DR MOD Fuses Class 2 Serial Data - 1 of 2 Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons G402 - 1 of 2
