Makes 🢒 Cadillac 🢒 2005 🢒 SRX 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 5L40-E/5L50-E 🢒 Antilock Brake System Component Views
Figure 1:

Pedal Switches and Sensors
Object Number: 1488592 Size: LF
(1)Park Brake Switch
(2)Brake Pedal Position Sensor
(3)Accelerator Pedal Position (APP) Sensor
(4)Left Front Floor Panel
Figure 2:

Right Front of Vehicle Near the Right Front Wheel
Object Number: 1276483 Size: LF
(1)EBCM Connector Lock
(2)Electronic Brake Control Module (EBCM)
(3)EBCM Connector Position Assurance Retainer
(4)EBCM Connector
(5)Brake Pressure Modulator Valve (BPMV)
(6)Brake Fluid Pressure Sensor
(7)Brake Fluid Pressure Sensor Connector
Figure 3:

Steering Wheel Position Sensor
Object Number: 1381386 Size: MF
(1)Steering Angle Sensor
(2)Steering Column
Figure 4:

Traction Control Switch
Object Number: 1384714 Size: MF
(1)Traction Control Switch
(2)Console
Figure 5:

Wheel Speed Sensors
Object Number: 1384464 Size: LF
(1)Suspension Damper - LR (F55)
(2)Suspension Position Sensor Extension Harness Connector - LR (F55)
(3)Suspension Position Sensor - LR (F55)
(4)Wheel Speed Sensor (WSS) - LR
(5)Suspension Damper - LF (F55)
(6)Suspension Position Sensor - LF (F55)
(7)Wheel Speed Sensor (WSS) - LF (RF Similar)
(8)Suspension Damper - RR (F55)
(9)Wheel Speed Sensor (WSS) - RR
(10)Suspension Position Sensor - RR (F55)
Figure 6:

Left Front of Vehicle Near the Wheel
Object Number: 1276484 Size: LF
(1)Wheel Speed Sensor - Left Front (Right Front Side Similar)
Figure 7:

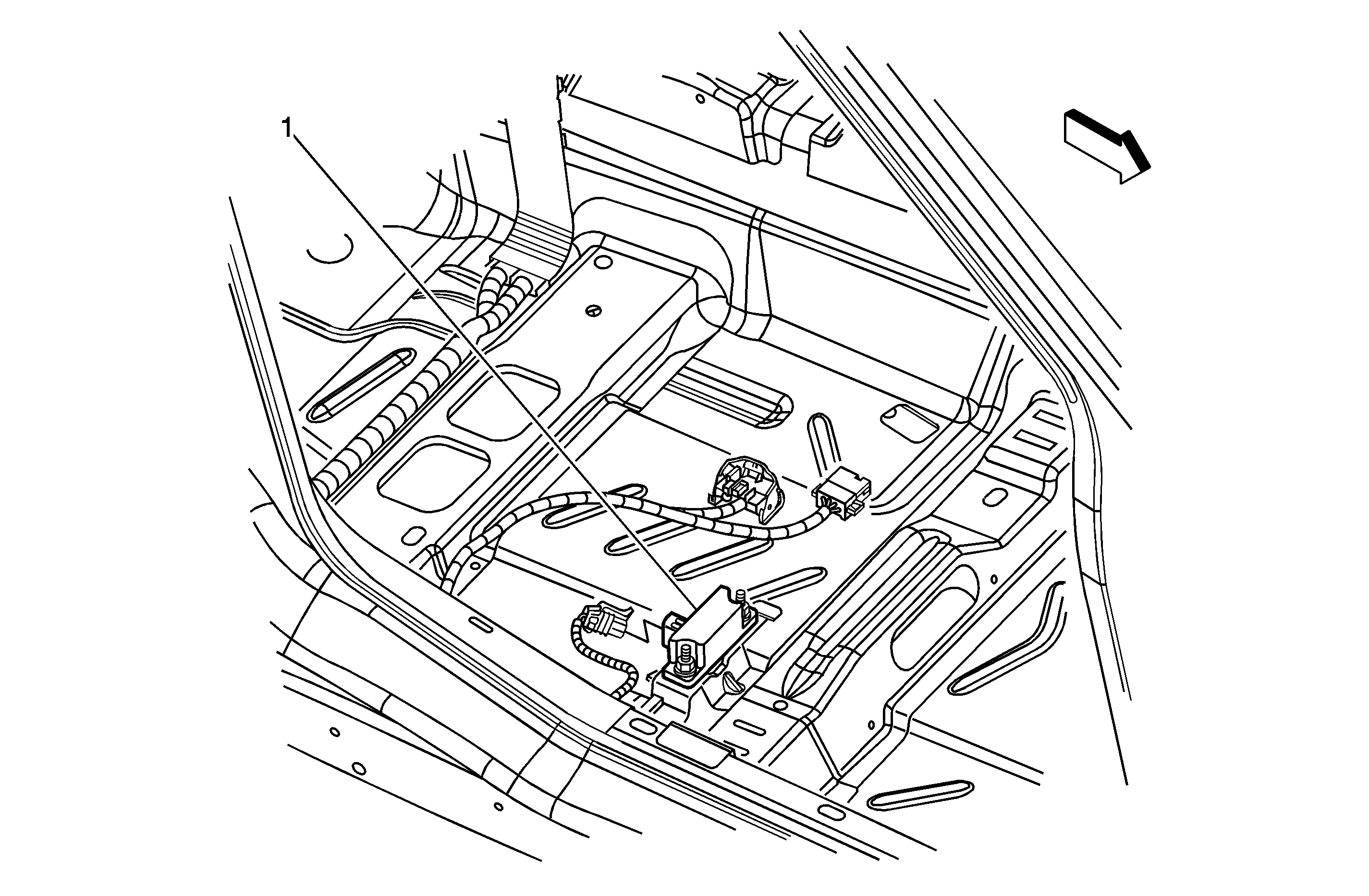

Under the Front Passenger Seat
Object Number: 1545525 Size: MF
(1)Yaw and Lateral/Longitudinal Acdeleration Sensor
