Engine Electrical Component Views LHD

Figure 1:

Under Intake Manifold (LH2)
Object Number: 1379627 Size: LF
(1)Knock Sensor (KS) 1
(2)Crankshaft Position (CKP) Sensor
(3)Starter Motor
(4)Knock Sensor (KS) 2
Figure 2:

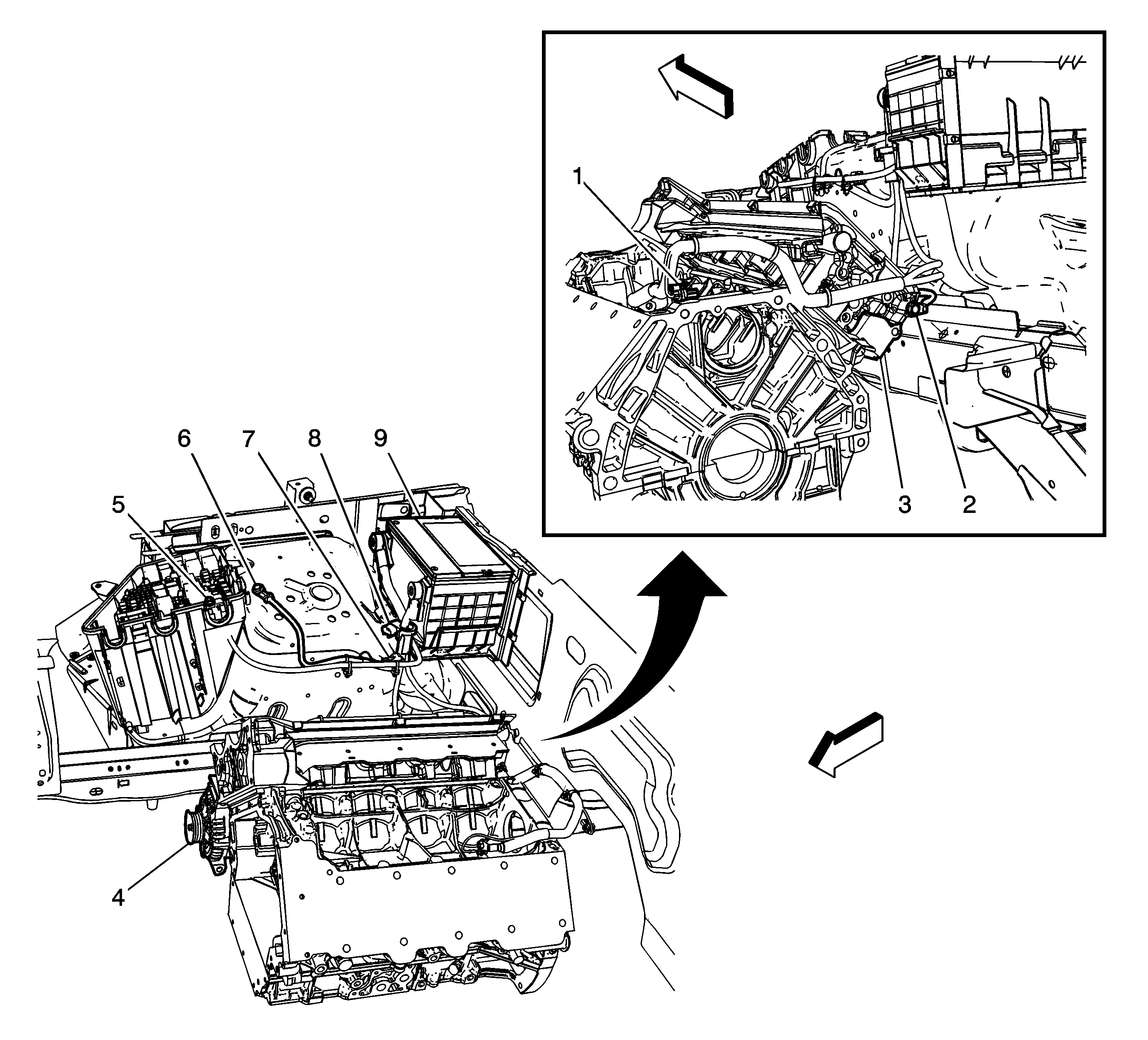

Battery Cables (LH2)
Object Number: 1828284 Size: LF
(1)C107
(2)G102
(3)Cylinder Head - RH
(4)Generator
(5)Battery Positive Voltage (Stud)
(6)G105
(7)C103
(8)Battery Current Sensor
(9)Battery
Figure 3:

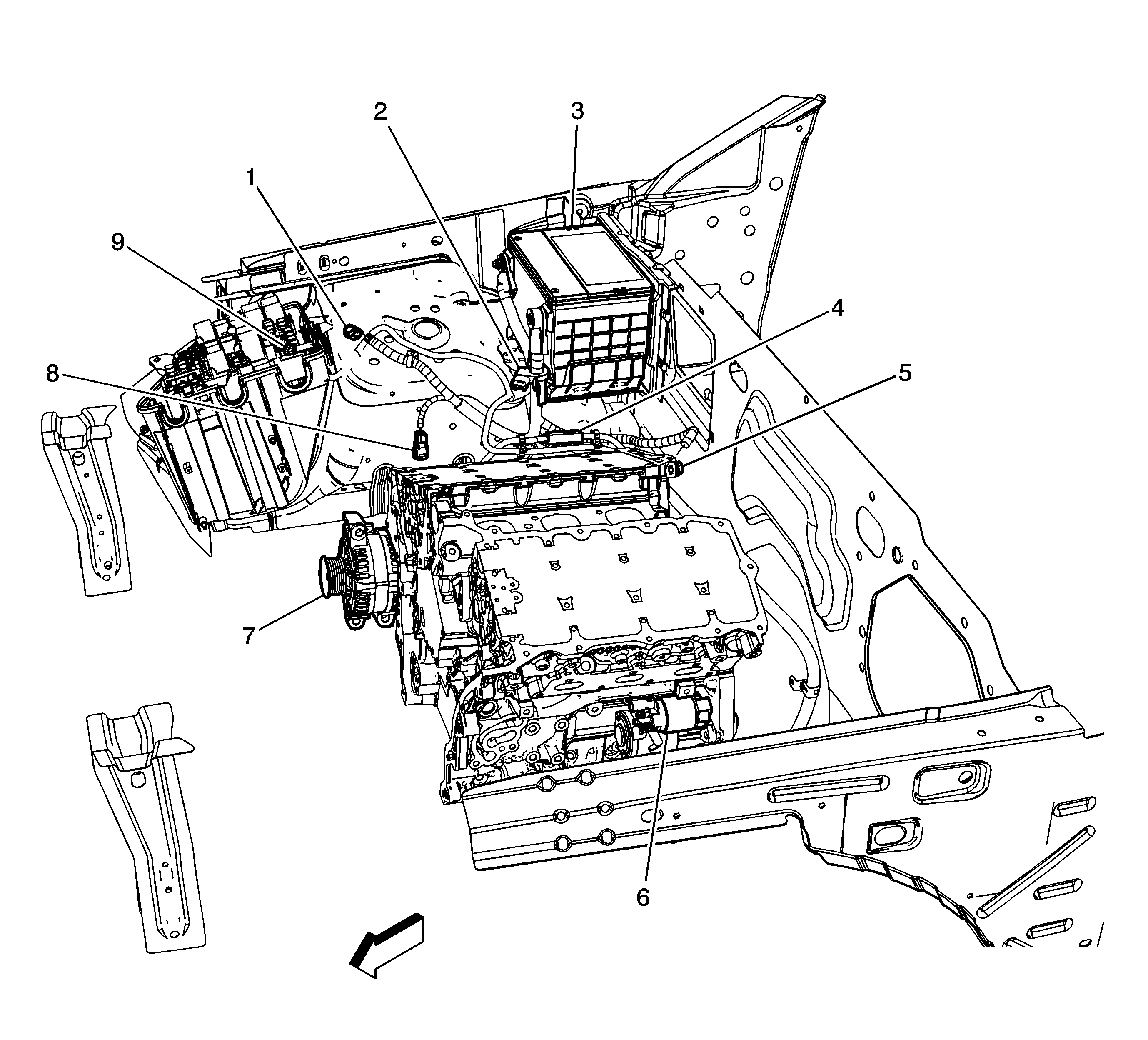

Battery Cables (LY7)
Object Number: 1828281 Size: LF
(1)G105
(2)Battery Current Sensor
(3)Battery
(4)Mega Fuse (200A)
(5)G102
(6)Starter
(7)Generator
(8)C103
(9)Battery Positive Voltage (Stud)

Engine Electrical Component Views RHD

Figure 1:

Under Intake Manifold (LH2)
Object Number: 1379627 Size: LF
(1)Knock Sensor (KS) 1
(2)Crankshaft Position (CKP) Sensor
(3)Starter Motor
(4)Knock Sensor (KS) 2
Figure 2:

Engine Electrical Components - LY7
Object Number: 1855968 Size: LF
(1)G102
(2)Battery
(3)C103
(4)G105
(5)Starter
(6)Positive Battery Cable
(7)Generator
(8)Fuse Block - Underhood Positive Voltage Studs
Figure 3:

Engine Electrical Components - LH2
Object Number: 1855758 Size: LF
(1)Starter
(2)C107
(3)Battery
(4)G105
(5)Battery Current Sensor
(6)G102
(7)C103
(8)Generator
(9)Fuse Block - Underhood Positive Voltage Studs
