Radio/Navigation System Schematics. Cadillac SRX 2007

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2007 🢒 SRX 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Radio/Navigation System Schematics

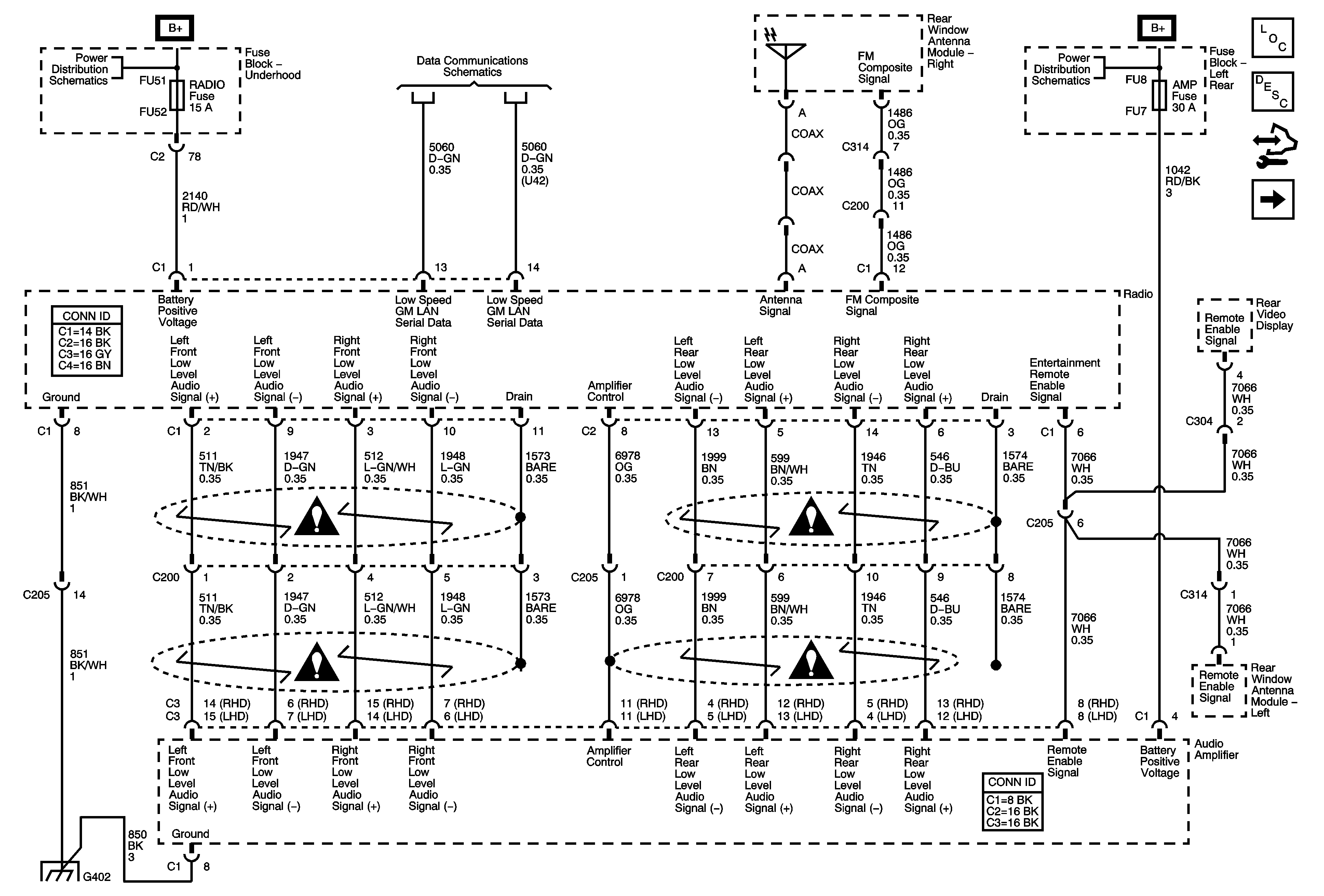

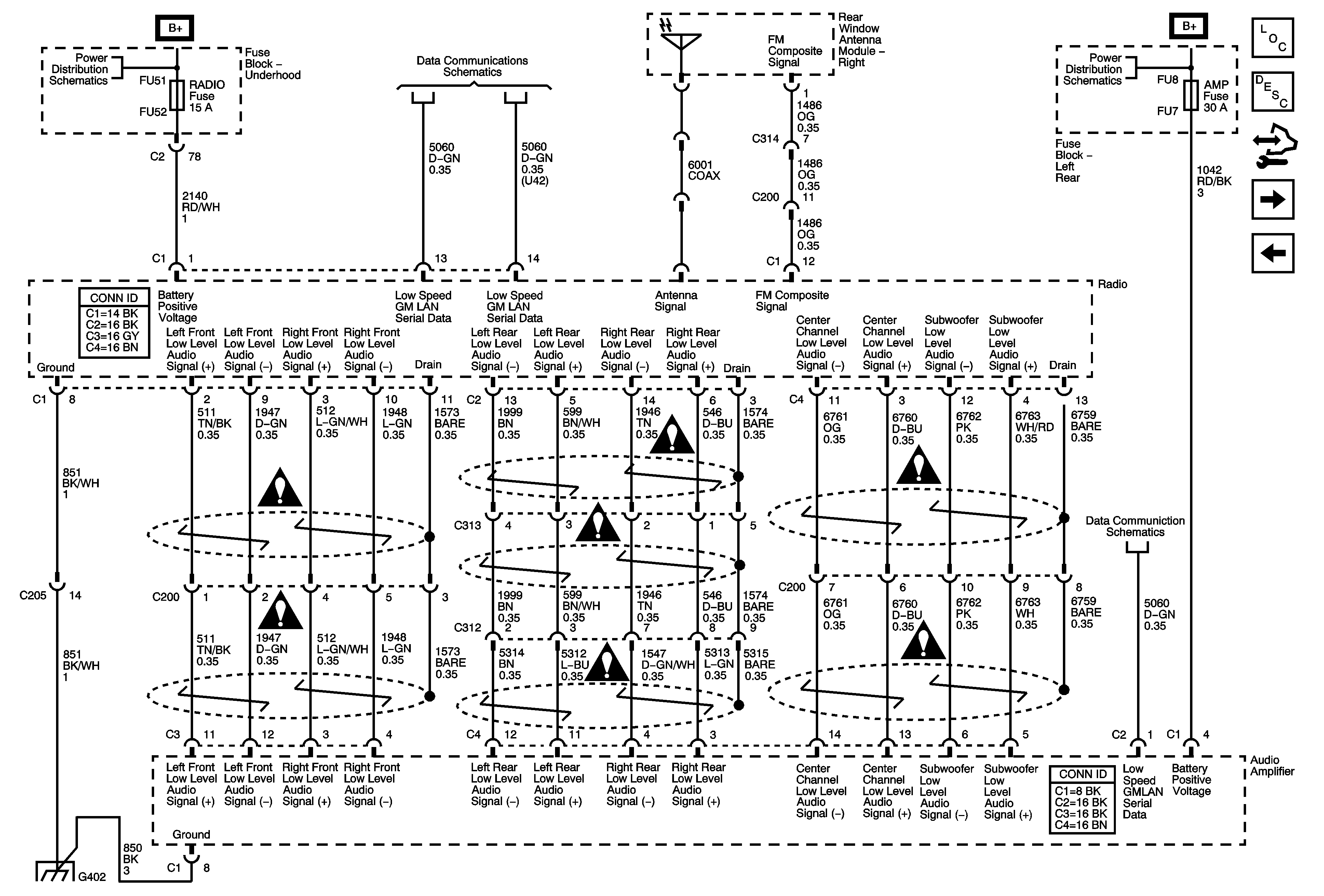

Figure 1:	Radio and Amplifier Power, Ground, and Communication (UQA) Master Electrical Component List Radio/Audio System Description and Operation Control Module References Radio and Amplifier Power, Ground, and Communication (UQS w/o U42) Underhood Fuse Block B+ Bus - 1 of 2 Low Speed GMLAN Serial Data 1 of 2 Left Rear Fuse Block B+ Bus Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons G402 (1 of 2)

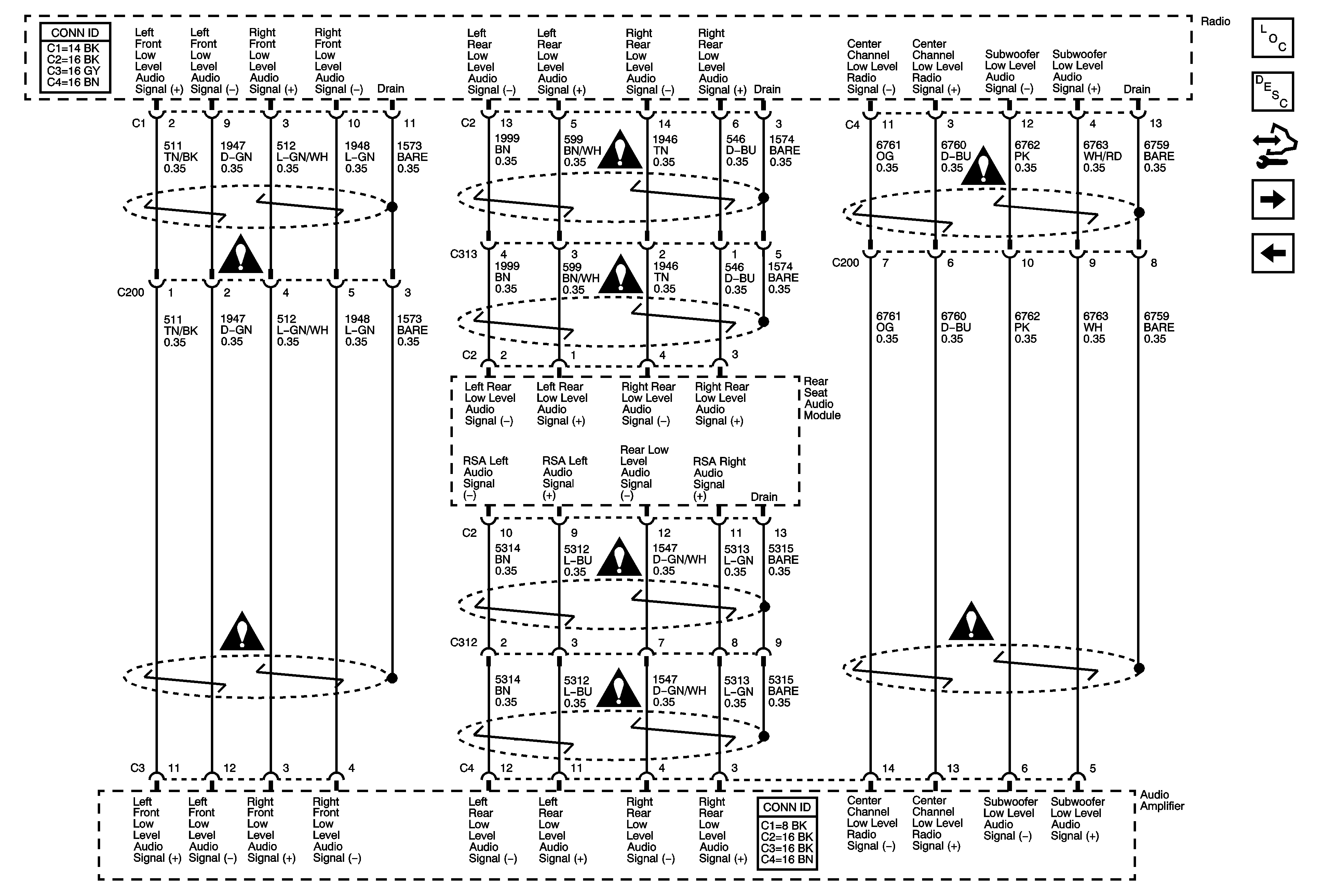

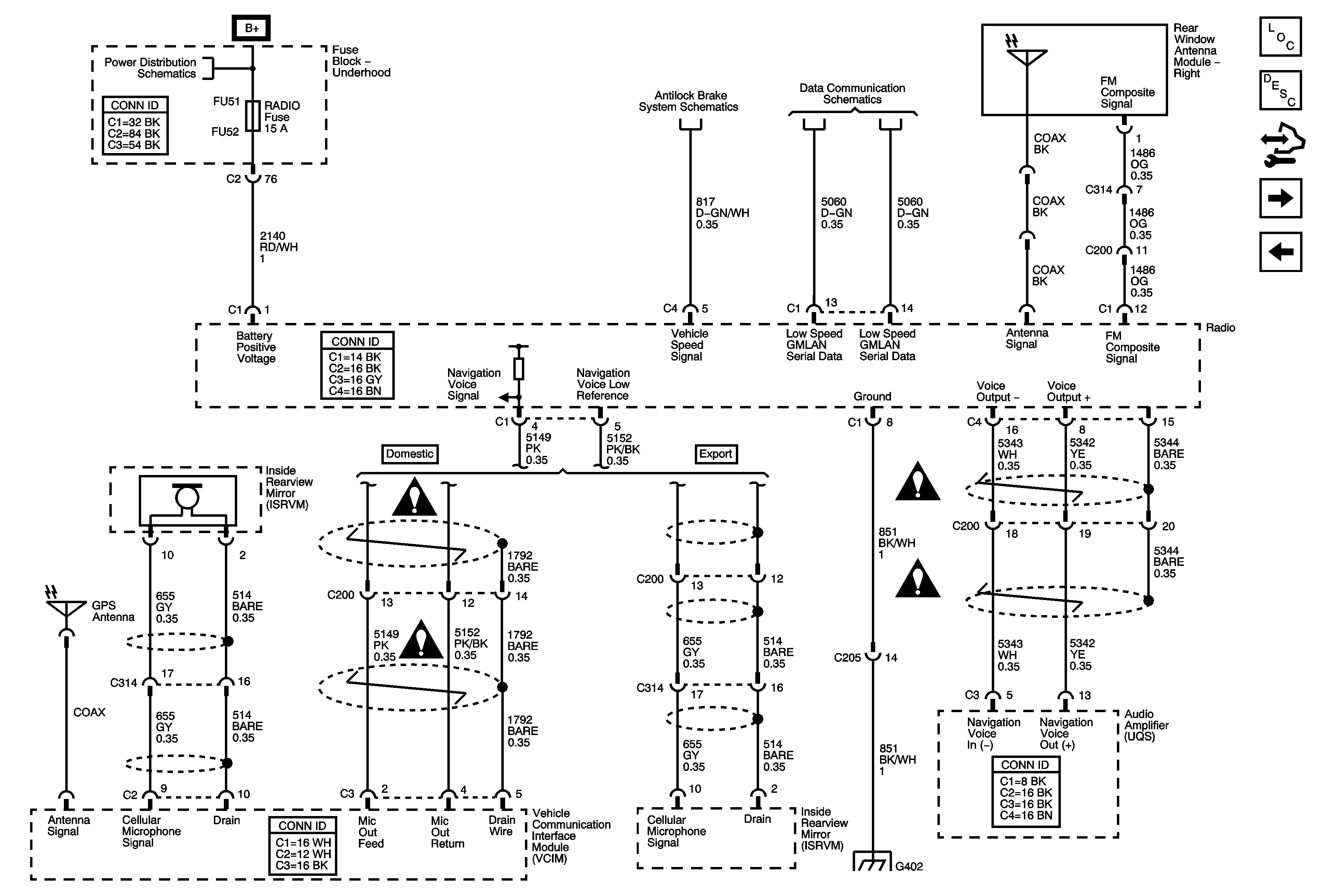

Figure 2:	Radio and Amplifier Power, Ground, and Communication (UQS w/o U42) Master Electrical Component List Radio/Audio System Description and Operation Control Module References Radio and Amplifier Power, Ground, and Communication (UQS w/ U42) Radio and Amplifier Power, Ground, and Communication (UQA) Underhood Fuse Block B+ Bus - 1 of 2 Low Speed GMLAN Serial Data 1 of 2 Left Rear Fuse Block B+ Bus Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Low Speed GMLAN Serial Data 1 of 2 G402 (1 of 2)

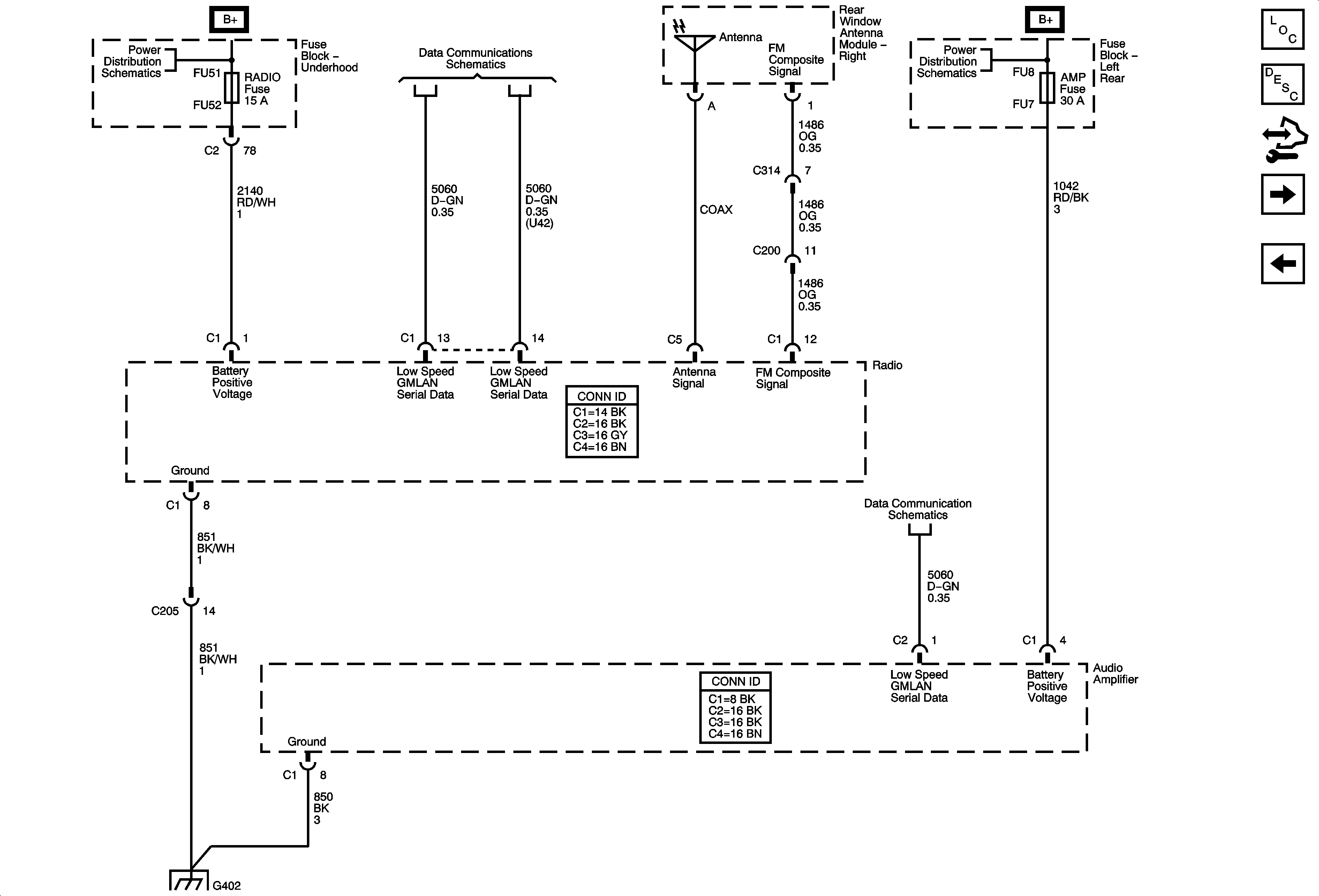

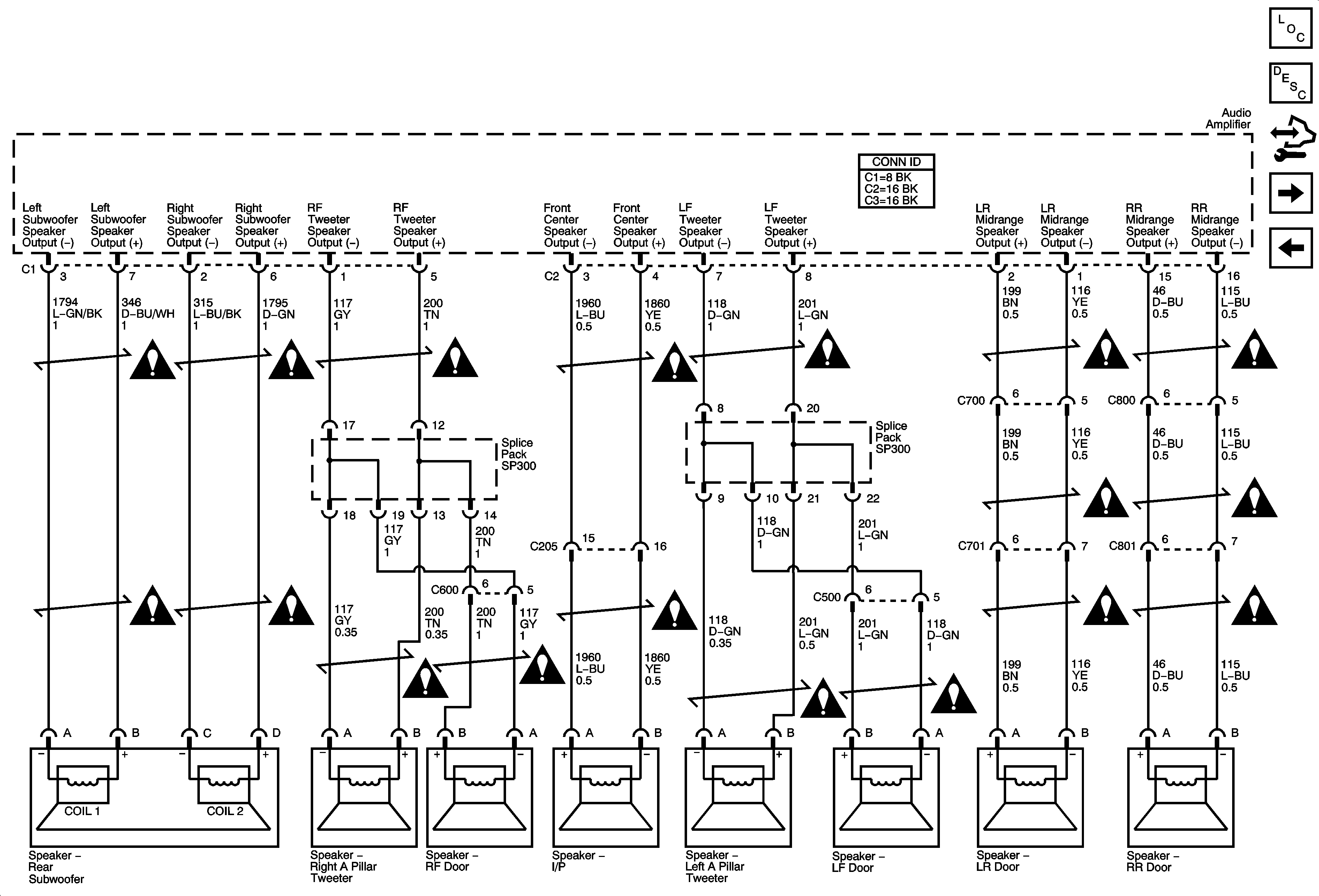

Figure 3:	Radio, Amplifier, Power, Ground, and Communication (UQS w/U42) Master Electrical Component List Radio/Audio System Description and Operation Control Module References Radio, Amplifier and Rear Seat Audio Module Signals (UQS w/ U42) Radio and Amplifier Power, Ground, and Communication (UQS w/o U42) Underhood Fuse Block B+ Bus - 1 of 2 Low Speed GMLAN Serial Data 1 of 2 Left Rear Fuse Block B+ Bus Low Speed GMLAN Serial Data 1 of 2 G402 (1 of 2)

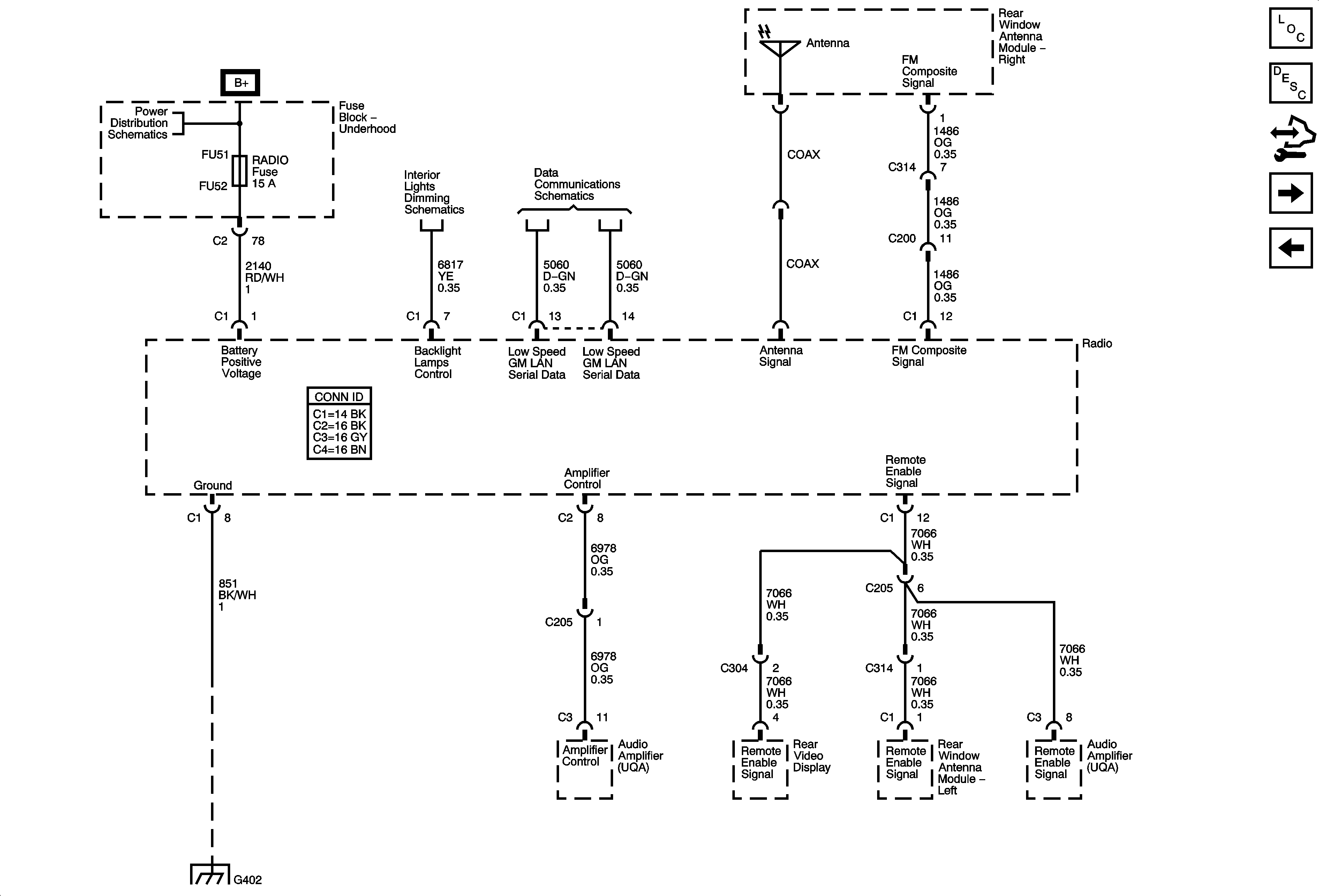

Figure 4:	Radio, Amplifier, and Rear Seat Audio Module Signals (UQS w/U42) Master Electrical Component List Radio/Audio System Description and Operation Control Module References Speakers (LHD w/UQA) Radio and Amplifier Power, Ground, and Communication (UQS w/ U42) Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons

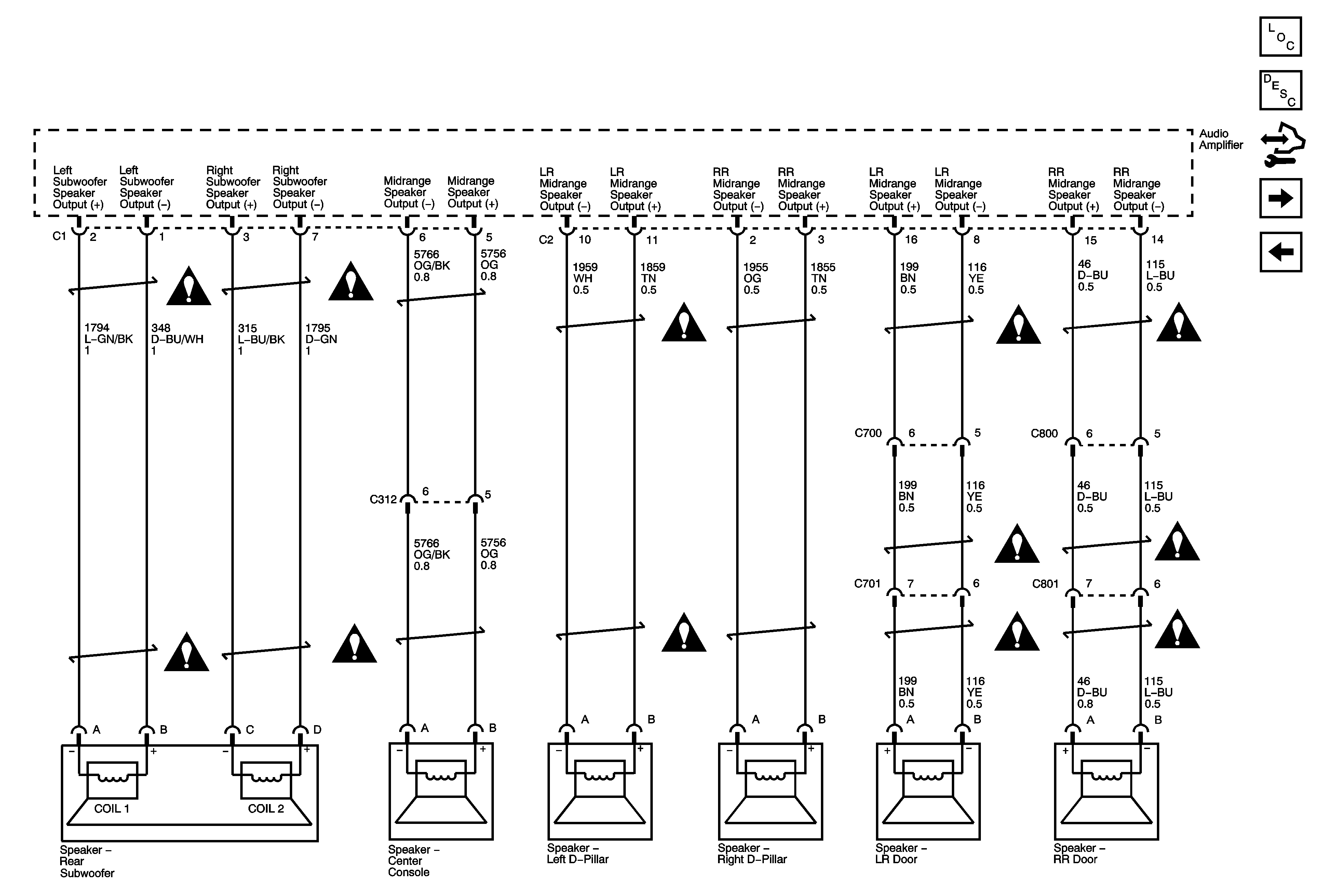

Figure 5:	Speakers (LHD w/UQA) Master Electrical Component List Radio/Audio System Description and Operation Control Module References Speakers (UQA) - (RHD) Radio, Amplifier and Rear Seat Audio Module Signals (UQS w/ U42) OnStar Schematics Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons
Figure 6:	Speakers (UQA) - (RHD) Master Electrical Component List Radio/Audio System Description and Operation Control Module References Subwoofer and Rear Speakers (UQS) Speakers (LHD w/UQA) Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons

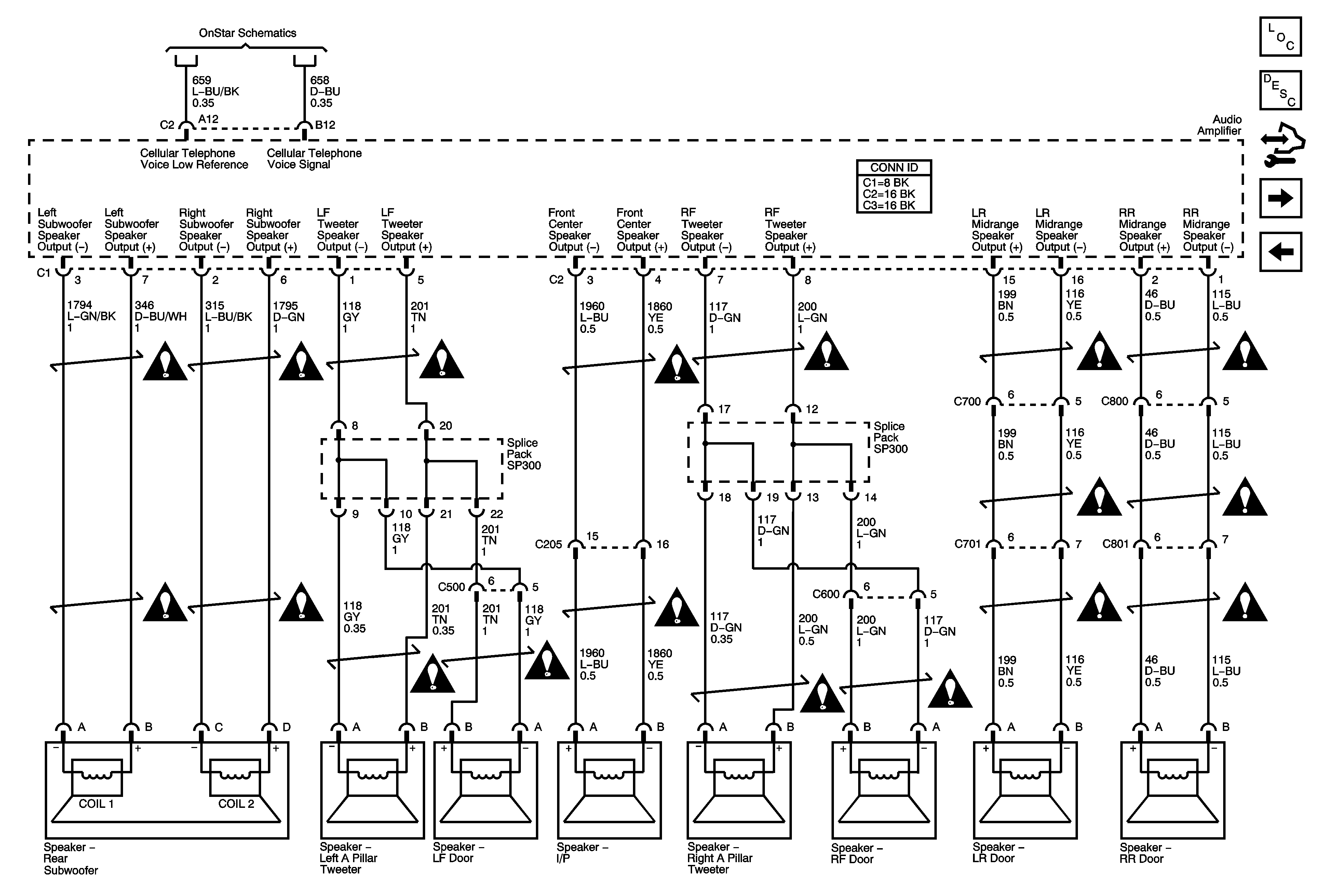

Figure 7:	Subwoofer and Rear Speakers (UQS) Master Electrical Component List Radio/Audio System Description and Operation Control Module References Noise Compensation Microphone and Front Speakers (UQS) Speakers (UQA) - (RHD) Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons

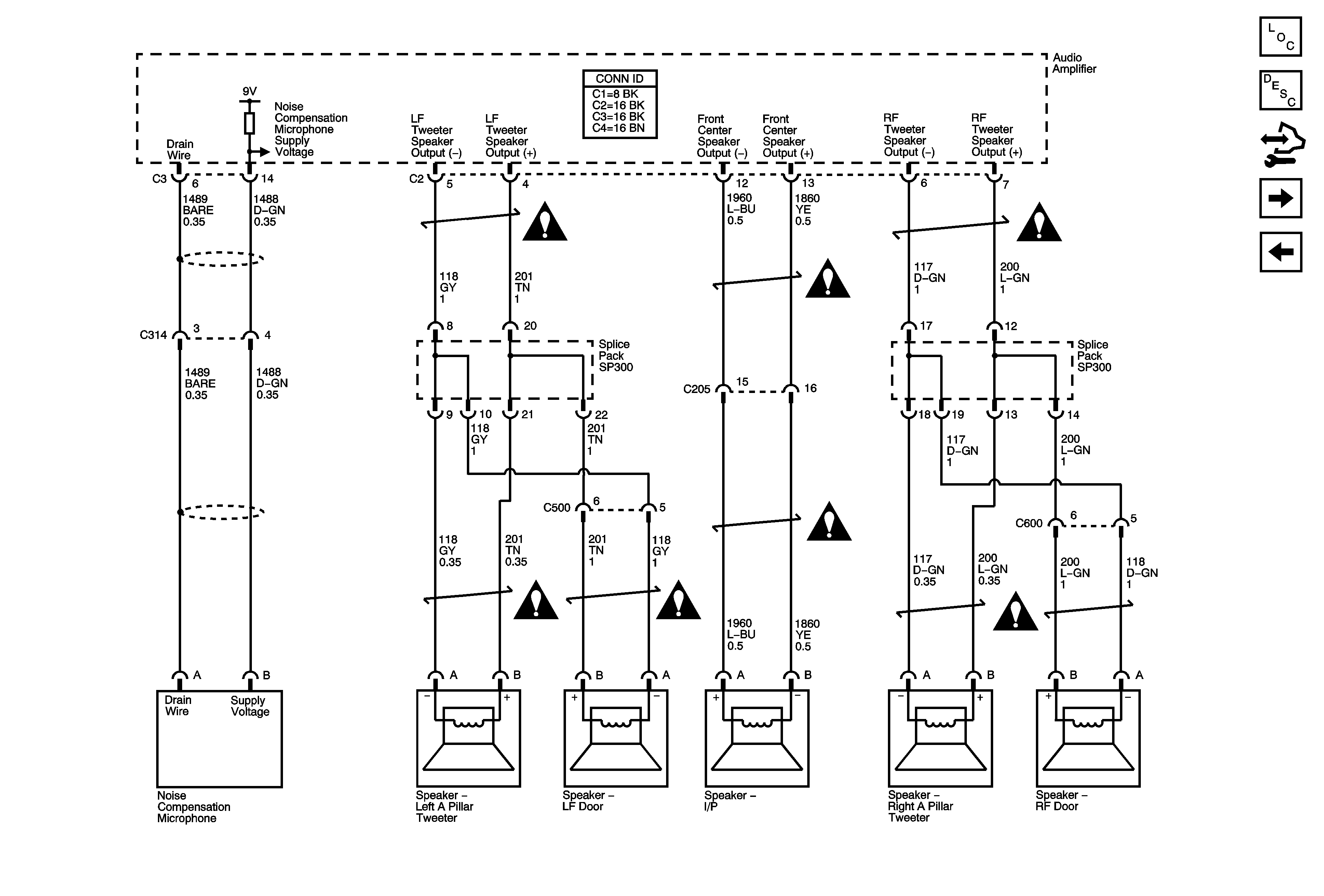

Figure 8:	Noise Compensation Microphone and Front Speakers (UQS) Master Electrical Component List Radio/Audio System Description and Operation Control Module References Antenna Signals Subwoofer and Rear Speakers (UQS) Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons
Figure 9:	Antenna Signals Master Electrical Component List Radio/Audio System Description and Operation Control Module References Radio Power, Ground, and Communication (UQA) Noise Compensation Microphone and Front Speakers (UQS) Rear Video Display (U42) Radio and Amplifier Power, Ground, and Communication (UQA) Traffic Information Receiver (U2X)
Figure 10:	Radio Power, Ground, and Communication (UQA) Master Electrical Component List Radio/Audio System Description and Operation Control Module References Traffic Information Receiver (U2X) Antenna Signals Underhood Fuse Block B+ Bus - 1 of 2 Interior Lamps Dimming Controls Low Speed GMLAN Serial Data 1 of 2 G402 (1 of 2)

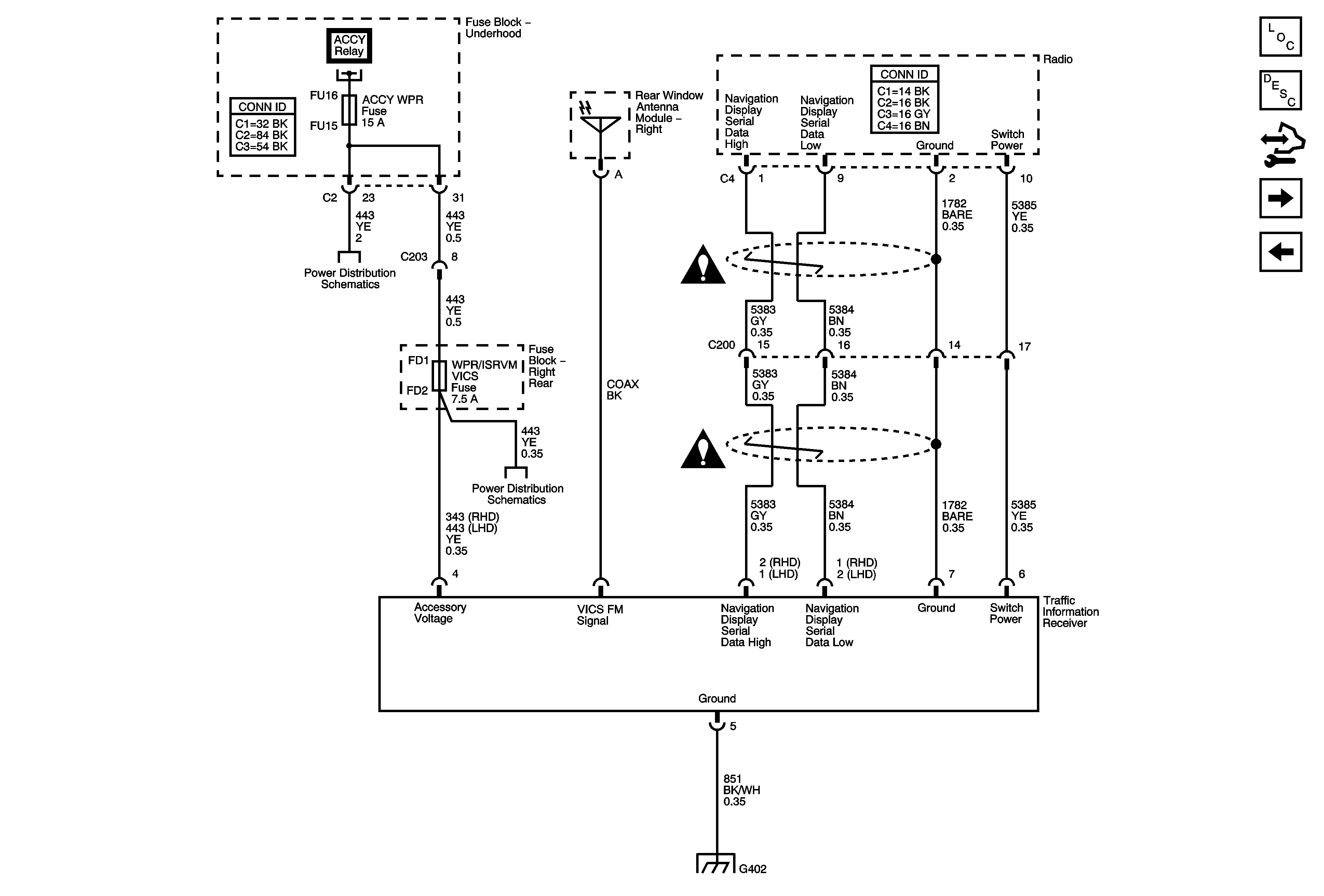

Figure 11:	Traffic Information Receiver (U2X) Master Electrical Component List Radio/Audio System Description and Operation Control Module References Digital Radio Receiver (U2K) Radio Power, Ground, and Communication (UQA) Power Modes - ACCY and RAP ABS MOTOR Fuse, ACCY Relay, ACCY WPR Fuse, and TRLR BT Fuse Entertainment/Communication Schematic Icons ABS MOTOR Fuse, ACCY Relay, ACCY WPR Fuse, and TRLR BT Fuse Entertainment/Communication Schematic Icons G402 (1 of 2)
Figure 12:	Digital Radio Receiver (U2K) Master Electrical Component List Radio/Audio System Description and Operation Control Module References Navigation Controls (U2V/U2X/U2Y) Traffic Information Receiver (U2X) Left Rear Fuse Block B+ Bus 3RD ROW SW/RFA Fuse, AMP Fuse, ONSTAR TV/XM Fuse, RSA/RSE Fuse, and RSM Fuse Low Speed GMLAN Serial Data 2 of 2 Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons G402 (1 of 2)
Figure 13:	Navigation Controls (U2V/U2X/U2Y) Master Electrical Component List Navigation System Description and Operation Control Module References Steering Wheel Controls Digital Radio Receiver (U2K) Underhood Fuse Block B+ Bus - 1 of 2 Wheel Speed Sensors Low Speed GMLAN Serial Data 1 of 2 Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons Entertainment/Communication Schematic Icons G402 (1 of 2)
Figure 14:	Steering Wheel Controls Master Electrical Component List Radio/Audio System Description and Operation Control Module References Navigation Controls (U2V/U2X/U2Y) Cruise Control Schematics Tap Shift System Tap Shift System Entertainment/Communication Schematic Icons Low Speed GMLAN Serial Data 1 of 2
