Makes 🢒 Cadillac 🢒 2007 🢒 SRX 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Electronic Suspension Control Component Views
Figure 1:

Front Suspension Components
Object Number: 1847647 Size: LF
(1)Suspension Damper -RF (F55)
(2)Suspension Damper -LF (F55)
(3)Suspension Position Sensor -LF (F55)
(4)Suspension Position Sensor -RF (F55)

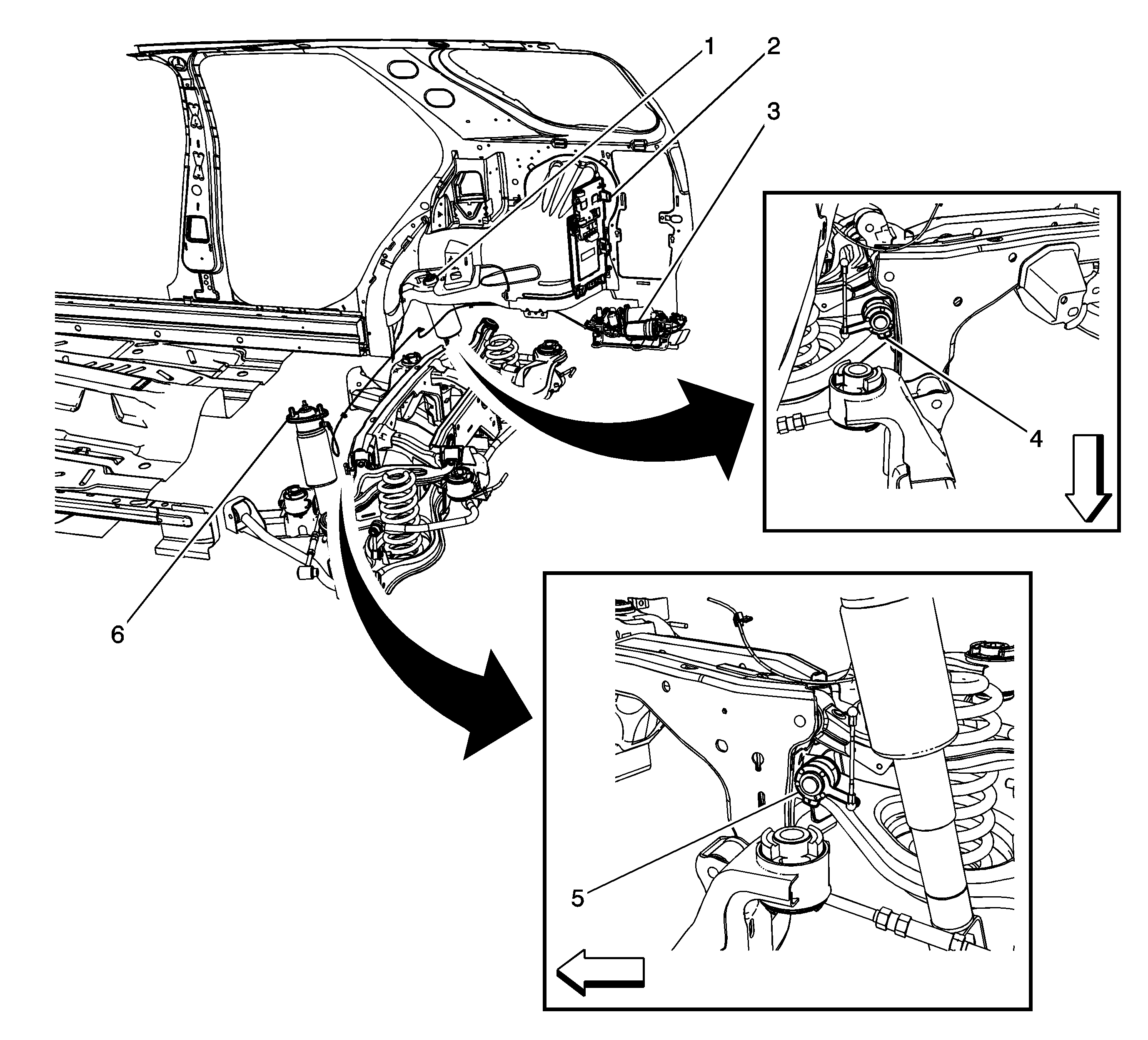

Figure 2:

Rear Suspension Components
Object Number: 1847649 Size: LF
(1)Suspension Damper - RR (F55)
(2)Electronic Suspension Control (ESC) Module (F55)
(3)Automatic Level Control (ALC) Compressor (F55)
(4)Suspension Position Sensor - RR (F55)
(5)Suspension Position Sensor - LR (F55)
(6)Suspension Damper - LR (F55)
