Ground Distribution Schematics. Cadillac SRX 2008

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2008 🢒 SRX 🢒 Engine 🢒 Engine Electrical 🢒 Ground Distribution Schematics

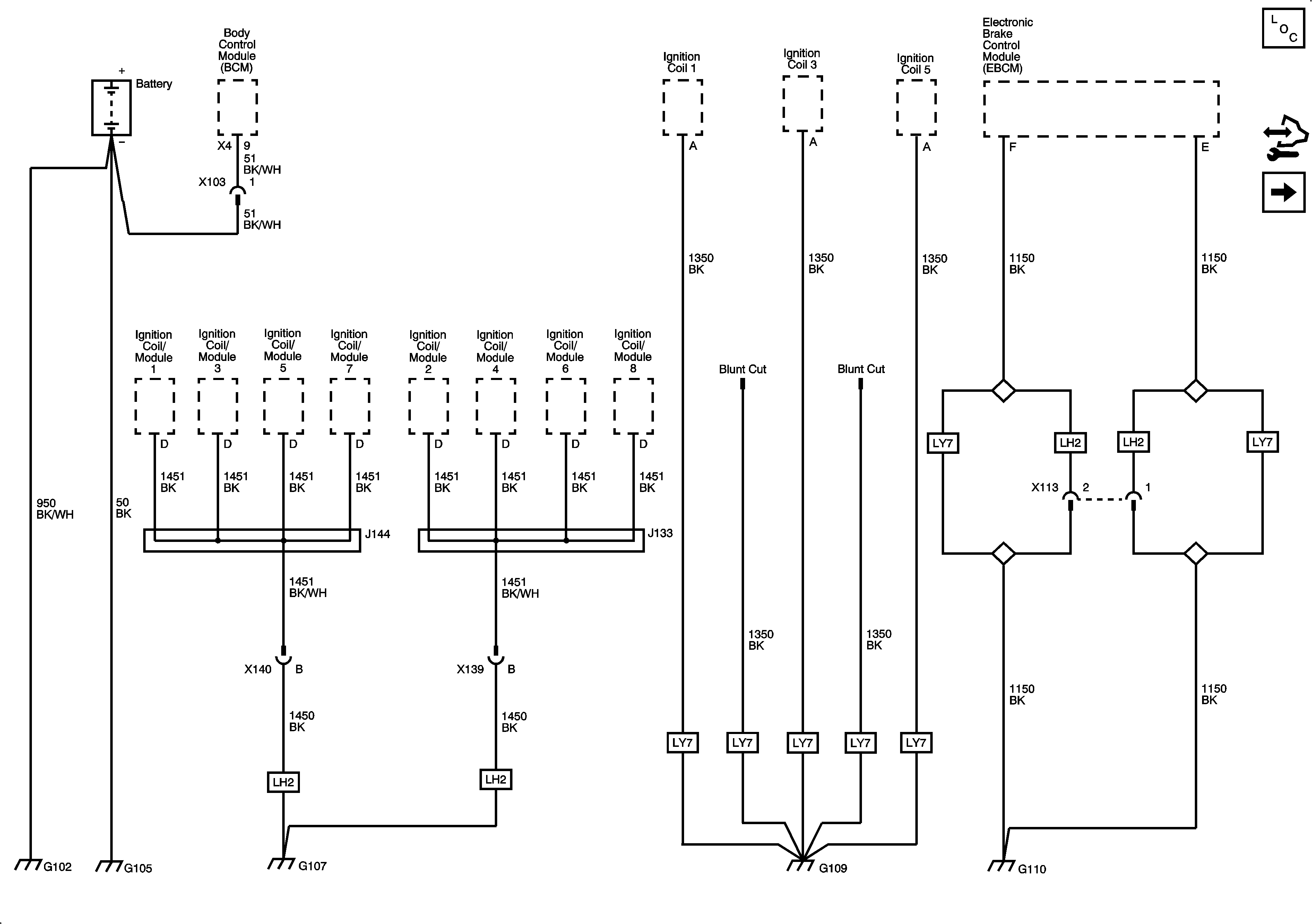

Figure 1:	G102, G105, G107, G108, G109 and G110 Master Electrical Component List Control Module References G106, G111, G306
Figure 2:	G106, G111, G306 Master Electrical Component List Control Module References G100 LH2 G102, G105, G107, G108, G109, G110

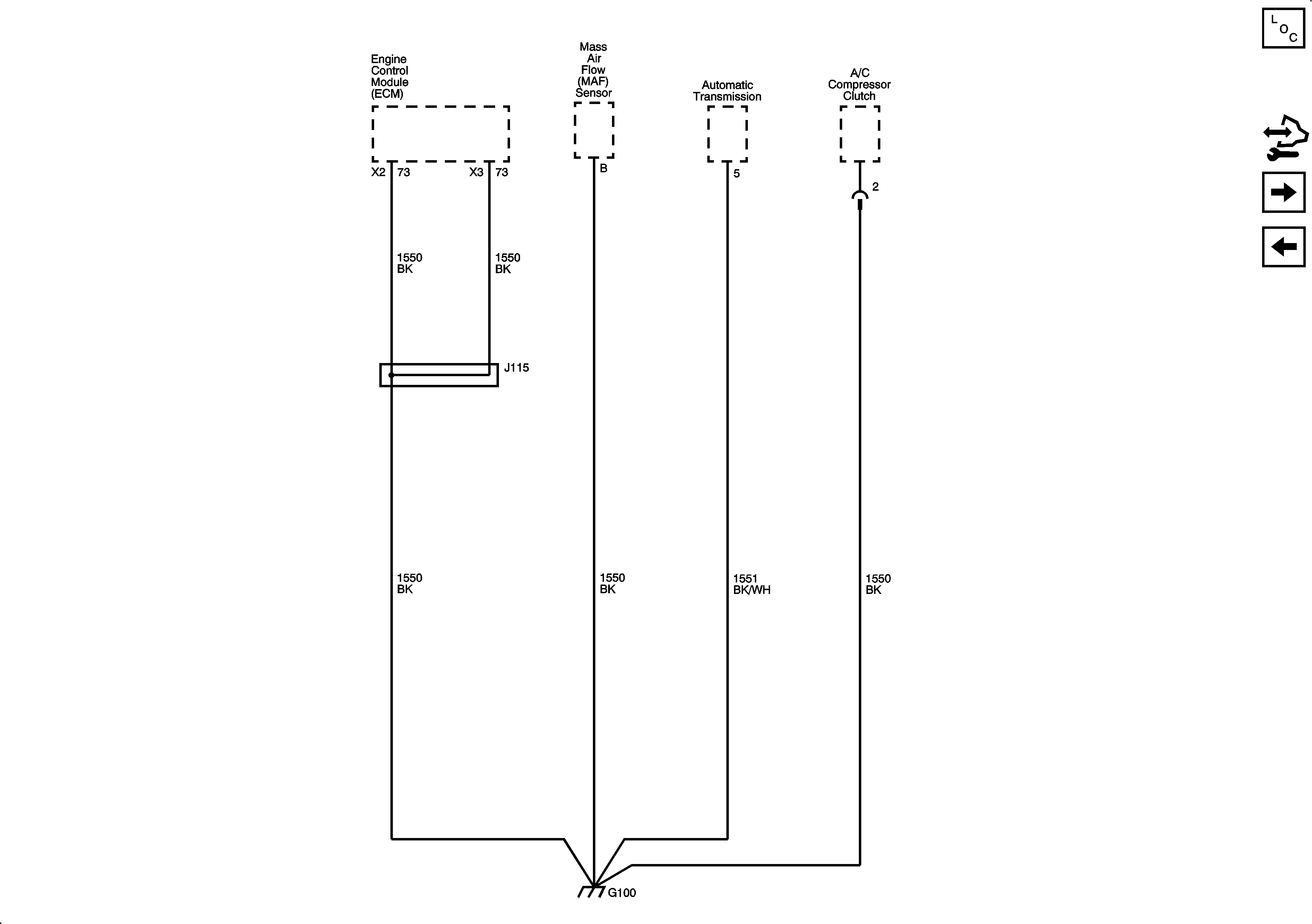

Figure 3:	G100 LH2 Master Electrical Component List Control Module References G101 G106, G111, G306

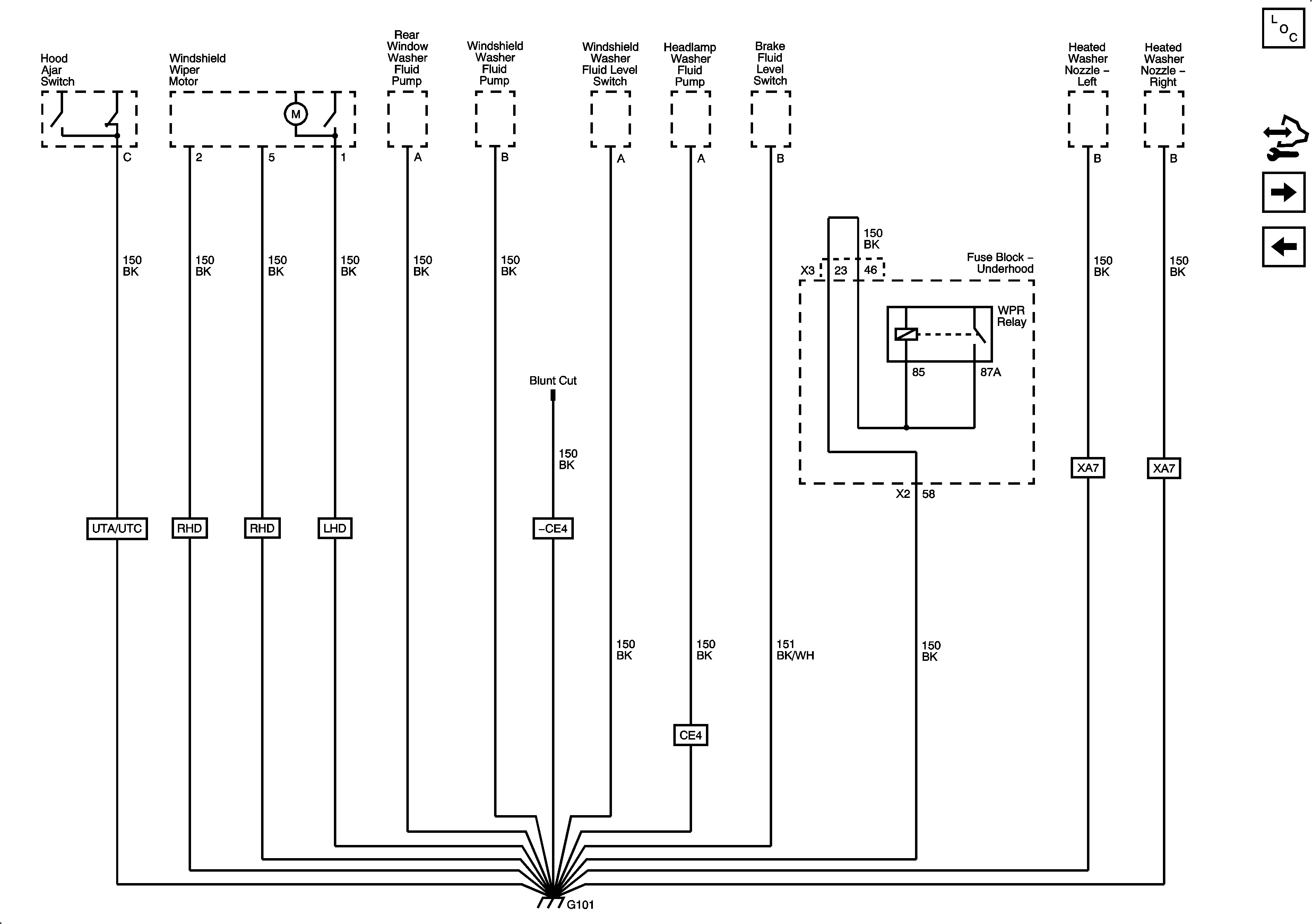

Figure 4:	G101 Master Electrical Component List Control Module References G104 1 of 2 G100 LH2

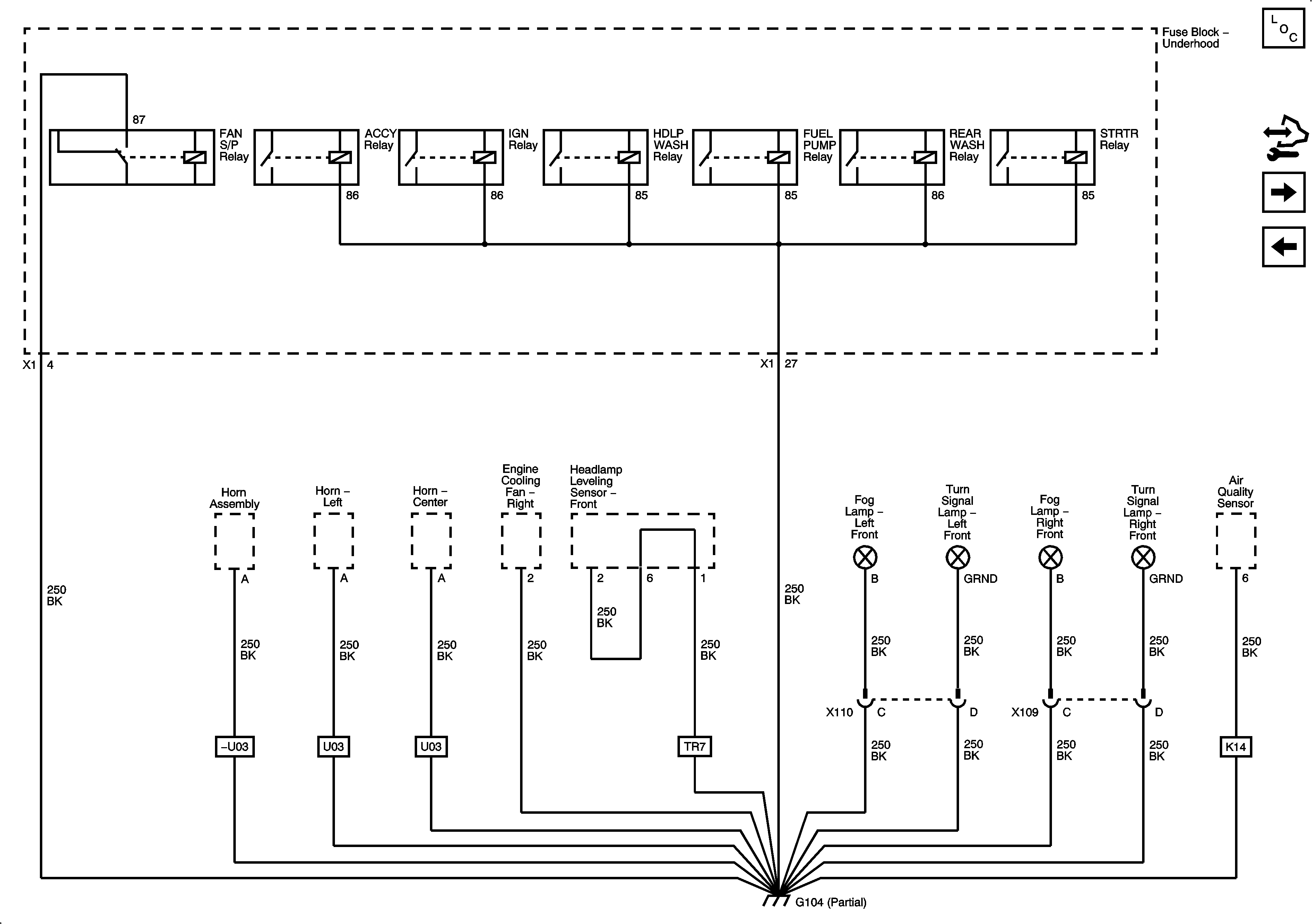

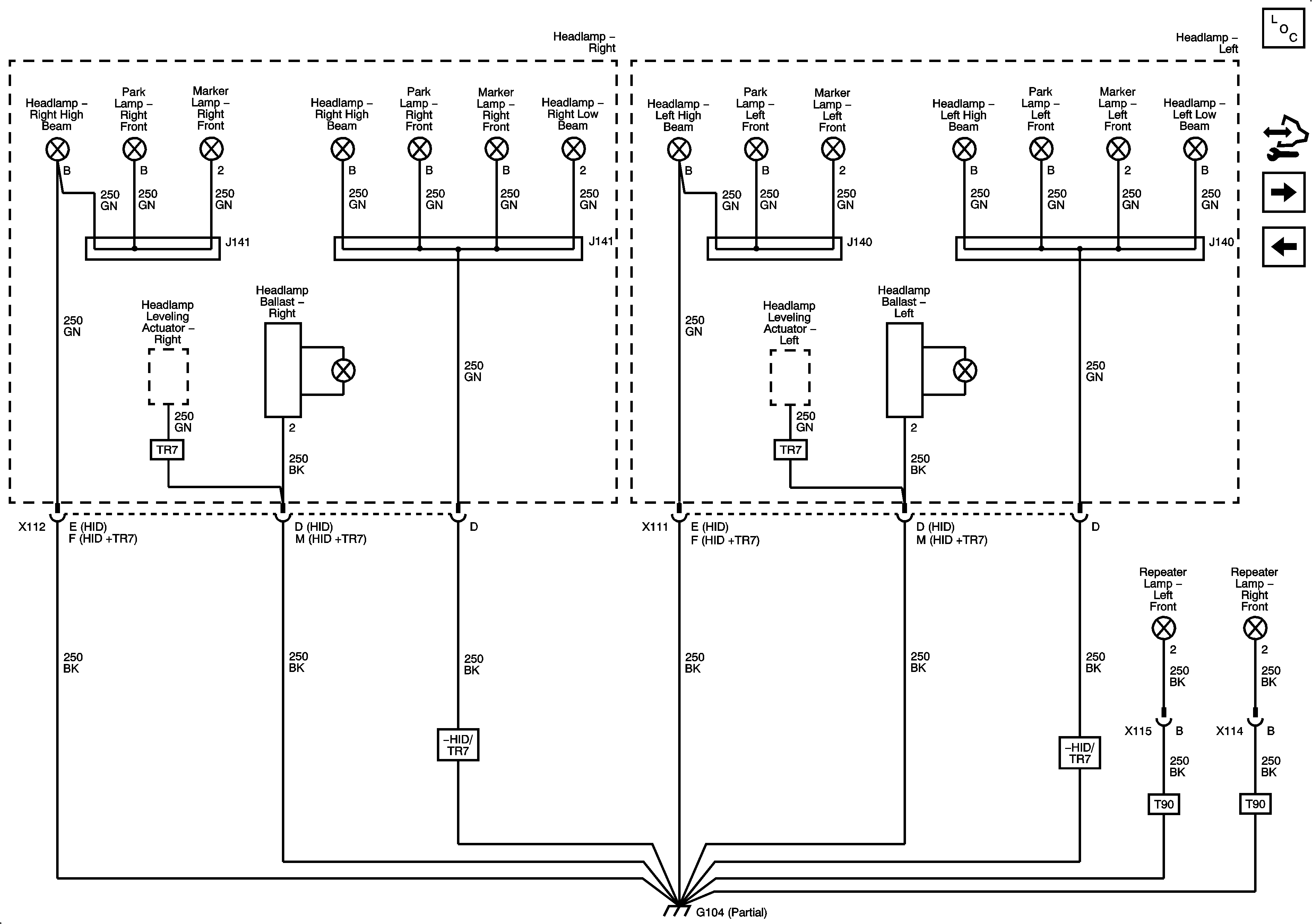

Figure 5:	G104 1 of 2 Master Electrical Component List Control Module References G104 2 of 2 G101
Figure 6:	G104 2 of 2 Master Electrical Component List Control Module References G200 1 of 2 LHD G104 1 of 2

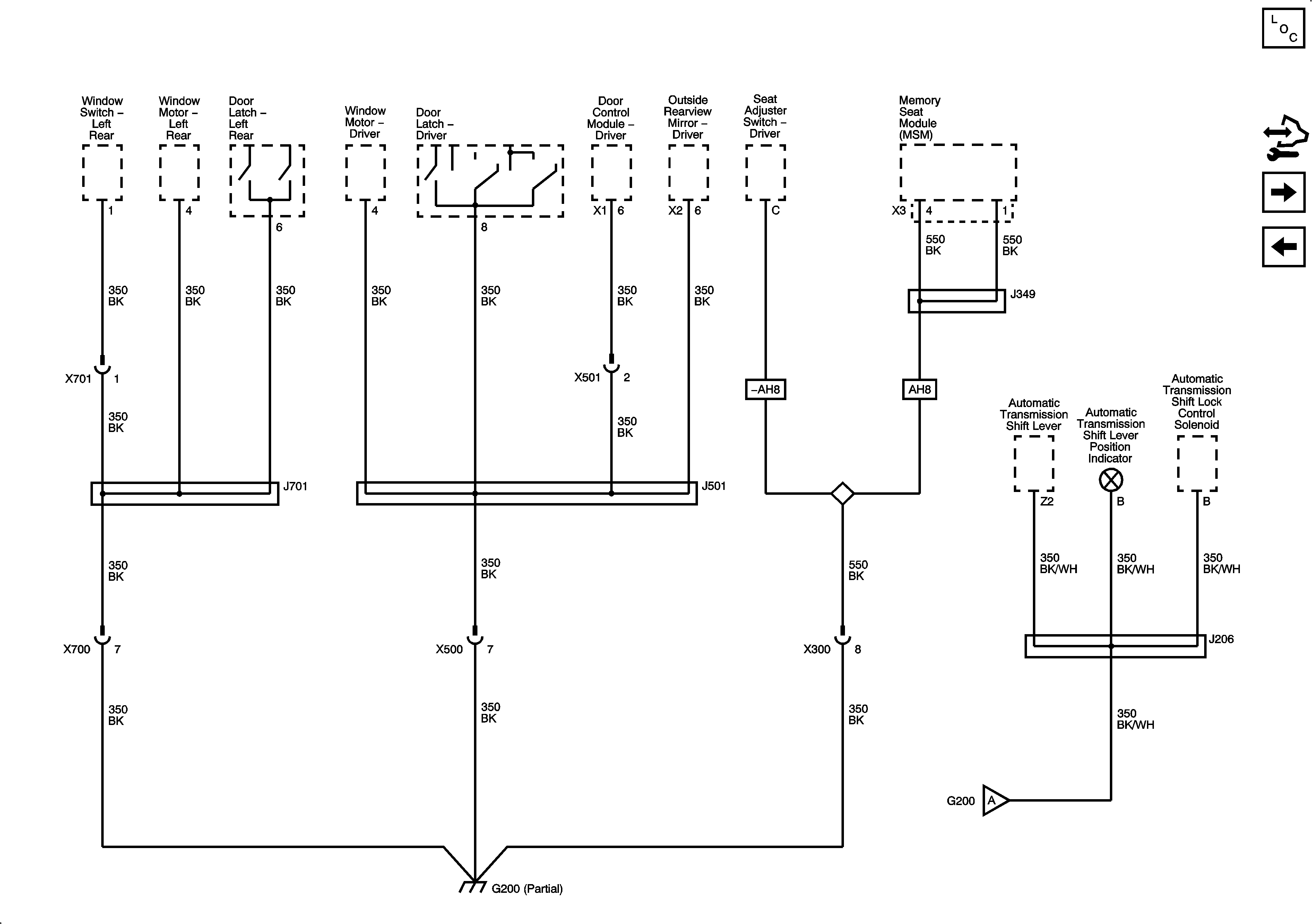

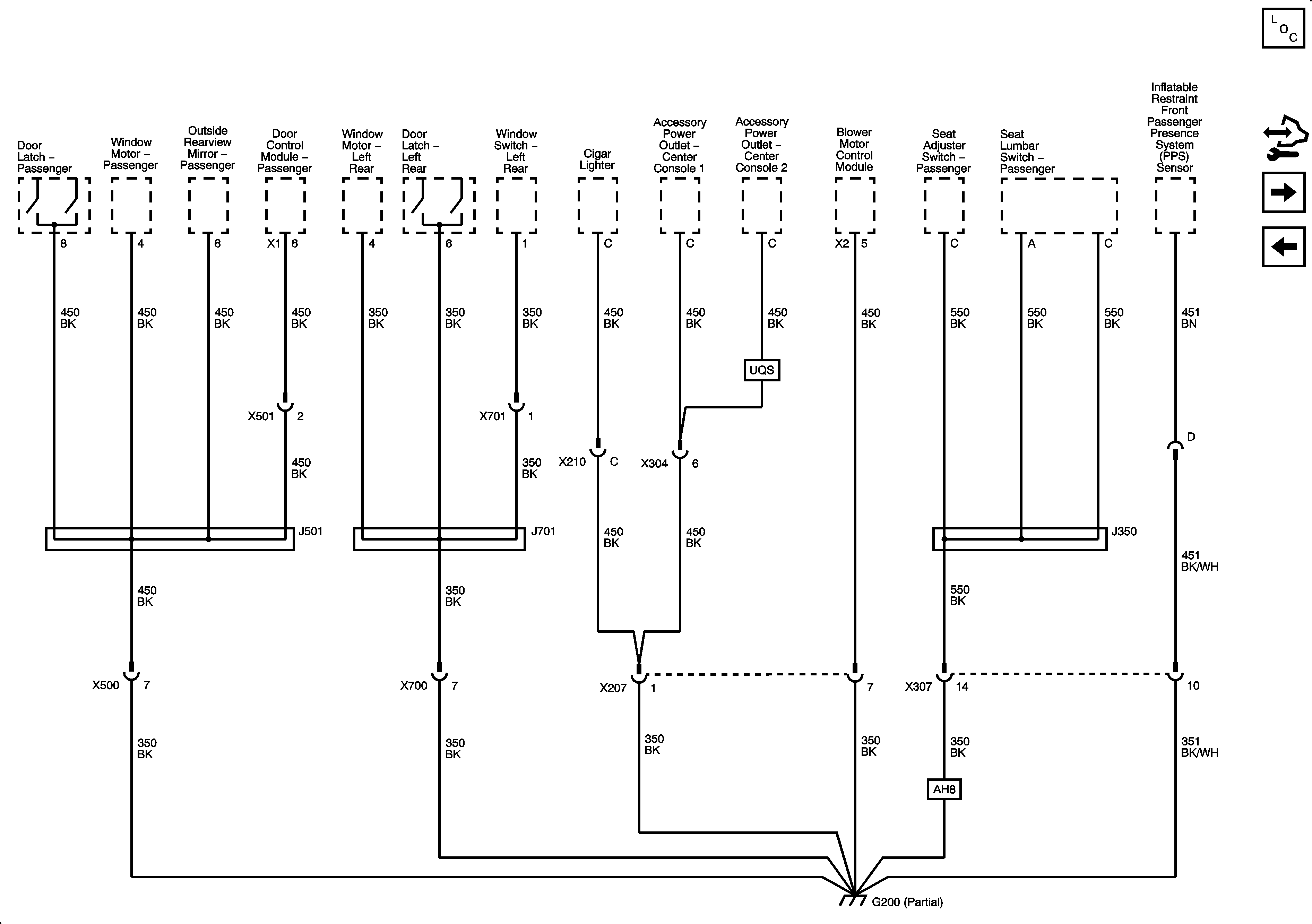

Figure 7:	G200 1 of 2 LHD Master Electrical Component List Control Module References G200 2 of 2 LHD G104 2 of 2

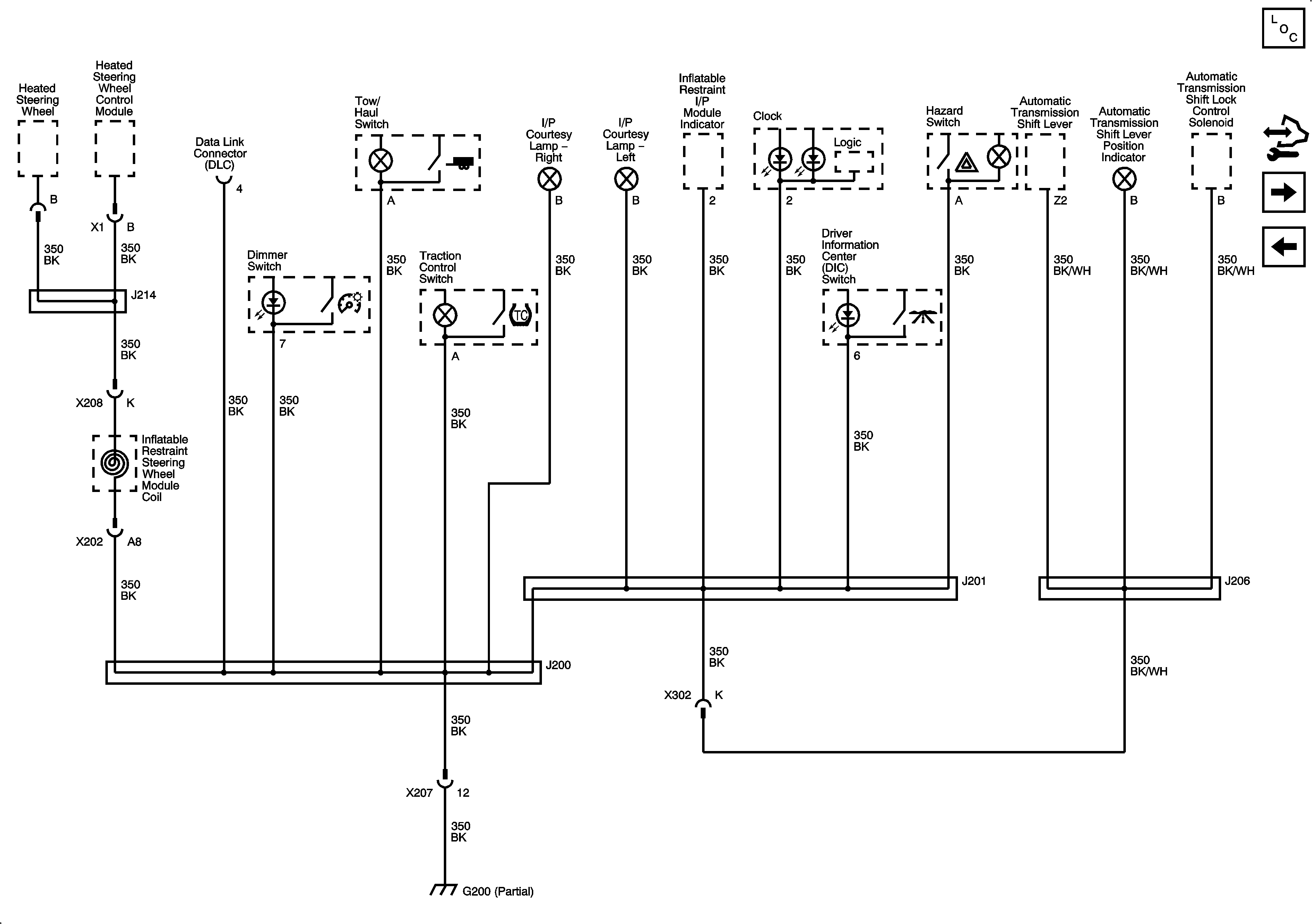

Figure 8:	G200 2 of 2 LHD Master Electrical Component List Control Module References G201 LHD G200 1 of 2 LHD

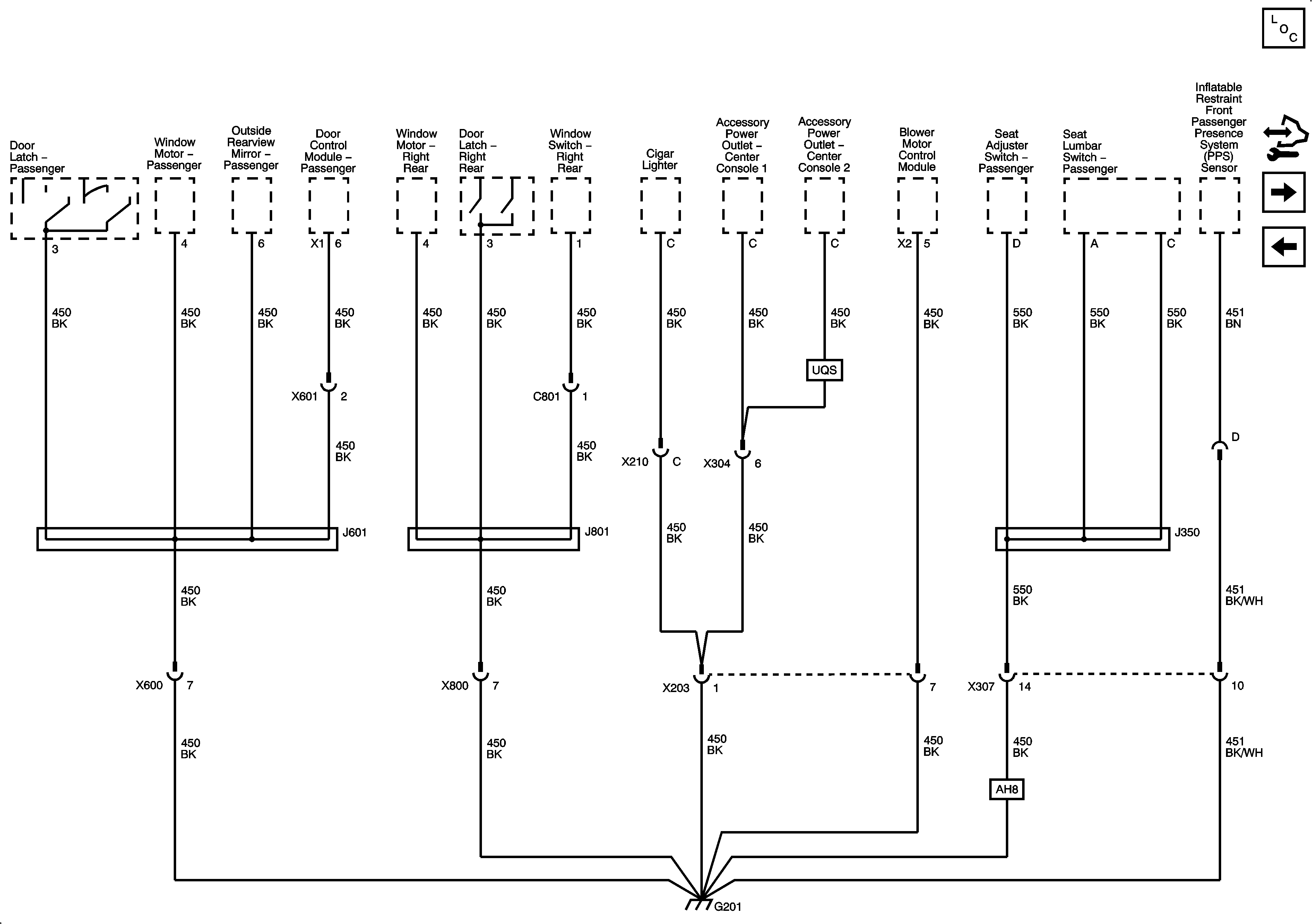

Figure 9:	G201 LHD Master Electrical Component List Control Module References G200 1 of 2 RHD G200 2 of 2 LHD

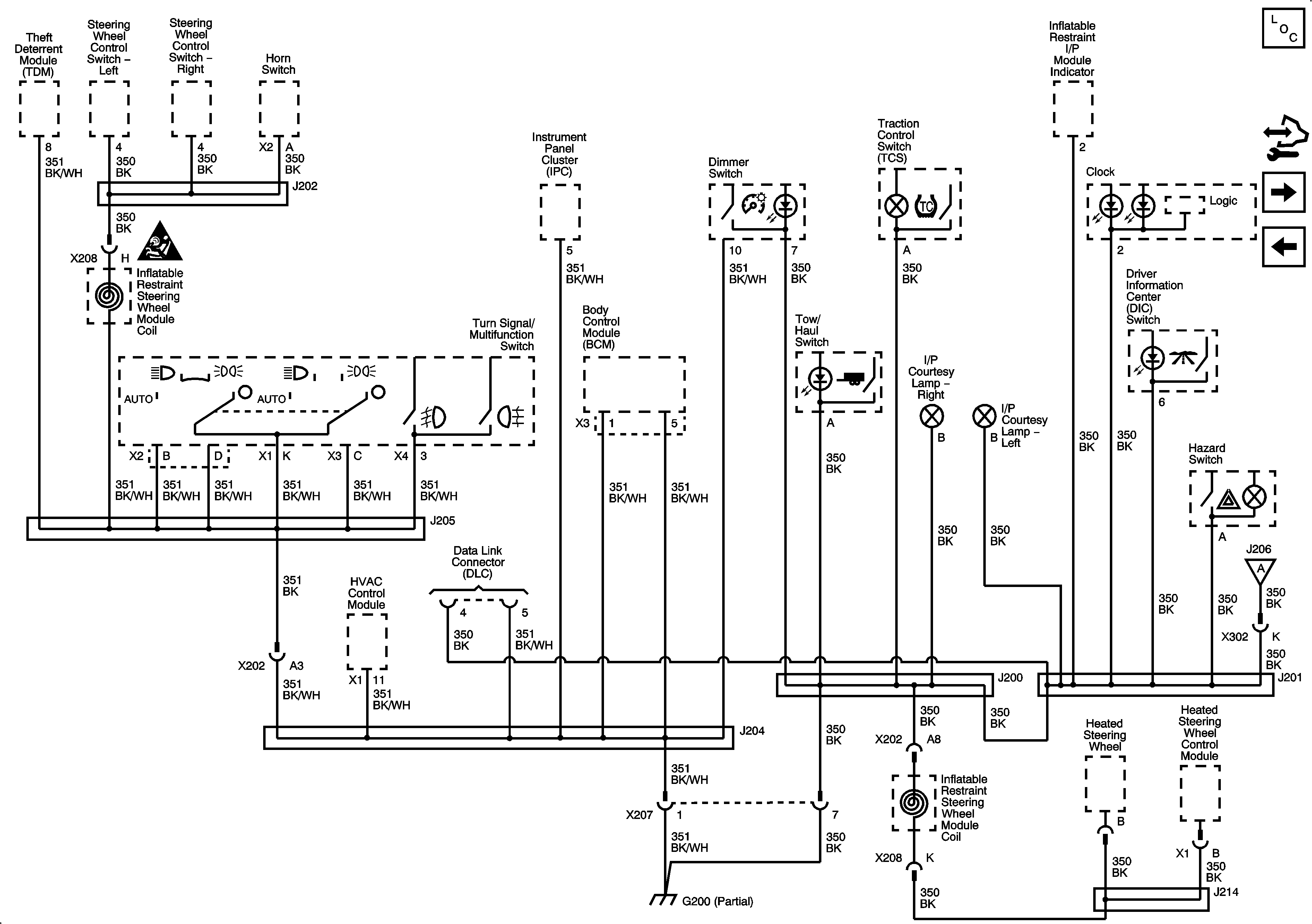

Figure 10:	G200 1 of 2 RHD Master Electrical Component List Control Module References G200 2 of 2 RHD G201 LHD
Figure 11:	G200 2 of 2 RHD Master Electrical Component List Control Module References G201 RHD G200 1 of 2 RHD

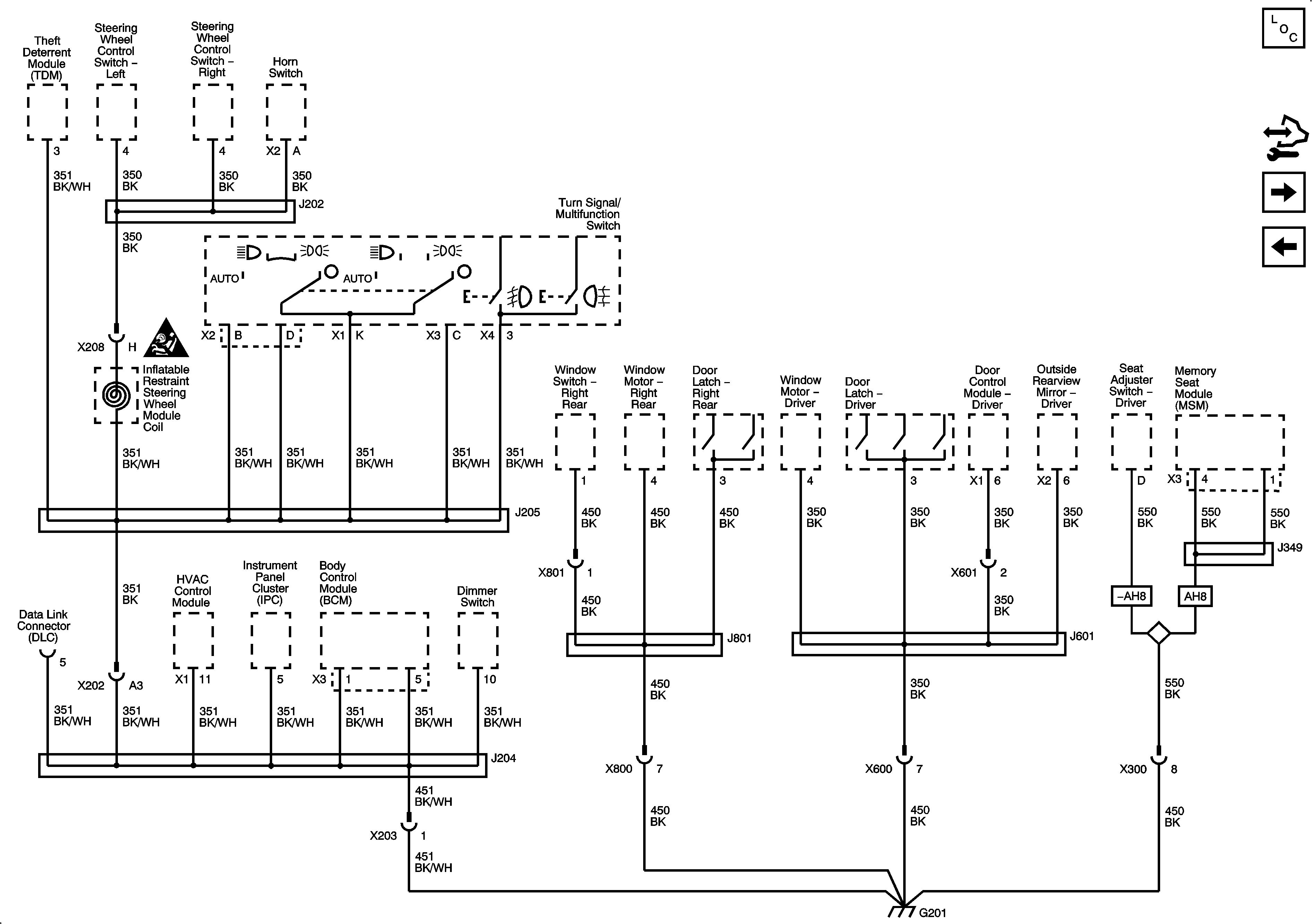

Figure 12:	G201 RHD Master Electrical Component List Control Module References G401 1 of 3 G200 2 of 2 RHD

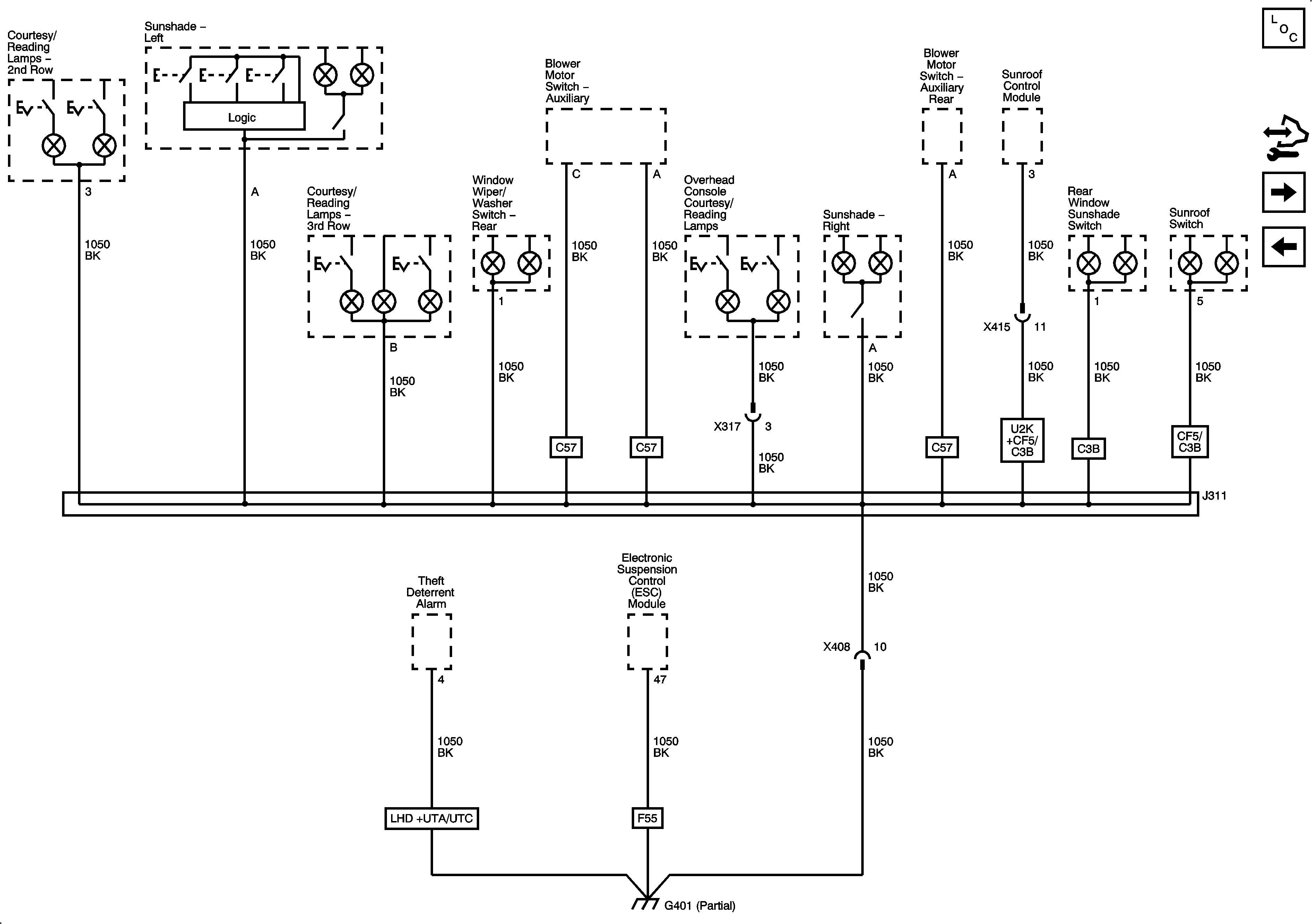

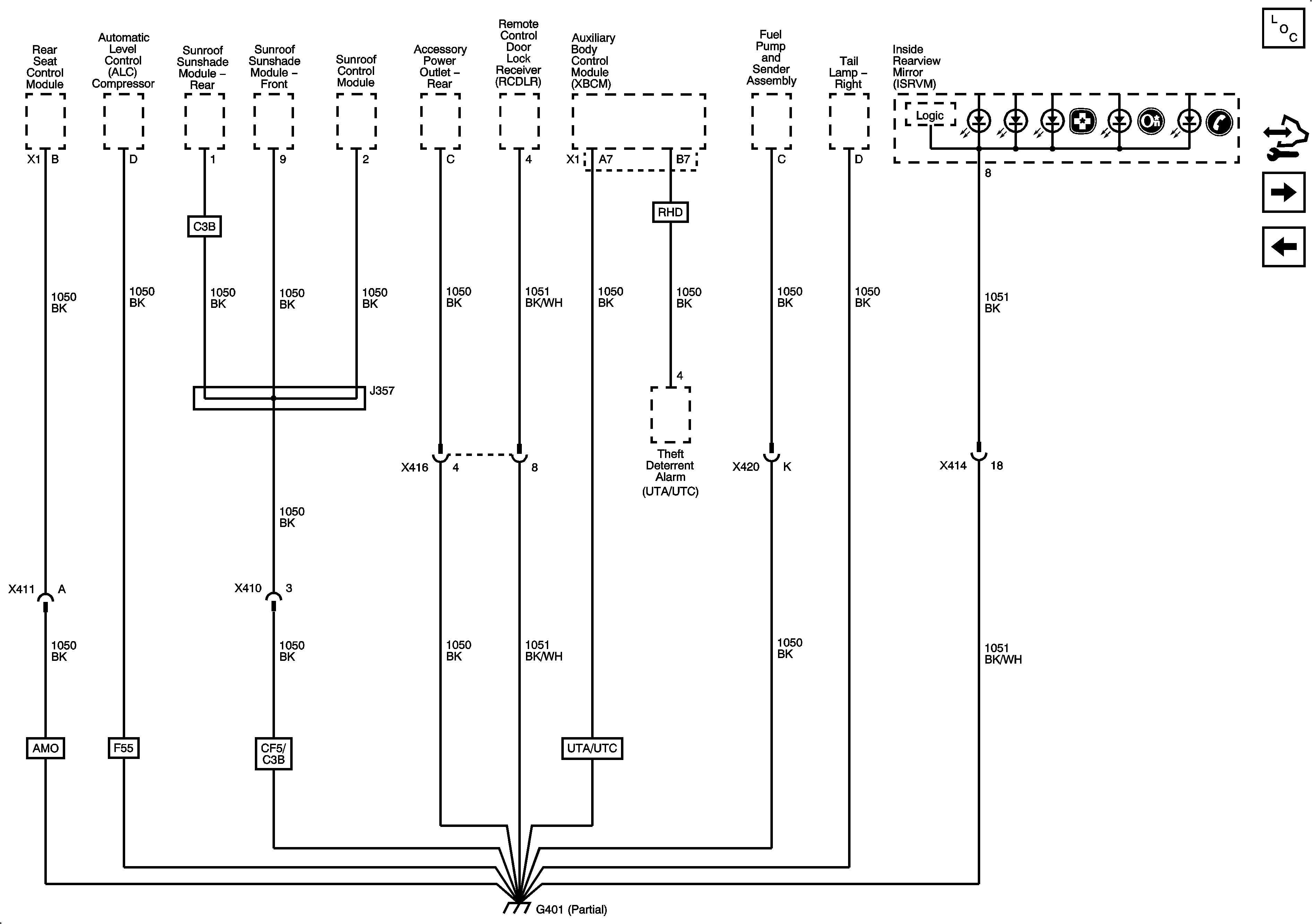

Figure 13:	G401 1 of 3 Master Electrical Component List Control Module References G401 2 of 3 G201 RHD
Figure 14:	G401 2 of 3 Master Electrical Component List Control Module References G401 3 of 3 G401 1 of 3

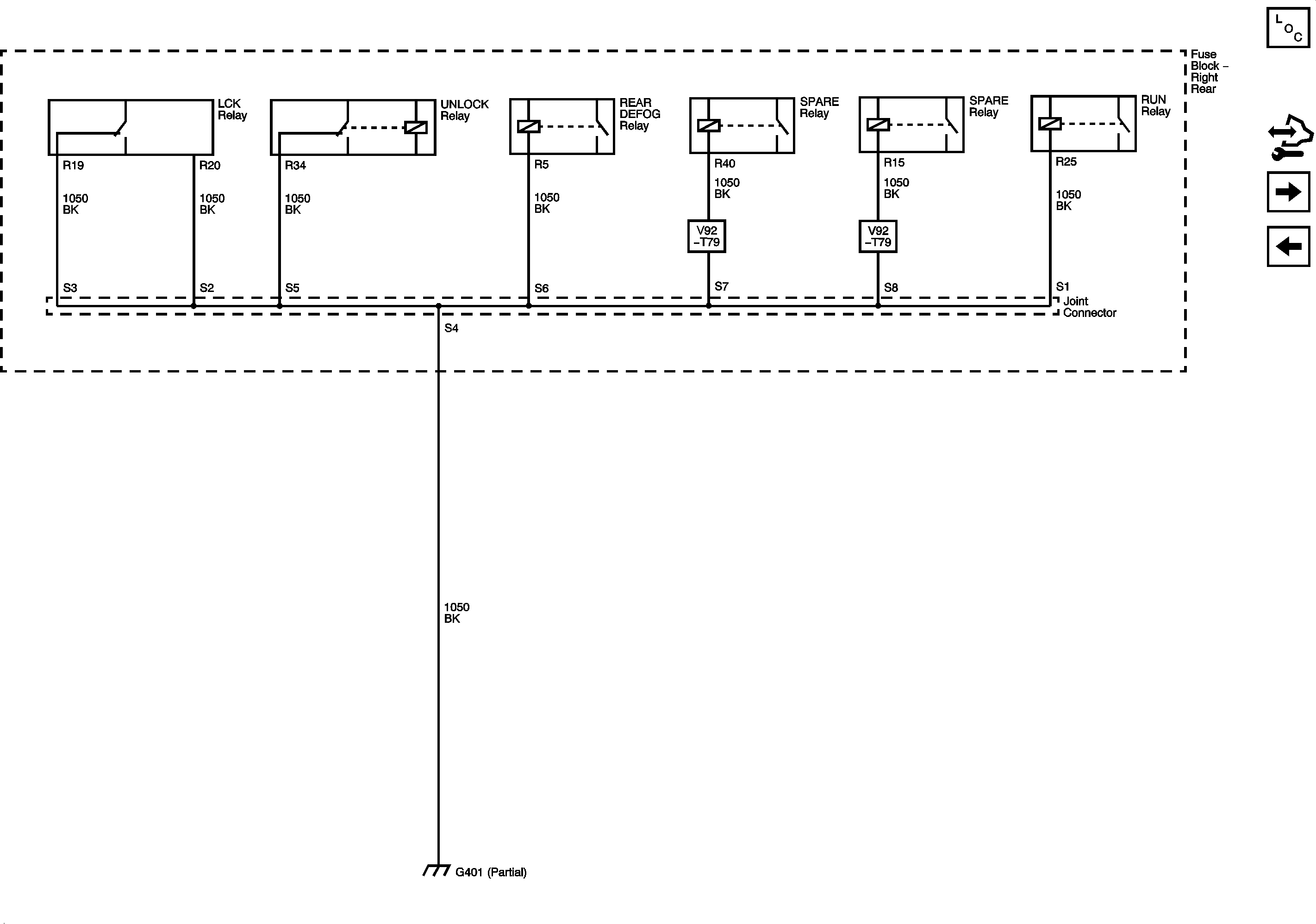

Figure 15:	G401 3 of 3 Master Electrical Component List Control Module References G402 1 of 2 G401 2 of 3

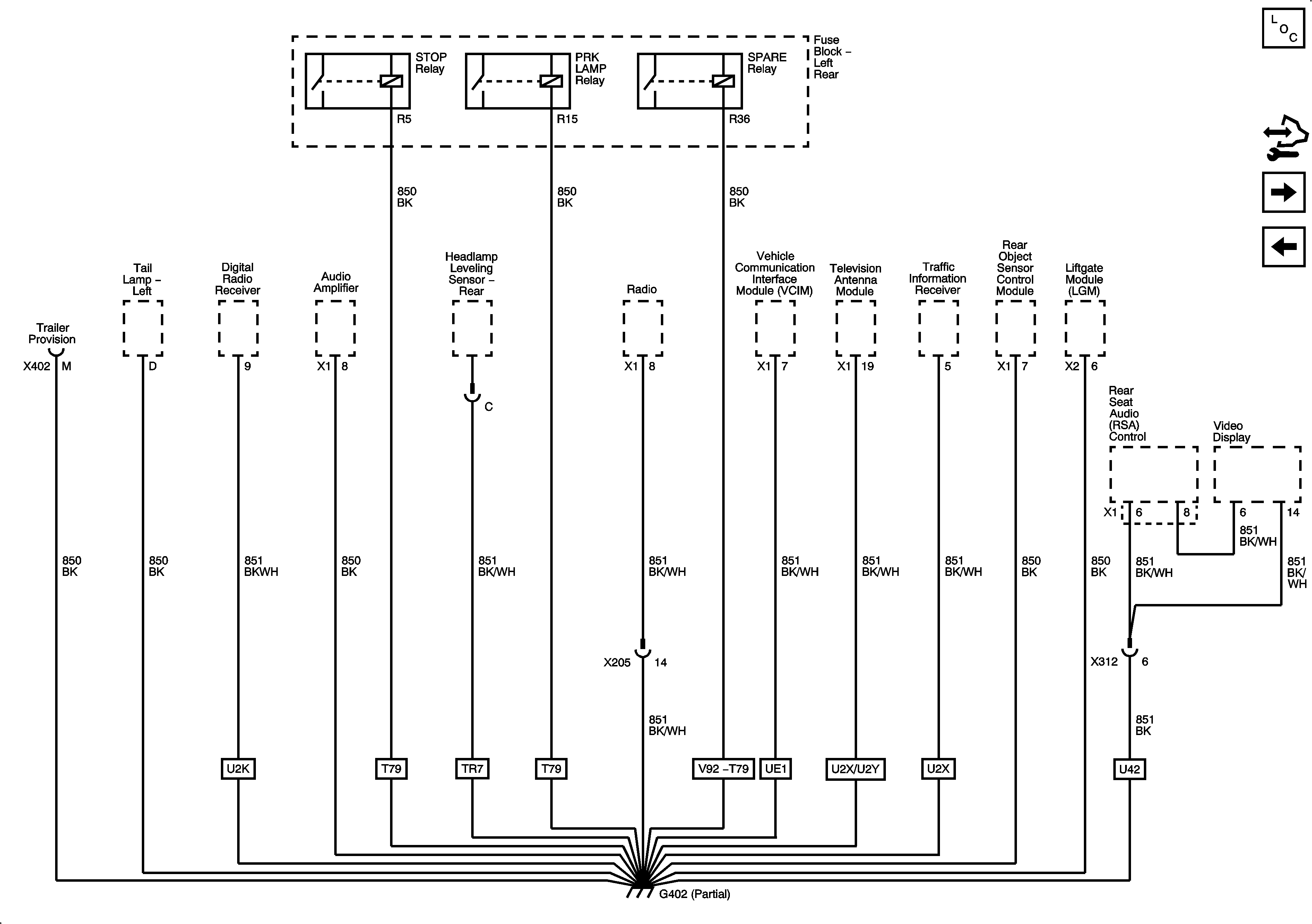

Figure 16:	G402 1 of 2 Master Electrical Component List Control Module References G402 2 of 2 G401 3 of 3

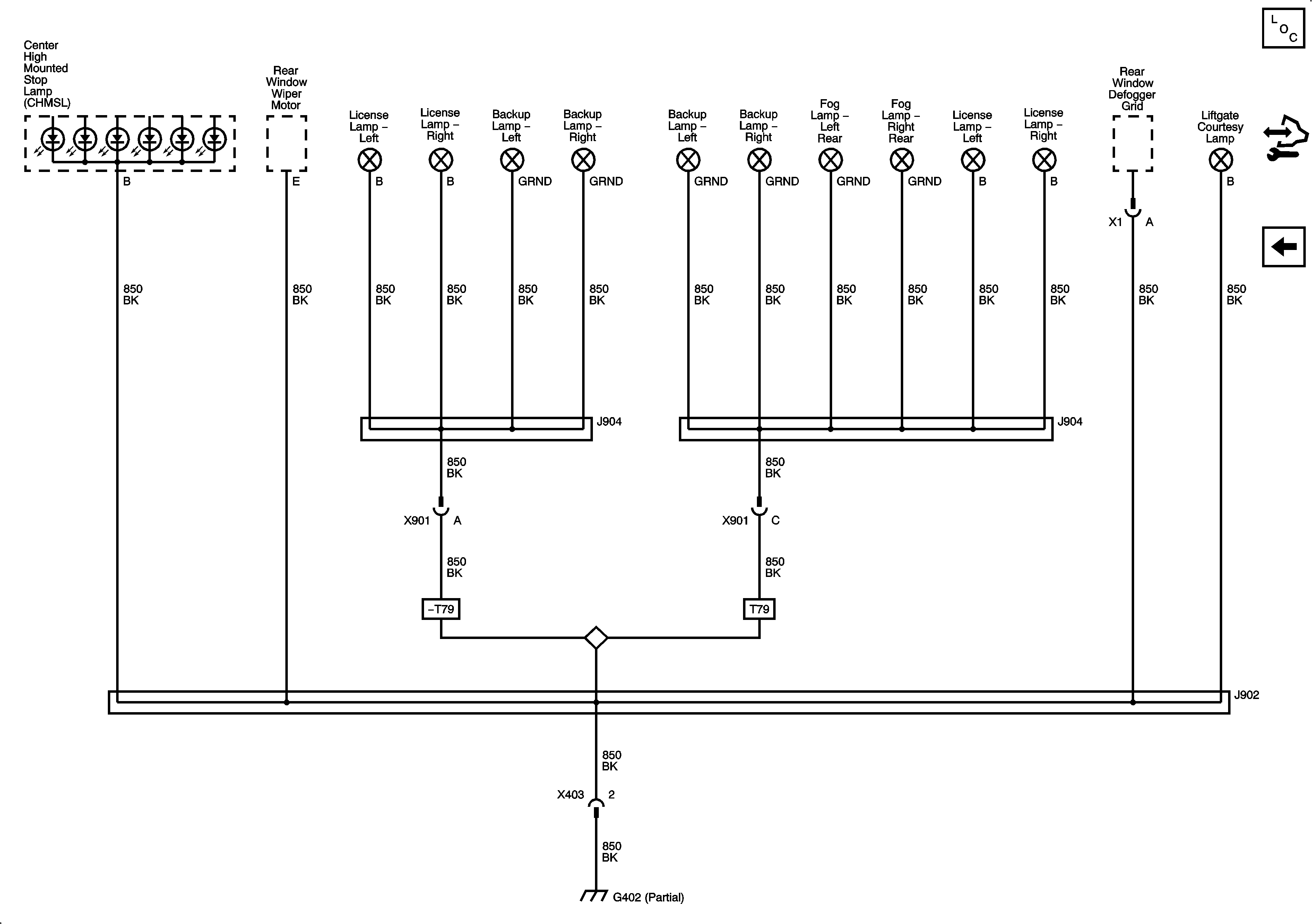

Figure 17:	G402 2 of 2 Master Electrical Component List Control Module References G402 1 of 2
