Automatic Transmission Controls Schematics. Cadillac SRX 2008

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2008 🢒 SRX 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Automatic Transmission Controls Schematics

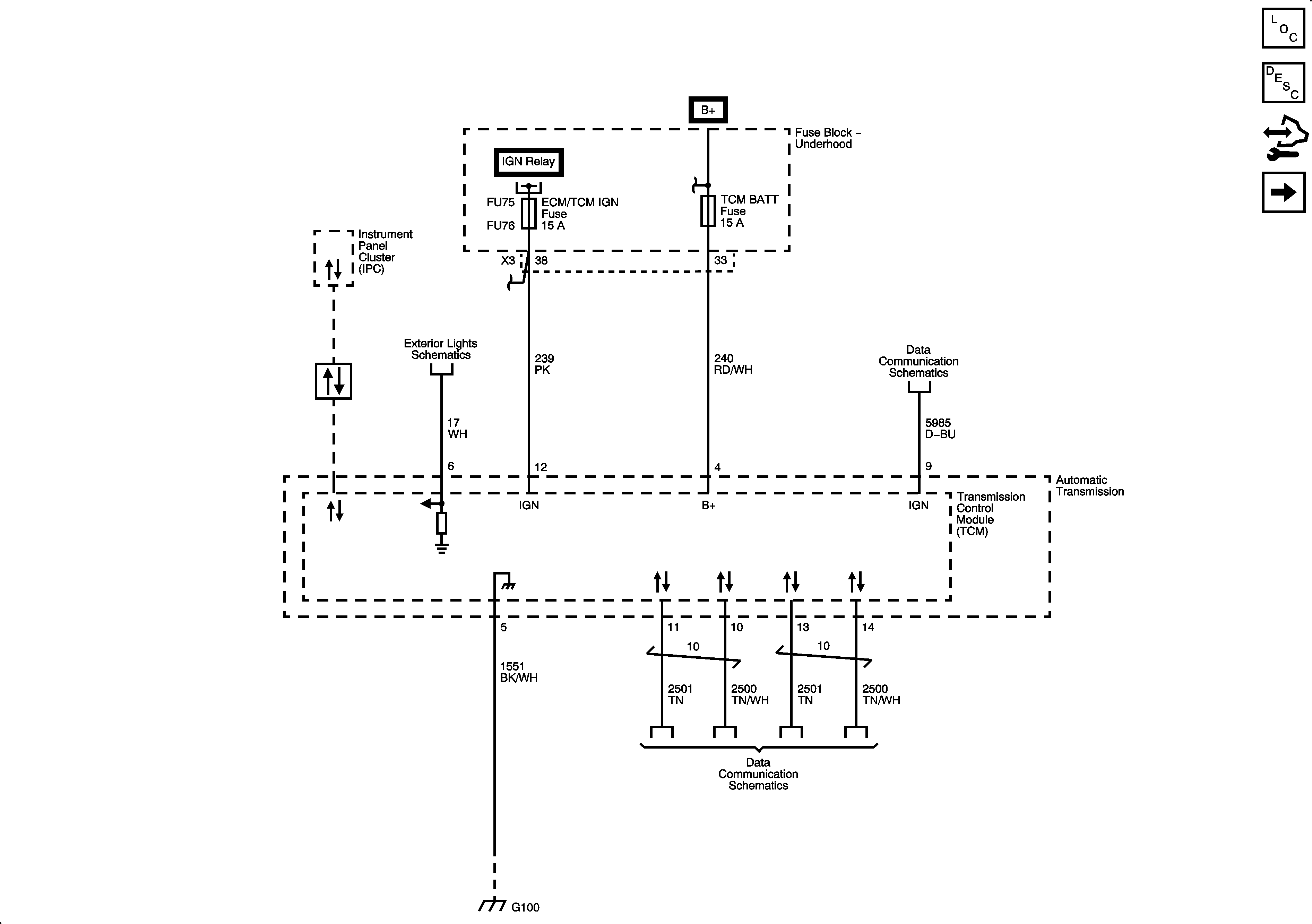

Figure 1:	Module Power, Ground, Serial Data Master Electrical Component List Electronic Component Description Control Module References Pressure Controls - 1 of 2 and Shift Controls
Figure 2:	Pressure Controls - 1 of 2 and Shift Controls Master Electrical Component List Electronic Component Description Control Module References Pressure Controls - 2 of 2 and Speed Sensors Module Power, Ground, Serial Data

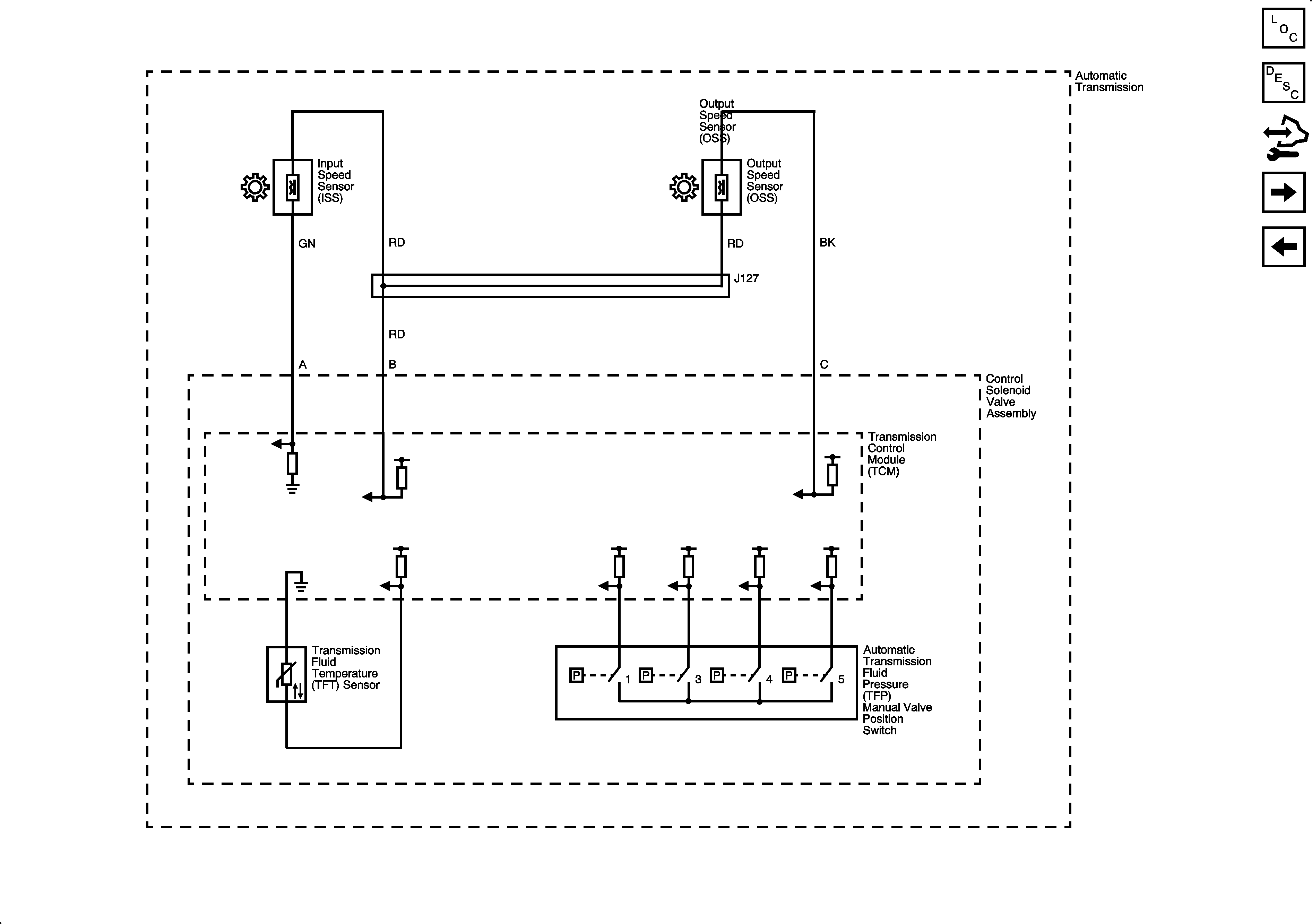

Figure 3:	Pressure Controls - 2 of 2 and Speed Sensors Master Electrical Component List Electronic Component Description Control Module References Tow/Haul Switch and Tap Shift System Pressure Controls - 1 of 2 and Shift Controls

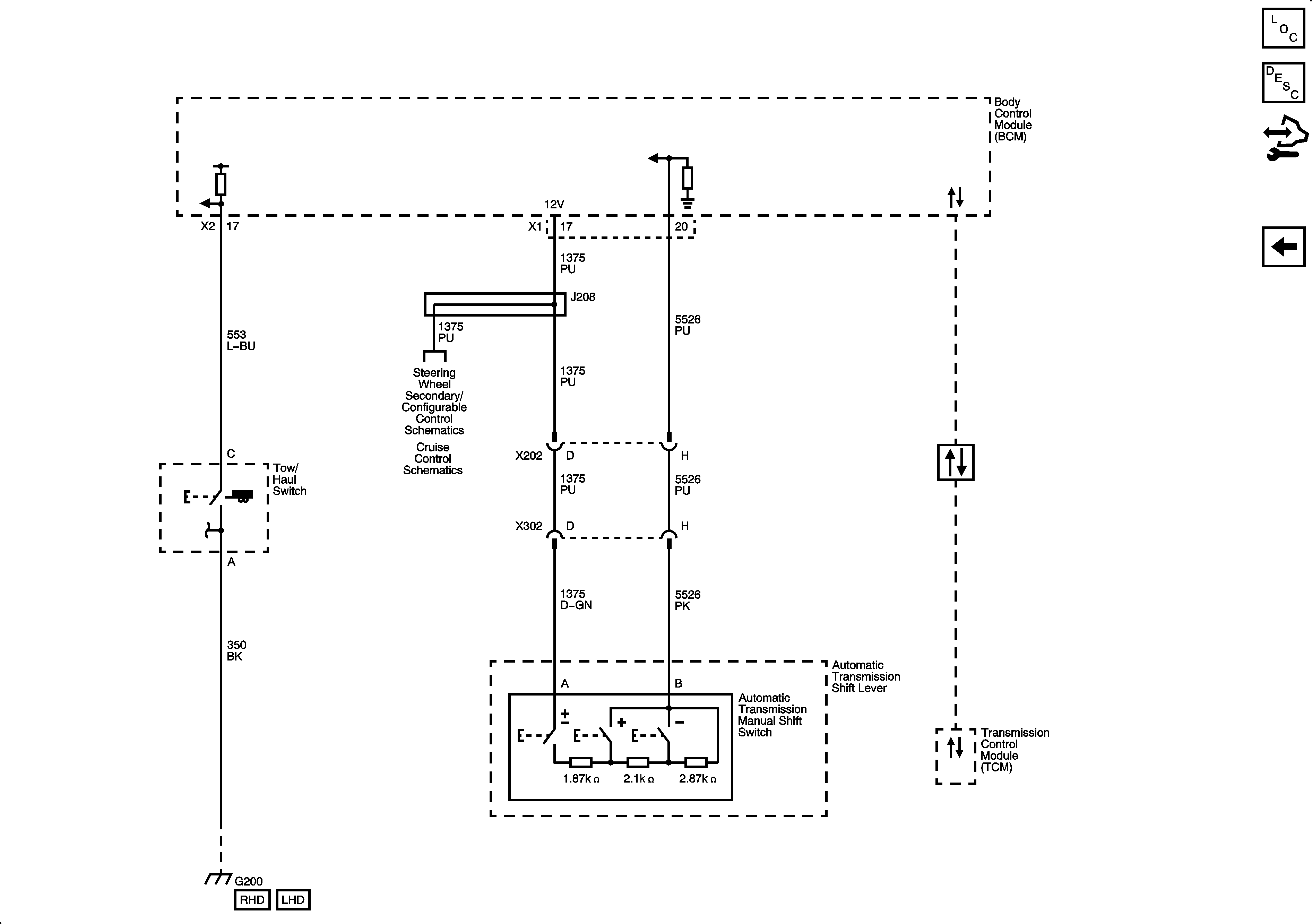

Figure 4:	Tow/Haul Switch and Tap Shift System Master Electrical Component List Electronic Component Description Control Module References Transmission Range Signals Pressure Controls - 2 of 2 and Speed Sensors

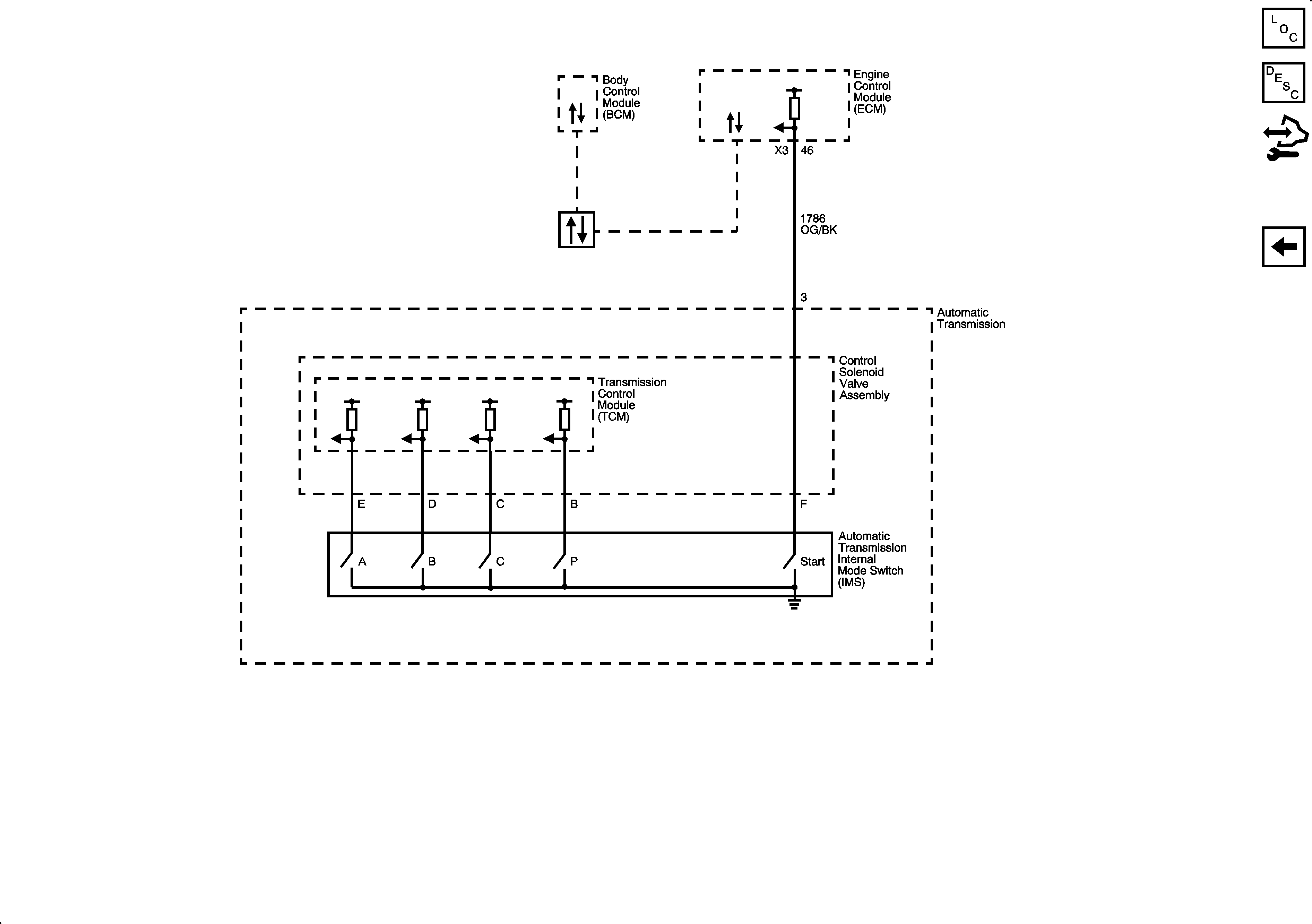

Figure 5:	Transmission Range Signals Master Electrical Component List Electronic Component Description Control Module References Tow/Haul Switch and Tap Shift System
