Hazard Warning Switch Replacement Left Hand Drive

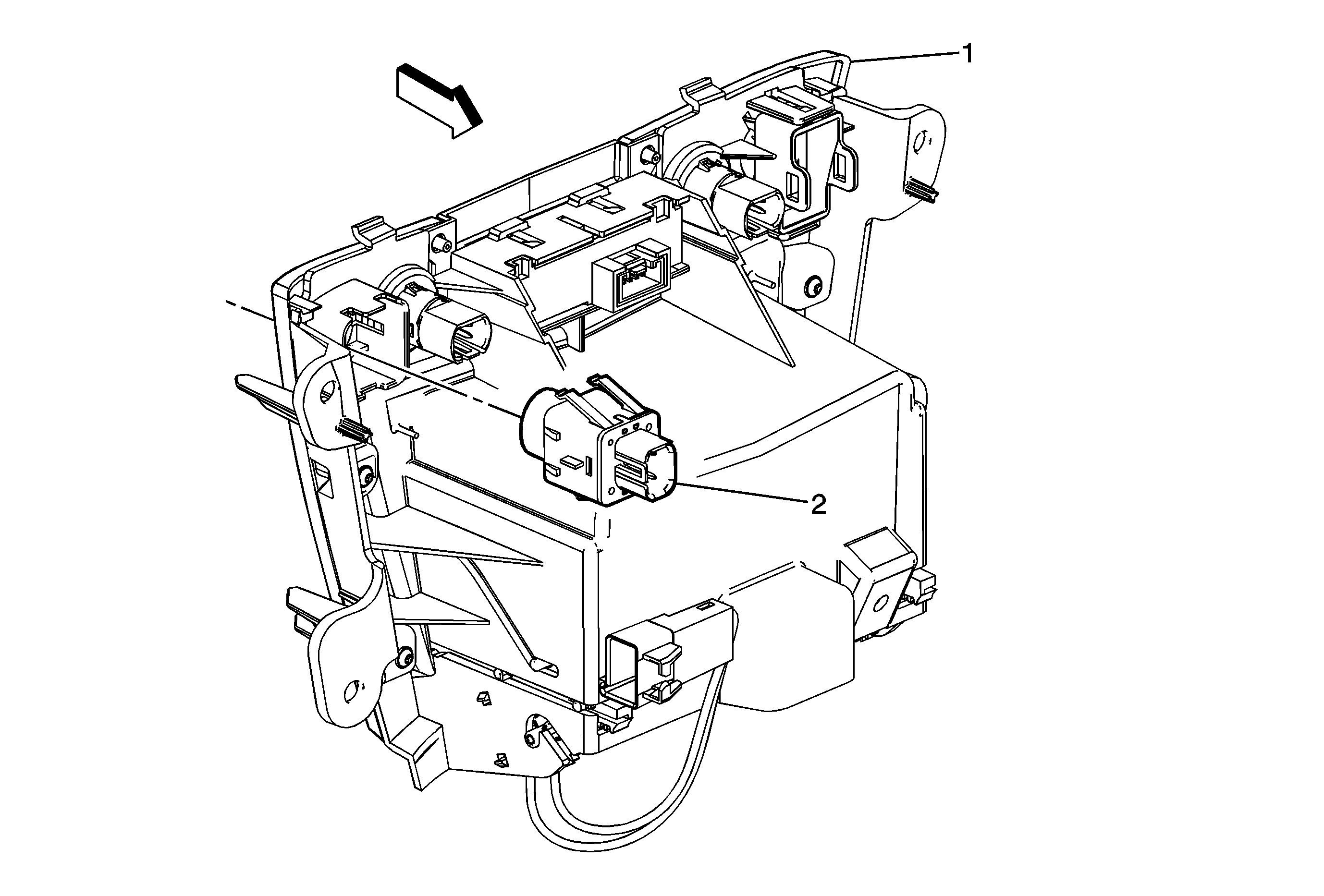

Object Number: 1804462 Size: MF

Callout

Component Name

1

Instrument Panel Ashtray Assembly

Refer to Ashtray Replacement .

2

Hazard Warning Switch Assembly

Procedure

  1. Disconnect electrical connector.
  2. Use a flat-bladed tool to pry switch from ashtray assembly.

Hazard Warning Switch Replacement Right Hand Drive

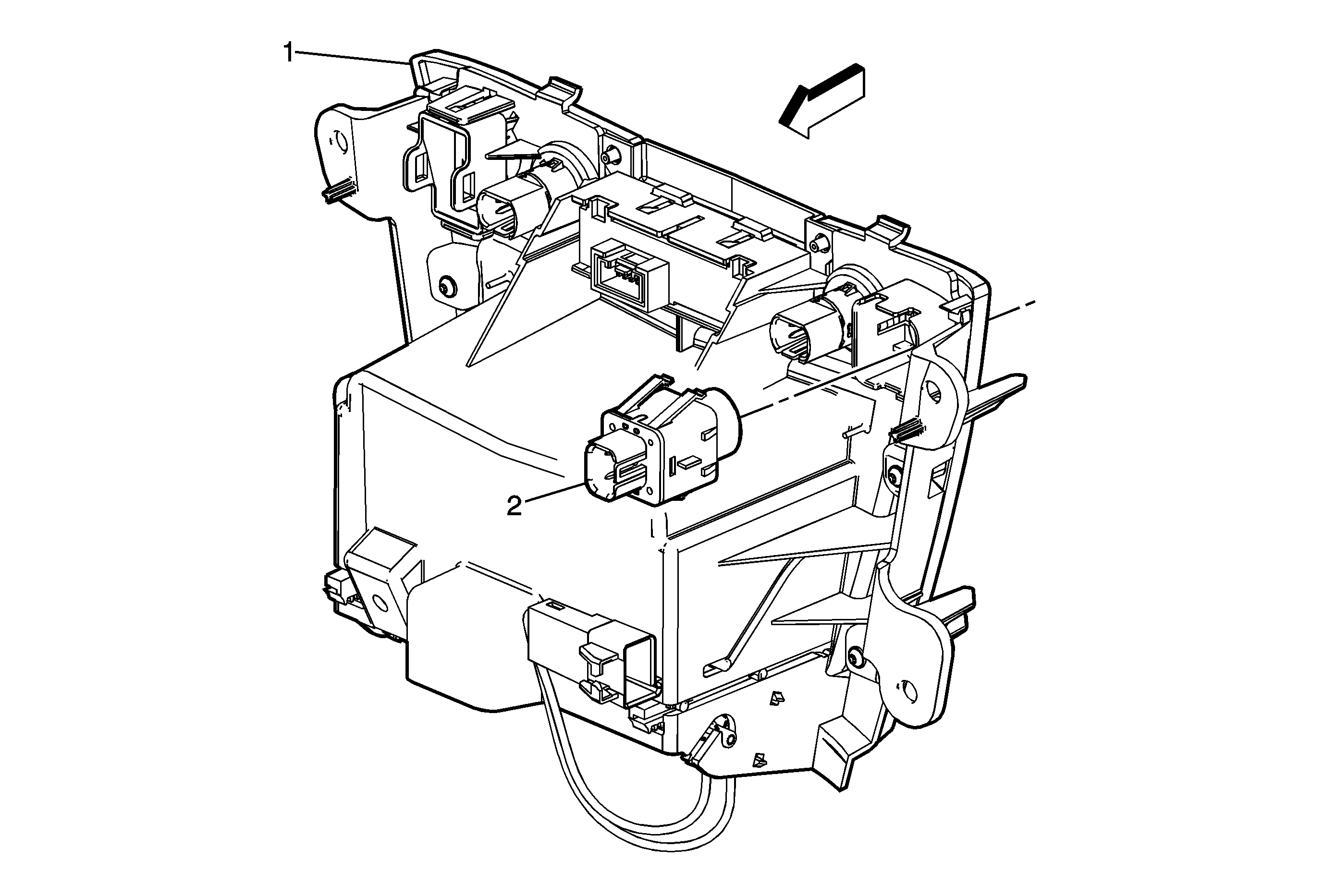

Object Number: 1850809 Size: MF

Callout

Component Name

1

Instrument Panel Ashtray Assembly

Refer to Ashtray Replacement .

2

Hazard Warning Switch Assembly

Procedure

  1. Disconnect electrical connector.
  2. Use a flat-bladed tool to pry switch from ashtray assembly.
