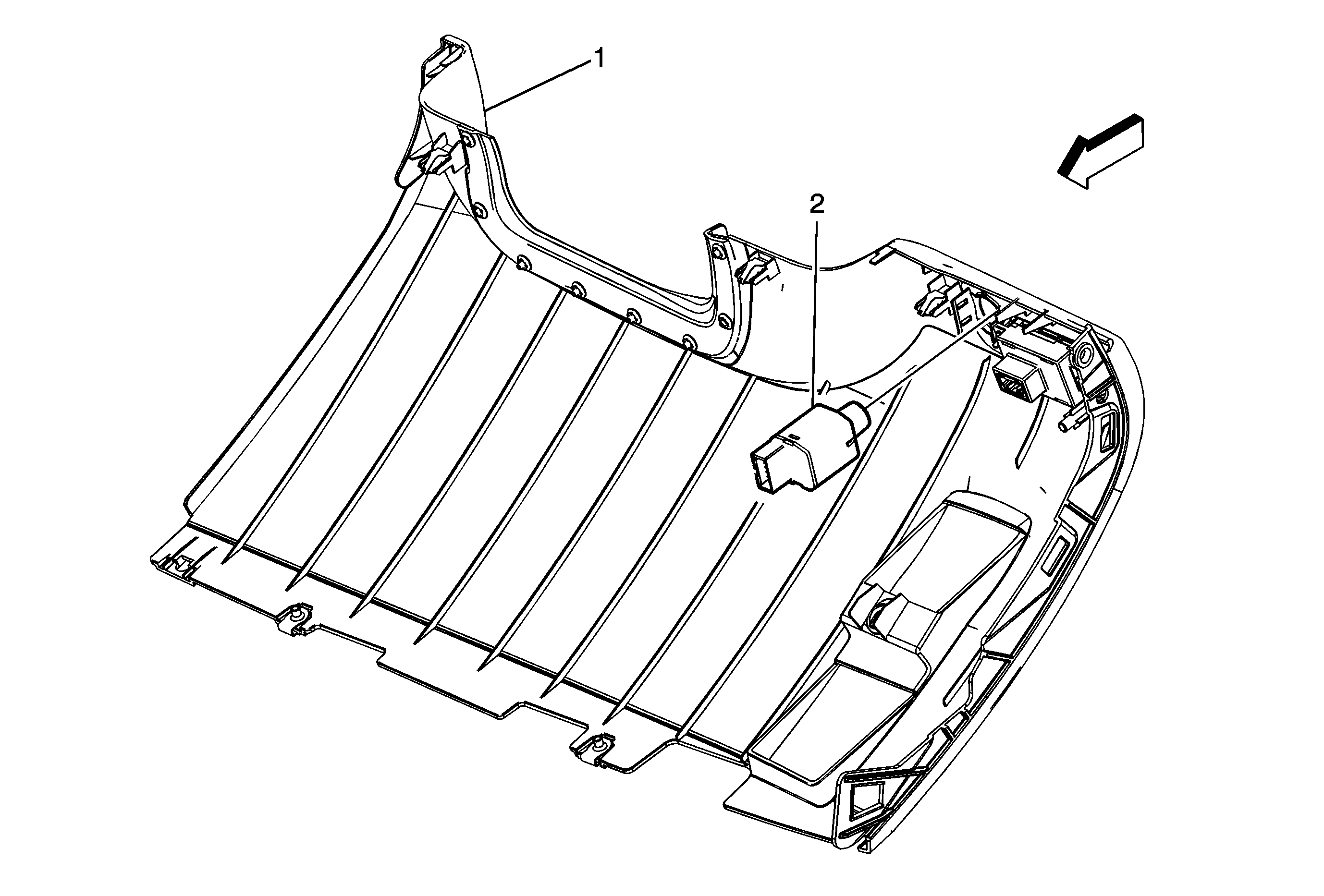

Instrument Panel Lamp Dimmer Switch Replacement Left Hand Drive


Object Number: 1804456 Size: MF

Callout

Component Name

1

Instrument Panel Driver Knee Bolster Assembly

Refer to Knee Bolster Replacement .

2

Instrument Panel Dimmer Switch Assembly

Procedure

  1. Disconnect electrical connector.
  2. Use a flat-bladed tool to pry switch from knee bolster assembly.

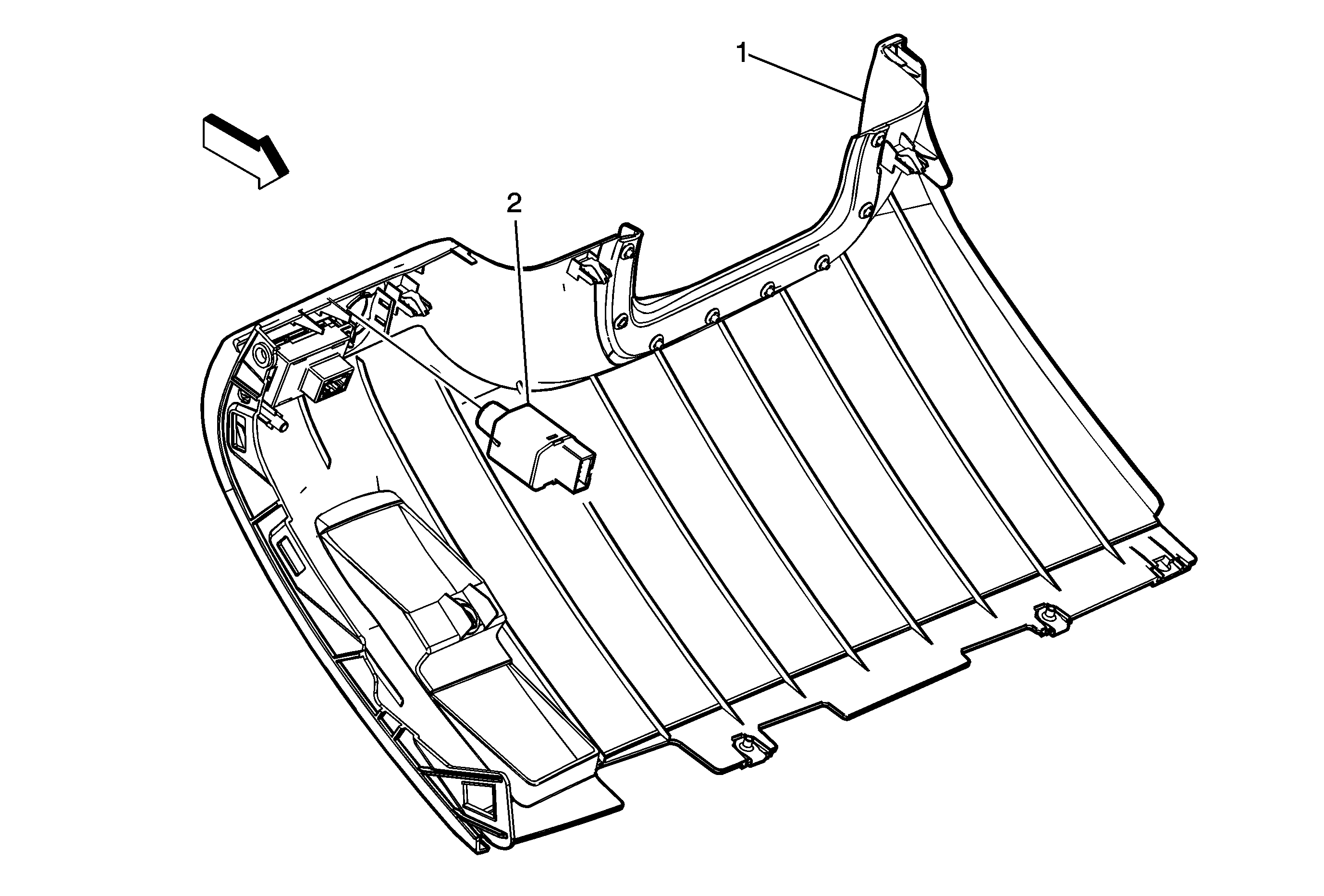

Instrument Panel Lamp Dimmer Switch Replacement Right Hand Drive


Object Number: 1850810 Size: MF

Callout

Component Name

1

Instrument Panel Driver Knee Bolster Assembly

Refer to Knee Bolster Replacement .

2

Instrument Panel Dimmer Switch Assembly

Procedure

  1. Disconnect electrical connector.
  2. Use a flat-bladed tool to pry switch from knee bolster assembly.
