Door Lock/Indicator Schematics. Cadillac SRX 2008

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2008 🢒 SRX 🢒 Body Systems 🢒 Vehicle Access 🢒 Door Lock/Indicator Schematics

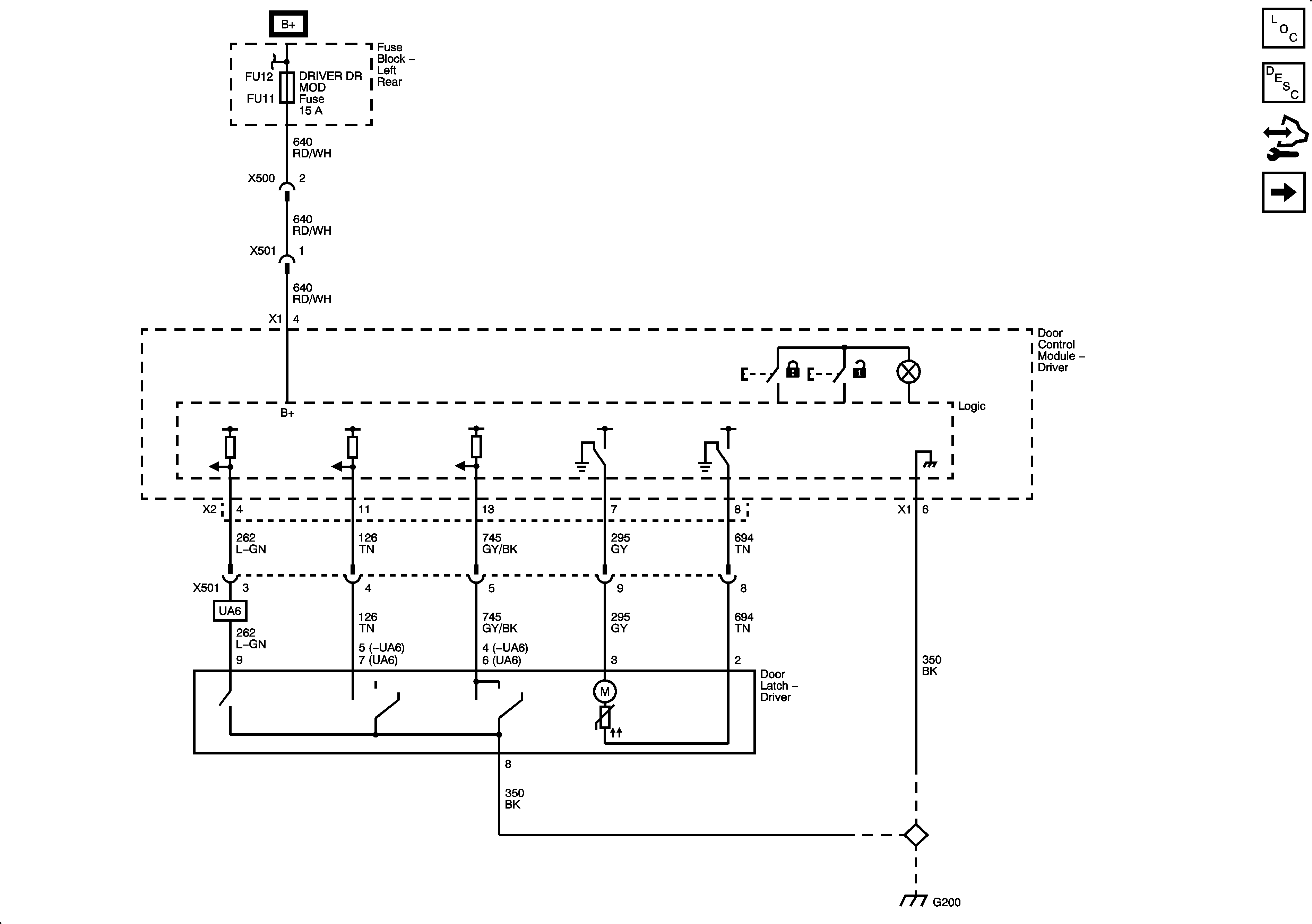

Figure 1:	Driver Door Lock LHD Master Electrical Component List Power Door Latch Description and Operation Control Module References Driver Door Lock RHD

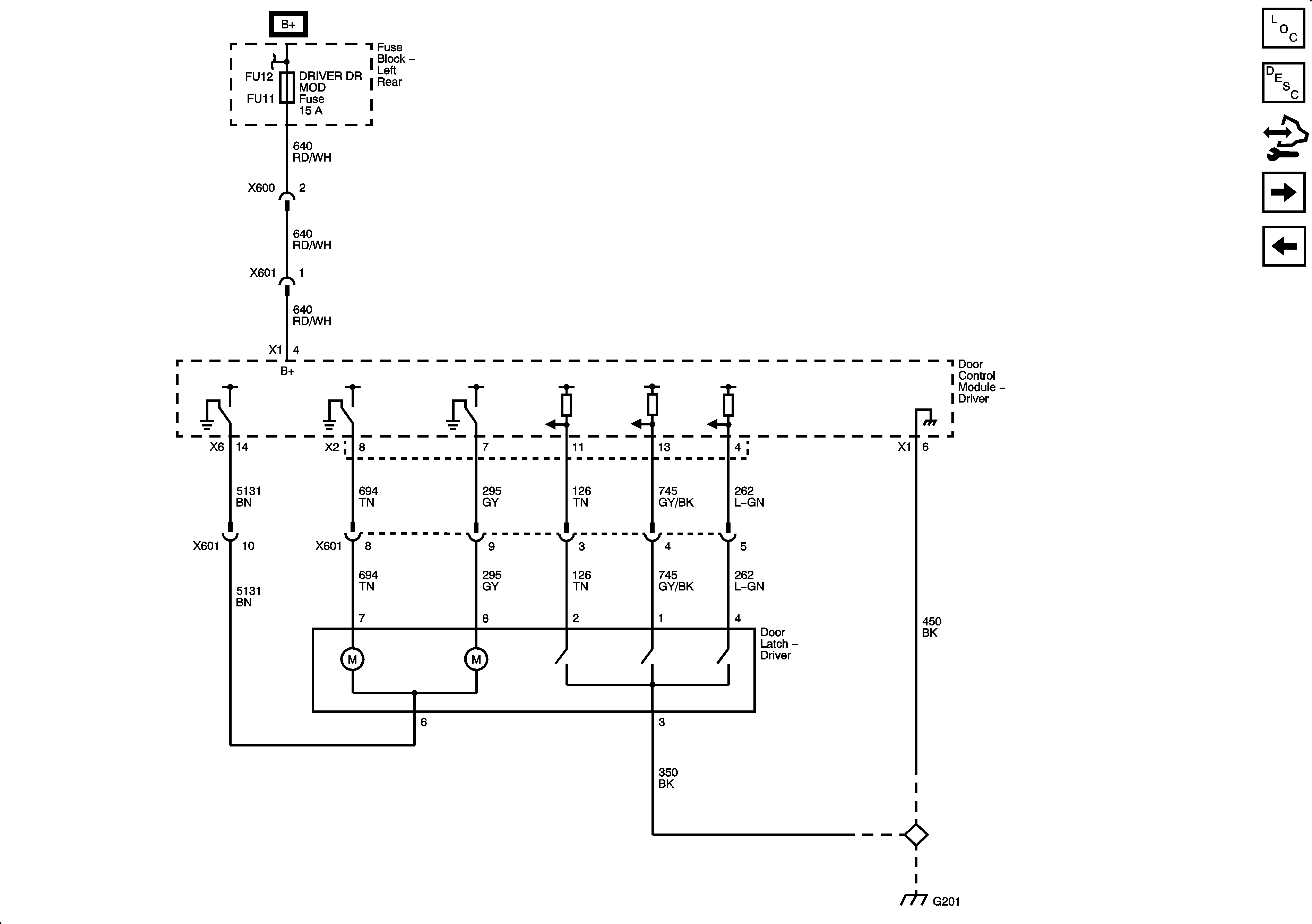

Figure 2:	Driver Door Lock RHD Master Electrical Component List Power Door Latch Description and Operation Control Module References Front Passenger Door Lock LHD Driver Door Lock LHD

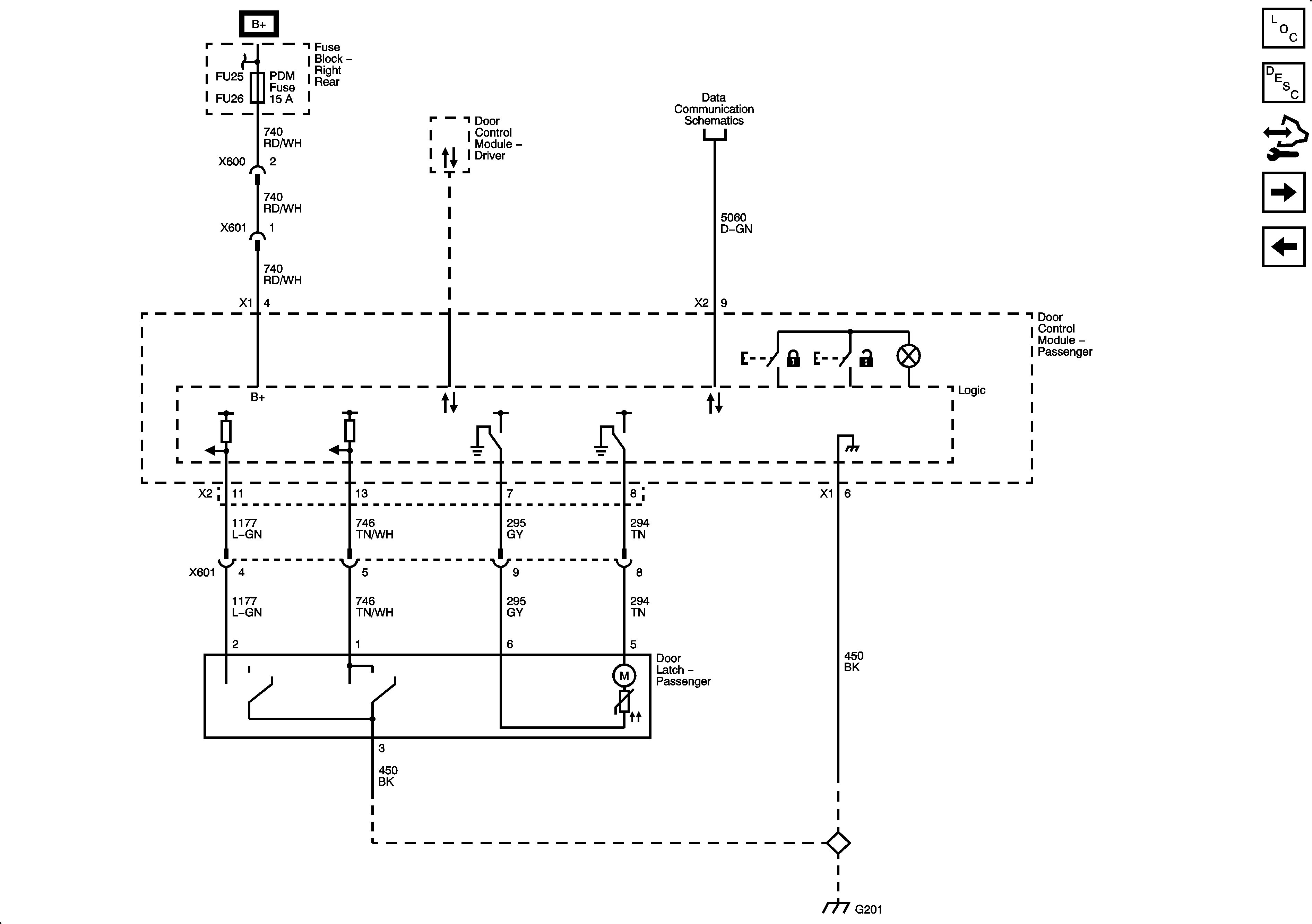

Figure 3:	Front Passenger Door Lock LHD Master Electrical Component List Power Door Latch Description and Operation Control Module References Front Passenger Door Lock RHD Driver Door Lock RHD

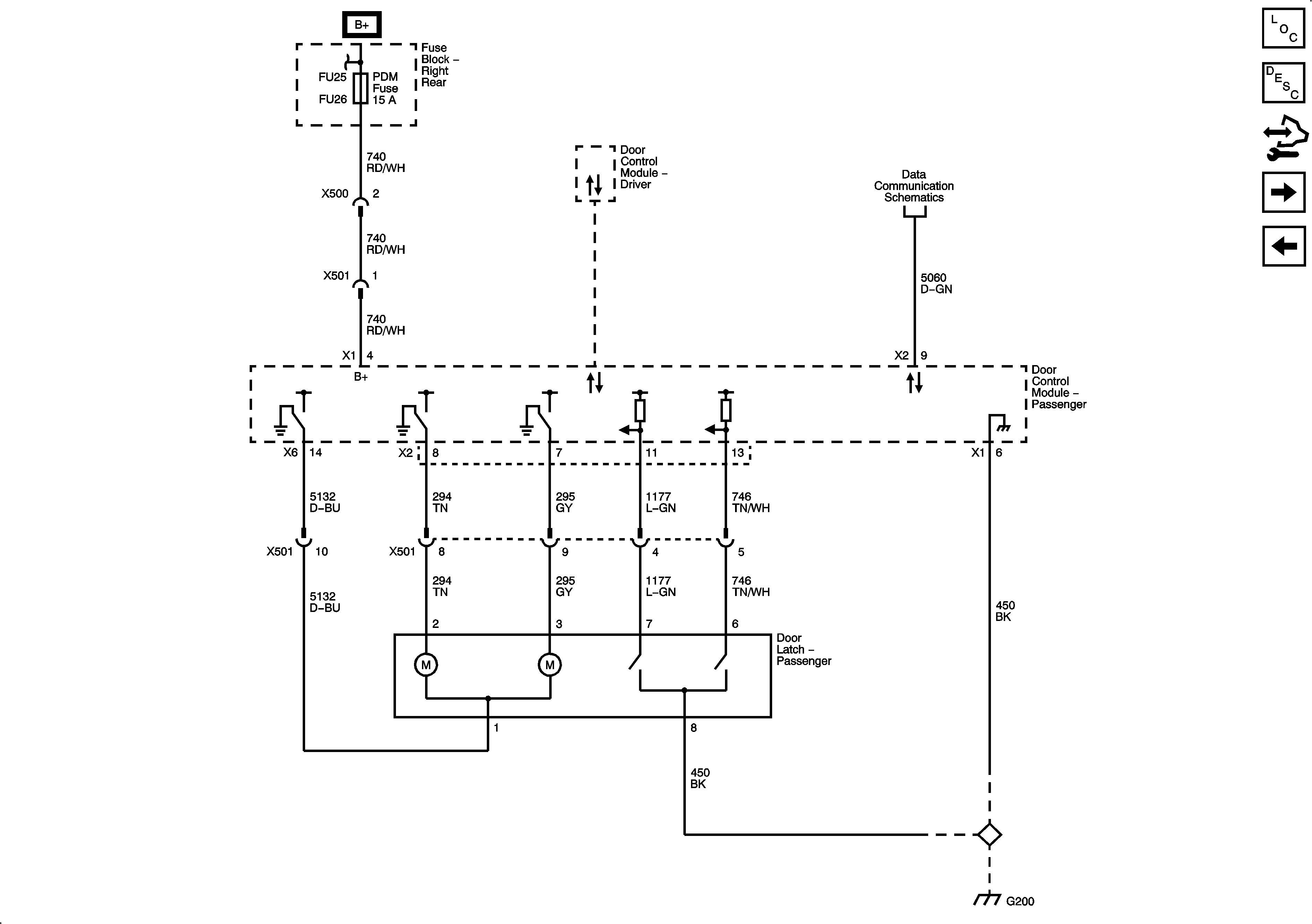

Figure 4:	Front Passenger Door Lock RHD Master Electrical Component List Power Door Latch Description and Operation Control Module References Rear Door Locks (without EXP) Front Passenger Door Lock LHD

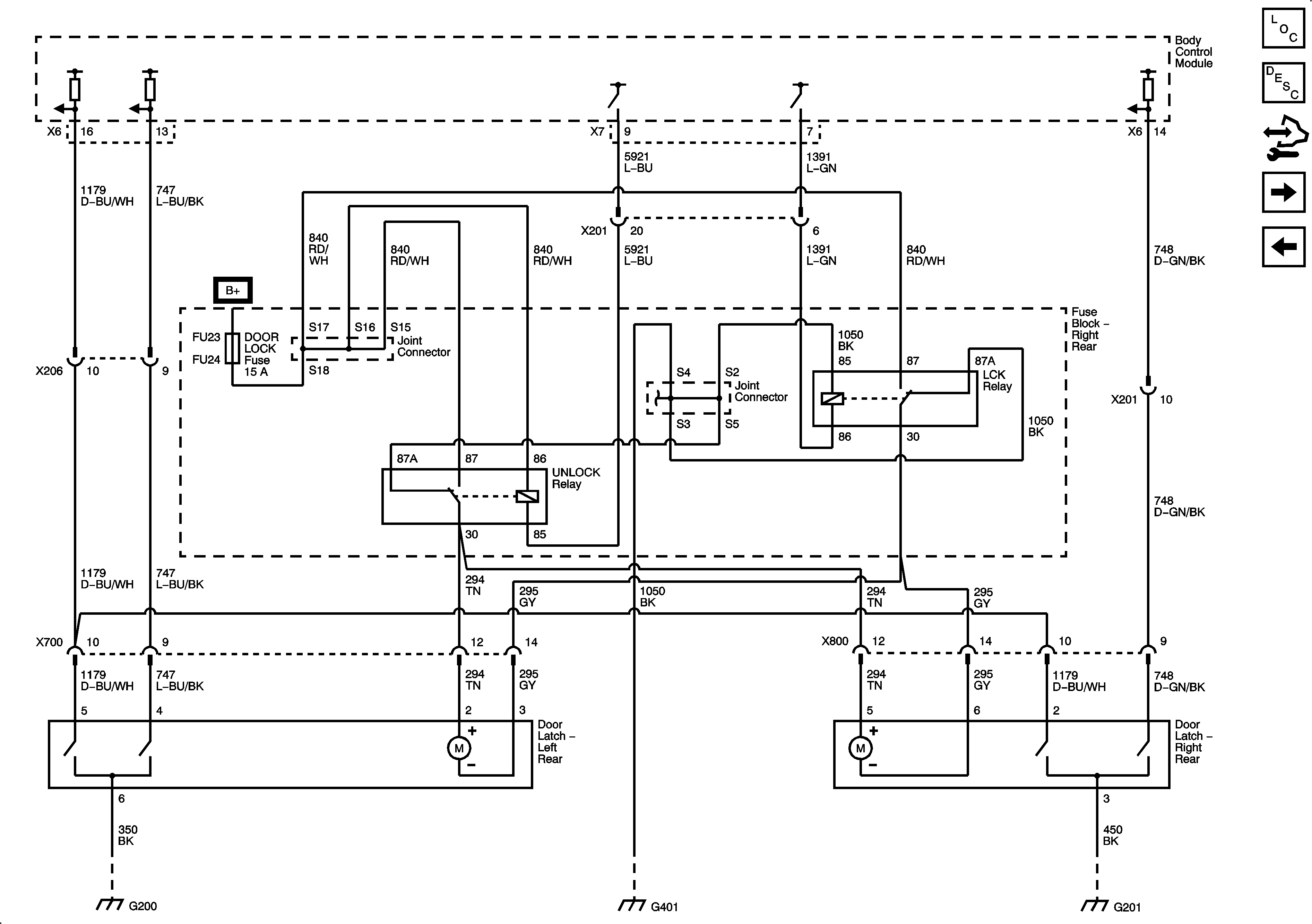

Figure 5:	Rear Door Locks (without EXP) Master Electrical Component List Power Door Latch Description and Operation Control Module References Rear Door Locks (EXP) Front Passenger Door Lock RHD

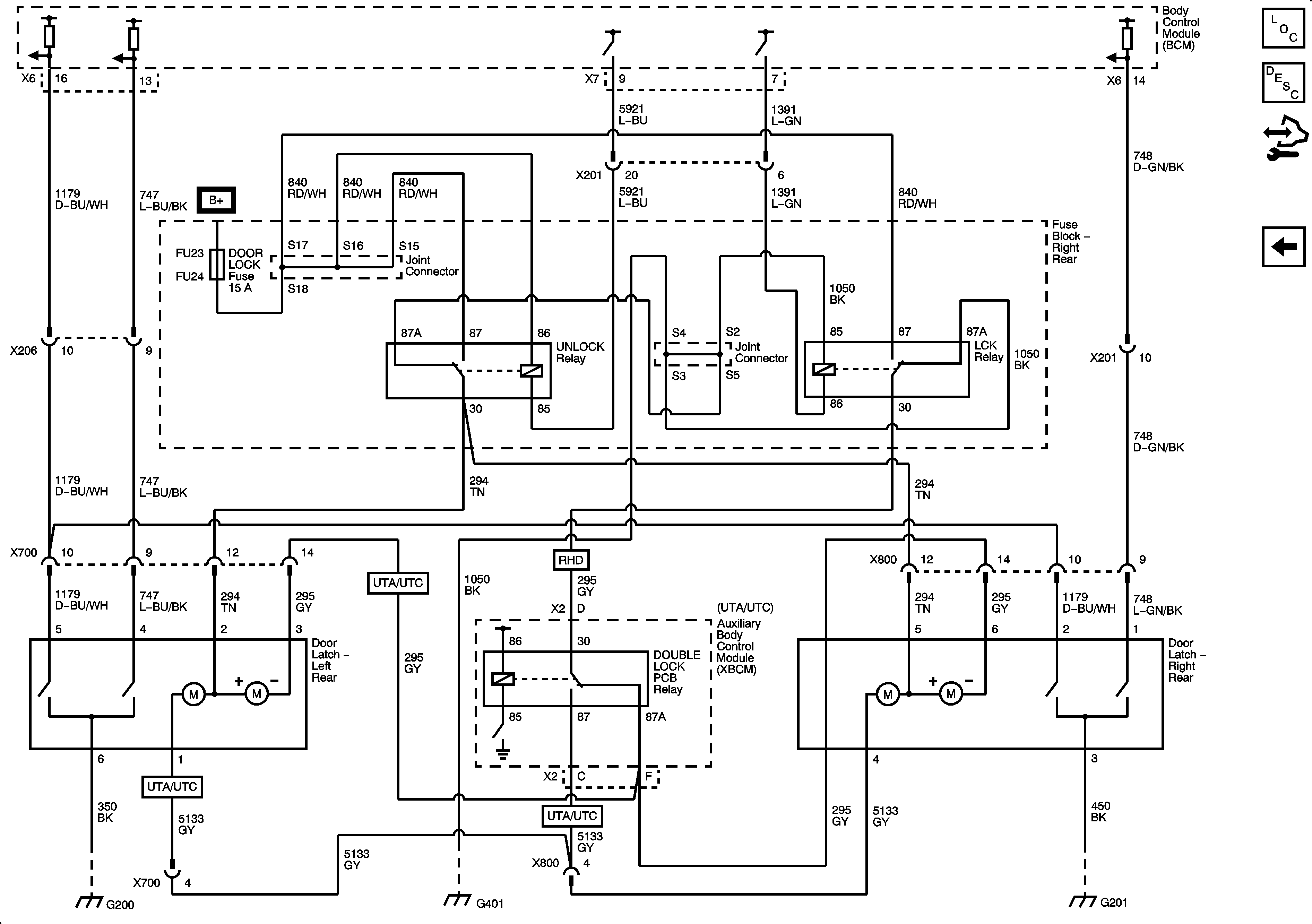

Figure 6:	Rear Door Locks (EXP) Master Electrical Component List Power Door Latch Description and Operation Control Module References Rear Door Locks (without EXP)
