Wheels/Vehicle Underbody Component Views. Cadillac SRX 2008

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2008 🢒 SRX 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Wheels/Vehicle Underbody Component Views

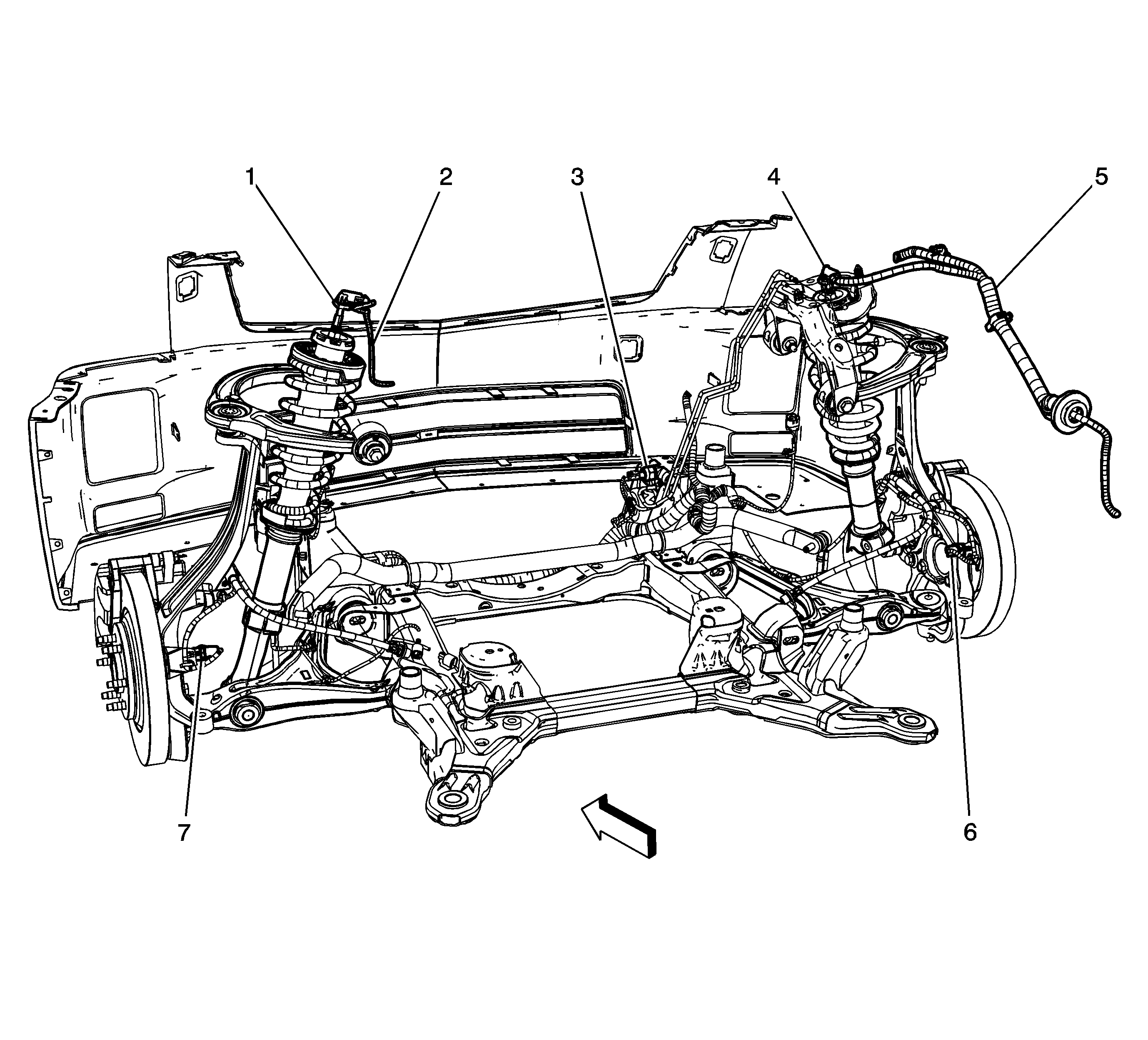

Figure 1:


(1)	Suspension Damper Solenoid - Left Front (F55)
(2)	Engine Harness
(3)	Electronic Brake Control Module (EBCM)
(4)	Suspension Damper Solenoid - Right Front (F55)
(5)	Body Harness
(6)	Wheel Speed Sensor (WSS) - Right Front
(7)	Wheel Speed Sensor (WSS) - Left Front

Figure 2:


(1)	Suspension Damper Solenoid - Right Front (F55)
(2)	Suspension Damper Solenoid - Left Front (F55)
(3)	Suspension Position Sensor - Left Front (F55)
(4)	Suspension Position Sensor - Right Front (F55)

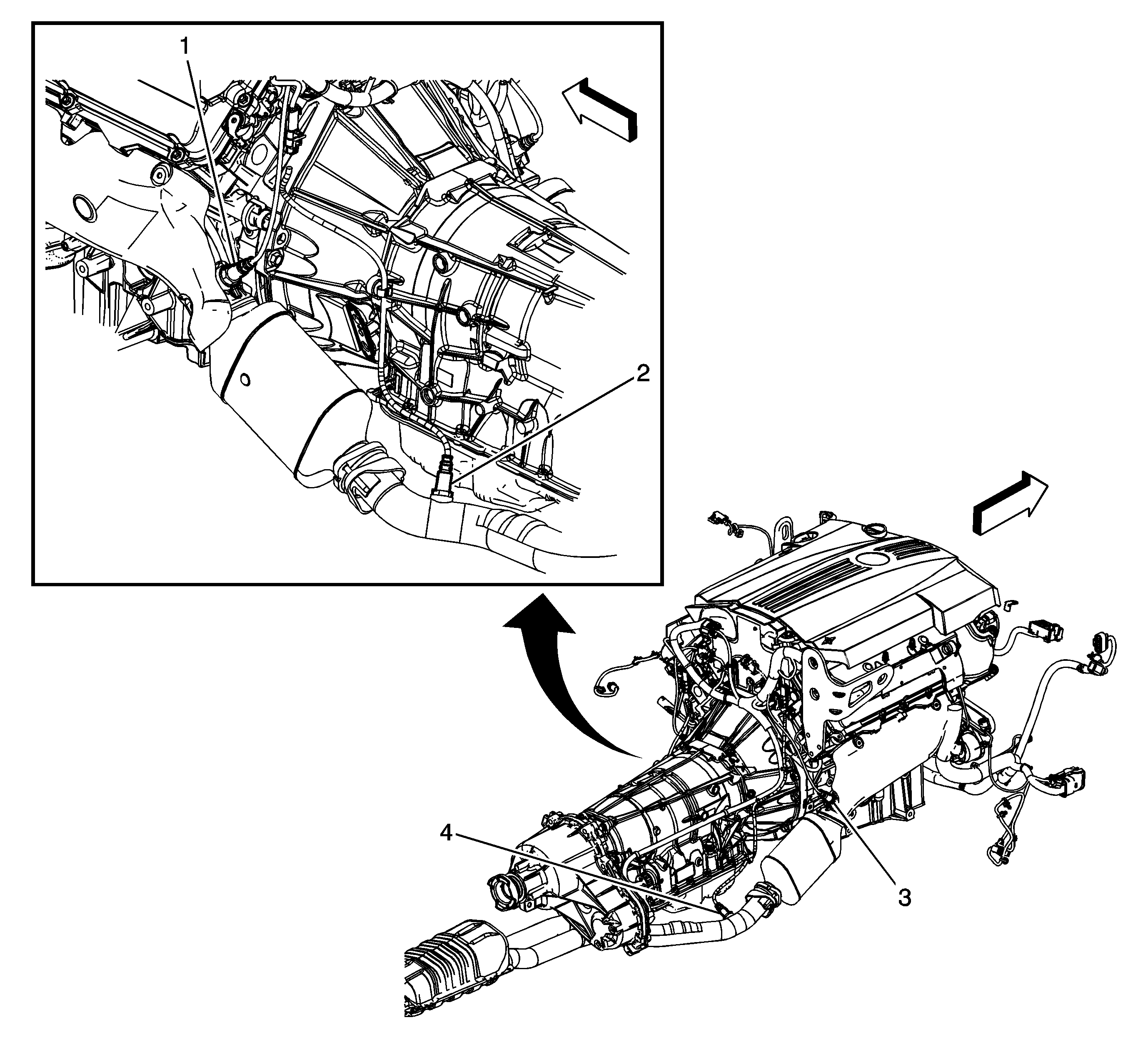

Figure 3:


(1)	Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LH2)
(2)	Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (LH2)
(3)	Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LH2)
(4)	Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LH2)

Figure 4:


(1)	Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1
(2)	Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1
(3)	Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2
(4)	Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2

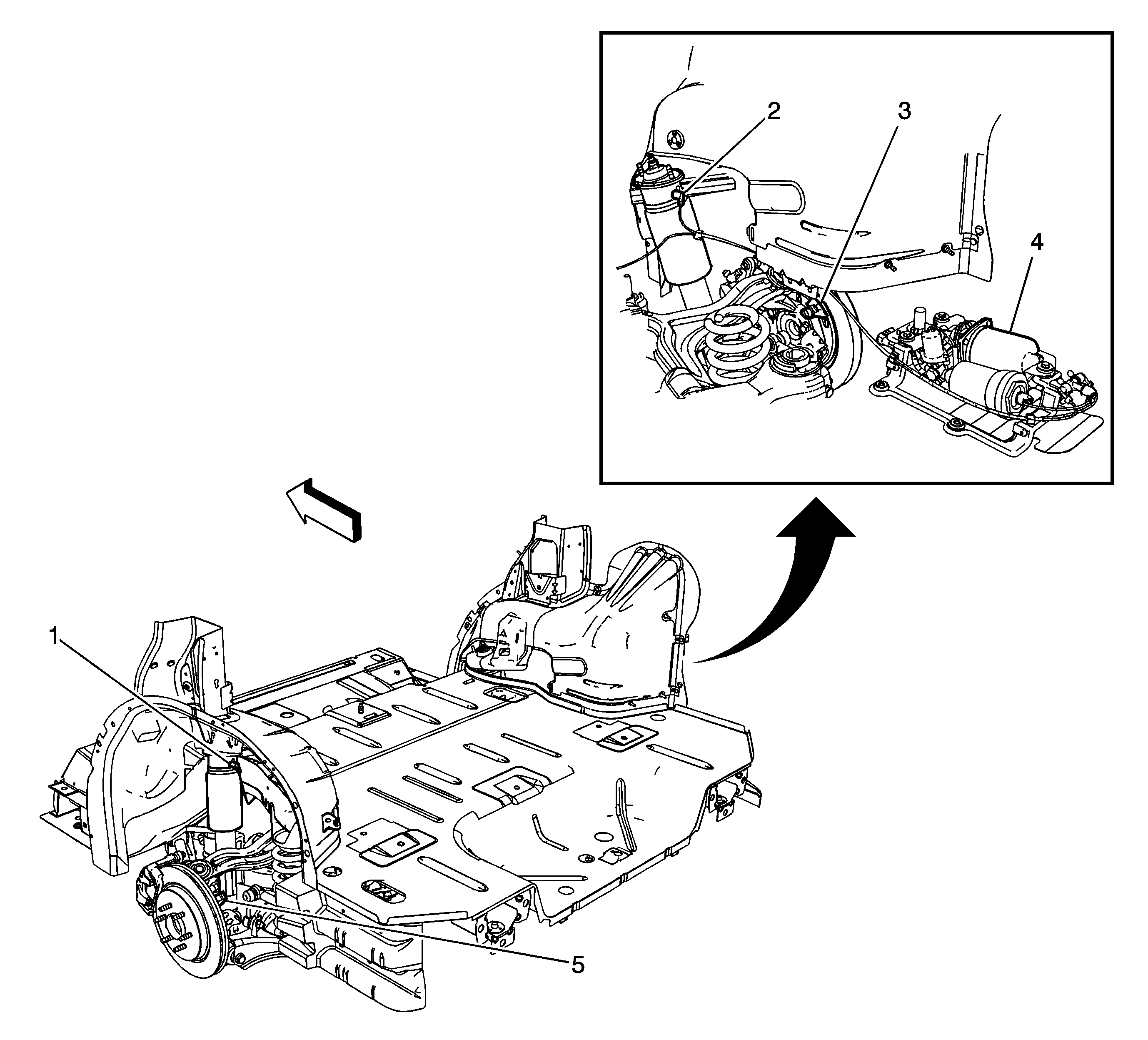

Figure 5:


(1)	Suspension Damper Solenoid - Left Rear (F55)
(2)	Suspension Damper Solenoid - Right Rear (F55)
(3)	Wheel Speed Sensor (WSS) - Right Rear
(4)	Automatic Level Control (ALC) Compressor (F55)
(5)	Wheel Speed Sensor (WSS) - Left Rear

Figure 6:


(1)	Suspension Damper Solenoid - Left Rear (F55)
(2)	Suspension Position Sensor - Left Rear Connector (F55)
(3)	Suspension Position Sensor - Left Rear (F55)
(4)	Wheel Speed Sensor (WSS) - Left Rear
(5)	Suspension Damper Solenoid - Left Front (F55)
(6)	Suspension Position Sensor - Left Front (F55)
(7)	Wheel Speed Sensor (WSS) - Left Front
(8)	Suspension Damper Solenoid - Right Rear (F55)
(9)	Wheel Speed Sensor (WSS) - Right Rear
(10)	Suspension Position Sensor - Right Rear (F55)

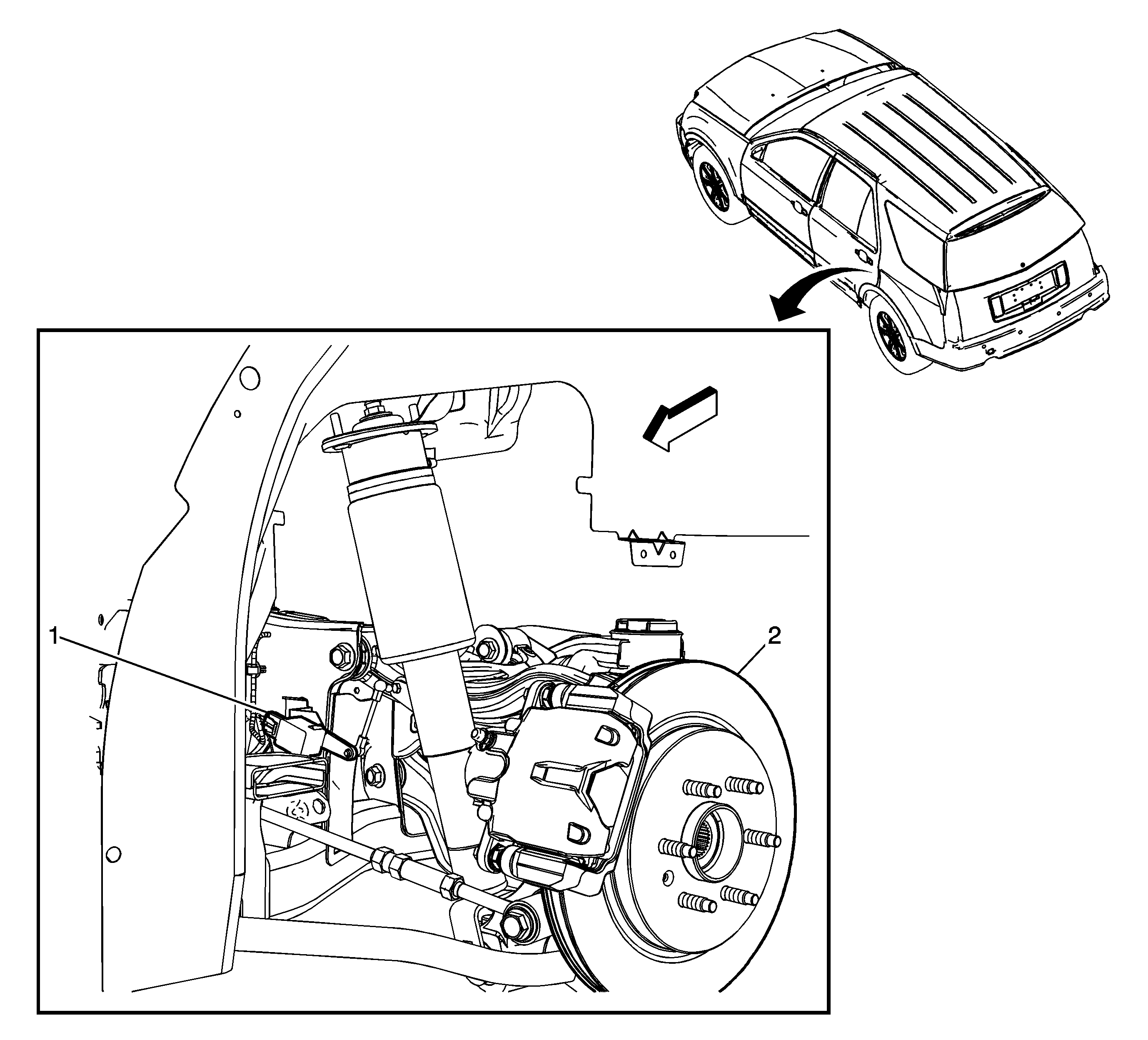

Figure 7:


(1)	Headlamp Leveling Sensor - Rear (TR7)
(2)	Rotor - Left Rear

Figure 8:


(1)	Fuel Tank
(2)	Fuel Tank Pressure (FTP) Sensor
(3)	X420
(4)	Evaporative Emissions (EVAP) Canister Vent Solenoid Valve
(5)	Fuel Level Sensor - Secondary
(6)	Fuel Pump and Sender Assembly

Figure 9:


(1)	Tire Pressure Sensor - Left Front (Left Rear , Right Front , and Right Rear Similar)
