Exterior Lights Schematics. Cadillac SRX 2009

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2009 🢒 SRX 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Exterior Lights Schematics

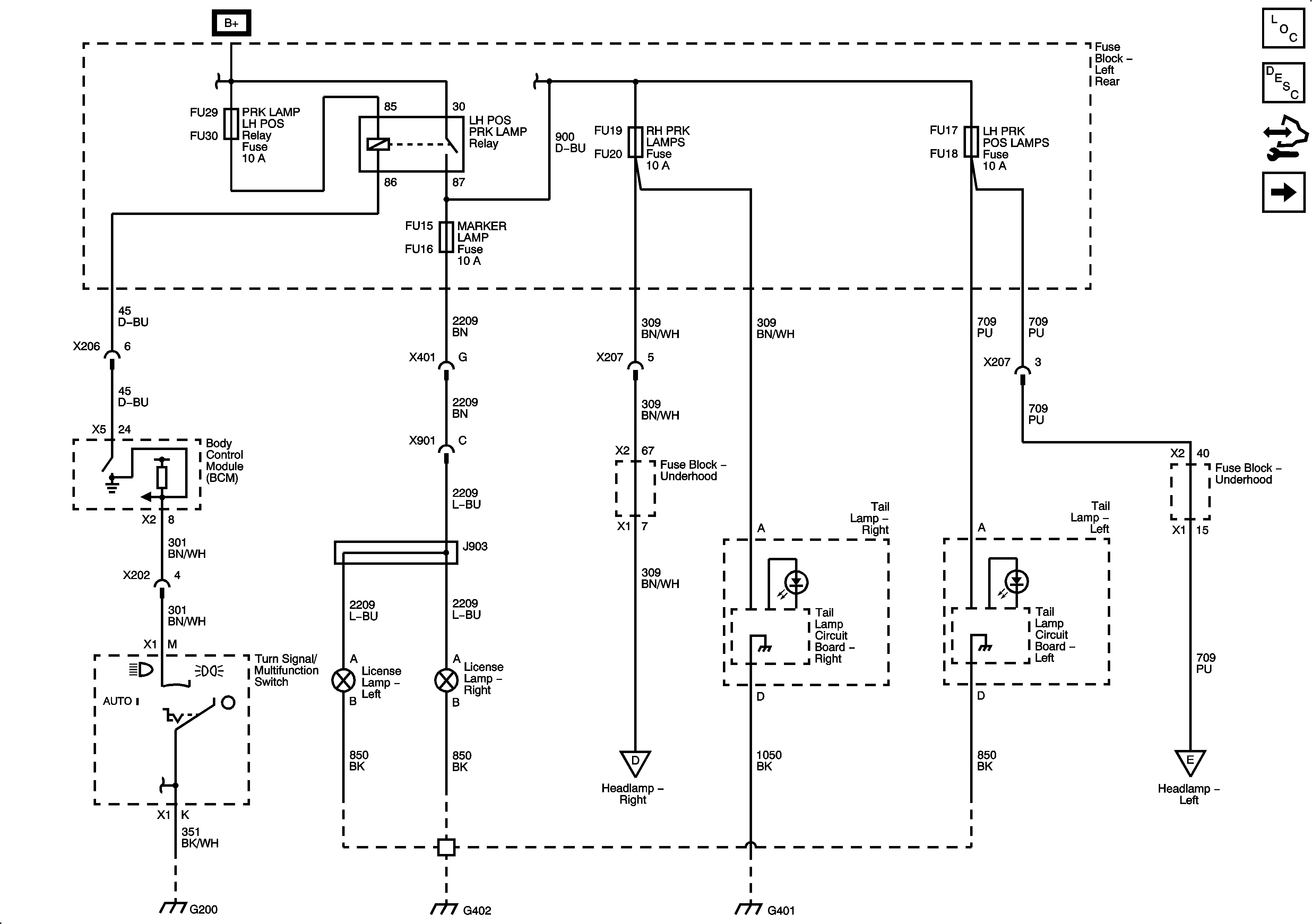

Figure 1:	Park Lamps (without EXP) 1 of 2
Figure 2:	Park Lamps (without EXP) 2 of 2

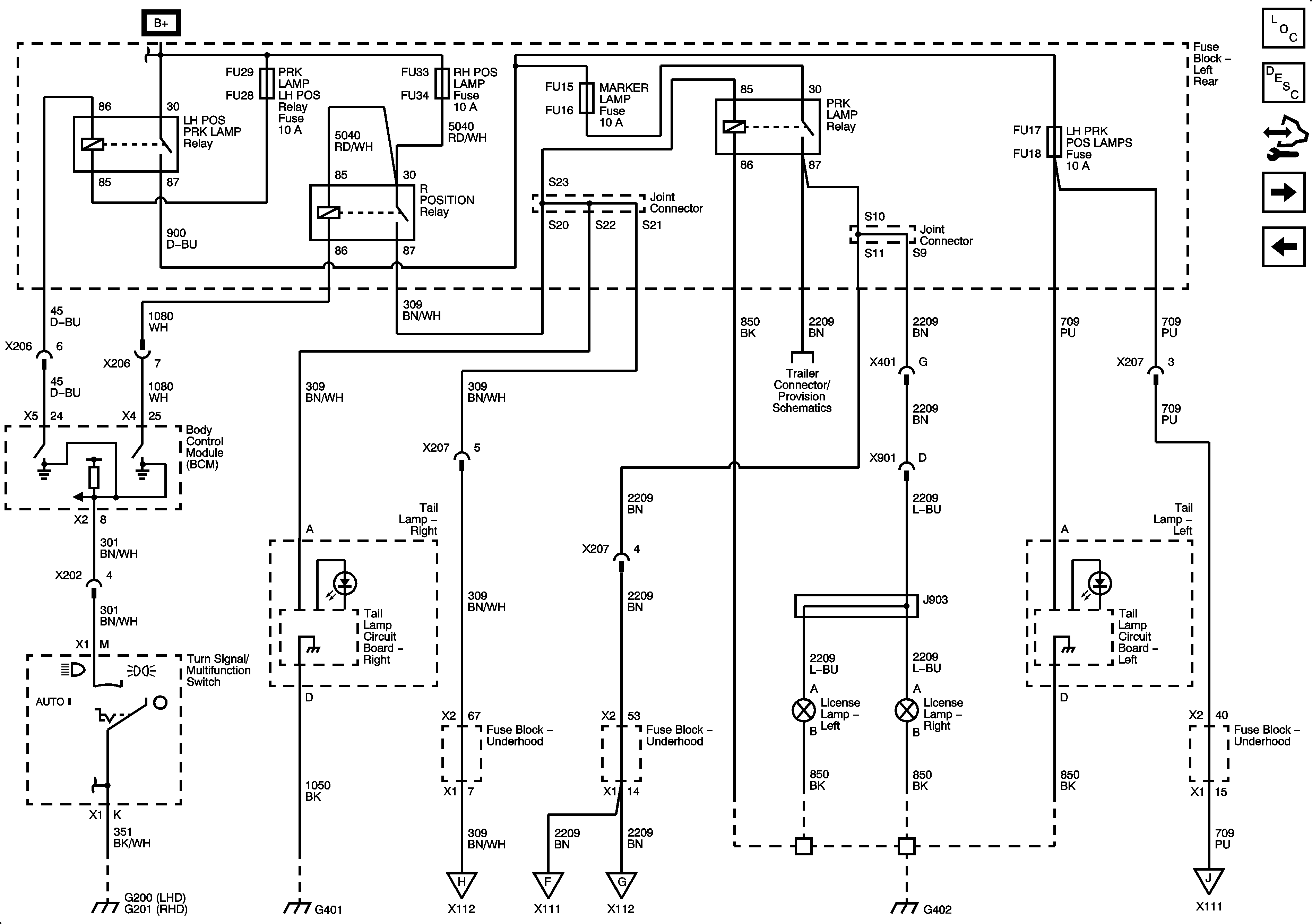

Figure 3:	Park Lamps (EXP) 1 of 2
Figure 4:	Park Lamps (EXP) 2 of 2

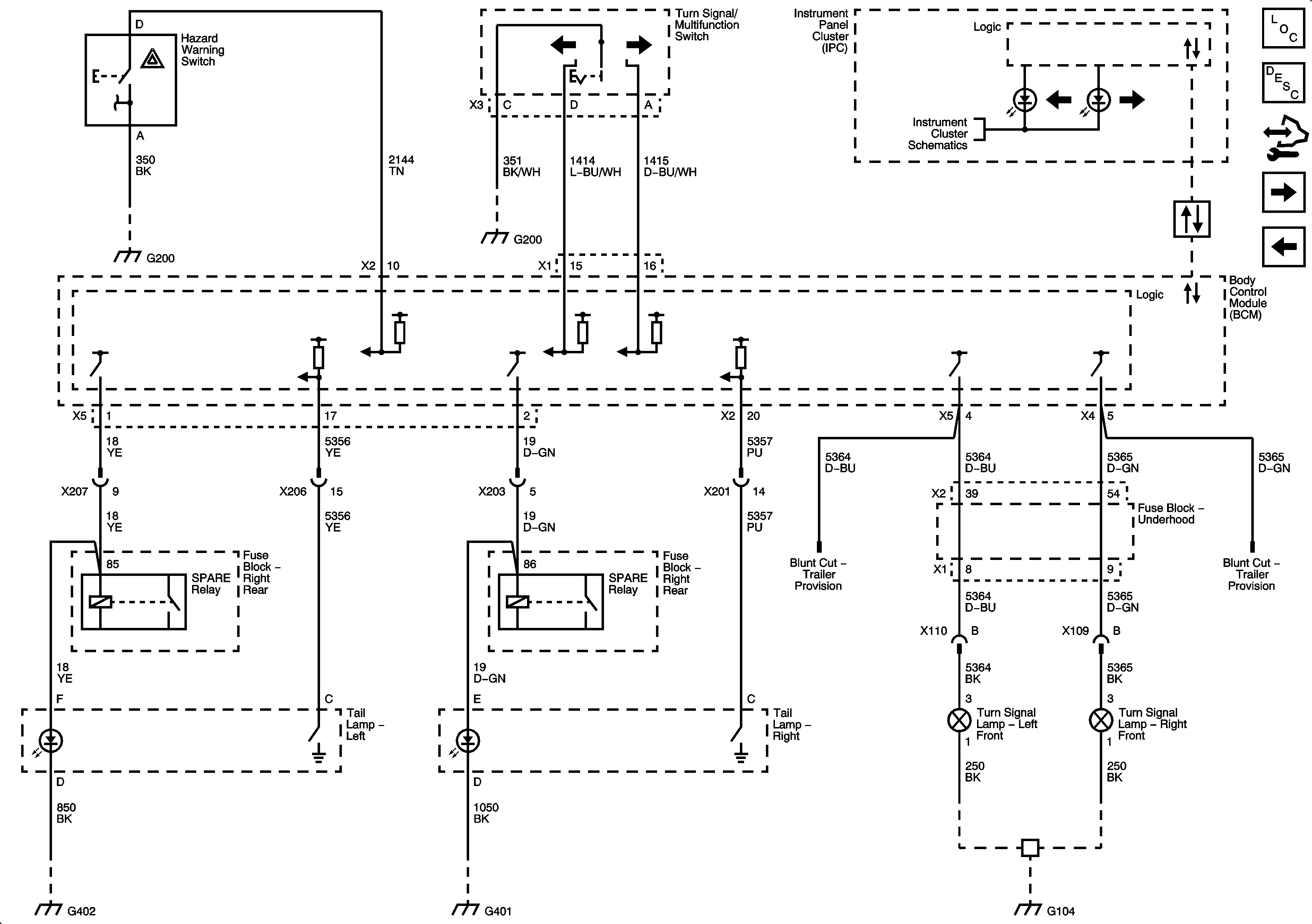

Figure 5:	Hazard and Turn Lamps (without EXP)

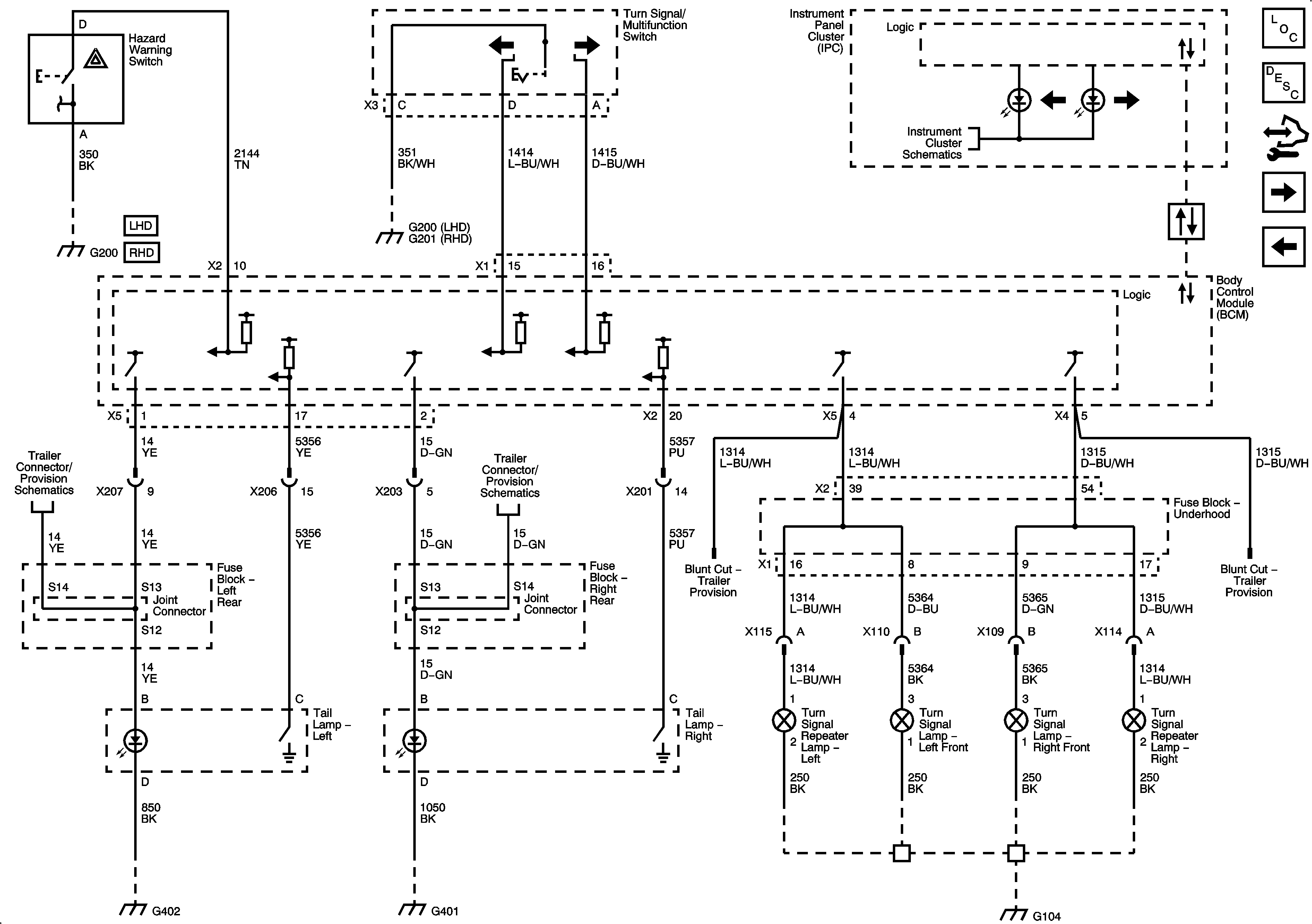

Figure 6:	Hazard and Turn Lamps (EXP)

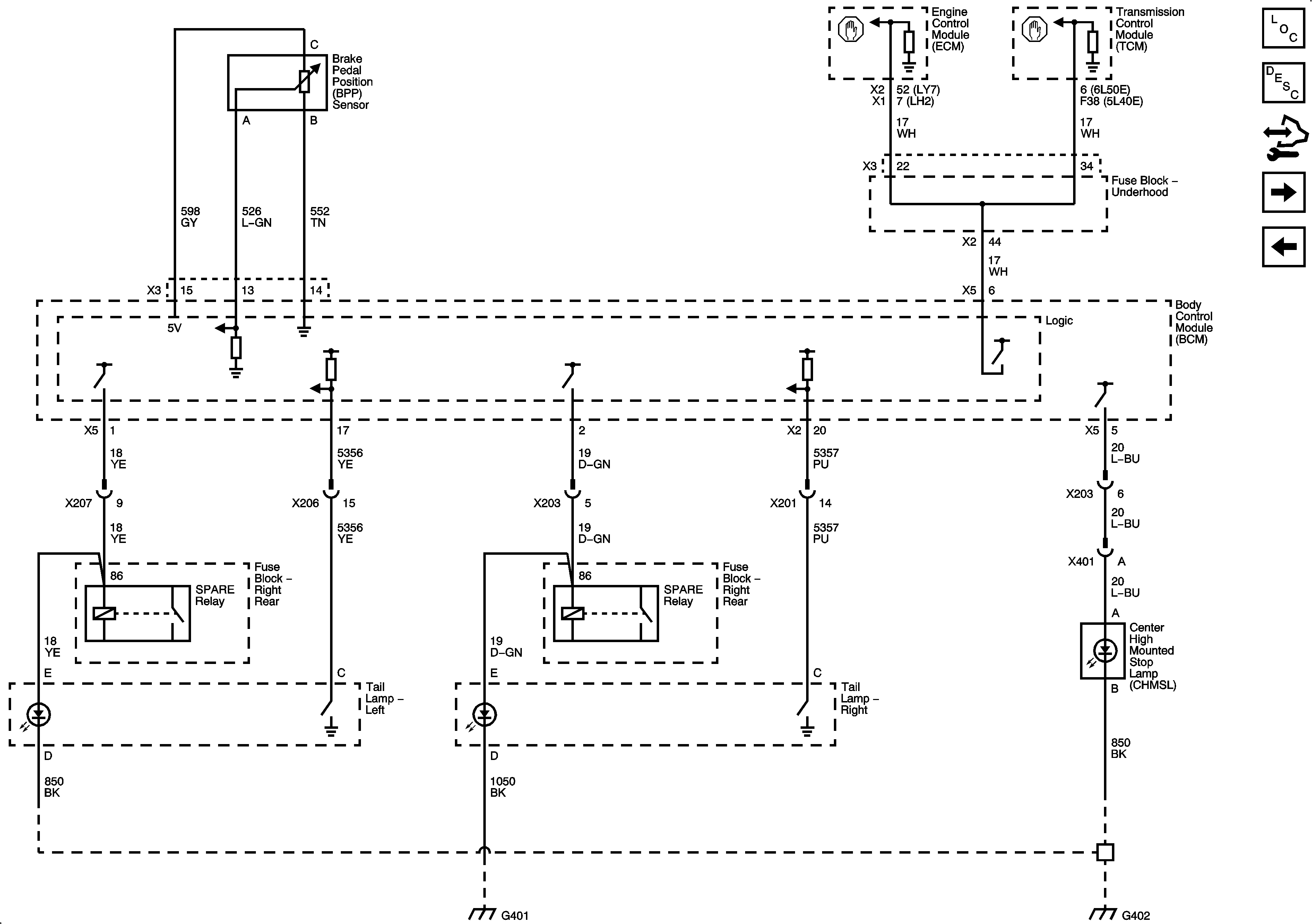

Figure 7:	Stop Lamps (without EXP)

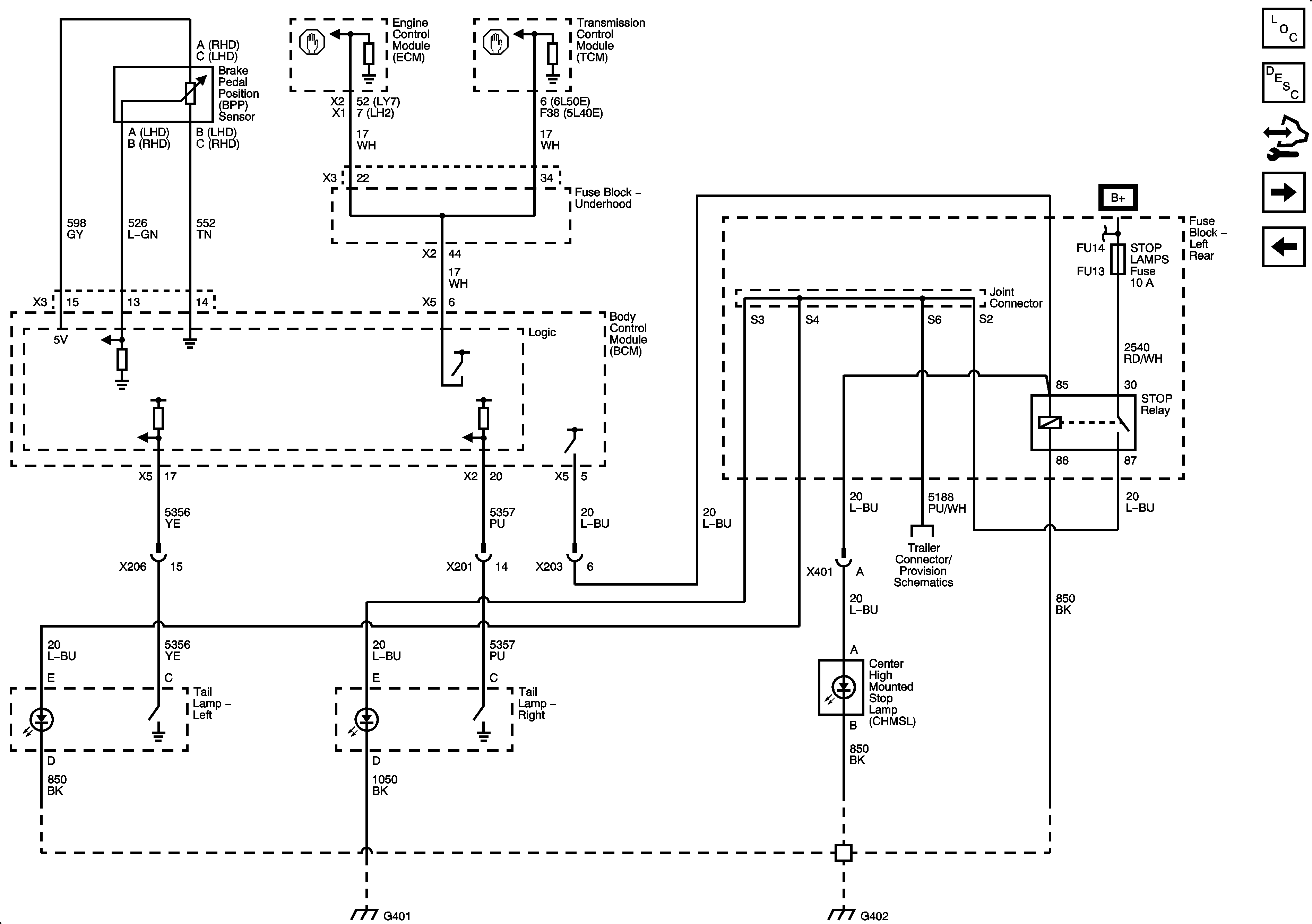

Figure 8:	Stop Lamps (EXP)

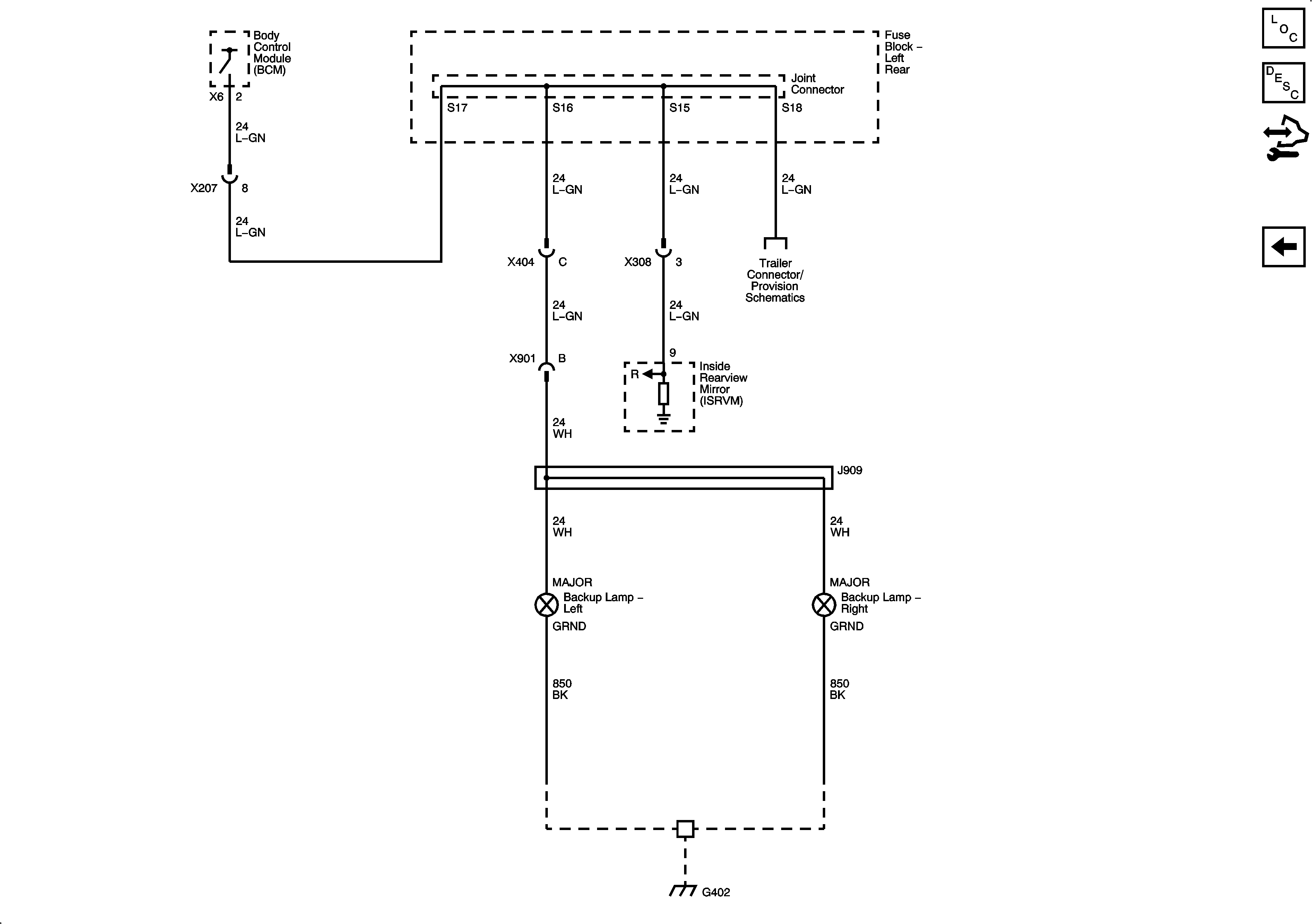

Figure 9:	Backup Lamps
