Ground Distribution Schematics. Cadillac STS 2005

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2005 🢒 STS 🢒 Engine 🢒 Engine Electrical 🢒 Ground Distribution Schematics

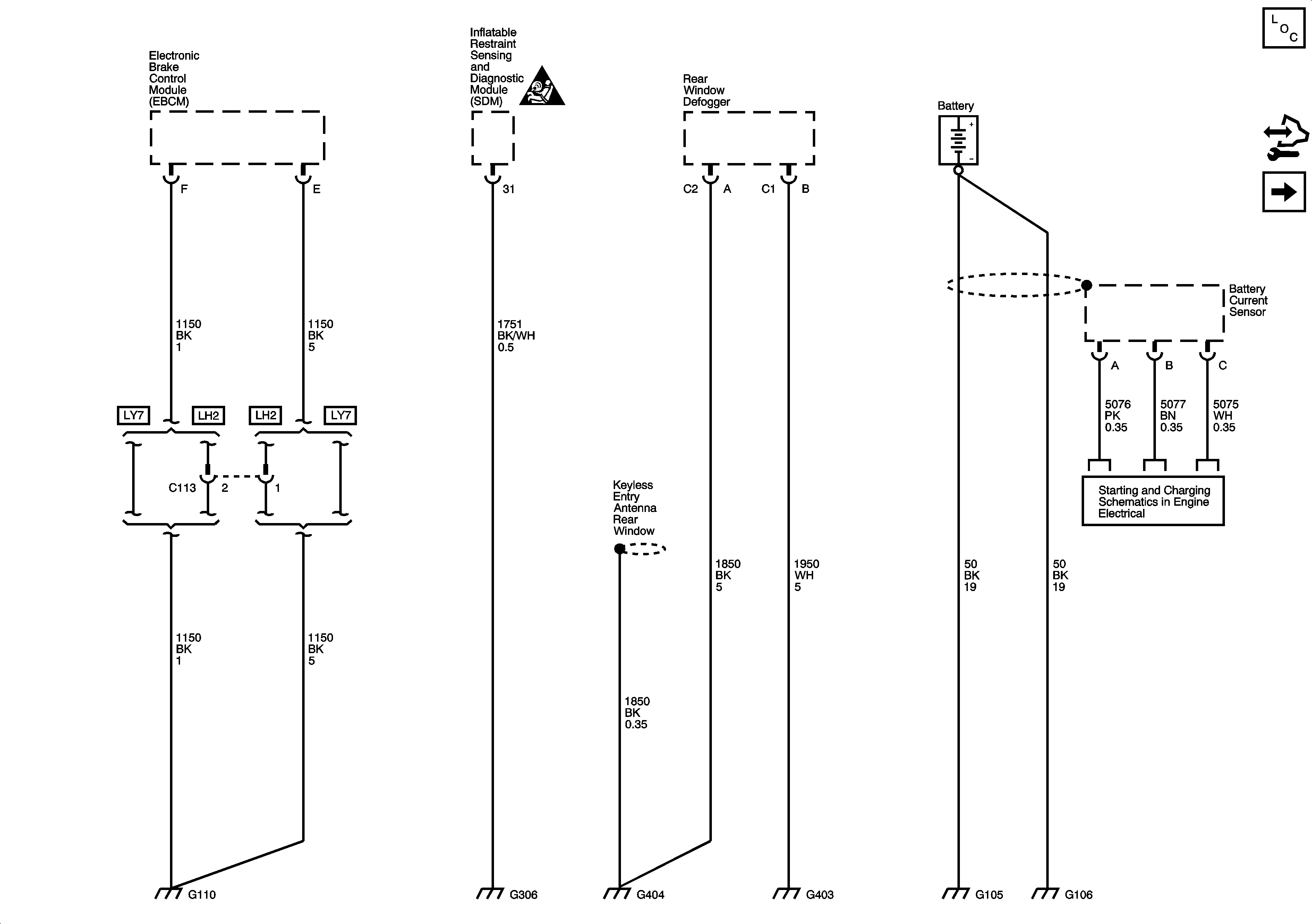

Figure 1:	G105, G106, G110, G306, G403 and G404 Master Electrical Component List Control Module References G100 (LH2) Computer/Integrating Systems Schematic Icons Charging System

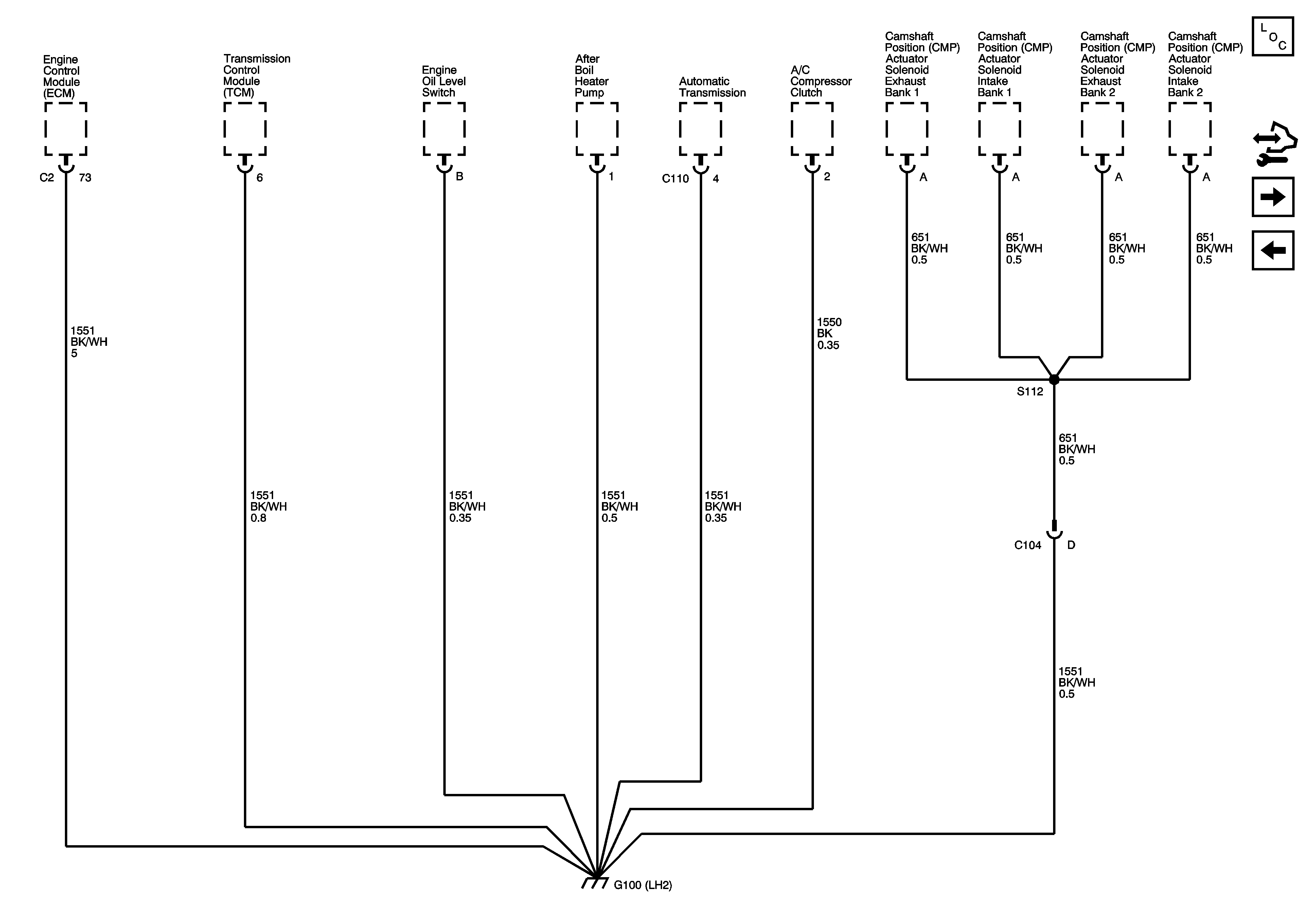

Figure 2:	G100 (LH2) Master Electrical Component List Control Module References G101 G110, G306, G404, G403, G105, G106

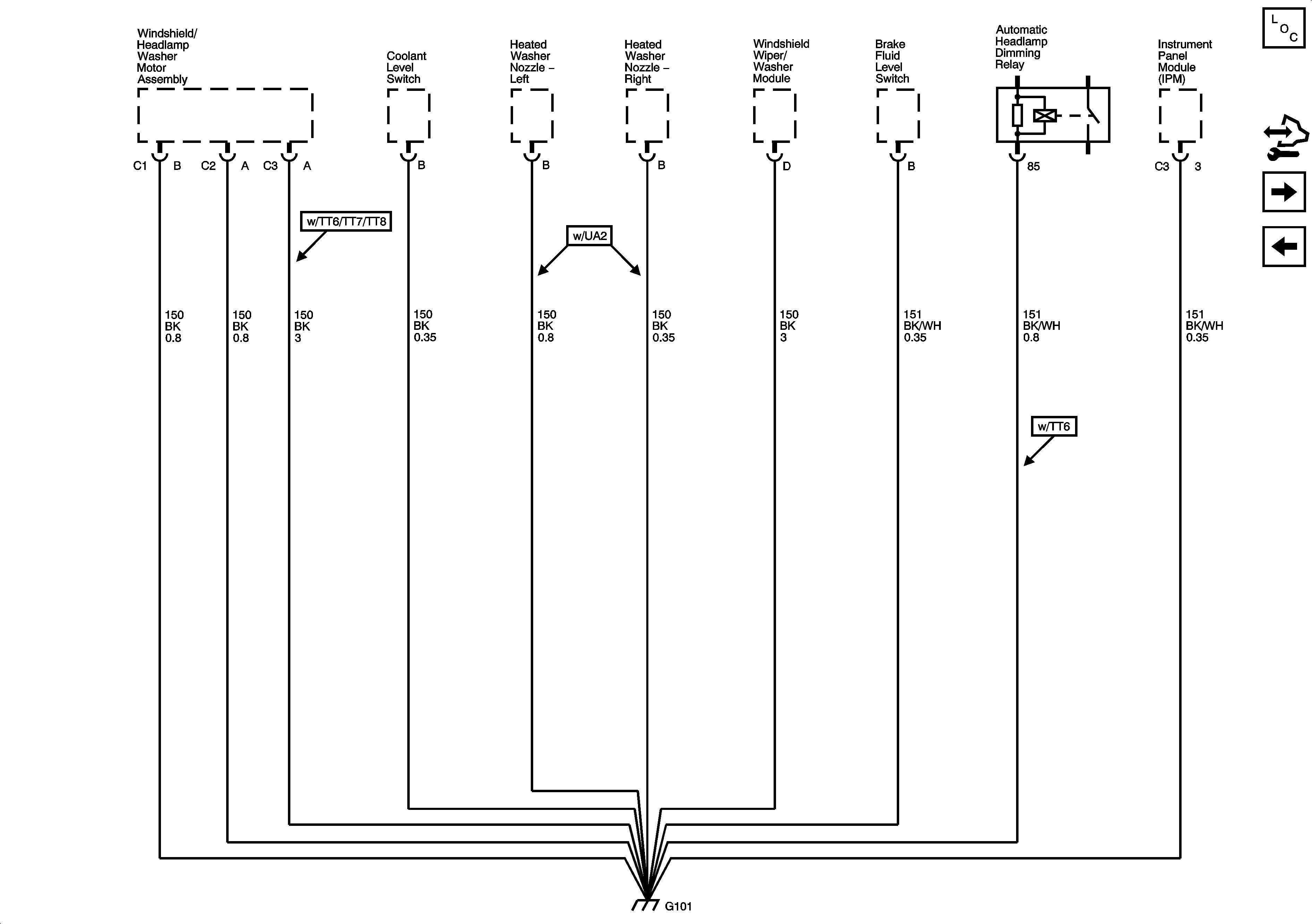

Figure 3:	G101 Master Electrical Component List Control Module References G104 (1 of 2) G100 (LH2)

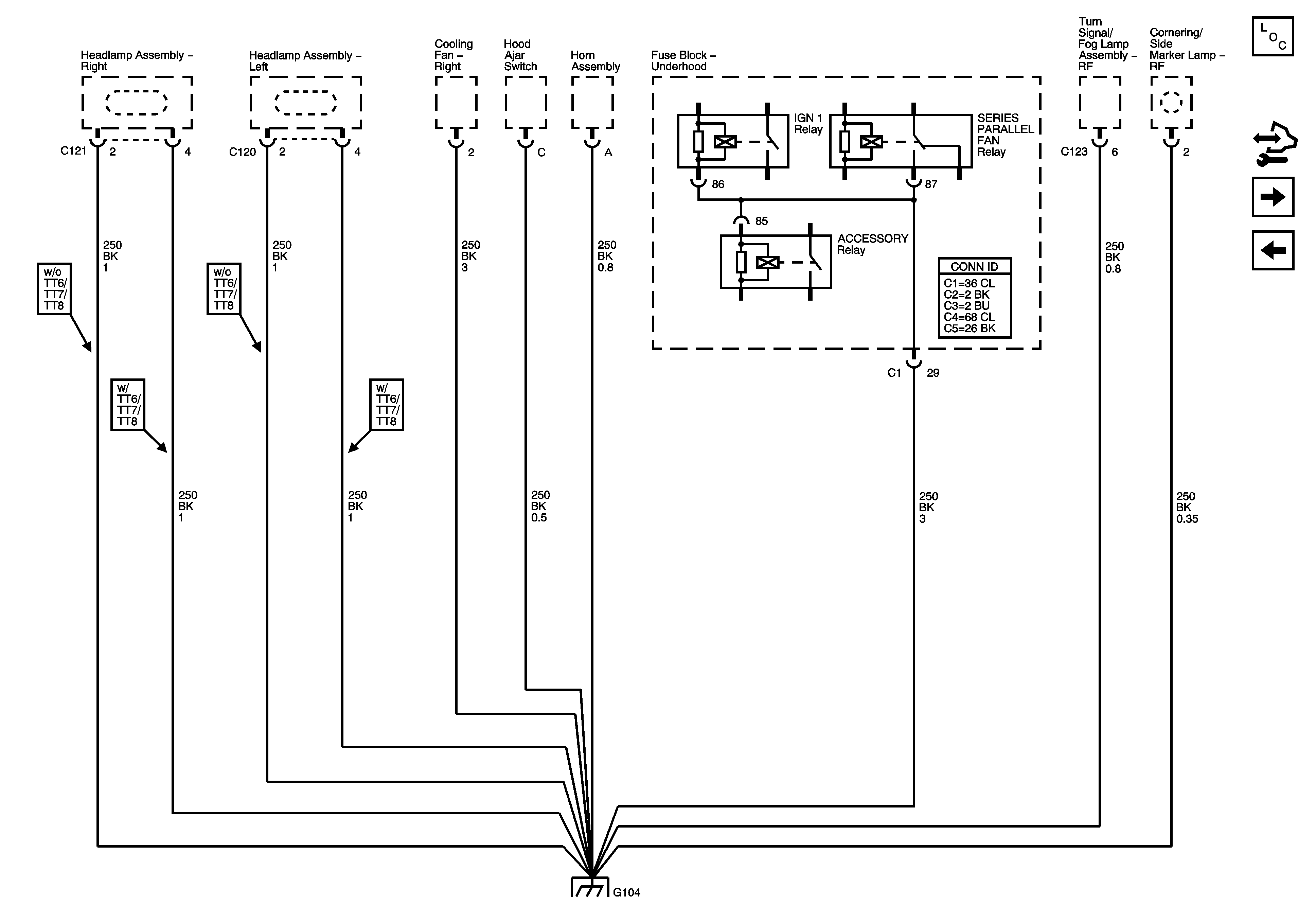

Figure 4:	G104 1 of 2 Master Electrical Component List Control Module References G104 (2 of 2) G101 G104 (2 of 2)

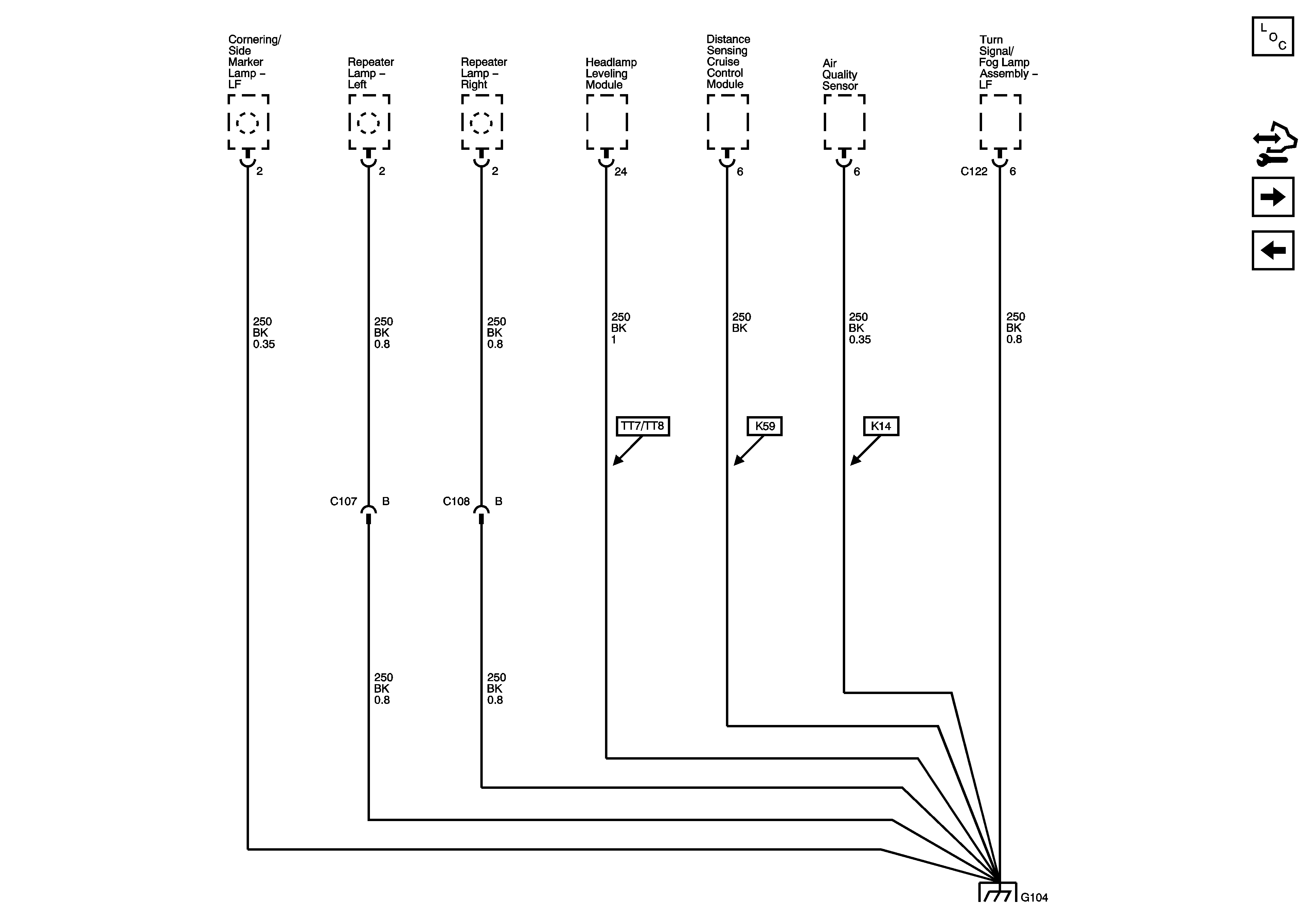

Figure 5:	G104 2 of 2 Master Electrical Component List Control Module References G107 (LH2), G113 (LY7) G104 (1 of 2) G104 (1 of 2)

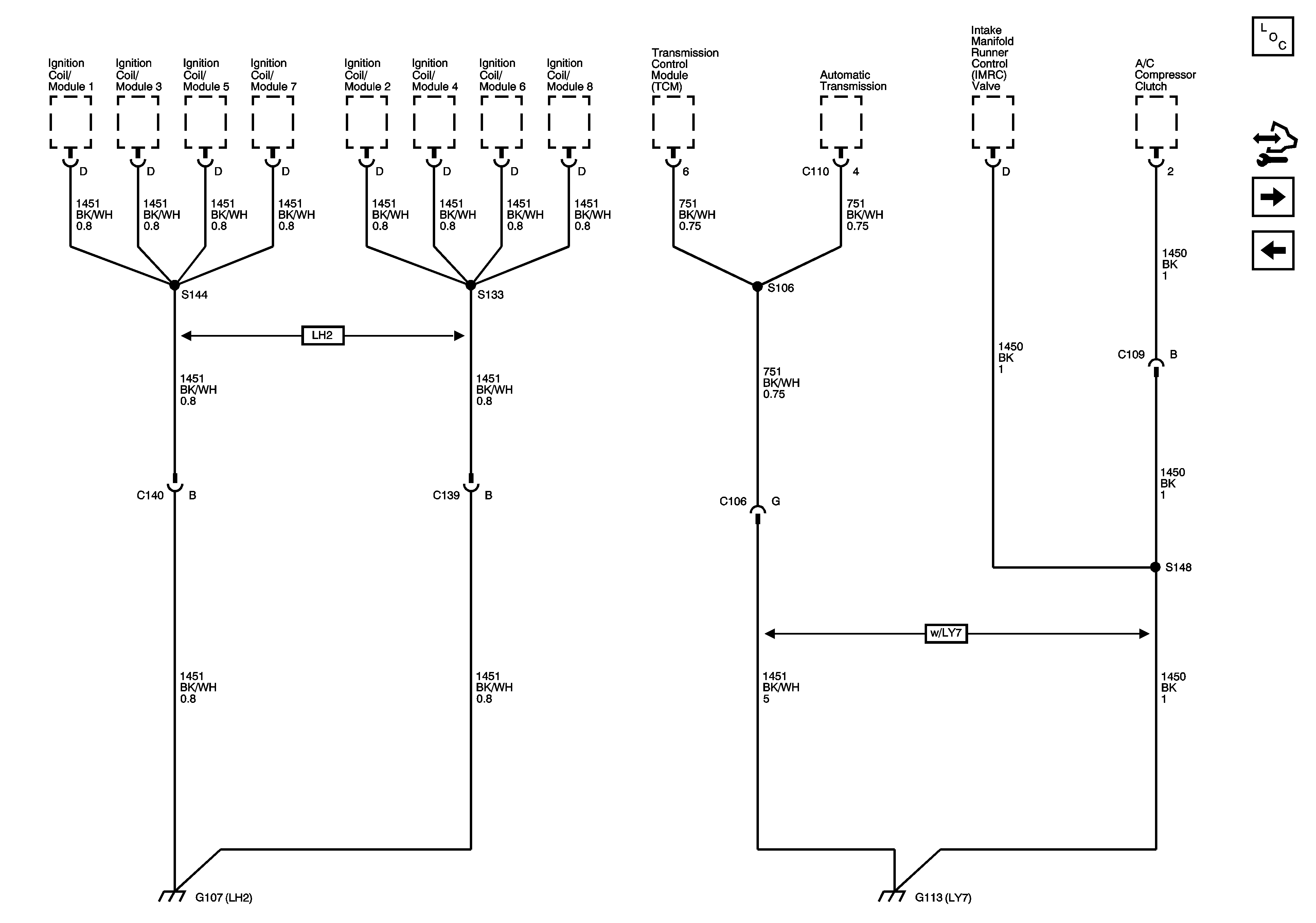

Figure 6:	G107 (LH2), G113 (LY7) Master Electrical Component List Control Module References G109, G112 (LY7) G104 (2 of 2)

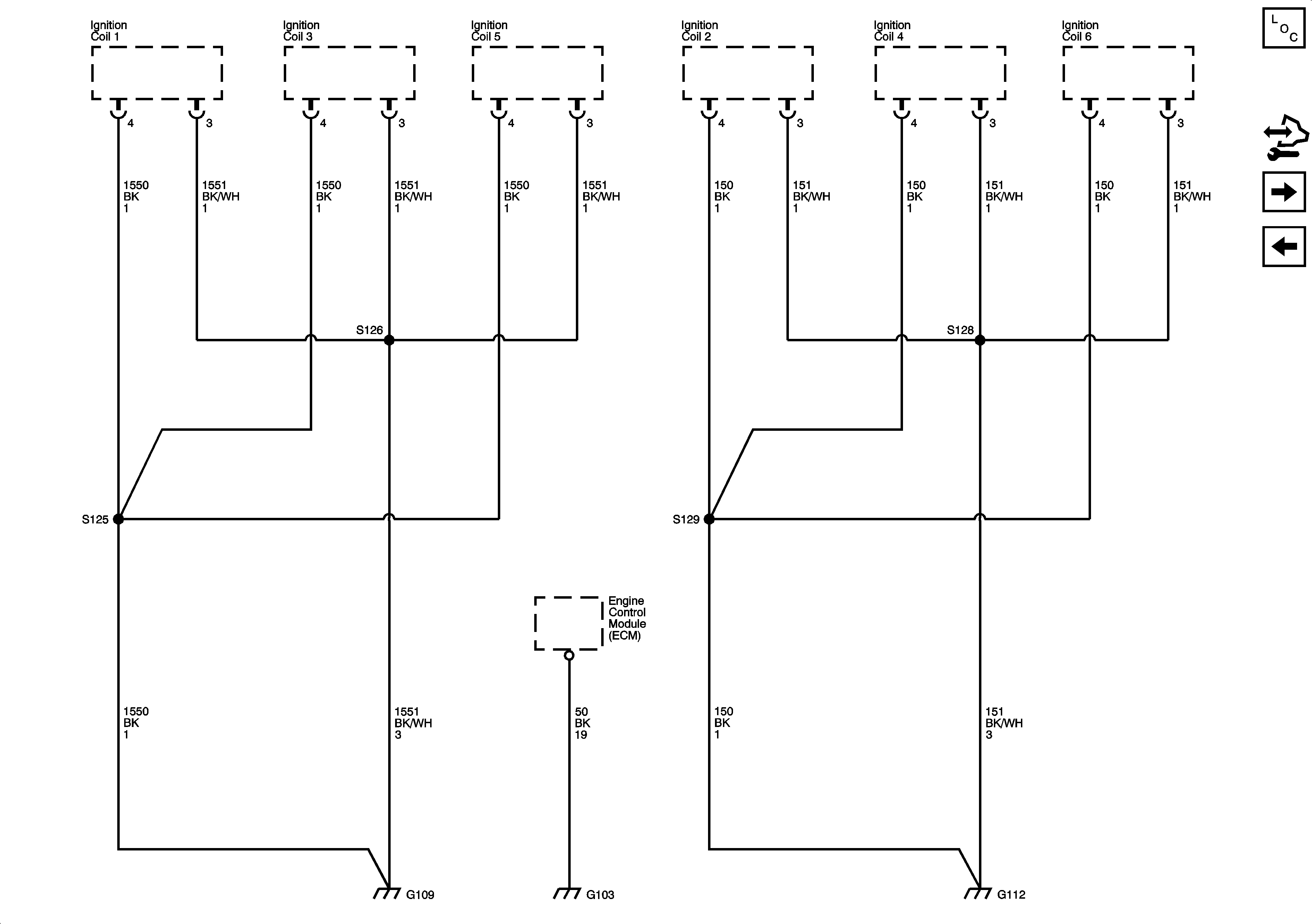

Figure 7:	G103 (LY7), G109 (LY7), G112 (LY7) Master Electrical Component List Control Module References G200 (1 of 2) G107 (LH2), G113 (LY7)

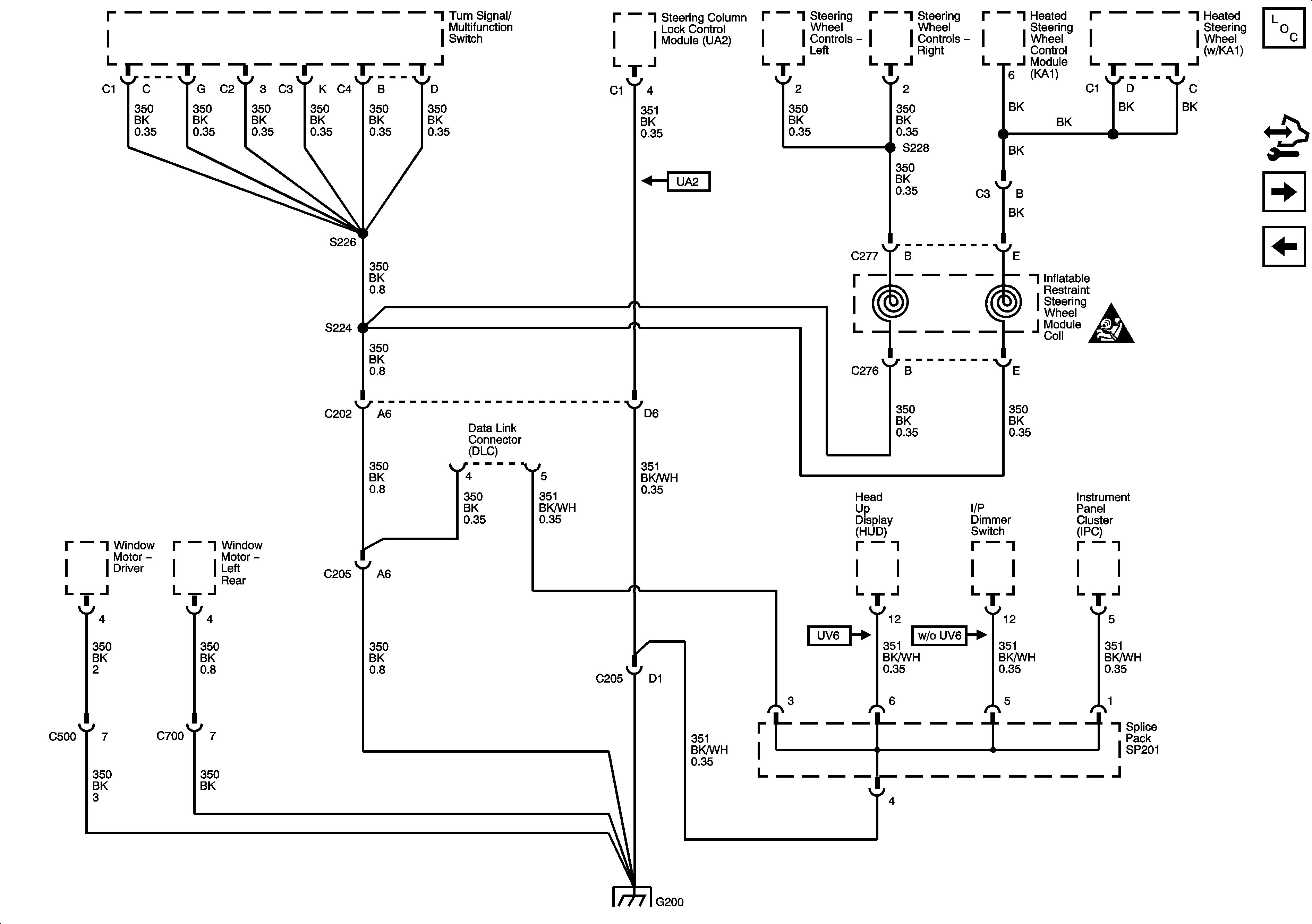

Figure 8:	G200 1 of 2 Master Electrical Component List Control Module References G200 (2 of 2) G109, G112 (LY7) G200 (2 of 2)

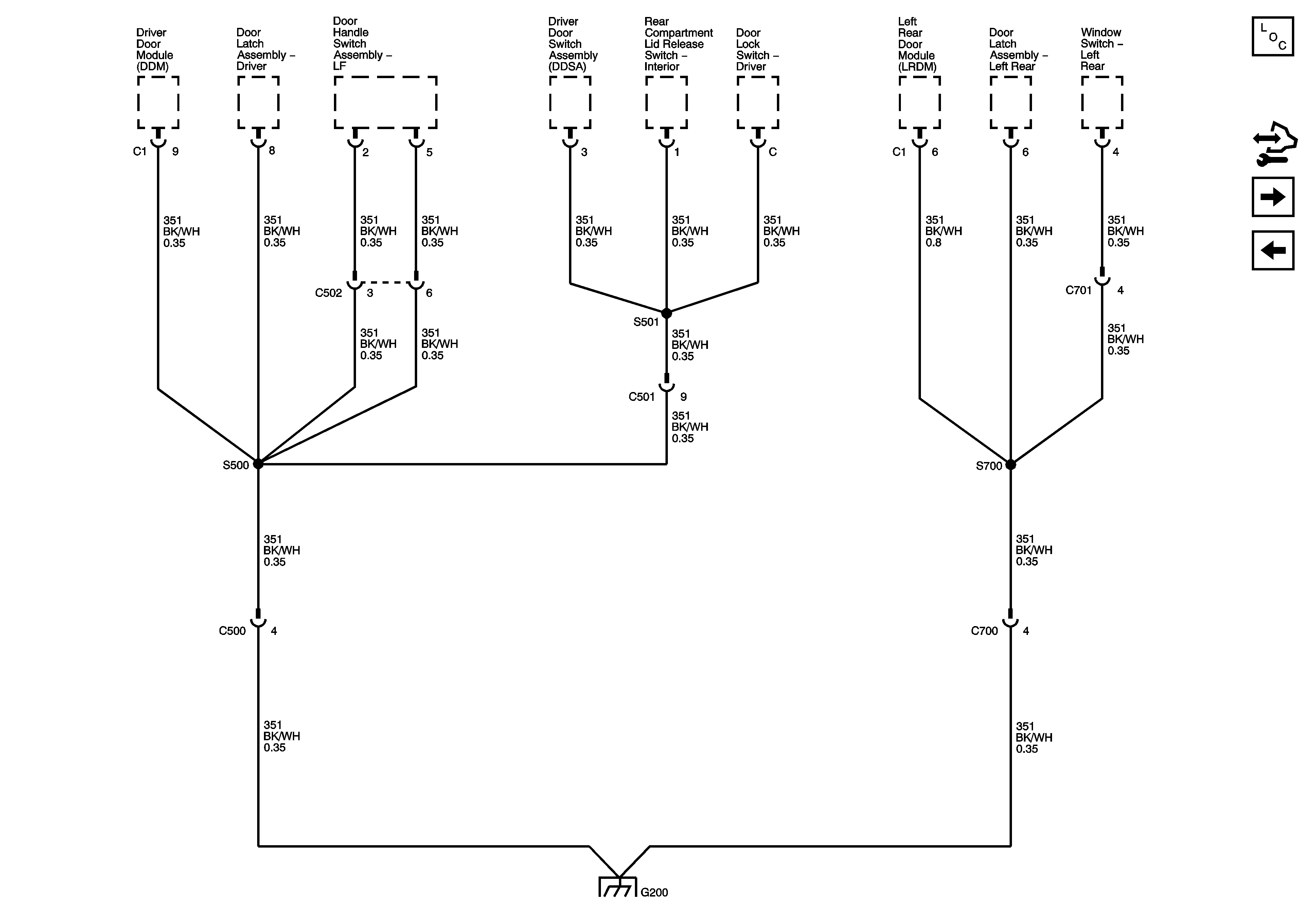

Figure 9:	G200 2 of 2 Master Electrical Component List Control Module References G201 (1 of 2) G200 (1 of 2) Computer/Integrating Systems Schematic Icons G200 (1 of 2)

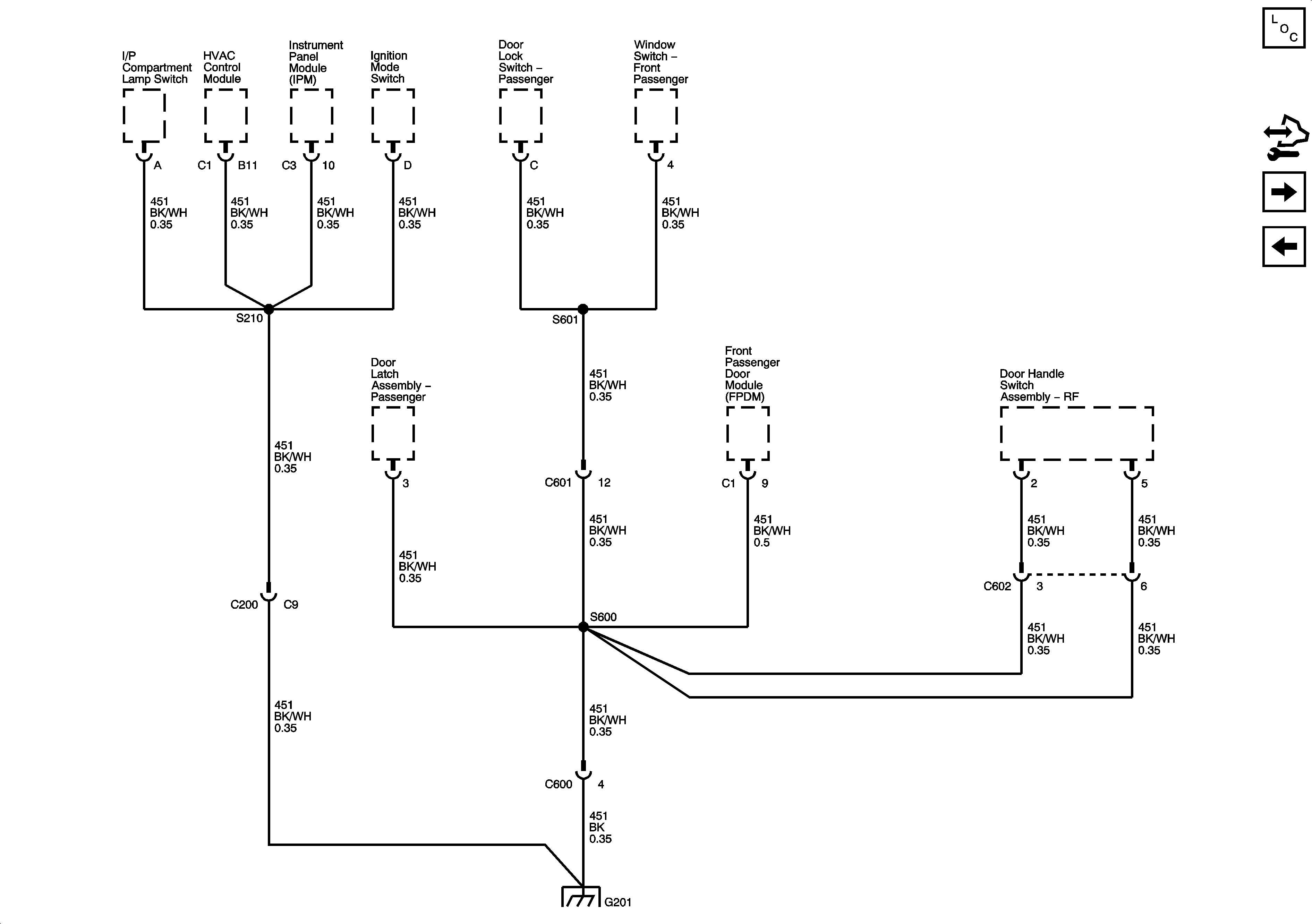

Figure 10:	G201 1 of 2 Master Electrical Component List Control Module References G201 (2 of 2) G200 (2 of 2) G201 (2 of 2)

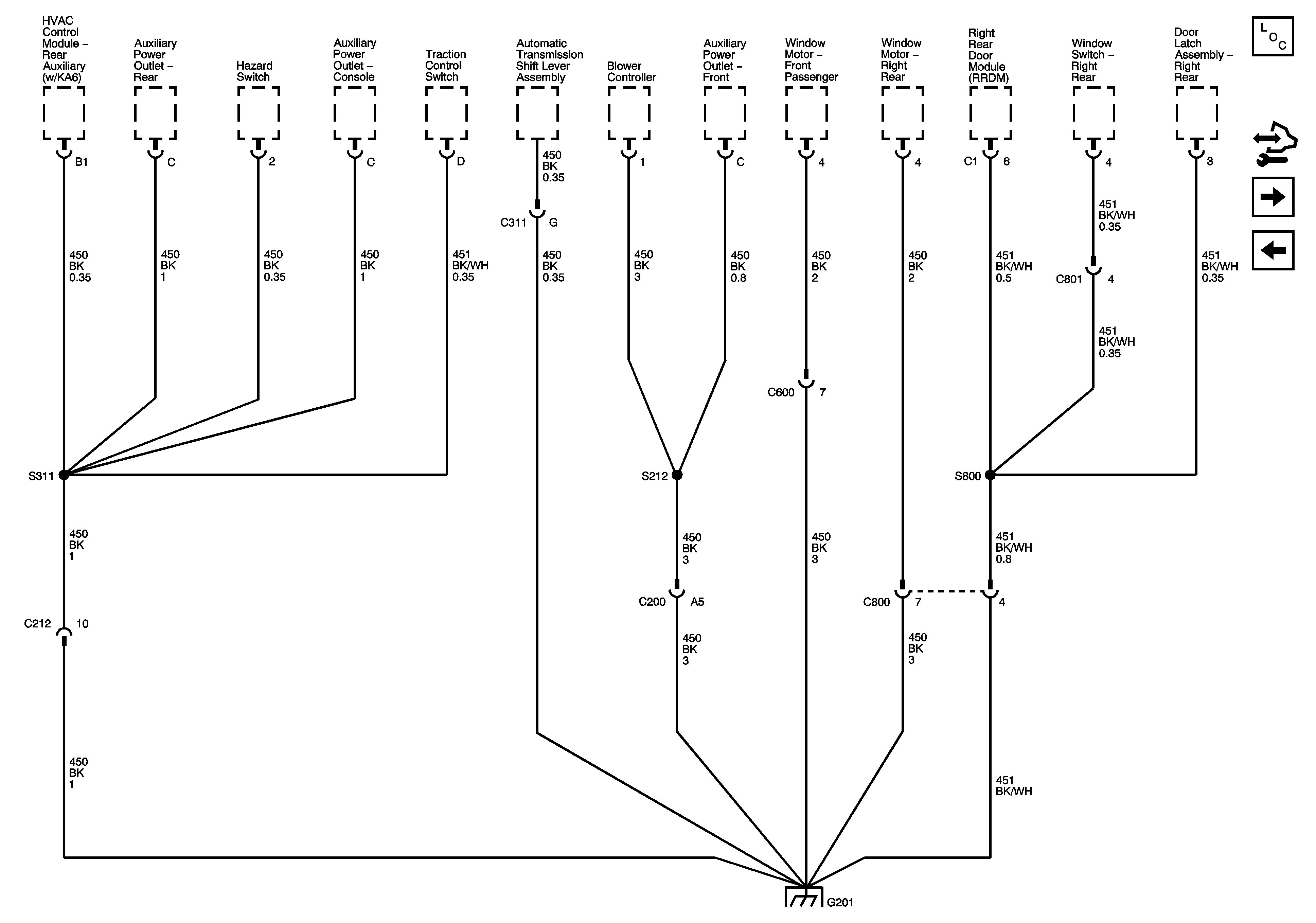

Figure 11:	G201 2 of 2 Master Electrical Component List Control Module References G307 G201 (1 of 2) G201 (1 of 2)

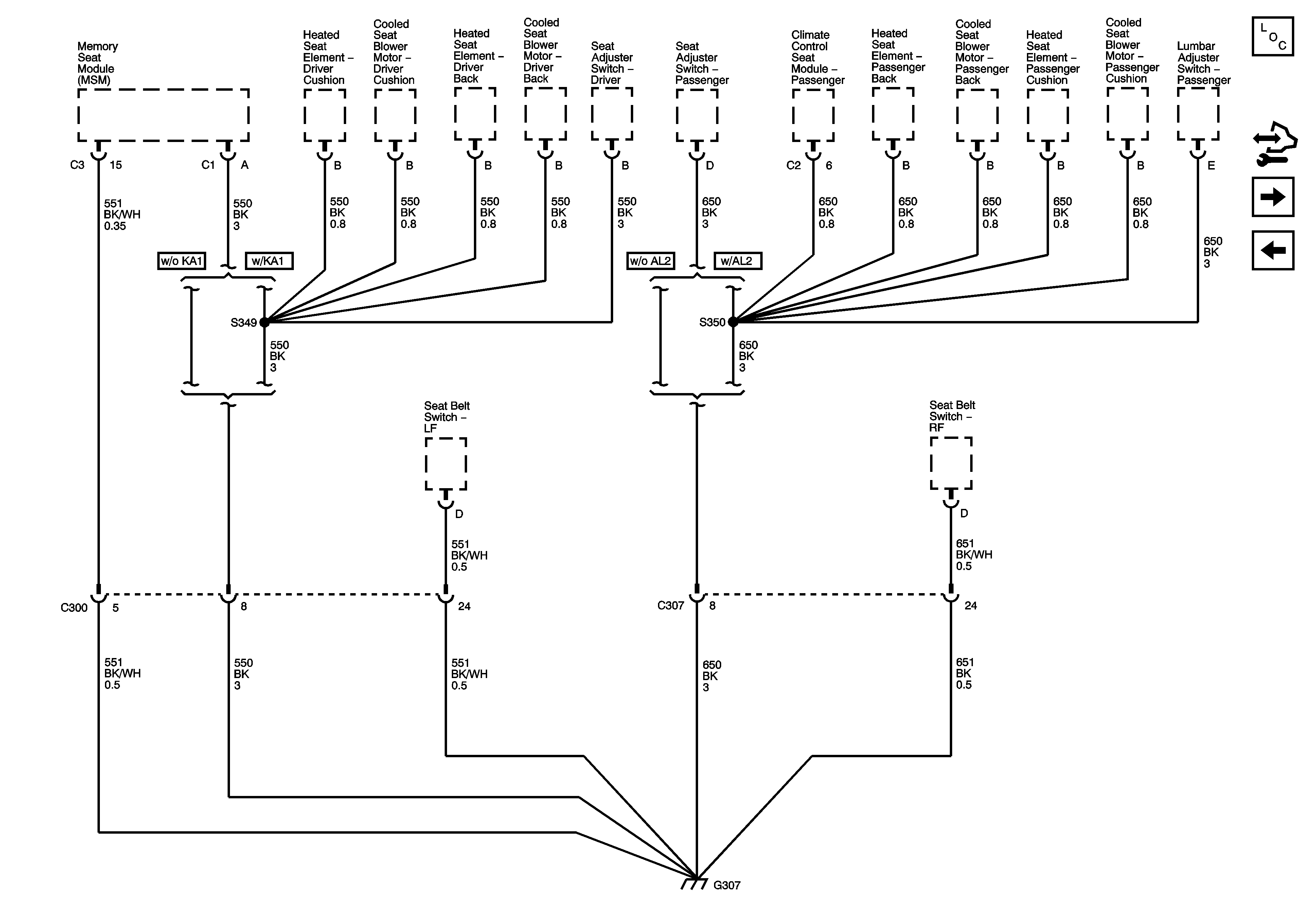

Figure 12:	G307 (LHD) Master Electrical Component List Control Module References G401 (1 of 2) G201 (2 of 2)

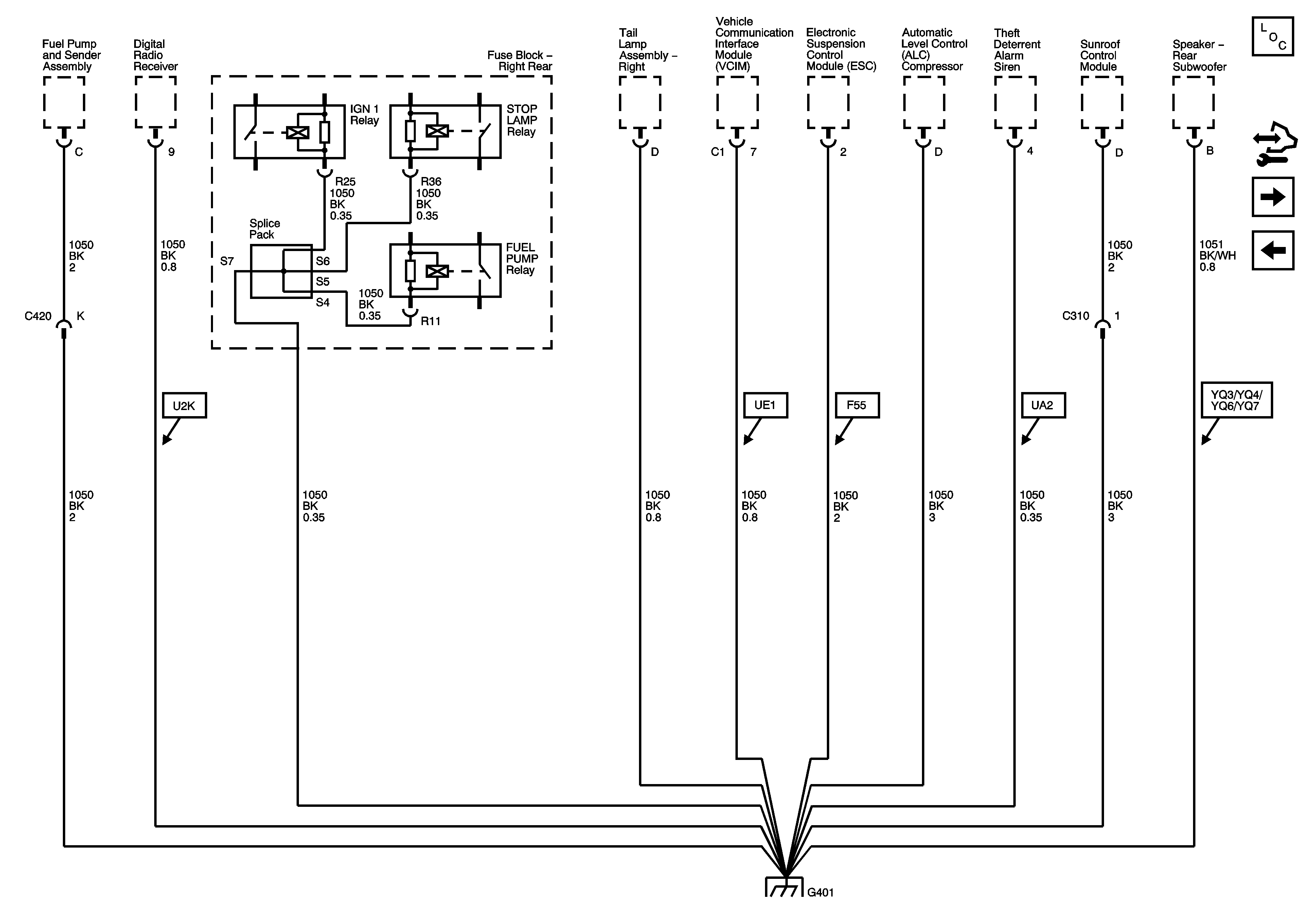

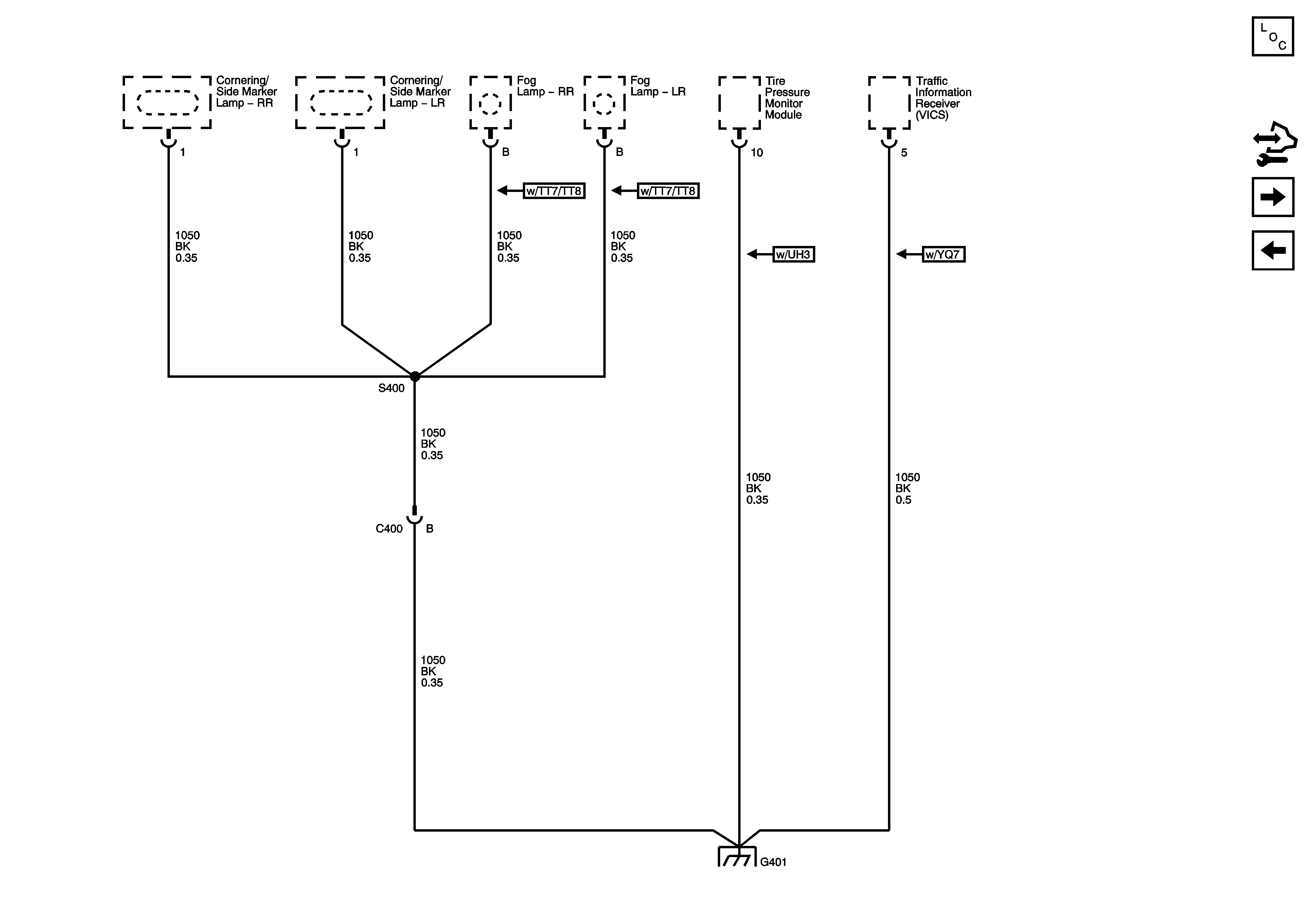

Figure 13:	G401 1 of 2 Master Electrical Component List Control Module References G401 (2 of 2) G307 G401 (2 of 2)
Figure 14:	G401 2 of 2 Master Electrical Component List Control Module References G402 (1 of 2) G401 (1 of 2) G401 (1 of 2)

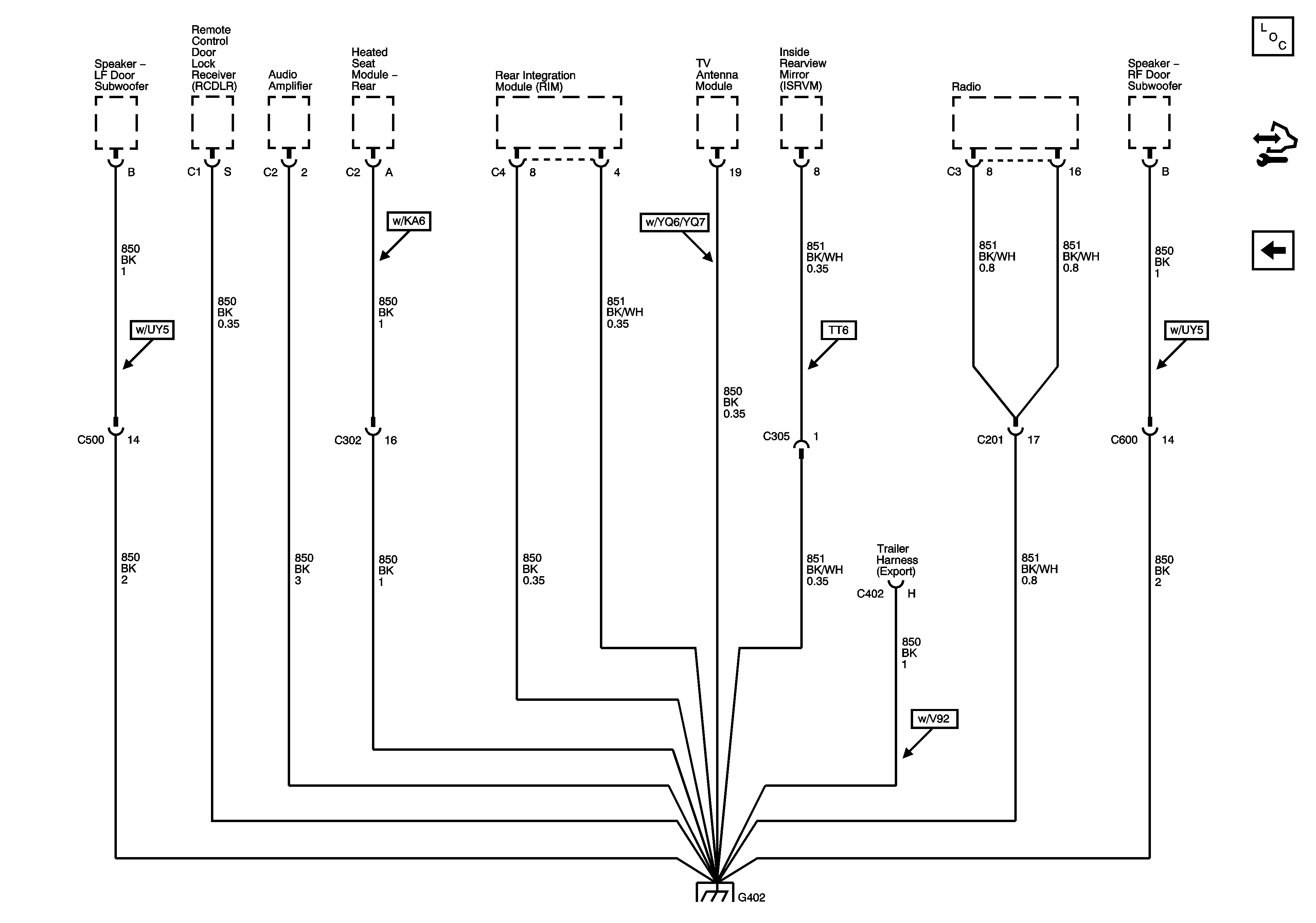

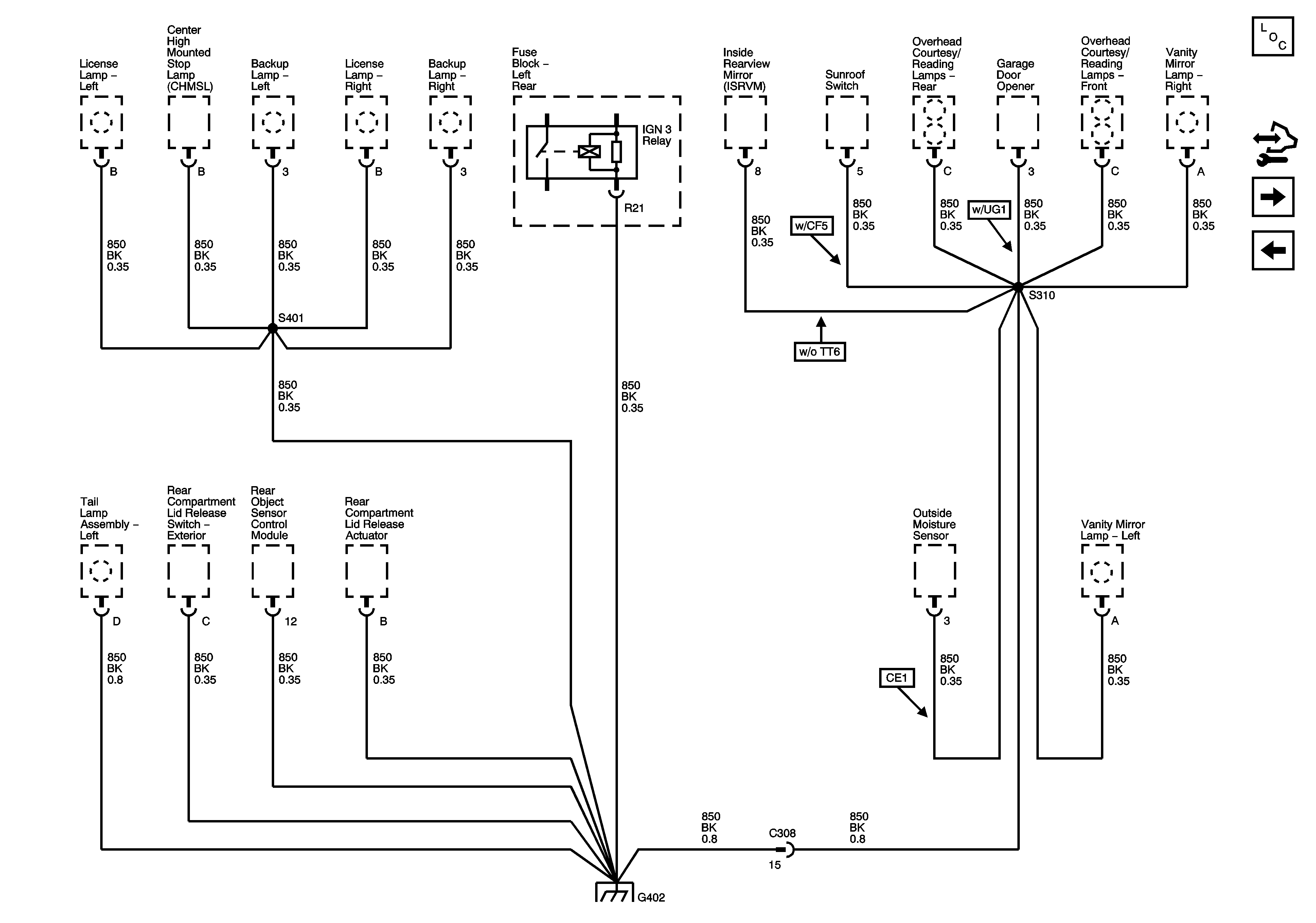

Figure 15:	G402 1 of 2 Master Electrical Component List Control Module References G402 (2 of 2) G401 (2 of 2) G402 (2 of 2)
Figure 16:	G402 2 of 2 Master Electrical Component List Control Module References G402 (1 of 2) G402 (1 of 2)
