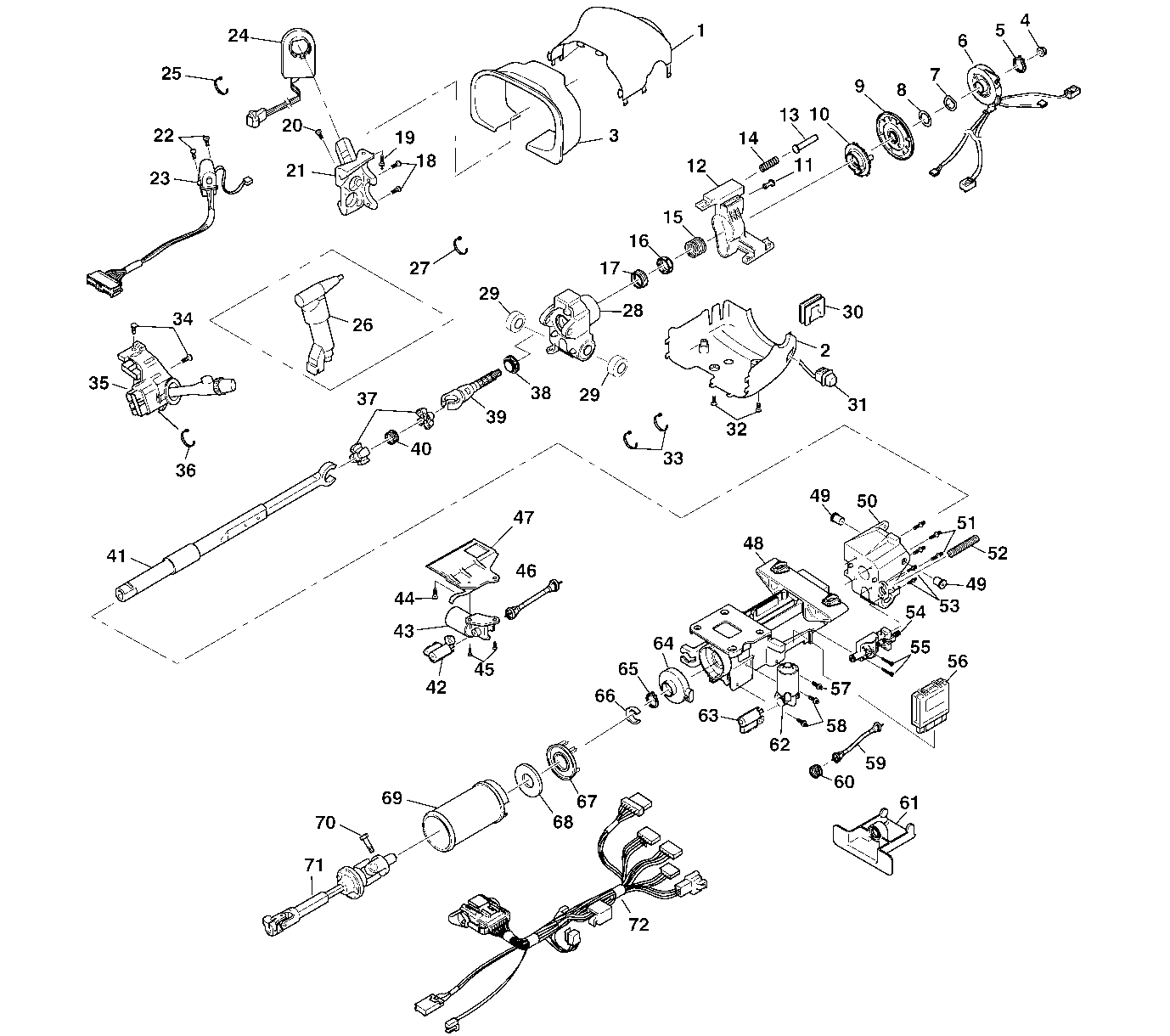

| (1) | Upper Trim Cover |
| (2) | Lower Trim Cover |
| (3) | Steering Column Closeout Trim Cover |
| (4) | Flange Prevailing Torque Nut |
| (5) | Retaining Ring |
| (6) | SIR Coil |
| (7) | Wave Washer |
| (8) | Bearing Retainer |
| (9) | Shaft Lock |
| (10) | Turn Signal Cancel Cam |
| (11) | Pan Head Tapping Screw |
| (12) | Switch Mounting Bracket |
| (13) | Lock Bolt |
| (14) | Lock Bolt Spring |
| (15) | Upper Bearing Spring |
| (16) | Upper Bearing Inner Race Seat |
| (17) | Inner Race |
| (18) | Pan Head Tapping Screws |
| (19) | TORX® Head Screw |
| (20) | Pan Head Tapping Screw |
| (21) | Ignition Lock Cylinder Case |
| (22) | Pan Head Tapping Screws |
| (23) | Ignition Switch Assembly |
| (24) | Theft Deterrent Control Module |
| (25) | Wire Harness Strap |
| (26) | Electric Park Lock Assembly |
| (27) | Wire Harness Strap |
| (28) | Steering Column Tilt Head Assembly |
| (29) | Bearing Holder |
| (29) | Bearing Holder |
| (30) | Trim Cover Protector |
| (31) | Power Tilt and Telescope Toggle Switch Assembly |
| (32) | Pan Head Tapping Screws |
| (33) | Wire Harness Straps |
| (34) | Pan Head Tapping Screws |
| (35) | Turn Signal Multifunction Switch Assembly |
| (36) | Wire Harness Strap |
| (37) | Centering Sphere |
| (38) | Bearing Assembly |
| (39) | Race and Upper Shaft Assembly |
| (40) | Joint Preload Spring |
| (41) | Steering Shaft Assembly |
| (42) | Potentiometer Housing |
| (43) | Tilt and Telescope Drive Motor Assembly |
| (44) | TORX® Head Screw |
| (45) | Pan Head Tapping Screws |
| (46) | Tilt and Cable Assembly |
| (47) | Gear Shift and Tilt Motor Bracket |
| (48) | Telescoping Jacket Assembly |
| (49) | Pivot Pins |
| (50) | Steering Column Housing Support |
| (51) | TORX® Head Screws |
| (52) | Lead Screw |
| (53) | TORX® Head Screws |
| (54) | Jackscrew Right Hand Telescoping Nut |
| (55) | Pan Head Tapping Screws |
| (56) | Tilt and Telescope Module |
| (57) | TORX® Head Screw |
| (58) | TORX® Head Screws |
| (59) | Telescope Cable Assembly |
| (60) | Cable Spring |
| (61) | Lower Shield Assembly |
| (62) | Tilt and Telescope Drive Motor Assembly |
| (63) | Potentiometer Housing |
| (64) | Steering Shaft Position Sensor |
| (65) | Retaining Ring |
| (66) | Sensor Locator |
| (67) | Sensor Retainer |
| (68) | Steering Shaft Seal |
| (69) | Boot Seal |
| (70) | Pinch Bolt |
| (71) | Intermediate Steering Shaft Assembly |
| (72) | Main Harness |
