Automatic Transmission Controls Schematics. Cadillac STS 2007

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2007 🢒 STS 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Automatic Transmission Controls Schematics

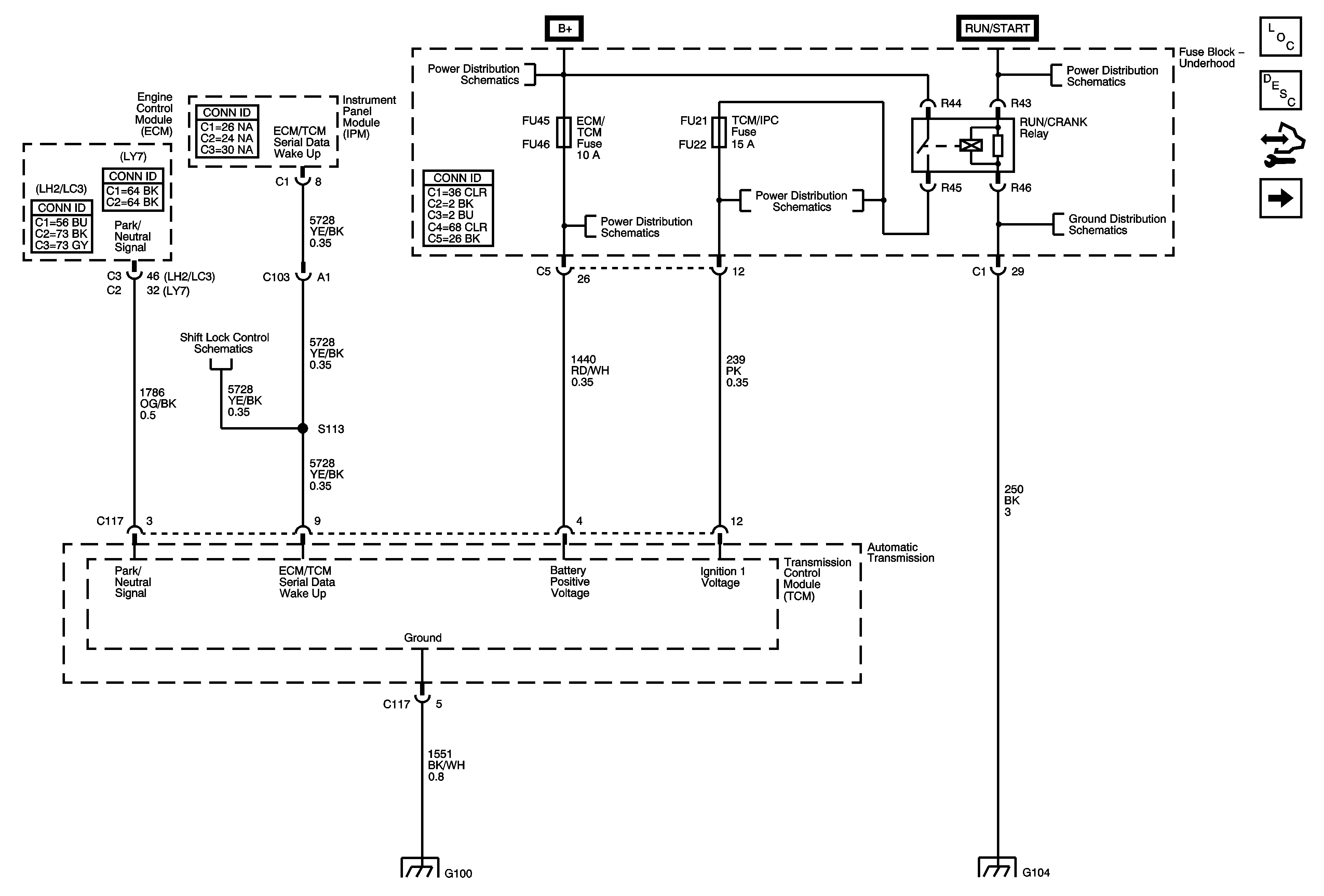

Figure 1:	TCM Power, Grounds, ECM, IPM Master Electrical Component List Electronic Component Description Control Module References ECM, EBCM Automatic Transmission Shift Lock Control Schematics Fuse Block Underhood Wiring Bussing Fuse Block - Underhood Fuses/Relays: IPM/ALDL, Auto Headlamp Dimming, CCP, ECM/TCM, WPR MOD, WPR SW/VICS and Rain Sensor/HDLP Wash Fuses; ACC Relay Fuse Block - Underhood: Starter, RUN/CRANK Relays; Starter, Starter Relay, CCP, TCM/IPM/ECM, MAF, ABS and Washer Nozzle/ACC Fuses Fuse Block - Right Rear - Lt Turn Signal, RIM 1, Rear Fog Lamp, Ft Pass Door Module, Htd Stg Clm, IGN 1, RIM 2 and Airbag Fuses, Rear Fog Lamp and Ign 1 Relays G104 (1 of 2) G100 (LH2/LC3) G104 (1 of 2)

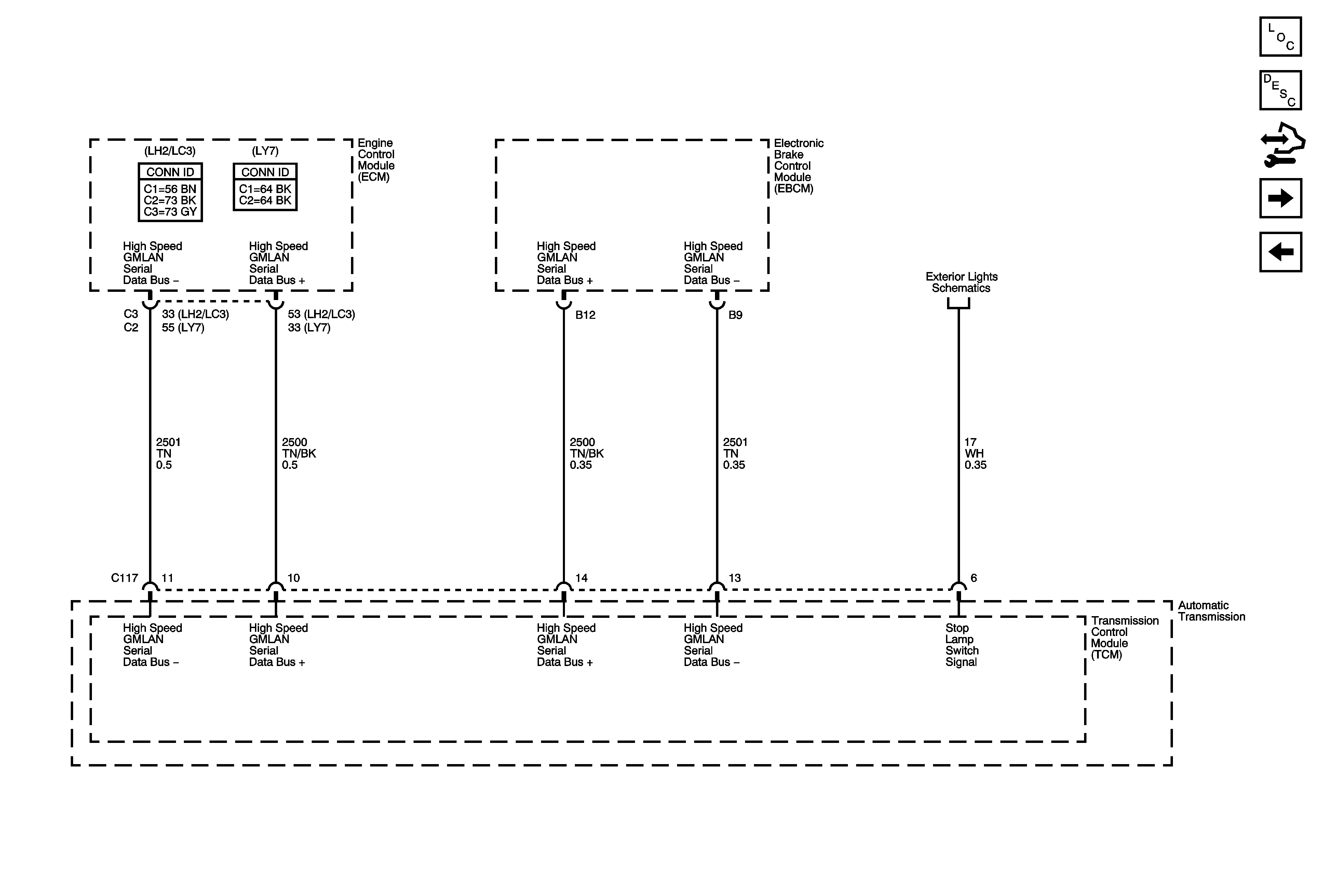

Figure 2:	ECM, EBCM Master Electrical Component List Electronic Component Description Control Module References Automatic Transmission Shift Lever Assembly, IPM Power, Grounds, ECM, IPM Backup Lamps, CHMSL - Domestic and Export

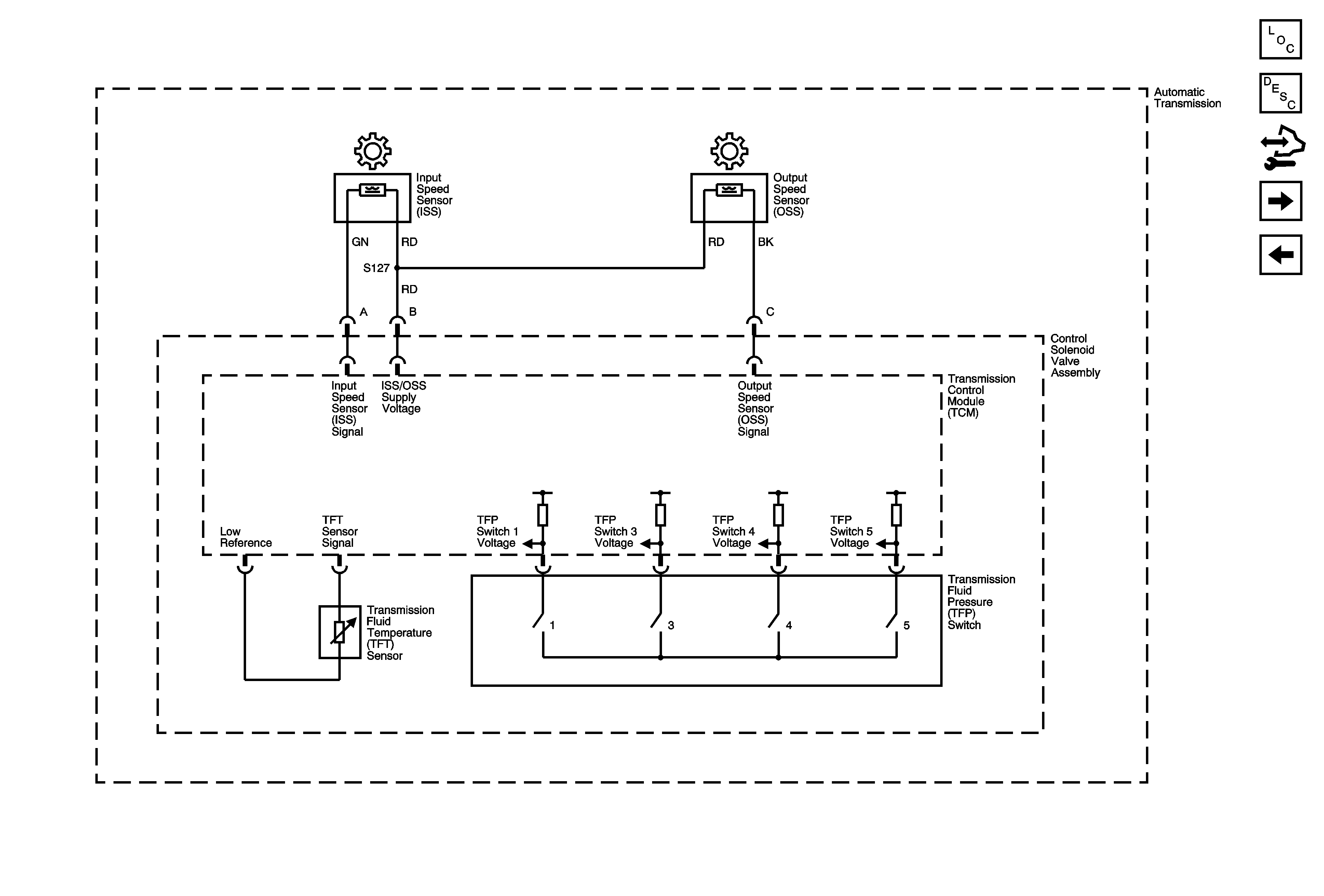

Figure 3:	Pressure Controls - 1 of 2 and Shift Controls Master Electrical Component List Electronic Component Description Control Module References Pressure Controls - 2 of 2 and Speed Sensors ECM, EBCM

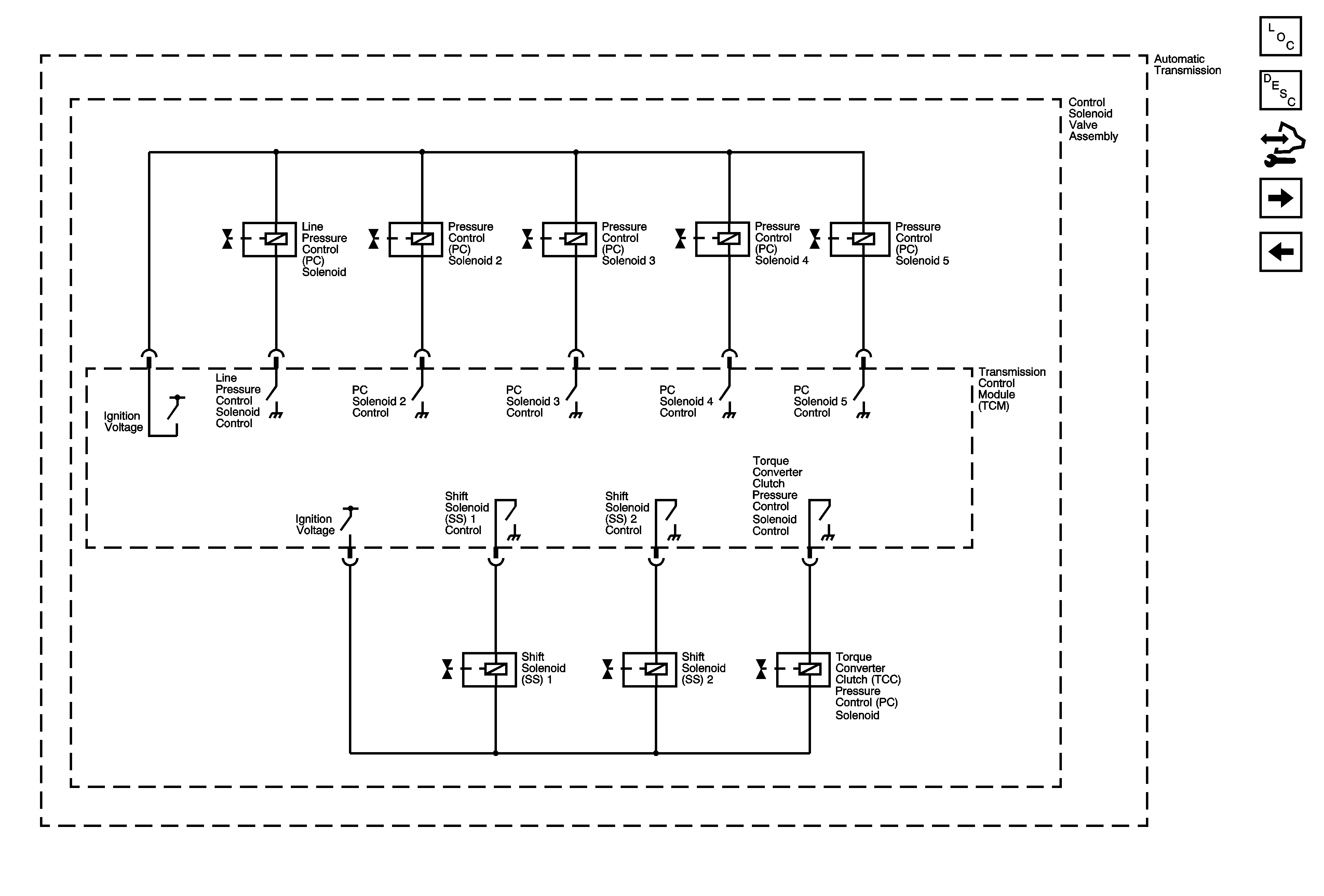

Figure 4:	Pressure Controls - 2 of 2 and Speed Sensors Master Electrical Component List Electronic Component Description Control Module References Automatic Transmission Shift Lever Assembly, IPM Pressure Controls - 1 of 2 and Shift Controls

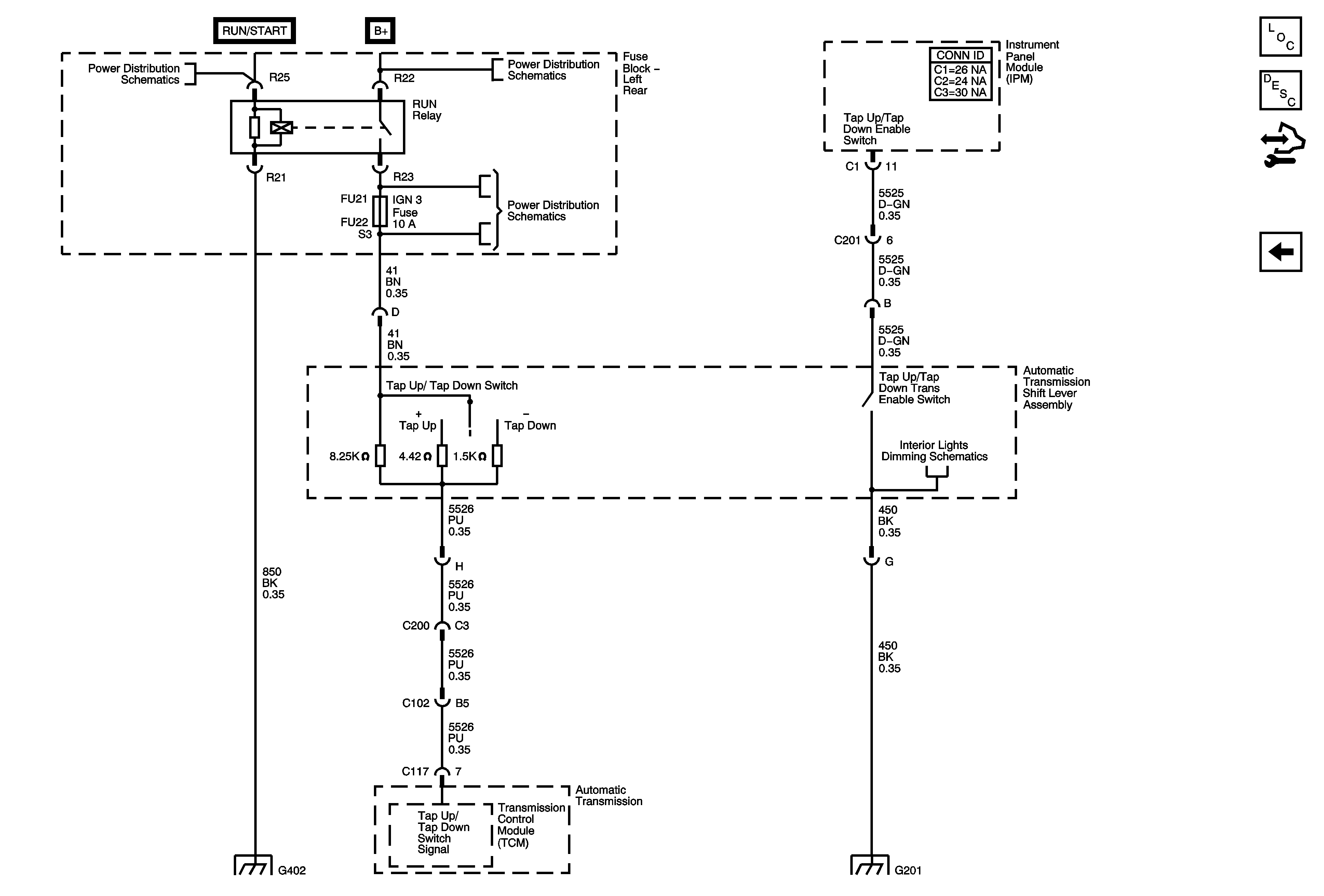

Figure 5:	Automatic Transmission Shift Lever Assembly, IPM Master Electrical Component List Electronic Component Description Control Module References ECM, EBCM Power Modes Fuse Block - Left Rear Bussing Fuse Block - Left Rear - Ign 3 Relay, Ign 3, Rear Heated Seat, Memory, Airbag and Rear Shelf Speaker Fuses Dimming 2 of 3 G402 (1 of 2) G201 (1 of 2)
