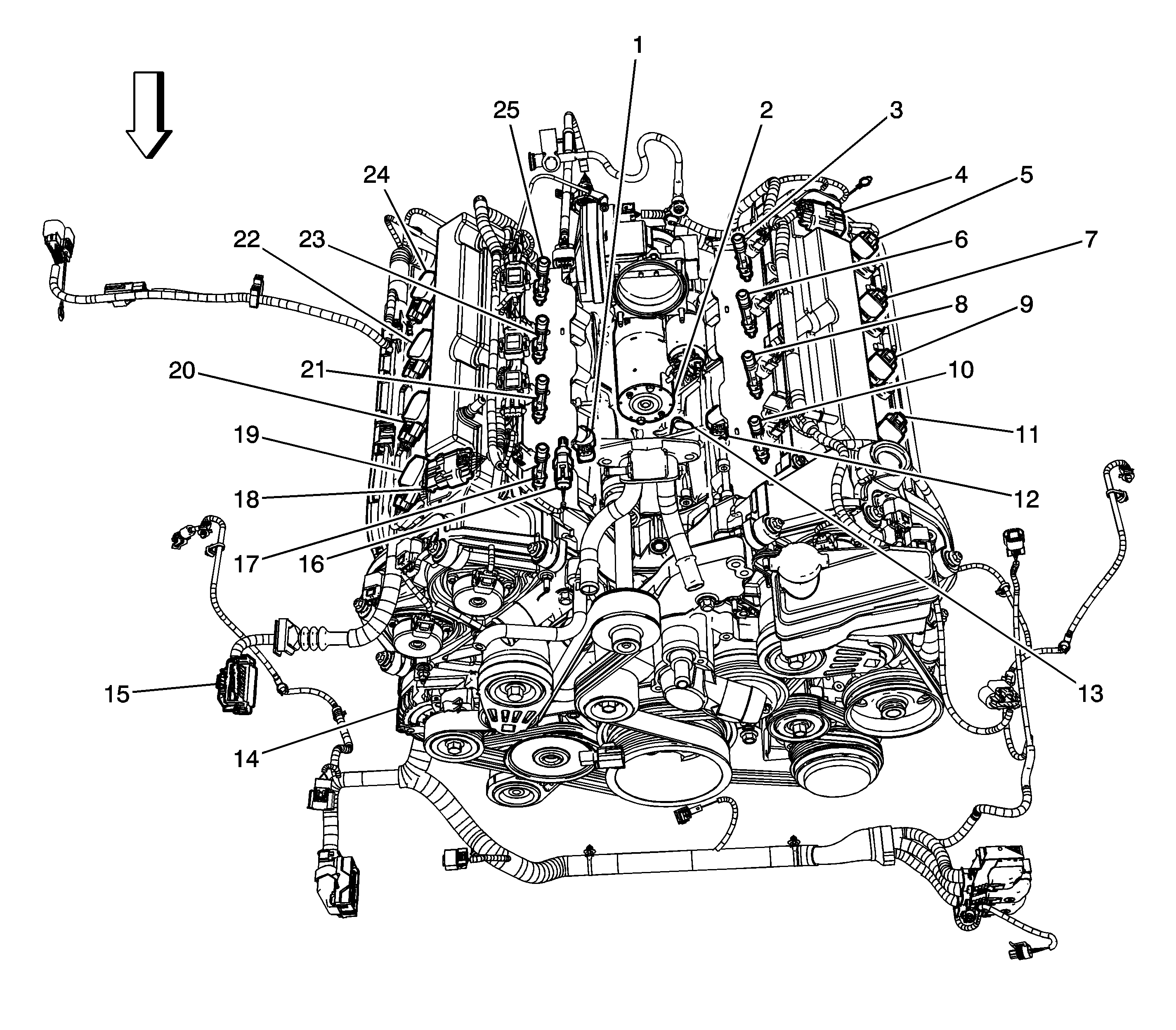

| (1) | Camshaft Position (CMP) Sensor - Intake Bank 1 |
| (2) | Manifold Absolute Pressure (MAP) Sensor |
| (3) | Barometric Pressure (BARO) Sensor |
| (4) | Super Charger Inlet Air Pressure (SCIAP) Sensor |
| (5) | Camshaft Position (CMP) Actuator Solenoid - Intake Bank 1 |
| (6) | Intake Air Temperature (IAT) Sensor 2 |
| (7) | Vacuum Bypass Valve Solenoid |
| (8) | Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2 |
| (9) | Camshaft Position (CMP) Sensor - Intake Bank 2 |
| (10) | Camshaft Position (CMP) Sensor - Exhaust Bank 2 |
| (11) | Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2 |
| (12) | Engine Control Module (ECM) |
| (13) | A/C Refrigerant Pressure Sensor |
| (14) | Charge Air Cooler (CAC) Coolant Pump |
| (15) | Brake Fluid Pressure Sensor |
| (16) | Electronic Brake Control Module (EBCM) |
| (17) | C113 Engine to Forward Lamp Harness |
| (18) | Fuse Block -- Underhood |
| (19) | Camshaft Position (CMP) Sensor - Exhaust Bank 1 |
| (20) | Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 1 |
