Entertainment/Communication Connector End Views. Cadillac STS 2007

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2007 🢒 STS 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Entertainment/Communication Connector End Views

Connector 1:	Audio Amplifier - C1 (w/UX8)
Connector 2:	Audio Amplifier - C1 (UY5)
Connector 3:	Audio Amplifier - C2 (UX8)
Connector 4:	Audio Amplifier - C2 (UY5)
Connector 5:	Auxiliary Audio/Video Control (UY5)
Connector 6:	Digital Radio Receiver (w/U2K)
Connector 7:	Noise Compensation Microphone (w/UY5)
Connector 8:	Radio - C1 (UY5)
Connector 9:	Radio - C2
Connector 10:	Radio - C3
Connector 11:	Radio - C4 (UY5)
Connector 12:	Radio Antenna Module
Connector 13:	Speaker - Center I/P
Connector 14:	Speaker - Driver Seat Left (w/UY5)
Connector 15:	Speaker - Driver Seat Right (w/UY5)
Connector 16:	Speaker - Left Front I/P (UX8)
Connector 17:	Speaker - Left Rear (UY5)
Connector 18:	Speaker - Left Front I/P (UY5)
Connector 19:	Speaker - Left Front Door (YQ2)
Connector 20:	Speaker - Left Front Door Subwoofer (UY5)
Connector 21:	Speaker - Left Rear Door (UX8)
Connector 22:	Speaker - Passenger Seat Left (w/UY5)
Connector 23:	Speaker - Passenger Seat Right (w/UY5)
Connector 24:	Speaker - Rear Console (UY5)
Connector 25:	Speaker - Rear Subwoofer (UX8)
Connector 26:	Speaker - Rear Subwoofer (UY5)
Connector 27:	Speaker - Right Front I/P (UY5)
Connector 28:	Speaker - Right Front Door Subwoofer (UY5)
Connector 29:	Speaker - Right Front Door (UX8)
Connector 30:	Speaker - Right Front I/P (UX8)
Connector 31:	Speaker - Right Rear Door
Connector 32:	Speaker - Right Rear (UY5)
Connector 33:	Traffic Information Receiver (VICS) (YQ7)
Connector 34:	TV Antenna Module (Export w/YQ6/YQ7)
Connector 35:	Vehicle Communication Interface Module (VCIM) C1 (UE1)
Connector 36:	Vehicle Communication Interface Module (VCIM) C2 (UE1)
Connector 37:	Vehicle Communication Interface Module (VCIM) C3 (UE1)
Connector 38:	Vehicle Communication Interface Module (VCIM) C4 (UE1)

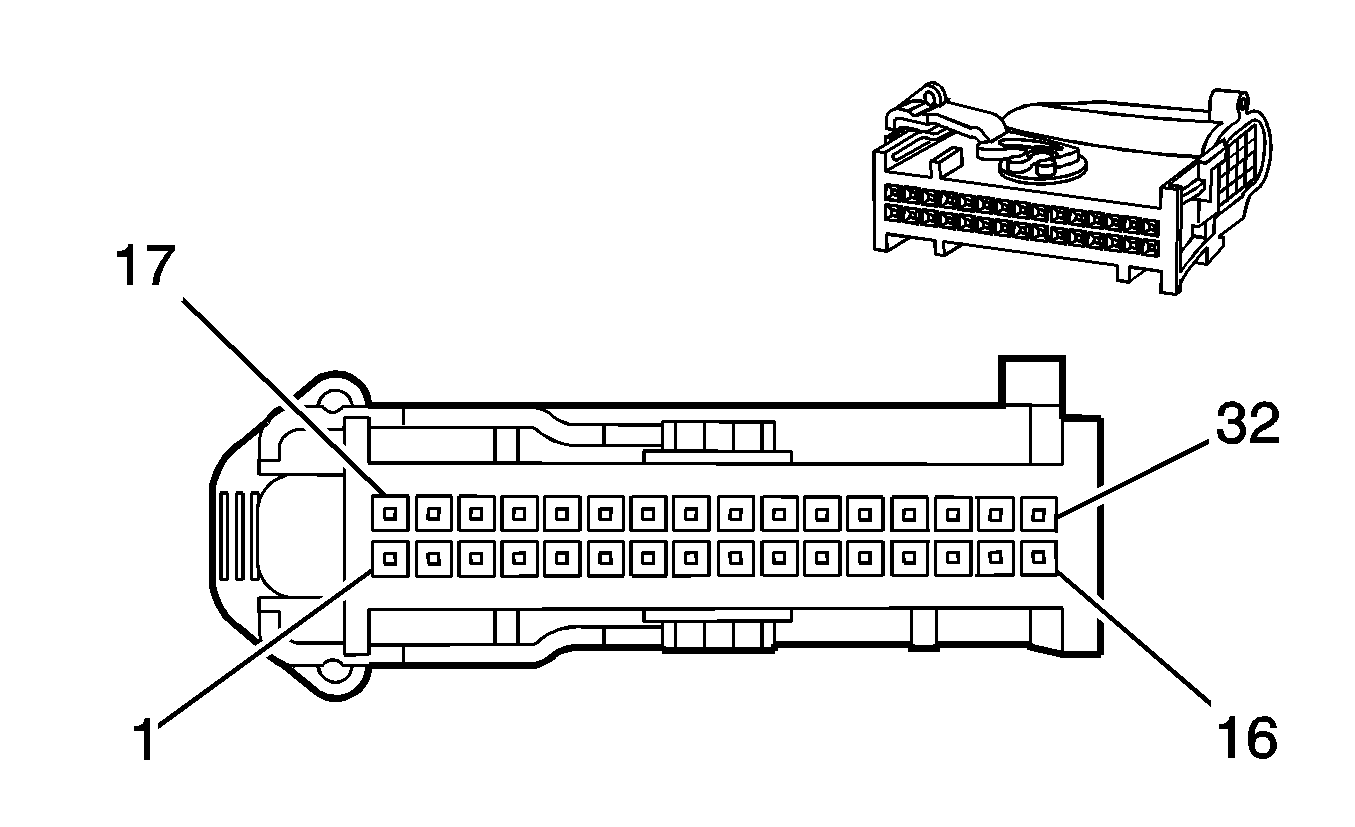

Audio Amplifier - C1 (w/UX8)

Connector Part Information

OEM: 1326141-1
Service: 88988259
Description: 32-Way F 0.64 mm (0.025 in) LAC (GY)

Terminal Part Information

Pins: 1, 2, 3, 10, 17, 18, 19
Terminal/Tray: 638551-1/16
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)

Audio Amplifier - C1 (w/UX8)

Pin	Wire Color	Circuit No.	Function
1	TN	511	Left Front Low Level Audio Signal (YQ2)
2	D-GN/WH	512	Right Front Low Level Audio Signal (YQ2)
3	D-BU	658	Cellular Telephone Voice Signal (YQ2 w/UE1)
4-9	--	--	Not Used
10	D-GN	5060	Low Speed GMLAN Serial Data (YQ2)
11-16	--	--	Not Used
17	D-GN	1947	Left Front Low Level Audio (-)
18	L-GN	1948	Right Front Low Level Audio (-)
19	L-BU/BK	659	Cellular Telephone Voice Low Reference (YQ2 w/UE1)
20-32	--	--	Not Used

Audio Amplifier - C1 (UY5)

Connector Part Information

OEM: 1326141-1
Service: 88988259
Description: 32-Way F 0.64 mm (0.025 in) LAC (GY)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 17, 18, 19, 21, 22, 23, 24, 25, 14, 15, 16
Terminal/Tray: 638551-1/16
Core/Insulation Crimp: Pins 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 17, 18, 19, 21, 22, 23, 24, 25 - J/J
Core/Insulation Crimp: Pins 14, 15, 16 - K/K
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)

Audio Amplifier - C1 (UY5)

Pin	Wire Color	Circuit No.	Function
1	TN	511	Left Front Low Level Audio Signal (YQ4/YQ6/YQ7)
2	D-GN/WH	512	Right Front Low Level Audio Signal (YQ4/YQ6/YQ7)
3	D-BU	6760	Center Channel Low Level Audio Signal (YQ4/YQ6/YQ7)
4	WH	6765	Subwoofer Low Level Audio Signal (YQ4/YQ6/YQ7)
5	BN/WH	599	Left Rear Low Level Audio Signal (YQ4/YQ6/YQ7)
6	D-BU	546	Right Rear Low Level Audio Signal (YQ4/YQ6/YQ7)
7	D-BU	658	Cellular Telephone Voice Signal (YQ4 w/UE1)
8	PU	5837	Amplifier Audio Prompt Signal (+) (YQ4/YQ6/YQ7)
9	D-GN	1488	Noise Reduction Microphone (+) (YQ4/YQ6/YQ7)
10	D-GN	5060	Low Speed GMLAN Serial Data (YQ4/YQ6/YQ7)
11-13	--	--	Not Used
14	PU/WH	5754	Amplifier Powered Woofer Control (1) (YQ4/YQ6/YQ7)
15	PK/BK	5755	Amplifier Powered Woofer Control (1) (YQ4/YQ6/YQ7)
16	PK/BK	5755	Amplifier Powered Woofer Control (2) (YQ4/YQ6/YQ7)
17	D-GN	1947	Left Front Low Level Audio (-)
18	L-GN	1948	Right Front Low Level Audio (-)
19	OG	6761	Center Channel Low Level Audio Signal (-) (YQ4/YQ6/YQ7)
20	--	--	Not Used
21	BN	1999	Left Rear Low Level Audio (-) (YQ4/YQ6/YQ7)
22	TN	1946	Right Rear Low Level Audio (-) (YQ4/YQ6/YQ7)
23	L-BU/BK	659	Cellular Telephone Voice Low Reference (YQ4 w/UE1)
24	GY	5836	Amplifier Audio Prompt Signal (-) (YQ4/YQ6/YQ7)
25	BARE	1489	Noise Reduction Microphone Drain Wire (YQ4/YQ6/YQ7)
26-32	--	--	Not Used

Audio Amplifier - C2 (UX8)

Connector Part Information

OEM: 1534180-2
Service: 88988989
Description: 38-Way F AMP (BK)

Terminal Part Information

Pins: 1, 2
Terminal/Tray: 1241406-1/17
Core/Insulation Crimp: F/G
Release Tool/Test Probe: J-38125-557/J-35616-42 (RD)

Pins: 4, 16
Terminal/Tray: 928999-5/15
Core/Insulation Crimp: K/K
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Pins: 11-14
Terminal/Tray: 1241374-1/17
Core/Insulation Crimp: E/C
Release Tool/Test Probe: J-38125-557/J-35616-2A (GY)

Pins: 7, 8, 9, 19, 20, 21
Terminal/Tray: 1241374-1/17
Core/Insulation Crimp: E/C
Release Tool/Test Probe: J-38125-557/J-35616-2A (GY)

Audio Amplifier - C2 (UX8)

Pin	Wire Color	Circuit No.	Function
1	RD	1242	Battery Positive Voltage (YQ2)
2	BK	850	Ground (YQ2)
3	--	--	Not Used
4	D-BU/WH	346	Rear Subwoofer Speaker (+) (YQ2)
5-6	--	--	Not Used
7	TN	1859	Left Rear Midrange Speaker (+) (YQ2)
8	TN	1855	Right Rear Midrange Speaker (+) (YQ2)
9	YE	1860	Front Center Speaker (+) (YQ2)
10	--	--	Not Used
11	L-GN	1852	Right Front Speaker (+) (YQ2)
12	PU	1952	Right Front Speaker (-) (YQ2)
13	TN	1856	Left Front Speaker (+) (YQ2)
14	YE	1956	Left Front Speaker (+) (YQ2)
15	--	--	Not Used
16	L-GN/BK	1794	Left/Rear Subwoofer Speaker (-) (YQ2)
17-18	--	--	Not Used
19	WH	1959	Left Rear Midrange Speaker (-) (YQ2)
20	OG	1955	Right Rear Midrange Speaker (-) (YQ2)
21	L-BU	1960	Front Center Speaker (-) (YQ2)
22-38	--	--	Not Used

Audio Amplifier - C2 (UY5)

Connector Part Information

OEM: 1534180-2
Service: 88988989
Description: 38-Way F AMP (BK)

Terminal Part Information

Pins: 1, 2
Terminal/Tray: 1241406-1/17
Core/Insulation Crimp: F/G
Release Tool/Test Probe: J-38125-557/J-35616-42 (RD)

Pins: 3, 4, 5, 15, 16, 17
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pins: 6, 7, 8, 9, 10, 11, 12, 13, 14, 18, 19, 20, 21, 22
Terminal/Tray: 1241374-1/17
Core/Insulation Crimp: E/C
Release Tool/Test Probe: J-38125-557/J-35616-2A (GY)

Pins: 23, 24, 27, 28, 29, 31, 32, 35, 36, 37
Terminal/Tray: 928999-5/15
Core/Insulation Crimp: K/K
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Audio Amplifier - C2 (UY5)

Pin	Wire Color	Circuit No.	Function
1	RD	1242	Battery Positive Voltage (YQ4/YQ6/YQ7)
2	BK	850	Ground (YQ4/YQ6/YQ7)
3	OG	5756	Center Console Speaker (+) (YQ4/YQ6/YQ7)
4	D-BU	5761	Left Rear Shelf Speaker (+) (YQ4/YQ6/YQ7)
4	D-BU/WH	346	Left/Rear Subwoofer Speaker (+) (YQ2)
5	L-BU	5762	Right Rear Shelf Speaker (+) (YQ4/YQ6/YQ7)
6	YE	1860	Front Center Speaker (+) (YQ4/YQ6/YQ7)
7	L-BU	1874	Left Front Speaker (+) (2) (YQ4/YQ6/YQ7)
7	TN	1859	Left Rear Midrange Speaker (+) (YQ2)
8	TN	1875	Right Front Speaker (+) (2) (YQ4/YQ6/YQ7)
8	TN	1855	Right Rear Midrange Speaker (+) (YQ2)
9	YE	5759	Right Front Seat Left Speaker (+) (YQ4/YQ6/YQ7)
9	YE	1860	Front Center Center Speaker (+) (YQ2)
10	D-GN	5757	Left Front Seat Left Speaker (+) (YQ4/YQ6/YQ7)
11	TN	1855	Right Rear Midrange Speaker (+) (YQ4/YQ6/YQ7)
11	PU	1852	Right Front Woofer Speaker (+) (YQ2)
12	OG	1955	Right Rear Midrange Speaker (-) (YQ4/YQ6/YQ7)
12	PU	1952	Right Front Woofer Speaker (-) (YQ2)
13	TN	1859	Left Rear Midrange Speaker (+) (YQ4/YQ6/YQ7)
13	TN	1856	Left Front Woofer Speaker (+) (YQ2)
14	WH	1959	Left Rear Midrange Speaker (-) (YQ4/YQ6/YQ7)
14	YE	1956	Left Front Woofer Speaker (-) (YQ2)
15	OG/BK	5766	Console Center Speaker (-) (YQ4/YQ6/YQ7)
16	D-BU/WH	5771	Left Rear Shelf Speaker (-) (YQ4/YQ6/YQ7)
16	L-GN/BK	1794	Rear Subwoofer Speaker (-) (YQ2)
17	L-BU/BK	5772	Right Rear Shelf Speaker (-) (YQ4/YQ6/YQ7)
18	L-BU	1960	Front Center Speaker (-) (YQ4/YQ6/YQ7)
19	TN/WH	1974	Left Front Speaker (-) (2) (YQ4/YQ6/YQ7)
19	WH	1959	Left Rear Midrange Speaker (-) (YQ2)
20	TN/WH	1975	Right Front Speaker (-) (2) (YQ4/YQ6/YQ7)
20	OG	1955	Right Rear Midrange Speaker (-) (YQ2)
21	YE/BK	5769	Right Front Seat Left Speaker (-) (YQ4/YQ6/YQ7)
21	L-BU	1960	Front Center Speaker (-) (YQ2)
22	D-GN/WH	5767	Left Front Seat Left Speaker (-) (YQ4/YQ6/YQ7)
23	GY	5758	Left Front Seat Right Speaker (+) (YQ4/YQ6/YQ7)
24	L-GN	5760	Right Front Seat Right Speaker (+) (YQ4/YQ6/YQ7)
25-26	--	--	Not Used
27	TN	1856	Left Front Woofer Speaker (+) (YQ4/YQ6/YQ7)
28	L-GN	1852	Right Front Woofer Speaker (+) (YQ4/YQ6/YQ7)
29	D-BU/WH	346	Left/Rear Subwoofer Speaker (+) (YQ4/YQ6/YQ7)
30	--	--	Not Used
31	GY/BK	5768	Left Front Seat Right Speaker (-) (YQ4/YQ6/YQ7)
32	L-GN/BK	5770	Right Front Seat Right Speaker (-) (YQ4/YQ6/YQ7)
33-34	--	--	Not Used
35	YE	1956	Left Front Woofer Speaker (-) (YQ4/YQ6/YQ7)
36	PU	1952	Right Front Woofer Speaker (-) (YQ4/YQ6/YQ7)
37	L-GN/BK	1794	Rear Subwoofer Speaker (-) (YQ4/YQ6/YQ7)
38	--	--	Not Used

Auxiliary Audio/Video Control (UY5)

Connector Part Information

OEM: 12065398
Service: 12101822
Description: 8-Way F Metri-Pack 150 Series (WH)

Terminal Part Information

Pins: A, B, C, D, E, F
Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Auxiliary Audio/Video Control (UY5)

Pin	Wire Color	Circuit No.	Function
A	BARE	814	Drain Wire (YQ4/YQ6/YQ7)
B	WH	2058	Right Auxiliary Audio Signal (1) (w/YQ4/YQ6/YQ7)
C	PU	2056	Auxiliary Video High Signal (YQ4/YQ6/YQ7)
D	PK	2060	Auxiliary Detection Signal (w/YQ4/YQ6/YQ7)
E	YE	2059	Left Auxiliary Audio Signal (1) (w/YQ4/YQ6/YQ7)
F	BARE	814	Drain Wire (w/YQ4/YQ6/YQ7)
G-H	--	--	Not Used

Digital Radio Receiver (w/U2K)

Connector Part Information

OEM: 15394150
Service: 15394150
Description: 16-Way F Micro 64 Series (BK)

Terminal Part Information

Pins: 2, 3, 5, 9, 10, 11, 16
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Digital Radio Receiver (w/U2K)

Pin	Wire Color	Circuit No.	Function
1	--	--	Not Used
2	L-GN/WH	5337	Left Audio Signal
3	L-BU/WH	5338	Right Audio Signal
4	--	--	Not Used
5	D-GN	5060	Low Speed GMLAN Serial Data
6-8	--	--	Not Used
9	BK	1050	Ground
10	GY/BK	5339	Audio Common
11	BARE	5345	Drain Wire
12-15	--	--	Not Used
16	RD/WH	2540	Battery Positive voltage

Noise Compensation Microphone (w/UY5)

Connector Part Information

OEM: 12047663
Service: 12085481
Description: 2-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047581/2
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Noise Compensation Microphone (w/UY5)

Pin	Wire Color	Circuit No.	Function
A	BARE	1489	Noise Reduction Microphone Drain Wire
B	D-GN	1488	Noise Reduction Microphone (+)

Radio - C1 (UY5)

Connector Part Information

OEM: 15431080
Service: 88988292

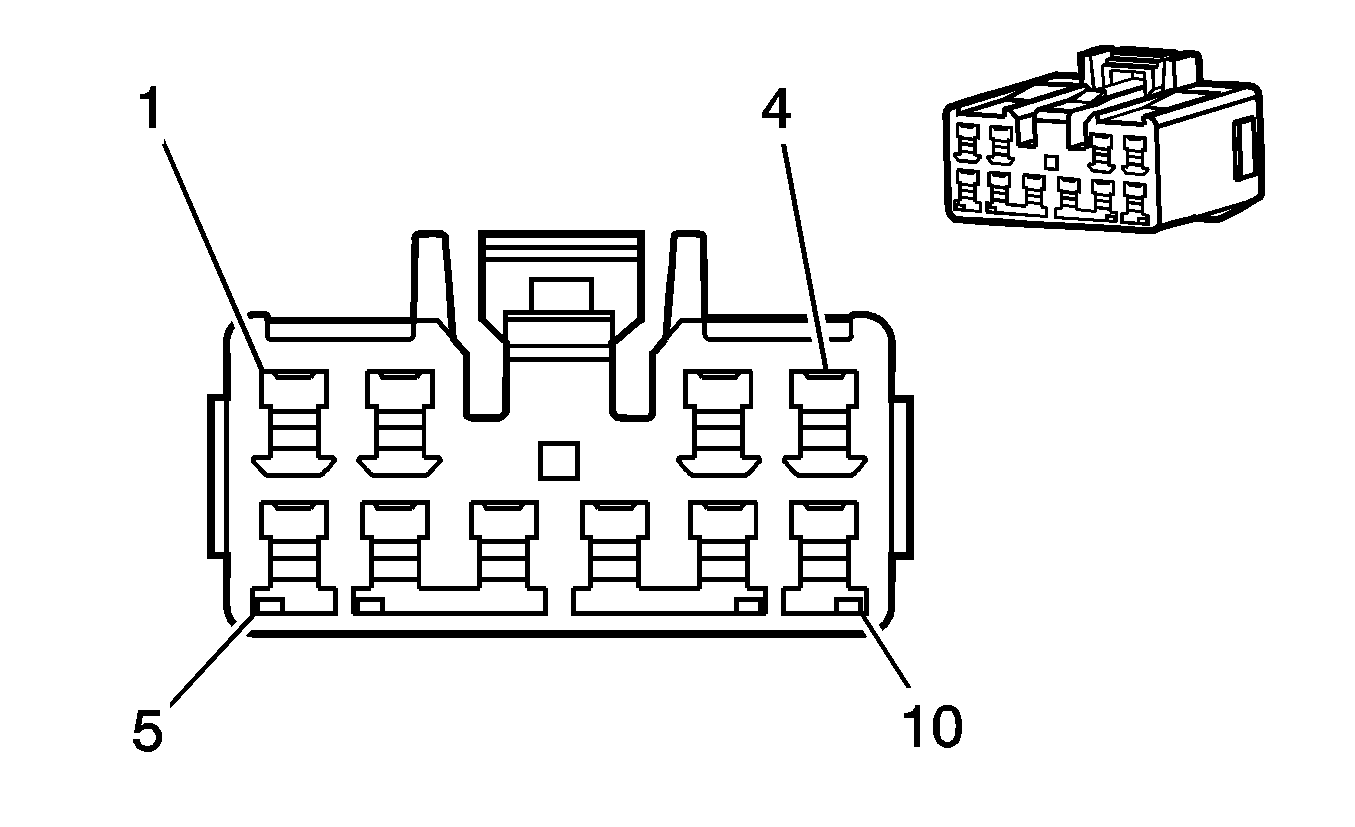

Description: 10-Way F Micro-Pack 64 Series (BK)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Radio - C1 (UY5)

Pin	Wire Color	Circuit No.	Function
1	YE	2059	Left Auxiliary Audio Signal (1) (YQ4/YQ6/YQ7)
2	WH	2058	Right Auxiliary Audio Signal (1) (YQ4/YQ6/YQ7)
3	YE	5385	Vehicle Identification Communication System Bus Request Signal (JAPAN) (w/YQ7)
4	BARE	814	Drain Wire (JAPAN)(w/YQ7)
5	GY	5383	Vehicle Identification Communication System High Signal (JAPAN) (w/YQ7)
6	PK	2060	Auxiliary Detection Signal (YQ4/YQ6/YQ7)
7	BARE	814	Drain Wire (YQ4/YQ6/YQ7)
8	BARE	814	Drain Wire (YQ4/YQ6/YQ7)
9	PU	2056	Auxiliary Video High Signal (YQ4/YQ6/YQ7)
10	BN	5384	Vehicle Identification Communication System Low Signal (JAPAN) (w/YQ7)

Radio - C2

Connector Part Information

OEM: 15394150
Service: 15394150
Description: 16-Way F Micro 64 Unsealed (BK)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 9, 10, 11, 12, 13
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Radio - C2

Pin	Wire Color	Circuit No.	Function
1	L-GN/WH	5337	Left Audio Signal (U2K/YQ6/YQ7)
2	L-BU/WH	5338	Right Audio Signal (U2K/YQ6/YQ7)
3	BN/WH	599	Left Rear Low Level Audio Signal (YQ4/YQ6/YQ7)
4	D-BU	546	Right Rear Low Level Audio Signal (YQ4/YQ6/YQ7)
5	PK	5165	Antenna 14-Volt Switched Supply Voltage
6-8	--	--	Not Used
9	GY/BK	5339	Audio Low Reference (U2K/YQ6/YQ7)
10	BARE	5345	Drain Wire (U2K/YQ6/YQ7)
11	BN	1999	Left Rear Low Level Audio (-) (YQ4/YQ6/YQ7)
12	TN	1946	Right Rear Low Level Audio (-) (YQ4/YQ6/YQ7)
13	BARE	2099	Left Rear Audio Drain Wire (YQ4/YQ6/YQ7)
14-16	--	--	Not Used

Radio - C3

Connector Part Information

OEM: 15394149
Service: 89047195
Description: 16-Way F Micro 64 Series (GY)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 7, 8, 9, 10, 11, 12, 15, 16
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Radio - C3

Pin	Wire Color	Circuit No.	Function
1	RD/WH	2240	Battery Positive Voltage
2	TN	511	Left Low Level Audio Signal
3	D-GN/WH	512	Right Low Level Audio Signal
4	GY	655	Cellular Telephone Microphone Signal
5	PK/BK	5152	Voice Recognition Audio Low Reference
6	--	--	Not Used
7	YE	6817	LED Backlight Dimming Control
8	BK/WH	851	Ground
9	RD/WH	2240	Battery Positive Voltage
10	D-GN	1947	Left Low Level Audio (-)
11	L-GN	1948	Right Low Level Audio (-)
12	BARE	2012	Drain Wire
13-14	--	--	Not Used
15	D-GN	5060	Low Speed GMLAN Serial Data
16	BK/WH	851	Ground

Radio - C4 (UY5)

Connector Part Information

OEM: 15394151
Service: 89047196
Description: 16-Way F Micro 64 Series (BN)

Terminal Part Information

Pins: 3, 4, 5, 11, 12, 13, 15
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Pins: 13, 14
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Radio - C4 (UY5)

Pin	Wire Color	Circuit No.	Function
1-2	--	--	Not Used
3	D-BU	6760	Center Channel Low Level Audio Signal (YQ4/YQ6/YQ7)
4	WH	6765	Subwoofer Low Level Audio Signal (YQ4/YQ6/YQ7)
5	PU	5837	Amplifier Audio Prompt Signal (+) (YQ4/YQ6/YQ7)
6-10	--	--	Not Used
11	OG	6761	Center Channel Low Level Audio Signal (-) (YQ4/YQ6/YQ7)
12	BARE	5838	Amplifier Audio Prompt Drain Wire (YQ4/YQ6/YQ7)
13	GY	5836	Amplifier Audio Prompt Signal (-) (YQ4/YQ6/YQ7)
14	PU	2056	Auxiliary Video High Signal (YQ3)
15	BN	818	Vehicle Speed Signal (YQ4/YQ6/YQ7)
16	--	--	Not Used

Radio Antenna Module

Connector Part Information

OEM: 172335-1
Service: 19149535
Description: 1-Way F Mini Universal Mate-N-Lock (WH)

Terminal Part Information

Terminal/Tray: 770904-1/25
Core/Insulation Crimp: E/2
Release Tool/Test Probe: J-38125-220/J-35616-6 (BN)

Radio Antenna Module

Pin	Wire Color	Circuit No.	Function
A	PK	5165	Antenna 14-Volt Switch Supply Voltage

Speaker - Center I/P

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Center I/P

Pin	Wire Color	Circuit No.	Function
A	L-BU	1960	Front Center Speaker (-)
B	YE	1860	Front Center Speaker (+)

Speaker - Driver Seat Left (w/UY5)

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Speaker - Driver Seat Left (w/UY5)

Pin	Wire Color	Circuit No.	Function
A	D-GN/WH	5767	Left Front Seat Left Speaker (-)
B	D-GN	5757	Left Front Seat Left Speaker (+)

Speaker - Driver Seat Right (w/UY5)

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Speaker - Driver Seat Right (w/UY5)

Pin	Wire Color	Circuit No.	Function
A	GY/BK	5768	Left Front Seat Right Speaker (-)
B	GY	5758	Left Front Seat Right Speaker (+)

Speaker - Left Front I/P (UX8)

Connector Part Information

OEM: 12110131
Service: 15306030
Description: 2-Way M Metri-Pack 280 Series (WH)

Terminal Part Information

Terminal/Tray: 12034047/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

Speaker - Left Front I/P (UX8)

Pin	Wire Color	Circuit No.	Function
A	YE	1956	Left Front Tweeter Speaker (-) (YQ2)
B	TN	1856	Left Front Tweeter Speaker (+) (YQ2)

Speaker - Left Rear (UY5)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Left Rear (UY5)

Pin	Wire Color	Circuit No.	Function
A	D-BU/WH	5771	Left Rear Shelf Speaker (-) (YQ4/YQ6/YQ7)
B	D-BU	5761	Left Rear Shelf Speaker (+) (YQ4/YQ6/YQ7)

Speaker - Left Front I/P (UY5)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Left Front I/P (UY5)

Pin	Wire Color	Circuit No.	Function
A	TN/WH	1974	Left Front Speaker (-) (2) (YQ4/YQ6/YQ7)
B	L-BU	1874	Left Front Speaker (+) (2) (YQ4/YQ6/YQ7)

Speaker - Left Front Door (YQ2)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Left Front Door (YQ2)

Pin	Wire Color	Circuit No.	Function
A	YE	1956	Left Front Door Speaker (-)
B	TN	1856	Left Front Door Speaker (+)

Speaker - Left Front Door Subwoofer (UY5)

Connector Part Information

OEM: 6098-2180
Service: 88988384
Description: 5-Way F 90 Type Series (BK)

Terminal Part Information

Terminal/Tray: 8240-4422/6
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Speaker - Left Front Door Subwoofer (UY5)

Pin	Wire Color	Circuit No.	Function
A	RD/WH	640	Battery Positive Voltage
B	BK/WH	850	Ground
C	PU/WH	5754	Amplifier Powered Woofer Control (1)
D	YE	1956	Left Front Door Speaker (-)
E	TN	1856	Left Front Door Speaker (+)

Speaker - Left Rear Door (UX8)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Speaker - Left Rear Door (UX8)

Pin	Wire Color	Circuit No.	Function
A	WH	1959	Left Rear Midrange Speaker (-)
B	TN	1859	Left Rear Midrange Speaker (+)

Speaker - Passenger Seat Left (w/UY5)

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Speaker - Passenger Seat Left (w/UY5)

Pin	Wire Color	Circuit No.	Function
A	YE/BK	5769	Right Front Seat Left Speaker (-)
B	YE	5759	Right Front Seat Left Speaker (+)

Speaker - Passenger Seat Right (w/UY5)

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Speaker - Passenger Seat Right (w/UY5)

Pin	Wire Color	Circuit No.	Function
A	L-GN/BK	5770	Right Front Seat Right Speaker (-)
B	L-GN	5760	Right Front Seat Right Speaker (+)

Speaker - Rear Console (UY5)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Rear Console (UY5)

Pin	Wire Color	Circuit No.	Function
A	OG/BK	5766	Console Center Speaker (-) (YQ4/YQ6/YQ7)
B	OG	5756	Center Console Speaker (+) (YQ4/YQ6/YQ7)

Speaker - Rear Subwoofer (UX8)

Connector Part Information

OEM: 12129081
Service: 12129081
Description: 2-Way F Metri-Pack 280 Series, Flexlock (BK)

Terminal Part Information

Terminal/Tray: 12110842/4
Core/Insulation Crimp: A/B
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Speaker - Rear Subwoofer (UX8)

Pin	Wire Color	Circuit No.	Function
A	L-GN/BK	1794	Rear Subwoofer Speaker (-) (YQ2)
B	D-BU/WH	346	Rear Subwoofer Speaker (+) (YQ2)

Speaker - Rear Subwoofer (UY5)

Connector Part Information

OEM: 6098-2180
Service: 88988384
Description: 5-Way F 90 Type Series (BK)

Terminal Part Information

Terminal/Tray: 8240-4422/6
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Speaker - Rear Subwoofer (UY5)

Pin	Wire Color	Circuit No.	Function
A	RD/WH	2440	Battery Positive Voltage (YQ4/YQ6/YQ7)
B	BK/WH	1051	Ground (YQ4/YQ6/YQ7)
C	PK/BK	5755	Amplifier Powered Woofer Control (2) (YQ4/YQ6/YQ7)
D	L-GN/BK	1794	Rear Subwoofer Speaker (-) (YQ4/YQ6/YQ7)
E	D-BU/WH	346	Rear Subwoofer Speaker (+) (YQ4/YQ6/YQ7)

Speaker - Right Front I/P (UY5)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Right Front I/P (UY5)

Pin	Wire Color	Circuit No.	Function
A	TN/WH	1975	Right Front Speaker (-) (2) (YQ4/YQ6/YQ7)
B	TN	1875	Right Front Speaker (+) (2) (YQ4/YQ6/YQ7)

Speaker - Right Front Door Subwoofer (UY5)

Connector Part Information

OEM: 6098-2180
Service: 88988384
Description: 5-Way F 90 Type Series (BK)

Terminal Part Information

Terminal/Tray: 8240-4422/6
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Speaker - Right Front Door Subwoofer (UY5)

Pin	Wire Color	Circuit No.	Function
A	RD/WH	740	Battery Positive Voltage
B	BK/WH	850	Ground
C	PK/BK	5755	Amplifier Powered Woofer Control (1)
D	PU	1952	Right Front Door Speaker (-)
E	L-GN	1852	Right Front Door Speaker (+)

Speaker - Right Front Door (UX8)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Right Front Door (UX8)

Pin	Wire Color	Circuit No.	Function
A	PU	1952	Right Front Door Speaker (-) (YQ2)
B	L-GN	1852	Right Front Door Speaker (+) (YQ2)

Speaker - Right Front I/P (UX8)

Connector Part Information

OEM: 12110131
Service: 15306030
Description: 2-Way M Metri-Pack 280 Series (WH)

Terminal Part Information

Terminal/Tray: 12034047/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

Speaker - Right Front I/P (UX8)

Pin	Wire Color	Circuit No.	Function
A	PU	1952	Right Front Tweeter Speaker (-)
B	L-GN	1852	Right Front Tweeter Speaker (+)

Speaker - Right Rear Door

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Speaker - Right Rear Door

Pin	Wire Color	Circuit No.	Function
A	WH	1955	Right Rear Midrange Speaker (-)
B	TN	1855	Right Rear Midrange Speaker (+)

Speaker - Right Rear (UY5)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Right Rear (UY5)

Pin	Wire Color	Circuit No.	Function
A	L-BU/BK	5772	Right Rear Shelf Speaker (-) (YQ4/YQ6/YQ7)
B	L-BU	5762	Right Rear Shelf Speaker (+) (YQ4/YQ6/YQ7)

Traffic Information Receiver (VICS) (YQ7)

Connector Part Information

OEM: 4F1010-0001C
Service: 89046791
Description: 10-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Traffic Information Receiver (VICS) (YQ7)

Pin	Wire Color	Circuit No.	Function
1	GY	5383	Vehicle Identification Communication System High Signal
2	BN	5384	Vehicle Identification Communication System Low Signal
3	OG	3240	Battery Positive Voltage
4	YE	43	Accessory Voltage
5	BK	1050	Ground
6	YE	5385	Vehicle Identification Communication System Bus Request Signal
7	BARE	814	Drain Wire
8-10	--	--	Not Used

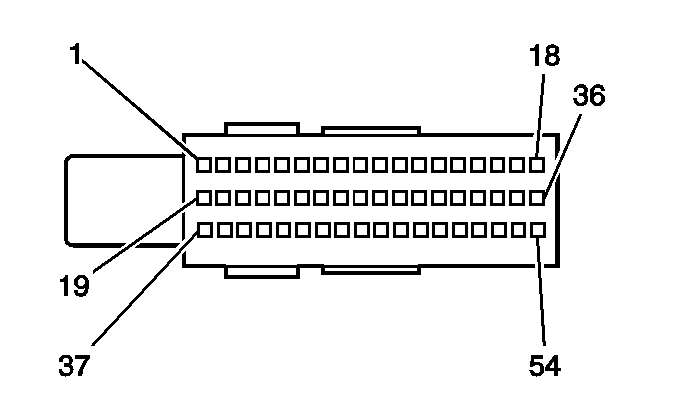

TV Antenna Module (Export w/YQ6/YQ7)

Connector Part Information

OEM: 1-13559282
Service: See Catalog
Description: 54-Way F AMP (BK)

Terminal Part Information

Pins: 2, 5, 6, 7, 9, 13, 19, 20
Terminal/Tray: 1411558-2/15
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Pins: 14
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

TV Antenna Module (Export w/YQ6/YQ7)

Pin	Wire Color	Circuit No.	Function
1	--	--	Not Used
2	D-GN	5060	Low Speed GMLAN Serial Data
3-4	--	--	Not Used
5	L-BU/WH	5338	Right TV Audio Signal
6	GY/BK	5339	Audio Common
7	L-GN/WH	5337	Left TV Audio Signal
8	--	--	Not Used
9	BARE	5345	Drain Wire
10-12	--	--	Not Used
13	GY	5231	Video RGB Low Reference
14	BARE	1705	Drain Wire Return
15-18	--	--	Not Used
19	BK	850	Ground
20	RD/WH	3240	Battery Positive Voltage
21-54	--	--	Not Used

Vehicle Communication Interface Module (VCIM) C1 (UE1)

Connector Part Information

OEM: 917981-1
Service: 15306351
Description: 16-Way M MKII Hybrid (WH)

Terminal Part Information

Pins: 2, 3, 6, 11, 7, 15
Terminal/Tray: 175266-5/15
Core/Insulation Crimp: Pins 2, 3, 6, 11 - J/J
Core/Insulation Crimp: Pins 7, 15 - K/K
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Vehicle Communication Interface Module (VCIM) C1 (UE1)

Pin	Wire Color	Circuit No.	Function
1	--	--	Not Used
2	BN/WH	2517	Keypad Red LED
3	YE/BK	2516	Keypad Green LED
4-5	--	--	Not Used
6	L-GN/BK	2515	Keypad Supply Voltage
7	BK	1050	Ground
8-10	--	--	Not Used
11	D-GN/WH	2514	Keypad Signal
12-14	--	--	Not used
15	RD/WH	2240	Battery Positive Voltage
16	--	--	Not Used

Vehicle Communication Interface Module (VCIM) C2 (UE1)

Connector Part Information

OEM: 917975-1
Service: 88952886
Description: 12-Way F MKII Hybrid (WH)

Terminal Part Information

Pins: 1, 1, 2, 2, 8, 9, 10
Terminal/Tray: 175266-5/15
Core/Insulation Crimp: Pins 1, 1, 2, 2, 8, 9 - J/J
Core/Insulation Crimp: Pins 10 - K/K
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Vehicle Communication Interface Module (VCIM) C2 (UE1)

Pin	Wire Color	Circuit No.	Function
1	D-BU	658	Cellular Telephone Voice Signal
2	L-BU/BK	659	Cellular Telephone Voice Low Reference
3-7	--	--	Not Used
8	BARE	814	Drain Wire
9	GY	655	Cellular Telephone Microphone Signal
10	BARE	1782	Drain Wire
11-12	--	--	Not Used

Vehicle Communication Interface Module (VCIM) C3 (UE1)

Connector Part Information

OEM: 917983-2
Service: 88986322
Description: 16-Way M MKII Hybrid (BK)

Terminal Part Information

Pins: 2, 4, 5
Terminal/Tray: 175266-5/15
Core/Insulation Crimp: Pins 2, 4 - J/J
Core/Insulation Crimp: Pins 5 - K/K
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Vehicle Communication Interface Module (VCIM) C3 (UE1)

Pin	Wire Color	Circuit No.	Function
1	--	--	Not Used
2	PK	5149	Voice Recognition Audio Signal
3	--	--	Not Used
4	PK/BK	5152	Voice Recognition Audio Low Reference
5	BARE	1792	Drain Wire
6-16	--	--	Not Used

Vehicle Communication Interface Module (VCIM) C4 (UE1)

Connector Part Information

OEM: 638695-2
Service: 88953373
Description: 12-Way F Tyco MK11 (BK)

Terminal Part Information

Pins: 1, 2, 2, 2, 3, 3, 8, 8, 9, 9
Terminal/Tray: 175266-5/15
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Vehicle Communication Interface Module (VCIM) C4 (UE1)

Pin	Wire Color	Circuit No.	Function
1	D-GN	5060	Low Speed GMLAN Serial Data
2	TN/BK	2500	High Speed GMLAN Serial Data (+) (1) (UE1 w/K59)
2	TN/BK	2500	High Speed GMLAN Serial Data (+) (1)
3	TN	2501	High Speed GMLAN Serial Data (-) (1)
3	TN	2501	High Speed GMLAN Serial Data (-) (1) (UE1 w/K59)
4-7	--	--	Not Used
8	TN/BK	2500	High Speed GMLAN Serial Data (+) (1)
9	TN	2501	High Speed GMLAN Serial Data (-) (1)
10-12	--	--	Not Used
