Door Lock/Indicator Schematics. Cadillac STS 2007

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2007 🢒 STS 🢒 Body Systems 🢒 Vehicle Access 🢒 Door Lock/Indicator Schematics

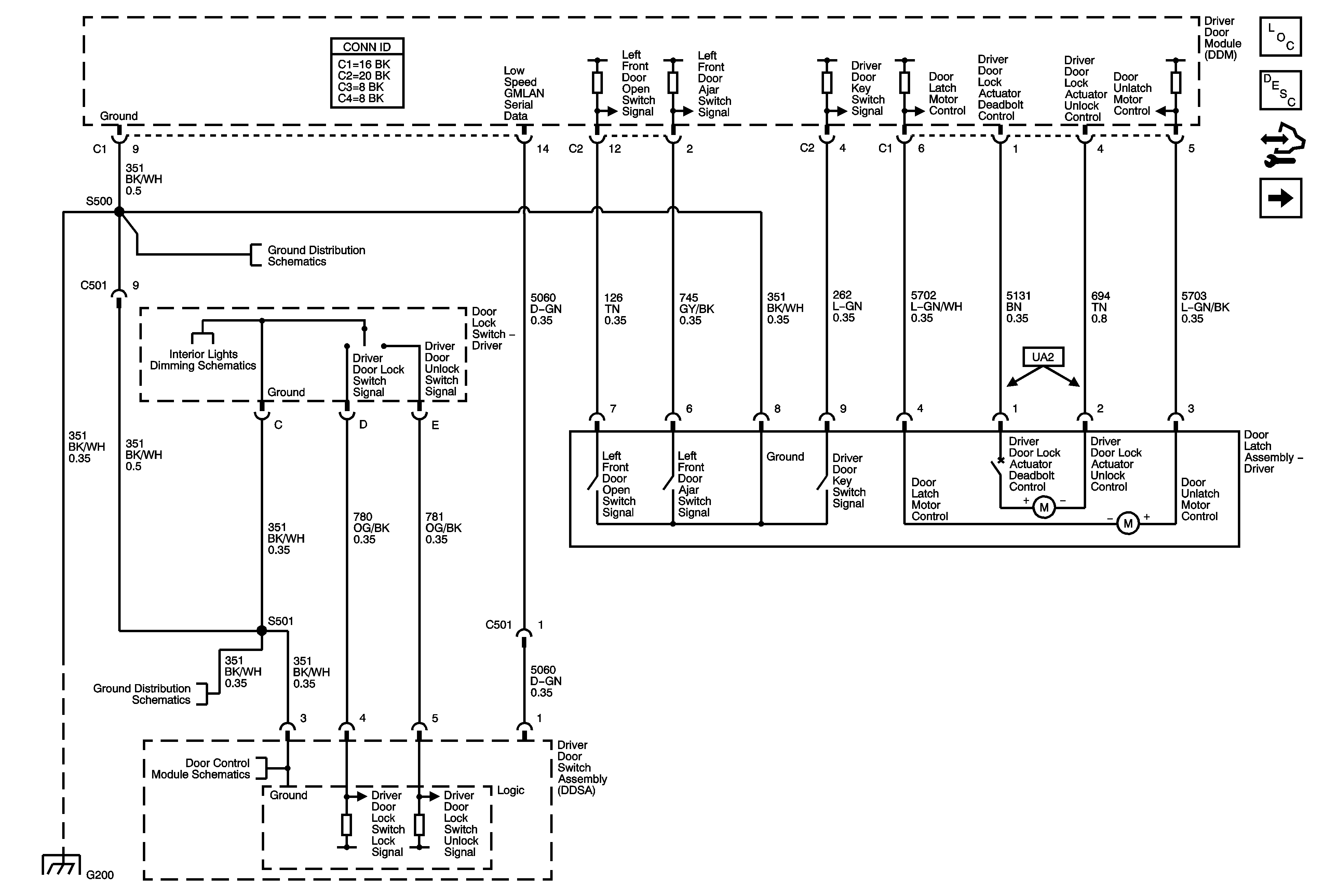

Figure 1:	Driver Door Lock Master Electrical Component List Power Door Locks Description and Operation Control Module References Front Passenger Door Lock G200 (1 of 2) Dimming 3 of 3 G200 (1 of 2) G200 (1 of 2)

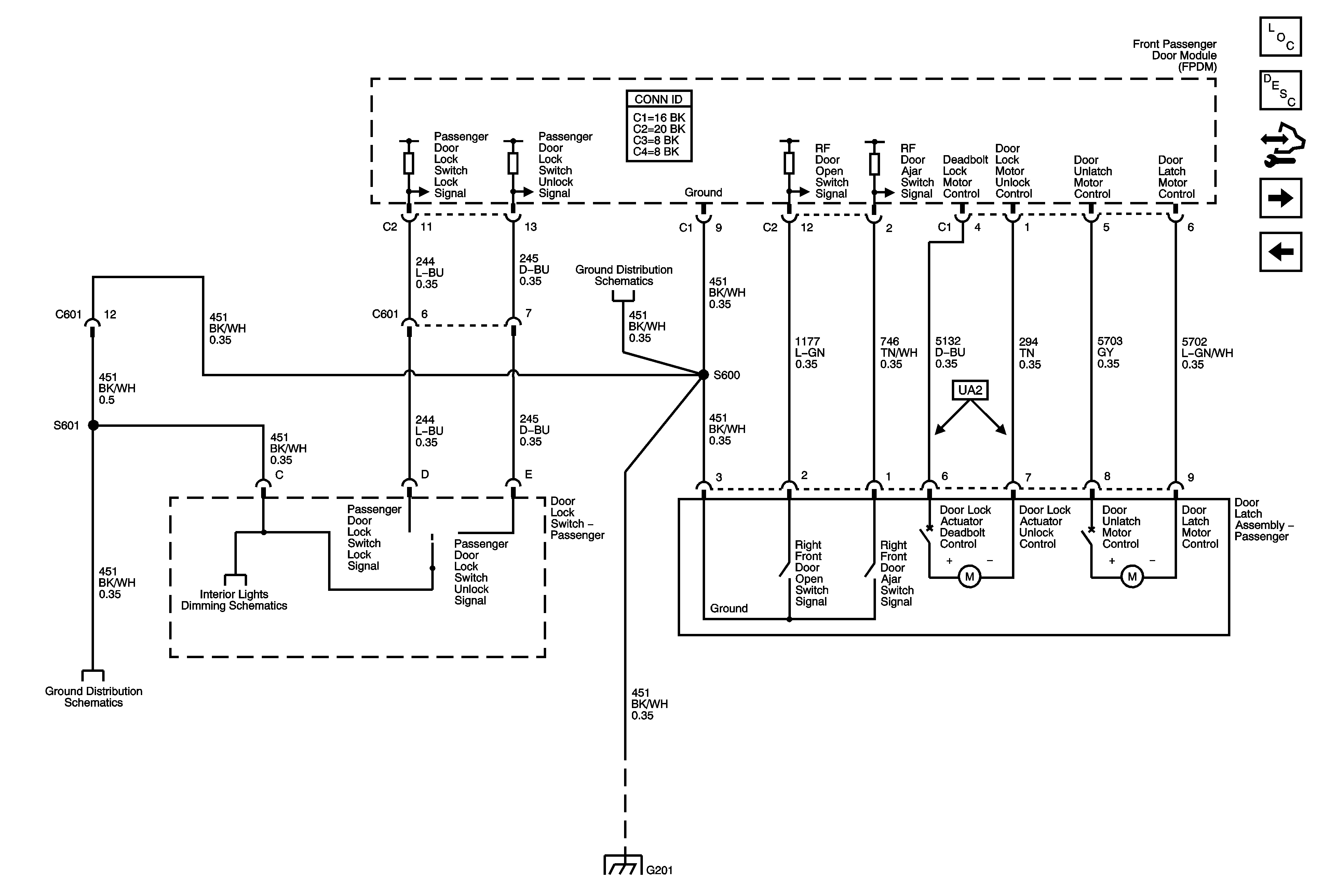

Figure 2:	Front Passenger Door Lock Master Electrical Component List Power Door Locks Description and Operation Control Module References Left Rear and Right Rear Door Lock Driver Door Lock G201 (2 of 2) Dimming 3 of 3 G201 (2 of 2) G201 (2 of 2)
Figure 3:	Left Rear and Right Rear Door Lock Master Electrical Component List Power Door Locks Description and Operation Control Module References Left Front Door Handle Assembly, Door Status Indicator - Driver Front Passenger Door Lock GM LAN - Low Speed 1 of 2 G200 (1 of 2) GM LAN - Low Speed 2 of 2 G201 (1 of 2)

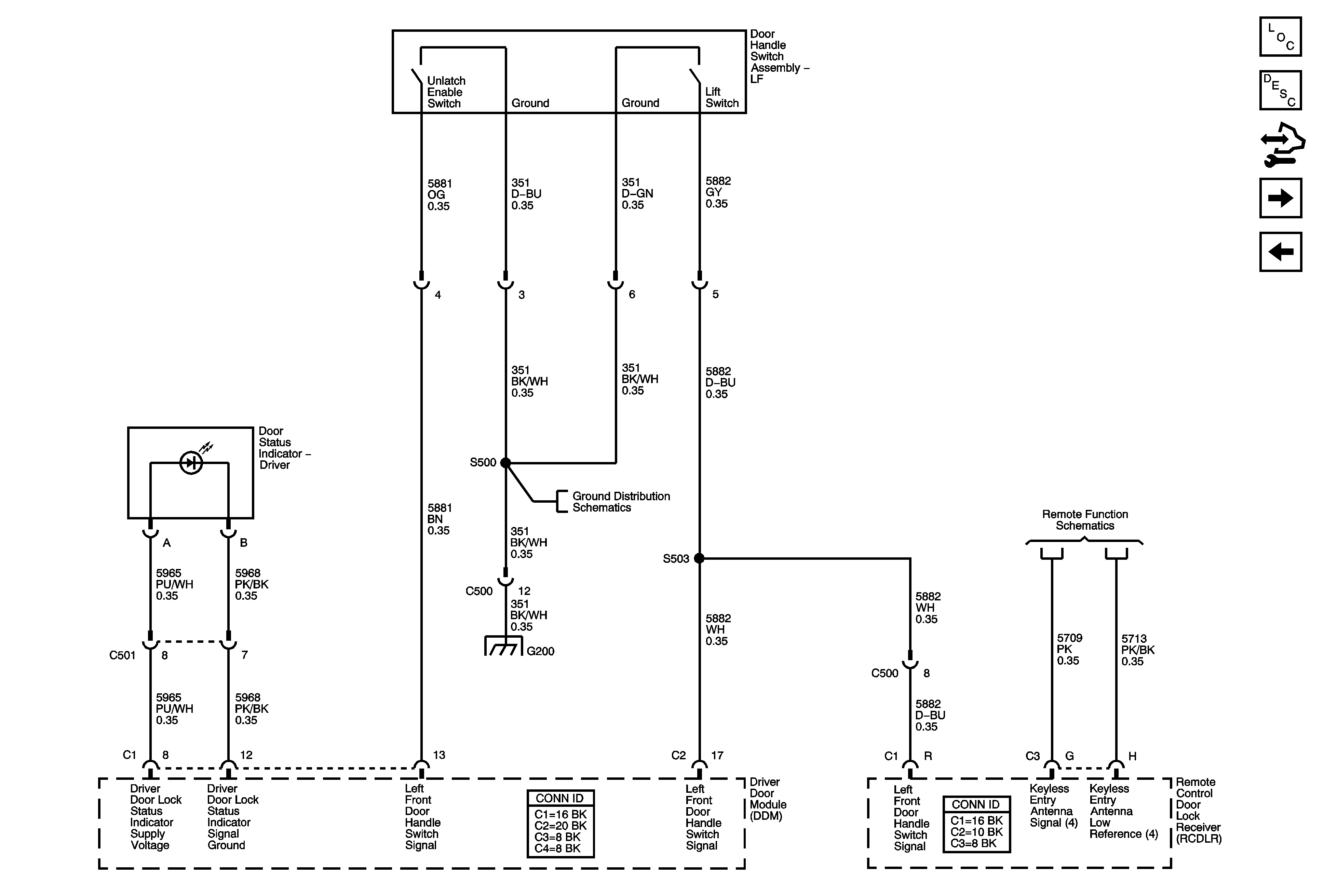

Figure 4:	Left Front Door Handle Assembly, Door Status Indicator - Driver Master Electrical Component List Power Door Locks Description and Operation Control Module References Right Front Door Handle Assembly, Door Status Indicator - Passenger Left Rear and Right Rear Door Lock G200 (1 of 2) G200 (1 of 2) Keyless Entry Module Power, Grounds, Antennas, and Switches

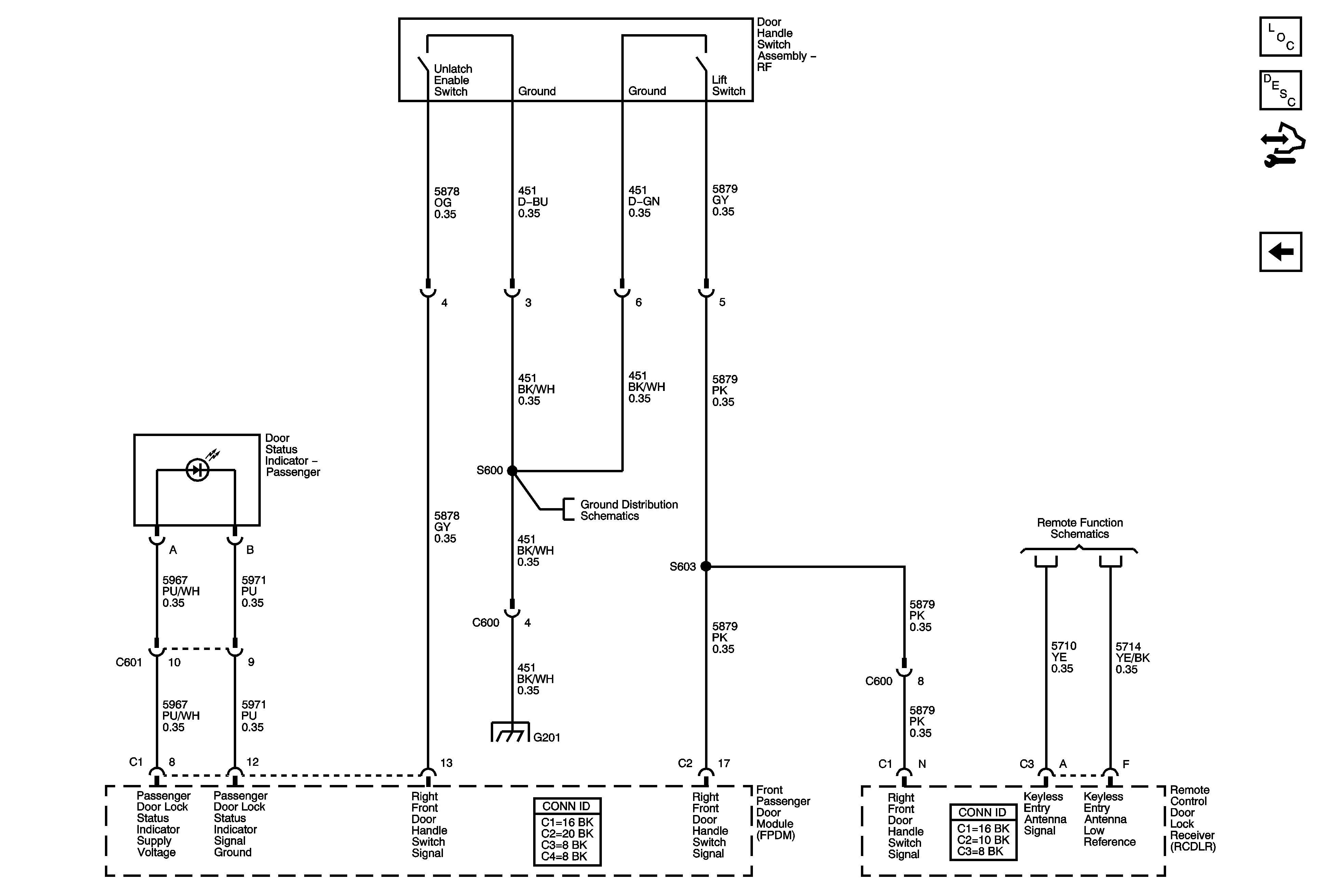

Figure 5:	Right Front Door Handle Assembly, Door Status Indicator - Passenger Master Electrical Component List Power Door Locks Description and Operation Control Module References Left Front Door Handle Assembly, Door Status Indicator - Driver G201 (2 of 2) G201 (2 of 2) Keyless Entry Module Power, Grounds, Antennas, and Switches
