For 1990-2009 cars only

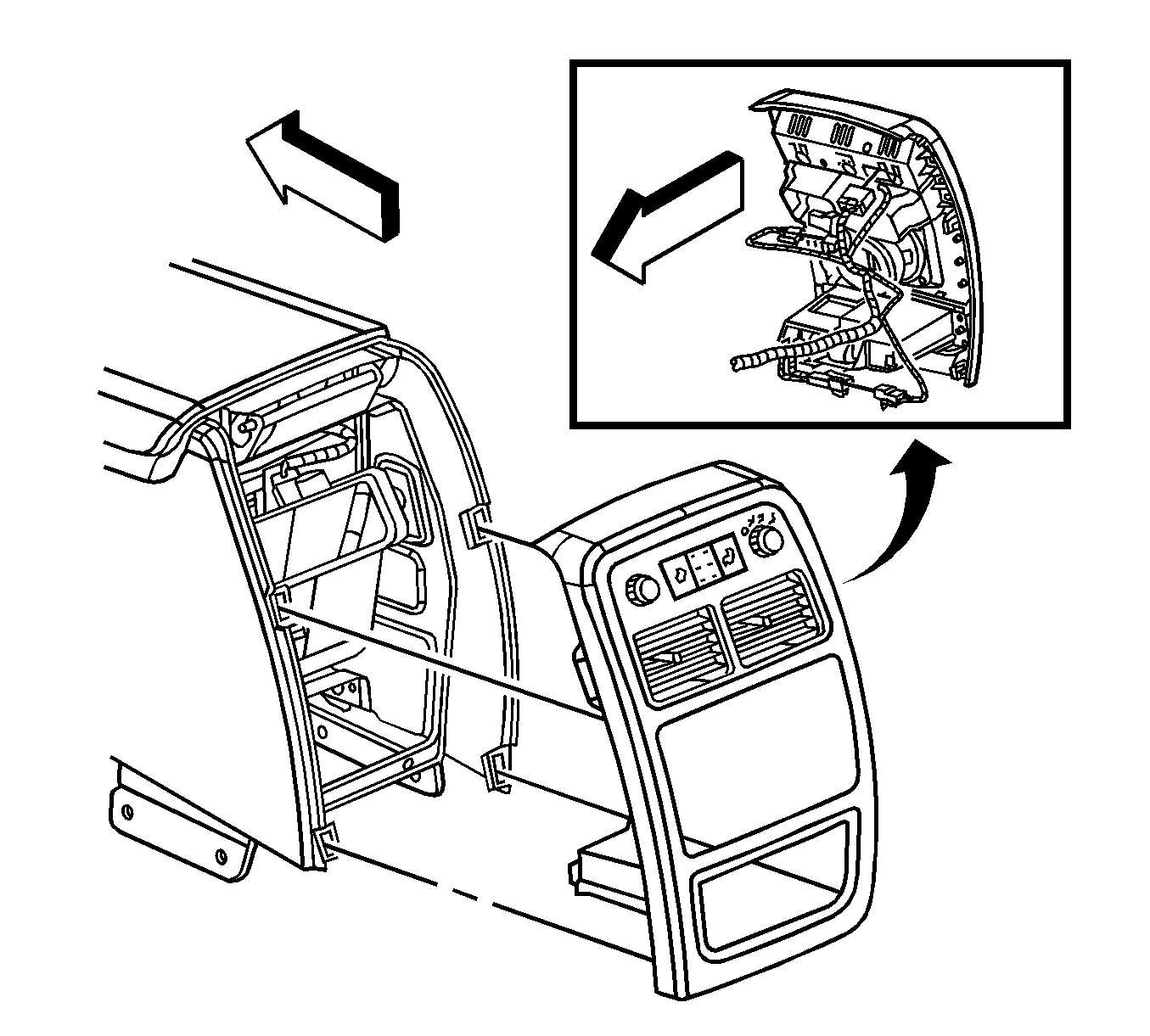

Removal Procedure
- Release the retaining clips using a blunt trim tool.
- Disconnect the wire harness connectors.
- Remove the end panel trim panel.
- If replacing the trim panel, transfer all necessary components.
Installation Procedure
- Connect the wire harness connectors.
- Locate the end panel to the console.
- Push on the end panel in order to secure the retaining clips.
