Component Connector End Views. Cadillac STS 2008

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2008 🢒 STS 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Component Connector End Views

Connector 1:	A/C Compressor Clutch
Connector 2:	A/C Refrigerant Pressure Sensor
Connector 3:	Accelerator Pedal Position (APP) Sensor
Connector 4:	Accessory Power Outlet - Center Console Compartment
Connector 5:	Accessory Power Outlet - Center Console (without DT4)
Connector 6:	Accessory Power Outlet - I/P (without DT4)
Connector 7:	Air Quality Sensor (K14)
Connector 8:	Air Temperature Actuator - Auxiliary
Connector 9:	Air Temperature Actuator - Left
Connector 10:	Air Temperature Actuator - Right
Connector 11:	Air Temperature Sensor - Inside
Connector 12:	Ambient Air Temperature Sensor
Connector 13:	Audio Amplifier X1
Connector 14:	Audio Amplifier X2
Connector 15:	Audio/Video Adapter (UY5)
Connector 16:	Automatic Headlamp Dimming Relay (TQ5)
Connector 17:	Automatic Level Control (ALC) Compressor (F55)
Connector 18:	Automatic Transmission
Connector 19:	Automatic Transmission Shift Lever
Connector 20:	Backup Lamp - Left
Connector 21:	Backup Lamp - Right
Connector 22:	Barometric Pressure (BARO) Sensor (LC3)
Connector 23:	Battery (-)
Connector 24:	Battery (+)
Connector 25:	Battery Current Sensor
Connector 26:	Blower Motor
Connector 27:	Blower Motor Control Module X1
Connector 28:	Blower Motor Control Module X2
Connector 29:	Brake Booster Pump Motor (LLT)
Connector 30:	Brake Fluid Level Switch
Connector 31:	Brake Fluid Pressure Sensor (without JL7)
Connector 32:	Brake Pedal Position Sensor
Connector 33:	Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Exhaust (LC3 or LH2)
Connector 34:	Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Exhaust (LLT)
Connector 35:	Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Intake (LC3 or LH2)
Connector 36:	Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Intake (LLT)
Connector 37:	Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Exhaust (LC3 or LH2)
Connector 38:	Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Exhaust (LLT)
Connector 39:	Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Intake (LC3 or LH2)
Connector 40:	Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Intake (LLT)
Connector 41:	Camshaft Position (CMP) Sensor - Bank 1 Exhaust (LC3 or LH2)
Connector 42:	Camshaft Position (CMP) Sensor - Bank 1 Exhaust (LLT)
Connector 43:	Camshaft Position (CMP) Sensor - Bank 1 Intake (LC3 or LH2)
Connector 44:	Camshaft Position (CMP) Sensor - Bank 1 Intake (LLT)
Connector 45:	Camshaft Position (CMP) Sensor - Bank 2 Exhaust (LC3 or LH2)
Connector 46:	Camshaft Position (CMP) Sensor - Bank 2 Exhaust (LLT)
Connector 47:	Camshaft Position (CMP) Sensor - Bank 2 Intake (LC3 or LH2)
Connector 48:	Camshaft Position (CMP) Sensor - Bank 2 Intake (LLT)
Connector 49:	Center High Mounted Stop Lamp (CHMSL)
Connector 50:	Charge Air Cooler (CAC) Coolant Pump (LC3)
Connector 51:	Cigar Lighter - Front (DT4)
Connector 52:	Cigar Lighter - Rear (DT4)
Connector 53:	Control Solenoid Valve Assembly X1
Connector 54:	Control Solenoid Valve Assembly X2
Connector 55:	Coolant Pump - Auxiliary (LLT)
Connector 56:	Courtesy Lamp - Left Front Door
Connector 57:	Courtesy Lamp - Left Rear Door
Connector 58:	Courtesy Lamp - Rear Compartment
Connector 59:	Courtesy Lamp - Right Front Door
Connector 60:	Courtesy Lamp - Right Rear Door
Connector 61:	Crankshaft Position (CKP) Sensor (LC3 or LH2)
Connector 62:	Crankshaft Position (CKP) Sensor (LLT)
Connector 63:	Data Link Connector (DLC)
Connector 64:	Differential Cooler Pump (KNR)
Connector 65:	Digital Radio Receiver (U2K)
Connector 66:	Distance Sensing Cruise Control (DSCC) Module (K59)
Connector 67:	Door Control Module - Driver X1
Connector 68:	Door Control Module - Driver X2
Connector 69:	Door Control Module - Driver X3
Connector 70:	Door Control Module - Driver X4
Connector 71:	Door Control Module - Left Rear X1
Connector 72:	Door Control Module - Left Rear X2
Connector 73:	Door Control Module - Passenger X1
Connector 74:	Door Control Module - Passenger X2
Connector 75:	Door Control Module - Passenger X3
Connector 76:	Door Control Module - Passenger X4
Connector 77:	Door Control Module - Right Rear X1
Connector 78:	Door Control Module - Right Rear X2
Connector 79:	Door Handle - Driver
Connector 80:	Door Handle - Passenger
Connector 81:	Door Latch - Driver
Connector 82:	Door Latch - Left Rear
Connector 83:	Door Latch - Passenger
Connector 84:	Door Latch - Right Rear
Connector 85:	Door Lock Indicator - Driver
Connector 86:	Door Lock Indicator - Passenger
Connector 87:	Door Lock Switch - Driver
Connector 88:	Door Lock Switch - Passenger
Connector 89:	Electronic Brake Control Module (EBCM) (JL7)
Connector 90:	Electronic Brake Control Module (EBCM) (without JL7)
Connector 91:	Electronic Suspension Control (ESC) Module (F55)
Connector 92:	Engine Control Module (ECM) X1 (LC3)
Connector 93:	Engine Control Module (ECM) X1 (LH2)
Connector 94:	Engine Control Module (ECM) X1 (LLT)
Connector 95:	Engine Control Module (ECM) X2 (LC3)
Connector 96:	Engine Control Module (ECM) X2 (LH2)
Connector 97:	Engine Control Module (ECM) X2 (LLT)
Connector 98:	Engine Control Module (ECM) X3 (LC3)
Connector 99:	Engine Control Module (ECM) X3 (LH2)
Connector 100:	Engine Coolant Temperature (ECT) Sensor (LC3 or LH2)
Connector 101:	Engine Coolant Temperature (ECT) Sensor (LLT)
Connector 102:	Engine Cooling Fan - Left
Connector 103:	Engine Cooling Fan - Right (LC3)
Connector 104:	Engine Cooling Fan - Right (without LC3)
Connector 105:	Engine Oil Level and Temperature Sensor (LC3)
Connector 106:	Engine Oil Pressure (EOP) Sensor (LC3 or LH2)
Connector 107:	Engine Oil Pressure (EOP) Sensor (LLT)
Connector 108:	Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LC3 or LH2)
Connector 109:	Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LLT)
Connector 110:	Evaporative Emission (EVAP) Canister Vent Solenoid Valve
Connector 111:	Fog Lamp - Left Front X1
Connector 112:	Fog Lamp - Left Front X2
Connector 113:	Fog Lamp - Left Rear (T79)
Connector 114:	Fog Lamp - Right Front X1
Connector 115:	Fog Lamp - Right Front X2
Connector 116:	Fog Lamp - Right Rear (T79)
Connector 117:	Fuel Injector 1 (LC3)
Connector 118:	Fuel Injector 1 (LH2)
Connector 119:	Fuel Injector 1 (LLT)
Connector 120:	Fuel Injector 2 (LC3)
Connector 121:	Fuel Injector 2 (LH2)
Connector 122:	Fuel Injector 2 (LLT)
Connector 123:	Fuel Injector 3 (LC3)
Connector 124:	Fuel Injector 3 (LH2)
Connector 125:	Fuel Injector 3 (LLT)
Connector 126:	Fuel Injector 4 (LC3)
Connector 127:	Fuel Injector 4 (LH2)
Connector 128:	Fuel Injector 4 (LLT)
Connector 129:	Fuel Injector 5 (LC3)
Connector 130:	Fuel Injector 5 (LH2)
Connector 131:	Fuel Injector 5 (LLT)
Connector 132:	Fuel Injector 6 (LC3)
Connector 133:	Fuel Injector 6 (LH2)
Connector 134:	Fuel Injector 6 (LLT)
Connector 135:	Fuel Injector 7 (LC3)
Connector 136:	Fuel Injector 7 (LH2)
Connector 137:	Fuel Injector 8 (LC3)
Connector 138:	Fuel Injector 8 (LH2)
Connector 139:	Fuel Level Sensor - Secondary
Connector 140:	Fuel Pump and Sender Assembly
Connector 141:	Fuel Rail Pressure (FRP) Sensor (LLT)
Connector 142:	Fuel Tank Pressure (FTP) Sensor
Connector 143:	Garage Door Opener (GDO) (UG1)
Connector 144:	Generator X1
Connector 145:	Generator X2
Connector 146:	Hazard Warning Switch
Connector 147:	Headlamp Ballast - Left (TT6 or TT7 or TT8)
Connector 148:	Headlamp Ballast - Right (TT6 or TT7 or TT8)
Connector 149:	Headlamp - Left High Beam
Connector 150:	Headlamp - Left Low Beam (without TT6 or TT7 or TT8)
Connector 151:	Headlamp Leveling Actuator - Left (TR7)
Connector 152:	Headlamp Leveling Actuator - Right (TR7)
Connector 153:	Headlamp Leveling Module (TR7)
Connector 154:	Headlamp - Right High Beam
Connector 155:	Headlamp - Right Low Beam (without TT6 or TT7 or TT8)
Connector 156:	Headlamp Washer Fluid Pump (CE4)
Connector 157:	Headlamp Washer Fluid Pump Relay (CE4)
Connector 158:	Head Up Display (HUD) (UV6)
Connector 159:	Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LC3 or LH2)
Connector 160:	Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LLT)
Connector 161:	Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LC3)
Connector 162:	Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LH2 or LLT)
Connector 163:	Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LC3)
Connector 164:	Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LH2)
Connector 165:	Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LLT)
Connector 166:	Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (LC3 or LH2)
Connector 167:	Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (LLT)
Connector 168:	Heated Seat Control Module - Rear X1 (KA6)
Connector 169:	Heated Seat Control Module - Rear X2 (KA6)
Connector 170:	Heated Seat Control Module - Rear X3 (KA6)
Connector 171:	Heated Seat Element - Driver Back (KA1)
Connector 172:	Heated Seat Element - Driver Cushion (KA1)
Connector 173:	Heated Seat Element - Left Rear Back (KA6)
Connector 174:	Heated Seat Element - Left Rear Cushion (KA6)
Connector 175:	Heated Seat Element - Passenger Back (KA1)
Connector 176:	Heated Seat Element - Passenger Cushion (KA1)
Connector 177:	Heated Seat Element - Right Rear Back (KA6)
Connector 178:	Heated Seat Element - Right Rear Cushion (KA6)
Connector 179:	Heated Steering Wheel Control Module X1 (NR7 or N31)
Connector 180:	Heated Steering Wheel Control Module X2 (NR7 or N31)
Connector 181:	Heated Steering Wheel Control Module X3 (NR7 or N31)
Connector 182:	Heated Washer Nozzle - Left (XA7)
Connector 183:	Heated Washer Nozzle - Right (XA7)
Connector 184:	High Pressure Fuel Pump (LLT)
Connector 185:	Hood Ajar Switch
Connector 186:	Horn Assembly
Connector 187:	Horn Switch X1
Connector 188:	Horn Switch X2
Connector 189:	HVAC Control Module X1
Connector 190:	HVAC Control Module X2
Connector 191:	HVAC Control Module X3
Connector 192:	HVAC Control Module - Auxiliary (KA6)
Connector 193:	Ignition Coil 1 (LLT)
Connector 194:	Ignition Coil 2 (LLT)
Connector 195:	Ignition Coil 3 (LLT)
Connector 196:	Ignition Coil 4 (LLT)
Connector 197:	Ignition Coil 5 (LLT)
Connector 198:	Ignition Coil 6 (LLT)
Connector 199:	Ignition Coil 1 (LC3 or LH2)
Connector 200:	Ignition Coil 2 (LC3 or LH2)
Connector 201:	Ignition Coil 3 (LC3 or LH2)
Connector 202:	Ignition Coil 4 (LC3 or LH2)
Connector 203:	Ignition Coil 5 (LC3 or LH2)
Connector 204:	Ignition Coil 6 (LC3 or LH2)
Connector 205:	Ignition Coil 7 (LC3 or LH2)
Connector 206:	Ignition Coil 8 (LC3 or LH2)
Connector 207:	Ignition Mode Switch
Connector 208:	Inflatable Restraint Front End Sensor - Left
Connector 209:	Inflatable Restraint Front End Sensor - Right
Connector 210:	Inflatable Restraint I/P Module X1
Connector 211:	Inflatable Restraint I/P Module X2
Connector 212:	Inflatable Restraint I/P Module Indicator
Connector 213:	Inflatable Restraint Passenger Presence System (PPS) Module
Connector 214:	Inflatable Restraint Roof Rail Module - Left
Connector 215:	Inflatable Restraint Roof Rail Module - Right
Connector 216:	Inflatable Restraint Sensing and Diagnostic Module (SDM)
Connector 217:	Inflatable Restraint Side Impact Module - Left
Connector 218:	Inflatable Restraint Side Impact Module - Right
Connector 219:	Inflatable Restraint Side Impact Sensor (SIS) - Left
Connector 220:	Inflatable Restraint Side Impact Sensor (SIS) - Right
Connector 221:	Inflatable Restraint Steering Wheel Module X1
Connector 222:	Inflatable Restraint Steering Wheel Module X2
Connector 223:	Inside Rearview Mirror (ISRVM)
Connector 224:	Instrument Panel Cluster (IPC)
Connector 225:	Instrument Panel Module (IPM) X1
Connector 226:	Instrument Panel Module (IPM) X2
Connector 227:	Instrument Panel Module (IPM) X3
Connector 228:	Intake Air Temperature (IAT) Sensor 2 (LC3)
Connector 229:	Intrusion Sensor (UA2)
Connector 230:	I/P Compartment Lamp
Connector 231:	I/P Compartment Lamp Switch
Connector 232:	I/P Courtesy Lamp - Left
Connector 233:	I/P Courtesy Lamp - Right
Connector 234:	I/P Dimmer Switch (UV6)
Connector 235:	I/P Dimmer Switch (without UV6)
Connector 236:	Keyless Entry Antenna
Connector 237:	Keyless Entry Antenna - Backup
Connector 238:	Keyless Entry Antenna - Headliner
Connector 239:	Keyless Entry Antenna - Left Front Door Handle
Connector 240:	Keyless Entry Antenna - Rear Compartment
Connector 241:	Keyless Entry Antenna - Right Front Door Handle
Connector 242:	Knock Sensor (KS) 1 (LC3 or LH2)
Connector 243:	Knock Sensor (KS) 1 (LLT)
Connector 244:	Knock Sensor (KS) 2 (LC3 or LH2)
Connector 245:	Knock Sensor (KS) 2 (LLT)
Connector 246:	License Lamp - Left
Connector 247:	License Lamp - Right
Connector 248:	Manifold Absolute Pressure (MAP) Sensor (LC3 or LH2)
Connector 249:	Marker Lamp - Left Front
Connector 250:	Marker Lamp - Left Rear
Connector 251:	Marker Lamp - Right Front
Connector 252:	Marker Lamp - Right Rear
Connector 253:	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LC3)
Connector 254:	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LH2)
Connector 255:	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LLT)
Connector 256:	Memory Seat Module (MSM) X1 (A45)
Connector 257:	Memory Seat Module (MSM) X2 (A45)
Connector 258:	Memory Seat Module (MSM) X3 (A45)
Connector 259:	Memory Seat Module (MSM) X4 (A45)
Connector 260:	Mode Actuator
Connector 261:	Mode Actuator - Auxiliary
Connector 262:	Noise Compensation Microphone (YQ4 or YQ6 or YQ7)
Connector 263:	Object Alarm Sensor - Left Rear Corner
Connector 264:	Object Alarm Sensor - Left Rear Middle
Connector 265:	Object Alarm Sensor - Right Rear Corner
Connector 266:	Object Alarm Sensor - Right Rear Middle
Connector 267:	Overhead Console Courtesy/Reading Lamps - Front
Connector 268:	Overhead Console Courtesy/Reading Lamps - Rear
Connector 269:	Park Brake Switch
Connector 270:	Park Lamp - Left Front
Connector 271:	Park Lamp - Right Front
Connector 272:	Power Steering Control Module (PSCM) X1 (JL7)
Connector 273:	Power Steering Control Module (PSCM) X2 (JL7)
Connector 274:	Power Steering Control Module (PSCM) X3 (JL7)
Connector 275:	Radio X1 (YQ4 or YQ6 or YQ7)
Connector 276:	Radio X2
Connector 277:	Radio X3
Connector 278:	Radio X4 (YQ4 or YQ6 or YQ7)
Connector 279:	Radio X5
Connector 280:	Radio X6 (YQA or YQ6 or YQ7)
Connector 281:	Radio X7 (YQ6 or YQ7)
Connector 282:	Radio Antenna Module
Connector 283:	Rear Compartment Lid Latch
Connector 284:	Rear Compartment Lid Release Switch - Exterior
Connector 285:	Rear Compartment Lid Release Switch - Interior
Connector 286:	Rear Integration Module (RIM) X1
Connector 287:	Rear Integration Module (RIM) X2
Connector 288:	Rear Integration Module (RIM) X3
Connector 289:	Rear Integration Module (RIM) X4
Connector 290:	Rear Object Sensor Control Module
Connector 291:	Rear Parking Assist (RPA) Diagnostic Connector
Connector 292:	Rear Parking Assist (RPA) Display
Connector 293:	Rear Window Defogger X1
Connector 294:	Rear Window Defogger X2
Connector 295:	Recirculation Actuator
Connector 296:	Remote Control Door Lock Receiver (RCDLR) X1
Connector 297:	Remote Control Door Lock Receiver (RCDLR) X2
Connector 298:	Remote Control Door Lock Receiver (RCDLR) X3
Connector 299:	Repeater Lamp - Left Front
Connector 300:	Repeater Lamp - Right Front
Connector 301:	Seat Adjuster Motor Assembly - Driver X1 (A45)
Connector 302:	Seat Adjuster Motor Assembly - Driver X2 (A45)
Connector 303:	Seat Adjuster Motor Assembly - Driver (without A45)
Connector 304:	Seat Adjuster Motor Assembly - Passenger
Connector 305:	Seat Adjuster Switch - Driver
Connector 306:	Seat Adjuster Switch - Passenger
Connector 307:	Seat Belt Pretensioner - Left
Connector 308:	Seat Belt Pretensioner - Right
Connector 309:	Seat Belt Retractor - Driver
Connector 310:	Seat Belt Retractor - Passenger
Connector 311:	Seat Belt Switch - Left Front
Connector 312:	Seat Belt Switch - Right Front
Connector 313:	Seat Climate Control Module X1 (KA1 or KB6)
Connector 314:	Seat Climate Control Module X2 (KA1 or KB6)
Connector 315:	Seat Front Vertical Motor Position Sensor - Driver (A45)
Connector 316:	Seat Horizontal Motor Position Sensor - Driver (A45)
Connector 317:	Seat Lumbar Horizontal Motor - Driver (AL2)
Connector 318:	Seat Lumbar Horizontal Motor - Passenger (AL2)
Connector 319:	Seat Lumbar Horizontal Motor Position Sensor - Driver (AL2)
Connector 320:	Seat Lumbar Switch - Driver (AL2)
Connector 321:	Seat Lumbar Switch - Passenger (AL2)
Connector 322:	Seat Lumbar Vertical Motor - Driver (AL2)
Connector 323:	Seat Lumbar Vertical Motor - Passenger (AL2)
Connector 324:	Seat Lumbar Vertical Motor Position Sensor - Driver (AL2)
Connector 325:	Seat Rear Vertical Motor Position Sensor - Driver (A45)
Connector 326:	Seat Recline Motor - Driver
Connector 327:	Seat Recline Motor - Passenger
Connector 328:	Seat Recline Position Sensor - Driver (A45)
Connector 329:	Side Object Sensor - Left (UFT)
Connector 330:	Side Object Sensor - Right (UFT)
Connector 331:	Speaker - Center Console (UY5)
Connector 332:	Speaker - Center I/P
Connector 333:	Speaker - Driver Seat Left (UY5)
Connector 334:	Speaker - Driver Seat Right (UY5)
Connector 335:	Speaker - Left Front Tweeter (UX8)
Connector 336:	Speaker - Left Front Tweeter (UY5)
Connector 337:	Speaker - Left Front (UX8)
Connector 338:	Speaker - Left Front (UY5)
Connector 339:	Speaker - Left Rear Compartment (UY5)
Connector 340:	Speaker - Left Rear
Connector 341:	Speaker - Passenger Seat Left (UY5)
Connector 342:	Speaker - Passenger Seat Right (UY5)
Connector 343:	Speaker - Right Front Tweeter (LHD with UX8)
Connector 344:	Speaker - Right Front Tweeter (RHD with UX8)
Connector 345:	Speaker - Right Front Tweeter (UY5)
Connector 346:	Speaker - Right Front (UX8)
Connector 347:	Speaker - Right Front (UY5)
Connector 348:	Speaker - Right Rear
Connector 349:	Speaker - Right Rear Compartment (UY5)
Connector 350:	Speaker - Subwoofer (UX8)
Connector 351:	Speaker - Subwoofer (UY5)
Connector 352:	Starter Motor X1 (LC3 or LH2)
Connector 353:	Starter Motor X2
Connector 354:	Steering Column Lock Control Module X1 (UA2 or UA7)
Connector 355:	Steering Column Lock Control Module X2 (UA2 or UA7)
Connector 356:	Steering Column Telescope Actuator
Connector 357:	Steering Column Telescope Position Sensor (A45)
Connector 358:	Steering Wheel/Column Tilt/Telescope Switch
Connector 359:	Steering Wheel Control Switch - Left
Connector 360:	Steering Wheel Control Switch - Right
Connector 361:	Steering Wheel Speed/Position Sensor (JL7)
Connector 362:	Steering Wheel Speed/Position Sensor (without JL7)
Connector 363:	Steering Wheel Tilt Actuator
Connector 364:	Steering Wheel Tilt Position Sensor (A45)
Connector 365:	Sunload Sensor
Connector 366:	Sunroof Control Module (CF5)
Connector 367:	Sunroof Switch (CF5)
Connector 368:	Sunshade - Left
Connector 369:	Sunshade - Right
Connector 370:	Supercharger Air Inlet Pressure Sensor (LC3)
Connector 371:	Supercharger Bypass Valve Solenoid (LC3)
Connector 372:	Suspension Damper Solenoid - Left Front (F55)
Connector 373:	Suspension Damper Solenoid - Left Rear (F55)
Connector 374:	Suspension Damper Solenoid - Right Front (F55)
Connector 375:	Suspension Damper Solenoid - Right Rear (F55)
Connector 376:	Suspension Position Sensor - Left Front (F55 or TR7)
Connector 377:	Suspension Position Sensor - Left Rear (F55 or TR7)
Connector 378:	Suspension Position Sensor - Right Front (F55)
Connector 379:	Suspension Position Sensor - Right Rear (F55)
Connector 380:	Tail Lamp - Left
Connector 381:	Tail Lamp - Right
Connector 382:	Theft Deterrent Alarm Siren (UA2)
Connector 383:	Throttle Body (LC3)
Connector 384:	Throttle Body (LH2 or LLT)
Connector 385:	Tire Pressure Module (UH3)
Connector 386:	Tire Pressure Receiver - Left Front (UH3)
Connector 387:	Tire Pressure Receiver - Left Rear (UH3)
Connector 388:	Tire Pressure Receiver - Right Front (UH3)
Connector 389:	Tire Pressure Receiver - Right Rear (UH3)
Connector 390:	Traction Control Switch (TCS)
Connector 391:	Traffic Information Receiver X1 (YQ7)
Connector 392:	Traffic Information Receiver X2 (YQ7)
Connector 393:	Traffic Information Receiver X3 (YQ7)
Connector 394:	Turn Signal Lamp - Left Front
Connector 395:	Turn Signal Lamp - Right Front
Connector 396:	Turn Signal/Multifunction Switch X1
Connector 397:	Turn Signal/Multifunction Switch X2
Connector 398:	Turn Signal/Multifunction Switch X3
Connector 399:	Turn Signal/Multifunction Switch X4
Connector 400:	Television Antenna Module X1 (YQ6 or YQ7)
Connector 401:	Television Antenna Module X2 (YQ6 or YQ7)
Connector 402:	Television Antenna Module X3 (YQ6 or YQ7)
Connector 403:	Valet Switch
Connector 404:	Variable Effort Steering Actuator (NV7)
Connector 405:	Variable Effort Steering Actuator (without NV7)
Connector 406:	Vehicle Communication Interface Module (VCIM) X1 (UE1)
Connector 407:	Vehicle Communication Interface Module (VCIM) X2 (UE1)
Connector 408:	Vehicle Communication Interface Module (VCIM) X3 (UE1)
Connector 409:	Vehicle Communication Interface Module (VCIM) X4 (UE1)
Connector 410:	Vehicle Direction Alert Alarm Warning Module (UFL)
Connector 411:	Vehicle Inclination Sensor (UA2)
Connector 412:	Vehicle Stability Control Module X1 (JL7)
Connector 413:	Vehicle Stability Control Module X3 (JL7)
Connector 414:	Ventilated Seat Blower Motor - Driver Back (KB6)
Connector 415:	Ventilated Seat Blower Motor - Driver Cushion (KB6)
Connector 416:	Ventilated Seat Blower Motor - Passenger Back (KB6)
Connector 417:	Ventilated Seat Blower Motor - Passenger Cushion (KB6)
Connector 418:	Wheel Speed Sensor (WSS) - Left Front
Connector 419:	Wheel Speed Sensor (WSS) - Left Rear
Connector 420:	Wheel Speed Sensor (WSS) - Right Front
Connector 421:	Wheel Speed Sensor (WSS) - Right Rear
Connector 422:	Window Motor - Driver
Connector 423:	Window Motor - Left Rear
Connector 424:	Window Motor - Passenger
Connector 425:	Window Motor - Right Rear
Connector 426:	Window Switch - Driver
Connector 427:	Window Switch - Left Rear
Connector 428:	Window Switch - Passenger
Connector 429:	Window Switch - Right Rear
Connector 430:	Windshield Outside Moisture Sensor (CE1)
Connector 431:	Windshield Washer Fluid Level Switch
Connector 432:	Windshield Washer Fluid Pump
Connector 433:	Windshield Wiper Inhibit Relay (WCV)
Connector 434:	Windshield Wiper/Washer Module
Connector 435:	Windshield Wiper/Washer Switch
Connector 436:	Yaw and Lateral Accelerometer Sensor (JL7)
Connector 437:	Yaw and Lateral Accelerometer Sensor (without JL7)

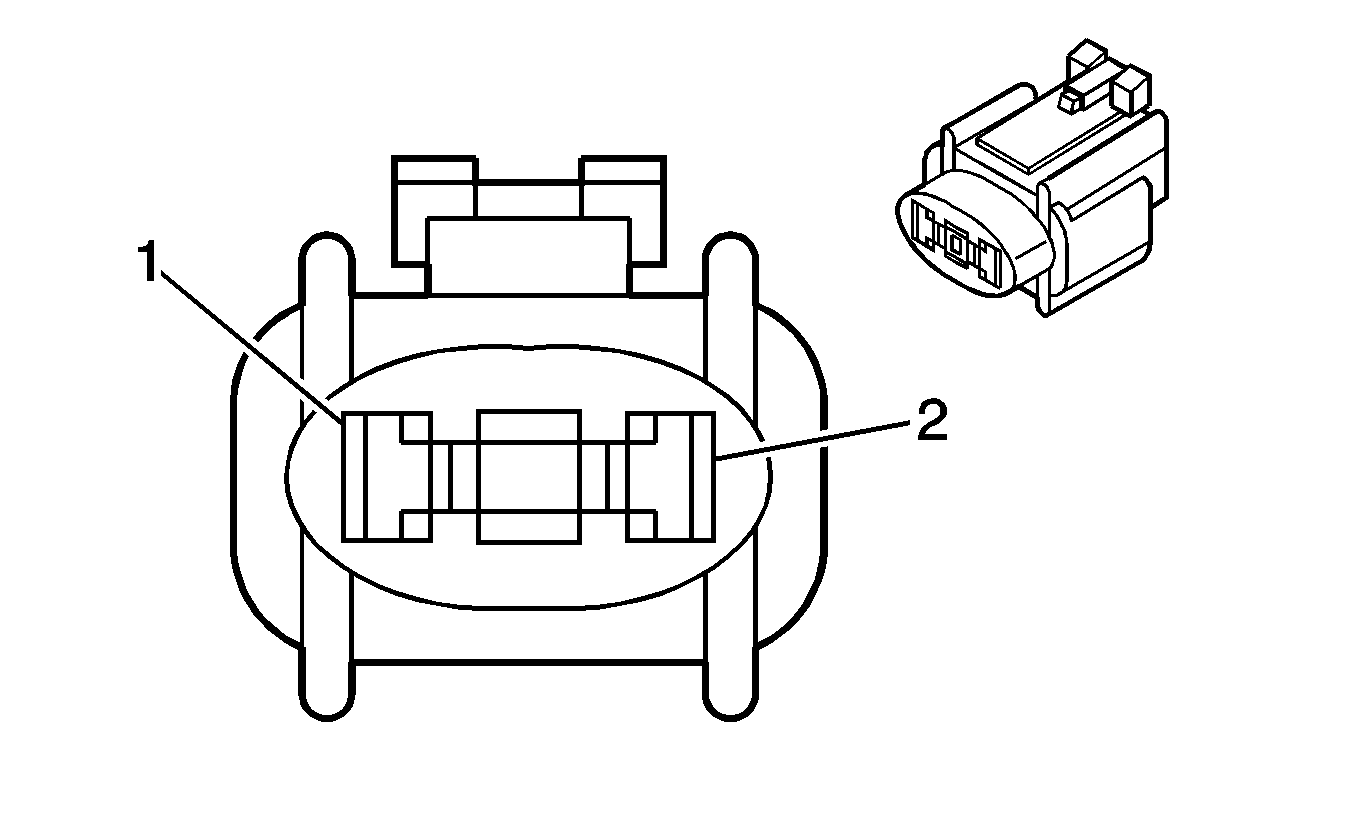

A/C Compressor Clutch

Connector Part Information

OEM: 7282-5548-30
Service: 88953303
Description: 2-Way M YESC Weather Pack Sealed (BK)

Terminal Part Information

Terminal/Tray: 7114-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-3 (GY)

A/C Compressor Clutch

Pin	Wire	Circuit	Function
1	0.35 D-GN	59	A/C Compressor Clutch Supply Voltage
2	0.35 BK	1550	Ground

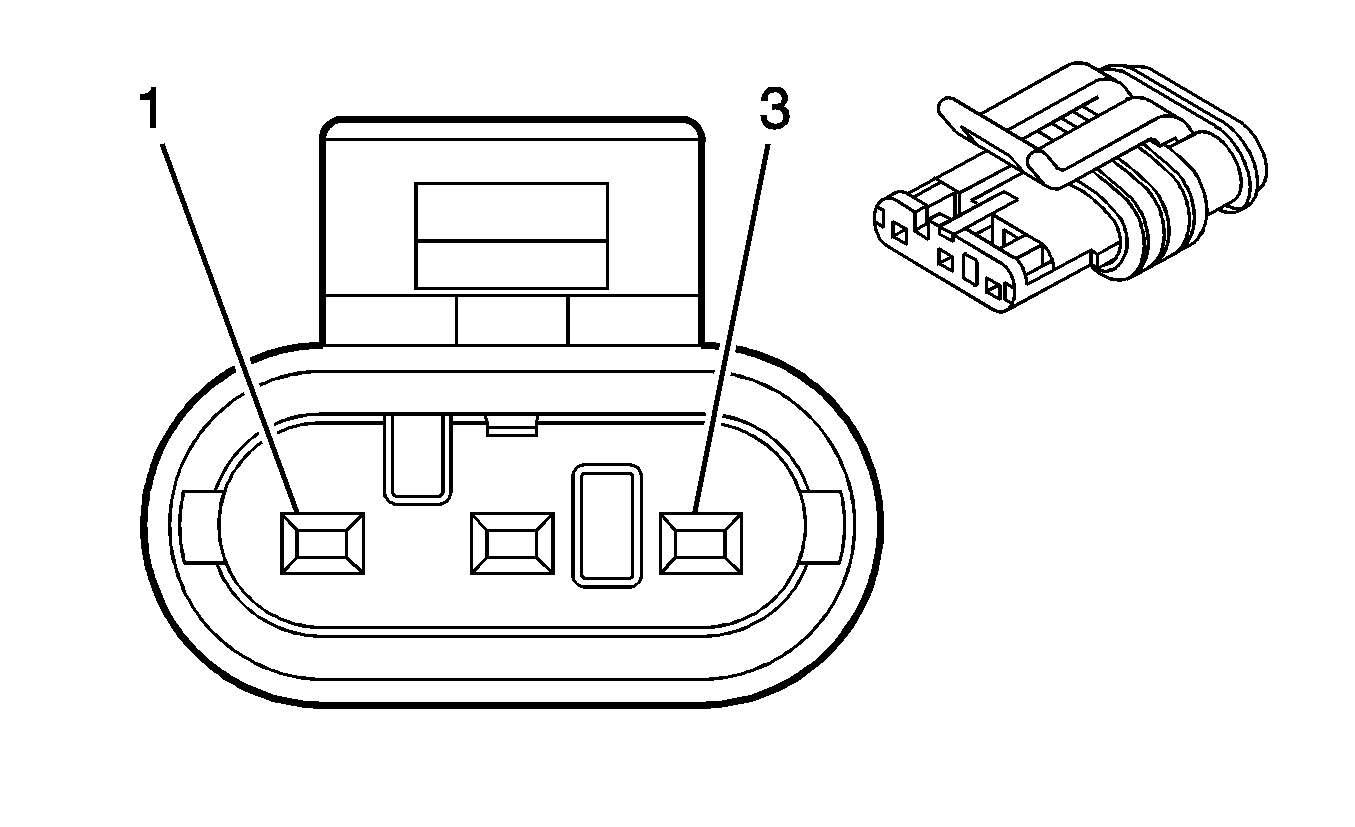

A/C Refrigerant Pressure Sensor

Connector Part Information

OEM: 13532244
Service: 88988301
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12103881/2
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12180559-1/J-35616-2A (GY)

A/C Refrigerant Pressure Sensor

Pin	Wire	Circuit	Function
1	0.5 BK/WH	2751	Signal Ground (LH2 or LC3)
1	0.5 TN	5514	Low Reference (LLT)
2	0.5 GY	2700	A/C Pressure Sensor 5-Volt Reference
3	0.5 OG/BK	380	A/C Refrigerant Pressure Sensor Signal

Accelerator Pedal Position (APP) Sensor

Connector Part Information

OEM: 15326829
Service: 88953153
Description: 6-Way F 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Accelerator Pedal Position (APP) Sensor

Pin	Wire	Circuit	Function
A	0.5 PU	1272	Low Reference
B	0.5 L-BU	1162	APP Sensor 2 Signal
C	0.5 TN	1274	5-Volt Reference
D	0.5 BN	1271	Low Reference
E	0.5 D-BU	1161	APP Sensor 1 Signal
F	0.5 WH/BK	1164	5-Volt Reference

Accessory Power Outlet - Center Console Compartment

Connector Part Information

OEM: 12176446
Service: 15305923
Description: 3-Way F Metri-Pack 280 Series, Flexlock (BK)

Terminal Part Information

Terminal/Tray: 12110844/4
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Accessory Power Outlet - Center Console Compartment

Pin	Wire	Circuit	Function
A	1 RD/WH	2040	Battery Positive Voltage
B	--	--	Not Used
C	1 BK	450	Ground

Accessory Power Outlet - Center Console (without DT4)

Connector Part Information

OEM: 12176446
Service: 15305923
Description: 3-Way F Metri-Pack 280 Series, Flexlock (BK)

Terminal Part Information

Terminal/Tray: 12110844/4
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Accessory Power Outlet - Center Console (without DT4)

Pin	Wire	Circuit	Function
A	1 RD/WH	2040	Battery Positive Voltage
B	--	--	Not Used
C	1 BK	450	Ground

Accessory Power Outlet - I/P (without DT4)

Connector Part Information

OEM: 12047699
Service: 12085504
Description: 2-Way M Miscellaneous Connectors Series (GY)

Terminal Part Information

Pin: A
Terminal/Tray: 12047698/18
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/N/A

Pin: B
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Accessory Power Outlet - I/P (without DT4)

Pin	Wire	Circuit	Function
A	1 RD	3540	Battery Positive Voltage
B	1 BK	450	Ground

Air Quality Sensor (K14)

Connector Part Information

OEM: 7283-7062-30
Service: 88988394
Description: 6-Way F 090-2/Class 3 Sealed (BK)

Terminal Part Information

Terminal/Tray: 7116-4025/11
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15313892/J-35616-18 (BK)

Air Quality Sensor (K14)

Pin	Wire	Circuit	Function
1	0.35 YE	61	Outside Ambient Temperature Sensor Low Reference
2	0.35 PU/WH	5203	Air Quality HC Sensor Signal
3	0.35 PK	1439	Run/Crank Ignition 1 Voltage
4	0.35 L-GN/WH	6845	Air Quality NOX Sensor Signal
5	--	--	Not Used
6	0.35 BK	250	Ground

Air Temperature Actuator - Auxiliary

Connector Part Information

OEM: 7283-5830-30
Service: 89046839
Description: 5-Way F (BK)

Terminal Part Information

Pins: 1-2
Terminal/Tray: 7116-4231-08/14
Core/Insulation Crimp: K/K
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)

Pins: 3-5
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Air Temperature Actuator - Auxiliary

Pin	Wire	Circuit	Function
1	0.35 YE	61	Low Reference
2	0.35 GY	705	5-Volt Reference
3	0.35 D-GN	5518	Auxiliary Air Temperature Door Position Signal
4	0.35 BN	5516	Auxiliary Air Temperature Door Control B
5	0.35 L-BU	5517	Auxiliary Air Temperature Door Control A

Air Temperature Actuator - Left

Connector Part Information

OEM: 7283-5830
Service: 89046839
Description: 5-Way F (WH)

Terminal Part Information

Pins: 1-2
Terminal/Tray: 7116-4231-08/14
Core/Insulation Crimp: K/K
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)

Pins: 3-5
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Air Temperature Actuator - Left

Pin	Wire	Circuit	Function
1	0.35 YE	61	Low Reference
2	0.35 GY	705	5-Volt Reference
3	0.35 YE/BK	1814	Driver Air Temperature Door Position Signal
4	0.35 D-BU/BK	1199	Driver Air Temperature Door Control B
5	0.35 TN/RD	1791	Driver Air Temperature Door Control A

Air Temperature Actuator - Right

Connector Part Information

OEM: 7283-5830
Service: 89046839
Description: 5-Way F (WH)

Terminal Part Information

Pins: 1-2
Terminal/Tray: 7116-4231-08/14
Core/Insulation Crimp: K/K
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)

Pins: 3-5
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Air Temperature Actuator - Right

Pin	Wire	Circuit	Function
1	0.35 GY	705	5-Volt Reference
2	0.35 YE	61	Low Reference
3	0.35 L-BU	733	Passenger Air Temperature Door Position Signal
4	0.35 WH/BK	1236	Passenger Air Temperature Door Control B
5	0.35 GY/BK	2778	Passenger Air Temperature Door Control A

Air Temperature Sensor - Inside

Connector Part Information

OEM: 7283-6160
Service: 88953305
Description: 2-Way F 090 II Series (WH)

Terminal Part Information

Terminal/Tray: 7116-4020/11
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Air Temperature Sensor - Inside

Pin	Wire	Circuit	Function
1	0.35 YE	61	Outside Ambient Temperature Sensor Low Reference
2	0.35 D-GN	734	Inside Air Temperature Sensor Signal

Ambient Air Temperature Sensor

Connector Part Information

OEM:13543521
Service: 12101856
Description: 2-Way F Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Ambient Air Temperature Sensor

Pin	Wire	Circuit	Function
A	0.35 L-GN/BK	735	Outside Ambient Air Temperature Sensor Signal
B	0.35 YE	61	Outside Ambient Temperature Sensor Low Reference

Audio Amplifier X1

Connector Part Information

OEM: 1326141-1
Service: 88988259
Description: 32-Way F 0.64 mm (0.025 in) LAC (GY)

Terminal Part Information

Pins: 1-10, 14-19, 21-25
Terminal/Tray: 638551-1/16
Core/Insulation Crimp: Pins 1-10, 17-19, 21-25 - J/J
Core/Insulation Crimp: Pins 14-16 - K/K
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)

Audio Amplifier X1

Pin	Wire	Circuit	Function
1	0.35 TN	511	Left Front Low Level Audio Signal
2	0.35 D-GN	512	Right Front Low Level Audio Signal
3	0.35 D-BU	6760	Center Channel Low Level Audio Signal (YQ4 or YQ6 or YQ7)
3	0.35 D-BU	658	Cellular Telephone Voice Signal (YQ2 with UE1)
4	0.35 WH	6765	Subwoofer Low Level Audio Signal (YQ4 or YQ6 or YQ7)
5	0.35 BN/WH	599	Left Rear Low Level Audio Signal (YQ4 or YQ6 or YQ7)
6	0.35 D-BU	546	Right Rear Low Level Audio Signal (YQ4 or YQ6 or YQ7)
7	0.35 D-BU	658	Cellular Telephone Voice Signal (YQ4 with UE1)
8	0.35 PU	5837	Amplifier Audio Prompt Signal (+) (YQ4 or YQ6 or YQ7)
9	0.35 D-GN	1488	Noise Reduction Microphone (+) (YQ4 or YQ6 or YQ7)
10	0.35 D-GN	5060	Low Speed GMLAN Serial Data
11-13	--	--	Not Used
14	0.35 PU/WH	5754	Amplifier Powered Woofer Control (1) (YQ4 or YQ6 or YQ7)
15	0.35 PU	5755	Amplifier Powered Woofer Control (1) (YQ4 or YQ6 or YQ7)
16	0.35 PK/BK	5755	Amplifier Powered Woofer Control (2) (YQ4 or YQ6 or YQ7)
17	0.35 D-GN	1947	Left Front Low Level Audio (-)
18	0.35 L-GN	1948	Right Front Low Level Audio (-)
19	0.35 OG	6761	Center Channel and Subwoofer Low Level Audio Common (-) (YQ4 or YQ6 or YQ7)
19	0.35 L-BU/BK	659	Cellular Telephone Voice Low Reference (YQ2 with UE1)
20	--	--	Not Used
21	0.35 BN	1999	Left Rear Low Level Audio (-) (YQ4 or YQ6 or YQ7)
22	0.35 TN	1946	Right Rear Low Level Audio (-) (YQ4 or YQ6 or YQ7)
23	0.35 L-BU/BK	659	Cellular Telephone Voice Low Reference (YQ4 with UE1)
24	0.35 GY	5836	Amplifier Audio Prompt Signal (-) (YQ4 or YQ6 or YQ7)
25	0.35 BARE	1489	Noise Reduction Microphone Drain Wire (YQ4 or YQ6 or YQ7)
26-32	--	--	Not Used

Audio Amplifier X2

Connector Part Information

OEM: 1534180-2
Service: 88988989
Description: 38-Way F AMP (BK)

Terminal Part Information

Pins: 1-2
Terminal/Tray: 1241406-1/17
Core/Insulation Crimp: F/G
Release Tool/Test Probe: J-38125-557/J-35616-42 (RD)

Pins: 3-5, 15-17
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pins: 6-14, 18-22
Terminal/Tray: 1241374-1/17
Core/Insulation Crimp: E/C
Release Tool/Test Probe: J-38125-557/J-35616-2A (GY)

Pins: 23-24, 27-29, 31-32, 35-37
Terminal/Tray: 928999-5/15
Core/Insulation Crimp: K/K
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Audio Amplifier X2

Pin	Wire	Circuit	Function
1	0.35 RD	1242	Battery Positive Voltage
2	0.35 BK	850	Ground
3	0.35 OG	5756	Center Console Speaker (+) (YQ4 or YQ6 or YQ7)
4	0.35 D-BU	5761	Left Rear Shelf Speaker (+) (YQ4 or YQ6 or YQ7)
4	0.35 D-BU/WH	346	Left/Rear Subwoofer Speaker (+) (YQ2)
5	0.35 L-BU	5762	Right Rear Shelf Speaker (+) (YQ4 or YQ6 or YQ7)
6	0.35 YE	1860	Front Center Speaker (+) (YQ4 or YQ6 or YQ7)
7	0.35 L-BU	1874	Left Front Speaker (+) (2) (YQ4 or YQ6 or YQ7)
7	0.35 TN	1859	Left Rear Midrange Speaker (+) (YQ2)
8	0.35 TN	1875	Right Front Speaker (+) (2) (YQ4 or YQ6 or YQ7)
8	0.35 TN	1855	Right Rear Midrange Speaker (+) (YQ2)
9	0.35 YE	5759	Right Front Seat Left Speaker (+) (YQ4 or YQ6 or YQ7)
9	0.35 YE	1860	Front Center Speaker (+) (YQ2)
10	0.35 D-GN	5757	Left Front Seat Left Speaker (+) (YQ4 or YQ6 or YQ7)
11	0.35 TN	1855	Right Rear Midrange Speaker (+) (YQ4 or YQ6 or YQ7)
11	0.35 PU	1852	Right Front Woofer Speaker (+) (YQ2)
12	0.35 OG	1955	Right Rear Midrange Speaker (-) (YQ4 or YQ6 or YQ7)
12	0.35 PU	1952	Right Front Woofer Speaker (-) (YQ2)
13	0.35 TN	1859	Left Rear Midrange Speaker (+) (YQ4 or YQ6 or YQ7)
13	0.35 TN	1856	Left Front Woofer Speaker (+) (YQ2)
14	0.35 WH	1959	Left Rear Midrange Speaker (-) (YQ4 or YQ6 or YQ7)
14	0.35 YE	1956	Left Front Woofer Speaker (-) (YQ2)
15	0.35 OG/BK	5766	Console Center Speaker (-) (YQ4 or YQ6 or YQ7)
16	0.35 D-BU/WH	5771	Left Rear Shelf Speaker (-) (YQ4 or YQ6 or YQ7)
16	0.35 L-GN/BK	1794	Rear Subwoofer Speaker (-) (YQ2)
17	0.35 L-BU/BK	5772	Right Rear Shelf Speaker (-) (YQ4 or YQ6 or YQ7)
18	0.35 L-BU	1960	Front Center Speaker (-) (YQ4 or YQ6 or YQ7)
19	0.35 TN/WH	1974	Left Front Speaker (-) (2) (YQ4 or YQ6 or YQ7)
19	0.35 WH	1959	Left Rear Midrange Speaker (-) (YQ2)
20	0.35 TN/WH	1975	Right Front Speaker (-) (2) (YQ4 or YQ6 or YQ7)
20	0.35 OG	1955	Right Rear Midrange Speaker (-) (YQ2)
21	0.35 YE/BK	5769	Right Front Seat Left Speaker (-) (YQ4 or YQ6 or YQ7)
21	0.35 L-BU	1960	Front Center Speaker (-) (YQ2)
22	0.35 D-GN/WH	5767	Left Front Seat Left Speaker (-) (YQ4 or YQ6 or YQ7)
23	0.35 GY	5758	Left Front Seat Right Speaker (+) (YQ4 or YQ6 or YQ7)
24	0.35 L-GN	5760	Right Front Seat Right Speaker (+) (YQ4 or YQ6 or YQ7)
25-26	--	--	Not Used
27	0.35 TN	1856	Left Front Woofer Speaker (+) (YQ4 or YQ6 or YQ7)
28	0.35 L-GN	1852	Right Front Woofer Speaker (+) (YQ4 or YQ6 or YQ7)
29	0.35 D-BU/WH	346	Left/Rear Subwoofer Speaker (+) (YQ4 or YQ6 or YQ7)
30	--	--	Not Used
31	0.35 GY/BK	5768	Left Front Seat Right Speaker (-) (YQ4 or YQ6 or YQ7)
32	0.35 L-GN/BK	5770	Right Front Seat Right Speaker (-) (YQ4 or YQ6 or YQ7)
33-34	--	--	Not Used
35	0.35 YE	1956	Left Front Woofer Speaker (-) (YQ4 or YQ6 or YQ7)
36	0.35 PU	1952	Right Front Woofer Speaker (-) (YQ4 or YQ6 or YQ7)
37	0.35 L-GN/BK	1794	Rear Subwoofer Speaker (-) (YQ4 or YQ6 or YQ7)
38	--	--	Not Used

Audio/Video Adapter (UY5)

Connector Part Information

OEM: 12065398
Service: 12101822
Description: 8-Way F Metri-Pack 150 Series (WH)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Audio/Video Adapter (UY5)

Pin	Wire	Circuit	Function
A	0.35 BARE	814	Drain Wire
B	0.35 WH	2058	Right Auxiliary Audio Signal (1)
C	0.35 PU	2056	Auxiliary Video High Signal
D	0.35 PK	2060	Auxiliary Detection Signal
E	0.35 YE	2059	Left Auxiliary Audio Signal (1)
F	0.35 BARE	814	Drain Wire
G-H	--	--	Not Used

Automatic Headlamp Dimming Relay (TQ5)

Connector Part Information

OEM: 7223-6055-30
Service: 88988398
Description: 5-Way F ISO Relay (BK)

Terminal Part Information

Pins: 30, 85, 87
Terminal/Tray: 7116-2876/10
Core/Insulation Crimp: C/B
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Pin: 86
Terminal/Tray: 7116-2875/10
Core/Insulation Crimp: E/B
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Automatic Headlamp Dimming Relay (TQ5)

Pin	Wire	Circuit	Function
30	0.35 RD/WH	2140	Battery Positive Voltage
85	0.8 BK/WH	151	Signal Ground
86	0.35 PU	6858	Headlamp Automatic High Beam Dim Supply Voltage
87	0.35 L-GN	11	Headlamp High Beam Supply Voltage
87A	--	--	Not Used

Automatic Level Control (ALC) Compressor (F55)

Connector Part Information

OEM: 12129565
Service: 15306069
Description: 4-Way F Metri-Pack 280 Series, Sealed (GY)

Terminal Part Information

Pins: A, C
Terminal/Tray: 12077411/2
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Pins: B-D
Terminal/Tray: 12129493/2
Core/Insulation Crimp: 4/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Automatic Level Control (ALC) Compressor (F55)

Pin	Wire	Circuit	Function
A	0.35 WH	320	Automatic Level Control Exhaust Solenoid Control
B	3 D-GN	322	Automatic Level Control Compressor Motor Supply Voltage
C	0.35 RD/BK	1342	Battery Positive Voltage
D	0.35 BK	1050	Ground

Automatic Transmission

Connector Part Information

OEM: 09430731
Service: 15131300
Description: 16-Way F 1.5 Pin Housing Connector Assembly (BK)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Automatic Transmission

Pin	Wire	Circuit	Function
1-2	--	--	Not Used
3	0.5 OG/BK	1786	Park/Neutral Signal
4	0.35 RD/WH	1440	Battery Positive Voltage
5	0.8 BK/WH	1551	Ground
6	0.35 WH	17	Stop Lamp Switch Signal
7	0.35 PU	5526	Tap Up/Tap Down Switch Signal
8	--	--	Not Used
9	0.35 YE/BK	5728	ECM/TCM Serial Data Wake Up
10	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus (+)
11	0.5 TN	2501	High Speed GMLAN Serial Data Bus (-)
12	0.75 PK	239	Ignition 1 Voltage
13	0.5 TN	2501	High Speed GMLAN Serial Data Bus (-)
14	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus (+)
15-16	--	--	Not Used

Automatic Transmission Shift Lever

Connector Part Information

OEM: 15332153
Service: 88986440
Description: 10-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Automatic Transmission Shift Lever

Pin	Wire	Circuit	Function
A	0.35 D-GN/YE	6847	Shift Select Switch Park Supply Voltage
B	0.35 D-GN	5525	Tap Up/Tap Down Trans Enable Switch
C	0.35 YE	1491	Backlight Lamps Control
D	0.35 BN	41	Run Ignition 3 Voltage
E	0.35 RD/WH	3940	Battery Positive Voltage
F	0.35 BN	1932	Ignition Lock Cylinder Control Actuator Supply Voltage
G	0.35 BK	450	Ground
H	0.35 PU	5526	Tap Up/Tap Down Switch Signal
J	--	--	Not Used
K	0.35 D-GN/WH	1135	A/T Shift Lock Control Solenoid Supply Voltage

Backup Lamp - Left

Connector Part Information

OEM: 7900-1493-004
Service: 88988383
Description: 3-Way F Slide Side Switch (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Backup Lamp - Left

Pin	Wire	Circuit	Function
1	0.35 L-GN	24	Backup Lamp Supply Voltage
2	--	--	Not Used
3	0.35 BK	850	Ground

Backup Lamp - Right

Connector Part Information

OEM: 7900-1493-004
Service: 88988383
Description: 3-Way F Slide Side Latch (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Backup Lamp - Right

Pin	Wire	Circuit	Function
1	0.35 L-GN	24	Backup Lamp Supply Voltage
2	--	--	Not Used
3	0.35 BK	850	Ground

Barometric Pressure (BARO) Sensor (LC3)

Connector Part Information

OEM: 12129946
Service: 88987997
Description: 3-Way F Metri-Pack 150 Delphi (L-GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Barometric Pressure (BARO) Sensor (LC3)

Pin	Wire	Circuit	Function
A	0.35 OG/BK	6014	BARO Sensor Low Reference
B	0.35 GY/BK	433	BARO Sensor Signal
C	0.35 WH/BK	2932	5-Volt Reference

Battery (-)

Terminal Part Information

Terminal: R61014-002
Core/Insulation Crimp: N/A
Description: Battery Terminal

Battery (-)

Pin	Wire	Circuit	Function
-	32 BK	50	Ground
-	10 BK	50	Ground

Battery (+)

Terminal Part Information

Terminal: RS754
Core/Insulation Crimp: N/A
Description: Battery Terminal

Battery (+)

Pin	Wire	Circuit	Function
+	19 RD	1	Battery Positive Voltage
+	19 RD	1	Battery Positive Voltage

Battery Current Sensor

Connector Part Information

OEM: 15326808
Service: 15306388
Description: 3-Way F GT 150 Series Sealed 4.5 (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Battery Current Sensor

Pin	Wire	Circuit	Function
A	0.35 PK	5076	Current Sensor Supply Voltage
B	0.35 BN	5077	Current Sensor Low Reference
C	0.35 WH	5075	Current Sensor Signal

Blower Motor

Connector Part Information

OEM: 6098-1104
Service: 88988637
Description: 2-Way F (NA)

Terminal Part Information

Terminal/Tray: 7116-6041/11
Core/Insulation Crimp: A/B
Release Tool/Test Probe: 12094430/J-35616-44 (YE)

Blower Motor

Pin	Wire	Circuit	Function
1	0.35 PU	374	Blower Motor Fan Control
2	0.35 L-BU	65	Blower Motor Supply Voltage

Blower Motor Control Module X1

Connector Part Information

OEM: 7283-6458-40
Service: 88988507
Description: 2-Way F (L-GY)

Terminal Part Information

Terminal/Tray: 7116-4122-02/10
Core/Insulation Crimp: A/B
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Blower Motor Control Module X1

Pin	Wire	Circuit	Function
1	0.35 L-BU	65	Blower Motor Supply Voltage
2	0.35 PU	374	Blower Motor Fan Control

Blower Motor Control Module X2

Connector Part Information

OEM: 7283-9749-30
Service: 88988512
Description: 6-Way F (BK)

Terminal Part Information

Pin: 3
Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pin: 5
Terminal/Tray: 7166-4122-02/10
Core/Insulation Crimp: A/B
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Pin: 6
Terminal/Tray: 7116-4122-02/10
Core/Insulation Crimp: D/G
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Blower Motor Control Module X2

Pin	Wire	Circuit	Function
1-2	--	--	Not Used
3	0.35 GY/BK	754	Blower Motor Speed Control
4	--	--	Not Used
5	3 BK	450	Ground
6	0.35 L-BU	188	Blower Motor Resistor Assembly Supply Voltage

Brake Booster Pump Motor (LLT)

Connector Part Information

OEM: 7282-5575-10
Service: 19115602
Description: 2-Way M 2.8 Series Sealed (D-GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Brake Booster Pump Motor (LLT)

Pin	Wire	Circuit	Function
1	0.35 OG	1470	Brake Booster Pump Motor Supply Voltage
2	0.35 BK	150	Ground

Brake Fluid Level Switch

Connector Part Information

OEM: 12162195
Service: 88987993
Description: 2-Way F Metri-Pack 150.2 Series (BK)

Terminal Part Information

Terminal/Tray: 12124075/5
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12180559-1/J-35616-2A (GY)

Brake Fluid Level Switch

Pin	Wire	Circuit	Function
A	0.35 PU	333	Brake Fluid Level Sensor Signal
B	0.35 BK/WH	151	Ground

Brake Fluid Pressure Sensor (without JL7)

Connector Part Information

OEM: 2-967642-1
Service: 15306334
Description: 3-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: 962885-5/15
Core/Insulation Crimp: 6/6
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Brake Fluid Pressure Sensor (without JL7)

Pin	Wire	Circuit	Function
1	0.35 L-GN/BK	1338	Yaw Rate Sensor Signal (2)
2	0.35 PU	5002	Brake Pressure Modulator Valve
3	0.35 GY/BK	1337	Yaw Rate Sensor Volt Reference

Brake Pedal Position Sensor

Connector Part Information

OEM: 15332132
Service: 88953364
Description: 3-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Brake Pedal Position Sensor

Pin	Wire	Circuit	Function
A	0.35 BN	5360	Brake Apply Sensor Low Reference (LHD)
A	0.35 WH	5359	Brake Apply Sensor Supply Voltage (RHD)
B	0.35 YE	5361	Brake Apply Sensor Signal
C	0.35 WH	5359	Brake Apply Sensor Supply Voltage (LHD)
C	0.35 BN	5360	Brake Apply Sensor Low Reference (RHD)

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Exhaust (LC3 or LH2)

Connector Part Information

OEM: 15326801
Service: 15306156
Description: 2-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Exhaust (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.35 BN/WH	6754	Low Reference
B	0.35 WH/BK	6396	Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 1 Control

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Exhaust (LLT)

Connector Part Information

OEM: 7283-7526-30
Service: 88988588
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Exhaust (LLT)

Pin	Wire	Circuit	Function
1	0.75 PK/BK	5293	Engine Main Relay Fused Control (4)
2	0.75 L-GN	5282	Camshaft Phaser Exhaust Solenoid (1)

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Intake (LC3 or LH2)

Connector Part Information

OEM: 15326801
Service: 15306156
Description: 2-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Intake (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.35 BN	6753	Low Reference
B	0.35 PK/BK	6395	Camshaft Position (CMP) Actuator Solenoid - Intake Bank 1 Control

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Intake (LLT)

Connector Part Information

OEM: 7283-7526-30
Service: 88988588
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Intake (LLT)

Pin	Wire	Circuit	Function
1	0.75 PK/BK	5293	Engine Main Relay Fused Control (4)
2	0.75 PU	5284	Camshaft Phaser Intake Solenoid (1)

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Exhaust (LC3 or LH2)

Connector Part Information

OEM: 15326801
Service: 15306156
Description: 2-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Exhaust (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.35 D-BU/WH	6756	Low Reference
B	0.35 GY/BK	6394	Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2 Control

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Exhaust (LLT)

Connector Part Information

OEM: 7283-7526-30
Service: 88988588
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Exhaust (LLT)

Pin	Wire	Circuit	Function
1	0.75 PK/BK	5293	Engine Main Relay Fused Control (4)
2	0.75 WH/BK	5283	Camshaft Phaser Exhaust Solenoid (2)

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Intake (LC3 or LH2)

Connector Part Information

OEM: 15326801
Service: 15306156
Description: 2-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Intake (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.35 D-BU	6755	Low Reference
B	0.35 TN/BK	6397	Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2 Control

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Intake (LLT)

Connector Part Information

OEM: 7283-7526-30
Service: 88988588
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Intake (LLT)

Pin	Wire	Circuit	Function
1	0.75 PK/BK	5293	Engine Main Relay Fused Control (4)
2	0.75 OG/BK	5272	Camshaft Phaser Intake Solenoid (2)

Camshaft Position (CMP) Sensor - Bank 1 Exhaust (LC3 or LH2)

Connector Part Information

OEM: 15326808
Service: 15306388
Description: 3-Way F 150 GT Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Sensor - Bank 1 Exhaust (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.5 D-GN	6457	5-Volt Reference
B	0.5 PU	6267	Low Reference
C	0.35 D-GN/WH	6264	Camshaft Position (CMP) Sensor - Exhaust Bank 1 Signal

Camshaft Position (CMP) Sensor - Bank 1 Exhaust (LLT)

Connector Part Information

OEM: 1928403968
Service: 88988595
Description: 3-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Camshaft Position (CMP) Sensor - Bank 1 Exhaust (LLT)

Pin	Wire	Circuit	Function
1	0.5 TN	470	Sensor Return
2	0.35 D-GN	5273	Camshaft Position Exhaust Sensor (1)
3	0.5 GY	705	Reference Voltage Feed 5-Volt Reference

Camshaft Position (CMP) Sensor - Bank 1 Intake (LC3 or LH2)

Connector Part Information

OEM: 15326808
Service: 15306388
Description: 3-Way F 150 GT Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Sensor - Bank 1 Intake (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.5 D-BU	6259	5-Volt Reference
B	0.5 BN	6266	Low Reference
C	0.35 D-BU/WH	6265	Camshaft Position (CMP) Sensor - Intake Bank 1 Signal

Camshaft Position (CMP) Sensor - Bank 1 Intake (LLT)

Connector Part Information

OEM: 1928403968
Service: 88988595
Description: 3-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Camshaft Position (CMP) Sensor - Bank 1 Intake (LLT)

Pin	Wire	Circuit	Function
1	0.5 TN	552	Low Reference
2	0.35 YE	5275	Camshaft Position (CMP) Sensor - Intake Bank 1 Signal
3	0.5 GY	705	5-Volt Reference

Camshaft Position (CMP) Sensor - Bank 2 Exhaust (LC3 or LH2)

Connector Part Information

OEM: 15326808
Service: 15306388
Description: 3-Way F 150 GT Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Sensor - Bank 2 Exhaust (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.5 PK	6261	5-Volt Reference
B	0.5 WH	6269	Low Reference
C	0.35 PK/BK	6262	Camshaft Position (CMP) Sensor Exhaust Bank 2 Signal

Camshaft Position (CMP) Sensor - Bank 2 Exhaust (LLT)

Connector Part Information

OEM: 1928403968
Service: 88988595
Description: 3-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Camshaft Position (CMP) Sensor - Bank 2 Exhaust (LLT)

Pin	Wire	Circuit	Function
1	0.5 TN	552	Low Reference
2	0.35 PU	5274	Camshaft Position Exhaust Sensor (2)
3	0.5 GY	705	5-Volt Reference

Camshaft Position (CMP) Sensor - Bank 2 Intake (LC3 or LH2)

Connector Part Information

OEM: 15326808
Service: 15306388
Description: 3-Way F 150 GT Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Sensor - Bank 2 Intake (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.5 OG	6260	5-Volt Reference
B	0.5 TN	6268	Low Reference
C	0.35 OG/BK	6263	Camshaft Position (CMP) Sensor - Intake Bank 2 Signal

Camshaft Position (CMP) Sensor - Bank 2 Intake (LLT)

Connector Part Information

OEM: 1928403968
Service: 88988595
Description: 3-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Camshaft Position (CMP) Sensor - Bank 2 Intake (LLT)

Pin	Wire	Circuit	Function
1	0.5 TN	552	Low Reference
2	0.35 YE	5276	Camshaft Position (CMP) Sensor - Intake Bank 2 Signal
3	0.5 GY	705	5-Volt Reference

Center High Mounted Stop Lamp (CHMSL)

Connector Part Information

OEM: 12059252
Service: 12102749
Description: 2-Way M Metri-Pack 150 Series (RD)

Terminal Part Information

Terminal/Tray: 12047581/2
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Center High Mounted Stop Lamp (CHMSL)

Pin	Wire	Circuit	Function
A	0.35 WH	17	Stop Lamp Switch Signal
B	0.35 BK	850	Ground

Charge Air Cooler (CAC) Coolant Pump (LC3)

Connector Part Information

OEM: 12131678
Service: 89046833
Description: 2-Way F DS 280 Sealed Delphi (BK)

Terminal Part Information

Terminal/Tray: 60012941/21
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12122378/J-35616-4A (PU)

Charge Air Cooler (CAC) Coolant Pump (LC3)

Pin	Wire	Circuit	Function
1	1 BK	1550	Ground
2	1 TN	2022	Coolant Pump Control

Cigar Lighter - Front (DT4)

Connector Part Information

OEM: 12176446
Service: 15305923
Description: 3-Way F Metri-Pack 280 Series Flexlock (BK)

Terminal Part Information

Terminal/Tray: 12110844/4
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 13515247/J-35616-4A (PU)

Cigar Lighter - Front (DT4)

Pin	Wire	Circuit	Function
A	1 RD	3540	Battery Positive Voltage
B	--	--	Not Used
C	1 BK	450	Ground

Cigar Lighter - Rear (DT4)

Connector Part Information

OEM: 12176446
Service: 15305923
Description: 3-Way F Metri-Pack 280 Series, Flexlock (BK)

Terminal Part Information

Terminal/Tray: 12110844/4
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Cigar Lighter - Rear (DT4)

Pin	Wire	Circuit	Function
A	1 RD/WH	2040	Battery Positive Voltage
B	--	--	Not Used
C	1 BK	450	Ground

Control Solenoid Valve Assembly X1

Connector Part Information

OEM: 15336500
Service: 89046635
Description: 6-Way F Metri-Pack 150.2 Series (GN)

Terminal Part Information

Terminal/Tray: Non-Serviceable
Core/Insulation Crimp: Non-Serviceable
Release Tool/Test Probe: Non-Serviceable

Control Solenoid Valve Assembly X1

Pin	Wire	Circuit	Function
A	0.35 GY	--	Ground
B	0.35 BK	--	Transmission Range Switch Signal P
C	0.35 YE	--	Transmission Range Switch Signal C
D	0.35 RD	--	Transmission Range Switch Signal B
E	0.35 GN	--	Transmission Range Switch Signal A
F	0.35 WH	--	Park/Neutral Switch Signal

Control Solenoid Valve Assembly X2

Connector Part Information

OEM: 15484115
Service: Non-Serviceable
Description: 3-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: Non-Serviceable
Core/Insulation Crimp: Non-Serviceable
Release Tool/Test Probe: Non-Serviceable

Control Solenoid Valve Assembly X2

Pin	Wire	Circuit	Function
A	0.35 GN	--	Input Speed Sensor (ISS) Signal
B	0.35 RD	--	ISS/OSS Supply Voltage
C	0.35 BK	--	Output Speed Sensor (OSS) Signal

Coolant Pump - Auxiliary (LLT)

Connector Part Information

OEM: 12131678
Service: 89046833
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: 4-964286-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Coolant Pump - Auxiliary (LLT)

Pin	Wire	Circuit	Function
1	0.5 BK/WH	1551	Signal Ground
2	0.5 PK	5126	After Boil Heater Pump Supply Voltage

Courtesy Lamp - Left Front Door

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Courtesy Lamp - Left Front Door

Pin	Wire	Circuit	Function
A	0.35 PU/WH	5754	Driver Door Exterior Courtesy Lamp Supply Voltage
B	0.35 L-BU/WH	6576	Driver Door Courtesy Lamp Control Low

Courtesy Lamp - Left Rear Door

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Courtesy Lamp - Left Rear Door

Pin	Wire	Circuit	Function
A	0.35 D-BU/WH	149	Courtesy Lamp Supply Voltage
B	0.35 GY	157	Interior Lamp Control

Courtesy Lamp - Rear Compartment

Connector Part Information

OEM: 12047781
Service: 12101864
Description: 3-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Courtesy Lamp - Rear Compartment

Pin	Wire	Circuit	Function
A	--	--	Not Used
B	0.35 OG/BK	737	Trunk Lamp Control
C	0.35 D-BU/WH	149	Courtesy Lamp Supply Voltage

Courtesy Lamp - Right Front Door

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Courtesy Lamp - Right Front Door

Pin	Wire	Circuit	Function
A	0.35 PU/WH	5754	Driver Door Exterior Courtesy Lamp Supply Voltage
B	0.35 L-BU/WH	6576	Driver Door Courtesy Lamp Control Low

Courtesy Lamp - Right Rear Door

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Courtesy Lamp - Right Rear Door

Pin	Wire	Circuit	Function
A	0.35 D-BU/WH	149	Courtesy Lamp Supply Voltage
B	0.35 GY	157	Interior Lamp Control

Crankshaft Position (CKP) Sensor (LC3 or LH2)

Connector Part Information

OEM: 15326808
Service: 15306388
Description: 3-Way F 150 GT Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Crankshaft Position (CKP) Sensor (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.5 PU/WH	6270	5-Volt Reference
B	0.5 GY/BK	6272	Low Reference
C	0.5 WH/BK	6271	CKP Sensor Signal

Crankshaft Position (CKP) Sensor (LLT)

Connector Part Information

OEM: 31403-3710
Service: 88988337
Description: 3-Way F MX64 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Crankshaft Position (CKP) Sensor (LLT)

Pin	Wire	Circuit	Function
1	0.75 TN	452	Low Reference
2	0.75 YE	573	CKP Sensor 1 Signal
3	0.75 GY	605	5-Volt Reference

Data Link Connector (DLC)

Connector Part Information

OEM: 12110250
Service: 12110250
Description: 16-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12129484/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Data Link Connector (DLC)

Pin	Wire	Circuit	Function
1	0.35 D-GN	5060	Low Speed GMLAN Serial Data
2-3	--	--	Not Used
4	0.35 BK	350	Ground
5	0.35 BK/WH	351	Ground
6	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+) (1)
7-13	--	--	Not Used
14	0.35 TN	2501	High Speed GMLAN Serial Data (-) (1)
15	--	--	Not Used
16	0.35 RD/WH	1140	Battery Positive Voltage

Differential Cooler Pump (KNR)

Connector Part Information

OEM: 7282-5548-30
Service: 88953303
Description: 2-Way M YESC Weather Pack Sealed (BK)

Terminal Part Information

Terminal/Tray: 7114-4103-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-3 (GY)

Differential Cooler Pump (KNR)

Pin	Wire	Circuit	Function
1	0.35 PK	5126	After Boil Heater Pump Supply Voltage
2	0.35 BK	1050	Ground

Digital Radio Receiver (U2K)

Connector Part Information

OEM: 15394150
Service: 15394150
Description: 16-Way F Micro 64 Series (BK)

Terminal Part Information

Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Digital Radio Receiver (U2K)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 L-GN/WH	5337	Left Audio Signal
3	0.35 L-BU/WH	5338	Right Audio Signal
4	--	--	Not Used
5	0.35 D-GN	5060	Low Speed GMLAN Serial Data
6-8	--	--	Not Used
9	0.35 BK	1050	Ground
10	0.35 GY/BK	5339	Audio Common
11	0.35 BARE	5345	Drain Wire
12-15	--	--	Not Used
16	1 RD/WH	2540	Battery Positive voltage

Distance Sensing Cruise Control (DSCC) Module (K59)

Connector Part Information

OEM: 2-967616-1
Service: 15394150
Description: 6-Way F Micro Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 962885-5/15
Core/Insulation Crimp: 6/6
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Distance Sensing Cruise Control (DSCC) Module (K59)

Pin	Wire	Circuit	Function
1	0.35 RD/WH	340	Battery Positive Voltage
2	--	--	Not Used
3	0.35 YE	5727	High Speed GMLAN Serial Data Wake Up (TT6 or TT7 or TT8)
4	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+) (1)
5	0.35 TN	2501	High Speed GMLAN Serial Data (-) (1)
6	0.35 BK	250	Ground

Door Control Module - Driver X1

Connector Part Information

OEM: 174046-2
Service: 88987953
Description: 16-Way F 40 Series Multi-Lock (BK)

Terminal Part Information

Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Door Control Module - Driver X1

Pin	Wire	Circuit	Function
1	0.35 BN	5131	Driver Door Lock Actuator Control (UA2)
2	0.35 RD/WH	640	Battery Positive Voltage
3	0.35 RD/WH	640	Battery Positive Voltage
4	0.35 TN	694	Driver Door Lock Actuator Unlock Control (UA2)
5	0.35 L-GN/BK	5703	Door Unlatch Motor Control (1)
6	0.35 L-GN/WH	5702	Door Latch Motor Control
7	0.35 D-GN	5060	Low Speed GMLAN Serial Data
8	0.35 PU/WH	5965	Driver Door Lock Status Indicator Supply Voltage
9	0.35 BK/WH	351	Ground
10-11	--	--	Not Used
12	0.35 PK/BK	5968	Driver Door Lock Status Indicator Signal Ground
13	0.35 BN	5881	Left Front Door Handle Switch Signal (3)
14	0.35 D-GN	5060	Low Speed GMLAN Serial Data
15	0.35 BN	165	Power Window Motor Left Front Down Control
16	0.35 D-BU	164	Power Window Motor Left Front Up Control

Door Control Module - Driver X2

Connector Part Information

OEM: 174047-2
Service: 12162820
Description: 20-Way M Hinged Lock (BK)

Terminal Part Information

Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Door Control Module - Driver X2

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 GY/BK	745	Left Front Door Ajar Switch Signal
3	--	--	Not Used
4	0.35 L-GN	262	Driver Door Key Switch Signal
5-6	--	--	Not Used
7	0.35 YE	1491	Backlight Lamp Control
8	0.35 L-BU/WH	6576	Driver Door Courtesy Lamp Control Low
9	0.35 PU/WH	5754	Amplifier Powered Woofer Control (1)
10	0.35 PK	1691	Automatic Day/Night Mirror Low Reference
11	--	--	Not Used
12	0.35 TN	126	Left Front Door Open Switch Signal
13	--	--	Not Used
14	0.35 YE/BK	6859	Power Window Status
15-16	--	--	Not Used
17	0.35 D-BU	5882	Left Front Door Handle Switch Signal (2)
18-19	--	--	Not Used
20	0.35 GY	1690	Automatic Day/Night Mirror Signal

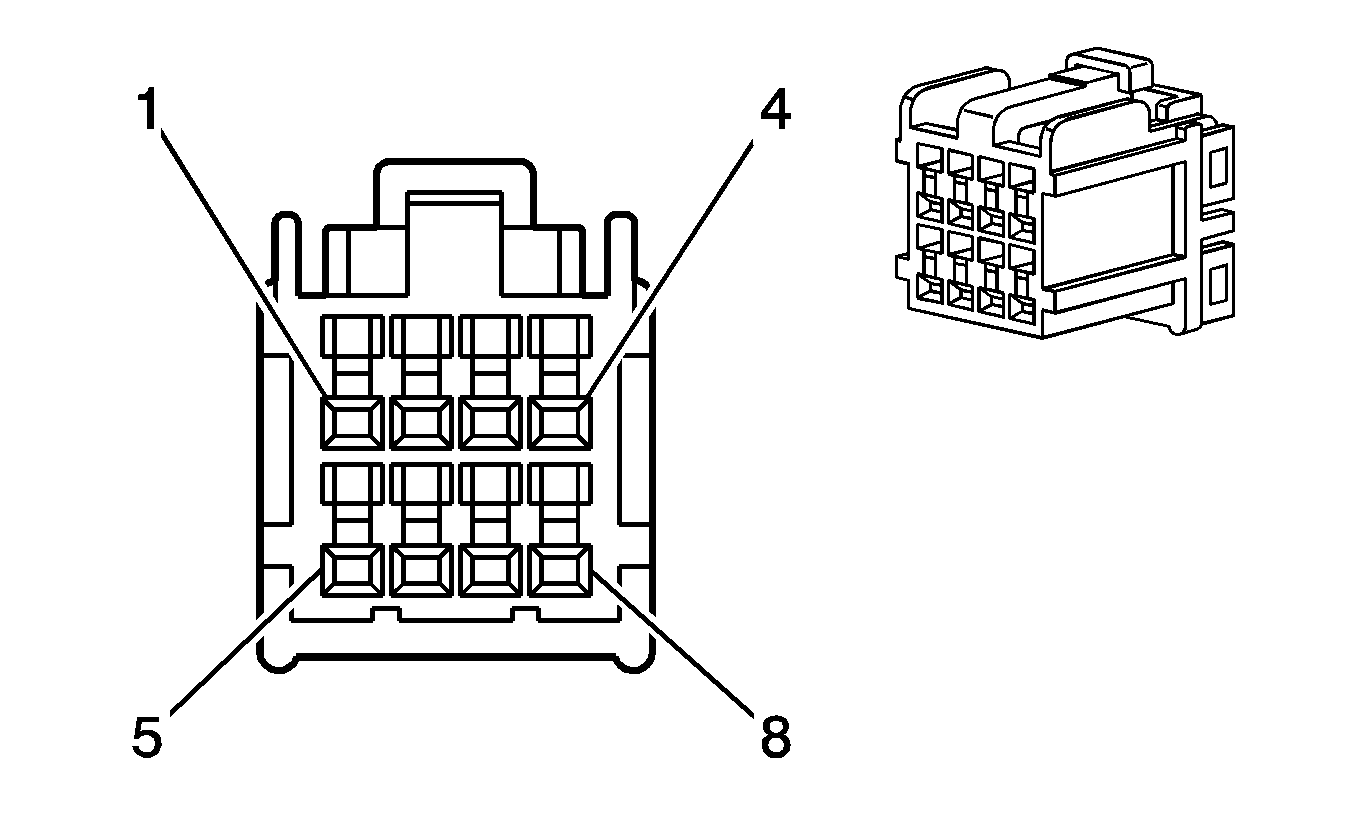

Door Control Module - Driver X3

Connector Part Information

OEM: 174044-2
Service: Service by Assembly - See Part Catalog
Description: 8-Way F Amp 040 Series Multi-Lock (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Door Control Module - Driver X3

Pin	Wire	Circuit	Function
1	0.35 BN/BK	1691	Automatic Day/Night Mirror Low Reference
2	0.35 D-GN/BK	784	Left Mirror Vertical Position Sensor Signal
3	0.35 L-BU/BK	786	Left Mirror Horizontal Position Sensor Signal
4	0.35 GY/BK	5853	LED Signal (UFT)
5	0.35 BN	1690	Automatic Day/Night Mirror Signal
6	0.35 PU/BK	673	Left Outside Rearview Mirror Position Sensor Low Reference
7	0.35 RD/BK	672	Left Outside Rearview Mirror Position Sensor 5-Volt Reference
8	--	--	Not Used

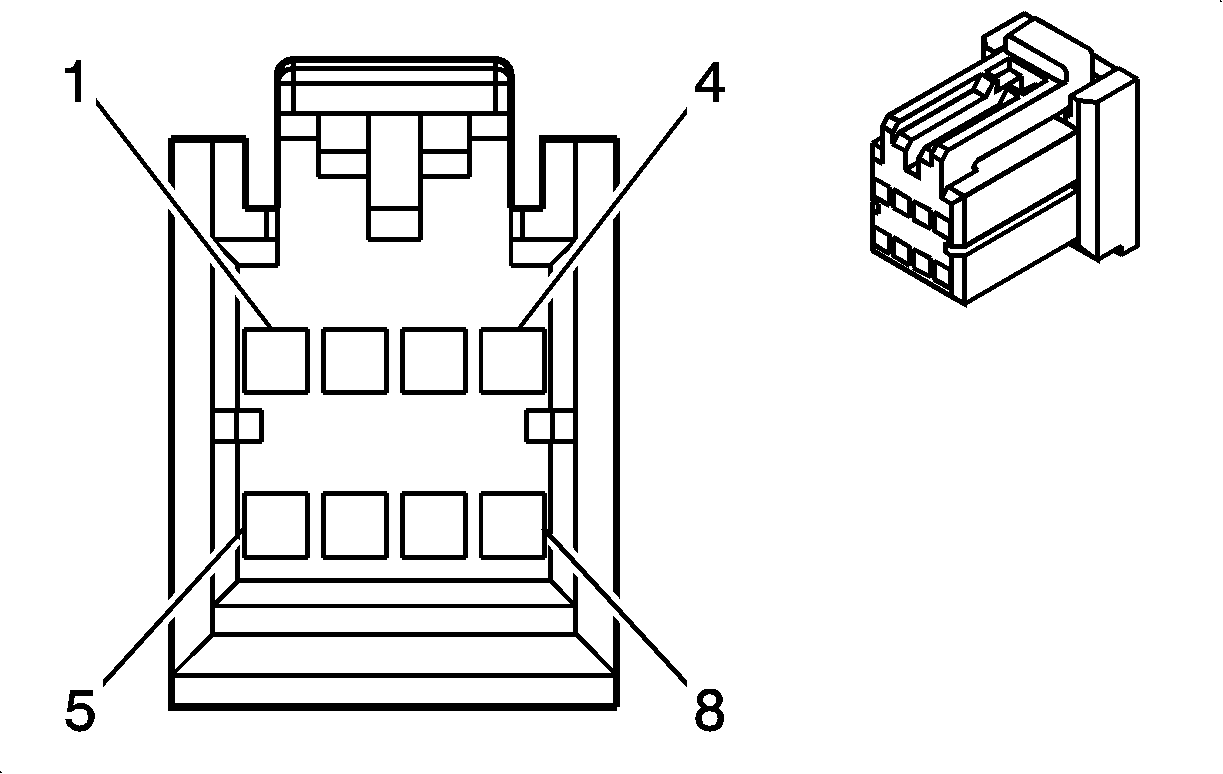

Door Control Module - Driver X4

Connector Part Information

OEM: 175964-2
Service: 15306185
Description: 8-Way F AMP Multi-Lock 040 Series Mark II (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Door Control Module - Driver X4

Pin	Wire	Circuit	Function
1	0.35 L-GN	89	Left Mirror Motor Down Control
2	0.35 YE	88	Left Mirror Motor Up Control
3	0.35 YE	190	Left Folding Mirror Motor Extend Control (DL7)
4	0.35 L-BU	191	Left Folding Mirror Motor Retract Control (DL7)
5	0.35 L-BU	82	Left Mirror Motor Left Control
6	0.35 BK	606	Left Mirror Heating Element Supply Voltage
7	0.35 GY	5855	LED Signal (UFT)
8	0.35 BK	627	Left Mirror Heating Element Low Reference

Door Control Module - Left Rear X1

Connector Part Information

OEM: 174046-2
Service: 88987953
Description: 16-Way F 40 Series Multi-Lock (BK)

Terminal Part Information

Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Door Control Module - Left Rear X1

Pin	Wire	Circuit	Function
1	0.35 GY	5133	Left Rear Door Deadbolt Lock Signal (UA2)
2	0.35 TN	294	Door Lock Actuator Unlock Control
3	0.35 GY	295	Door Lock Actuator Lock Control
4	0.35 RD/WH	840	Battery Positive Voltage
5	--	--	Not Used
6	0.8 BK/WH	351	Ground
7	--	--	Not Used
8	0.35 D-BU	668	Power Window Motor Left Rear Up Control
9	0.35 YE	1491	Backlight Lamp Control
10-14	--	--	Not Used
15	0.35 D-GN	5060	Low Speed GMLAN Serial Data
16	0.35 BN	669	Power Window Motor Left Rear Down Control

Door Control Module - Left Rear X2

Connector Part Information

OEM: 174047-2
Service: 12162820
Description: 20-Way M Hinged Lock (BK)

Terminal Part Information

Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Door Control Module - Left Rear X2

Pin	Wire	Circuit	Function
1-2	--	--	Not Used
3	0.35 D-BU/WH	1179	Left Rear Door Open Switch Signal
4	0.35 L-BU/BK	747	Left Rear Door Ajar Switch Signal
5	0.35 D-GN	1184	Power Window Switch Right Front Up Signal
6	0.35 YE	1187	Power Window Switch Left Rear Down Signal
7	--	--	Not Used
8	0.35 YE/BK	6859	Power Window Status
9	0.35 D-GN	5048	Power Window Switch Left Rear Express Signal
10-20	--	--	Not Used

Door Control Module - Passenger X1

Connector Part Information

OEM: 174046-2
Service: 88987953
Description: 16-Way F 40 Series Multi-Lock (BK)

Terminal Part Information

Pins: 1-2, 5-6, 8-9, 12-13, 15-16
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pins: 4, 7
Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Door Control Module - Passenger X1

Pin	Wire	Circuit	Function
1	0.35 D-BU	5132	Passenger Door Deadbolt Lock Signal (UA2)
2	0.35 RD/WH	740	Battery Positive Voltage
3	--	--	Not Used
4	0.35 TN	294	Door Lock Actuator Unlock Control (UA2)
5	0.35 L-GN/BK	5703	Door Unlatch Motor Control (1)
6	0.35 L-GN/WH	5702	Door Latch Motor Control
7	0.35 D-GN	5060	Low Speed GMLAN Serial Data
8	0.35 PU/WH	5967	Passenger Door Lock Status Indicator Supply Voltage
9	0.35 BK/WH	451	Ground
10-11	--	--	Not Used
12	0.35 PU	5971	Passenger Door Lock Status Indicator Signal Ground
13	0.35 GY	5878	Right Front Door Handle Switch Signal (3)
14	--	--	Not Used
15	0.35 BN	667	Power Window Motor Right Front Down Control
16	0.35 D-BU	666	Power Window Motor Right Front Up Control

Door Control Module - Passenger X2

Connector Part Information

OEM: 174047-2
Service: 12162820
Description: 20-Way M Hinged Lock (BK)

Terminal Part Information

Pins: 2, 5, 11-13, 17
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pins: 6-9, 14-15
Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Door Control Module - Passenger X2

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 TN/WH	746	Right Front Door Ajar Switch Signal
3-4	--	--	Not Used
5	0.35 PU	2765	Power Window Switch Right Front Express Signal
6	0.35 WH	1185	Power Window Switch Left Rear Up Signal
7	0.35 YE	1491	Backlight Lamp Control
8	0.35 L-BU/WH	6576	Driver Door Courtesy Lamp Control Low
9	0.35 PU/WH	5754	Amplifier Powered Woofer Control (1)
10	--	--	Not Used
11	0.35 L-BU	244	Passenger Door Lock Switch Lock Control
12	0.35 L-GN	1177	Right Front Door Open Switch Signal
13	0.35 D-BU	245	Passenger Door Lock Switch Unlock Control
14	0.35 YE/BK	6859	Power Window Status (RHD)
14	0.35 YE/BK	6879	Power Window Status (LHD)
15	0.35 OG	1189	Power Window Switch Right Front Low Reference
16	--	--	Not Used
17	0.35 PK	5879	Right Front Door Handle Switch Signal (2)
18-20	--	--	Not Used

Door Control Module - Passenger X3

Connector Part Information

OEM: 174044-2
Service: Service by Assembly - See Part Catalog
Description: 8-Way F Amp 040 Series Multi-Lock (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Door Control Module - Passenger X3

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 D-GN/BK	787	Right Mirror Vertical Position Sensor Signal
3	0.35 L-BU/BK	785	Right Mirror Horizontal Position Sensor Signal
4	0.35 GY/BK	5861	LED Signal (UFT)
5	--	--	Not Used
6	0.35 RD/BK	675	Right Outside Rearview Mirror Position Sensor Low Reference
7	0.35 PU/BK	674	Right Outside Rearview Mirror Position Sensor 5-Volt Reference
8	--	--	Not Used

Door Control Module - Passenger X4

Connector Part Information

OEM: 1759642
Service: 15306185
Description: 8-Way F AMP Multi-Lock 040 Series Mark II (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Door Control Module - Passenger X4

Pin	Wire	Circuit	Function
1	0.35 L-GN	889	Right Mirror Motor Down Control
2	0.35 YE	1498	Right Mirror Motor Up Control
3	0.35 YE	5004	Right Folding Mirror Motor Extend Control (DL7)
4	0.35 L-BU	5023	Right Folding Mirror Motor Retract Control (DL7)
5	0.35 L-BU	90	Right Mirror Motor Left Control
6	0.35 BK	607	Right Mirror Heating Element Supply Voltage
7	0.35 GY	5862	LED Signal (UFT)
8	0.35 BK	628	Right Mirror Heating Element Low Reference

Door Control Module - Right Rear X1

Connector Part Information

OEM: 174046-2
Service: 88987953
Description: 16-Way F 40 Series Multi-Lock (BK)

Terminal Part Information

Pins: 1, 6, 8, 16
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pins: 2-4, 9, 15
Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Door Control Module - Right Rear X1

Pin	Wire	Circuit	Function
1	0.35 D-GN	5134	Right Rear Door Deadbolt Lock Signal (UA2)
2	0.35 TN	294	Door Lock Actuator Unlock Control
3	0.35 GY	295	Door Lock Actuator Lock Control
4	0.35 RD/WH	840	Battery Positive Voltage
5	--	--	Not Used
6	0.35 BK/WH	451	Ground
7	--	--	Not Used
8	0.35 D-BU	670	Power Window Motor Right Rear Up Control
9	0.35 YE	1491	Backlight Lamp Control
10-14	--	--	Not Used
15	0.35 D-GN	5060	Low Speed GMLAN Serial Data
16	0.35 BN	671	Power Window Motor Right Rear Down Control

Door Control Module - Right Rear X2

Connector Part Information

OEM: 174047-2
Service: 12162820
Description: 20-Way M Hinged Lock (BK)

Terminal Part Information

Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Door Control Module - Right Rear X2

Pin	Wire	Circuit	Function
1-2	--	--	Not Used
3	0.35 YE/BK	1181	Right Rear Door Open Switch Signal
4	0.35 L-GN/BK	748	Right Rear Door Ajar Switch Signal
5	0.35 WH	1185	Power Window Switch Left Rear Up Signal
6	0.35 OG	1189	Power Window Switch Right Front Low Reference
7	--	--	Not Used
8	0.35 YE/BK	6859	Power Window Status
9	0.35 L-GN	5049	Power Window Switch Right Rear Express Signal
10-20	--	--	Not Used

Door Handle - Driver

Connector Part Information

OEM: 15326833
Service: 15326833
Description: 6-Way M GT 150 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Door Handle - Driver

Pin	Wire	Circuit	Function
A	0.35 PK	5709	Keyless Entry Antenna - Signal
B	0.35 PK/BK	5713	Keyless Entry Antenna - Low Reference
C	0.35 BK/WH	351	Ground
D	0.35 BN	5881	Unlatch Enable Switch
E	0.35 D-BU	5882	Lift Switch
F	0.35 BK/WH	351	Ground

Door Handle - Passenger

Connector Part Information

OEM: 15326833
Service: 15326833
Description: 6-Way M GT 150 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Door Handle - Passenger

Pin	Wire	Circuit	Function
A	0.35 YE	5710	Keyless Entry Antenna - Signal
B	0.35 YE/BK	5714	Keyless Entry Antenna - Low Reference
C	0.35 BK/WH	451	Ground
D	0.35 GY	5878	Unlatch Enable Switch
E	0.35 PK	5879	Lift Switch
F	0.35 BK/WH	451	Ground

Door Latch - Driver

Connector Part Information

OEM: 6-1355688-1
Service: 88952463
Description: 10-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: 4-969005-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Door Latch - Driver

Pin	Wire	Circuit	Function
1	0.35 GY/BK	745	Left Front Door Ajar Switch Signal (RHD)
1	0.35 BN	5131	Driver Door Lock Actuator Deadbolt Control (LHD with UA2)
2	0.35 TN	126	Left Front Door Open Switch Signal (RHD)
2	0.35 TN	694	Driver Door Lock Actuator Unlock Control (LHD with UA2)
3	0.35 BK/WH	351	Ground (RHD)
3	0.35 L-GN/BK	5703	Door Unlatch Motor Control (1) (LHD)
4	0.35 L-GN	262	Driver Door Key Switch Signal (RHD)
4	0.35 L-GN/WH	5702	Door Latch Motor Control (LHD)
5	--	--	Not Used
6	0.35 BN	5131	Driver Door Lock Actuator Deadbolt Control (RHD with UA2)
6	0.35 GY/BK	745	Left Front Door Ajar Switch Signal (LHD)
7	0.35 TN	694	Driver Door Lock Actuator Unlock Control (RHD with UA2)
7	0.35 TN	126	Left Front Door Open Switch Signal (LHD)
8	0.35 L-GN/BK	5703	Door Unlatch Motor Control (1) (RHD)
8	0.35 BK/WH	351	Ground (LHD)
9	0.35 L-GN/WH	5702	Door Latch Motor Control (RHD)
9	0.35 L-GN	262	Driver Door Key Switch Signal (LHD)
10	--	--	Not Used

Door Latch - Left Rear

Connector Part Information

OEM: 6-1355683-1
Service: 88952801
Description: 6-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: 4-969005-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Door Latch - Left Rear

Pin	Wire	Circuit	Function
1	0.35 GY	5133	Left Rear Door Deadbolt Lock Signal
2	0.35 TN	294	Door Lock Actuator Unlock Control
3	0.35 GY	295	Door Lock Actuator Lock Control
4	0.35 L-BU/BK	747	Left Rear Door Ajar Switch Signal
5	0.35 D-BU/WH	1179	Left Rear Door Open Switch Signal
6	0.35 BK/WH	351	Ground

Door Latch - Passenger

Connector Part Information

OEM: 6-1355688-1
Service: 88952463
Description: 10-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: 4-969005-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Door Latch - Passenger

Pin	Wire	Circuit	Function
1	0.35 TN/WH	746	Right Front Door Ajar Switch Signal (LHD)
1	0.35 D-BU	5132	Front Passenger Door Lock Actuator Deadbolt Control (RHD with UA2)
2	0.35 L-GN	1177	Right Front Door Open Switch Signal (LHD)
2	0.35 TN	294	Door Lock Actuator Unlock Control (RHD with UA2)
3	0.35 BK/WH	451	Ground (LHD)
3	0.35 L-GN/BK	5703	Door Unlatch Motor Control (1) (RHD)
4	0.35 L-GN/WH	5702	Door Latch Motor Control (RHD)
5	--	--	Not Used
6	0.35 D-BU	5132	Passenger Door Deadbolt Lock Signal (LHD with UA2)
6	0.35 TN/WH	746	Right Front Door Ajar Switch Signal (RHD)
7	0.35 TN	294	Door Lock Actuator Unlock Control (LHD with UA2)
7	0.35 L-GN	1177	Right Front Door Open Switch Signal (RHD)
8	0.35 L-GN/BK	5703	Door Unlatch Motor Control (1) (LHD)
8	0.35 BK/WH	451	Ground (RHD)
9	0.35 L-GN/WH	5702	Door Latch Motor Control (LHD)
10	--	--	Not Used

Door Latch - Right Rear

Connector Part Information

OEM: 6-1355683-1
Service: 88952801
Description: 6-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: 4-969005-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Door Latch - Right Rear

Pin	Wire	Circuit	Function
1	0.35 L-GN/BK	748	Right Rear Door Ajar Switch Signal
2	0.35 YE/BK	1181	Right Rear Door Open Switch Signal
3	0.35 BK/WH	451	Ground
4	0.35 D-GN	5134	Right Rear Door Deadbolt Lock Signal
5	0.35 TN	294	Door Lock Actuator Unlock Control
6	0.35 GY	295	Door Lock Actuator Lock Control

Door Lock Indicator - Driver

Connector Part Information

OEM: 12047663
Service: 12085481
Description: 2-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047581/2
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Door Lock Indicator - Driver

Pin	Wire	Circuit	Function
A	0.35 PU/WH	5965	Driver Door Lock Status Indicator Supply Voltage
B	0.35 PK/BK	5968	Driver Door Lock Status Indicator Signal Ground

Door Lock Indicator - Passenger

Connector Part Information

OEM: 12047663
Service: 12085481
Description: 2-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Door Lock Indicator - Passenger

Pin	Wire	Circuit	Function
A	0.35 PU/WH	5967	Passenger Door Lock Status Indicator Supply Voltage
B	0.35 PU	5971	Passenger Door Lock Status Indicator Signal Ground

Door Lock Switch - Driver

Connector Part Information

OEM: 12124997
Service: 12167130
Description: 5-Way F (BK)

Terminal Part Information

Terminal/Tray: 12103359/18
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Door Lock Switch - Driver

Pin	Wire	Circuit	Function
A	0.35 YE	1491	Backlight Lamp Control
B	--	--	Not Used
C	0.35 BK/WH	351	Ground
D	0.35 OG/BK	780	Driver Door Lock Switch Lock Signal
E	0.35 OG/BK	781	Driver Door Lock Switch Unlock Signal

Door Lock Switch - Passenger

Connector Part Information

OEM: 12124997
Service: 12167130
Description: 5-Way F (BK)

Terminal Part Information

Terminal/Tray: 12103359/18
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Door Lock Switch - Passenger

Pin	Wire	Circuit	Function
A	0.35 YE	1491	Backlight Lamp Control
B	--	--	Not Used
C	0.35 BK/WH	451	Ground
D	0.35 L-BU	244	Passenger Door Lock Switch Lock Control
E	0.35 D-BU	245	Passenger Door Lock Switch Unlock Control

Electronic Brake Control Module (EBCM) (JL7)

Connector Part Information

OEM: 31380-1100
Service: 19178086
Description: 38-Way F 250/280/6.3 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Electronic Brake Control Module (EBCM) (JL7)

Pin	Wire	Circuit	Function
1	1 BK	1150	Ground
2	--	--	Not Used
3	0.35 BN	882	Wheel Speed Sensor Signal Right Rear
4	0.35 TN	884	Wheel Speed Sensor Signal Left Rear
5-11	--	--	Not Used
12	0.35 YE	5727	High Speed GMLAN Serial Data Wake Up
13	0.35 RD/BK	342	Battery Positive Voltage
14	0.8 WH	345	Variable Effort Steering Actuator Low Effort Control
15	0.35 WH	883	Wheel Speed Sensor Low Reference Right Rear
16	0.35 OG	885	Wheel Speed Sensor Low Reference Left Rear
17	0.35 D-GN	872	Wheel Speed Sensor Signal Right Front
18-20	--	--	Not Used
21	0.35 RD/WH	6432	CAN Bus Low Serial Data
22	--	--	Not Used
23	0.35 TN	2501	High Speed GMLAN Serial Data (-) (1)
24	0.35 TN	2501	High Speed GMLAN Serial Data (-) (1)
25	1 BK	1150	Ground
26	0.8 GY	1787	Variable Effort Steering Actuator High Effort Control
27	0.35 L-BU	830	Wheel Speed Sensor Signal Left Front
28	0.35 YE	873	Left Front Wheel Speed Sensor Low Reference
29	--	--	Not Used
30	0.35 TN	833	Wheel Speed Sensor Low Reference Right Front
31-32	--	--	Not Used
33	0.35 TN/WH	6433	CAN Bus High Serial Data
34-35	--	--	Not Used
36	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+) (1)
37	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+) (1)
38	1 RD/BK	9342	Battery Positive Voltage

Electronic Brake Control Module (EBCM) (without JL7)

Connector Part Information

OEM: 15412357
Service: 88988388
Description: 36-Way F GT 150, 280 Series Delphi (BK)

Terminal Part Information

Pins: A-B
Terminal/Tray: 15305232/23
Core/Insulation Crimp: B/3
Release Tool/Test Probe: J-38125-11A/J-35616-42 (RD)

Pins: C, G-H
Terminal/Tray: 12191819/8
Core/Insulation Crimp: 2/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pin: E
Terminal/Tray: 15392777/23
Core/Insulation Crimp: B/5
Release Tool/Test Probe: J-38125-553/J-35616-4A (PU)

Pin: F
Terminal/Tray: 15304719/19
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: A1-A8, A11, B1, B9-B14, C6-C10
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Electronic Brake Control Module (EBCM) (without JL7)

Pin	Wire	Circuit	Function
A	0.35 RD/BK	342	Battery Positive Voltage
B	0.35 RD/BK	342	Battery Positive Voltage
C	0.35 BN	2039	Run Ignition 3 Voltage
D	--	--	Not Used
E	5 BK	1150	Ground
F	1 BK	1150	Ground
G	0.8 GY	1787	Variable Effort Steering Actuator High Effort Control
H	0.8 WH	345	Variable Effort Steering Actuator Low Effort Control
A1	0.35 YE	873	Left Front Wheel Speed Sensor Low Reference
A2	0.35 L-BU	830	Wheel Speed Sensor Signal Left Front
A3	0.35 D-GN	872	Wheel Speed Sensor Signal Right Front
A4	0.35 TN	833	Wheel Speed Sensor Low Reference Right Front
A5	0.35 TN	884	Wheel Speed Sensor Signal Left Rear
A6	0.35 OG	885	Wheel Speed Sensor Low Reference Left Rear
A7	0.35 BN	882	Wheel Speed Sensor Signal Right Rear
A8	0.35 WH	883	Wheel Speed Sensor Low Reference Right Rear
A9-A10	--	--	Not Used
A11	0.35 YE	5727	High Speed GMLAN Serial Data Wake Up
B1	0.35 PU/WH	1699	Combined Vehicle Inertial Sensor Lat/Long Rate Signal
B2-B8	--	--	Not Used
B9	0.35 TN	2501	High Speed GMLAN Serial Data (-) (1)
B10	0.35 TN	2501	High Speed GMLAN Serial Data (-) (1)
B11	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+) (1)
B12	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+) (1)
B13	0.35 L-GN/BK	1338	Yaw Rate Sensor Signal (2)
B14	0.35 GY/BK	1337	Yaw Rate Sensor Volt Reference
C1-C5	--	--	Not Used
C6	0.35 L-BU	1764	Steering Wheel Position Signal B
C7	0.35 L-GN	1763	Steering Wheel Position Signal A
C8	0.35 D-BU	716	Yaw Rate Sensor Signal (1)
C9	0.35 L-BU	715	Lateral Accelerometer Signal
C10	0.35 PU	5002	Brake Pressure Modulator Valve

Electronic Suspension Control (ESC) Module (F55)

Connector Part Information

OEM: ASGPB-47R1A-K
Service: 89047377
Description: 47-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: Terminal Repair Kit
Release Tool/Test Probe: Terminal Repair Kit

Electronic Suspension Control (ESC) Module (F55)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 PU/WH	1205	Left Front Strut Position Sensor Voltage Reference
3	0.35 PU/WH	1211	Right Front Strut Position Sensor Voltage Reference
4	0.35 OG/BK	1208	Left Rear Strut Position Sensor Voltage Reference
5	0.35 OG/BK	1214	Right Rear Strut Position Sensor Voltage Reference
6-7	--	--	Not Used
8	0.35 WH	320	Automatic Level Control Exhaust Solenoid Control
9	0.35 YE	321	Electronic Level Control Relay Output - Coil
10	--	--	Not Used
11	0.35 L-GN/BK	1215	Right Rear Strut Position Sensor Low Reference
12-13	--	--	Not Used
14	0.35 TN/WH	6433	CAN Bus High Serial Data (JL7)
15	0.35 L-GN/BK	6432	CAN Bus Low Serial Data (JL7)
16	--	--	Not Used
17	0.35 TN/WH	1207	Left Front Strut Position Sensor Signal
18	0.35 TN/WH	1213	Right Front Strut Position Sensor Signal
19	0.35 L-GN/WH	1216	Right Rear Strut Position Sensor Signal
20-23	--	--	Not Used
24	0.35 TN	2501	High Speed GMLAN Serial Data (-)
25	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+)
26	0.35 L-BU/BK	1212	Right Front Strut Position Sensor Low Reference
27	0.35 L-GN/BK	1209	Left Rear Strut Position Sensor Low Reference
28	0.8 OG/BK	1013	Left Rear Strut Motor Decrease Damping Control
29	0.8 BN	1007	Ride Control Strut Motor - Feed - Right Front - Decrease Damping
30	0.8 L-GN	1005	Left Front Strut Motor Decrease Damping Control
31	0.35 YE	5727	High Speed GMLAN Serial Data Wake Up
32	0.35 RD/WH	2340	Battery Positive Voltage
33	0.35 L-GN/WH	1210	Left Rear Strut Position Sensor Signal
34-38	--	--	Not Used
39	0.35 TN	2501	High Speed GMLAN Serial Data (-)
40	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+)
41	0.35 L-BU/BK	1206	Left Front Strut Position Sensor Low Reference
42	0.8 YE	1014	Right Rear Strut Motor Increase Damping
43	0.8 OG	1010	Left Rear Strut Motor Increase Damping Control
44	0.8 PU	1017	Right Rear Strut Motor Decrease Damping
45	0.8 WH/BK	1006	Right Front Strut Motor Increase Damping Control
46	0.8 OG/BK	1448	Left Front Strut Motor Increase Damping
47	0.35 BK	1050	Ground

Engine Control Module (ECM) X1 (LC3)

Connector Part Information

OEM: 34576-3103
Service: 88988373
Description: 56-Way F Sealed (BU)

Terminal Part Information

Pins: 7, 18, 34, 39, 40, 44-45, 53-54, 56
Terminal/Tray: 33467-0003/23
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Pins: 9, 12-13, 19, 33, 35-37, 46-49, 55
Terminal/Tray: 33467-0005/23
Core/Insulation Crimp: Pins 9, 12-13, 20, 33, 35-37, 46-49 - J/J
Core/Insulation Crimp: Pins 19, 55 - K/K
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Engine Control Module (ECM) X1 (LC3)

Pin	Wire	Circuit	Function
1-6	--	--	Not Used
7	0.35 WH	17	Stop Lamp Switch Signal
8	--	--	Not Used
9	0.8 TN	2759	Low Reference
10-11	--	--	Not Used
12	0.5 BN/WH	419	MIL Control
13	0.5 D-GN/WH	465	Fuel Pump Relay Control (Primary)
14-17	--	--	Not Used
18	0.35 YE/BK	5728	ECM/TCM Serial Data Wake Up
19	0.75 PK	239	Run/Crank Ignition 1 Voltage
20	0.5 RD/WH	1440	Battery Positive Voltage
21-32	--	--	Not Used
33	0.5 WH/BK	1164	Accelerator Pedal Position 5-Volt Reference (1)
34	0.5 GY	2709	5-Volt Reference 1
35	0.5 TN	1274	5-Volt Reference 1
36	0.5 BN	1271	Low Reference
37	0.5 PU	1272	Low Reference
38	--	--	Not Used
39	0.35 BN	818	Vehicle Speed Signal
40	0.5 BN	5069	Powertrain Relay Control
41-43	--	--	Not Used
44	0.35 D-BU	1936	Fuel Level Sensor Signal (Secondary)
45	0.35 L-BU	1937	Secondary Fuel Level Sensor Signal
46	0.35 BN	7123	Super Charger Inlet Air Pressure Sensor Signal
47	0.5 D-BU	1161	APP Sensor 1 Signal
48	0.5 D-GN	890	Fuel Tank Pressure Sensor Signal
49	0.5 L-BU	1162	APP Sensor 2 Signal
50-52	--	--	Not Used
53	0.35 D-GN/WH	459	A/C Compressor Clutch Relay Control
54	0.35 D-BU	473	High Speed Cooling Fan Relay Control
55	0.75 WH	1310	EVAP Canister Vent Solenoid Control
56	0.35 YE	447	Starter Relay Coil Control

Engine Control Module (ECM) X1 (LH2)

Connector Part Information

OEM: 34576-4203
Service: 88988373
Description: 56-Way F Sealed (BU)

Terminal Part Information

Pins: 7, 18, 34, 39-40, 44-45, 53-54, 56
Terminal/Tray: 33467-0003/23
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Pins: 9, 12-13, 19-20, 33, 35-37, 46-49, 55
Terminal/Tray: 33467-0005/23
Core/Insulation Crimp: Pins 9, 12-13, 20, 33, 35-37, 46-49 - J/J
Core/Insulation Crimp: Pins 19, 55 - K/K
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Engine Control Module (ECM) X1 (LH2)

Pin	Wire	Circuit	Function
1-6	--	--	Not Used
7	0.35 WH	17	Stop Lamp Switch Signal
8	--	--	Not Used
9	0.5 TN	2759	Low Reference
10-11	--	--	Not Used
12	0.35 BN/WH	419	MIL Control
13	0.5 D-GN/WH	465	Fuel Pump Relay Control (Primary)
14-17	--	--	Not Used
18	0.35 YE/BK	5728	ECM/TCM Serial Data Wake Up
19	0.75 PK	239	Run/Crank Ignition 1 Voltage
20	0.5 RD/WH	1440	Battery Positive Voltage
21-32	--	--	Not Used
33	0.5 WH/BK	1164	Accelerator Pedal Position 5-Volt Reference (1)
34	0.5 GY	2709	5-Volt Reference 1
35	0.5 TN	1274	5-Volt Reference 1
36	0.5 BN	1271	Low Reference
37	0.5 PU	1272	Low Reference
38	--	--	Not Used
39	0.35 BN	818	Vehicle Speed Signal
40	0.5 BN	5069	Powertrain Relay Control
41-43	--	--	Not Used
44	0.35 D-BU	1936	Fuel Level Sensor Signal
45	0.35 L-BU	1937	Secondary Fuel Level Sensor Signal
46	--	--	Not Used
47	0.5 D-BU	1161	APP Sensor 1 Signal
48	0.5 D-GN	890	Fuel Tank Pressure Sensor Signal
49	0.5 L-BU	1162	APP Sensor 2 Signal
50-52	--	--	Not Used
53	0.35 D-GN/WH	459	A/C Compressor Clutch Relay Control
54	0.35 D-BU	473	High Speed Cooling Fan Relay Control
55	0.75 WH	1310	EVAP Canister Vent Solenoid Control
56	0.35 YE	447	Starter Relay Coil Control

Engine Control Module (ECM) X1 (LLT)

Connector Part Information

OEM: 1928404781
Service: 19149311
Description: 96-Way F 1.2 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Engine Control Module (ECM) X1 (LLT)

Pin	Wire	Circuit	Function
1	0.75 GN	5282	Camshaft Phaser Exhaust Solenoid (1)
2	0.75 PU	5284	Camshaft Position (CMP) Actuator Solenoid - Intake Bank 1
3	0.35 PU/WH	4906	Fuel Injector 6 Control
4	0.35 PU	4806	Low Reference
5	0.35 YE	7301	High Pressure Fuel Pump Actuator Solenoid Control
6	0.75 D-GN/WH	428	EVAP Canister Purge Solenoid Control
7	0.35 OG	5275	Camshaft Position (CMP) Sensor - Intake Bank 1 Signal
8	--	--	Not Used
9	0.35 PU	5274	Camshaft Position Exhaust Sensor (2)
10	0.5 OG	225	Generator Turn On Signal
11-13	--	--	Not Used
14	0.35 GY	5127	Afterboil Coolant Pump Supply Voltage
15	0.5 GY	705	5-Volt Reference 2
16-17	--	--	Not Used
18	0.35 BN	7448	Vacuum Pump Relay Control
19-23	--	--	Not Used
24	0.75 YE	581	TAC Motor Control - 1
25	0.75 WH/BK	5283	Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2
26	0.35 D-GN	4803	Low Reference
27	0.35 D-GN/WH	4903	Fuel Injector 3 Control
28	0.35 L-GN	4805	Low Reference
29	0.35 L-GN/WH	4905	Fuel Injector 5 Control
30	0.35 GY	23	Generator Field Duty Cycle Signal
31-32	--	--	Not Used
33	0.35 YE	5276	Camshaft Position (CMP) Sensor - Intake Bank 2 Signal
34	D-GN	5273	Camshaft Position Exhaust Sensor (1)
35	0.35 YE	573	CKP Sensor (1) Signal
36	0.35 YE	2918	Fuel Rail Pressure Sensor Signal
37	--	--	Not Used
38	0.35 GY	598	5-Volt Reference 1
39	0.5 GY	2701	5-Volt Reference 3
40	0.5 GY	596	5-Volt Reference 1
41	0.5 TN	552	Low Reference
42	0.35 TN	808	Low Reference
43	0.5 TN	470	Low Reference
44	0.35 TN	476	Low Reference
45	0.5 GY	605	5-Volt Reference 3
46	0.35 TN	452	Low Reference
47	--	--	Not Used
48	0.75 BN	582	TAC Motor Control - 2
49	0.75 OG/BK	5272	Camshaft Position (CMP) Sensor - Intake Bank 1 Signal
50	L-BU	4804	Low Reference
51	0.35 BN	4801	Low Reference
52	D-BU	4802	Low Reference
53	D-BU/WH	4902	Fuel Injector 2 Control
54	0.35 BN	818	Vehicle Speed Signal
55	0.8 PU	2121	IC 1 Control
56	0.8 L-BU	2123	IC 3 Control
57	0.8 D-GN	2125	IC 5 Control
58	--	--	Not Used
59	0.8 D-BU	496	Knock Sensor (1) Signal
60	0.5 GY	2303	Low Reference
61	0.5 TN/WH	331	Oil Pressure Sensor Signal
62-66	--	--	Not Used
67	0.5 TN/WH	3111	HO2S Low Reference (Bank 1 Sensor 1)
68-69	--	--	Not Used
70	0.5 PU/WH	3210	HO2S Reference Voltage (Bank 2 Sensor 1)
71	--	--	Not Used
72	0.5 GN	3212	HO2S Heater Low Control (Bank 2 Sensor 1)
73	0.35 PU	7300	Low Reference
74	0.35 L-BU/WH	4904	Fuel Injector 4 Control
75	0.35 BN/WH	4901	Fuel Injector 1 Control
76	0.8 PK/BK	5291	Ignition 1 Voltage
77	0.8 PK/BK	5292	Ignition 1 Voltage
78	--	--	Not Used
79	0.8 OG/WH	2122	IC 2 Control
80	0.5 D-GN/WH	2124	IC 4 Control
81	0.5 L-BU/WH	2126	IC 6 Control
82	0.5 YE	410	ECT Sensor Signal
83	0.5 GY	1716	Knock Sensor 1 Signal
84	0.5 L-BU	1876	Knock Sensor 2 Signal
85-87	--	--	Not Used
88	0.5 TN	2752	Low Reference
89	0.5 PU	486	TP Sensor 2 Signal
90	0.5 D-GN/WH	485	TP Sensor 1 Signal
91	--	--	Not Used
92	0.5 WH	3110	HO2S High Signal (Bank 1 Sensor 1)
93	0.5 TN/WH	3211	HO2S Low Signal (Bank 2 Sensor 1)
94-95	--	--	Not Used
96	0.5 GY/WH	3113	HO2S Heater Low Control (Bank 1 Sensor 1)

Engine Control Module (ECM) X2 (LC3)

Connector Part Information

OEM: 34566-1323
Service: 88988931
Description: 73-Way F Sealed (BK)

Terminal Part Information

Pins: 1-9, 11-12, 14-25, 27, 29-44, 46-60, 62-64, 66-72
Terminal/Tray: 33467-0005/23
Core/Insulation Crimp: Pins 1-9, 14-25, 27, 29-44, 46-60, 62-64, 66-72 - J/J
Core/Insulation Crimp: Pins 11, 12 - K/K
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Pins: 13, 28, 45, 65
Terminal/Tray: 33467-0003/23
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Pin: 73
Terminal/Tray: 7116-4152-02/9
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-35 (VT)

Engine Control Module (ECM) X2 (LC3)

Pin	Wire	Circuit	Function
1	0.8 PU	2121	IC 1 Control
2	0.5 TN/WH	3111	HO2S Low Signal (Bank 1 Sensor 1)
3	0.5 PU/WH	3110	HO2S High Signal (Bank 1 Sensor 1)
4	0.5 PU	3120	HO2S High Signal (Bank 1 Sensor 2)
5	0.5 TN/WH	3121	HO2S Low Signal (Bank 1 Sensor 2)
6	0.5 L-BU	1876	Knock Sensor 2 Signal
7	0.5 GY	2303	Knock Sensor 2 Signal
8	0.35 D-BU	496	Knock Sensor 1 Signal
9	0.5 GY	1716	Knock Sensor 1 Signal
10	--	--	Not Used
11	0.75 YE	581	TAC Motor Control - 1
12	0.75 BN	582	TAC Motor Control - 2
13	0.75 PK/BK	5290	Ignition 1 Voltage
14	0.35 PK/BK	6395	Camshaft Position (CMP) Actuator Solenoid - Intake Bank 1 Control
15	0.35 TN/BK	6397	Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2 Control
16	0.35 D-BU/WH	878	Fuel Injector 8 Control
17	0.8 OG/WH	2122	IC 2 Control
18	0.5 L-BU/WH	2126	IC 6 Control
19	0.8 BN/WH	2130	Low Reference
20	0.5 PU	6267	Low Reference
21	0.5 TN	6268	Low Reference
22	0.5 WH	6269	Low Reference
23	0.5 BN	6266	Low Reference
24	0.5 BK	2755	Low Reference
25	0.35 D-GN	7125	Super Charger Inlet Air Pressure Sensor Return
26	--	--	Not Used
27	0.5 GY/BK	6272	Low Reference
28	0.75 PK/BK	5290	Ignition 1 Voltage
29	0.5 TN	2752	Low Reference
30	0.35 BN/WH	6754	Low Reference
31	0.35 D-BU/WH	6756	Low Reference
32	0.8 PK/BK	1746	Fuel Injector 3 Control
33	0.8 OG	2127	IC 7 Control
34	0.8 D-GN	2125	IC 5 Control
35	0.8 BN	2129	Low Reference
36	0.5 D-GN	6457	5-Volt Reference 1
37	0.5 OG	6260	5-Volt Reference 1
38	0.5 PK	6261	5-Volt Reference 1
39	0.5 D-GN	6259	5-Volt Reference 1
40	0.35 GY	2705	5-Volt Reference 1
41	0.35 YE/BK	7124	5-Volt Reference 1
42	0.5 TN	2760	Low Reference
43	0.5 PU/WH	6270	5-Volt Reference 2
44	0.5 GY	2701	5-Volt Reference 2
45	0.35 BN	6273	Oil Temperature Sensor Low Reference
46	0.35 BN	6753	Low Reference
47	0.35 D-BU	6755	Low Reference
48	0.8 L-GN/BK	1745	Fuel Injector 2 Control
49	0.8 TN/WH	845	Fuel Injector 5 Control
50	0.35 WH/BK	6396	Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 1 Control
51	0.35 GY/BK	6394	Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2 Control
52	0.8 L-BU/BK	844	Fuel Injector 4 Control
53	0.8 L-BU	2123	IC 3 Control
54	0.35 D-GN/WH	2124	IC 4 Control
55	0.35 PU/WH	2128	IC 5 Control
56	0.35 D-GN/WH	6264	Camshaft Position (CMP) Sensor - Exhaust Bank 1 Signal
57	0.35 OG/BK	6263	Camshaft Position (CMP) Sensor - Intake Bank 2 Signal
58	0.35 PK/BK	6262	Camshaft Position (CMP) Sensor - Exhaust Bank 2 Signal
59	0.35 D-BU/WH	6265	Camshaft Position (CMP) Sensor - Intake Bank 1 Signal
60	0.5 TN/WH	331	Oil Pressure Sensor Signal
61	--	--	Not Used
62	0.35 TN	472	IAT Sensor Signal
63	0.35 WH/BK	6271	CKP Sensor Signal
64	0.5 D-GN	485	TP Sensor 1 Signal
65	0.35 D-GN/WH	357	Oil Temperature Sensor Signal
66	0.5 PU	486	TP Sensor 2 Signal
67	0.5 YE	492	MAF Sensor Signal
68	0.5 GY/WH	3113	HO2S Heater Low Control (Bank 1 Sensor 1)
69	0.5 GY/WH	3122	HO2S Heater Low Control (Bank 2 Sensor 1)
70	0.8 YE/BK	846	Fuel Injector 6 Control
71	0.8 OG/BK	877	Fuel Injector 7 Control
72	0.8 TN	1744	Fuel Injector 1 Control
73	2 BK/WH	1551	Ground

Engine Control Module (ECM) X2 (LH2)

Connector Part Information

OEM: 34566-1323
Service: 88988931
Description: 73-Way F Sealed (BK)

Terminal Part Information

Pins: 1-9, 11-12, 14-25, 27, 29-44, 46-60, 62-64, 66-72
Terminal/Tray: 33467-0005/23
Core/Insulation Crimp: Pins 1-9, 14-25, 27, 29-44, 46-60, 62-64, 66-72 - J/J
Core/Insulation Crimp: Pins 11, 12 - K/K
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Pins: 13, 28, 45, 65
Terminal/Tray: 33467-0003/23
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Pin: 73
Terminal/Tray: 7116-4152-02/9
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-35 (VT)

Engine Control Module (ECM) X2 (LH2)

Pin	Wire	Circuit	Function
1	0.8 PU	2121	IC 1 Control
2	0.5 TN/WH	3111	HO2S Low Signal (Bank 1 Sensor 1)
3	0.5 PU/WH	3110	HO2S High Signal (Bank 1 Sensor 1)
4	0.5 PU	3120	HO2S High Signal (Bank 1 Sensor 2)
5	0.5 TN/WH	3121	HO2S Low Signal (Bank 1 Sensor 2)
6	0.5 L-BU	1876	Knock Sensor 2 Signal
7	0.5 GY	2303	Knock Sensor 2 Signal
8	0.35 D-BU	496	Knock Sensor 1 Signal
9	0.35 GY	1716	Knock Sensor 1 Signal
10	--	--	Not Used
11	0.75 YE	581	TAC Motor Control - 1
12	0.75 BN	582	TAC Motor Control - 2
13	0.75 PK/BK	5290	Ignition 1 Voltage
14	0.35 PK/BK	6395	Camshaft Position (CMP) Actuator Solenoid - Intake Bank 1 Control
15	0.35 TN/BK	6397	Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2 Control
16	0.35 D-BU/WH	878	Fuel Injector 8 Control
17	0.8 OG/WH	2122	IC 2 Control
18	0.5 L-BU/WH	2126	IC 6 Control
19	0.8 BN/WH	2130	Low Reference
20	0.5 PU	6267	Low Reference
21	0.5 TN	6268	Low Reference
22	0.5 WH	6269	Low Reference
23	0.5 BN	6266	Low Reference
24	0.5 BK	2755	Low Reference
25-26	--	--	Not Used
27	0.5 GY/BK	6272	Low Reference
28	0.75 PK/BK	5290	Ignition 1 Voltage
29	0.5 TN	2752	Low Reference
30	0.35 BN/WH	6754	Low Reference
31	0.35 D-BU/WH	6756	Low Reference
32	0.8 L-BU/BK	1746	Fuel Injector 3 Control
33	0.8 OG	2127	IC 7 Control
34	0.8 D-GN	2125	IC 5 Control
35	0.8 BN	2129	Low Reference
36	0.5 D-GN	6457	5-Volt Reference 1
37	0.5 OG	6260	5-Volt Reference 1
38	0.5 PK	6261	5-Volt Reference 1
39	0.5 D-BU	6259	5-Volt Reference 1
40	0.5 GY	2705	5-Volt Reference 1
41	--	--	Not Used
42	0.5 TN	2760	Low Reference
43	0.5 PU/WH	6270	5-Volt Reference 2
44	0.5 GY	2701	5-Volt Reference 2
45	--	--	Not Used
46	0.35 BN	6753	Low Reference
47	0.35 D-BU	6755	Low Reference
48	0.8 L-GN/BK	1745	Fuel Injector 2 Control
49	0.8 TN/WH	845	Fuel Injector 5 Control
50	0.35 WH/BK	6396	Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 1 Control
51	0.35 GY/BK	6394	Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2 Control
52	0.8 L-BU/BK	844	Fuel Injector 4 Control
53	0.8 L-BU	2123	IC 3 Control
54	0.35 D-GN/WH	2124	IC 4 Control
55	0.35 PU/WH	2128	IC 5 Control
56	0.35 D-GN/WH	6264	Camshaft Position (CMP) Sensor - Exhaust Bank 1 Signal
57	0.35 OG/BK	6263	Camshaft Position (CMP) Sensor - Intake Bank 2 Signal
58	0.35 PK/BK	6262	Camshaft Position (CMP) Sensor - Exhaust Bank 2 Signal
59	0.35 D-BU/WH	6265	Camshaft Position (CMP) Sensor - Intake Bank 1 Signal
60	0.5 TN/WH	331	Oil Pressure Sensor Signal
61	--	--	Not Used
62	0.35 TN	472	IAT Sensor Signal
63	0.35 WH/BK	6271	CKP Sensor Signal
64	0.5 D-GN	485	TP Sensor 1 Signal
65	--	--	Not Used
66	0.5 PU	486	TP Sensor 2 Signal
67	0.5 YE	492	MAF Sensor Signal
68	0.5 GY/WH	3113	HO2S Heater Low Control (Bank 1 Sensor 1)
69	0.5 GY/WH	3122	HO2S Heater Low Control (Bank 2 Sensor 1)
70	0.8 YE/BK	846	Fuel Injector 6 Control
71	0.8 OG/BK	877	Fuel Injector 7 Control
72	0.8 TN	1744	Fuel Injector 1 Control
73	2 BK/WH	1551	Ground

Engine Control Module (ECM) X2 (LLT)

Connector Part Information

OEM: 1928404780
Service: 88988935
Description: 58-Way F 2.8 Series Sealed (BK)

Terminal Part Information

Pins: See Terminal Repair Kit
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: Pins See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Engine Control Module (ECM) X2 (LLT)

Pin	Wire	Circuit	Function
1	0.5 BK/WH	1551	Ground
2	0.5 BK/WH	1551	Ground
3	0.75 PK/BK	5290	Ignition 1 Voltage
4	0.5 BK/WH	1551	Ground
5	0.75 PK/BK	5290	Ignition 1 Voltage
6	0.75 PK/BK	5290	Ignition 1 Voltage
7	0.5 GY/WH	3122	HO2S Heater Low Control (Bank 2 Sensor 1)
8	--	--	Not Used
9	0.5 TN	2759	Low Reference
10	0.5 D-GN/WH	465	Fuel Pump Relay Control
11	0.35 TN	5514	Low Reference
12	0.35 YE	447	Starter Relay Coil Control
13	0.5 YE	492	MAF Sensor Signal
14	0.5 GY	2709	5-Volt Reference 1
15	0.5 D-BU	1161	APP Sensor 1 Signal
16	--	--	Not Used
17	0.5 OG/BK	1786	Ignition Lock Cylinder Control Actuator Signal
18	--	--	Not Used
19	0.75 WH	1310	EVAP Canister Vent Solenoid Control
20	0.5 OG/WH	3223	HO2S Heater Low Control (Bank 2 Sensor 2)
21	0.5 BN/WH	419	MIL Control
22	0.5 TN	2760	Low Reference
23	0.5 TN/WH	3121	HO2S Heater Low Signal (Bank 2 Sensor 2)
24	0.5 TN	3221	HO2S Heater Low Signal (Bank 2 Sensor 2)
25	0.5 L-BU	1162	APP Sensor 2 Signal
26	0.5 L-BU	1937	Secondary Fuel Level Sensor Signal
27	0.5 D-GN	890	Fuel Tank Pressure Sensor Signal
28-33	--	--	Not Used
34	0.5 BN	1271	Low Reference
35	0.75 GY	2700	5-Volt Reference 3
36	0.5 D-BU	1936	Fuel Level Sensor Signal
37	--	--	Not Used
38	0.5 PU	3120	HO2S High Signal (Bank 1 Sensor 2)
39	0.5 OG/BK	380	A/C Refrigerant Pressure Sensor Signal
40	--	--	Not Used
41	0.35 YE/BK	5728	ECM/TCM Serial Data Wake Up
42	0.35 TN/BK	2500	High Speed GMLAN Serial Data Bus +
43	--	--	Not Used
44	0.5 D-GN/WH	459	A/C Compressor Clutch Relay Control
45	0.5 D-BU	473	High Speed Cooling Fan Relay Control
46	0.5 D-GN	335	Low Speed Cooling Fan Relay Control
47	0.5 PU	1272	Low Reference
48	0.5 TN	1274	5-Volt Reference 3
49	0.5 WH/BK	1164	5-Volt Reference 2
50	0.5 L-BU	6289	IAT Sensor Signal
51	0.5 PU	3220	HO2S High Signal (Bank 2 Sensor 2)
52	0.5 WH	17	Stop Lamp Switch Signal
53	--	--	Not Used
54	0.75 PK	239	Ignition 1 Voltage
55	0.35 TN	2501	High Speed GMLAN Serial Data Bus -
56	0.35 RD/WH	1440	Battery Positive Voltage
57	--	--	Not Used
58	0.5 BN	5069	Main Relay Control

Engine Control Module (ECM) X3 (LC3)

Connector Part Information

OEM: 34566-3303
Service: 88988372
Description: 73-Way F Sealed (GY)

Terminal Part Information

Pins: 3-7, 14-16, 18, 21-23, 29, 33-35, 37-39, 46, 50, 53, 55-59
Terminal/Tray: 33467-0005/23
Core/Insulation Crimp: J/J
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Pins: 48-49
Terminal/Tray: 33467-0003/23
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Pin: 73
Terminal/Tray: 7116-4152-02/9
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-35 (VT)

Engine Control Module (ECM) X3 (LC3)

Pin	Wire	Circuit	Function
1-2	--	--	Not Used
3	0.5 TN/WH	3211	HO2S Low Signal (Bank 2 Sensor 1)
4	0.5 PU/WH	3210	HO2S High Signal (Bank 2 Sensor 1)
5	0.5 PU	3220	HO2S High Signal (Bank 2 Sensor 2)
6	0.5 TN	3221	HO2S Low Signal (Bank 2 Sensor 2)
7	0.5 OG	225	Generator Turn On Signal
8-13	--	--	Not Used
14	0.35 L-BU	7126	Super Charger Vacuum Bypass Valve Control
15	0.5 L-GN	3212	HO2S Heater Low Control (Bank 2 Sensor 1)
16	0.35 PK	2014	Coolant Pump Relay Control
17	--	--	Not Used
18	0.35 BN	1174	Oil Level Switch Signal
19-20	--	--	Not Used
21	0.5 BK/WH	2751	Low Reference
22	0.35 OG/BK	6014	BARO Sensor Low Reference
23	0.5 OG/BK	469	Low Reference
24-28	--	--	Not Used
29	0.35 GY	23	Generator Field Duty Cycle Signal
30-32	--	--	Not Used
33	0.5 TN	2501	High Speed GMLAN Serial Data Bus -
34	0.35 YE/BK	6120	IAT2 Low Reference
35	0.35 TN	2761	Low Reference
36	--	--	Not Used
37	0.5 GY	2700	5-Volt Reference 1
38	0.35 WH/BK	2932	5-Volt Reference
39	0.5 GY	2704	5-Volt Reference 1
40-45	--	--	Not Used
46	0.5 OG/BK	1786	Park/Neutral Signal
47	--	--	Not Used
48	0.75 PU	428	EVAP Canister Purge Solenoid Control
49	0.35 D-GN	335	Low Speed Cooling Fan Relay Control
50	0.5 OG/BK	3223	HO2S Heater Low Control (Bank 2 Sensor 2)
51-52	--	--	Not Used
53	0.5 TN-BK	2500	High Speed GMLAN Serial Data Bus +
54	--	--	Not Used
55	0.5 YE	410	ECT Sensor Signal
56	0.35 L-BU	6118	IAT2 Signal
57	0.5 OG/BK	380	A/C Refrigerant Pressure Sensor Signal
58	0.35 GY/BK	433	BARO Sensor Signal
59	0.5 L-GN	432	MAP Sensor Signal
60-72	--	--	Not Used
73	2 BK/WH	1551	Ground

Engine Control Module (ECM) X3 (LH2)

Connector Part Information

OEM: 34566-0203
Service: 88988372
Description: 73-Way F Sealed (GY)

Terminal Part Information

Pins: 3-7, 14-16, 18, 21-23, 29, 33-35, 37-39, 46, 50, 53, 55-59
Terminal/Tray: 33467-0005/23
Core/Insulation Crimp: J/J
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Pins: 48-49
Terminal/Tray: 33467-0003/23
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Pin: 73
Terminal/Tray: 7116-4152-02/9
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-35 (VT)

Engine Control Module (ECM) X3 (LH2)

Pin	Wire	Circuit	Function
1-2	--	--	Not Used
3	0.5 TN/WH	3211	HO2S Low Signal (Bank 2 Sensor 1)
4	0.5 PU/WH	3210	HO2S High Signal (Bank 2 Sensor 1)
5	0.5 PU	3220	HO2S High Signal (Bank 2 Sensor 2)
6	0.5 TN	3221	HO2S Low Signal (Bank 2 Sensor 2)
7	0.5 OG	225	Generator Turn On Signal
8-14	--	--	Not Used
15	0.5 L-GN	3212	HO2S Heater Low Control (Bank 2 Sensor 1)
16-20	--	--	Not Used
21	0.5 BK/WH	2751	Low Reference
22	--	--	Not Used
23	0.5 OG/BK	469	Low Reference
24-28	--	--	Not Used
29	0.35 GY	23	Generator Field Duty Cycle Signal
30-32	--	--	Not Used
33	0.35 TN	2501	High Speed GMLAN Serial Data Bus -
34	--	--	Not Used
35	0.35 TN	2761	Low Reference
36	--	--	Not Used
37	0.5 GY	2700	5-Volt Reference 1
38	--	--	Not Used
39	0.5 GY	2704	5-Volt Reference 1
40-45	--	--	Not Used
46	0.5 OG/BK	1786	Park/Neutral Signal
47	--	--	Not Used
48	0.75 D-GN/WH	428	EVAP Canister Purge Solenoid Control
49	0.35 D-GN	335	Low Speed Cooling Fan Relay Control
50	0.5 OG/WH	3223	HO2S Heater Low Control (Bank 2 Sensor 2)
51-52	--	--	Not Used
53	0.35 TN/BK	2500	High Speed GMLAN Serial Data Bus +
54	--	--	Not Used
55	0.5 YE	410	ECT Sensor Signal
56	--	--	Not Used
57	0.5 OG/BK	380	A/C Refrigerant Pressure Sensor Signal
58	--	--	Not Used
59	0.5 L-GN	432	MAP Sensor Signal
60-72	--	--	Not Used
73	2 BK/WH	1551	Ground

Engine Coolant Temperature (ECT) Sensor (LC3 or LH2)

Connector Part Information

OEM: 12162195
Service: 88987993
Description: 2-Way F Metri-Pack 150.2 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12124075/5
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12180559-1/J-35616-2A (GY)

Engine Coolant Temperature (ECT) Sensor (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.5 YE	410	ECT Sensor Signal
B	0.5 TN	2761	Low Reference

Engine Coolant Temperature (ECT) Sensor (LLT)

Connector Part Information

OEM: 1928403874
Service: 88988963
Description: 2-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Engine Coolant Temperature (ECT) Sensor (LLT)

Pin	Wire	Circuit	Function
1	0.5 YE	410	Coolant Temperature Sensor Signal
2	0.5 TN	476	Low Reference

Engine Cooling Fan - Left

Connector Part Information

OEM: 7283-5596-10
Service: 88953307
Description: 2-Way F YESC Sealed (D-GY)

Terminal Part Information

Terminal/Tray: 7116-4142-02/10
Core/Insulation Crimp: A/3
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Engine Cooling Fan - Left

Pin	Wire	Circuit	Function
1	3 GY	532	Cooling Fan Motor Supply Voltage (2)
2	3 WH	504	Cooling Fan Motor Low Reference

Engine Cooling Fan - Right (LC3)

Connector Part Information

OEM: 7282-5596-10
Service: 88953304
Description: 2-Way M YESC 6.3 WP Sealed (D-GY)

Terminal Part Information

Pin: 1
Terminal/Tray: 7114-4142-02/10
Core/Insulation Crimp: A/3
Release Tool/Test Probe: 12094430/J-35616-43 (RD)

Pin: 2
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Engine Cooling Fan - Right (LC3)

Pin	Wire	Circuit	Function
1	3 L-BU	409	Cooling Fan Motor Supply Voltage
2	3 BK	250	Ground

Engine Cooling Fan - Right (without LC3)

Connector Part Information

OEM: 7283-5596-10
Service: 88953307
Description: 2-Way F YESC Sealed (D-GY)

Terminal Part Information

Terminal/Tray: 7116-4142-02/10
Core/Insulation Crimp: A/3
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Engine Cooling Fan - Right (without LC3)

Pin	Wire	Circuit	Function
1	3 L-BU	409	Cooling Fan Motor Supply Voltage (1)
2	3 BK	250	Ground

Engine Oil Level and Temperature Sensor (LC3)

Connector Part Information

OEM: 15326808
Service: 15306388
Description: 3-Way F GT 150 Series Sealed 4.5 (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Engine Oil Level and Temperature Sensor (LC3)

Pin	Wire	Circuit	Function
A	0.35 BN	1174	Oil Level Sensor Signal
B	0.35 D-GN/WH	357	Oil Temperature Sensor Signal
C	0.35 BN	6273	Oil Temperature Sensor Low Reference

Engine Oil Pressure (EOP) Sensor (LC3 or LH2)

Connector Part Information

OEM: 15336121
Service: 88953362
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Engine Oil Pressure (EOP) Sensor (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.5 BK	2755	Low Reference
B	0.5 TN/WH	331	Oil Pressure Sensor Signal
C	0.5 GY	2705	5-Volt Reference A

Engine Oil Pressure (EOP) Sensor (LLT)

Connector Part Information

OEM: 12065287
Service: 88988301
Description: 3-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Engine Oil Pressure (EOP) Sensor (LLT)

Pin	Wire	Circuit	Function
A	0.5 TN	470	Low Reference
B	0.5 GY	596	5-Volt Reference
C	0.5 TN/WH	331	Oil Pressure Switch Signal

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LC3 or LH2)

Connector Part Information

OEM: 12124037
Service: 12101858
Description: 2-Way F Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5294	Ignition 1 Voltage
B	0.75 D-GN/WH	428	EVAP Canister Purge Solenoid Control

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LLT)

Connector Part Information

OEM: 1928404072
Service: 88988586
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LLT)

Pin	Wire	Circuit	Function
1	0.75 PK/BK	5293	Engine Main Relay Fused Control (4)
2	0.75 L-GN/WH	428	Canister Purge Solenoid Output

Evaporative Emission (EVAP) Canister Vent Solenoid Valve

Connector Part Information

OEM: 12052643
Service: 12101858
Description: 2-Way F Metri-Pack 150 Series Sealed (RD)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Evaporative Emission (EVAP) Canister Vent Solenoid Valve

Pin	Wire	Circuit	Function
A	0.8 RD/WH	1540	Battery Positive Voltage
B	0.8 WH	1310	EVAP Canister Vent Solenoid Control

Fog Lamp - Left Front X1

Connector Part Information

OEM: Unknown
Service: Not Serviced
Description: 1-Way F (RD)

Terminal Part Information

Terminal/Tray: Not Serviced
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Fog Lamp - Left Front X1

Pin	Wire	Circuit	Function
1	1 YE	--	Front Fog Lamp Supply Voltage

Fog Lamp - Left Front X2

Connector Part Information

OEM: Unknown
Service: Not Serviced
Description: 1-Way F (BARE)

Terminal Part Information

Terminal/Tray: Not Serviced
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Fog Lamp - Left Front X2

Pin	Wire	Circuit	Function
1	1 BK	--	Ground

Fog Lamp - Left Rear (T79)

Connector Part Information

OEM: 12052641
Service: 12102747
Description: 2-Way F Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fog Lamp - Left Rear (T79)

Pin	Wire	Circuit	Function
A	0.35 OG	122	Rear Fog Lamp Supply Voltage
B	0.35 BK	1050	Ground

Fog Lamp - Right Front X1

Connector Part Information

OEM: Unknown
Service: Not Serviced
Description: 1-Way F (RD)

Terminal Part Information

Terminal/Tray: Not Serviced
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Fog Lamp - Right Front X1

Pin	Wire	Circuit	Function
1	1 YE	--	Front Fog Lamp Supply Voltage

Fog Lamp - Right Front X2

Connector Part Information

OEM: Unknown
Service: Not Serviced
Description: 1-Way F (BARE)

Terminal Part Information

Terminal/Tray: Not Serviced
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Fog Lamp - Right Front X2

Pin	Wire	Circuit	Function
1	1 BK	--	Ground

Fog Lamp - Right Rear (T79)

Connector Part Information

OEM: 12052641
Service: 12102747
Description: 2-Way F Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fog Lamp - Right Rear (T79)

Pin	Wire	Circuit	Function
A	0.35 OG	122	Rear Fog Lamp Supply Voltage
B	0.35 BK	1050	Ground

Fuel Injector 1 (LC3)

Connector Part Information

OEM: 15419715
Service: 88988313
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A - 2/A
Core/Insulation Crimp: Pins B - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Fuel Injector 1 (LC3)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5291	Ignition 1 Voltage
B	0.8 TN	1744	Fuel Injector 1 Control

Fuel Injector 1 (LH2)

Connector Part Information

OEM: 15355226
Service: 89046636
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A - 2/A
Core/Insulation Crimp: Pins B - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Fuel Injector 1 (LH2)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5291	Ignition 1 Voltage
B	0.8 TN	1744	Fuel Injector 1 Control

Fuel Injector 1 (LLT)

Connector Part Information

OEM: E-2157
Service: 88988054
Description: 2-Way F Sleeve Assembly Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 1 (LLT)

Pin	Wire	Circuit	Function
1	0.35 BN	4801	Low Reference
2	0.35 BN/WH	4901	Fuel Injector 1 Control

Fuel Injector 2 (LC3)

Connector Part Information

OEM: 15419715
Service: 88988313
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A - 2/A
Core/Insulation Crimp: Pins B - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Fuel Injector 2 (LC3)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5292	Ignition 1 Voltage
B	0.8 L-GN/BK	1745	Fuel Injector 2 Control

Fuel Injector 2 (LH2)

Connector Part Information

OEM: 15355226
Service: 89046636
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A - 2/A
Core/Insulation Crimp: Pins B - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Fuel Injector 2 (LH2)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5292	Ignition 1 Voltage
B	0.8 L-GN/BK	1745	Fuel Injector 2 Control

Fuel Injector 2 (LLT)

Connector Part Information

OEM: E-2157
Service: 88988054
Description: 2-Way F Sleeve Assembly Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 2 (LLT)

Pin	Wire	Circuit	Function
1	D-BU	4802	Low Reference
2	D-BU/WH	4902	Fuel Injector 2 Control

Fuel Injector 3 (LC3)

Connector Part Information

OEM: 15419715
Service: 88988313
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A - 2/A
Core/Insulation Crimp: Pins B - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Fuel Injector 3 (LC3)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5291	Ignition 1 Voltage
B	0.8 PK/BK	1746	Fuel Injector 3 Control

Fuel Injector 3 (LH2)

Connector Part Information

OEM: 15355226
Service: 89046636
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A - 2/A
Core/Insulation Crimp: Pins B - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Fuel Injector 3 (LH2)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5291	Ignition 1 Voltage
B	0.8 PK/BK	1746	Fuel Injector 3 Control

Fuel Injector 3 (LLT)

Connector Part Information

OEM: CEE-2157
Service: 88988054
Description: 2-Way F Sleeve Assembly Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 3 (LLT)

Pin	Wire	Circuit	Function
1	D-GN	4803	Low Reference
2	D-GN/WH	4903	Fuel Injector - 3 Control

Fuel Injector 4 (LC3)

Connector Part Information

OEM: 15419715
Service: 88988313
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A - 2/A
Core/Insulation Crimp: Pins B - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Fuel Injector 4 (LC3)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5292	Ignition 1 Voltage
B	0.8 L-BU/BK	844	Fuel Injector 4 Control

Fuel Injector 4 (LH2)

Connector Part Information

OEM: 15355226
Service: 89046636
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A - 2/A
Core/Insulation Crimp: Pins B - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Fuel Injector 4 (LH2)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5292	Ignition 1 Voltage
B	0.8 L-BU/BK	844	Fuel Injector 4 Control

Fuel Injector 4 (LLT)

Connector Part Information

OEM: CBE-2157
Service: 88988054
Description: 2-Way F Sleeve Assembly Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 4 (LLT)

Pin	Wire	Circuit	Function
1	L-BU	4804	Low Reference
2	L-BU/WH	4904	Fuel Injector 4 Control

Fuel Injector 5 (LC3)

Connector Part Information

OEM: 15419715
Service: 88988313
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A - 2/A
Core/Insulation Crimp: Pins B - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Fuel Injector 5 (LC3)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5291	Ignition 1 Voltage
B	0.8 TN/WH	845	Fuel Injector 5 Control

Fuel Injector 5 (LH2)

Connector Part Information

OEM: 15355226
Service: 89046636
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A - 2/A
Core/Insulation Crimp: Pins B - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Fuel Injector 5 (LH2)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5291	Ignition 1 Voltage
B	0.8 TN/WH	845	Fuel Injector 5 Control

Fuel Injector 5 (LLT)

Connector Part Information

OEM: CFE-2157
Service: 88988054
Description: 2-Way F Sleeve Assembly Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 5 (LLT)

Pin	Wire	Circuit	Function
1	L-GN	4805	Low Reference
2	L-GN/WH	4905	Fuel Injector 5 Control

Fuel Injector 6 (LC3)

Connector Part Information

OEM: 15419715
Service: 88988313
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A - 2/A
Core/Insulation Crimp: Pins B - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Fuel Injector 6 (LC3)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5292	Ignition 1 Voltage
B	0.8 YE/BK	846	Fuel Injector 6 Control

Fuel Injector 6 (LH2)

Connector Part Information

OEM: 15355226
Service:89046636
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A - 2/A
Core/Insulation Crimp: Pins B - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Fuel Injector 6 (LH2)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5292	Ignition 1 Voltage
B	0.8 YE/BK	846	Fuel Injector 6 Control

Fuel Injector 6 (LLT)

Connector Part Information

OEM: E-2157
Service: 88988054
Description: 2-Way F Sleeve Assembly Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 6 (LLT)

Pin	Wire	Circuit	Function
1	0.35 PU	4806	Low Reference
2	0.35 PU/WH	4906	Fuel Injector 6 Control

Fuel Injector 7 (LC3)

Connector Part Information

OEM: 15419715
Service: 88988313
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A - 2/A
Core/Insulation Crimp: Pins B - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Fuel Injector 7 (LC3)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5291	Ignition 1 Voltage
B	0.8 OG/BK	877	Fuel Injector 7 Control

Fuel Injector 7 (LH2)

Connector Part Information

OEM: 15355226
Service: 89046636
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A - 2/A
Core/Insulation Crimp: Pins B - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Fuel Injector 7 (LH2)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5291	Ignition 1 Voltage
B	0.8 OG/BK	877	Fuel Injector 7 Control

Fuel Injector 8 (LC3)

Connector Part Information

OEM: 15419715
Service: 88988313
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A - 2/A
Core/Insulation Crimp: Pins B - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Fuel Injector 8 (LC3)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5292	Ignition 1 Voltage
B	0.35 D-BU/WH	878	Fuel Injector 8 Control

Fuel Injector 8 (LH2)

Connector Part Information

OEM: 15355226
Service: 89046636
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A - 2/A
Core/Insulation Crimp: Pins B - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Fuel Injector 8 (LH2)

Pin	Wire	Circuit	Function
A	0.8 PK/BK	5292	Ignition 1 Voltage
B	0.35 D-BU/WH	878	Fuel Injector 8 Control

Fuel Level Sensor - Secondary

Connector Part Information

OEM: 121630563
Service: 12160563
Description: 4-Way F Metri-Pack 150 Series Sealed (WH)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Fuel Level Sensor - Secondary

Pin	Wire	Circuit	Function
A	0.8 L-BU	1937	Secondary Fuel Level Sensor Signal
B-C	--	--	Not Available
D	0.8 TN	2759	Low Reference

Fuel Pump and Sender Assembly

Connector Part Information

OEM: 12160482
Service: 88988598
Description: 4-Way F Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: 2/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Fuel Pump and Sender Assembly

Pin	Wire	Circuit	Function
A	0.8 D-BU	1936	Fuel Level Sensor Signal
B	1 GY	120	Fuel Pump Supply Voltage
C	1 BK	1050	Ground
D	0.8 TN	2759	Low Reference

Fuel Rail Pressure (FRP) Sensor (LLT)

Connector Part Information

OEM: 15326556
Service: 88953359
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Rail Pressure (FRP) Sensor (LLT)

Pin	Wire	Circuit	Function
A	0.35 YE	2918	Fuel Rail Pressure Sensor Signal
B	0.35 TN	808	Low Reference
C	0.35 GY	598	5-Volt Reference

Fuel Tank Pressure (FTP) Sensor

Connector Part Information

OEM: 12059595
Service: 88986451
Description: 3-Way F Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Fuel Tank Pressure (FTP) Sensor

Pin	Wire	Circuit	Function
A	0.8 TN	2759	Low Reference
B	0.8 D-GN	890	Fuel Tank Pressure Sensor Signal
C	0.8 GY/BK	2709	5-Volt Reference

Garage Door Opener (GDO) (UG1)

Connector Part Information

OEM: 09-01-6038
Service: 12162335
Description: 3-Way F P/C Series (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Garage Door Opener (GDO) (UG1)

Pin	Wire	Circuit	Function
1	0.35 BN	253	Valet Lockout Switch Signal
2	--	--	Not Used
3	0.35 BK	850	Ground

Generator X1

Connector Part Information

OEM: 1928403137
Service: 89046837
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: 4-964286-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Generator X1

Pin	Wire	Circuit	Function
1	0.5 OG	225	Generator Turn On Signal
2	0.5 GY	23	Generator Field Duty Cycle Signal

Generator X2

Part Information

Terminal: 7003-1170-02
Core/Insulation Crimp: N/A
Description: Ring Terminal

Generator X2

Pin	Wire	Circuit	Function
+	19 RD	1	Battery Positive Voltage

Hazard Warning Switch

Connector Part Information

OEM: 174966-2
Service: 88953314
Description: 4-Way F Multi-Lock Amp (BK)

Terminal Part Information

Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Hazard Warning Switch

Pin	Wire	Circuit	Function
1	0.35 WH	111	Hazard Switch Signal
2	0.35 BK	450	Ground
3	0.35 YE	1491	Backlight Lamp Control
4	0.35 YE	18	Left Rear Stop/Turn Lamp Supply Voltage

Headlamp Ballast - Left (TT6 or TT7 or TT8)

Connector Part Information

OEM: 282087-1
Service: See Catalog
Description: 3-Way F Superseal 1.5 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp Ballast - Left (TT6 or TT7 or TT8)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	2 YE	--	Left Headlamp Low Beam Supply Voltage
3	2 BK	--	Ground

Headlamp Ballast - Right (TT6 or TT7 or TT8)

Connector Part Information

OEM: 282087-1
Service: See Catalog
Description: 3-Way F Superseal 1.5 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp Ballast - Right (TT6 or TT7 or TT8)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	2 YE	--	Right Headlamp Low Beam Supply Voltage
3	2 BK	--	Ground

Headlamp - Left High Beam

Connector Part Information

OEM: 12059182
Service: 12101898
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp - Left High Beam

Pin	Wire	Circuit	Function
A	0.8 GN	--	Left Headlamp High Beam Supply Voltage
B	0.8 BK	--	Ground
B	0.8 BK	--	Ground (TT7 or TT7 or TT8)

Headlamp - Left Low Beam (without TT6 or TT7 or TT8)

Connector Part Information

OEM: 12124817
Service: 12085498
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp - Left Low Beam (without TT6 or TT7 or TT8)

Pin	Wire	Circuit	Function
A	0.8 YE	--	Left Headlamp Low Beam Supply Voltage
B	0.8 BK	--	Ground
B	0.8 BK	--	Ground

Headlamp Leveling Actuator - Left (TR7)

Connector Part Information

OEM: 6189-0227
Service: 88988391
Description: 6-Way F.090 Class 2 Sealed Series (WH)

Terminal Part Information

Terminal/Tray: 7116-4025/11
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15313892/J-35616-18 (BK)

Headlamp Leveling Actuator - Left (TR7)

Pin	Wire	Circuit	Function
1	0.35 GY	5179	Left Headlamp Leveling Motor (4)
2	0.35 L-BU/BK	5752	Left Headlamp Leveling Motor Low Reference
3	0.35 OG/BK	5177	Left Headlamp Leveling Motor (2)
4	0.35 PU/WH	5178	Left Headlamp Leveling Motor (3)
5	--	--	Not Used
6	0.35 YE/BK	5176	Left Headlamp Leveling Motor (1)

Headlamp Leveling Actuator - Right (TR7)

Connector Part Information

OEM: 6189-0227
Service: 88988391
Description: 6-Way F.090 Class 2 Sealed Series (WH)

Terminal Part Information

Terminal/Tray: 7116-4025/11
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15313892/J-35616-18 (BK)

Headlamp Leveling Actuator - Right (TR7)

Pin	Wire	Circuit	Function
1	0.35 GY/BK	5183	Right Headlamp Leveling Motor (4)
2	0.35 L-GN/BK	5753	Right Headlamp Leveling Motor Low Reference
3	0.35 PK/BK	5181	Right Headlamp Leveling Motor (2)
4	0.35 OG/WH	5182	Right Headlamp Leveling Motor (3)
5	--	--	Not Used
6	0.35 BN/WH	5180	Right Headlamp Leveling Motor (1)

Headlamp Leveling Module (TR7)

Connector Part Information

OEM Connector Body: 12129225
Service: 15306089
Retainer: 12191019 (CL)
Strain Relief: 12110155 (GY)
Description: 24-Way F Micro-Pack 100 Series Sealed (WH)

Terminal Part Information

Terminal/Tray: 12084913/5
Core/Insulation Crimp: W/W
Release Tool/Test Probe: 12122523/J-35616-6 (BN)

Headlamp Leveling Module (TR7)

Pin	Wire	Circuit	Function
1	0.35 GY/BK	5183	Right Headlamp Leveling Motor (4)
2	0.35 OG/WH	5182	Right Headlamp Leveling Motor (3)
3	0.35 PK/BK	5181	Right Headlamp Leveling Motor (2)
4	0.35 BN/WH	5180	Right Headlamp Leveling Motor (1)
5	0.35 L-GN/BK	5753	Right Headlamp Leveling Motor Low Reference
6	0.35 YE	5727	High Speed GMLAN Serial Data Wake Up
7	0.35 OG/BK	1208	Left Rear Strut Position Sensor Voltage Reference (without F55)
8	0.35 L-GN/WH	1210	Left Rear Strut Position Sensor Signal (without F55)
9	0.35 L-GN/BK	1209	Left Rear Strut Position Sensor Low Reference (without F55)
10	0.35 TN	2501	High Speed GMLAN Serial Data (-) (1)
11	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+) (1)
12	0.35 RD/WH	340	Battery Positive Voltage
13	0.35 GY	5179	Left Headlamp Leveling Motor (4)
14	0.35 PU/WH	5178	Left Headlamp Leveling Motor (3)
15	0.35 OG/BK	5177	Left Headlamp Leveling Motor (2)
16	0.35 YE/BK	5176	Left Headlamp Leveling Motor (1)
17	0.35 L-BU/BK	5752	Left Headlamp Leveling Motor Low Reference
18	--	--	Not Used
19	0.35 PU/WH	1205	Left Front Strut Position Sensor Voltage Reference (without F55)
20	0.35 TN/WH	1207	Left Front Strut Position Sensor Signal (without K59)
21	0.35 L-BU/BK	1206	Left Front Strut Position Sensor Low Reference (without K59)
22	0.35 TN	2501	High Speed GMLAN Serial Data (-) (1) (without F55)
22	0.35 TN	2501	High Speed GMLAN Serial Data (-) (1) (TT7/TT8 with K59)
23	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+) (1) (without F55)
23	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+) (1) (TT7 or TT8 with K59)
24	1 BK	250	Ground

Headlamp - Right High Beam

Connector Part Information

OEM: 12059182
Service: 12101898
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp - Right High Beam

Pin	Wire	Circuit	Function
A	0.8 GN	--	Right Headlamp High Beam Supply Voltage
B	0.8 BK	--	Ground
B	0.8 BK	--	Ground (TT6 or TT7 or TT8)

Headlamp - Right Low Beam (without TT6 or TT7 or TT8)

Connector Part Information

OEM: 12124817
Service: 12085498
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp - Right Low Beam (without TT6 or TT7 or TT8)

Pin	Wire	Circuit	Function
A	0.8 YE	--	Right Headlamp Low Beam Supply Voltage
B	0.8 BK	--	Ground
B	0.8 BK	--	Ground

Headlamp Washer Fluid Pump (CE4)

Connector Part Information

OEM: 12052613
Service: 12085212
Description: 2-Way F Metri-Pack 480 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: 12052139/18
Core/Insulation Crimp: F/3
Release Tool/Test Probe: 12094430/J-35616-40 (BU)

Headlamp Washer Fluid Pump (CE4)

Pin	Wire	Circuit	Function
A	0.8 BK	150	Ground
B	3 PU	1197	Headlamp Washer Pump Control

Headlamp Washer Fluid Pump Relay (CE4)

Connector Part Information

OEM: 12110539
Service: 15306045
Description: 5-Way F Metri-Pack 280 Series, Flexlock Sealed (BK)

Terminal Part Information

Pins: 30, 87
Terminal/Tray: 12110853/4
Core/Insulation Crimp: F/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: 85-86
Terminal/Tray: 12110847/4
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Headlamp Washer Fluid Pump Relay (CE4)

Pin	Wire	Circuit	Function
30	3 PU	1197	Headlamp Washer Pump Control
85	0.35 YE	243	Accessory Voltage
86	0.35 WH	2282	Headlamp Washer Relay Control
87	3 RD/BK	4042	Battery Positive Voltage
87A	--	--	Not Used

Head Up Display (HUD) (UV6)

Connector Part Information

OEM: 175965-2
Service: 88986454
Description: 12-Way F 040 Multilock Mark II Series (BK)

Terminal Part Information

Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Head Up Display (HUD) (UV6)

Pin	Wire	Circuit	Function
1	0.5 RD/WH	1640	Battery Positive Voltage
2	--	--	Not Used
3	0.35 D-GN	5060	Low Speed GMLAN Serial Data
4	0.35 PK	2384	Night Vision Image Up Signal
5	0.35 L-GN/BK	5699	Head Up Display Switch Low Reference
6-9	--	--	Not Used
10	0.35 BN	2383	Night Vision Image Down Signal
11	0.35 TN	2382	Night Vision Image Dimming Signal
12	0.35 BK/WH	351	Signal Ground

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LC3 or LH2)

Connector Part Information

OEM: 12146046
Service: 15306365
Description: 5-Way F Metri-Pack 150 Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.5 TN/WH	3111	HO2S Low Signal Bank 1 Sensor 1
B	0.5 PU/WH	3110	HO2S High Signal Bank 1 Sensor 1
C	--	--	Not Available
D	0.8 PK/BK	5293	Engine Main Relay Fused Control (4)
E	0.5 GY/WH	3113	HO2S Heater Low Control Bank 1 Sensor 1

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LLT)

Connector Part Information

OEM: 12160482
Service: 88988598
Description: 4-Way F Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LLT)

Pin	Wire	Circuit	Function
A	0.5 TN/WH	3111	HO2S Low Signal Bank 1 Sensor 1
B	0.5 PU/WH	3110	HO2S High Signal Bank 1 Sensor 1
C	0.5 GY/WH	3113	HO2S Heater Low Control Bank 1 Sensor 1
D	0.8 PK/BK	5293	Engine Main Relay Fused Control (4)

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LC3)

Connector Part Information

OEM: 15326423
Service: 88988140
Description: 4-Way M Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12045773/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LC3)

Pin	Wire	Circuit	Function
A	0.5 TN/WH	3121	HO2S Low Signal Bank 1 Sensor 2
B	0.5 PU	3120	HO2S High Signal Bank 1 Sensor 2
C	0.5 GY/WH	3122	HO2S Heater Low Control Bank 2 Sensor 1
D	0.8 PK/BK	5294	Engine Main Relay Fused Control (5)

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LH2 or LLT)

Connector Part Information

OEM: 12160825
Service: 15305801
Description: 4-Way M Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12045773/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LH2 or LLT)

Pin	Wire	Circuit	Function
A	0.5 TN/WH	3121	HO2S Low Signal Bank 1 Sensor 2
B	0.5 PU	3120	HO2S High Signal Bank 1 Sensor 2
C	0.5 GY/WH	3122	HO2S Heater Low Control Bank 1 Sensor 2
D	0.8 PK/BK	5294	Ignition Voltage

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LC3)

Connector Part Information

OEM: 12146046
Service: 15306365
Description: 5-Way F Metri-Pack 150 Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LC3)

Pin	Wire	Circuit	Function
A	0.5 TN/WH	3211	Heated Oxygen Sensor Low Signal Bank 2 Sensor
B	0.5 PU/WH	3210	Heated Oxygen Sensor High Signal Bank 2 Sensor
C	--	--	Not Available
D	0.8 PK/BK	5293	Engine Main Relay Fused Control
E	0.75 L-GN	3212	Heated Oxygen Sensor Heater Low Control Bank 2 Sensor

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LH2)

Connector Part Information

OEM: 12146047
Service: 12146047
Description: 5-Way F Metri-Pack 150 Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LH2)

Pin	Wire	Circuit	Function
A	0.5 TN/WH	3211	HO2S Low Signal Bank 2 Sensor 1
B	0.5 PU/WH	3210	HO2S High Signal Bank 2 Sensor 1
C	--	--	Not Available
D	0.8 PK/BK	5293	Engine Main Relay Fused Control
E	0.5 L-GN	3212	HO2S Heater Low Control Bank 2 Sensor 1

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LLT)

Connector Part Information

OEM: 12160482
Service: 88988598
Description: 4-Way F Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LLT)

Pin	Wire	Circuit	Function
A	0.5 TN/WH	3211	HO2S Low Reference (Bank 2 Sensor 1)
B	0.5 PU/WH	3210	Reference Voltage (Bank 2 Sensor 1)
C	0.5 GN	3212	HO2S Heater Low Control (Bank 2 Sensor 1)
D	0.5 PK/BK	5293	Engine Main Relay Fused Control

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (LC3 or LH2)

Connector Part Information

OEM: 15326423
Service: 88988140
Description: 4-Way M Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12045773/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.5 TN	3221	Heated Oxygen Sensor Low Signal Bank 2 Sensor 2
B	0.5 PU	3220	Heated Oxygen Sensor High Signal Bank 2 Sensor 2
C	0.5 OG/WH	3223	Heated Oxygen Sensor Heater Low Control Bank 2 Sensor 2
D	0.8 PK/BK	5294	Ignition Voltage

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (LLT)

Connector Part Information

OEM: 12176897
Service: 15305960
Description: 4-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (LLT)

Pin	Wire	Circuit	Function
A	0.5 TN	3221	HO2S Low Signal (Bank 2 Sensor 2)
B	0.5 PU	3220	HO2S High Signal (Bank 2 Sensor 2)
C	0.5 OG/WH	3223	HO2S Heater Low Control (Bank 2 Sensor 2)
D	0.8 PK/BK	5294	Engine Main Relay Fused Control

Heated Seat Control Module - Rear X1 (KA6)

Connector Part Information

OEM: 39-01-2120
Service: 88986453
Description: 12-Way F Mini Fit Molex (CL)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Control Module - Rear X1 (KA6)

Pin	Wire	Circuit	Function
1	0.8 D-BU	9170	Low Reference
2	0.8 PK	9177	Right Rear Heated Seat Temperature Sensor Low Reference
3	--	--	Not Used
4	0.8 L-BU	9171	Left Rear Heated Seat Temperature Sensor Signal
5	0.8 D-GN	9174	Left Rear Heated Seat Element Supply Voltage
6	0.35 GY	9173	Right Rear Heated Seat Element Supply Voltage
7-8	--	--	Not Used
9	0.8 OG	9176	Right Rear Heated Seat Temperature Sensor Signal
10	--	--	Not Used
11	0.8 L-GN	9175	Left Rear Heated Seat Element Control
12	0.8 BN	9172	Right Rear Heated Seat Element Control

Heated Seat Control Module - Rear X2 (KA6)

Connector Part Information

OEM: 12052856
Service: 12125636
Description: 4-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Control Module - Rear X2 (KA6)

Pin	Wire	Circuit	Function
A	1 BK	850	Ground
B	0.35 YE	182	Rear Heated Seat Switch Supply Voltage
C	1 BN	341	Ignition 3 Voltage
D	--	--	Not Used

Heated Seat Control Module - Rear X3 (KA6)

Connector Part Information

OEM: 39-01-2100
Service: Service by Harness - See Part Catalog
Description: 10-Way F Mini Fit Molex (CL)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Control Module - Rear X3 (KA6)

Pin	Wire	Circuit	Function
1-2	--	--	Not Used
3	0.35 TN/WH	6585	Left Rear Medium Temperature Indicator
4	0.35 BN	1634	Right Rear Heated Seat Switch Signal
5	0.35 BN/WH	1637	Left Rear Heated Seat Switch Signal
6	0.35 PK	1636	Right Rear Low Temperature Indicator
7	0.35 L-BU/WH	6586	Right Rear Medium Temperature Indicator
8	0.35 BK/WH	1635	Right Rear High Temperature Indicator
9	0.35 BK/WH	1638	Left Rear High Temperature Signal
10	0.35 PK	1631	Left Rear Low Temperature Indicator

Heated Seat Element - Driver Back (KA1)

Connector Part Information

OEM: 12059254
Service: 12126020
Description: 2-Way M Metri-Pack 150 Series (GN)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Element - Driver Back (KA1)

Pin	Wire	Circuit	Function
A	0.8 PK	2077	Driver Heated Seat Element Supply Voltage
B	3 BK	550	Ground

Heated Seat Element - Driver Cushion (KA1)

Connector Part Information

OEM: 12047786
Service: 12085536
Description: 4-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Element - Driver Cushion (KA1)

Pin	Wire	Circuit	Function
A	0.8 PK	2077	Driver Heated Seat Element Supply Voltage
B	3 BK	550	Ground
C	0.35 YE/BK	2079	Driver Heated Seat NTC Signal
D	0.35 YE	2080	Driver Heated Seat NTC Low Reference

Heated Seat Element - Left Rear Back (KA6)

Connector Part Information

OEM: 12047663
Service: 12085481
Description: 2-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Element - Left Rear Back (KA6)

Pin	Wire	Circuit	Function
A	0.8 D-GN	9174	Left Rear Heated Seat Supply Voltage
B	0.8 L-GN	9175	Left Rear Heated Seat Element Control

Heated Seat Element - Left Rear Cushion (KA6)

Connector Part Information

OEM: 12047786
Service: 12085536
Description: 4-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Element - Left Rear Cushion (KA6)

Pin	Wire	Circuit	Function
A	0.8 D-GN	9174	Left Rear Heated Seat Element Supply Voltage
B	0.8 L-GN	9175	Left Rear Heated Seat Element Control
C	0.8 L-BU	9171	Left Rear Heated Seat Temperature Sensor Signal
D	0.8 D-BU	9170	Left Rear Heated Seat Temperature Sensor Low Reference

Heated Seat Element - Passenger Back (KA1)

Connector Part Information

OEM: 12059254
Service: 12126020
Description: 2-Way M Metri-Pack 150 Series (GN)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Element - Passenger Back (KA1)

Pin	Wire	Circuit	Function
A	0.8 D-BU	2479	Passenger Heated Seat Element Supply Voltage
B	0.8 BK	650	Ground

Heated Seat Element - Passenger Cushion (KA1)

Connector Part Information

OEM: 12047786
Service: 12085536
Description: 4-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Element - Passenger Cushion (KA1)

Pin	Wire	Circuit	Function
A	0.8 D-BU	2479	Passenger Heated Seat Element Supply Voltage
B	0.8 BK	650	Ground
C	0.35 GY	2434	Passenger Heated Seat Cushion Temperature Sensor Signal
D	0.35 YE	2080	Driver Heated Seat Cushion Temperature Sensor Low Reference

Heated Seat Element - Right Rear Back (KA6)

Connector Part Information

OEM: 12048457
Service: 12085481
Description: 2-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Element - Right Rear Back (KA6)

Pin	Wire	Circuit	Function
A	0.8 GY	9173	Right Rear Heated Seat Element Supply Voltage
B	0.8 BN	9172	Right Rear Heated Seat Element Control

Heated Seat Element - Right Rear Cushion (KA6)

Connector Part Information

OEM: 12047786
Service: 12085536
Description: 4-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Seat Element - Right Rear Cushion (KA6)

Pin	Wire	Circuit	Function
A	0.35 GY	9173	Right Rear Heated Seat Element Supply Voltage
B	0.8 BN	9172	Right Rear Heated Seat Element Control
C	0.8 OG	9176	Right Rear Heated Seat Temperature Sensor Signal
D	0.8 PK	9177	Right Rear Heated Seat Temperature Sensor Low Reference

Heated Steering Wheel Control Module X1 (NR7 or N31)

Connector Part Information

OEM: 12089248
Service: Service by Harness - See Part Catalog
Description: 4-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Heated Steering Wheel Control Module X1 (NR7 or N31)

Pin	Wire	Circuit	Function
A	0.35 YE	--	Steering Wheel Heating Element Supply Voltage
B	0.35 YE	--	Heated Steering Wheel Temperature Sensor Signal
C	0.35 RD/BK	--	Ground
D	0.35 RD/BK	--	Ground

Heated Steering Wheel Control Module X2 (NR7 or N31)

Connector Part Information

OEM: 50-57-9403
Service: Service by Harness - See Part Catalog
Description: 2-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047581/2
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Heated Steering Wheel Control Module X2 (NR7 or N31)

Pin	Wire	Circuit	Function
A	0.35 OG	--	Indicator Control
B	0.35 YE	--	Heated Steering Wheel Switch Supply Voltage

Heated Steering Wheel Control Module X3 (NR7 or N31)

Connector Part Information

OEM: 12047662
Service: Service by Harness - See Part Catalog
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Steering Wheel Control Module X3 (NR7 or N31)

Pin	Wire	Circuit	Function
A	0.8 RD	--	Ignition 3 Voltage
B	0.8 BK	--	Ground

Heated Washer Nozzle - Left (XA7)

Connector Part Information

OEM: 12047663
Service: 12085481
Description: 2-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12045773/2
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Heated Washer Nozzle - Left (XA7)

Pin	Wire	Circuit	Function
A	0.35 PK	1439	Run/Crank Ignition 1 Voltage
B	0.35 BK	150	Ground

Heated Washer Nozzle - Right (XA7)

Connector Part Information

OEM: 12047663
Service: 12085481
Description: 2-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12045773/2
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Heated Washer Nozzle - Right (XA7)

Pin	Wire	Circuit	Function
A	0.35 PK	1439	Run/Crank Ignition 1 Voltage
B	0.35 BK	150	Ground

High Pressure Fuel Pump (LLT)

Connector Part Information

OEM: 1928403874
Service: 88988963
Description: 2-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

High Pressure Fuel Pump (LLT)

Pin	Wire	Circuit	Function
1	0.35 PU	7300	Low Reference
2	0.35 YE	7301	High Pressure Fuel Pump Actuator Solenoid Control

Hood Ajar Switch

Connector Part Information

OEM: 15326808
Service: 15306388
Description: 3-Way F GT 150 Series Sealed 4.5 (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Hood Ajar Switch

Pin	Wire	Circuit	Function
A	0.35 YE	5530	Hood Open Switch Signal
B	0.35 PU	5531	Hood Closed Switch Signal
C	0.35 BK	250	Ground

Horn Assembly

Connector Part Information

OEM: 15497399
Service: 88988313
Description: 2-Way F Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Horn Assembly

Pin	Wire	Circuit	Function
A	0.8 BK	250	Ground
B	0.8 D-GN	29	Horn Control

Horn Switch X1

Terminal Part Information

Terminal: SDM-21T-197
Core/Insulation Crimp: N/A
Description: 1-Way M Tab-On-Tab Faston Terminal (BARE)

Horn Switch X1

Pin	Wire	Circuit	Function
+	0.5 TN	--	Horn Relay Control

Horn Switch X2

Terminal Part Information

Terminal: SPS-251T-1987-8
Core/Insulation Crimp: N/A
Description: 1-Way F 0.8 mm Faston Terminal (BARE)

Horn Switch X2

Pin	Wire	Circuit	Function
-	0.5 BK	--	Ground

HVAC Control Module X1

Connector Part Information

OEM: 7283-4544-30
Service: 89047360
Description: 18-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

HVAC Control Module X1

Pin	Wire	Circuit	Function
1	0.35 GY	705	5-Volt Reference
2-3	--	--	Not Used
4	0.35 D-GN	5060	Low Speed GMLAN Serial Data
5	--	--	Not Used
6	0.35 BN	247	Medium Blower Motor Control
7-8	--	--	Not Used
9	0.35 RD/WH	340	Battery Positive Voltage
10	0.35 YE	61	Low Reference
11	0.35 BK/WH	451	Ground
12-15	--	--	Not Used
16	0.5 GY/BK	754	Blower Motor Speed Control
17	--	--	Not Used
18	0.35 PK	1539	Run/Crank Ignition 1 Voltage

HVAC Control Module X2

Connector Part Information

OEM: 7283-9081
Service: 89047359
Description: 16-Way F (NA)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

HVAC Control Module X2

Pin	Wire	Circuit	Function
1	0.35 L-BU	733	Passenger Air Temperature Door Position Signal
2	0.35 L-GN	5518	Auxiliary Air Temperature Door Position Signal
3	0.35 GY	2599	Auxiliary Mode Door Position Signal
4	0.35 PU	73	Medium 3 Blower Motor Control
5	0.35 WH	278	Ambient Light Sensor Signal
6	0.35 GY	1548	Passenger Sunload Sensor Signal
7	0.35 D-GN	734	Inside Air Temperature Sensor Signal
8	0.35 PU/WH	5203	Air Quality HC Sensor Signal
9	0.35 D-BU	1646	Passenger Air Temperature Door Position Signal
10	0.35 YE/BK	1814	Driver Air Temperature Door Position Signal
11	0.35 BN	41	Ignition 3 Voltage
12	0.35 L-BU	72	Medium 2 Blower Motor Control
13	0.35 L-BU/BK	590	Driver Sunload Sensor Signal
14	0.35 GY	731	A/C Refrigerant Low Temperature Sensor Signal
15	0.35 L-GN/BK	735	Ambient Air Temperature Sensor Signal
16	0.35 L-GN/WH	6845	Air Quality NOX Sensor Signal

HVAC Control Module X3

Connector Part Information

OEM: 7283-4548-60
Service: 89047361
Description: 18-Way F (GN)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

HVAC Control Module X3

Pin	Wire	Circuit	Function
1-2	--	--	Not Used
3	0.35 PU	1838	Recirculation Door Position Signal
4	0.35 YE	1318	Mode Door Control
5	0.35 GY/BK	2778	Right Air Temperature Door Control A
6	0.35 YE	1791	Low Reference
7	0.35 L-GN/WH	5729	Rear Mode Door Control A
8	0.35 L-BU	5517	Low Reference
9	--	--	Not Used
10	0.35 YE	6817	LED Backlight Dimming Control
11	--	--	Not Used
12	0.35 L-GN	1614	Recirculation Door Control
13	0.35 TN	2273	Mode Door Control
14	0.35 WH/BK	1236	Auxiliary Air Temperature Door Control
15	0.35 D-BU	1199	Air Temperature Door Control
16	0.35 L-GN/BK	5730	Rear Mode Motor Low Reference
17	0.35 BN	5516	Inside Air Temperature Sensor Assembly Control
18	--	--	Not Used

HVAC Control Module - Auxiliary (KA6)

Connector Part Information

OEM: 12084944
Service: 12084944
Description: 16-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Terminal/Tray: 12146447/3
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)

HVAC Control Module - Auxiliary (KA6)

Pin	Wire	Circuit	Function
A1	0.35 YE	1491	Backlight Lamp Control
A2	0.35 PK	1636	Right Rear Heated Seat Low Indicator Control
A3	0.35 D-BU/WH	6586	Right Rear Heated Seat Medium Indicator Control
A4	0.35 TN/WH	1635	Right Rear Heated Seat High Indicator Control
A5	0.35 YE	182	Heated Seat Control Module Enable Signal
A6	0.35 BN	1637	Left Rear Heated Seat Switch Signal
A7	0.35 L-BU	72	Rear Temperature Switch Signal
A8	0.35 YE	61	Low Reference
B1	0.35 BK	450	Ground
B2	0.35 TN/WH	1638	Left Rear Heated Seat High Indicator Control
B3	0.35 BN/WH	6585	Left Rear Heated Seat Medium Indicator Control
B4	0.35 PK	1631	Left Rear Heated Seat Low Indicator Control
B5	0.35 BN	1634	Right Rear Heated Seat Switch Signal
B6	0.35 PU	73	Rear Mode Switch Signal
B7	0.35 GY	705	5-Volt Reference
B8	--	--	Not Used

Ignition Coil 1 (LLT)

Connector Part Information

OEM: 1928403441
Service: 88988582
Description: 4-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ignition Coil 1 (LLT)

Pin	Wire	Circuit	Function
1	0.8 PU	2121	Electronic Spark Timing Signal Cylinder 1
2	0.8 PK/BK	5291	Engine Main Relay Fused Control (2)
3	1 BK/WH	1551	Ground - Clean
4	1 BK	1550	Ground

Ignition Coil 2 (LLT)

Connector Part Information

OEM: 1928403441
Service: 88988582
Description: 4-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ignition Coil 2 (LLT)

Pin	Wire	Circuit	Function
1	0.8 OG/WH	2122	IC 2 Control
2	0.8 PK/BK	5292	Engine Main Relay Fused Control (3)
3	1 BK/WH	151	Ground - Clean
4	1 BK	150	Ground

Ignition Coil 3 (LLT)

Connector Part Information

OEM: 1928403441
Service: 88988582
Description: 4-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ignition Coil 3 (LLT)

Pin	Wire	Circuit	Function
1	0.8 L-BU	2123	Electronic Spark Timing Signal Cylinder 3
2	0.8 PK/BK	5291	Engine Main Relay Fused Control (2)
3	1 BK/WH	1551	Ground - Clean
4	1 BK	1550	Ground

Ignition Coil 4 (LLT)

Connector Part Information

OEM: 1928403441
Service: 88988582
Description: 4-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ignition Coil 4 (LLT)

Pin	Wire	Circuit	Function
1	0.8 D-GN/WH	2124	Electronic Spark Timing Signal Cylinder 4
2	0.8 PK/BK	5292	Engine Main Relay Fused Control (3)
3	1 BK/WH	151	Ground - Clean
4	1 BK	150	Ground

Ignition Coil 5 (LLT)

Connector Part Information

OEM: 1928403441
Service: 88988582
Description: 4-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ignition Coil 5 (LLT)

Pin	Wire	Circuit	Function
1	0.8 D-GN	2125	Electronic Spark Timing Signal Cylinder 5
2	0.8 PK/BK	5291	Engine Main Relay Fused Control (2)
3	1 BK/WH	1551	Ground - Clean
4	1 BK	1550	Ground

Ignition Coil 6 (LLT)

Connector Part Information

OEM: 1928403441
Service: 88988582
Description: 4-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ignition Coil 6 (LLT)

Pin	Wire	Circuit	Function
1	0.8 L-BU/WH	2126	Electronic Spark timing Signal Cylinder 6
2	0.8 PK/BK	5292	Engine Main Relay Fused Control (3)
3	1 BK/WH	151	Ground - Clean
4	1 BK	150	Ground

Ignition Coil 1 (LC3 or LH2)

Connector Part Information

OEM: 7283-7449-30
Service: Service by Harness - See Part Catalog
Description: 4-Way F.090 Class II Sealed Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ignition Coil 1 (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.8 PK	5291	Ignition 1 Voltage
B	0.8 PK	2121	IC 1 Control
C	0.8 TN	2129	Low Reference
D	0.8 BK	1451	Ground

Ignition Coil 2 (LC3 or LH2)

Connector Part Information

OEM: 7283-7449-30
Service: Service by Harness - See Part Catalog
Description: 4-Way F.090 Class II Sealed Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ignition Coil 2 (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.8 PK	5292	Ignition 1 Voltage
B	0.8 PU	2122	IC 2 Control
C	0.8 TN	2130	Low Reference
D	0.8 BK	1451	Ground

Ignition Coil 3 (LC3 or LH2)

Connector Part Information

OEM: 7283-7449-30
Service: Service by Harness - See Part Catalog
Description: 4-Way F.090 Class II Sealed Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ignition Coil 3 (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.8 PK	5291	Ignition 1 Voltage
B	0.8 L-GN	2123	IC 3 Control
C	0.8 TN	2129	Low Reference
D	0.8 BK	1451	Ground

Ignition Coil 4 (LC3 or LH2)

Connector Part Information

OEM: 7283-7449-30
Service: Service by Harness - See Part Catalog
Description: 4-Way F.090 Class II Sealed Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ignition Coil 4 (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.8 PK	5292	Ignition 1 Voltage
B	0.8 PU	2124	IC 4 Control
C	0.8 TN	2130	Low Reference
D	0.8 BK	1451	Ground

Ignition Coil 5 (LC3 or LH2)

Connector Part Information

OEM: 7283-7449-30
Service: Service by Harness - See Part Catalog
Description: 4-Way F.090 Class II Sealed Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ignition Coil 5 (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.8 PK	5291	Ignition 1 Voltage
B	0.8 L-BU	2125	IC 5 Control
C	0.8 TN	2129	Low Reference
D	0.8 BK	1451	Ground

Ignition Coil 6 (LC3 or LH2)

Connector Part Information

OEM: 7283-7449-30
Service: Service by Harness - See Part Catalog
Description: 4-Way F.090 Class II Sealed Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ignition Coil 6 (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.8 PK	5292	Ignition 1 Voltage
B	0.8 L-GN	2126	IC 6 Control
C	0.8 TN	2130	Low Reference
D	0.8 BK	1451	Ground

Ignition Coil 7 (LC3 or LH2)

Connector Part Information

OEM: 7283-7449-30
Service: Service by Harness - See Part Catalog
Description: 4-Way F.090 Class II Sealed Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ignition Coil 7 (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.8 PK	5291	Ignition 1 Voltage
B	0.8 PU	2127	IC 7 Control
C	0.8 TN	2129	Low Reference
D	0.8 BK	1451	Ground

Ignition Coil 8 (LC3 or LH2)

Connector Part Information

OEM: 7283-7449-30
Service: Service by Harness - See Part Catalog
Description: 4-Way F.090 Class II Sealed Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ignition Coil 8 (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.8 PK	5292	Ignition 1 Voltage
B	0.8 PK	2128	IC 8 Control
C	0.8 TN	2130	Low Reference
D	0.8 BK	1451	Ground

Ignition Mode Switch

Connector Part Information

OEM: 12064769
Service: 12101762
Description: 10-Way F Metri-Pack 150 Series (NA)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Ignition Mode Switch

Pin	Wire	Circuit	Function
A	0.35 L-BU/WH	5725	Ignition Mode Switch Mode Voltage Backup
B	0.35 D-BU	5719	Ignition Mode Switch Start LED Signal
C	0.35 YE	1491	Backlight Lamp Control
D	0.35 BK/WH	451	Ground
E	0.35 L-GN/WH	5723	Ignition Mode Switch Mode Voltage
F	0.35 L-GN	5724	Ignition Mode Switch Mode Control
G	0.35 PK	5722	Ignition Mode Switch LED Supply Voltage
H	0.35 OG	5721	Ignition Mode Switch Off LED Signal
J	0.35 L-GN	5720	Ignition Mode Switch Accessory LED Signal
K	0.35 L-BU	5726	Ignition Mode Switch Mode Control Backup

Inflatable Restraint Front End Sensor - Left

Connector Part Information

OEM: 15356722
Service: 15306405
Description: 2-Way F GT 150 Series Sealed 4.0 (YE)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Inflatable Restraint Front End Sensor - Left

Pin	Wire	Circuit	Function
A	0.8 TN/OG	5045	Left Front Discriminating Sensor Low Reference
B	0.5 YE	1834	SIR Forward Sensor Signal

Inflatable Restraint Front End Sensor - Right

Connector Part Information

OEM: 15356722
Service: 15306405
Description: 2-Way F GT 150 Series Sealed 4.0 (YE)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Inflatable Restraint Front End Sensor - Right

Pin	Wire	Circuit	Function
A	0.5 D-GN	1409	Right Front Discriminating Sensor Signal
B	0.5 GY	5600	Right Front Discriminating Sensor Low Reference

Inflatable Restraint I/P Module X1

Connector Part Information

OEM: 15359118
Service: Service by Harness - See Part Catalog
Description: 2-Way F Micro-Pack 100 Series (GY) With (YE) Case

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint I/P Module X1

Pin	Wire	Circuit	Function
A	0.5 WH/BK	1403	I/P Module - High Control
B	0.5 D-GN/WH	1404	I/P Module - Low Control

Inflatable Restraint I/P Module X2

Connector Part Information

OEM: 15359119
Service: Service by Harness - See Part Catalog
Description: 2-Way F Micro-Pack 100 Series (PU) With (YE) Case

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint I/P Module X2

Pin	Wire	Circuit	Function
A	0.5 GY	3027	I/P Module - Stage 2 - High Control
B	0.5 PU	3026	I/P Module - Stage 2 - Low Control

Inflatable Restraint I/P Module Indicator

Connector Part Information

OEM: HCMPB-05-S
Service: 88953369
Description: 5-Way F HCM Series (NA)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Inflatable Restraint I/P Module Indicator

Pin	Wire	Circuit	Function
1	0.5 D-BU	2307	Passenger Air Bag On Indicator Control
2	0.5 BK/WH	851	Ground
3	0.5 D-GN	2308	Passenger Air Bag Off Indicator Control
4	0.5 PK	1139	Ignition 1 Voltage
5	0.5 PU	5234	Passenger Seat Belt Indicator

Inflatable Restraint Passenger Presence System (PPS) Module

Connector Part Information

OEM: 15332142
Service: 89046638
Description: 6-Way M GT 150 (BK)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Passenger Presence System (PPS) Module

Pin	Wire	Circuit	Function
A	0.5 YE	1139	Ignition 1 Voltage
B	0.35 PK	5018	Occupant Sensor - Serial Data
C	0.5 D-BU	2307	Passenger Air Bag On Indicator Control
D	0.5 BK/WH	1751	Ground
E	0.5 D-GN	2308	Passenger Air Bag Off Indicator Control
F	--	--	Not Used

Inflatable Restraint Roof Rail Module - Left

Connector Part Information

OEM: 252912053
Service: 88988280
Description: 2-Way F (YE/PU)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Roof Rail Module - Left

Pin	Wire	Circuit	Function
1	0.5 PU/WH	5019	Left Front Head Curtain Module High Control
2	0.5 PK	5020	Left Front Head Curtain Module Low Control

Inflatable Restraint Roof Rail Module - Right

Connector Part Information

OEM: 252912052
Service: 88988279
Description: 2-Way F (YE/PU)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Roof Rail Module - Right

Pin	Wire	Circuit	Function
1	0.5 YE/BK	5021	Right Front Head Curtain Module High Control
2	0.5 WH/BK	5022	Right Front Head Curtain Module Low Control

Inflatable Restraint Sensing and Diagnostic Module (SDM)

Connector Part Information

OEM: 2-638595-9
Service: 19153176
Description: 60-Way F Sealed 0.64 Series (YE/BU)

Terminal Part Information

Terminal/Tray: Service with Terminated Lead
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Sensing and Diagnostic Module (SDM)

Pin	Wire	Circuit	Function
1	0.35 RD/WH	940	Battery Positive Voltage
2	0.35 D-GN	5060	Low Speed GMLAN Serial Data
3	0.5 PK	5017	Driver Seat Belt Switch Low Reference
4	0.5 TN/WH	238	Driver Seat Belt Switch Signal
5	--	--	Not Used
6	0.5 TN/WH	238	Passenger Seat Belt Switch Signal
7	--	--	Not Used
8	0.5 PK	5020	Left Front Head Curtain Module Low Control
9	0.5 PU/WH	5019	Left Front Head Curtain Module High Control
10	0.5 YE/BK	5021	Right Front Head Curtain Module High Control
11	0.5 WH/BK	5022	Right Front Head Curtain Module Low Control
12	0.5 PU	3026	Passenger I/P Module Stage 2 Low Control
13	0.5 GY	3027	Passenger I/P Module Stage 2 High Control
14	0.5 TN	3021	Steering Wheel Module Stage 1 High Control
15	0.5 BN	3020	Steering Wheel Module Stage 1 Low Control
16	0.5 PK	3022	Steering Wheel Module Stage 2 Low Control
17	0.5 WH	3023	Steering Wheel Module Stage 2 High Control
18	0.5 WH/BK	1403	Passenger I/P Module High Control
19	0.5 D-GN/WH	1404	Passenger I/P Module Low Control
20	0.5 GY	2103	Right Side Impact Module High Control (LHD)
20	0.5 D-BU	2104	Right Side Impact Module Low Control (RHD)
21	0.5 D-BU	2104	Right Side Impact Module Low Control (LHD)
21	0.5 GY	2103	Right Side Impact Module High Control (RHD)
22	0.5 D-GN	2105	Left Side Impact Module High Control
23	0.5 BN	2106	Left Side Impact Module Low Control
24-30	--	--	Not Used
31	0.5 BK/WH	1751	Ground
32	0.35 D-GN	5060	Low Speed GMLAN Serial Data
33	0.35 PK	1139	Ignition 1 Voltage
34-35	--	--	Not Used
36	0.5 D-GN	1409	Right Front Discriminating Sensor Signal
37	0.5 GY	5600	Right Front Discriminating Sensor Low Reference
38	0.5 YE	1834	SIR Forward Sensor Signal
39	0.8 TN/OG	5045	Left Front Discriminating Sensor Low Reference
40-45	--	--	Not Used
46	0.35 YE	2131	Left Front Side Impact Sensing Module Supply Voltage
47	0.5 WH	2132	Left Front Side Impact Sensing Module Signal
48	0.5 D-GN	2134	Right Front Side Impact Sensing Module Signal
49	0.5 TN	2133	Right Front Side Impact Sensing Module Supply Voltage
50-51	--	--	Not Used
52	0.5 L-GN	2116	Passenger Seat Belt Pretensioner High Control
53	0.35 OG	2117	Passenger Seat Belt Pretensioner Low Control
54-55	--	--	Not Used
56	0.5 TN/WH	2118	Driver Seat Belt Pretensioner High Control
57	0.5 OG/BK	2119	Driver Seat Belt Pretensioner Low Control
58-59	--	--	Not Used
60	0.35 PK	5018	Occupant Sensor - Serial Data

Inflatable Restraint Side Impact Module - Left

Connector Part Information

OEM: CA-252-92-5-Q
Service: Service by Assembly - See Part Catalog
Description: 2-Way F (PU) With (YE) Case

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Side Impact Module - Left

Pin	Wire	Circuit	Function
1	0.35 WH	2137	Left Impact Module - Left Front - High Control
2	0.35 D-GN	2138	Side Impact Module - Left Front - Low Control

Inflatable Restraint Side Impact Module - Right

Connector Part Information

OEM: CA-252-92-5-Q
Service: Service by Assembly - See Part Catalog
Description: 2-Way F (PU) With (YE) Case

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Side Impact Module - Right

Pin	Wire	Circuit	Function
1	0.35 WH	2135	Side Impact Module - Right Front - High Control
2	0.35 D-GN	2136	Side Impact Module - Right Front - Low Control

Inflatable Restraint Side Impact Sensor (SIS) - Left

Connector Part Information

OEM: 15356724
Service: 15306418
Description: 2-Way F GT 150 Series (YE)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Inflatable Restraint Side Impact Sensor (SIS) - Left

Pin	Wire	Circuit	Function
A	0.35 WH	2132	Left Front Side Impact Sensing Module Signal
B	0.35 YE	2131	Left Front Side Impact Sensing Module Supply Voltage

Inflatable Restraint Side Impact Sensor (SIS) - Right

Connector Part Information

OEM: 15356724
Service: 15306418
Description: 2-Way F GT 150 Series (YE)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Inflatable Restraint Side Impact Sensor (SIS) - Right

Pin	Wire	Circuit	Function
A	0.5 D-GN	2134	Right Front Side Impact Sensing Module Signal
B	0.5 TN	2133	Right Front Side Impact Sensing Module Supply Voltage

Inflatable Restraint Steering Wheel Module X1

Connector Part Information

OEM: 54560236
Service: Service by Assembly - See Part Catalog
Description: 2-Way F FFB90-4 Type B (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Steering Wheel Module X1

Pin	Wire	Circuit	Function
1	0.5 TN	3021	Steering Wheel Module - Stage 1 - High Control
2	0.5 BN	3020	Steering Wheel Module - Stage 1 - Low Control

Inflatable Restraint Steering Wheel Module X2

Connector Part Information

OEM: 54560222
Service: Service by Assembly - See Part Catalog
Description: 2-Way F FFB90-4 Type G (PU)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Steering Wheel Module X2

Pin	Wire	Circuit	Function
1	0.5 WH	3023	Steering Wheel Module - Stage 2 - High Control
2	0.5 PK	3022	Steering Wheel Module - Stage 2 - Low Control

Inside Rearview Mirror (ISRVM)

Connector Part Information

OEM: 917981-2
Service: 15306351
Description: 16-Way F Housing/(0.040/0.070 HYBRID I/O) (BK)

Terminal Part Information

Pins: 1-16
Terminal/Tray: 175266-5/15
Core/Insulation Crimp: Pins 1, 3-8, 10-16 - J/J
Core/Insulation Crimp: Pins 2, 9 - K/K
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Inside Rearview Mirror (ISRVM)

Pin	Wire	Circuit	Function
1	0.35 L-GN	6857	Headlamp Automatic High Beam Dim Status (TQ5)
2	0.35 BARE	1782	Drain Wire
3	0.35 TN/WH	1969	Headlamp High Beam Relay Control (TQ5)
4	0.35 D-BU	6856	Headlamp Automatic High Beam Dim Enable (TQ5)
5	0.35 GY	1690	Automatic Day/Night Mirror Signal
6	0.35 BN	818	Vehicle Speed Signal (TQ5)
7	0.35 PU	6858	Headlamp Automatic High Beam Dim Supply Voltage (TQ5)
8	1 BK/WH	851	Ground (TQ5)
9	0.35 L-GN	24	Backup Lamp Supply Voltage
10	0.35 GY	655	Cellular Telephone Microphone Signal
11	0.35 D-GN/WH	2514	Keypad Signal (UE1)
12	0.35 L-GN/BK	2515	Keypad Supply Voltage (UE1)
13	0.35 PK	1339	Run/Crank Ignition 1 Voltage
14	0.35 YE/BK	2516	Keypad Green LED (UE1)
15	0.35 BN/WH	2517	Keypad Red LED (UE1)
16	0.35 PK	1691	Automatic Day/Night Mirror Low Reference

Instrument Panel Cluster (IPC)

Connector Part Information

OEM: 1326042-1
Service: 88987996
Description: 26-Way F 90 Series AMP (BK)

Terminal Part Information

Pins: 1-3, 5, 8-9, 12-13, 20-21
Terminal/Tray: 638551-1/16
Core/Insulation Crimp: Pins 1, 3, 5, 8-9, 12-13, 20 - J/J
Core/Insulation Crimp: Pins 2, 21 - K/K
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)

Instrument Panel Cluster (IPC)

Pin	Wire	Circuit	Function
1	0.35 RD/WH	1440	Battery Positive Voltage
2	0.35 PK	239	Run/Crank Ignition 1 Voltage
3	0.35 D-GN	5060	Low Speed GMLAN Serial Data
4	--	--	Not Used
5	0.35 BK/WH	351	Ground
6-7	--	--	Not Used
8	0.35 PU	333	Brake Fluid Level Sensor Signal
9	0.35 BN/WH	419	Check Engine Indicator Control
10-11	--	--	Not Used
12	0.35 D-GN/WH	1358	Driver Information Center Switch Signal
13	0.35 BN	897	Driver Information Center Switch Low Reference
14-19	--	--	Not Used
20	0.35 D-BU	894	Driver Information Center Toggle Switch Signal
21	0.5 PU	5234	Passenger Seat Belt Indicator Control
22-26	--	--	Not Used

Instrument Panel Module (IPM) X1

Connector Part Information

OEM: 1318757-1
Service: 88988290
Description: 26-Way M 90 Series (WH)

Terminal Part Information

Pins: 1-2, 5-6
Terminal/Tray: 7116-4020/11
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Pin: 3
Terminal/Tray: 7116-4021/11
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Pins: 8-17, 19-23, 25-26
Terminal/Tray: 1123343-2/7
Core/Insulation Crimp: J/J
Release Tool/Test Probe: J-38125-24/J-35616-64B (L-BU)

Instrument Panel Module (IPM) X1

Pin	Wire	Circuit	Function
1	0.35 YE	32	Instrument Panel Lamp Fuse Supply Voltage (1)
2	0.35 YE	1491	Backlight Lamp Control
3	0.35 YE	6817	LED Backlight Dimming Control
3	0.35 YE	6817	LED Backlight Dimming Control
4	--	--	Not Used
5	0.5 WH	17	Stop Lamp Switch Signal
6	0.35 PK	3	Run/Crank Ignition 1 Voltage
7	--	--	Not Used
8	0.35 YE/BK	5728	ECM/TCM Serial Data Wake Up
9	0.35 YE	5727	High Speed GMLAN Serial Data Wake Up
10	0.35 PK	5722	Ignition Mode Switch LED Supply Voltage
11	0.35 D-GN	5525	Tap Up/Tap Down Enable Signal
12	0.35 WH	111	Hazard Switch Signal
13	0.35 BN	1356	Flash To Pass Switch Signal
14	0.35 BN/WH	301	Park Lamp Switch On Signal
15	0.35 L-GN	5724	Ignition Mode Switch Mode Control
16	0.35 D-BU	5719	Ignition Mode Switch Start LED Signal
17	0.35 L-GN	5720	Ignition Mode Switch Accessory LED Signal
18	--	--	Not Used
19	0.35 L-GN	6857	Headlamp Automatic High Beam Dim Status (TQ5)
20	0.35 L-BU	1134	Park Brake Switch Signal
21	0.35 PK/BK	1597	Interior Lamp Switch On Signal
22	0.35 PU	1783	Twilight Sentinel Delay Signal
23	0.35 WH	103	Headlamp Switch On Signal
24	--	--	Not Used
25	0.35 PU	1375	Remote Radio Control Head Accessory Supply Voltage
26	0.35 OG	5721	Ignition Mode Switch Off LED Signal

Instrument Panel Module (IPM) X2

Connector Part Information

OEM: 1318756-1
Service: 88988289
Description: 24-Way M TYCO (WH)

Terminal Part Information

Pins: 1-2, 5-6
Terminal/Tray: 7116-4020/11
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Pins: 3-4, 7, 9-16, 19-24
Terminal/Tray: 1123343-2/7
Core/Insulation Crimp: J/J
Release Tool/Test Probe: J-38125-24/J-35616-64B (L-BU)

Instrument Panel Module (IPM) X2

Pin	Wire	Circuit	Function
1	0.35 BN	4	Accessory Voltage
2	0.35 D-GN/YE	6847	Shift Select Switch Park Supply Voltage
3	0.35 D-GN/WH	1317	Fog Lamp Relay Control
4	0.35 TN/WH	1969	Headlamp High Beam Relay Control
5	0.35 WH	1080	Park Lamp Relay Control
6	0.35 PK/WH	1970	Headlamp Low Beam Relay Control
7	0.35 OG	300	Run Ignition 3 Voltage
8	--	--	Not Used
9	0.35 TN	28	Horn Relay Control
10	0.35 TN	28	Horn Relay Control
11	0.35 GY	478	Windshield Wiper Switch Signal (2)
12	0.35 BN	253	Trunk Release Relay Control
13	0.35 GY	2096	Steering Column Tilt and Telescope Up Switch Signal
14	0.35 YE	2097	Steering Column Tilt and Telescope Down Switch Signal
15	0.35 D-BU	6856	Headlamp Automatic High Beam Dim Enable (TQ5)
16	0.35 BK	5741	Steering Column Lock Module Lock Enable Relay Control (UA2)
17-18	--	--	Not Used
19	0.35 BN	1932	Shift Select Switch Park Signal
20	0.35 WH	1538	Headlamp On With Wipers Signal
21	0.35 PK	2094	Steering Column Tilt and Telescope Forward Switch Signal
22	0.35 OG	2095	Steering Column Tilt and Telescope Rearward Switch Signal
23	--	--	Not Used
24	0.35 WH	2282	Headlamp Washer Relay Control (TT6 or TT7 or TT8)

Instrument Panel Module (IPM) X3

Connector Part Information

OEM: 1318758-1
Service: 88988291
Description: 30-Way M AMP Hybrid (WH)

Terminal Part Information

Pins: 1, 10
Terminal/Tray: 7116-4020/11
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Pins: 2-9, 11-22, 24-29
Terminal/Tray: 1123343-2/7
Core/Insulation Crimp: J/J
Release Tool/Test Probe: J-38125-24/J-35616-64B (L-BU)

Instrument Panel Module (IPM) X3

Pin	Wire	Circuit	Function
1	0.35 RD/WH	1140	Battery Positive Voltage
2	0.35 RD/WH	3340	Battery Positive Voltage
3	0.35 BK/WH	151	Signal Ground
4	0.35 TN	2501	High Speed GMLAN Serial Data (-) (1)
5	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+) (1)
6	0.35 D-GN	44	Instrument Panel Lamp Dimmer Switch Signal
7	0.35 PK	5076	Current Sensor Supply Voltage
8	0.35 WH	5075	Current Sensor Signal
9	0.35 BN	5077	Current Sensor Low Reference
10	0.35 BK/WH	451	Signal Ground
11	0.35 L-BU	187	Rear Fog Lamp Switch Signal (TT7 or TT8)
12	0.35 OG	192	Front Fog Lamp Switch Signal
13	0.35 L-BU/WH	1414	Left Front Turn Signal Switch Signal
14	0.35 TN/WH	99	Windshield Washer Fluid Level Sensor Signal
15	0.35 TN	2501	High Speed GMLAN Serial Data (-) (1)
16	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+) (1)
17	0.35 BN	5360	Brake Apply Sensor Low Reference
18	0.35 D-BU	1796	Steering Column Radio Control Signal
19	0.35 L-BU/BK	1688	5-Volt Reference
20	0.35 GY	1884	Cruise Control Set/Coast/Resume/Accelerate Switch Signal
21	0.35 D-GN	5060	Low Speed GMLAN Serial Data
22	0.35 D-GN	5060	Low Speed GMLAN Serial Data
23	--	--	Not Used
24	0.35 L-BU	1485	Flash To Pass Switch Supply Voltage
25	0.35 D-BU/WH	1415	Right Front Turn Signal Switch Signal
26	0.35 BN/WH	1571	Traction Control Switch Signal (2)
27	0.35 WH	5359	Brake Apply Sensor Supply Voltage
28	0.35 YE	5361	Brake Apply Sensor Signal
29	0.35 L-GN/WH	5723	Ignition Mode Switch Mode Voltage
30	--	--	Not Used

Intake Air Temperature (IAT) Sensor 2 (LC3)

Connector Part Information

OEM: 12162197
Service: 12102620
Description: 2-Way F Metri-Pack 150 Sealed (L-GY)

Terminal Part Information

Terminal/Tray: 12124075/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12180559-1/J-35616-2A (GY)

Intake Air Temperature (IAT) Sensor 2 (LC3)

Pin	Wire	Circuit	Function
A	0.35 L-BU	6118	IAT2 Signal
B	0.35 YE/BK	6120	IAT2 Low Reference

Intrusion Sensor (UA2)

Connector Part Information

OEM: 15326747
Service: 15306385
Description: 3-Way F Micro-Pack 64 Series (BK)

Terminal Part Information

Terminal/Tray: 12177007/19
Core/Insulation Crimp: E/2
Release Tool/Test Probe: 12180559-1/J-35616-64B (L-BU)

Intrusion Sensor (UA2)

Pin	Wire	Circuit	Function
A	0.35 RD/WH	3940	Battery Positive Voltage
B	0.35 PU	5059	Intrusion Sensor Alarm on Signal
C	0.35 YE	5058	Intrusion Sensor Armed Signal

I/P Compartment Lamp

Connector Part Information

OEM: 12059247
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (GY)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

I/P Compartment Lamp

Pin	Wire	Circuit	Function
A	0.35 PU	175	Glove Box Lamp Control
B	0.35 D-BU/WH	149	Courtesy Lamp Supply Voltage

I/P Compartment Lamp Switch

Connector Part Information

OEM: 12015197
Service: 12102626
Description: 2-Way F Metri-Pack 280 Series (BU)

Terminal Part Information

Terminal/Tray: 12034046/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

I/P Compartment Lamp Switch

Pin	Wire	Circuit	Function
A	0.35 BK/WH	451	Ground
B	0.35 PU	175	Glove Box Lamp Control

I/P Courtesy Lamp - Left

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

I/P Courtesy Lamp - Left

Pin	Wire	Circuit	Function
A	0.35 D-BU/WH	149	Courtesy Lamp Supply Voltage
B	0.35 GY	157	Interior Lamp Control

I/P Courtesy Lamp - Right

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

I/P Courtesy Lamp - Right

Pin	Wire	Circuit	Function
A	0.35 D-BU/WH	149	Courtesy Lamp Supply Voltage
B	0.35 GY	157	Interior Lamp Control

I/P Dimmer Switch (UV6)

Connector Part Information

OEM: HCMPB-12-K
Service: 88988295
Description: 12-Way F JST (BK)

Terminal Part Information

Terminal/Tray: SHCM-A03T-P025/20
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

I/P Dimmer Switch (UV6)

Pin	Wire	Circuit	Function
1	0.35 D-GN	44	Low Reference
2	0.35 L-BU/BK	1688	Instrument Panel Lamp Dimmer Switch Signal
3	0.35 PK/BK	1597	Interior Lamp Switch On Signal
4	0.35 TN	2382	Night Vision Image Dimming Signal
5	0.35 L-GN/BK	5699	Head Up Display Switch Low Reference
6	0.35 BN	2383	Night Vision Image Down Signal
7	0.35 PK	2384	Night Vision Image Up Signal
8	0.35 BN	897	Driver Information Center Switch Low Reference
9	0.35 D-GN/WH	1358	Driver Information Center Switch Signal
10	0.35 D-BU	894	Driver Information Center Toggle Switch Signal
11	0.35 YE	1491	Backlight Lamp Control
12	0.35 BK/WH	351	Ground

I/P Dimmer Switch (without UV6)

Connector Part Information

OEM: HCMPB-A12-S
Service: 88988294
Description: 12-Way F JST (WH)

Terminal Part Information

Terminal/Tray: SHCM-A03T-P025/20
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

I/P Dimmer Switch (without UV6)

Pin	Wire	Circuit	Function
1	0.35 D-GN	44	Low Reference
2	0.35 L-BU/BK	1688	Instrument Panel Lamp Dimmer Switch Signal
3	0.35 PK/BK	1597	Interior Lamp Switch On Signal
4-7	--	--	Not Used
8	0.35 BN	897	Driver Information Center Switch Low Reference
9	0.35 D-GN/WH	1358	Driver Information Center Switch Signal
10	0.35 D-BU	894	Driver Information Center Toggle Switch Signal
11	0.35 YE	1491	Backlight Lamp Control
12	0.35 BK/WH	351	Ground

Keyless Entry Antenna

Connector Part Information

OEM: IL-AG5-5S-S3C1
Service: 88988111
Description: 5-Way F IL-AG5 Series (L-GN)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Keyless Entry Antenna

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 PU/WH	5715	Keyless Entry Active Antenna Supply Voltage
3	0.35 GY	5717	Keyless Entry Active Antenna Data Signal
4	0.35 L-BU	5716	Keyless Entry Active Antenna Clock Signal
5	0.35 OG/BK	5718	Keyless Entry Active Antenna Low Reference

Keyless Entry Antenna - Backup

Connector Part Information

OEM: 12162017
Service: 12101937
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Keyless Entry Antenna - Backup

Pin	Wire	Circuit	Function
A	0.35 PU	218	Keyless Entry Antenna Signal (1)
B	0.35 TN	219	Keyless Entry Antenna Low Reference (1)

Keyless Entry Antenna - Headliner

Connector Part Information

OEM: 12162017
Service: 12101937
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Keyless Entry Antenna - Headliner

Pin	Wire	Circuit	Function
A	0.35 L-GN	5707	Keyless Entry Antenna Signal (2)
B	0.35 L-GN/BK	5711	Keyless Entry Antenna Low Reference (2)

Keyless Entry Antenna - Left Front Door Handle

Connector Part Information

OEM: 174352-2
Service: See Catalog
Description: 2-Way F Econoseal J-Mark II Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 184095-1/7
Core/Insulation Crimp: E/D
Release Tool/Test Probe: 12094429/J35616-33 (YE)

Keyless Entry Antenna - Left Front Door Handle

Pin	Wire	Circuit	Function
1	0.35 YE	--	Keyless Entry Antenna Signal (4)
2	0.35 WH	--	Low Reference

Keyless Entry Antenna - Rear Compartment

Connector Part Information

OEM: 12162017
Service: 12101937
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Keyless Entry Antenna - Rear Compartment

Pin	Wire	Circuit	Function
A	0.35 OG	5708	Keyless Entry Antenna Signal (3)
B	0.35 OG/BK	5712	Keyless Entry Antenna Low Reference (3)

Keyless Entry Antenna - Right Front Door Handle

Connector Part Information

OEM: 174352-2
Service: See Catalog
Description: 2-Way F Econoseal J-Mark II Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 184095-1/7
Core/Insulation Crimp: E/D
Release Tool/Test Probe: 12094429/J35616-33 (YE)

Keyless Entry Antenna - Right Front Door Handle

Pin	Wire	Circuit	Function
1	0.35 YE	--	Keyless Entry Antenna Signal (5)
2	0.35 WH	--	Low Reference

Knock Sensor (KS) 1 (LC3 or LH2)

Connector Part Information

OEM: 15374222
Service: 88953268
Description: 2-Way F GT 150 Series Sealed (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Knock Sensor (KS) 1 (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.5 D-BU	496	Knock Sensor Signal 1
B	0.5 GY	1716	Knock Sensor Signal 1

Knock Sensor (KS) 1 (LLT)

Connector Part Information

OEM: 1928403874
Service: 88988963
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Knock Sensor (KS) 1 (LLT)

Pin	Wire	Circuit	Function
1	0.5 D-BU	496	Knock Sensor Signal
2	0.5 GY	1716	Knock Sensor Signal

Knock Sensor (KS) 2 (LC3 or LH2)

Connector Part Information

OEM: 15374222
Service: 88953268
Description: 2-Way F GT 150 Series Sealed (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Knock Sensor (KS) 2 (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.5 L-BU	1876	Knock Sensor Signal 2
B	0.5 GY	2303	Knock Sensor Signal 2

Knock Sensor (KS) 2 (LLT)

Connector Part Information

OEM: 1928403874
Service: 88988963
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Knock Sensor (KS) 2 (LLT)

Pin	Wire	Circuit	Function
1	0.5 L-BU	1876	Knock Sensor Signal
2	0.5 TN	2303	Knock Sensor Signal

License Lamp - Left

Connector Part Information

OEM: 15300027
Service: 12101855
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12077411/2
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

License Lamp - Left

Pin	Wire	Circuit	Function
A	0.35 YE	32	Instrument Panel Lamp Fuse Supply Voltage (1)
B	0.35 BK	850	Ground

License Lamp - Right

Connector Part Information

OEM: 15300027
Service: 12101855
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12077411/2
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

License Lamp - Right

Pin	Wire	Circuit	Function
A	0.35 YE	32	Instrument Panel Lamp Fuse Supply Voltage (1)
B	0.35 BK	850	Ground

Manifold Absolute Pressure (MAP) Sensor (LC3 or LH2)

Connector Part Information

OEM: 12129946
Service: 88987997
Description: 3-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Manifold Absolute Pressure (MAP) Sensor (LC3 or LH2)

Pin	Wire	Circuit	Function
A	0.5 OG/BK	469	Low Reference
B	0.5 L-GN	432	Manifold Absolute Pressure Sensor Signal
C	0.5 GY	2704	5-Volt Reference

Marker Lamp - Left Front

Connector Part Information

OEM: 6180-2915
Service: 88988395
Description: 2-Way F 90 Type Series Sealed (BU)

Terminal Part Information

Terminal/Tray: 7116-1420/11
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Marker Lamp - Left Front

Pin	Wire	Circuit	Function
1	0.35 PU	709	Left Park Lamp Supply Voltage
2	0.35 BK	250	Ground

Marker Lamp - Left Rear

Connector Part Information

OEM: 6180-2915
Service: 88988395
Description: 2-Way F 90 Type Series Sealed (BU)

Terminal Part Information

Pin: 1
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pin: 2
Terminal/Tray: 7116-1420/11
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Marker Lamp - Left Rear

Pin	Wire	Circuit	Function
1	0.35 BK	1050	Ground
2	0.35 PU	709	Left Park Lamp Supply Voltage

Marker Lamp - Right Front

Connector Part Information

OEM: 6180-2915
Service: 88988395
Description: 2-Way F 90 Type Series Sealed (BU)

Terminal Part Information

Terminal/Tray: 7116-1420/11
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Marker Lamp - Right Front

Pin	Wire	Circuit	Function
1	0.35 BN/WH	309	Right Park Lamp Supply Voltage
2	0.35 BK	250	Ground

Marker Lamp - Right Rear

Connector Part Information

OEM: 6180-2915
Service: 88988395
Description: 2-Way F 90 Type Series Sealed (BU)

Terminal Part Information

Pin: 1
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pin: 2
Terminal/Tray: 7116-1420/11
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Marker Lamp - Right Rear

Pin	Wire	Circuit	Function
1	0.35 BK	1050	Ground
2	0.35 BN/WH	309	Right Park Lamp Supply Voltage

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LC3)

Connector Part Information

OEM: 15326822
Service: 88987186
Description: 5-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Pins: A-E
Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A-B, D-E - E/A
Core/Insulation Crimp: Pins C - 2/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LC3)

Pin	Wire	Circuit	Function
A	0.5 YE	492	MAF Sensor Signal
B	1 BK	1550	Ground
C	0.8 PK/BK	5294	Ignition 1 Voltage
D	0.5 TN	2760	Low Reference
E	0.35 TN	472	IAT Sensor Signal

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LH2)

Connector Part Information

OEM: 15326822
Service: 88987186
Description: 5-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819-E
Core/Insulation Crimp: A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LH2)

Pin	Wire	Circuit	Function
A	0.5 YE	492	MAF Sensor Signal
B	1 BK/WH	1551	Ground
C	0.8 PK/BK	5294	Ignition 1 Voltage
D	0.5 TN	2760	Low Reference
E	0.35 TN	472	Low Reference

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LLT)

Connector Part Information

OEM: 13520906
Service: 19151493
Description: 5-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LLT)

Pin	Wire	Circuit	Function
A	0.5 YE	492	Mass Air Flow Sensor Signal
B	0.8 PK/BK	5294	Ignition 1 Voltage
C	1 BK/WH	1551	Ground
D	0.35 L-BU	6289	IAT Sensor Signal
E	0.5 BK	2760	Sensor Return - Induction Air Temperature

Memory Seat Module (MSM) X1 (A45)

Connector Part Information

OEM: 12064749
Service: 12101888
Description: 2-Way F Metri-Pack 480 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Memory Seat Module (MSM) X1 (A45)

Pin	Wire	Circuit	Function
A	3 BK	550	Ground
B	3 RD/WH	3740	Battery Positive Voltage

Memory Seat Module (MSM) X2 (A45)

Connector Part Information

OEM: 12129432
Service: 12129432
Description: 16-Way F Metri-Pack 280 Series, ACT (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Memory Seat Module (MSM) X2 (A45)

Pin	Wire	Circuit	Function
A	3 D-GN	286	Driver Power Seat Front Vertical Motor Up Control
B	0.35 YE	282	Driver Power Seat Rear Vertical Motor Up Control
C	3 L-BU	283	Driver Power Seat Rear Vertical Motor Down Control
D	3 TN	768	Driver Power Seat Lumbar Motor Up Control (AL2)
E	3 PK	2111	Steering Column Tilt Motor Up Control
F	3 D-BU	611	Driver Power Seat Lumbar Motor Forward Control (AL2)
G	0.35 L-GN	276	Driver Power Seat Recline Motor Forward Control
H	0.35 L-BU	277	Driver Power Seat Recline Motor Rearward Control
J	3 TN	285	Driver Power Seat Horizontal Motor Forward Control
K	3 L-GN	284	Driver Power Seat Horizontal Motor Rearward Control
K	3 L-GN	284	Driver Power Seat Horizontal Motor Rearward Control
L-M	--	--	Not Used
N	3 PK	610	Driver Power Seat Lumbar Motor Rearward Control (AL2)
P	--	--	Not Used
R	3 OG	2098	Steering Column Telescope Motor Forward
S	3 D-BU	287	Driver Power Seat Front Vertical Motor Down Control

Memory Seat Module (MSM) X3 (A45)

Connector Part Information

OEM: 174046-2
Service: 15775805
Description: 16-Way F 40 Series Multi-Lock (BK)

Terminal Part Information

Pins: 1-4, 6-7, 9-11, 13-15
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pin: 8
Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Memory Seat Module (MSM) X3 (A45)

Pin	Wire	Circuit	Function
1	0.35 TN	568	Memory Seat Rear Vertical Motor Position Sensor Signal
2	0.35 BN/WH	557	Memory Seat Front Vertical Motor Position Sensor Signal
3	0.35 YE	1063	Memory Seat Lumbar Horizontal Position Sensor Signal (AL2)
4	0.35 WH/BK	570	Driver Memory Seat Recline Motor Position Sensor Signal
5	--	--	Not Used
6	0.35 GY	788	Memory Mirror Position Sensor 5-Volt Reference
7	0.8 RD/WH	2840	Battery Positive Voltage
8	0.35 D-GN	5060	Low Speed GMLAN Serial Data
9	0.35 OG	2153	Steering Column Telescope Motor Signal
10	0.35 TN	1062	Memory Seat Lumbar Vertical Position Sensor Signal (AL2)
11	0.35 D-GN	569	Memory Seat Horizontal Motor Position Sensor Signal
12	--	--	Not Used
13	0.35 OG/WH	2154	Steering Column Tilt Motor Signal
14	0.35 TN	782	Memory Seat/Mirror Sensor Low Reference
15	0.35 BK/WH	551	Ground
16	--	--	Not Used

Memory Seat Module (MSM) X4 (A45)

Connector Part Information

OEM: 174047-2
Service: 12162820
Description: 20-Way M Hinged Lock (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Memory Seat Module (MSM) X4 (A45)

Pin	Wire	Circuit	Function
1	0.35 WH	790	PWM Serial Data
2	0.35 YE	1519	Power Seat Rear Vertical Up Switch Signal
3	0.35 L-BU	1521	Power Seat Rear Vertical Down Switch Signal
4	0.35 TN	1522	Power Seat Horizontal Forward Switch Signal
5	0.35 L-GN	1523	Power Seat Horizontal Rearward Switch Signal
6	0.35 L-BU	277	Driver Power Seat Recline Motor Rearward Control
7	0.35 L-GN	276	Driver Power Seat Recline Motor Forward Control
8	0.35 D-BU	1064	Driver Seat Lumbar Rearward Switch Signal
9	0.35 YE	1065	Driver Seat Lumbar Forward Switch Signal
10	0.35 YE/BK	1067	Driver Seat Lumbar Down Switch Signal
11	0.35 GY	791	PWM Serial Data
12-17	--	--	Not Used
18	0.35 D-GN	1518	Power Seat Front Vertical Up Switch Signal
19	0.35 D-BU	1520	Power Seat Front Vertical Down Switch Signal
20	0.35 WH	1066	Driver Seat Lumbar Up Switch Signal

Mode Actuator

Connector Part Information

OEM: 7283-5830-30
Service: 89046839
Description: 5-Way F (BK)

Terminal Part Information

Pins: 1-2
Terminal/Tray: 7116-4231-08/14
Core/Insulation Crimp: K/K
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)

Pins: 3-5
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Mode Actuator

Pin	Wire	Circuit	Function
1	0.35 GY	705	5-Volt Reference
2	0.35 YE	61	Low Reference
3	0.35 YE/BK	1814	Mode Door Position Signal
4	0.35 OG	2273	Mode Door Control A
5	0.35 YE/GN	1318	Mode Door Control B

Mode Actuator - Auxiliary

Connector Part Information

OEM: 7283-5830-30
Service: 89046839
Description: 5-Way F (BK)

Terminal Part Information

Terminal/Tray: 7116-4231-08/14
Core/Insulation Crimp: K/K
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)

Mode Actuator - Auxiliary

Pin	Wire	Circuit	Function
1	0.35 YE	61	Outside Ambient Temperature Sensor Low Reference
2	0.35 GY	705	5-Volt Reference
3	0.35 GY	2599	Auxiliary Mode Door Position Signal
4	0.35 L-GN/WH	5729	Rear Mode Motor Supply Voltage
5	0.35 L-GN/BK	5730	Rear Mode Motor Low Reference

Noise Compensation Microphone (YQ4 or YQ6 or YQ7)

Connector Part Information

OEM: 12047663
Service: 12085481
Description: 2-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047581/2
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Noise Compensation Microphone (YQ4 or YQ6 or YQ7)

Pin	Wire	Circuit	Function
A	0.35 BARE	1489	Noise Reduction Microphone Drain Wire
B	0.35 D-GN	1488	Noise Reduction Microphone (+)

Object Alarm Sensor - Left Rear Corner

Connector Part Information

OEM: 1-967642-1
Service: 15306313
Description: 3-Way F MQS Sealed (BK)

Terminal Part Information

Terminal/Tray: 962885-5/15
Core/Insulation Crimp: 6/6
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Object Alarm Sensor - Left Rear Corner

Pin	Wire	Circuit	Function
1	0.35 YE	2375	Left Rear Corner Object Sensor Signal
2	0.35 GY	2379	Object Sensor Low Reference
3	0.35 D-BU	2374	Object Sensor Supply Voltage

Object Alarm Sensor - Left Rear Middle

Connector Part Information

OEM: 1-967642-1
Service: 15306313
Description: 3-Way F MQS Sealed (BK)

Terminal Part Information

Terminal/Tray: 962885-5/15
Core/Insulation Crimp: 6/6
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Object Alarm Sensor - Left Rear Middle

Pin	Wire	Circuit	Function
1	0.35 OG	2376	Left Rear Middle Object Sensor Signal
2	0.35 GY	2379	Object Sensor Low Reference
3	0.35 D-BU	2374	Object Sensor Supply Voltage

Object Alarm Sensor - Right Rear Corner

Connector Part Information

OEM: 1-967642-1
Service: 15306313
Description: 3-Way F MQS Sealed (BK)

Terminal Part Information

Terminal/Tray: 962885-5/15
Core/Insulation Crimp: 6/6
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Object Alarm Sensor - Right Rear Corner

Pin	Wire	Circuit	Function
1	0.35 PU	2378	Right Rear Corner Object Sensor Signal
2	0.35 GY	2379	Object Sensor Low Reference
3	0.35 D-BU	2374	Object Sensor Supply Voltage

Object Alarm Sensor - Right Rear Middle

Connector Part Information

OEM: 1-967642-1
Service: 15306313
Description: 3-Way F MQS Sealed (BK)

Terminal Part Information

Terminal/Tray: 962885-5/15
Core/Insulation Crimp: 6/6
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Object Alarm Sensor - Right Rear Middle

Pin	Wire	Circuit	Function
1	0.35 D-GN	2377	Right Rear Middle Object Sensor Signal
2	0.35 GY	2379	Object Sensor Low Reference
3	0.35 D-BU	2374	Object Sensor Supply Voltage

Overhead Console Courtesy/Reading Lamps - Front

Connector Part Information

OEM: 12047781
Service: 12101864
Description: 3-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Overhead Console Courtesy/Reading Lamps - Front

Pin	Wire	Circuit	Function
A	0.35 D-BU/WH	149	Courtesy Lamp Supply Voltage
B	0.35 GY	157	Interior Lamp Control
C	0.35 BK	850	Ground

Overhead Console Courtesy/Reading Lamps - Rear

Connector Part Information

OEM: 12047781
Service: 12101864
Description: 3-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Overhead Console Courtesy/Reading Lamps - Rear

Pin	Wire	Circuit	Function
A	0.35 D-BU/WH	149	Courtesy Lamp Supply Voltage
B	0.35 GY	157	Interior Lamp Control
C	0.35 BK	850	Ground

Park Brake Switch

Connector Part Information

OEM: 12047682
Service: 12101850
Description: 1-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Park Brake Switch

Pin	Wire	Circuit	Function
A	0.35 L-BU	1134	Park Brake Switch Signal

Park Lamp - Left Front

Connector Part Information

OEM: 16530676
Service: Service by Assembly - See Part Catalog
Description: 2-Way F (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Park Lamp - Left Front

Pin	Wire	Circuit	Function
A	0.5 BN	--	Park Lamp Supply Voltage
B	0.5 BK	--	Ground

Park Lamp - Right Front

Connector Part Information

OEM: 16530676
Service: Service by Assembly - See Part Catalog
Description: 2-Way F (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Park Lamp - Right Front

Pin	Wire	Circuit	Function
A	0.5 BN	--	Park Lamp Supply Voltage
B	0.5 BK	--	Ground

Power Steering Control Module (PSCM) X1 (JL7)

Connector Part Information

OEM: 7283-6447-40
Service: 88956524
Description: 14-Way F Hybrid Series (L-GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Power Steering Control Module (PSCM) X1 (JL7)

Pin	Wire	Circuit	Function
1	0.35 RD/WH	3340	Battery Positive Voltage
2	--	--	Not Used
3	0.35 YE	7592	Actuator Front Active Signal U
4	0.35 BK	350	Ground
5	0.35 WH	7586	Actuator Front Active Signal W
6	--	--	Not Used
7	0.35 GN	7587	Actuator Front Active Signal Motor V
8	0.35 BN	7588	Actuator Front Active Signal Motor U
9	--	--	Not Used
10	0.35 BARE	--	Drain Wire
11	0.35 GN/RD	7589	Actuator Front Active Signal V
12	0.35 GY	7590	Actuator Front Active Signal Ground
13	--	--	Not Used
14	0.35 BU	7591	Actuator Front Active Signal Motor W

Power Steering Control Module (PSCM) X2 (JL7)

Connector Part Information

OEM: 7283-6458-40
Service: 88988507
Description: 2-Way F Receptacle 6.3 Series (L-GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Power Steering Control Module (PSCM) X2 (JL7)

Pin	Wire	Circuit	Function
1	5 BK	150	Ground
2	5 BK	9342	Battery Positive Voltage

Power Steering Control Module (PSCM) X3 (JL7)

Connector Part Information

OEM: 7283-9078-80
Service: 15136074
Description: 16-Way F Kaizen 0.64 Series (BN)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Power Steering Control Module (PSCM) X3 (JL7)

Pin	Wire	Circuit	Function
1	0.35 PK	1339	Ignition 1 Voltage
2	--	--	Not Used
3	0.35 BK/WH	351	Ground
4	--	--	Not Used
5	0.35 TN/WH	6433	CAN Bus High Serial Data
6	0.35 L-GN/BK	6432	CAN Bus Low Serial Data
7	0.35 TN/BK	2500	High Speed GMLAN Serial Data +
8	0.35 TN	2501	High Speed GMLAN Serial Data -
9	--	--	Not Used
10	0.35 YE	5727	High Speed GMLAN Serial Data Wakeup
11-12	--	--	Not Used
13	0.35 TN/WH	6433	CAN Bus High Serial Data
14	0.35 L-GN/BK	6432	CAN Bus Low Serial Data
15	0.35 TN/BK	2500	High Speed GMLAN Serial Data +
16	0.35 TN	2501	High Speed GMLAN Serial Data -

Radio X1 (YQ4 or YQ6 or YQ7)

Connector Part Information

OEM: 15434080
Service: 88988292
Description: 10-Way F Micro-Pack 64 Series (BK)

Terminal Part Information

Pins: 1-10
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Radio X1 (YQ4 or YQ6 or YQ7)

Pin	Wire	Circuit	Function
1	0.35 YE	2059	Left Auxiliary Audio Signal (1) (YQ4 or YQ6 or YQ7)
2	0.35 WH	2058	Right Auxiliary Audio Signal (1) (YQ4 or YQ6 or YQ7)
3	0.35 YE	5385	Vehicle Identification Communication System Bus Request Signal (YQ7)
4	0.35 BARE	814	Drain Wire (YQ7)
5	0.35 GY	5383	Vehicle Identification Communication System High Signal (YQ7)
6	0.35 PK	2060	Auxiliary Detection Signal (YQ4 or YQ6 or YQ7)
7	0.35 BARE	814	Drain Wire (YQ4 or YQ6 or YQ7)
8	0.35 BARE	814	Drain Wire (YQ4 or YQ6 or YQ7)
9	0.35 PU	2056	Auxiliary Video High Signal (YQ4 or YQ6 or YQ7)
10	0.35 BN	5384	Vehicle Identification Communication System Low Signal (YQ7)

Radio X2

Connector Part Information

OEM: 15394150
Service: 15394150
Description: 16-Way F Micro 64 Unsealed (BK)

Terminal Part Information

Pins: 1-5, 9-13
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Radio X2

Pin	Wire	Circuit	Function
1	0.35 L-GN/WH	5337	Left Audio Signal (U2K or YQ6 or YQ7)
2	0.35 L-BU/WH	5338	Right Audio Signal (U2K or YQ6 or YQ7)
3	0.35 BN/WH	599	Left Rear Low Level Audio Signal (+) (YQ4 or YQ6 or YQ7)
4	0.35 D-BU	546	Right Rear Low Level Audio Signal (+) (YQ4 or YQ6 or YQ7)
5	0.35 PK	5165	Antenna 14-Volt Switched Supply Voltage
6-8	--	--	Not Used
9	0.35 GY/BK	5339	Audio Low Reference (U2K or YQ6 or YQ7)
10	0.35 BARE	5345	Drain Wire (U2K or YQ6 or YQ7)
11	0.35 BN	1999	Left Rear Low Level Audio (-) (YQ4 or YQ6 or YQ7)
12	0.35 TN	1946	Right Rear Low Level Audio (-) (YQ4 or YQ6 or YQ7)
13	0.35 BARE	2099	Left Rear Audio Drain Wire (YQ4 or YQ6 or YQ7)
14-16	--	--	Not Used

Radio X3

Connector Part Information

OEM: 15394149
Service: 89047195
Description: 16-Way F Micro 64 Series (GY)

Terminal Part Information

Pins: 1-5, 7-12, 15-16
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Radio X3

Pin	Wire	Circuit	Function
1	0.35 RD/WH	2240	Battery Positive Voltage
2	0.35 TN	511	Left Front Low Level Audio Signal (+)
3	0.35 D-GN/WH	512	Right Front Low Level Audio Signal (+)
4	0.35 GY	655	Cellular Telephone Microphone Signal (UY5 without UE1)
4	0.35 GY	655	Cellular Telephone Microphone Signal (LHD with UY5 without UE1)
5	0.35 PK/BK	5152	Voice Recognition Audio Low Reference (UE1)
5	0.35 BARE	1782	Drain Wire (UY5 without UE1)
6	--	--	Not Used
7	0.35 YE	6817	LED Backlight Dimming Control
8	0.35 BK/WH	851	Ground
9	0.35 RD/WH	2240	Battery Positive Voltage
10	0.35 D-GN	1947	Left Front Low Level Audio (-)
11	0.35 L-GN	1948	Right Front Low Level Audio (-)
12	0.35 BARE	2012	Drain Wire
13-14	--	--	Not Used
15	0.35 D-GN	5060	Low Speed GMLAN Serial Data
16	0.35 BK/WH	851	Ground

Radio X4 (YQ4 or YQ6 or YQ7)

Connector Part Information

OEM: 15394151
Service: 89047196
Description: 16-Way F Micro 64 Series (BN)

Terminal Part Information

Pins: 3-5, 11-13, 15
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Pins: 13-14
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Radio X4 (YQ4 or YQ6 or YQ7)

Pin	Wire	Circuit	Function
1-2	--	--	Not Used
3	0.35 D-BU	6760	Center Channel Low Level Audio Signal (+)
4	0.35 WH	6765	Subwoofer Low Level Audio Signal (+)
5	0.35 PU	5837	Amplifier Audio Prompt Signal (+)
6-10	--	--	Not Used
11	0.35 OG	6761	Center Channel Low Level Audio Signal (-)
12	0.35 BARE	5838	Amplifier Audio Prompt Drain Wire
13	0.35 GY	5836	Amplifier Audio Prompt Signal (-)
14	--	--	Not Used
15	0.35 BN	818	Vehicle Speed Signal
16	--	--	Not Used

Radio X5

Part Information

OEM: 16165011
Service: Not Serviced
Description: Mini Barbless Coax Connector

Radio X5

Pin	Wire	Circuit	Function
--	--	--	Coax

Radio X6 (YQA or YQ6 or YQ7)

Part Information

OEM: 638817-8
Service: Not Serviced
Description: Fakra Type H Coax Connector

Radio X6 (YQA or YQ6 or YQ7)

Pin	Wire	Circuit	Function
--	--	--	Coax

Radio X7 (YQ6 or YQ7)

Part Information

OEM: GT5-1S-HU-C
Service: Not Serviced
Description: US CAR Coax Connector

Radio X7 (YQ6 or YQ7)

Pin	Wire	Circuit	Function
--	--	--	Coax

Radio Antenna Module

Connector Part Information

OEM: 172335-1
Service: 19149535
Description: 1-Way F Mini Universal Mate-N-Lock (WH)

Terminal Part Information

Terminal/Tray: 770904-1/25
Core/Insulation Crimp: E/2
Release Tool/Test Probe: J-38125-220/J-35616-6 (BN)

Radio Antenna Module

Pin	Wire	Circuit	Function
A	0.35 PK	5165	Antenna 14-Volt Switch Supply Voltage

Rear Compartment Lid Latch

Connector Part Information

OEM: 12045813
Service: 12101889
Description: 4-Way F Metri-Pack 150 Series (NA)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Rear Compartment Lid Latch

Pin	Wire	Circuit	Function
A	0.35 TN/WH	56	Trunk Release Motor Supply Voltage
B	0.35 BK	850	Ground
C	0.35 OG/BK	744	Trunk Ajar Switch Signal
D	--	--	Not Used

Rear Compartment Lid Release Switch - Exterior

Connector Part Information

OEM: 12186394
Service: 12126487
Description: 4-Way F Metri-Pack 150.2 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12124075/5
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12180559-1/J-35616-2A (GY)

Rear Compartment Lid Release Switch - Exterior

Pin	Wire	Circuit	Function
A	0.35 L-BU	383	Trunk Release Control
B	--	--	Not Used
C	0.35 BK	850	Ground
D	--	--	Not Used

Rear Compartment Lid Release Switch - Interior

Connector Part Information

OEM: HCMPB-04-K
Service: 88988403
Description: 4-Way F JST (BK)

Terminal Part Information

Terminal/Tray: SHCM-A03T-P025/20
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Rear Compartment Lid Release Switch - Interior

Pin	Wire	Circuit	Function
1	0.35 BK/WH	351	Ground
2	0.35 YE	1491	Backlight Lamp Control
3	0.35 WH	1526	Rear Compartment Lid Release Switch Signal
4	--	--	Not Used

Rear Integration Module (RIM) X1

Connector Part Information

OEM: 174046-2
Service: 15775805
Description: 16-Way F 40 Series Multi-Lock (BK)

Terminal Part Information

Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Rear Integration Module (RIM) X1

Pin	Wire	Circuit	Function
1	0.35 D-GN	646	Reverse Relay Coil Feed
2	0.35 D-BU	1393	Courtesy Lamp Relay Coil Control
3	0.35 WH	193	Rear Defog Relay Control
4	0.35 TN	755	RAP Relay Coil Control (CF5)
5-8	--	--	Not Used
9	0.35 PU	6722	Windshield Wiper Depressed Park Motor Relay Control (WCV)
10	0.35 YE	1977	Rear Fog Lamp Relay Control (TT7 or TT8)
11	0.35 L-BU	1344	Trunk Release Relay Output-Coil
12	0.35 BN/WH	1429	Standing Lamp Relay Feed (TT7 or TT8)
13-16	--	--	Not Used

Rear Integration Module (RIM) X2

Connector Part Information

OEM: 174047-2
Service: 12162820
Description: 20-Way M Hinged Lock (BK)

Terminal Part Information

Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Rear Integration Module (RIM) X2

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 PK	1339	Run/Crank Ignition 1 Voltage
3	0.35 YE/BK	1334	Left Rear Turn Signal Lamp Supply Voltage
4	--	--	Not Used
5	0.5 L-BU	2380	Rear Parking Assist Chime Signal
6	--	--	Not Used
7	0.35 TN	6171	Cruise Control Switch Signal
8	--	--	Not Used
9	0.35 YE	5530	Hood Open Switch Signal
10	0.35 GY	112	Windshield Wiper Switch Low/Pulse Signal (UA2)
11	0.35 YE	5058	Intrusion Sensor Armed Signal (UA2)
12	0.8 TN/BK	5168	Power Sounder Enable Signal (UA2)
13	0.35 D-GN/WH	1335	Right Rear Turn Signal Lamp Supply Voltage
14	0.35 PU	5531	Hood Closed Switch Signal
15	--	--	Not Used
16	0.35 GY	6170	Steering Wheel Controls Supply Voltage
17	0.35 D-BU/WH	149	Courtesy Lamp Supply Voltage
18	--	--	Not Used
19	0.35 OG/BK	744	Trunk Ajar Switch Signal
20	0.35 PU	5059	Intrusion Sensor Alarm On Signal (UA2)

Rear Integration Module (RIM) X3

Connector Part Information

OEM: 174045-2
Service: 15775804
Description: 12-Way M 40 Series Multi-Lock (BK)

Terminal Part Information

Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Rear Integration Module (RIM) X3

Pin	Wire	Circuit	Function
1	0.35 D-BU/WH	1315	Right Front Turn Signal Lamp Supply Voltage
2	0.35 L-BU/WH	1314	Left Front Turn Signal Lamp Supply Voltage
3	--	--	Not Used
4	0.35 RD/BK	542	Battery Positive Voltage
5-8	--	--	Not Used
9	0.35 D-GN	5060	Low Speed GMLAN Serial Data (UFL)
10	0.35 D-GN	5060	Low Speed GMLAN Serial Data
11	--	--	Not Used
12	0.35 YE	18	Left Rear Stop/Turn Lamp Supply Voltage

Rear Integration Module (RIM) X4

Connector Part Information

OEM: 173850-1
Service: 88953352
Description: 8-Way F 070 (WH)

Terminal Part Information

Terminal/Tray: 173630-7/7
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-33 (YE)

Rear Integration Module (RIM) X4

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 RD/BK	442	Battery Positive Voltage
3	0.35 GY	157	Interior Lamp Control
4	0.35 BK/WH	851	Signal Ground
5	0.35 YE	18	Left Rear Stop/Turn Lamp Supply Voltage (TT6 or UE1)
5	0.35 YE	18	Left Rear Stop/Turn Lamp Supply Voltage (TT7 or TT8 or V92)
6	0.35 D-GN	19	Right Rear Stop/Turn Lamp Supply Voltage (TT6 or UE1)
6	0.35 D-GN	19	Right Rear Stop/Turn Lamp Supply Voltage(TT7 or TT8 or V92)
7	0.35 RD/WH	540	Battery Positive Voltage
8	0.35 BK	850	Ground

Rear Object Sensor Control Module

Connector Part Information

OEM: 927690-1
Service: 88987946
Description: 26-Way F Amp MODU (BK)

Terminal Part Information

Pins: 1-6, 12-13, 15-16, 18, 22-26
Terminal/Tray: 104479-9/25
Core/Insulation Crimp: Pins 1-6, 12-13, 15, 18, 23-26 - H/H
Core/Insulation Crimp: Pins 16, 22 - J/J
Release Tool/Test Probe: J-38125-24/J-35616-64B (L-BU)

Rear Object Sensor Control Module

Pin	Wire	Circuit	Function
1	0.35 YE	2375	Left Rear Corner Object Sensor Signal
2	0.35 OG	2376	Left Rear Middle Object Sensor Signal
3	0.35 D-GN	2377	Right Rear Middle Object Sensor Signal
4	0.35 PU	2378	Right Rear Corner Object Sensor Signal
5	0.35 D-BU	2374	Object Sensor Supply Voltage
6	0.35 GY	2379	Object Sensor Low Reference
7-11	--	--	Not Used
12	0.35 BK	850	Ground
13	0.35 PK	1339	Run/Crank Ignition 1 Voltage
14	--	--	Not Used
15	0.35 L-GN	24	Back-Up Lamp Feed
16	0.35 L-GN	2525	Rear Parking Assist Module Diagnostic Signal
17	--	--	Not Used
18	0.35 BN	818	Vehicle Speed Signal
19-21	--	--	Not Used
22	0.5 L-BU	2380	Rear Parking Assist Chime Signal
23	0.35 WH	2370	Rear Parking Display Supply Voltage
24	0.35 GY	2373	Rear Parking Assist Red Indicator Control
25	0.35 D-BU	2372	Center Amber Indicator Control
26	0.35 OG	2371	Left Amber Indicator Control

Rear Parking Assist (RPA) Diagnostic Connector

Connector Part Information

OEM: 8905615
Service: 6288704
Description: 1-Way F 56 Series (L-GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Rear Parking Assist (RPA) Diagnostic Connector

Pin	Wire	Circuit	Function
A	0.35 L-GN	2525	Rear Parking Assist Module Diagnostic Signal

Rear Parking Assist (RPA) Display

Connector Part Information

OEM: 12045813
Service: 12101889
Description: 4-Way F Metri-Pack 150 Series (NA)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Rear Parking Assist (RPA) Display

Pin	Wire	Circuit	Function
A	0.35 WH	2370	Rear Parking Display Supply Voltage
B	0.35 OG	2371	Left Amber Indicator Control
C	0.35 D-BU	2372	Center Amber Indicator Control
D	0.35 GY	2373	Rear Parking Assist Red Indicator Control

Rear Window Defogger X1

Connector Part Information

OEM: 12064750
Service: 12101935
Description: 2-Way M Metri-Pack 480 Series (BK)

Terminal Part Information

Terminal/Tray: 12033820/2
Core/Insulation Crimp: B/G
Release Tool/Test Probe: 12094430/J-35616-40 (BU)

Rear Window Defogger X1

Pin	Wire	Circuit	Function
A	5 PU	293	Rear Defog Element Supply Voltage
B	5 BK	1950	Ground

Rear Window Defogger X2

Connector Part Information

OEM: 12065652
Service: 12101893
Description: 1-Way M Metri-Pack 480 Series (BK)

Terminal Part Information

Terminal/Tray: 12033820/2
Core/Insulation Crimp: B/G
Release Tool/Test Probe: 12094430/J-35616-40 (BU)

Rear Window Defogger X2

Pin	Wire	Circuit	Function
A	5 BK	1850	Ground

Recirculation Actuator

Connector Part Information

OEM: 7283-5830-30
Service: 89046839
Description: 5-Way F (BK)

Terminal Part Information

Pins: 1-2
Terminal/Tray: 7116-4231-08/14
Core/Insulation Crimp: K/K
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)

Pins: 3-5
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Recirculation Actuator

Pin	Wire	Circuit	Function
1	0.35 YE	61	Low Reference
2	0.35 GY	705	5-Volt Reference
3	0.35 BN	41	Ignition 3 Voltage
4	0.35 PU	1838	Recirculation Door Position Signal
5	0.35 D-GN	1614	Recirculation Door Control

Remote Control Door Lock Receiver (RCDLR) X1

Connector Part Information

OEM: 15332177
Service: 15332177
Description: 16-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Remote Control Door Lock Receiver (RCDLR) X1

Pin	Wire	Circuit	Function
A-B	--	--	Not Used
C	0.35 PK	3	Run/Crank Ignition 1 Voltage
D	0.35 D-GN/WH	1135	Brake Transmission Shift Interlock Solenoid Supply Voltage
E-F	--	--	Not Used
G	0.35 L-BU/WH	5725	Ignition Mode Switch Mode Voltage Backup
H	0.35 RD/WH	1440	Battery Positive Voltage
J	0.35 L-BU	5726	Ignition Mode Switch Mode Control Backup
K	--	--	Not Used
L	0.35 D-GN	5060	Low Speed GMLAN Serial Data
M	--	--	Not Used
N	0.35 PK	5879	Right Front Door Handle Switch Signal (2)
P	0.35 L-BU	383	Trunk Release Control
R	0.35 D-BU	5882	Left Front Door Handle Switch Signal (2)
S	0.35 BK	850	Ground

Remote Control Door Lock Receiver (RCDLR) X2

Connector Part Information

OEM: 15332153
Service: 88986440
Description: 10-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Remote Control Door Lock Receiver (RCDLR) X2

Pin	Wire	Circuit	Function
A	0.35 PU/WH	5715	Keyless Entry Active Antenna Supply Voltage
B	0.35 GY	5717	Keyless Entry Active Antenna Data Signal
C	0.35 L-BU	5716	Keyless Entry Active Antenna Clock Signal
D	0.35 PU	218	Keyless Entry Antenna Signal (1)
E	0.35 OG/BK	5712	Keyless Entry Antenna Low Reference (3)
F	0.35 OG/BK	5718	Keyless Entry Active Antenna Low Reference
G	0.35 L-GN	5707	Keyless Entry Antenna Signal (2)
H	0.35 L-GN/BK	5711	Keyless Entry Antenna Low Reference (2)
J	0.35 TN	219	Keyless Entry Antenna Low Reference (1)
K	0.35 OG	5708	Keyless Entry Antenna Signal (3)

Remote Control Door Lock Receiver (RCDLR) X3

Connector Part Information

OEM: 15332145
Service: 15306407
Description: 8-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Remote Control Door Lock Receiver (RCDLR) X3

Pin	Wire	Circuit	Function
A	0.35 YE	5710	Keyless Entry Antenna Signal (5)
B-E	--	--	Not Used
F	0.35 YE/BK	5714	Keyless Entry Antenna Low Reference (5)
G	0.35 PK	5709	Keyless Entry Antenna Signal (4)
H	0.35 PK/BK	5713	Keyless Entry Antenna Low Reference (4)

Repeater Lamp - Left Front

Connector Part Information

OEM: 15336195
Service: 88988136
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Repeater Lamp - Left Front

Pin	Wire	Circuit	Function
1	0.35 D-BU/WH	519	Front Lamp Signal
2	0.8 BK	250	Ground

Repeater Lamp - Right Front

Connector Part Information

OEM: 15336195
Service: 88988136
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Pin: 1
Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pin: 2
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Repeater Lamp - Right Front

Pin	Wire	Circuit	Function
1	0.35 D-BU/WH	519	Front Lamp Signal
2	0.8 BK	250	Ground

Seat Adjuster Motor Assembly - Driver X1 (A45)

Connector Part Information

OEM: 7283-6466-40
Service: 19153175
Description: 6-Way F YESC 2.8 MM (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Adjuster Motor Assembly - Driver X1 (A45)

Pin	Wire	Circuit	Function
1	3 YE	282	Driver Power Seat Rear Vertical Motor Up Control
2	3 D-GN	286	Driver Power Seat Front Vertical Motor Up Control
3	3 TN	285	Driver Power Seat Horizontal Motor Forward Control
4	3 L-BU	283	Driver Power Seat Rear Vertical Motor Down Control
5	3 D-BU	287	Driver Power Seat Front Vertical Motor Down Control
6	3 L-GN	284	Driver Power Seat Horizontal Motor Rearward Control

Seat Adjuster Motor Assembly - Driver X2 (A45)

Connector Part Information

OEM: 7283-5532-40
Service: 89046849
Description: 6-Way F 1.5 Series (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Adjuster Motor Assembly - Driver X2 (A45)

Pin	Wire	Circuit	Function
1	0.35 BN/WH	557	Memory Seat front Vertical Motor Position Sensor Signal
2	0.35 TN	782	Memory Seat Sensor Low Reference
3	0.35 D-GN	569	Memory Seat Horizontal Motor Position Sensor Signal
4	--	--	Not Used
5	0.35 TN	568	Memory Seat Rear Vertical Motor Position Sensor Signal
6	0.35 GY	788	5-Volt Reference

Seat Adjuster Motor Assembly - Driver (without A45)

Connector Part Information

OEM: 7283-6466-40
Service: 19153175
Description: 6-Way F YESC 2.8 MM (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Adjuster Motor Assembly - Driver (without A45)

Pin	Wire	Circuit	Function
1	3 YE	282	Driver Power Seat Rear Vertical Motor Up Control
2	3 D-GN	286	Driver Power Seat Front Vertical Motor Up Control
3	3 TN	285	Driver Power Seat Horizontal Motor Forward Control
4	3 L-BU	283	Driver Power Seat Rear Vertical Motor Down Control
5	3 D-BU	287	Driver Power Seat Front Vertical Motor Down Control
6	3 L-GN	284	Driver Power Seat Horizontal Motor Rearward Control

Seat Adjuster Motor Assembly - Passenger

Connector Part Information

OEM: 7283-6466-40
Service: 19153175
Description: 6-Way F YESC 2.8 MM (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Adjuster Motor Assembly - Passenger

Pin	Wire	Circuit	Function
1	3 YE	288	Passenger Power Seat Rear Vertical Motor Up Control (LHD)
1	3 YE	282	Driver Seat Rear Vertical Motor Up Control (RHD)
2	3 D-GN	297	Passenger Power Seat Front Vertical Motor Up Control (LHD)
2	3 D-GN	286	Driver Seat Front Vertical Motor Up Control (RHD)
3	3 TN	296	Passenger Power Seat Horizontal Motor Forward Control (LHD)
3	3 TN	285	Driver Seat Horizontal Motor Forward Control (RHD)
4	3 L-BU	289	Passenger Power Seat Rear Vertical Motor Down Control (LHD)
4	3 L-BU	283	Driver Seat Rear Vertical Motor Down Control (RHD)
5	3 D-BU	298	Passenger Power Seat Front Vertical Motor Down Control (LHD)
5	0.35 D-BU	287	Driver Seat Front Vertical Motor Down Control (RHD)
6	3 L-GN	290	Passenger Power Seat Horizontal Motor Rearward Control (LHD)
6	3 D-GN	284	Driver Seat Horizontal Motor Rearward Control (RHD)

Seat Adjuster Switch - Driver

Connector Part Information

OEM: 15326931
Service: 15306309
Description: 10-Way F GT 280 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Adjuster Switch - Driver

Pin	Wire	Circuit	Function
A	0.35 RD/WH	2840	Battery Positive Voltage (RHD)
A	0.35 L-BU	277	Driver Seat Recline Motor Rearward Control (LHD)
B	0.35 L-GN	1523	Power Seat Horizontal Rearward Switch Signal (RHD)
B	--	--	Not Used (LHD)
C	0.35 TN	1522	Power Seat Horizontal Forward Switch Signal (RHD)
C	0.35 L-GN	1523	Power Seat Horizontal Rearward Switch Signal (LHD)
D	--	--	Not Used (RHD)
D	0.35 TN	1522	Power Seat Horizontal Forward Switch Signal (LHD)
E	0.35 L-GN	276	Driver Power Seat Recline Motor Forward Control (RHD)
E	0.35 RD/WH	2840	Battery Positive Voltage (LHD)
F	0.35 D-BU	1520	Power Seat Front Vertical Down Switch Signal (RHD)
F	0.35 L-GN	276	Driver Power Seat Recline Motor Forward Control (LHD)
G	0.35 D-GN	1518	Power Seat Front Vertical Up Switch Signal (RHD)
G	0.35 L-BU	1521	Power Seat Rear Vertical Down Switch Signal (LHD)
H	0.35 L-BU	1521	Power Seat Rear Vertical Down Switch Signal (RHD)
H	0.35 YE	1519	Power Seat Rear Vertical Up Switch Signal (LHD)
J	0.35 YE	1519	Power Seat Rear Vertical Up Switch Signal (RHD)
J	0.35 D-BU	1520	Power Seat Front Vertical Down Switch Signal (LHD)
K	0.35 L-BU	277	Driver Seat Recline Motor Rearward Control (RHD)
K	0.35 D-GN	1518	Driver Seat Recline Motor Rearward Control (LHD)

Seat Adjuster Switch - Passenger

Connector Part Information

OEM: 15326931
Service: 15306309
Description: 10-Way F GT 280 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Adjuster Switch - Passenger

Pin	Wire	Circuit	Function
A	3 RD/WH	3740	Battery Positive Voltage (LHD)
A	3 L-BU	277	Driver Seat Recline Motor Rearward Control (RHD)
B	3 L-GN	290	Passenger Power Seat Horizontal Motor Rearward Control (LHD)
B	3 BK	650	Ground (RHD)
C	3 TN	296	Passenger Power Seat Horizontal Motor Forward Control (LHD)
C	3 L-GN	284	Driver Seat Horizontal Motor Rearward Control (RHD)
D	3 BK	650	Ground (LHD)
D	3 TN	285	Driver Seat Horizontal Motor Forward Control (RHD)
E	3 D-BU	77	Passenger Power Seat Recline Motor Rearward (LHD)
E	3 RD/WH	3740	Battery Positive Voltage (RHD)
F	3 D-BU	298	Passenger Power Seat Front Vertical Motor Down Control (LHD)
F	3 L-GN	276	Driver Seat Recline Motor Forward Control (RHD)
G	3 D-GN	297	Passenger Power Seat Front Vertical Motor Up Control (LHD)
G	3 L-BU	283	Driver Seat Rear Vertical Motor Down Control (RHD)
H	3 L-BU	289	Passenger Power Seat Rear Vertical Motor Down Control (LHD)
H	3 YE	282	Driver Seat Rear Vertical Motor Up Control (RHD)
J	3 YE	288	Passenger Power Seat Rear Vertical Motor Up Control (LHD)
J	3 D-BU	287	Driver Seat Front Vertical Motor Down Control (RHD)
K	3 D-GN	76	Passenger Power Seat Recline Motor Forward (LHD)
K	3 D-GN	286	Driver Seat Front Vertical Motor Up Control (RHD)

Seat Belt Pretensioner - Left

Connector Part Information

OEM: CA-252-92-5 Q
Service: Service by Assembly - See Part Catalog
Description: 2-Way F (PU) With (YE) Case

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Seat Belt Pretensioner - Left

Pin	Wire	Circuit	Function
1	0.5 BK	2119	Seat Belt Pretensioner - Left - Low Control
2	0.5 WH	2118	Seat Belt Pretensioner - Left - High Control

Seat Belt Pretensioner - Right

Connector Part Information

OEM: CA-252-92-5 Q
Service: Service by Assembly - See Part Catalog
Description: 2-Way F (PU) With (YE) Case

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Seat Belt Pretensioner - Right

Pin	Wire	Circuit	Function
1	0.5 BK	2117	Seat Belt Pretensioner - Right - Low Control
2	0.5 WH	2116	Seat Belt Pretensioner - Right - High Control

Seat Belt Retractor - Driver

Connector Part Information

OEM: 7283-7623-30
Service: 88988162
Description: 2-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Belt Retractor - Driver

Pin	Wire	Circuit	Function
1	0.35 BN	41	Run Ignition 3 Voltage
2	0.35 BK/WH	5611	Driver Seat Belt Tension Sensor Signal

Seat Belt Retractor - Passenger

Connector Part Information

OEM: 7283-7623-30
Service: 88988162
Description: 2-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Belt Retractor - Passenger

Pin	Wire	Circuit	Function
1	0.35 BN	41	Run Ignition 3 Voltage
2	0.35 BK/WH	5611	Driver Seat Belt Tension Sensor Signal

Seat Belt Switch - Left Front

Connector Part Information

OEM: 12052054
Service: 88988619
Description: 4-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Belt Switch - Left Front

Pin	Wire	Circuit	Function
A	0.5 PK	5017	Driver Seat Belt Switch Low Reference
B	0.5 TN/WH	238	Driver Seat Belt Switch Signal
C	0.35 PU	5611	Passenger Seat Belt Tension Sensor Signal
D	0.35 BK/WH	551	Signal Ground

Seat Belt Switch - Right Front

Connector Part Information

OEM: 12052054
Service: 88988619
Description: 4-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Belt Switch - Right Front

Pin	Wire	Circuit	Function
A	0.5 PK	5017	Right Front Seat Belt Switch Low Reference
B	0.5 TN/WH	238	Right Front Seat Belt Switch Signal
C	0.35 PU	5611	Passenger Seat Belt Tension Sensor Signal
D	0.35 BK/WH	651	Signal Ground

Seat Climate Control Module X1 (KA1 or KB6)

Connector Part Information

OEM: 12052856
Service: 12125636
Description: 4-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Climate Control Module X1 (KA1 or KB6)

Pin	Wire	Circuit	Function
A	0.8 D-BU	2479	Passenger Heated Seat Element Supply Voltage
B	1 RD/WH	2540	Battery Positive Voltage
C	--	--	Not Used
D	0.8 PK	2077	Driver Heated Seat Element Supply Voltage

Seat Climate Control Module X2 (KA1 or KB6)

Connector Part Information

OEM: 15-97-5121
Service: Service by Harness - See Part Catalog
Description: 12-Way F Mini Fit Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Climate Control Module X2 (KA1 or KB6)

Pin	Wire	Circuit	Function
1-2	--	--	Not Used
3	0.35 BN	41	Run Ignition 3 Voltage
4	--	--	Not Used
5	0.35 PK	2435	Passenger Heated Seat NTC Low Reference
6	0.8 BK	650	Ground
7	0.35 GY	791	PWM Serial Data
8	0.35 WH	790	PWM Serial Data
9	0.35 WH	5915	Passenger Seat Fan Speed Control (KB6)
10	0.35 YE/BK	2079	Driver Heated Seat NTC Signal
11	0.35 GY	2434	Passenger Heated Seat NTC Signal
12	0.8 OG	5919	Driver Seat Fan Speed Control (KB6)

Seat Front Vertical Motor Position Sensor - Driver (A45)

Connector Part Information

OEM: 174921-1
Service: 88953272
Description: 3-Way F Multilock 070 Series (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Front Vertical Motor Position Sensor - Driver (A45)

Pin	Wire	Circuit	Function
1	0.5 BK	--	Low Reference
2	0.5 GY	--	Memory Seat Front Vertical Motor Position Sensor Signal
3	0.5 RD	--	5-Volt Reference

Seat Horizontal Motor Position Sensor - Driver (A45)

Connector Part Information

OEM: 174921-1
Service: 88953272
Description: 3-Way F Multilock 070 Series (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Horizontal Motor Position Sensor - Driver (A45)

Pin	Wire	Circuit	Function
1	0.5 BK	--	Low Reference
1	0.5 BK	--	Low Reference
2	0.5 OG	--	Memory Seat Horizontal Motor Position Sensor Signal
3	0.5 RD	--	5-Volt Reference
3	0.5 RD	--	5-Volt Reference

Seat Lumbar Horizontal Motor - Driver (AL2)

Connector Part Information

OEM: 12020556
Service: 12101820
Description: 2-Way F Metri-Pack 480 Series (BK)

Terminal Part Information

Terminal/Tray: 12015860/4
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 12094430/J-35616-40 (BU)

Seat Lumbar Horizontal Motor - Driver (AL2)

Pin	Wire	Circuit	Function
A	3 D-BU	611	Driver Seat Lumbar Motor Forward Control
B	3 PK	610	Driver Seat Lumbar Motor Rearward Control

Seat Lumbar Horizontal Motor - Passenger (AL2)

Connector Part Information

OEM: 12020556
Service: 12101820
Description: 2-Way F Metri-Pack 480 Series (BK)

Terminal Part Information

Terminal/Tray: 12015860/4
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 12094430/J-35616-40 (BU)

Seat Lumbar Horizontal Motor - Passenger (AL2)

Pin	Wire	Circuit	Function
A	3 D-BU	211	Passenger Seat Lumbar Motor Forward Control
B	3 PK	210	Passenger Seat Lumbar Motor Rearward Control

Seat Lumbar Horizontal Motor Position Sensor - Driver (AL2)

Connector Part Information

OEM: 50-57-9403
Service: 21019417
Description: 3-Way F SL Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Lumbar Horizontal Motor Position Sensor - Driver (AL2)

Pin	Wire	Circuit	Function
1	0.5 L-BU	--	5-Volt Reference
2	0.5 OG	--	Driver Memory Seat Lumbar Horizontal Position Sensor Signal
3	0.5 BN	--	Low Reference

Seat Lumbar Switch - Driver (AL2)

Connector Part Information

OEM: 12052854
Service: 88953358
Description: 7-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Lumbar Switch - Driver (AL2)

Pin	Wire	Circuit	Function
A	0.35 YE/BK	1067	Driver Seat Lumbar Down Switch Signal
B	0.35 YE	1065	Driver Seat Lumbar Foward Switch Signal
C	0.35 D-BU	1064	Driver Seat Lumbar Rearward Switch Signal
D-E	--	--	Not Used
F	0.35 WH	1066	Driver Seat Lumbar Up Switch Signal
G	0.8 RD/WH	2840	Battery Positive Voltage

Seat Lumbar Switch - Passenger (AL2)

Connector Part Information

OEM: 12052854
Service: 88953358
Description: 7-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Lumbar Switch - Passenger (AL2)

Pin	Wire	Circuit	Function
A	0.35 OG	792	Passenger Power Seat Lumbar Motor Down Control
B	0.35 D-BU	211	Passenger Power Seat Lumbar Motor Forward Control (LHD)
B	0.35 WH	210	Passenger Power Seat Lumbar Motor Rearward Control (RHD)
C	0.35 WH	210	Passenger Power Seat Lumbar Motor Rearward Control (LHD)
C	0.35 D-BU	211	Passenger Power Seat Lumbar Motor Forward Control (RHD)
D	--	--	Not Used
E	0.8 BK	650	Ground
F	0.35 PK	793	Passenger Power Seat Lumbar Motor Up Control
G	3 RD/WH	3740	Battery Positive Voltage

Seat Lumbar Vertical Motor - Driver (AL2)

Connector Part Information

OEM: 12020556
Service: 12101820
Description: 2-Way F Metri-Pack 480 Series (BK)

Terminal Part Information

Terminal/Tray: 12015860/4
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 12094430/J-35616-40 (BU)

Seat Lumbar Vertical Motor - Driver (AL2)

Pin	Wire	Circuit	Function
A	3 L-GN	768	Driver Seat Lumbar Motor Up Control
B	3 PU	767	Driver Seat Lumbar Motor Down Control

Seat Lumbar Vertical Motor - Passenger (AL2)

Connector Part Information

OEM: 12020556
Service: 12101820
Description: 2-Way F Metri-Pack 480 Series (BK)

Terminal Part Information

Terminal/Tray: 12015860/4
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 12094430/J-35616-40 (BU)

Seat Lumbar Vertical Motor - Passenger (AL2)

Pin	Wire	Circuit	Function
A	3 L-GN	768	Passenger Seat Lumbar Motor Up Control
B	3 PU	767	Passenger Seat Lumbar Motor Down Control

Seat Lumbar Vertical Motor Position Sensor - Driver (AL2)

Connector Part Information

OEM: 50-57-9403
Service: 21019417
Description: 3-Way F SL Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Lumbar Vertical Motor Position Sensor - Driver (AL2)

Pin	Wire	Circuit	Function
1	0.5 L-BU	--	5-Volt Reference
2	0.5 RD	--	Driver Memory Seat Lumbar Vertical Position Sensor Signal
3	0.5 BN	--	Low Reference

Seat Rear Vertical Motor Position Sensor - Driver (A45)

Connector Part Information

OEM: 174921-1
Service: 88953272
Description: 3-Way F Multilock 070 Series (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Rear Vertical Motor Position Sensor - Driver (A45)

Pin	Wire	Circuit	Function
1	0.5 BK	--	Low Reference
1	0.5 BK	--	Low Reference
2	0.5 YE	--	Memory Seat Rear Vertical Motor Position Sensor Signal
3	0.5 RD	--	5-Volt Reference
3	0.5 RD	--	5-Volt Reference

Seat Recline Motor - Driver

Connector Part Information

OEM: 1326490-3
Service: See Catalog
Description: 4-Way F JR-POWER MICRO III (GY)

Terminal Part Information

Terminal/Tray: 4-965999-1/25
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Seat Recline Motor - Driver

Pin	Wire	Circuit	Function
1	3 L-GN	276	Driver Power Seat Recline Motor Forward Control
2	3 L-BU	277	Driver Power Seat Recline Motor Rearward Control
3-4	--	--	Not Used

Seat Recline Motor - Passenger

Connector Part Information

OEM: 1326490-3
Service: See Catalog
Description: 4-Way F JR-POWER MICRO III (GY)

Terminal Part Information

Terminal/Tray: 4-965999-1/25
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Seat Recline Motor - Passenger

Pin	Wire	Circuit	Function
1	3 L-GN	276	Passenger Power Seat Recline Motor Forward Control
2	3 L-BU	277	Passenger Power Seat Recline Motor Rearward Control
3-4	--	--	Not Used

Seat Recline Position Sensor - Driver (A45)

Connector Part Information

OEM: 39-01-4030
Service: Service by Harness - See Part Catalog
Description: 3-Way F Mini Fit (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Recline Position Sensor - Driver (A45)

Pin	Wire	Circuit	Function
1	0.35 GY	788	Memory Mirror Position Sensor 5-Volt Reference (RHD)
1	0.35 TN	782	Memory Seat/Mirror Sensor Low Reference (LHD)
2	0.35 WH/BK	570	Driver Seat Recline Motor Position Sensor Signal
3	0.35 TN	782	Memory Seat/Mirror Sensor Low Reference (RHD)
3	0.35 GY	788	Memory Mirror Position Sensor 5-Volt Reference (LHD)

Side Object Sensor - Left (UFT)

Connector Part Information

OEM: 31404-6107
Service: Service by Harness - See Part Catalog
Description: 6-Way F 31404 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Side Object Sensor - Left (UFT)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 RD/WH	540	Battery Positive Voltage
3	--	--	Not Used
4	0.35 D-GN	5060	Low Speed GMLAN Serial Data
5	0.35 BK	1050	Ground
6	--	--	Not Used

Side Object Sensor - Right (UFT)

Connector Part Information

OEM: 31404-6108
Service: Service by Harness - See Part Catalog
Description: 6-Way F 31404 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Side Object Sensor - Right (UFT)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 RD/WH	540	Battery Positive Voltage
3	0.35 D-GN	5060	Low Speed GMLAN Serial Data
4	0.35 D-GN	5060	Low Speed GMLAN Serial Data
5	0.35 BK	1050	Ground
6	0.35 BK	1050	Ground

Speaker - Center Console (UY5)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Center Console (UY5)

Pin	Wire	Circuit	Function
A	0.8 OG/BK	5766	Console Center Speaker (-)
B	0.8 OG	5756	Center Console Speaker (+)

Speaker - Center I/P

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Center I/P

Pin	Wire	Circuit	Function
A	0.8 L-BU	1960	Front Center Speaker (-)
B	0.8 YE	1860	Front Center Speaker (+)

Speaker - Driver Seat Left (UY5)

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Speaker - Driver Seat Left (UY5)

Pin	Wire	Circuit	Function
A	0.8 D-GN/WH	5767	Left Front Seat Left Speaker (-) (LHD)
A	0.8 YE/BK	5769	Left Front Seat Left Speaker (-) (RHD)
B	0.8 D-GN	5757	Left Front Seat Left Speaker (+) (LHD)
B	0.8 YE	5759	Left Front Seat Left Speaker (+) (RHD)

Speaker - Driver Seat Right (UY5)

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Speaker - Driver Seat Right (UY5)

Pin	Wire	Circuit	Function
A	0.8 GY/BK	5768	Left Front Seat Right Speaker (-) (LHD)
A	0.8 L-GN/BK	5770	Left Front Seat Right Speaker (-) (RHD)
B	0.8 GY	5758	Left Front Seat Right Speaker (+) (LHD)
B	0.8 L-GN	5760	Left Front Seat Right Speaker (+) (RHD)

Speaker - Left Front Tweeter (UX8)

Connector Part Information

OEM: 12110131
Service: 15306030
Description: 2-Way M Metri-Pack 280 Series (WH)

Terminal Part Information

Terminal/Tray: 12034047/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

Speaker - Left Front Tweeter (UX8)

Pin	Wire	Circuit	Function
A	0.8 YE	1956	Left Front Tweeter Speaker (-)
B	0.8 TN	1856	Left Front Tweeter Speaker (+)

Speaker - Left Front Tweeter (UY5)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Left Front Tweeter (UY5)

Pin	Wire	Circuit	Function
A	0.8 TN/WH	1974	Left Front Speaker (-) (2)
B	0.8 L-BU	1874	Left Front Speaker (+) (2)

Speaker - Left Front (UX8)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Left Front (UX8)

Pin	Wire	Circuit	Function
A	0.8 YE	1956	Left Front Door Speaker (-)
B	0.8 TN	1856	Left Front Door Speaker (+)

Speaker - Left Front (UY5)

Connector Part Information

OEM: 6098-2180
Service: 88988384
Description: 5-Way F 90 Type Series (BK)

Terminal Part Information

Terminal/Tray: 8240-4422/6
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Speaker - Left Front (UY5)

Pin	Wire	Circuit	Function
A	1 RD/WH	640	Battery Positive Voltage (LHD)
A	1 RD/WH	740	Battery Positive Voltage (RHD)
B	1 BK/WH	850	Ground
C	0.5 PU/WH	5754	Amplifier Powered Woofer Control (1) (LHD)
C	0.5 PK/BK	5755	Amplifier Powered Woofer Control (1) (RHD)
D	0.8 YE	1956	Left Front Door Speaker (-)
E	0.8 TN	1856	Left Front Door Speaker (+)

Speaker - Left Rear Compartment (UY5)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Left Rear Compartment (UY5)

Pin	Wire	Circuit	Function
A	0.8 D-BU/WH	5771	Left Rear Shelf Speaker (-)
B	0.8 D-BU	5761	Left Rear Shelf Speaker (+)

Speaker - Left Rear

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Speaker - Left Rear

Pin	Wire	Circuit	Function
A	0.8 WH	1959	Left Rear Midrange Speaker (-)
B	0.8 TN	1859	Left Rear Midrange Speaker (+)

Speaker - Passenger Seat Left (UY5)

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Speaker - Passenger Seat Left (UY5)

Pin	Wire	Circuit	Function
A	0.8 YE/BK	5769	Right Front Seat Left Speaker (-) (LHD)
A	0.8 D-GN/WH	5767	Right Front Seat Left Speaker (-) (RHD)
B	0.8 YE	5759	Right Front Seat Left Speaker (+) (LHD)
B	0.8 D-GN	5757	Right Front Seat Left Speaker (+) (RHD)

Speaker - Passenger Seat Right (UY5)

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Speaker - Passenger Seat Right (UY5)

Pin	Wire	Circuit	Function
A	0.8 L-GN/BK	5770	Right Front Seat Right Speaker (-)
B	0.8 L-GN	5760	Right Front Seat Right Speaker (+)

Speaker - Right Front Tweeter (LHD with UX8)

Connector Part Information

OEM: 12110131
Service: 15306030
Description: 2-Way M Metri-Pack 280 Series (WH)

Terminal Part Information

Terminal/Tray: 12034047/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

Speaker - Right Front Tweeter (LHD with UX8)

Pin	Wire	Circuit	Function
A	0.8 PU	1952	Right Front Tweeter Speaker (-)
B	0.8 L-GN	1852	Right Front Tweeter Speaker (+)

Speaker - Right Front Tweeter (RHD with UX8)

Connector Part Information

OEM: 12015199
Service: 12101821
Description: 2-Way F Metri-Pack 280 Series (NA)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Speaker - Right Front Tweeter (RHD with UX8)

Pin	Wire	Circuit	Function
A	0.8 PU	1952	Right Front Tweeter Speaker (-)
B	0.8 L-GN	1852	Right Front Tweeter Speaker (+)

Speaker - Right Front Tweeter (UY5)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Right Front Tweeter (UY5)

Pin	Wire	Circuit	Function
A	0.8 TN/WH	1975	Right Front Speaker (-) (2)
B	835 TN	1875	Right Front Speaker (+) (2)

Speaker - Right Front (UX8)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Right Front (UX8)

Pin	Wire	Circuit	Function
A	0.8 PU	1952	Right Front Door Speaker (-)
B	0.8 L-GN	1852	Right Front Door Speaker (+)

Speaker - Right Front (UY5)

Connector Part Information

OEM: 6098-2180
Service: 88988384
Description: 5-Way F 90 Type Series (BK)

Terminal Part Information

Terminal/Tray: 8240-4422/6
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Speaker - Right Front (UY5)

Pin	Wire	Circuit	Function
A	1 RD/WH	740	Battery Positive Voltage (LHD)
A	1 RD/WH	640	Battery Positive Voltage (RHD)
B	1 BK/WH	850	Ground
C	0.5 PK/BK	5755	Amplifier Powered Woofer Control (1)
D	0.8 PU	1952	Right Front Door Speaker (-)
E	0.8 L-GN	1852	Right Front Door Speaker (+)

Speaker - Right Rear

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Speaker - Right Rear

Pin	Wire	Circuit	Function
A	0.8 WH	1959	Right Rear Midrange Speaker (-)
B	0.8 TN	1859	Right Rear Midrange Speaker (+)

Speaker - Right Rear Compartment (UY5)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Right Rear Compartment (UY5)

Pin	Wire	Circuit	Function
A	0.8 L-BU/BK	5772	Right Rear Shelf Speaker (-)
B	0.8 L-BU	5762	Right Rear Shelf Speaker (+)

Speaker - Subwoofer (UX8)

Connector Part Information

OEM: 12129081
Service: 12129081
Description: 2-Way F Metri-Pack 280 Series, Flexlock (BK)

Terminal Part Information

Terminal/Tray: 12110842/4
Core/Insulation Crimp: A/B
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Speaker - Subwoofer (UX8)

Pin	Wire	Circuit	Function
A	2 L-GN/BK	1794	Rear Subwoofer Speaker (-)
B	2 D-BU/WH	346	Rear Subwoofer Speaker (+)

Speaker - Subwoofer (UY5)

Connector Part Information

OEM: 6098-2180
Service: 88988384
Description: 5-Way F 90 Type Series (BK)

Terminal Part Information

Terminal/Tray: 8240-4422/6
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Speaker - Subwoofer (UY5)

Pin	Wire	Circuit	Function
A	1 RD/WH	2440	Battery Positive Voltage
B	1 BK/WH	1051	Ground
C	0.5 PK/BK	5755	Amplifier Powered Woofer Control (2)
D	0.8 L-GN/BK	1794	Rear Subwoofer Speaker (-)
E	0.8 D-BU/WH	346	Rear Subwoofer Speaker (+)

Starter Motor X1 (LC3 or LH2)

Part Information

Terminal: 12191281
Core/Insulation Crimp: N/A
Description: Ring Terminal

Starter Motor X1 (LC3 or LH2)

Pin	Wire	Circuit	Function
--	3 PU	6	Starter Solenoid Crank Voltage

Starter Motor X2

Part Information

Terminal: 7003-2107-02
Core/Insulation Crimp: N/A
Description: Ring Terminal

Starter Motor X2

Pin	Wire	Circuit	Function
+	19 RD	1	Battery Positive Voltage
+	19 RD	1	Battery Positive Voltage

Steering Column Lock Control Module X1 (UA2 or UA7)

Connector Part Information

OEM: 173850-1
Service: Service by Harness - See Part Catalog
Description: 8-Way F 070 AMP (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Steering Column Lock Control Module X1 (UA2 or UA7)

Pin	Wire	Circuit	Function
1	0.35 BN	1932	Transmission Shift Select Switch Park Signal
2	0.5 RD/WH	1640	Battery Positive Voltage
3	0.35 BK	5741	Steering Column Lock Module Lock Enable Relay Control
4	0.35 BK/WH	351	Ground
5	0.8 PK	1239	Ignition 1 Voltage
6	0.35 BK	350	Ground
7	0.35 D-GN	5060	Low Speed GMLAN Serial Data
8	--	--	Not Used

Steering Column Lock Control Module X2 (UA2 or UA7)

Connector Part Information

OEM: 12064760
Service: Service by Harness - See Part Catalog
Description: 4-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Steering Column Lock Control Module X2 (UA2 or UA7)

Pin	Wire	Circuit	Function
A	0.35 L-GN	1601	Steering Column Lock Signal
B	0.35 BK	150	Ground
C	0.5 PU	1604	Steering Column Unlock
D	0.5 OG	1603	Steering Column Lock

Steering Column Telescope Actuator

Connector Part Information

OEM: 12020556
Service: Service by Harness - See Part Catalog
Description: 2-Way F Metri-Pack 480 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Steering Column Telescope Actuator

Pin	Wire	Circuit	Function
A	3 D-BU	287	Steering Column Telescope Motor Control - Reverse
B	3 OG	2098	Steering Column Telescope Motor Control - Forward

Steering Column Telescope Position Sensor (A45)

Connector Part Information

OEM: 12047782
Service: Service by Harness - See Part Catalog
Description: 3-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Steering Column Telescope Position Sensor (A45)

Pin	Wire	Circuit	Function
A	0.35 TN	782	Memory Seat/Mirror Sensor Low Reference
B	0.35 GY	788	Memory Mirror Position Sensor 5-Volt Reference
C	0.35 OG	2153	Steering Column Telescope Motor Signal

Steering Wheel/Column Tilt/Telescope Switch

Connector Part Information

OEM: 12185636
Service: Service by Harness - See Part Catalog
Description: 5-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Steering Wheel/Column Tilt/Telescope Switch

Pin	Wire	Circuit	Function
1	0.35 GY	2096	Steering Column Tilt and Telescope Up Switch Signal
2	0.5 RD/WH	1640	Battery Positive Voltage
3	0.35 PU	2094	Steering Column Tilt and Telescope Forward Switch Signal
4	0.35 OG	2095	Steering Column Tilt and Telescope Rearward Switch Signal
5	0.35 YE	2097	Steering Column Tilt and Telescope Down Switch Signal

Steering Wheel Control Switch - Left

Connector Part Information

OEM: 50-57-9408
Service: Service by Harness - See Part Catalog
Description: 8-Way F SL Series (BK)

Terminal Part Information

Terminal/Tray: 16-02-1110/20
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Steering Wheel Control Switch - Left

Pin	Wire	Circuit	Function
1	0.35 WH	--	Steering Wheel Controls Supply Voltage
2	0.35 TN	--	Cruise Control Switch Signal
3	0.35 YE	--	Backlight Lamps Control
4	0.35 BK	--	Ground
5	0.35 D-BU	--	Remote Radio Signal
6	0.35 L-GN	--	Steering Wheel Controls Signal
7	0.35 WH	--	Heated Steering Wheel Switch Indicator Control (N31 or NR7)
8	0.35 YE	--	Heated Steering Wheel Switch Signal (N31 or NR7)

Steering Wheel Control Switch - Right

Connector Part Information

OEM: 50-57-9405
Service: Service by Harness - See Part Catalog
Description: 5-Way F (BK)

Terminal Part Information

Terminal/Tray: 16-02-1110/20
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Steering Wheel Control Switch - Right

Pin	Wire	Circuit	Function
1	0.35 PU	--	Remote Radio Control Supply Voltage
2	0.35 L-GN	--	Steering Wheel Controls Signal
3	0.35 YE	--	Backlight Lamps Control
4	0.35 BK	--	Ground
5	0.35 D-BU	--	Remote Radio Signal

Steering Wheel Speed/Position Sensor (JL7)

Connector Part Information

OEM: AIT2PB-06-1FS
Service: 19178090
Description: 6-Way F AIT II Series (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Steering Wheel Speed/Position Sensor (JL7)

Pin	Wire	Circuit	Function
1-2	0.35 L-GN/BK	6432	CAN Bus Low Serial Data
3-4	0.35 TN/WH	6433	CAN Bus High Serial Data
5	0.35 PK	1339	Ignition 1 Voltage
6	0.35 BK/WH	351	Ground

Steering Wheel Speed/Position Sensor (without JL7)

Connector Part Information

OEM: 12064978
Service: 12125678
Description: 6-Way F Micro-Pack 100 Series (GY)

Terminal Part Information

Terminal/Tray: 12146447/3
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)

Steering Wheel Speed/Position Sensor (without JL7)

Pin	Wire	Circuit	Function
1	0.35 GY/BK	1337	5-Volt Reference
2	0.35 L-GN/BK	1338	Low Reference
3-4	--	--	Not Used
5	0.35 L-GN	1763	Steering Wheel Position Signal A
6	0.35 L-BU	1764	Steering Wheel Position Signal B

Steering Wheel Tilt Actuator

Connector Part Information

OEM: 12052110
Service: Service by Harness - See Part Catalog
Description: 2-Way F Metri-Pack 480 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Steering Wheel Tilt Actuator

Pin	Wire	Circuit	Function
A	3 RD	2111	Steering Column Tilt Motor Up Control
B	3 L-BU	283	Steering Column Tilt Motor Down Control

Steering Wheel Tilt Position Sensor (A45)

Connector Part Information

OEM: 12065423
Service: Service by Harness - See Part Catalog
Description: 3-Way M Metri-Pack 150 Series (NA)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Steering Wheel Tilt Position Sensor (A45)

Pin	Wire	Circuit	Function
A	0.35 TN	782	Memory Seat/Mirror Sensor Low Reference
B	0.35 GY	788	Memory Mirror Position Sensor 5-Volt Reference
C	0.35 OG	2154	Steering Column Tilt Motor Signal

Sunload Sensor

Connector Part Information

OEM: 12064760
Service: 12085208
Description: 4-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Sunload Sensor

Pin	Wire	Circuit	Function
A	0.35 L-BU/BK	590	Solar Sensor Driver Signal
B	0.35 GY	1548	Passenger Solar Sensor Signal
C	0.35 YE	61	Outside Ambient Temperature Sensor Low Reference
D	0.35 WH	278	Ambient Light Sensor Signal

Sunroof Control Module (CF5)

Connector Part Information

OEM: 7283-8398-40
Service: Service by Harness - See Part Catalog
Description: 14-Way F (L-GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Sunroof Control Module (CF5)

Pin	Wire	Circuit	Function
1	2 D-BU	2640	Battery Positive Voltage
2	0.35 BK	755	Sunroof Enable Signal
3	--	--	Not Used
4	2 BK	1050	Ground
5	0.35 OG	5029	Sunroof Switch Open Signal
6	0.35 L-BU	5027	Sunroof Switch Close Signal
7	0.35 BN	5028	Sunroof Switch Express Signal
8	0.35 PU	5032	Sunroof Switch Open Vent Signal
9	0.35 TN	5030	Sunroof Switch Close Vent Signal
10	0.35 PK	5031	Sunroof Switch Express Vent Signal
11	--	--	Not Used
12	0.35 WH/RD	--	Serial Data
13	0.35 WH/BU	--	Serial Data
14	0.35 WH/GN	--	Serial Data

Sunroof Switch (CF5)

Connector Part Information

OEM: 50-57-9408
Service: 89046705
Description: 8-Way F (BK)

Terminal Part Information

Terminal/Tray: 16-02-1110/20
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Sunroof Switch (CF5)

Pin	Wire	Circuit	Function
1	0.35 PK	5031	Sunroof Switch Express Vent Signal
2	0.35 L-BU	5027	Sunroof Switch Close Signal
3	0.35 YE	1491	Backlight Lamp Control
4	0.35 PU	5032	Sunroof Switch Open Vent Signal
5	0.35 BK	850	Ground
6	0.35 TN	5030	Sunroof Switch Close Vent Signal
7	0.35 BN	5028	Sunroof Switch Express Signal
8	0.35 OG	5029	Sunroof Switch Open Signal

Sunshade - Left

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Sunshade - Left

Pin	Wire	Circuit	Function
A	0.35 BK	850	Ground
B	0.35 D-BU/WH	149	Courtesy Lamp Supply Voltage

Sunshade - Right

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Sunshade - Right

Pin	Wire	Circuit	Function
A	0.35 BK	850	Ground
B	0.35 D-BU/WH	149	Courtesy Lamp Supply Voltage

Supercharger Air Inlet Pressure Sensor (LC3)

Connector Part Information

OEM: 12129946
Service: 88987997
Description: 3-Way F Metri-Pack 150 Sealed (L-GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Supercharger Air Inlet Pressure Sensor (LC3)

Pin	Wire	Circuit	Function
A	0.35 D-GN	7125	Super Charger Inlet Air Pressure Sensor Return
B	0.35 BN	7123	Super Charger Inlet Air Pressure Sensor Signal
C	0.35 YE/BK	7124	5-Volt Reference

Supercharger Bypass Valve Solenoid (LC3)

Connector Part Information

OEM: 184006-2
Service: 88988501
Description: 2-Way M Asm Key D-C3 Sealed (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Supercharger Bypass Valve Solenoid (LC3)

Pin	Wire	Circuit	Function
1	0.8 PK/BK	5294	Ignition 1 Voltage
2	0.35 L-BU	7126	Super Charger Vacuum Bypass Valve Control

Suspension Damper Solenoid - Left Front (F55)

Connector Part Information

OEM: 15305168
Service: 12167117
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)

OEM: 15359261
Service: 88953232
Description: 2-Way M Metri-Pack 150 Series Sealed (L-GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Terminal/Tray: N/A
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Suspension Damper Solenoid - Left Front (F55)

Pin	Wire	Circuit	Function
A	0.8 OG/BK	1448	Left Front Strut Motor Increase Damping
B	0.8 L-GN	1005	Left Front Strut Motor Decrease Damping Control

Suspension Damper Solenoid - Left Rear (F55)

Connector Part Information

OEM: 15305168
Service: 12167117
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)
OEM: 15359261
Service: 88953232
Description: 2-Way M Metri-Pack 150 Series Sealed (L-GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Terminal/Tray: N/A
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Suspension Damper Solenoid - Left Rear (F55)

Pin	Wire	Circuit	Function
A	0.8 OG	1010	Left Rear Strut Motor Increase Damping Control
B	0.8 OG/BK	1013	Left Rear Strut Motor Decrease Damping Control

Suspension Damper Solenoid - Right Front (F55)

Connector Part Information

OEM: 15305168
Service: 12167117
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)

OEM: 15359261
Service: 88953232
Description: 2-Way M Metri-Pack 150 Series Sealed (L-GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Terminal/Tray: N/A
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Suspension Damper Solenoid - Right Front (F55)

Pin	Wire	Circuit	Function
A	0.8 WH/BK	1006	Right Front Strut Motor Increase Damping Control
B	0.8 BN	1007	Ride Control Strut Motor - Feed - Right Front - Decrease Damping

Suspension Damper Solenoid - Right Rear (F55)

Connector Part Information

OEM: 15305168
Service: 12167117
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)

OEM: 15359261
Service: 88953232
Description: 2-Way M Metri-Pack 150 Series Sealed (L-GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Terminal/Tray: N/A
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Suspension Damper Solenoid - Right Rear (F55)

Pin	Wire	Circuit	Function
A	0.8 YE	1014	Right Rear Strut Motor Increase Damping
B	0.8 PU	1017	Right Rear Strut Motor Decrease Damping

Suspension Position Sensor - Left Front (F55 or TR7)

Connector Part Information

OEM: 15326556
Service: 88953359
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Suspension Position Sensor - Left Front (F55 or TR7)

Pin	Wire	Circuit	Function
A	0.35 PU/WH	1205	Left Front Strut Position Sensor Voltage Reference
B	0.35 TN/WH	1207	Left Front Strut Position Sensor Signal
C	0.35 L-BU/BK	1206	Left Front Strut Position Sensor Low Reference

Suspension Position Sensor - Left Rear (F55 or TR7)

Connector Part Information

OEM: 15326556
Service: 88953359
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Suspension Position Sensor - Left Rear (F55 or TR7)

Pin	Wire	Circuit	Function
A	0.35 OG/BK	1208	Left Rear Strut Position Sensor Voltage Reference
B	0.35 L-GN/WH	1210	Left Rear Strut Position Sensor Signal
C	0.35 L-GN/BK	1209	Left Rear Strut Position Sensor Low Reference

Suspension Position Sensor - Right Front (F55)

Connector Part Information

OEM: 15326556
Service: 88953359
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Suspension Position Sensor - Right Front (F55)

Pin	Wire	Circuit	Function
A	0.35 PU/WH	1211	Right Front Strut Position Sensor Voltage Reference
B	0.35 TN/WH	1213	Right Front Strut Position Sensor Signal
C	0.35 L-BU/BK	1212	Right Front Strut Position Sensor Low Reference

Suspension Position Sensor - Right Rear (F55)

Connector Part Information

OEM: 15326556
Service: 88953359
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Suspension Position Sensor - Right Rear (F55)

Pin	Wire	Circuit	Function
A	0.35 OG/BK	1214	Right Rear Strut Position Sensor Voltage Reference
B	0.35 L-GN/WH	1216	Right Rear Strut Position Sensor Signal
C	0.35 L-GN/BK	1215	Right Rear Strut Position Sensor Low Reference

Tail Lamp - Left

Connector Part Information

OEM: 12077591
Service: 12117277
Description: 5-Way F Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Tail Lamp - Left

Pin	Wire	Circuit	Function
A	0.35 PU	709	Left Park Lamp Supply Voltage (T84 or TT6)
A	0.35 PU	1472	Left Park Lamp Relay Control (TT7 or TT8)
B	0.35 YE	18	Left Rear Stop/Turn Lamp Supply Voltage
C	0.35 YE/BK	1334	Left Rear Turn Signal Lamp Supply Voltage
D	0.8 BK	850	Ground
E	0.35 L-BU	20	Stop Lamp Supply Voltage

Tail Lamp - Right

Connector Part Information

OEM: 12077591
Service: 12117277
Description: 5-Way F Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Tail Lamp - Right

Pin	Wire	Circuit	Function
A	0.35 BN/WH	309	Right Park Lamp Supply Voltage (T84 or TT6)
A	0.35 BN/WH	1473	Right Park Lamp Supply Voltage (TT7 or TT8)
B	0.35 D-GN	19	Right Rear Stop/Turn Lamp Supply Voltage
C	0.35 D-GN/WH	1335	Right Rear Turn Signal Lamp Supply Voltage
D	0.8 BK	1050	Ground
E	0.35 L-BU	20	Stop Lamp Supply Voltage

Theft Deterrent Alarm Siren (UA2)

Connector Part Information

OEM: 1-967640-1
Service: 88953370
Description: 4-Way F Amp (BK)

Terminal Part Information

Terminal/Tray: 962885-5/15
Core/Insulation Crimp: 6/6
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Theft Deterrent Alarm Siren (UA2)

Pin	Wire	Circuit	Function
1	0.35 PK	1339	Run/Crank Ignition 1 Voltage
2	0.35 RD/WH	3940	Fuse Output Battery Type 3 Fuse
3	0.8 TN/BK	5168	Power Sounder Enable Signal
4	0.35 BK	1050	Ground

Throttle Body (LC3)

Connector Part Information

OEM: 1-967616-1
Service: 15306420
Description: 6-Way F MQS Socket Housing, Sealed (BK)

Terminal Part Information

Pins: 1-6
Terminal/Tray: 962885-5/15
Core/Insulation Crimp: Pins 1-3, 5 - 6/6
Core/Insulation Crimp: Pins 4, 6 - 7/7
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Throttle Body (LC3)

Pin	Wire	Circuit	Function
1	0.5 D-GN	485	TP Sensor 1 Signal
2	0.5 PU	486	TP Sensor 2 Signal
3	0.5 TN	2752	Low Reference
4	0.75 YE	581	TAC Motor Control - 1
5	0.5 GY	2701	5-Volt Reference
6	0.75 BN	582	TAC Motor Control - 2

Throttle Body (LH2 or LLT)

Connector Part Information

OEM: 15355297
Service: 88988106
Description: 6-Way F GT 150 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: 33012-1003
Core/Insulation Crimp: 2/E
Release Tool/Test Probe: J-38125-217(L-BU)/J-35616-2A (GY)

Throttle Body (LH2 or LLT)

Pin	Wire	Circuit	Function
A	0.75 BN	582	TAC Motor Control - 2
B	0.75 YE	581	TAC Motor Control - 1
C	0.5 TN	2752	Low Reference
D	0.5 D-GN	485	TP Sensor 1 Signal
E	0.5 GY	2701	5-Volt Reference
F	0.5 PU	486	TP Sensor 2 Signal

Tire Pressure Module (UH3)

Connector Part Information

OEM: 962108-2
Service: 12162954
Description: 18-Way F Micro Quadlock (BK)

Terminal Part Information

Terminal/Tray: 928999-5/15
Core/Insulation Crimp: H/H
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Tire Pressure Module (UH3)

Pin	Wire	Circuit	Function
1	0.35 YE	243	Run/Crank Ignition 1 Voltage
2	0.35 L-BU/BK	5732	Tire Pressure Receiver Supply Voltage
3-4	--	--	Not Used
5	0.35 L-BU/BK	5732	Tire Pressure Receiver Supply Voltage
6-9	--	--	Not Used
10	0.35 BK	1050	Ground
11	0.35 GY	5733	Left Front Tire Pressure Receiver Signal
12	0.35 L-GN/BK	5731	Tire Pressure Receiver Low Reference
13	0.35 OG	5734	Right Front Tire Pressure Receiver Signal
14	--	--	Not Used
15	0.35 PU	5735	Right Rear Tire Pressure Receiver Signal
16	--	--	Not Used
17	0.35 YE	5736	Left Rear Tire Pressure Receiver Signal
18	0.35 L-GN/BK	5731	Tire Pressure Receiver Low Reference

Tire Pressure Receiver - Left Front (UH3)

Connector Part Information

OEM: 1928403870
Service: 88953312
Description: 3-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: 4-964286-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Tire Pressure Receiver - Left Front (UH3)

Pin	Wire	Circuit	Function
1	0.35 L-BU/BK	5732	Tire Pressure Receiver Supply Voltage
2	0.35 GY	5733	Left Front Tire Pressure Receiver Signal
3	0.35 L-GN/BK	5731	Tire Pressure Receiver Low Reference

Tire Pressure Receiver - Left Rear (UH3)

Connector Part Information

OEM: 1928403870
Service: 88953312
Description: 3-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: 4-964286-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Tire Pressure Receiver - Left Rear (UH3)

Pin	Wire	Circuit	Function
1	0.35 L-BU/BK	5732	Tire Pressure Receiver Supply Voltage
2	0.35 YE	5736	Left Rear Tire Pressure Receiver Signal
3	0.35 L-GN/BK	5731	Tire Pressure Receiver Low Reference

Tire Pressure Receiver - Right Front (UH3)

Connector Part Information

OEM: 1928403870
Service: 88953312
Description: 3-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: 4-964286-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Tire Pressure Receiver - Right Front (UH3)

Pin	Wire	Circuit	Function
1	0.35 L-BU/BK	5732	Tire Pressure Receiver Supply Voltage
2	0.35 OG	5734	Right Front Tire Pressure Receiver Signal
3	0.35 L-GN/BK	5731	Tire Pressure Receiver Low Reference

Tire Pressure Receiver - Right Rear (UH3)

Connector Part Information

OEM: 1928403870
Service: 88953312
Description: 3-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: 4-964286-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Tire Pressure Receiver - Right Rear (UH3)

Pin	Wire	Circuit	Function
1	0.35 L-BU/BK	5732	Tire Pressure Receiver Supply Voltage
2	0.35 PU	5735	Right Rear Tire Pressure Receiver Signal
3	0.35 L-GN/BK	5731	Tire Pressure Receiver Low Reference

Traction Control Switch (TCS)

Connector Part Information

OEM: 12059800
Service: 15306169
Description: 5-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Traction Control Switch (TCS)

Pin	Wire	Circuit	Function
A-B	--	--	Not Used
C	0.35 BN/WH	1571	Traction Control Switch Signal (2)
D	0.35 BK/WH	451	Ground
E	0.35 YE	1491	Backlight Lamp Control

Traffic Information Receiver X1 (YQ7)

Part Information

OEM: PMA-SP-1.5 DSV-CR-D1
Service: Not Serviced
Description: Coax Connector

Traffic Information Receiver X1 (YQ7)

Pin	Wire	Circuit	Function
--	--	--	Coax

Traffic Information Receiver X2 (YQ7)

Part Information

OEM: 1142H
Service: Not Serviced
Description: Coax Connector

Traffic Information Receiver X2 (YQ7)

Pin	Wire	Circuit	Function
--	--	--	Coax

Traffic Information Receiver X3 (YQ7)

Connector Part Information

OEM: 4F1010-0001C
Service: 89046791
Description: 10-Way F Tokai Rika (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Traffic Information Receiver X3 (YQ7)

Pin	Wire	Circuit	Function
1	0.35 GY	5383	Vehicle Identification Communication System High Signal
2	0.35 BN	5384	Vehicle Identification Communication System Low Signal
3	0.35 OG	3240	Battery Positive Voltage
4	0.35 YE	43	Accessory Voltage
5	0.35 BK	1050	Ground
6	0.35 YE	5385	Vehicle Identification Communication System Bus Request Signal
7	0.35 BARE	814	Drain Wire
8-10	--	--	Not Used

Turn Signal Lamp - Left Front

Connector Part Information

OEM: 1035
Service: Service by Assembly - See Part Catalog
Description: 2-Way F CE-F29.14-5A Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal Lamp - Left Front

Pin	Wire	Circuit	Function
A	0.35 L-BU	1314	Left Front Turn Signal Lamp Supply Voltage
B	0.35 BK	250	Ground
B	0.35 BK	250	Ground

Turn Signal Lamp - Right Front

Connector Part Information

OEM: 1035
Service: Service by Assembly - See Part Catalog
Description: 2-Way F CE-F29.14-5A Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal Lamp - Right Front

Pin	Wire	Circuit	Function
A	0.35 L-BU/WH	1315	Right Front Turn Signal Lamp Supply Voltage
B	0.35 BK	250	Ground
B	0.35 BK	250	Ground

Turn Signal/Multifunction Switch X1

Connector Part Information

OEM: 15466859
Service: Service by Harness - See Part Catalog
Description: 8-Way F Metri-Pack 150 Series (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal/Multifunction Switch X1

Pin	Wire	Circuit	Function
A	0.35 D-GN/WH	1419	Right Rear Turn Signal Switch Signal
B	--	--	Not Used
C	0.35 BK	350	Ground
D	0.35 YE/BK	1418	Left Rear Turn Signal Switch Signal
E	--	--	Not Used
F	0.35 L-BU/WH	1414	Left Front Turn Signal Switch Signal
G	0.35 BK	350	Ground
H	0.35 D-BU/WH	1415	Right Front Turn Signal Switch Signal

Turn Signal/Multifunction Switch X2

Connector Part Information

OEM: HCMWSB-05-K
Service: Service by Harness - See Part Catalog
Description: 5-Way M HCM-W Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal/Multifunction Switch X2

Pin	Wire	Circuit	Function
1	0.35 PU	1375	Remote Radio Control Head Accessory Supply Voltage
2	0.35 L-BU	187	Rear Fog Lamp Switch Signal
3	0.35 BK	350	Ground
4	0.35 OG	192	Front Fog Lamp Switch Signal
5	0.35 GY	1884	Cruise Control Set/Coast/Resume/Accelerate Switch Signal

Turn Signal/Multifunction Switch X3

Connector Part Information

OEM: 15339058
Service: Service by Harness - See Part Catalog
Description: 7-Way F Metri-Pack 150 Series (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal/Multifunction Switch X3

Pin	Wire	Circuit	Function
G-J	--	--	Not Used
K	0.35 BK	350	Ground
L	0.35 WH	103	Headlamp Switch On Signal
M	0.35 BN/WH	301	Park Lamp Switch On Signal
N	0.35 PU	1783	Twilight Sentinel Delay Signal

Turn Signal/Multifunction Switch X4

Connector Part Information

OEM: 15466858
Service: Service by Harness - See Part Catalog
Description: 5-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal/Multifunction Switch X4

Pin	Wire	Circuit	Function
A	0.35 BN	1356	Flash To Pass Switch Signal
B	0.35 BK	350	Ground
C	--	--	Not Used
D	0.35 BK	350	Ground
E	0.35 L-BU	1485	Flash To Pass Switch Supply Voltage

Television Antenna Module X1 (YQ6 or YQ7)

Connector Part Information

OEM: 1-1355928-2
Service: 88988326
Description: 54-Way F AMP (BK)

Terminal Part Information

Pins: 2, 5-7, 9, 13, 19, 20
Terminal/Tray: 1411558-2/15
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Pin: 14
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Television Antenna Module X1 (YQ6 or YQ7)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 D-GN	5060	Low Speed GMLAN Serial Data
3-4	--	--	Not Used
5	0.35 L-BU/WH	5338	Right TV Audio Signal
6	0.35 GY/BK	5339	Audio Common
7	0.35 L-GN/WH	5337	Left TV Audio Signal
8	--	--	Not Used
9	0.35 BARE	5345	Drain Wire
10-12	--	--	Not Used
13	0.35 GY	5231	Video RGB Low Reference
14	0.35 BARE	1705	Drain Wire Return
15-18	--	--	Not Used
19	0.35 BK	850	Ground
20	0.35 RD/WH	3240	Battery Positive Voltage
21-54	--	--	Not Used

Television Antenna Module X2 (YQ6 or YQ7)

Part Information

OEM: FA2-NESCJ-C01-0
Service: Not Serviced
Description: Coax Connector (GN)

Television Antenna Module X2 (YQ6 or YQ7)

Pin	Wire	Circuit	Function
1	--	--	Coax
2	--	--	Coax

Television Antenna Module X3 (YQ6 or YQ7)

Part Information

OEM: FA2-NFSJ-C01-0
Service: Not Serviced
Description: Coax Connector (BN)

Television Antenna Module X3 (YQ6 or YQ7)

Pin	Wire	Circuit	Function
1	--	--	Coax
2	--	--	Coax

Valet Switch

Connector Part Information

OEM: 12064868
Service: 15306065
Description: 2-Way M Metri-Pack 150 Series (WH)

Terminal Part Information

Terminal/Tray: 12047581/2
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Valet Switch

Pin	Wire	Circuit	Function
A	0.35 RD/WH	3640	Battery Positive Voltage
B	0.35 BN	253	Trunk Release Relay Control

Variable Effort Steering Actuator (NV7)

Connector Part Information

OEM: 963040-1
Service: 88988390
Description: 2-Way F Junior Power Timer Series Sealed (BU)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Variable Effort Steering Actuator (NV7)

Pin	Wire	Circuit	Function
1	0.8 GY	1787	Variable Effort Steering Actuator High Effort Control
2	0.8 WH	345	Variable Effort Steering Actuator Low Effort Control

Variable Effort Steering Actuator (without NV7)

Connector Part Information

OEM: E-3550
Service: 89046838
Description: 2-Way F Sealed 1.5 mm (BK)

Terminal Part Information

Terminal/Tray: 7116-4103-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Variable Effort Steering Actuator (without NV7)

Pin	Wire	Circuit	Function
1	0.8 GY	1787	Variable Effort Steering Actuator High Effort Control
2	0.8 WH	345	Variable Effort Steering Actuator Low Effort Control

Vehicle Communication Interface Module (VCIM) X1 (UE1)

Connector Part Information

OEM: 917981-1
Service: 15306351
Description: 16-Way M MKII Hybrid (WH)

Terminal Part Information

Pins: 2-3, 6-7, 11, 15
Terminal/Tray: 175266-5/15
Core/Insulation Crimp: Pins 2-3, 6, 11 - J/J
Core/Insulation Crimp: Pins 7, 15 - K/K
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Vehicle Communication Interface Module (VCIM) X1 (UE1)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 BN/WH	2517	Keypad Red LED
3	0.35 YE/BK	2516	Keypad Green LED
4-5	--	--	Not Used
6	0.35 L-GN/BK	2515	Keypad Supply Voltage
7	0.35 BK	1050	Ground
8-10	--	--	Not Used
11	0.35 D-GN/WH	2514	Keypad Signal
12-14	--	--	Not used
15	0.35 RD/WH	2240	Battery Positive Voltage
16	--	--	Not Used

Vehicle Communication Interface Module (VCIM) X2 (UE1)

Connector Part Information

OEM: 917975-1
Service: 88952886
Description: 12-Way F MKII Hybrid (WH)

Terminal Part Information

Pins: 1-2, 8-10
Terminal/Tray: 175266-5/15
Core/Insulation Crimp: Pins 1-2, 8-9 - J/J
Core/Insulation Crimp: Pins 10 - K/K
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Vehicle Communication Interface Module (VCIM) X2 (UE1)

Pin	Wire	Circuit	Function
1	0.35 D-BU	658	Cellular Telephone Voice Signal
2	0.35 L-BU/BK	659	Cellular Telephone Voice Low Reference
3-7	--	--	Not Used
8	0.35 BARE	814	Drain Wire
9	0.35 GY	655	Cellular Telephone Microphone Signal
10	0.35 BARE	1782	Drain Wire
11-12	--	--	Not Used

Vehicle Communication Interface Module (VCIM) X3 (UE1)

Connector Part Information

OEM: 917983-2
Service: 88988722
Description: 16-Way M MKII Hybrid (BK)

Terminal Part Information

Pins: 2, 4-5
Terminal/Tray: 175266-5/15
Core/Insulation Crimp: Pins 2, 4 - J/J
Core/Insulation Crimp: Pins 5 - K/K
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Vehicle Communication Interface Module (VCIM) X3 (UE1)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 PK	5149	Voice Recognition Audio Signal
3	--	--	Not Used
4	0.35 PK/BK	5152	Voice Recognition Audio Low Reference
5	0.35 BARE	1792	Drain Wire
6-16	--	--	Not Used

Vehicle Communication Interface Module (VCIM) X4 (UE1)

Connector Part Information

OEM: 638695-2
Service: 88988545
Description: 12-Way F Tyco MK11 (BK)

Terminal Part Information

Terminal/Tray: 175266-5/15
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Vehicle Communication Interface Module (VCIM) X4 (UE1)

Pin	Wire	Circuit	Function
1	0.35 D-GN	5060	Low Speed GMLAN Serial Data
2	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+) (1)
3	0.35 TN	2501	High Speed GMLAN Serial Data (-) (1)
4-7	--	--	Not Used
8	0.35 TN/BK	2500	High Speed GMLAN Serial Data (+) (1)
9	0.35 TN	2501	High Speed GMLAN Serial Data (-) (1)
10-12	--	--	Not Used

Vehicle Direction Alert Alarm Warning Module (UFL)

Connector Part Information

OEM: AIT2PB-06-1AK
Service: 19167753
Description: 6-Way F AIT II Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Vehicle Direction Alert Alarm Warning Module (UFL)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 PK	442	Battery Positive Voltage (UA2 or UE1)
3	0.35 D-GN	5060	Low Speed GMLAN Serial Data (UA2 or UE1)
4	0.35 BK	850	Ground
5-6	--	--	Not Used

Vehicle Inclination Sensor (UA2)

Connector Part Information

OEM: 15324229
Service: 15306167
Description: 4-Way F Timer Micro 1 (BK)

Terminal Part Information

Terminal/Tray: 962943-5/16
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Vehicle Inclination Sensor (UA2)

Pin	Wire	Circuit	Function
1	0.35 RD/WH	3940	Battery Positive Voltage
2	--	--	Not Used
3	0.35 GY	112	Inclination Sensor Signal
4	0.35 YE	5058	Intrusion Sensor Armed Signal

Vehicle Stability Control Module X1 (JL7)

Connector Part Information

OEM: 34576-0703
Service: 88988373
Description: 56-Way F MX123 34576 Series (BU)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Vehicle Stability Control Module X1 (JL7)

Pin	Wire	Circuit	Function
1-17	--	--	Not Used
18	0.35 YE	5727	High Speed GMLAN Serial Data Wakeup
19	0.35 PK	1339	IGN 1 Voltage
20	1 RD/WH	3340	Battery Positive Voltage
21-56	--	--	Not Used

Vehicle Stability Control Module X3 (JL7)

Connector Part Information

OEM: 34566-0203
Service: 88988372
Description: 73-Way F MX123 34566 Series (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Vehicle Stability Control Module X3 (JL7)

Pin	Wire	Circuit	Function
1-32	--	--	Not Used
33	0.35 TN	2501	High Speed GMLAN Serial Data -
34-46	--	--	Not Used
47	0.35 L-GN/WH	6432	CAN Bus Low Serial Data
48-50	--	--	Not Used
51	0.35 L-GN/WH	6432	CAN Bus Low Serial Data
52	0.35 L-GN/BK	6432	CAN Bus Low Serial Data
53	0.35 TN/BK	2500	High Speed GMLAN Serial Data +
54-69	--	--	Not Used
70	0.35 TN/WH	6433	CAN Bus High Serial Data
71	0.35 TN/WH	6433	CAN Bus High Serial Data
72	0.35 TN/WH	6433	CAN Bus High Serial Data
73	1 BK	850	Ground

Ventilated Seat Blower Motor - Driver Back (KB6)

Connector Part Information

OEM: 12065423
Service: 12117371
Description: 3-Way M Metri-Pack 150 Series (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ventilated Seat Blower Motor - Driver Back (KB6)

Pin	Wire	Circuit	Function
A	0.35 OG	5919	Driver Seat Fan Speed Control
B	1 BK	550	Ground
C	0.8 RD/WH	2840	Battery Positive Voltage

Ventilated Seat Blower Motor - Driver Cushion (KB6)

Connector Part Information

OEM: 12065423
Service: 12117371
Description: 3-Way M Metri-Pack 150 Series (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ventilated Seat Blower Motor - Driver Cushion (KB6)

Pin	Wire	Circuit	Function
A	0.35 OG	5919	Driver Seat Fan Speed Control
B	1 BK	550	Ground
C	0.8 RD/WH	2840	Battery Positive Voltage

Ventilated Seat Blower Motor - Passenger Back (KB6)

Connector Part Information

OEM: 12065423
Service: Service by Harness - See Part Catalog
Description: 3-Way M Metri-Pack 150 Series (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ventilated Seat Blower Motor - Passenger Back (KB6)

Pin	Wire	Circuit	Function
A	0.35 WH	5915	Driver Seat Fan Speed Control
B	0.8 BK	650	Ground
C	1 RD/WH	2540	Battery Positive Voltage

Ventilated Seat Blower Motor - Passenger Cushion (KB6)

Connector Part Information

OEM: 12065423
Service: Service by Harness - See Part Catalog
Description: 3-Way M Metri-Pack 150 Series (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ventilated Seat Blower Motor - Passenger Cushion (KB6)

Pin	Wire	Circuit	Function
A	0.35 WH	5915	Driver Seat Fan Speed Control
B	0.8 BK	650	Ground
C	1 RD/WH	2540	Battery Positive Voltage

Wheel Speed Sensor (WSS) - Left Front

Connector Part Information

OEM: 12052644
Service: See Catalog
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Wheel Speed Sensor (WSS) - Left Front

Pin	Wire	Circuit	Function
A	0.35 YE	873	Left Front Wheel Speed Sensor Low Reference
B	0.35 L-BU	830	Wheel Speed Sensor Signal Left Front

Wheel Speed Sensor (WSS) - Left Rear

Connector Part Information

OEM: 12052644
Service: See Catalog
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Wheel Speed Sensor (WSS) - Left Rear

Pin	Wire	Circuit	Function
A	0.35 TN	884	Wheel Speed Sensor Signal Left Rear
B	0.35 OG	885	Wheel Speed Sensor Low Reference Left Rear

Wheel Speed Sensor (WSS) - Right Front

Connector Part Information

OEM: 12052644
Service: See Catalog
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Wheel Speed Sensor (WSS) - Right Front

Pin	Wire	Circuit	Function
A	0.35 D-GN	872	Wheel Speed Sensor Signal Right Front
B	0.35 TN	833	Wheel Speed Sensor Low Reference Right Front

Wheel Speed Sensor (WSS) - Right Rear

Connector Part Information

OEM: 12052644
Service: See Catalog
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Wheel Speed Sensor (WSS) - Right Rear

Pin	Wire	Circuit	Function
A	0.35 BN	882	Wheel Speed Sensor Signal Right Rear
B	0.35 WH	883	Wheel Speed Sensor Low Reference Right Rear

Window Motor - Driver

Connector Part Information

OEM: 2-1452319-1
Service: 88988401
Description: 6-Way F WP Sealed (GY)

Terminal Part Information

Pins: 1-3
Terminal/Tray: 4-964286-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Pins: 4, 6
Terminal/Tray: 4-964273-1/15
Core/Insulation Crimp: C/5
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Window Motor - Driver

Pin	Wire	Circuit	Function
1	0.35 BN	165	Power Window Motor Left Front Down Signal (LHD)
1	0.35 BN	165	Power Window Motor Right Front Down Signal (RHD)
2	0.35 D-BU	164	Power Window Motor Left Front Up Signal (LHD)
2	0.35 D-BU	164	Power Window Motor Right Front Up Signal (RHD)
3	0.35 YE/BK	6859	Power Window Status
4	2 BK	350	Ground
5	--	--	Not Used
6	0.35 RD/WH	1040	Battery Positive Voltage

Window Motor - Left Rear

Connector Part Information

OEM: 2-1452319-1
Service: 88988401
Description: 6-Way F WP Sealed (GY)

Terminal Part Information

Pins: 1-3
Terminal/Tray: 4-964286-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Pins: 4, 6
Terminal/Tray: 4-964273-1/15
Core/Insulation Crimp: C/5
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Window Motor - Left Rear

Pin	Wire	Circuit	Function
1	0.35 D-BU	668	Power Window Motor Left Rear Up Signal
2	0.35 BN	669	Power Window Motor Left Rear Down Signal
3	0.35 YE/BK	6859	Power Window Status
4	2 BK	350	Ground
5	--	--	Not Used
6	0.35 RD/WH	1040	Battery Positive Voltage

Window Motor - Passenger

Connector Part Information

OEM: 2-1452319-1
Service: 88988401
Description: 6-Way F WP Sealed (GY)

Terminal Part Information

Pins: 1-2, 4
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pin: 3
Terminal/Tray: 4-964286-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Pin: 6
Terminal/Tray: 4-964273-1/15
Core/Insulation Crimp: C/5
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Window Motor - Passenger

Pin	Wire	Circuit	Function
1	0.35 BN	667	Power Window Motor Right Front Down Signal
2	0.35 D-BU	666	Power Window Motor Right Front Up Signal
3	0.35 YE/BK	6859	Power Window Status
3	0.35 YE/BK	6879	Power Window Status (LHD)
4	2 BK	450	Ground
5	--	--	Not Used
6	0.35 RD/WH	1040	Battery Positive Voltage

Window Motor - Right Rear

Connector Part Information

OEM: 2-1452319-1
Service: 88988401
Description: 6-Way F WP Sealed (GY)

Terminal Part Information

Pins: 1-2, 4
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pin: 3
Terminal/Tray: 4-964286-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Pin: 6
Terminal/Tray: 4-964273-1/15
Core/Insulation Crimp: C/5
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

Window Motor - Right Rear

Pin	Wire	Circuit	Function
1	0.35 D-BU	670	Power Window Motor Right Rear Up Signal
2	0.35 BN	671	Power Window Motor Right Rear Down Signal
3	0.35 YE/BK	6859	Power Window Status
4	0.35 BK	450	Ground
5	--	--	Not Used
6	0.35 RD/WH	1040	Battery Positive Voltage

Window Switch - Driver

Connector Part Information

OEM: IL-AG5-10S-S3C1
Service: 88988190
Description: 10-Way (RD)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Window Switch - Driver

Pin	Wire	Circuit	Function
1	0.35 D-GN	5060	Low Speed GMLAN Serial Data
2	0.35 RD/WH	640	Battery Positive Voltage
3	0.35 BK/WH	351	Signal Ground
4	0.35 OG/BK	780	Driver Door Lock Switch Lock Signal
5	0.35 OG/BK	781	Driver Door Lock Switch Unlock Signal
6	0.35 YE	1491	Backlight Lamp Control
7-9	--	--	Not Used
10	0.35 WH	1526	Shift Solenoid Supply Voltage (2)

Window Switch - Left Rear

Connector Part Information

OEM: 12064982
Service: 12102633
Description: 5-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Pins: 1-4
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pin: 5
Terminal/Tray: 12146447/3
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)

Window Switch - Left Rear

Pin	Wire	Circuit	Function
1	0.35 YE	1187	Power Window Switch Left Rear Down Signal
2	0.35 D-GN	1184	Power Window Switch Right Front Up Signal
3	0.35 D-GN	5048	Power Window Switch Left Rear Express Signal
4	0.35 BK/WH	351	Ground
5	0.35 YE	1491	Backlight Lamp Control

Window Switch - Passenger

Connector Part Information

OEM: 12064982
Service: 12102633
Description: 5-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Terminal/Tray: 12146447/3
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)

Window Switch - Passenger

Pin	Wire	Circuit	Function
1	0.35 OG	1189	Power Window Switch Right Front Low Reference
2	0.35 WH	1185	Power Window Switch Left Rear Up Signal
3	0.35 PU	2765	Power Window Switch Right Front Express Signal
4	0.35 BK/WH	451	Ground
5	0.35 YE	1491	Backlight Lamp Control

Window Switch - Right Rear

Connector Part Information

OEM: 12064982
Service: 12102633
Description: 5-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Pins: 1-4
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pin: 5
Terminal/Tray: 12146447/3
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)

Window Switch - Right Rear

Pin	Wire	Circuit	Function
1	0.35 YE	1187	Power Window Switch Left Rear Down Signal
2	0.35 D-GN	1184	Power Window Switch Right Front Up Signal
3	0.35 D-GN	5048	Power Window Switch Left Rear Express Signal
4	0.35 BK/WH	351	Ground
5	0.35 YE	1491	Backlight Lamp Control

Windshield Outside Moisture Sensor (CE1)

Connector Part Information

OEM: 43645-0400
Service: 15306387
Description: 4-Way F Micro Fit (BK)

Terminal Part Information

Pins: 1-2, 4
Terminal/Tray: 43030-0010/23
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Pin: 3
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Windshield Outside Moisture Sensor (CE1)

Pin	Wire	Circuit	Function
1	0.35 L-GN	482	Rain Sense Signal (2)
2	0.35 TN	481	Rain Sense Signal (1)
3	0.35 BK	850	Ground
4	0.35 YE	243	Accessory Voltage

Windshield Washer Fluid Level Switch

Connector Part Information

OEM: 12162195
Service: 88987993
Description: 2-Way F Metri-Pack 150.2 Series, Sealed, Pull To Seat (BK)

Terminal Part Information

Pins: A-B
Terminal/Tray: 12124075/5
Core/Insulation Crimp: Pins A - E/C
Core/Insulation Crimp: Pin B - See Terminal Repair Kit
Release Tool/Test Probe: 12180559-1/J-35616-2A (GY)

Windshield Washer Fluid Level Switch

Pin	Wire	Circuit	Function
A	0.35 BK	150	Ground
B	0.35 TN/WH	99	Windshield Washer Fluid Level Sensor Signal

Windshield Washer Fluid Pump

Connector Part Information

OEM: 12052641
Service: 12102747
Description: 2-Way F Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Windshield Washer Fluid Pump

Pin	Wire	Circuit	Function
A	0.35 OG	228	Windshield Washer Pump Control
B	0.35 BK	150	Ground

Windshield Wiper Inhibit Relay (WCV)

Connector Part Information

OEM: 7223-6055-30
Service: 88988398
Description: 5-Way F ISO Relay

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Windshield Wiper Inhibit Relay (WCV)

Pin	Wire	Circuit	Function
30	0.35 YE	43	Accessory Voltage
85	0.35 BK	850	Ground
86	0.35 PU	6722	Wiper Inhibit Relay Control
87	0.35 YE	243	Accessory Voltage
87A	--	--	Not Used

Windshield Wiper/Washer Module

Connector Part Information

OEM: 12176335
Service: 15305944
Description: 8-Way F Metri-Pack 280 Series Sealed (NA)

Terminal Part Information

Pins: D-E
Terminal/Tray: 12110853/4
Core/Insulation Crimp: F/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: A-C, F-H
Terminal/Tray: 12110847/4
Core/Insulation Crimp: Pins A-C, G-H - See Terminal Repair Kit
Core/Insulation Crimp: Pins F - C/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Windshield Wiper/Washer Module

Pin	Wire	Circuit	Function
A	0.35 TN	481	Rain Sense Signal (1) (CE1 with LHD)
A	3 BK	150	Ground (RHD)
B	0.35 GY	478	Windshield Wiper Switch Signal (2) (LHD)
B	0.35 D-BU	477	Windshield Wiper Switch Signal (1) (RHD)
C	0.35 D-BU	477	Windshield Wiper Switch Signal (1) (LHD)
C	0.35 GY	478	Windshield Wiper Switch Signal (2) (RHD)
D	3 BK	150	Ground (LHD)
D	0.35 TN	481	Rain Sense Signal (1) (RHD)
E	3 YE	143	Accessory Voltage (LHD)
E	0.35 L-GN	482	Rain Sense Signal (2) (RHD)
F	0.35 OG	228	Windshield Washer Pump Control (LHD)
F	0.35 PU	92	Windshield Wiper Motor High Speed Control (RHD)
G	0.35 PU	92	Windshield Wiper Motor High Speed Control (LHD)
G	0.35 OG	228	Windshield Washer Pump Control (RHD)
H	0.35 L-GN	482	Rain Sense Signal (2) (CE1 with LHD)
H	3 YE	143	Accessory Voltage (RHD)

Windshield Wiper/Washer Switch

Connector Part Information

OEM: 15339096
Service: Service by Harness - See Part Catalog
Description: 7-Way F 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Windshield Wiper/Washer Switch

Pin	Wire	Circuit	Function
G	--	--	Not Used
H	0.35 D-BU	477	Windshield Wiper Switch Signal (1)
J	--	--	Not Used
K	0.35 PU	92	Windshield Wiper Motor High Speed Control
L	0.35 WH	1538	Headlamp On With Wipers Signal
M	0.35 YE	43	Accessory Voltage
N	0.35 GY	478	Windshield Wiper Switch Signal (2)

Yaw and Lateral Accelerometer Sensor (JL7)

Connector Part Information

OEM: 2-967640-1
Service: 19178091
Description: 4-Way F MQS Socket Housing Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Yaw and Lateral Accelerometer Sensor (JL7)

Pin	Wire	Circuit	Function
1	0.35 BK/WH	551	Ground
2	0.35 L-GN/BK	6432	CAN Bus Low Serial Data
3	0.35 TN/WH	6433	CAN Bus High Serial Data
4	0.35 PK	1339	IGN 1 Voltage

Yaw and Lateral Accelerometer Sensor (without JL7)

Connector Part Information

OEM: 15326822
Service: 89046692
Description: 5-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Yaw and Lateral Accelerometer Sensor (without JL7)

Pin	Wire	Circuit	Function
A	0.35 PU/WH	1699	Combined Vehicle Inertial Sensor Lat/Long Rate Signal
B	0.35 GY/BK	1337	Yaw Rate Sensor Volt Reference
C	0.35 D-BU	716	Yaw Rate Sensor Signal (1)
D	0.35 L-GN/BK	1338	Yaw Rate Sensor Signal (2)
E	0.35 L-BU	715	Lateral Accelerometer Signal
