Body Control System Schematics. Cadillac STS 2008

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2008 🢒 STS 🢒 Power and Signal Distribution 🢒 Data Communications 🢒 Body Control System Schematics

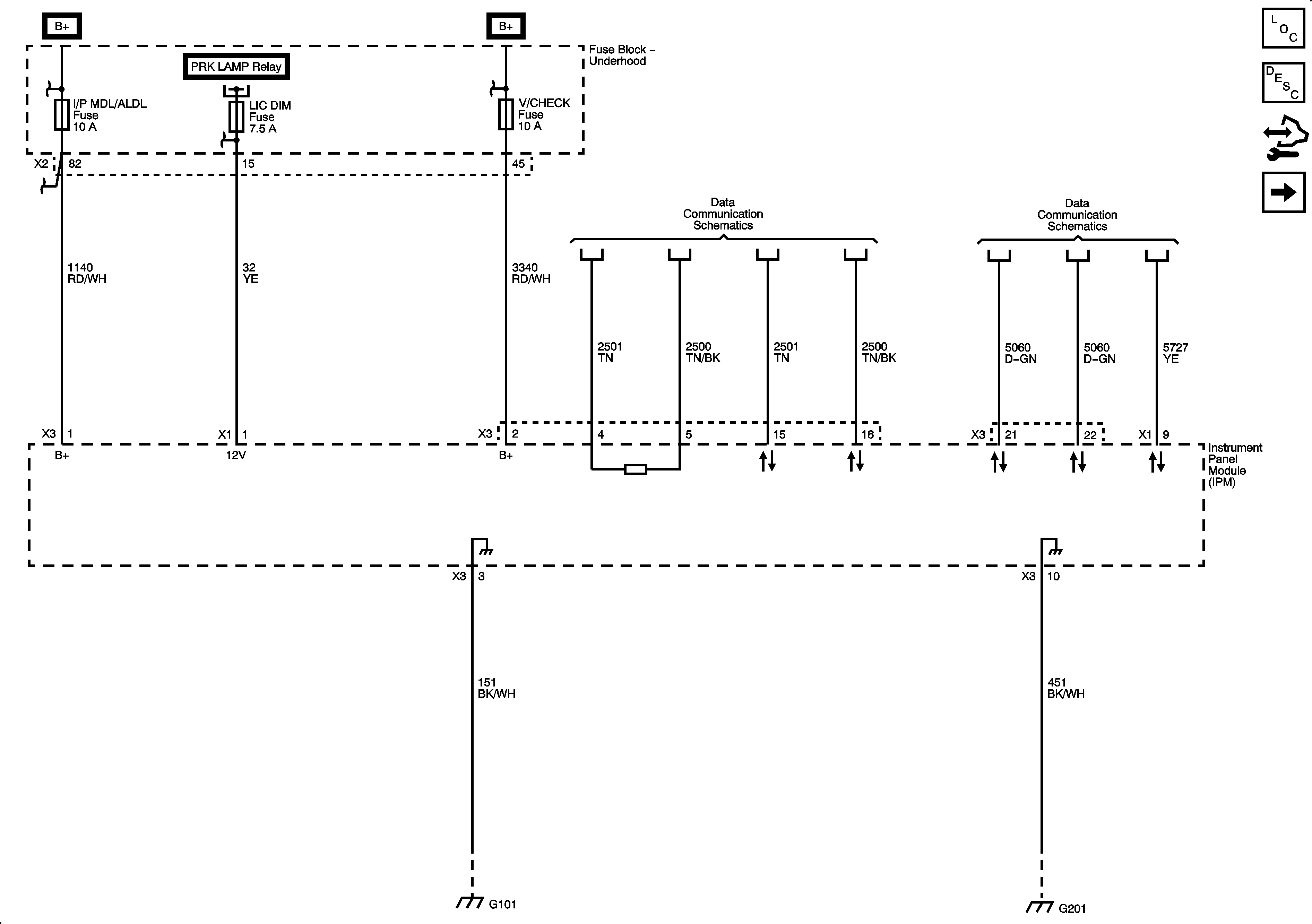

Figure 1:	IPM Power, Grounds and DLC Master Electrical Component List Body Control System Description and Operation Control Module References IPM Input and Outputs 1 of 3

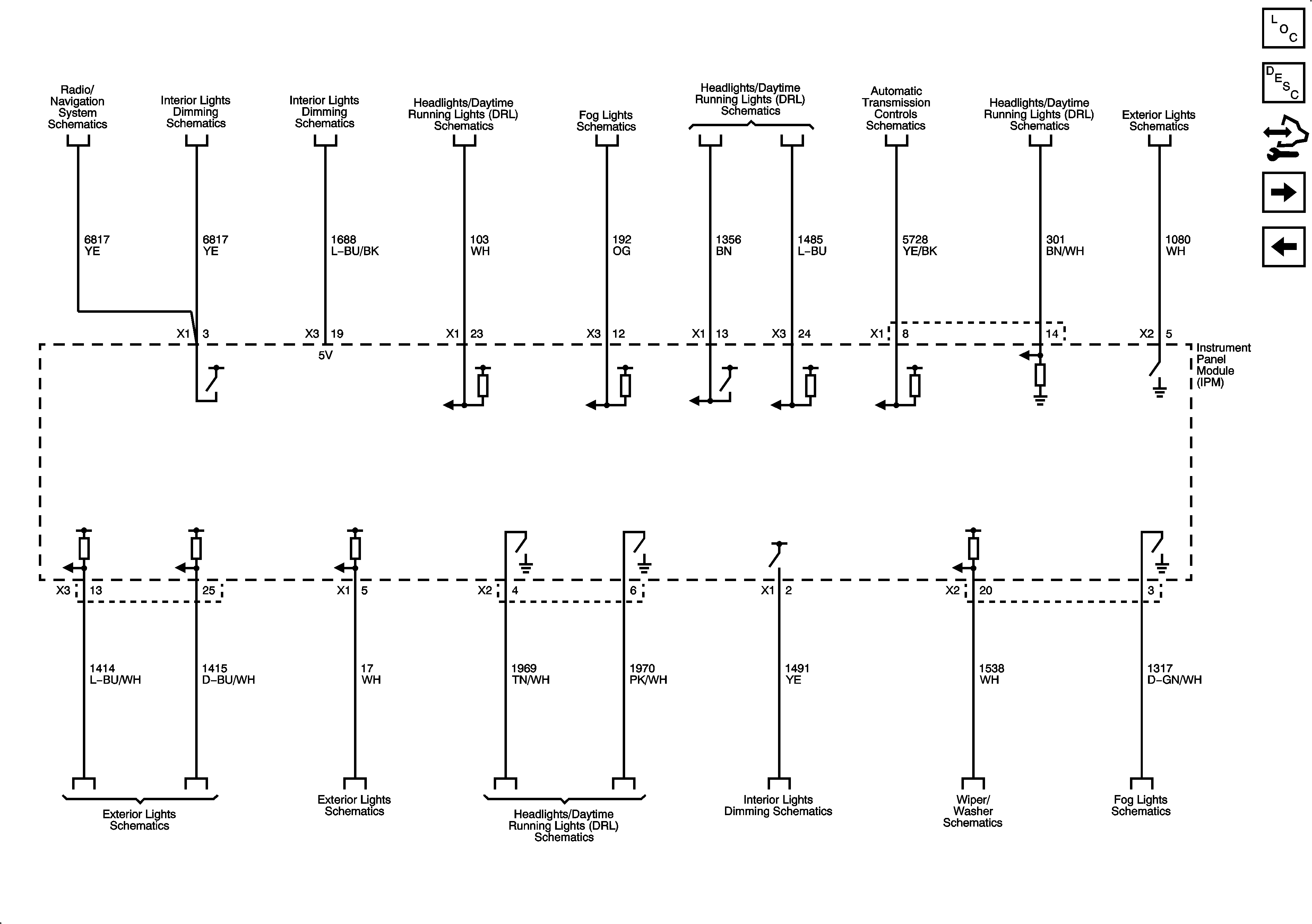

Figure 2:	IPM Inputs and Outputs 1 of 3 Master Electrical Component List Body Control System Description and Operation Control Module References IPM Input and Outputs 2 of 3 IPM Power, Grounds and DLC

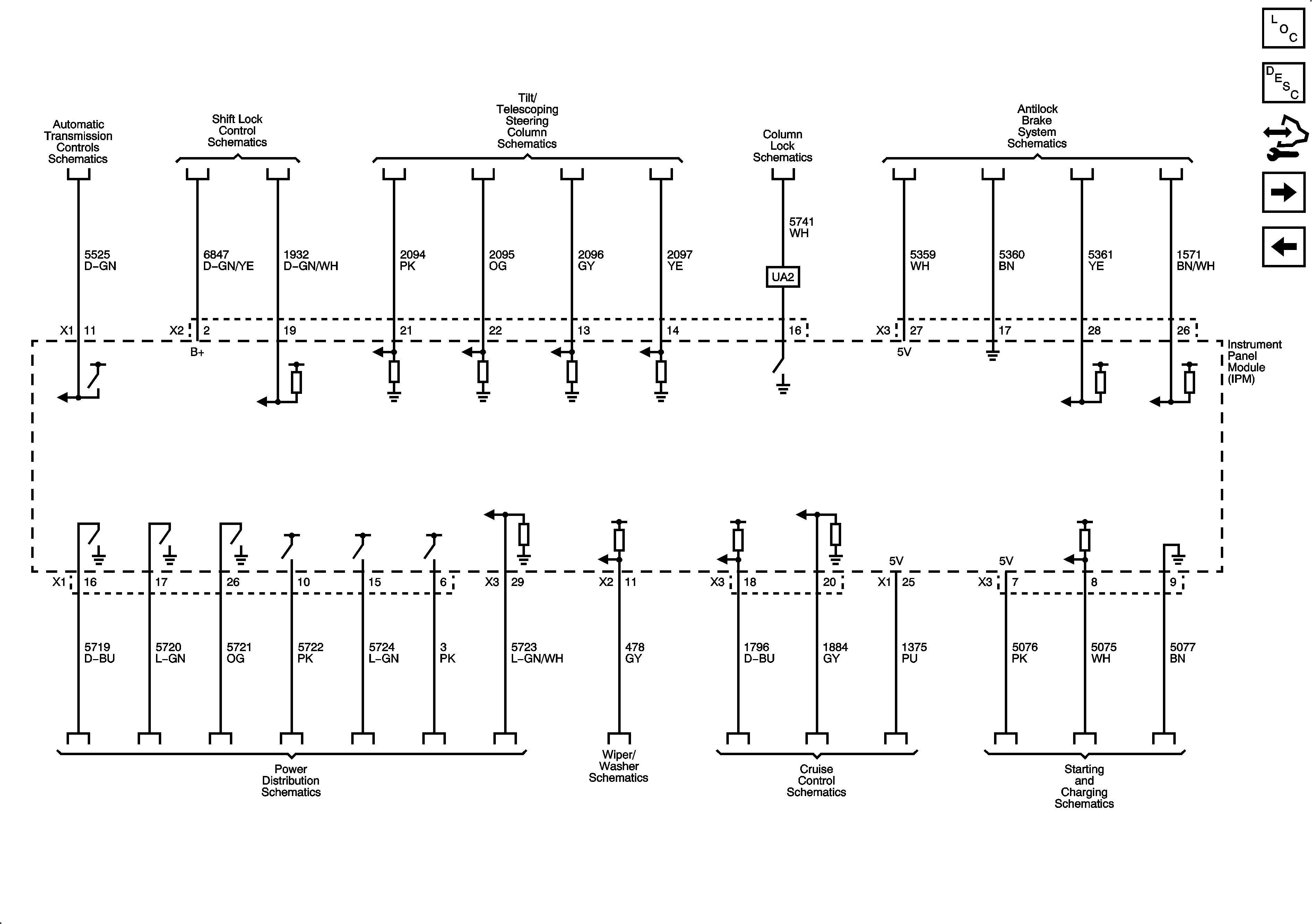

Figure 3:	IPM Inputs and Outputs 2 of 3 Master Electrical Component List Body Control System Description and Operation Control Module References IPM Input and Outputs 3 of 3 IPM Input and Outputs 1 of 3

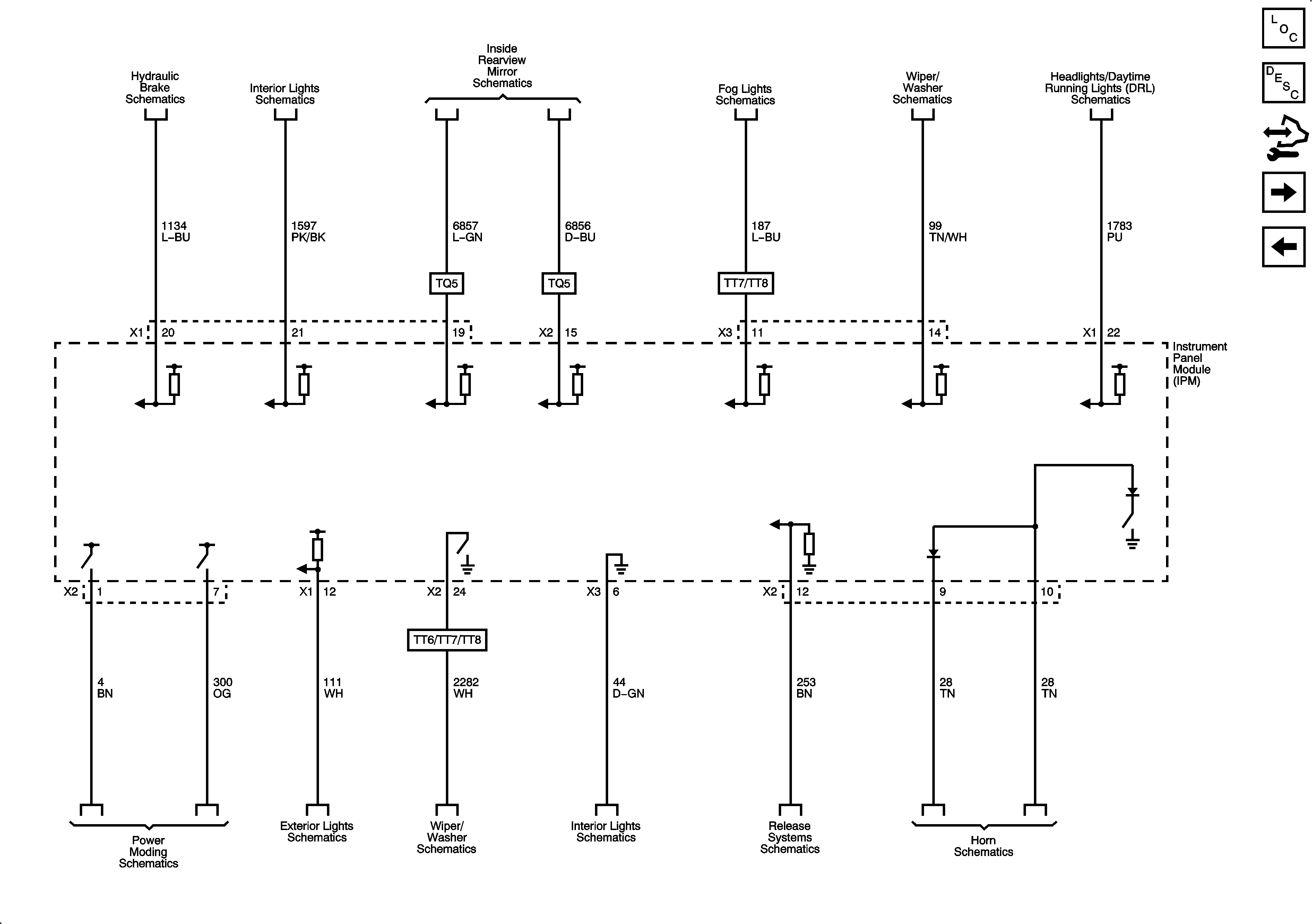

Figure 4:	IPM Inputs and Outputs 3 of 3 Master Electrical Component List Body Control System Description and Operation Control Module References RIM Power, Grounds and DLC IPM Input and Outputs 2 of 3

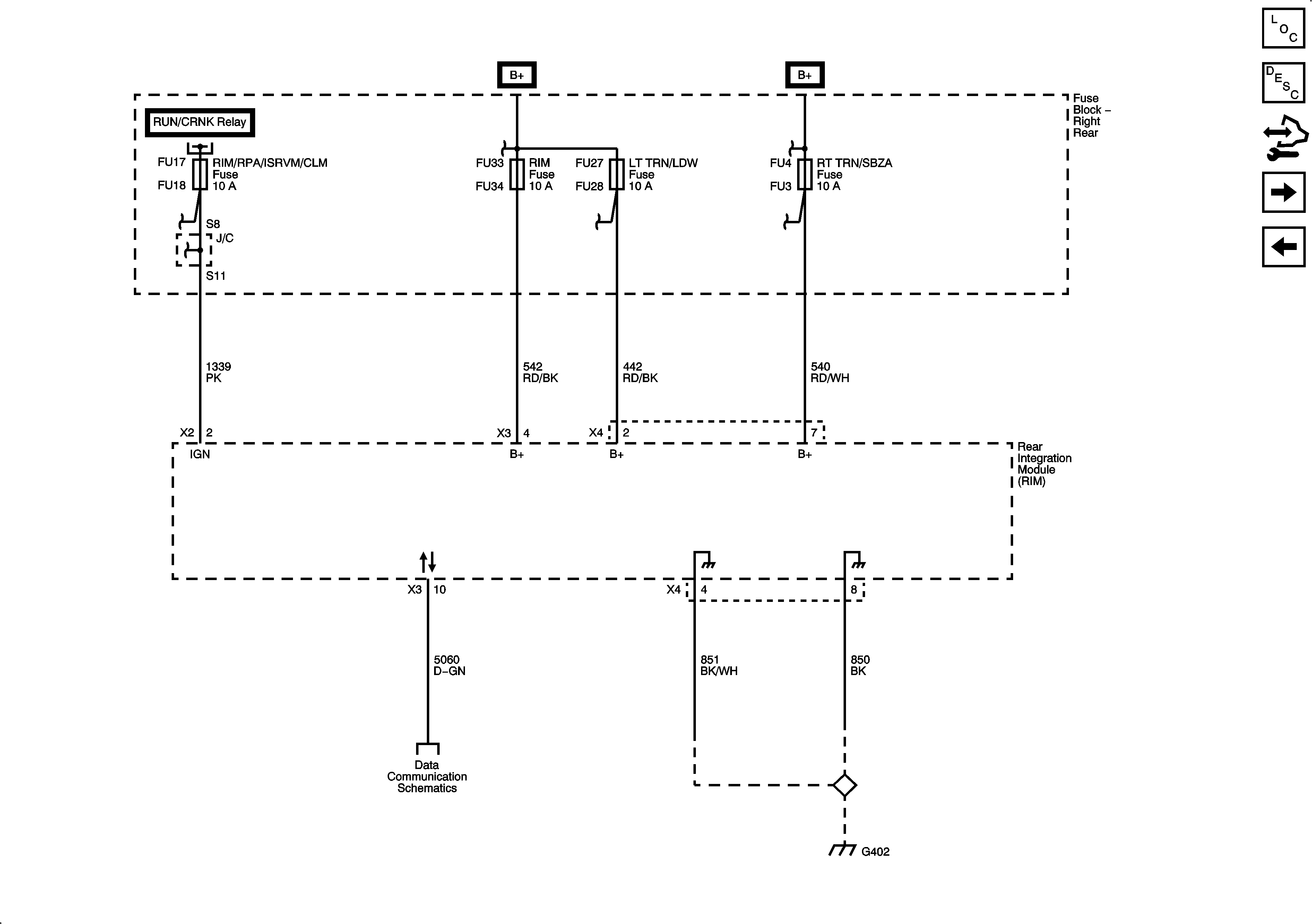

Figure 5:	RIM Power, Grounds and DLC Master Electrical Component List Body Control System Description and Operation Control Module References RIM Inputs and Outputs IPM Input and Outputs 3 of 3

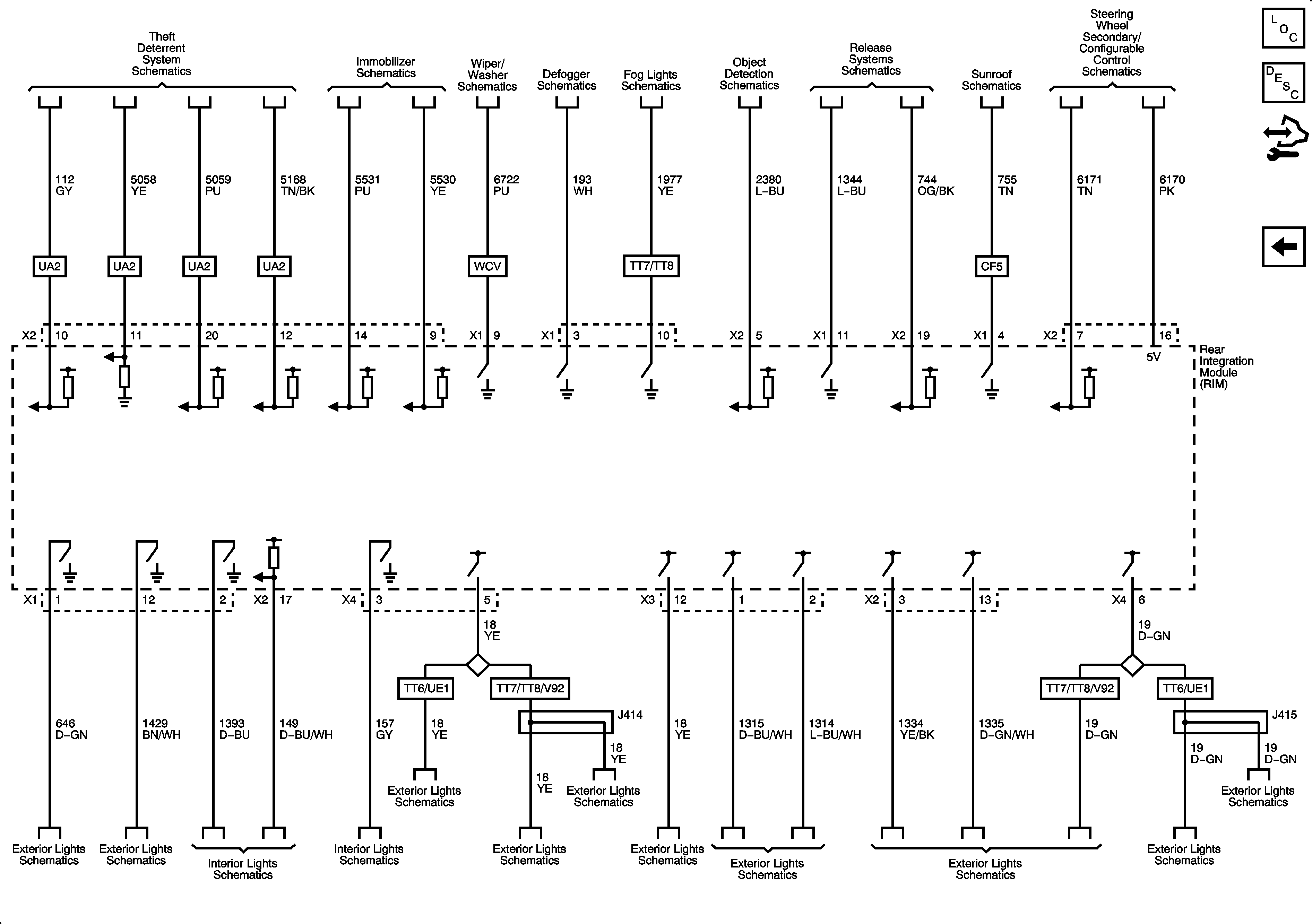

Figure 6:	RIM Inputs and Outputs Master Electrical Component List Body Control System Description and Operation Control Module References RIM Power, Grounds and DLC
