Antilock Brake System Schematics. Cadillac STS 2008

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2008 🢒 STS 🢒 Power and Signal Distribution 🢒 Data Communications 🢒 Antilock Brake System Schematics

Antilock Brake System Schematics Except JL7

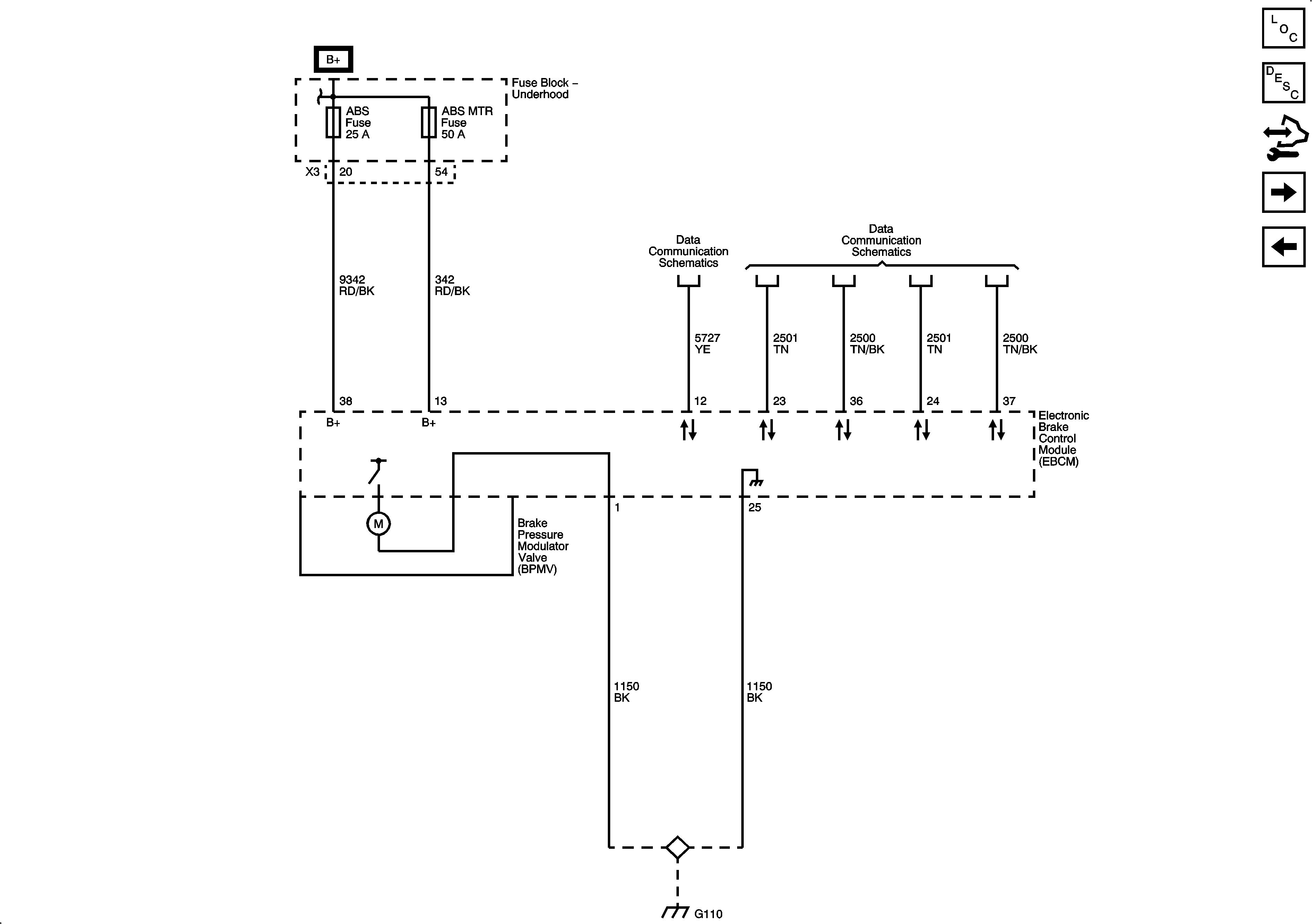

Figure 1:	EBCM Module Power, Ground and DLC Master Electrical Component List ABS Description and Operation (Without JL7) Control Module References Wheel Speed Sensors

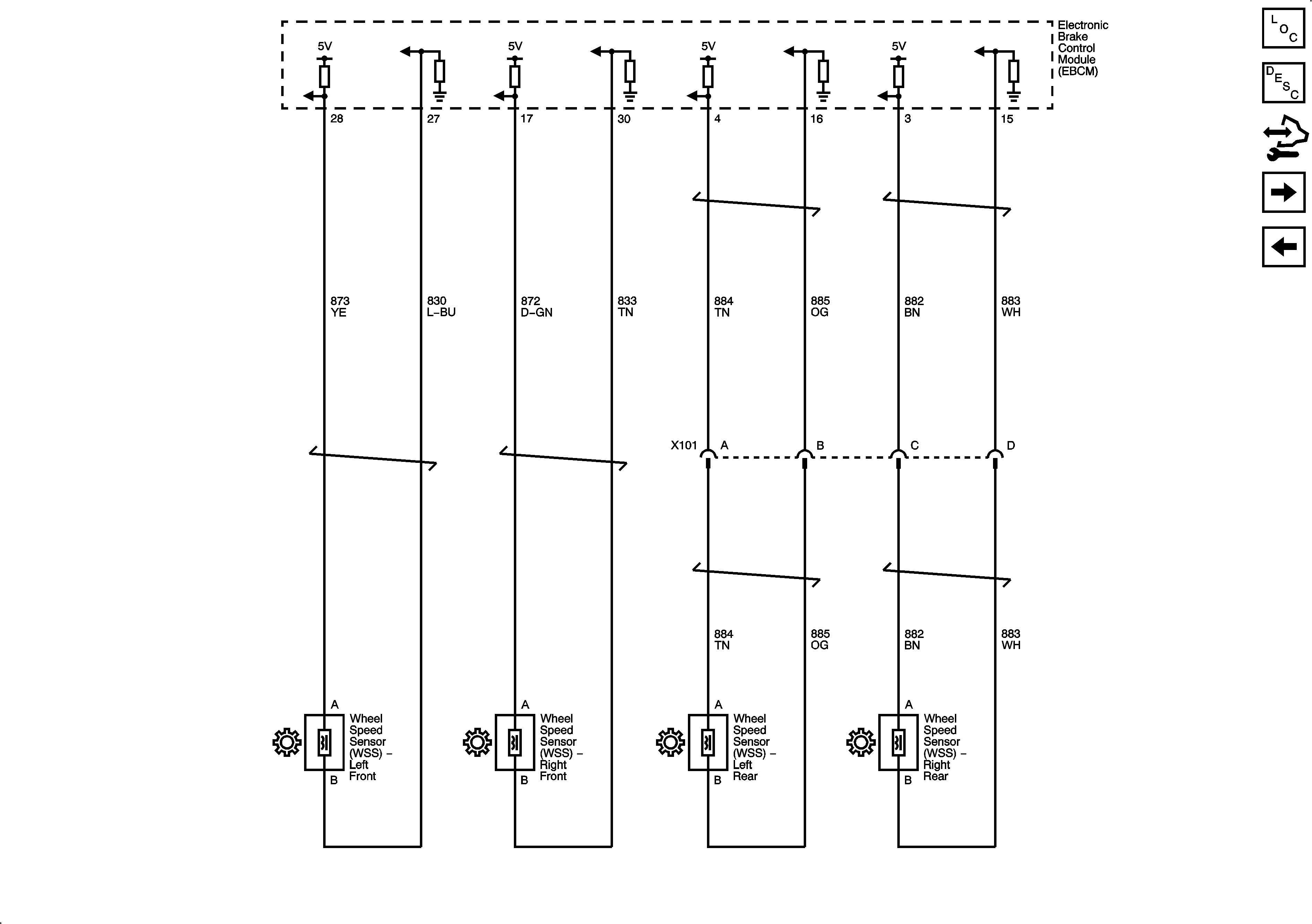

Figure 2:	Wheel Speed Sensors Master Electrical Component List ABS Description and Operation (Without JL7) Control Module References Stability Control System EBCM Module Power, Ground and DLC

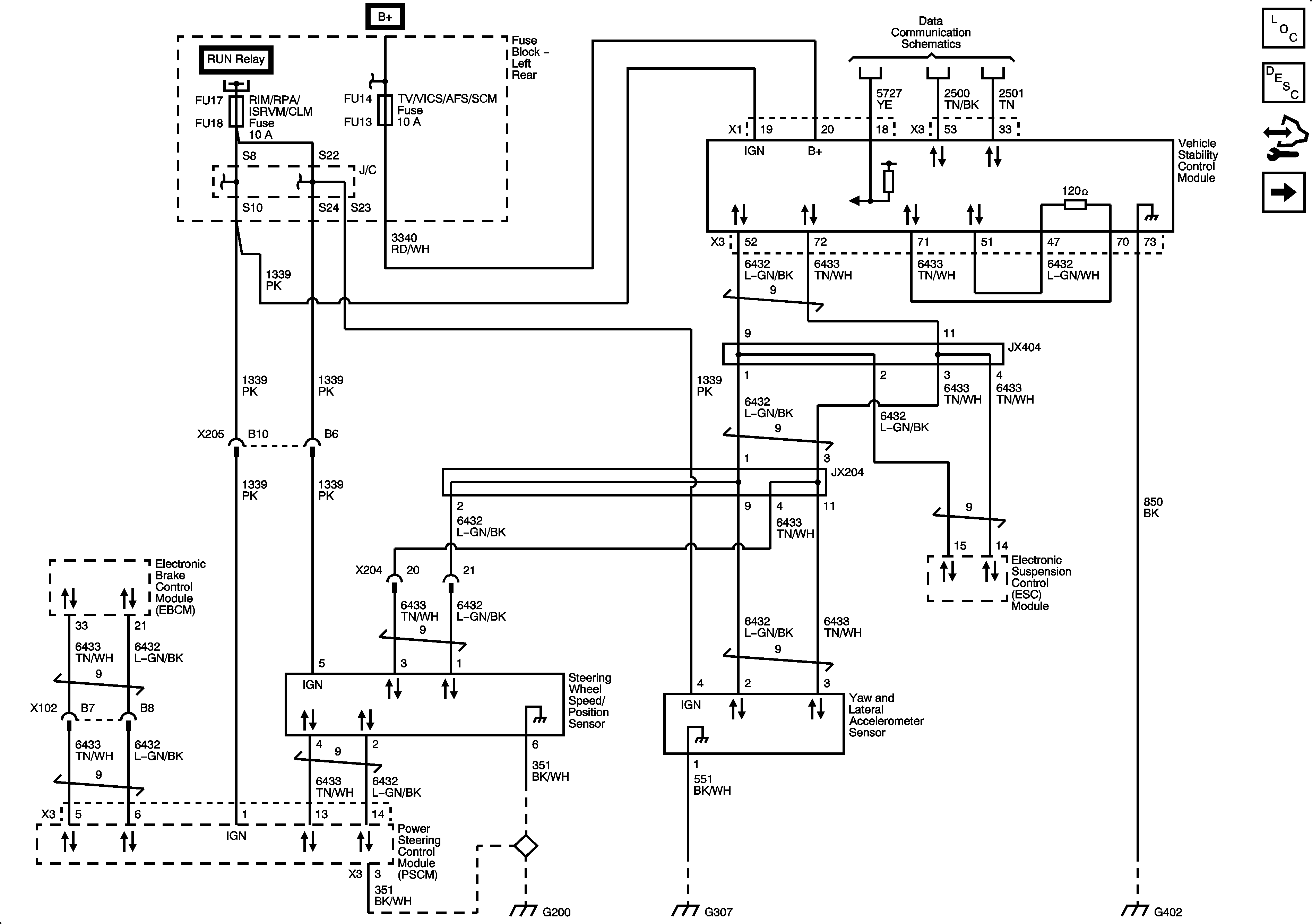

Figure 3:	Stability Control System Master Electrical Component List ABS Description and Operation (Without JL7) Control Module References Indicator and Traction Control Wheel Speed Sensors

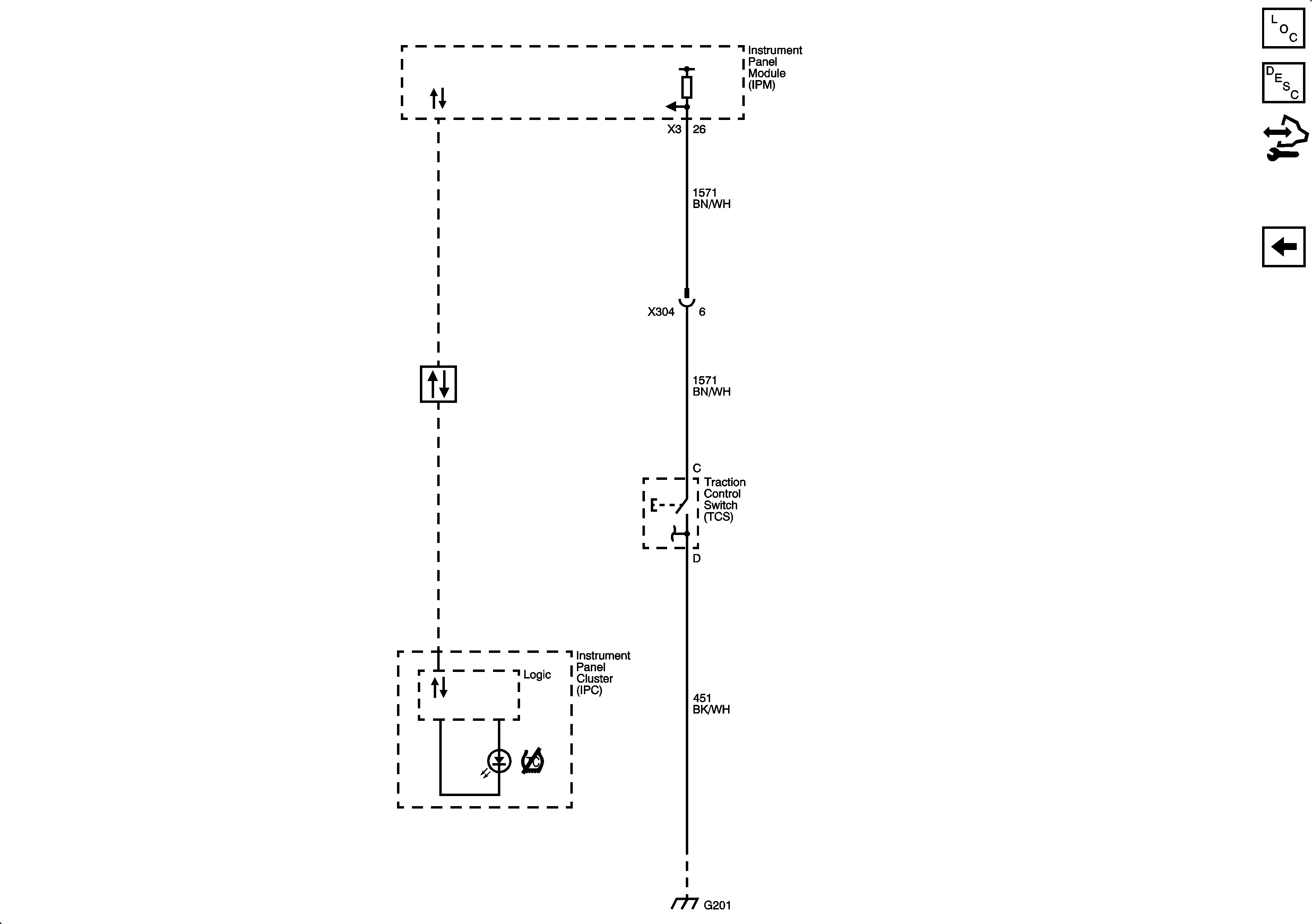

Figure 4:	Indicator and Traction Control Master Electrical Component List ABS Description and Operation (Without JL7) Control Module References Stability Control System

Antilock Brake System Schematics JL7

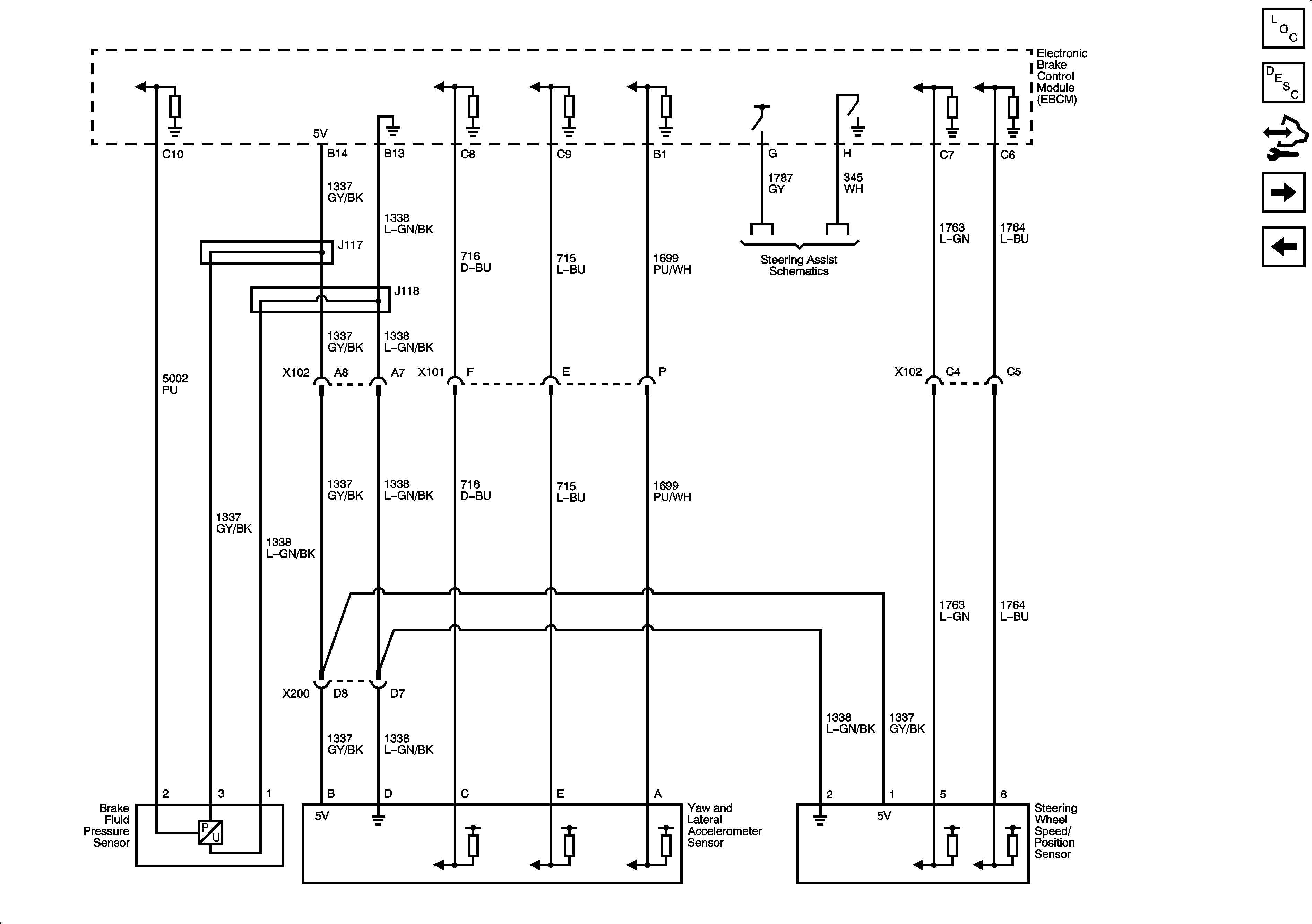

Figure 1:	Steering Angle and Acceleration Sensors Master Electrical Component List ABS Description and Operation With JL7 Control Module References EBCM Power, Ground , and DLC

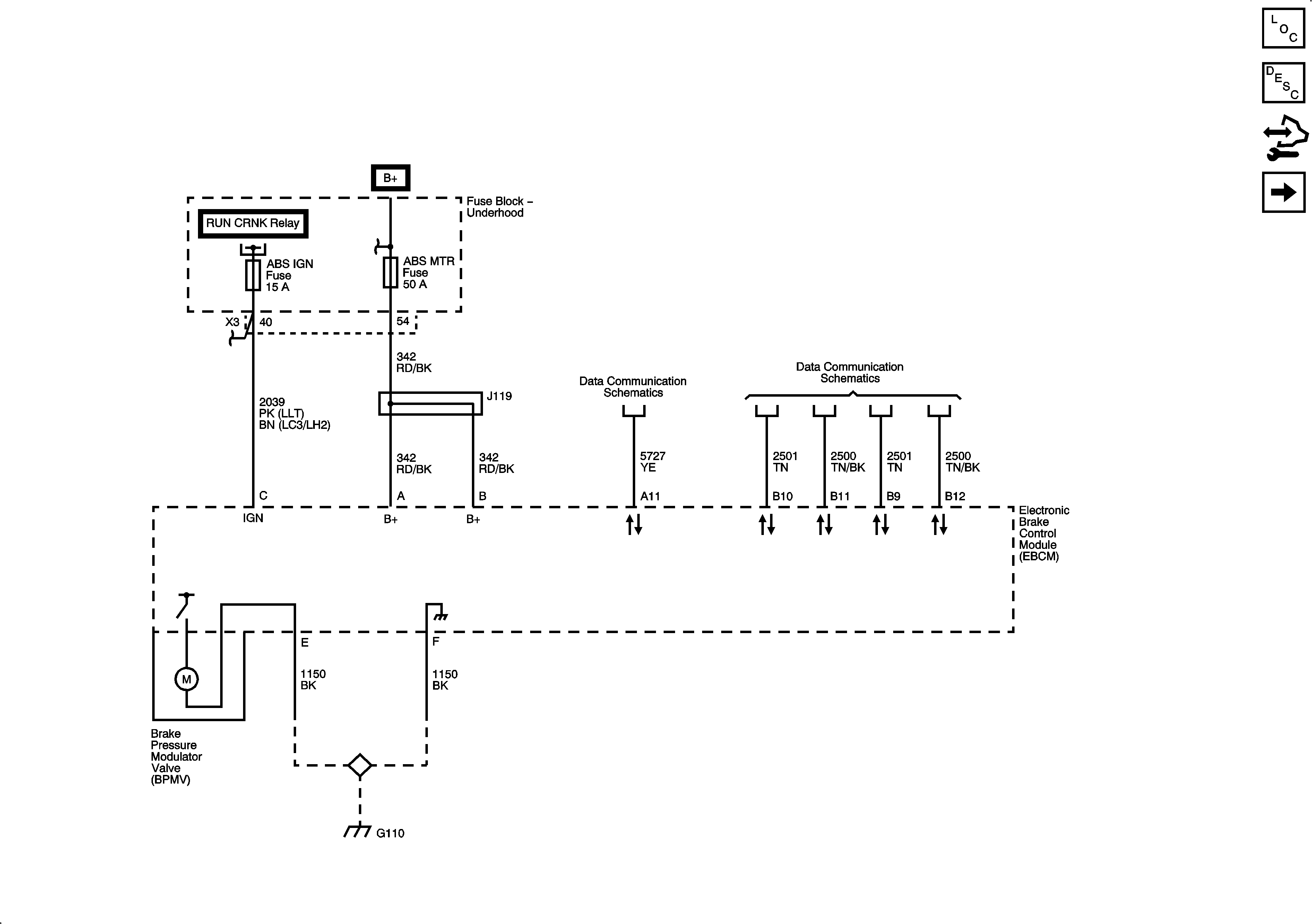

Figure 2:	EBCM Power, Ground, and DLC Master Electrical Component List ABS Description and Operation With JL7 Control Module References Wheel Speed Sensors Steering Angle and Acceleration Sensors

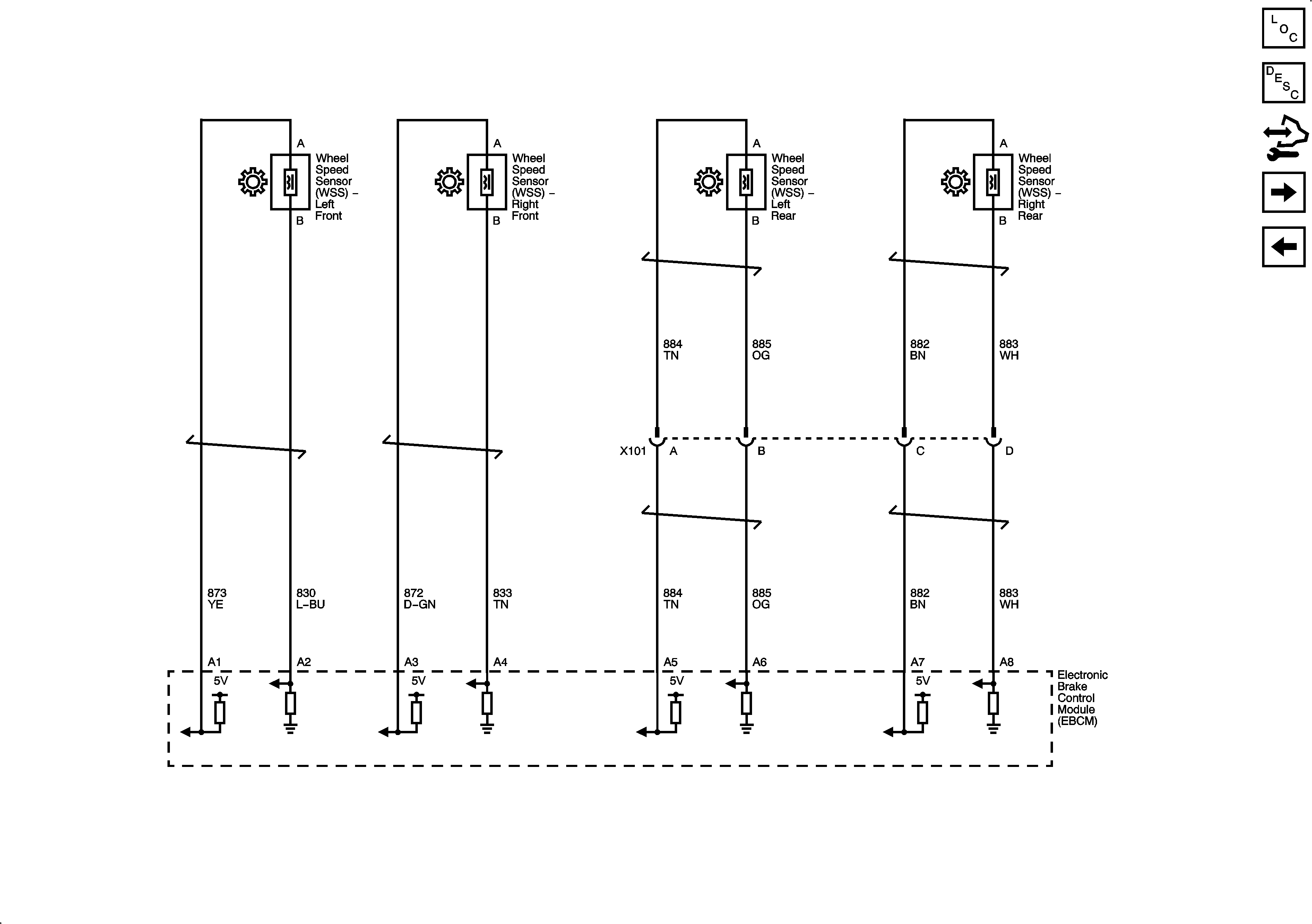

Figure 3:	Wheel Speed Sensors Master Electrical Component List ABS Description and Operation With JL7 Control Module References Traction Control EBCM Power, Ground , and DLC

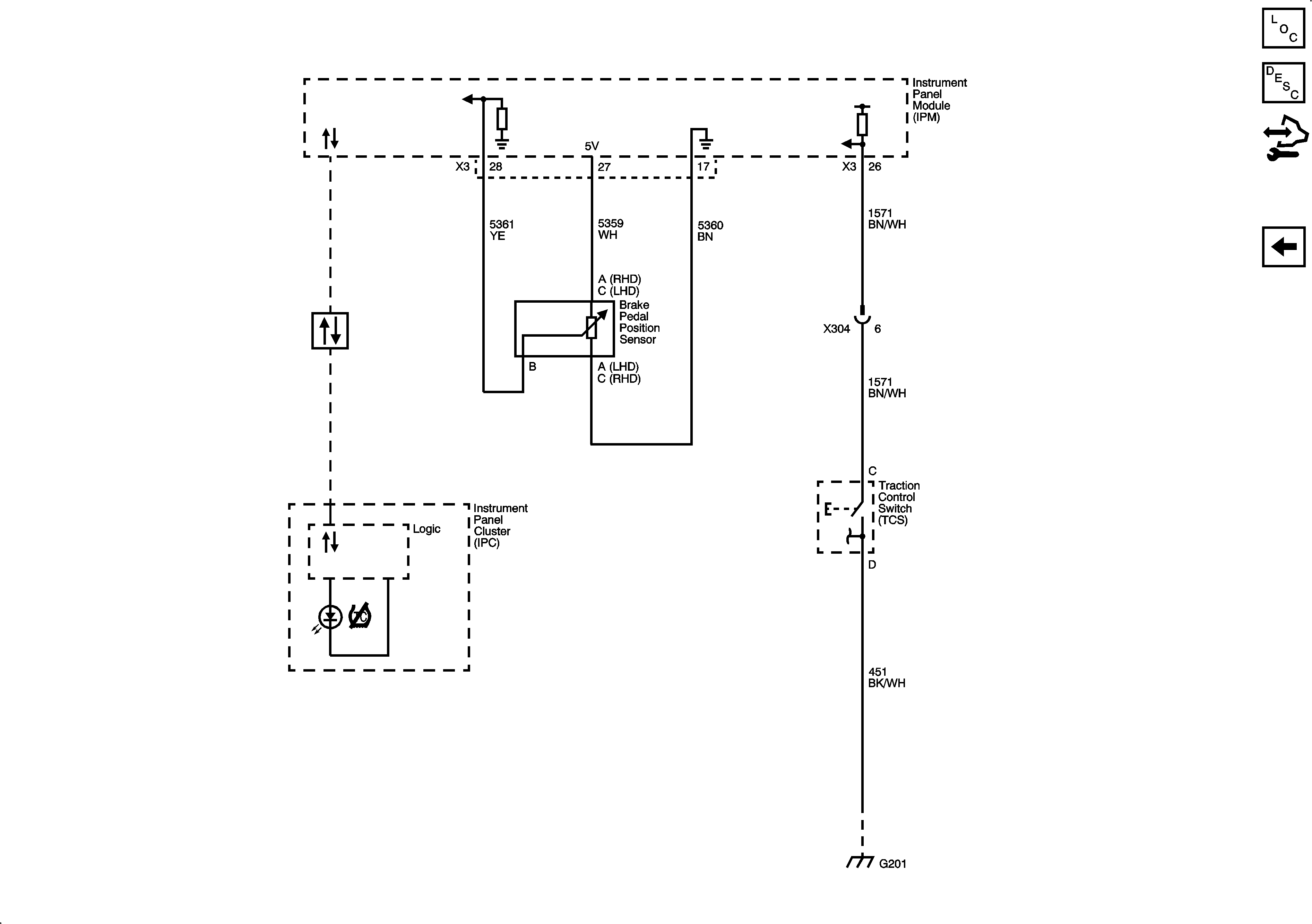

Figure 4:	Traction Control Master Electrical Component List ABS Description and Operation (With JL7) Control Module References Wheel Speed Sensors
