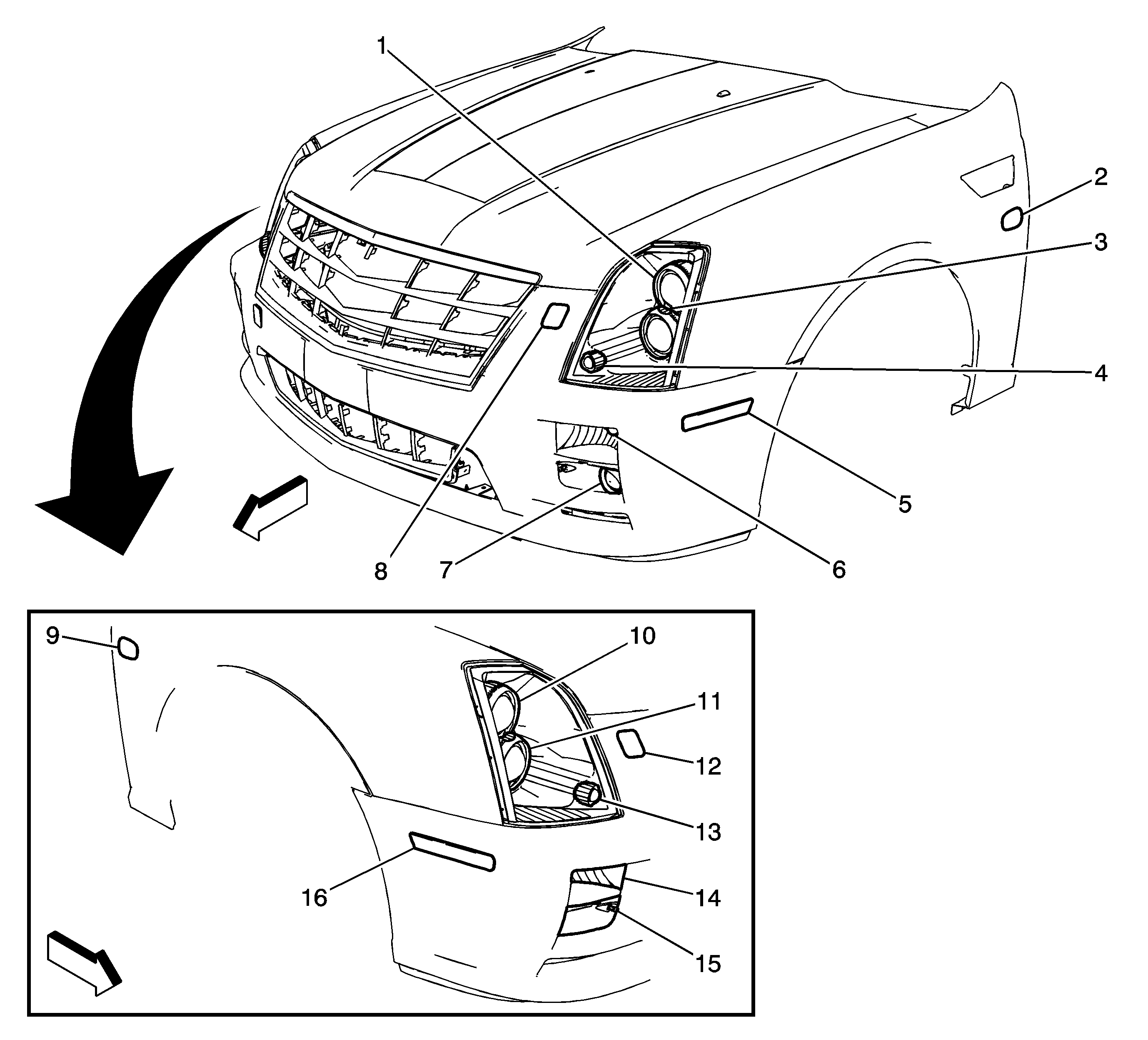

Figure 1:

Front Fascia


(1)	Headlamp - Left Low Beam (without TT6/TT7/TT8)
(2)	Repeater Lamp - Left Front
(3)	Headlamp - Left High Beam
(4)	Park Lamp - Left Front
(5)	Marker Lamp - Left Front
(6)	Turn Signal Lamp - Left Front
(7)	Fog Lamp - Left Front
(8)	Heated Washer Nozzle - Left (XA7)
(9)	Repeater Lamp - Right Front
(10)	Headlamp - Right Low Beam (without TT6/TT7/TT8)
(11)	Headlamp - Right High Beam
(12)	Heated Washer Nozzle - Left (XA7)
(13)	Park Lamp - Right Front
(14)	Turn Signal Lamp - Right Front
(15)	Fog Lamp - Right Front
(16)	Marker Lamp - Right Front

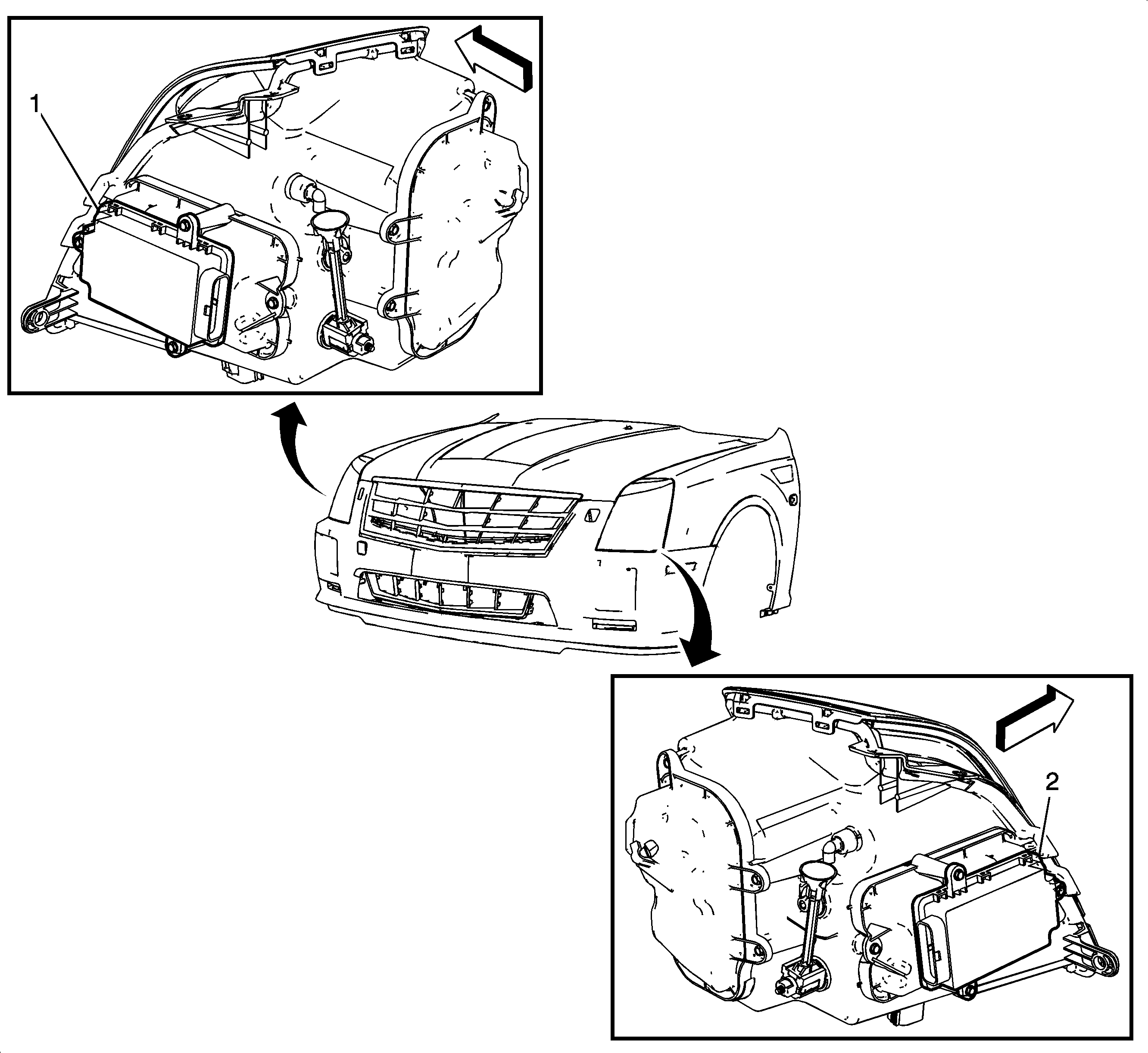

Figure 2:

Headlamps - North America


(1)	Headlamp Ballast - Right (TT6/TT7/TT8)
(2)	Headlamp Ballast - Left (TT6/TT7/TT8)

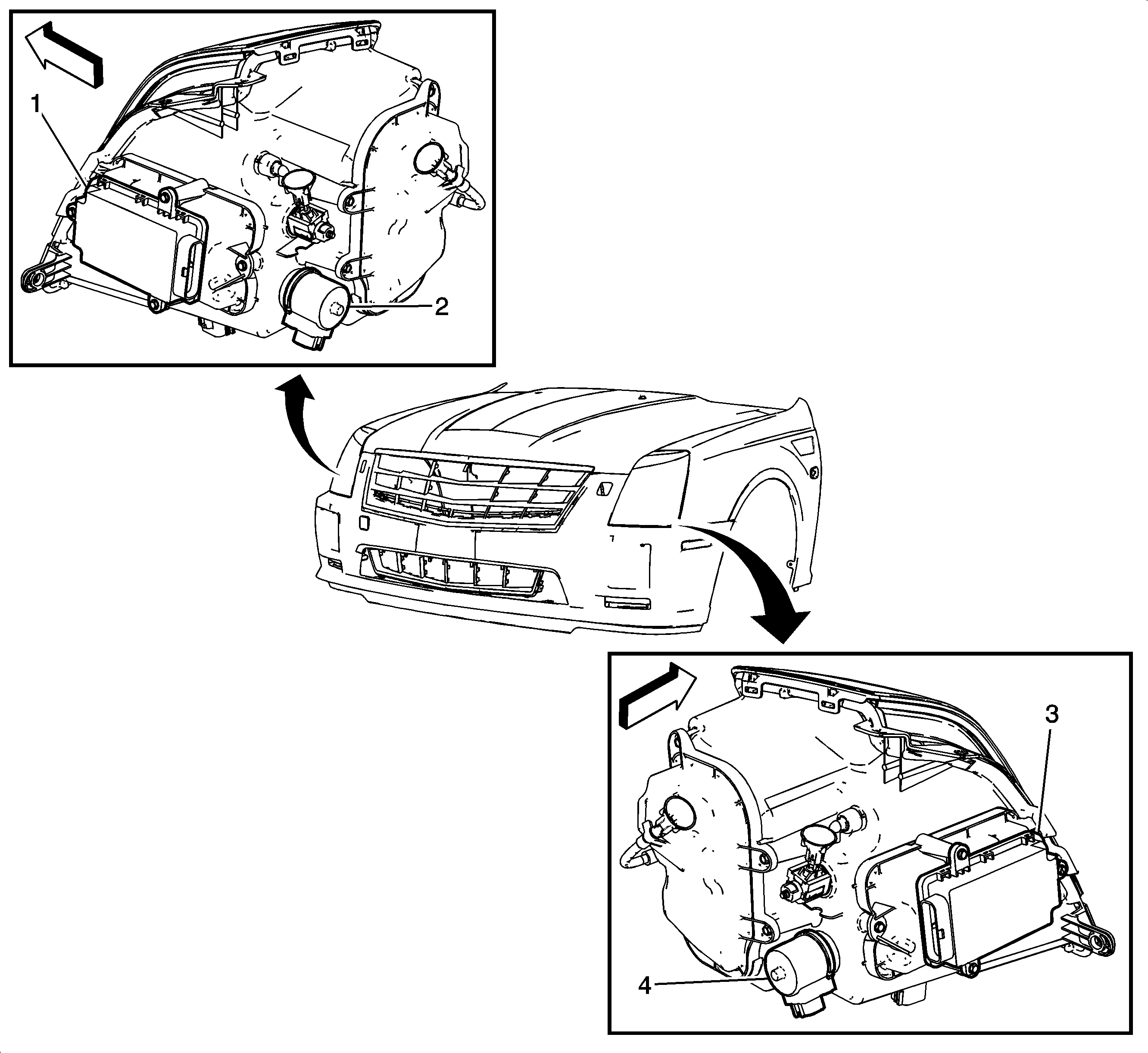

Figure 3:

Headlamps - Europe


(1)	Headlamp Ballast - Right (TT6/TT7/TT8)
(2)	Headlamp Leveling Actuator - Right (TR7)
(3)	Headlamp Ballast - Left (TT6/TT7/TT8)
(4)	Headlamp Leveling Actuator - Left (TR7)

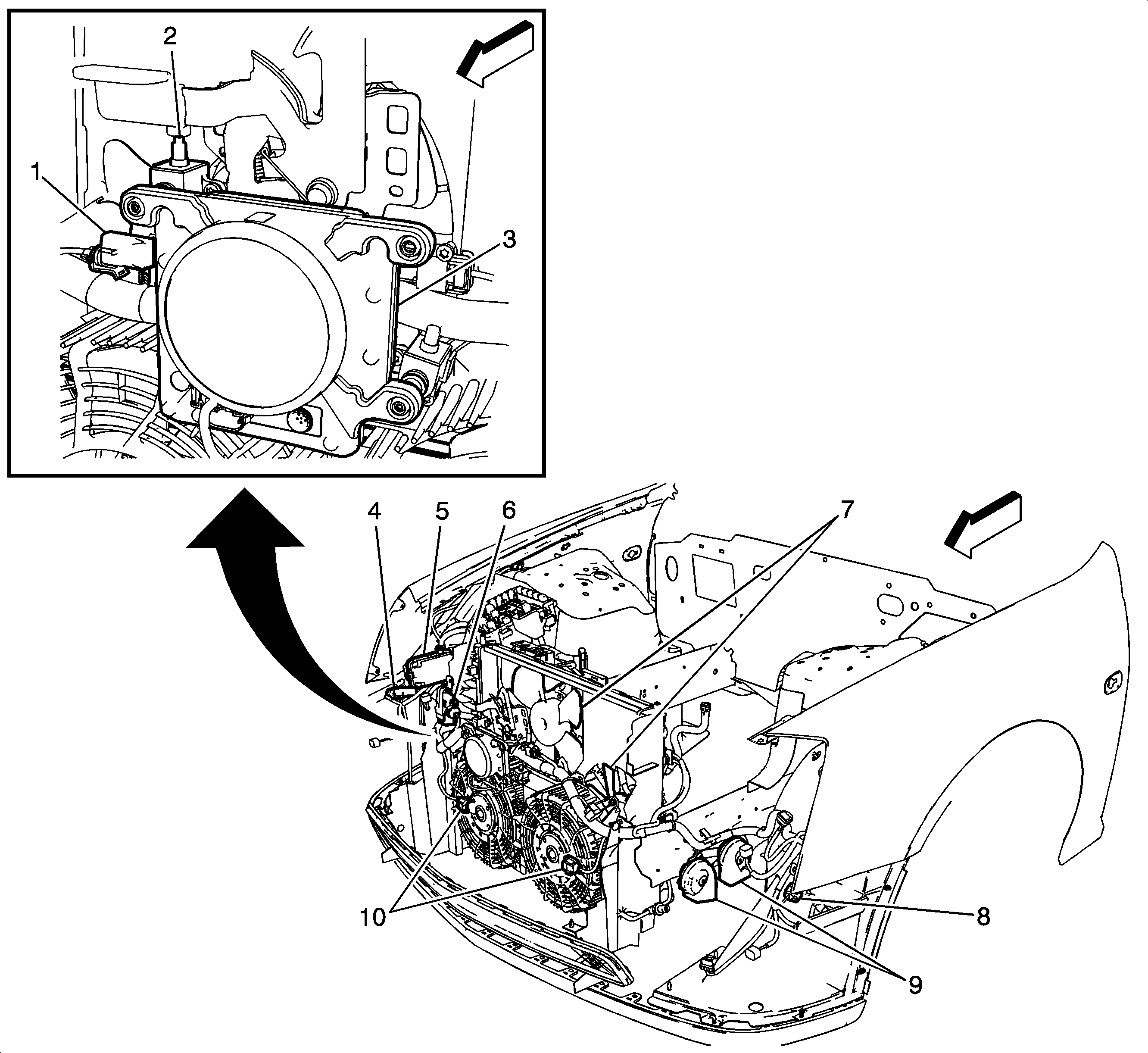

Figure 4:

Forward Lamp Harness Components


(1)	Ambient Air Temperature Sensor
(2)	Hood Ajar Switch
(3)	Distance Sensing Cruise Control (DSCC) Module (K59)
(4)	Tire Pressure Receiver - Right Front (UH3)
(5)	Headlamp Leveling Module (TR7)
(6)	Air Quality Sensor (K14)
(7)	Engine Cooling Fans-Standard
(8)	Tire Pressure Receiver - Left Front (UH3)
(9)	Horn Assembly
(10)	Engine Cooling Fans-Heavy Duty

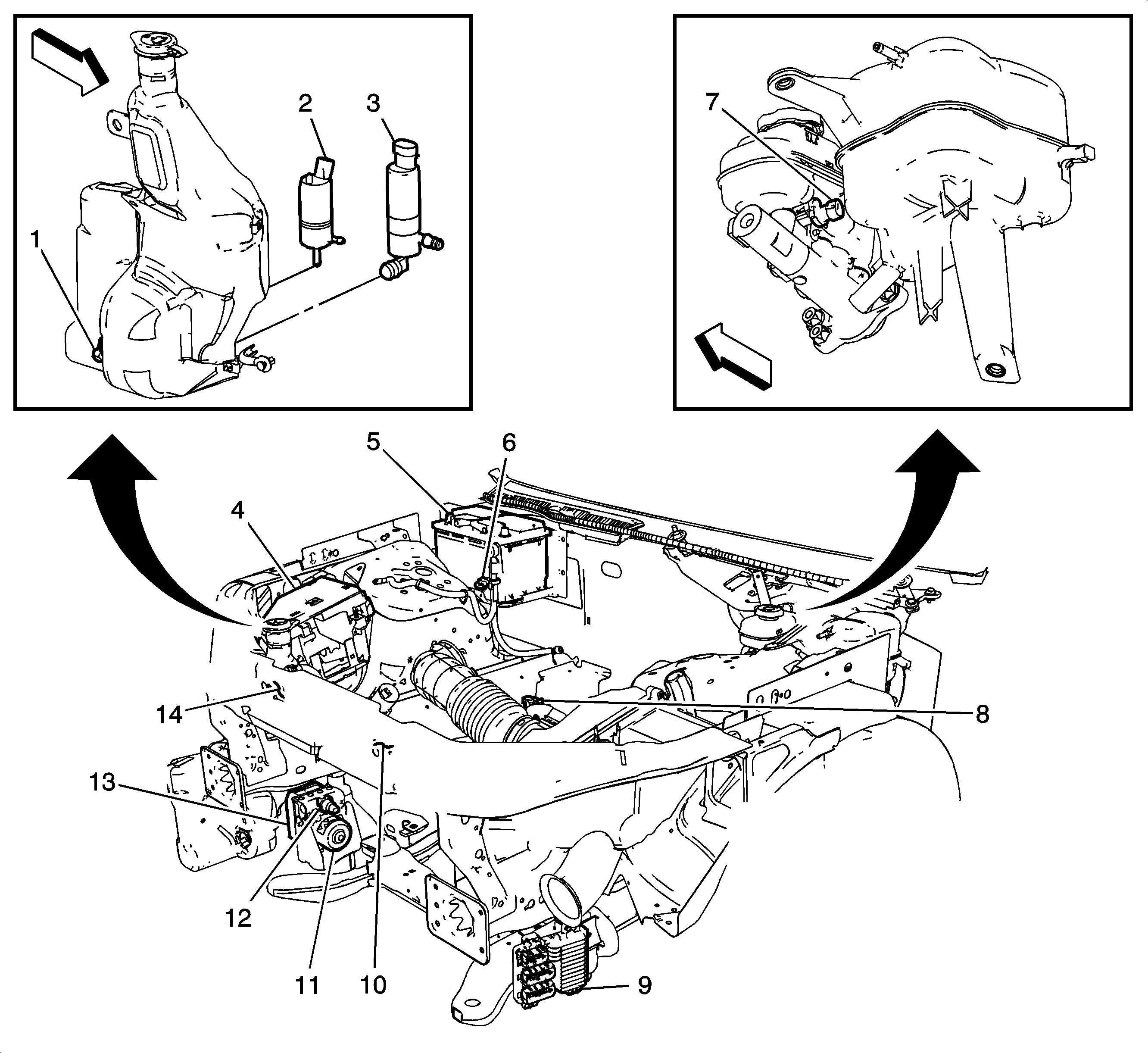

Figure 5:

Front Engine Compartment Components 1 of 2


(1)	Windshield Washer Fluid Level Switch
(2)	Headlamp Washer Fluid Pump (CE4)
(3)	Windshield Washer Fluid Pump
(4)	Fuse Block-Underhood
(5)	Battery
(6)	Battery Current Sensor
(7)	Brake Fluid Level Switch
(8)	Mass Air Flow (MAF)/ Intake Air Temperature (IAT) Sensor
(9)	Engine Control Module (ECM) (LH2/LC3)
(10)	Inflatable Restraint Front End Sensor - Left
(11)	Electronic Brake Control Module (EBCM)
(12)	Brake Fluid Pressure Sensor (w/o JL7)
(13)	Brake Pressure Modulator Valve (BPMV)
(14)	Inflatable Restraint Front End Sensor - Right

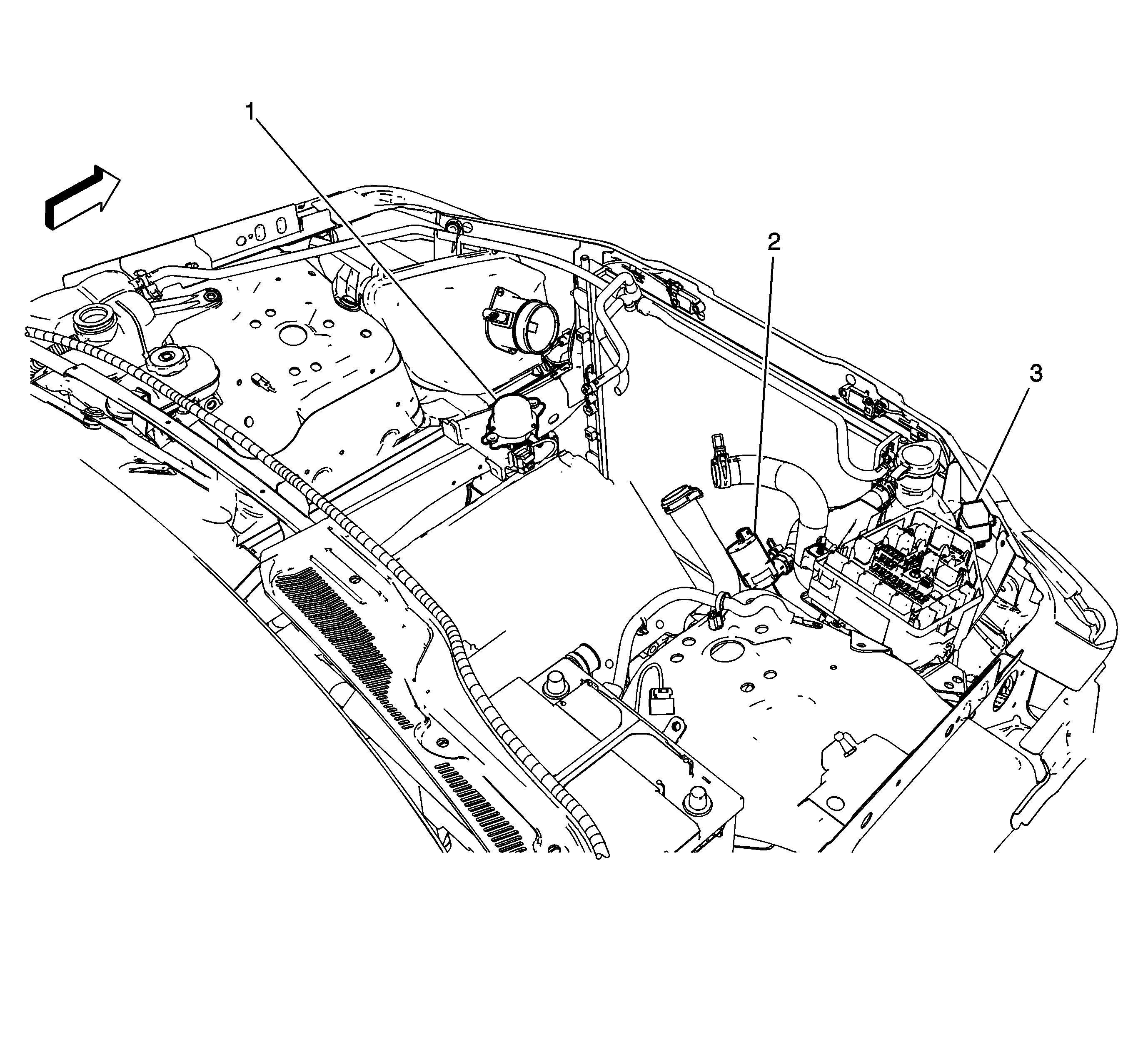

Figure 6:

Front Engine Compartment Components 2 of 2


(1)	Coolant Pump - Auxiliary (LLT)
(2)	Charge Air Cooler (CAC) Coolant Pump (LC3)
(3)	Headlamp Washer Fluid Pump Relay (CE4)
