Exterior Lights Schematics. Cadillac Seville 1998

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 1998 🢒 Seville 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Exterior Lights Schematics

Exterior Lights Schematics Domestic

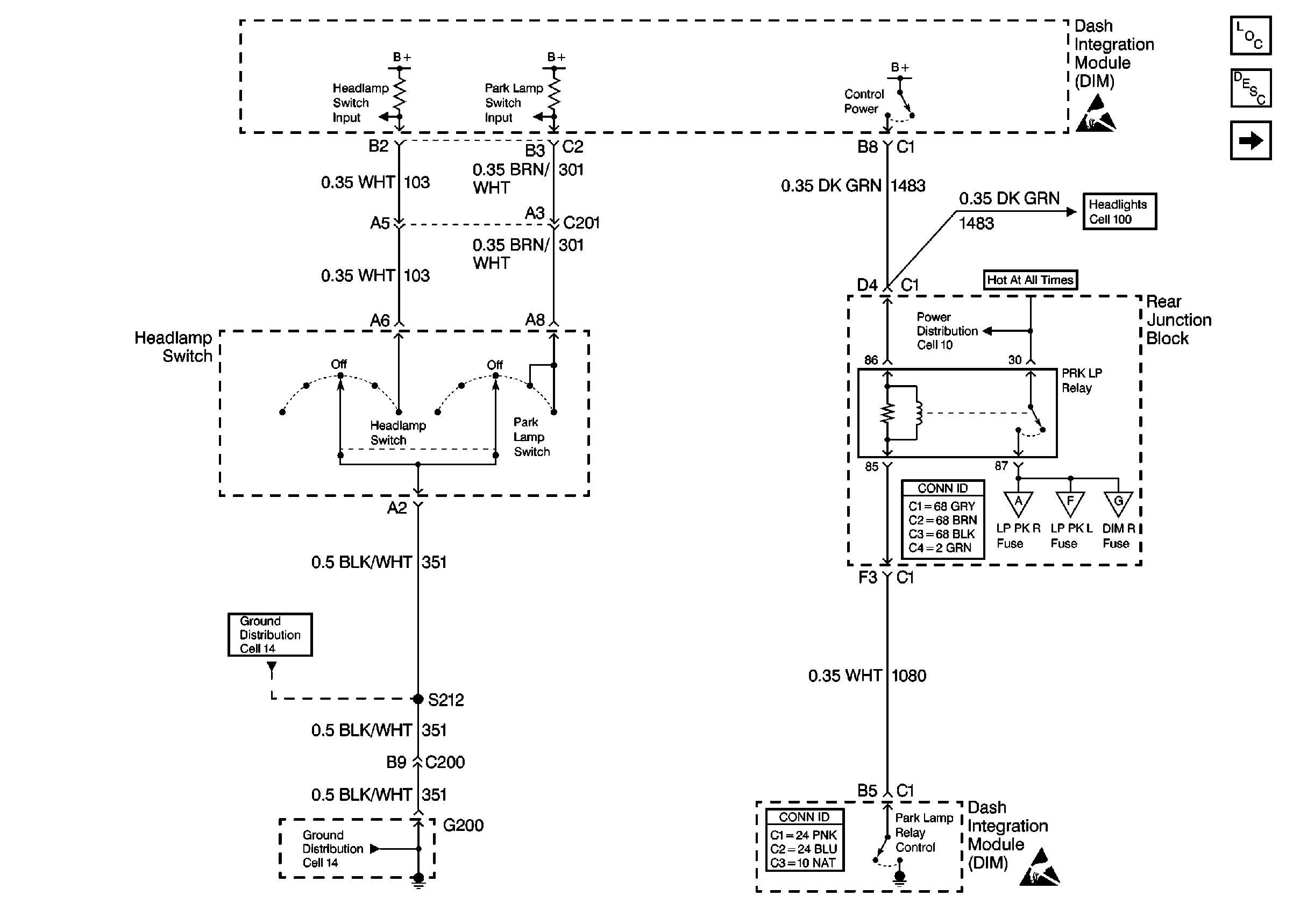

Figure 1:	Cell 110: Headlamp Switch, PRK LP Relay Lighting Systems Components Exterior Lights Circuit Description Cell 110: Hazard Switch Assembly Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 10: LP PK L Fuse Cell 14: G200 (1 of 2) Cell 14: G200 (1 of 2) Cell 100: Low Beam Headlamps Cell 110: RH Exterior Lamps Cell 110: LH Exterior Lamps Cell 110: License, Underhood, and Cornering Lamps Power and Grounding Connector End Views Body Control System Connector End Views

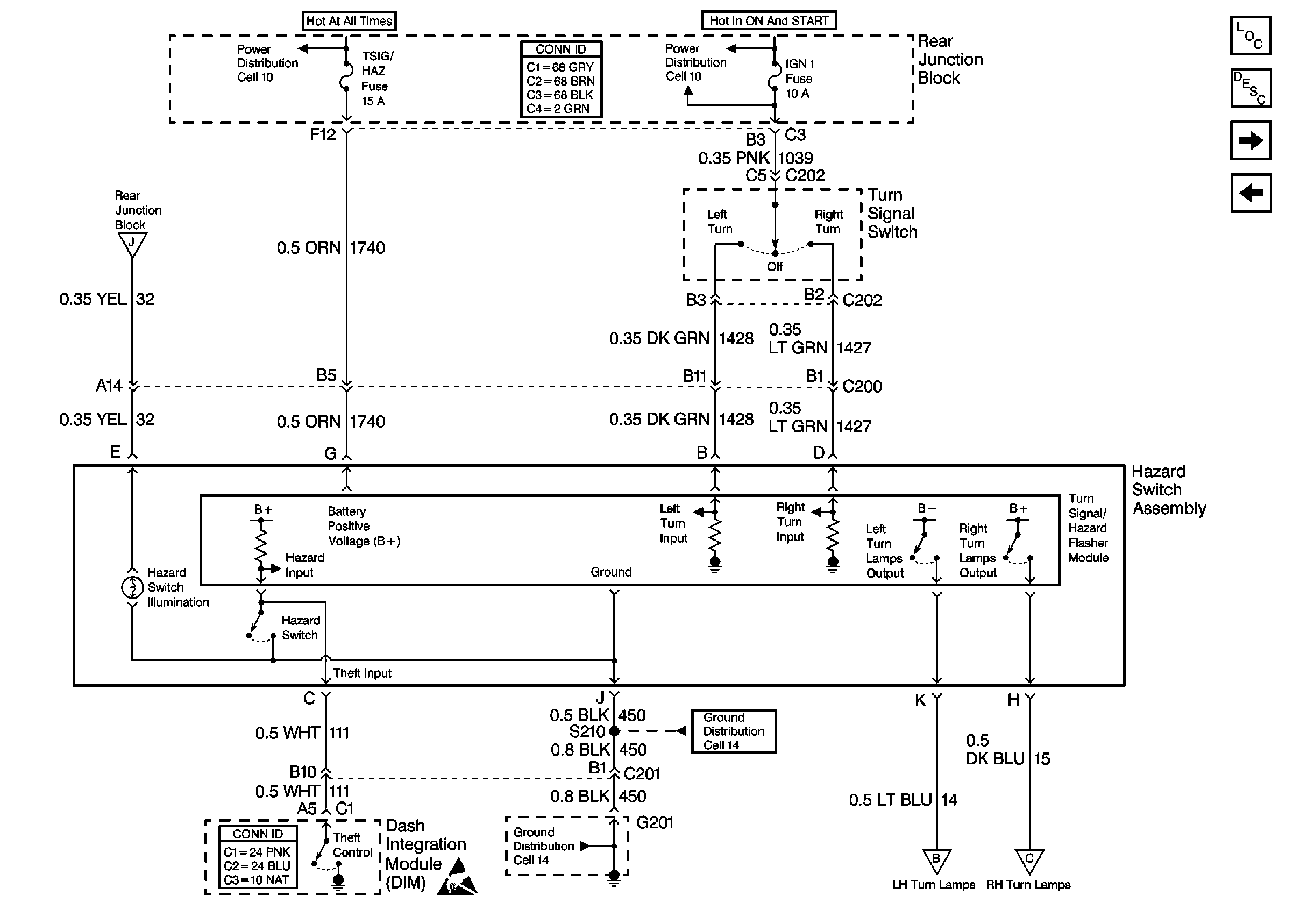

Figure 2:	Cell 110: Hazard Switch Assembly Lighting Systems Components Exterior Lights Circuit Description Cell 110: Stop Lamps Cell 110: Headlamp Switch, PRK LP Relay Handling ESD Sensitive Parts Notice Cell 10: MEM T/T, PWWR T/T, and TSIG/HAZ Fuses Cell 10: IGN 1 Relay and SIR, VENT SOL, IGN 1 Fuses Cell 14: G201 (2 of 2) Cell 14: G201 (2 of 2) Cell 110: LH Exterior Lamps Cell 110: RH Exterior Lamps Cell 110: License, Underhood, and Cornering Lamps Power and Grounding Connector End Views Body Control System Connector End Views
Figure 3:	Cell 110: Stop Lamps Lighting Systems Components Exterior Lights Circuit Description Cell 110: RH Exterior Lamps Cell 110: Hazard Switch Assembly Cell 10: AUX PWR, C/LTR, STOP LP, CIGAR, and HVAC BLO Fuses Cell 14: G402 (1 of 2) Cell 14: G401 (2 of 3) Cell 110: LH Exterior Lamps Cell 110: LH Exterior Lamps Cell 110: RH Exterior Lamps Cell 110: RH Exterior Lamps Power and Grounding Connector End Views Tilt Wheel/Column Connector End Views

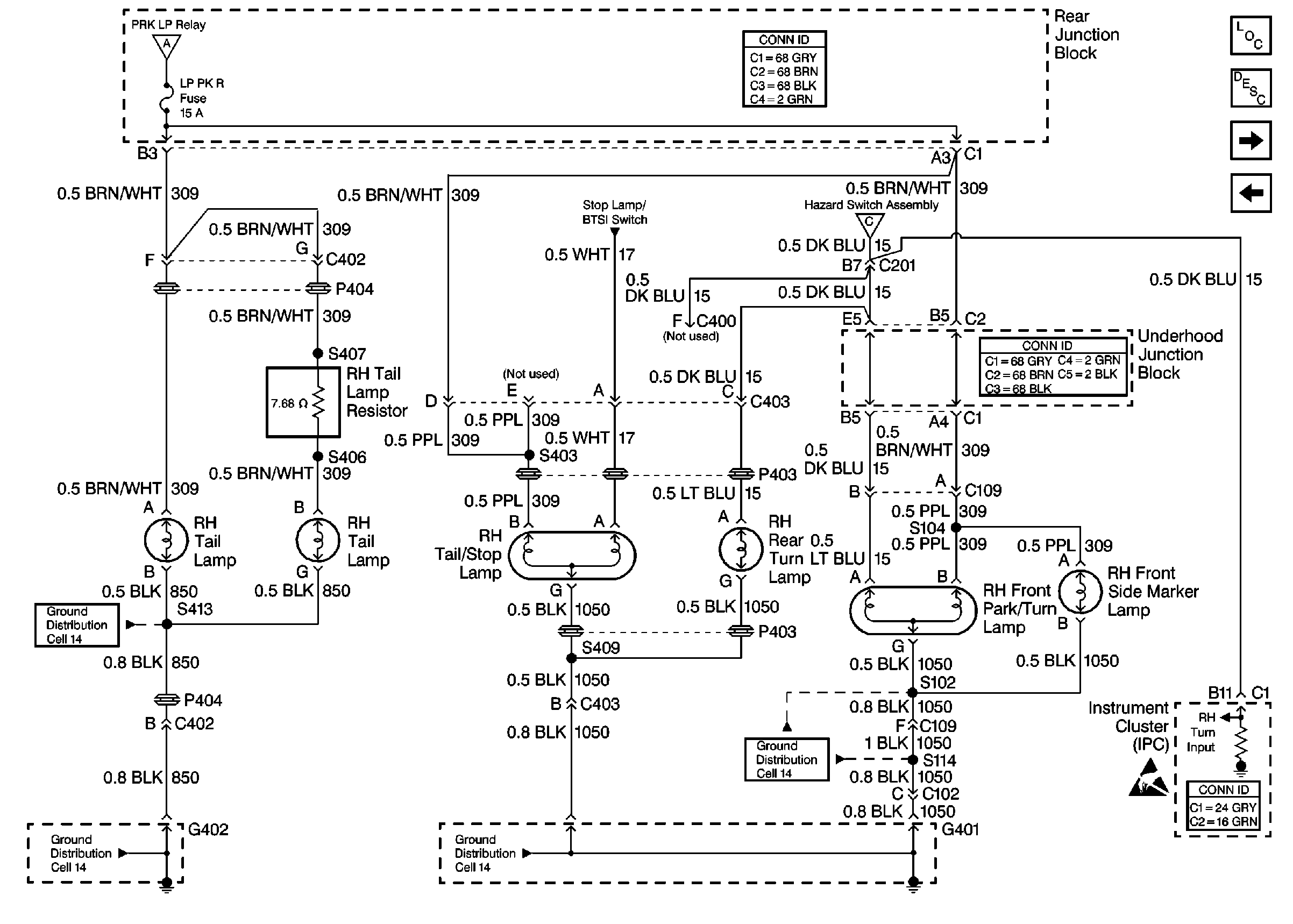

Figure 4:	Cell 110: RH Exterior Lamps Lighting Systems Components Exterior Lights Circuit Description Cell 110: LH Exterior Lamps Cell 110: Stop Lamps Handling ESD Sensitive Parts Notice Cell 14: G401 (1 of 3) Cell 14: G401 (3 of 3) Cell 14: G402 (1 of 2) Cell 14: G402 (2 of 2) Cell 110: Headlamp Switch, PRK LP Relay Cell 110: Hazard Switch Assembly Cell 110: Stop Lamps Power and Grounding Connector End Views Instrument Panel, Gages, and Console Connector End Views Power and Grounding Connector End Views

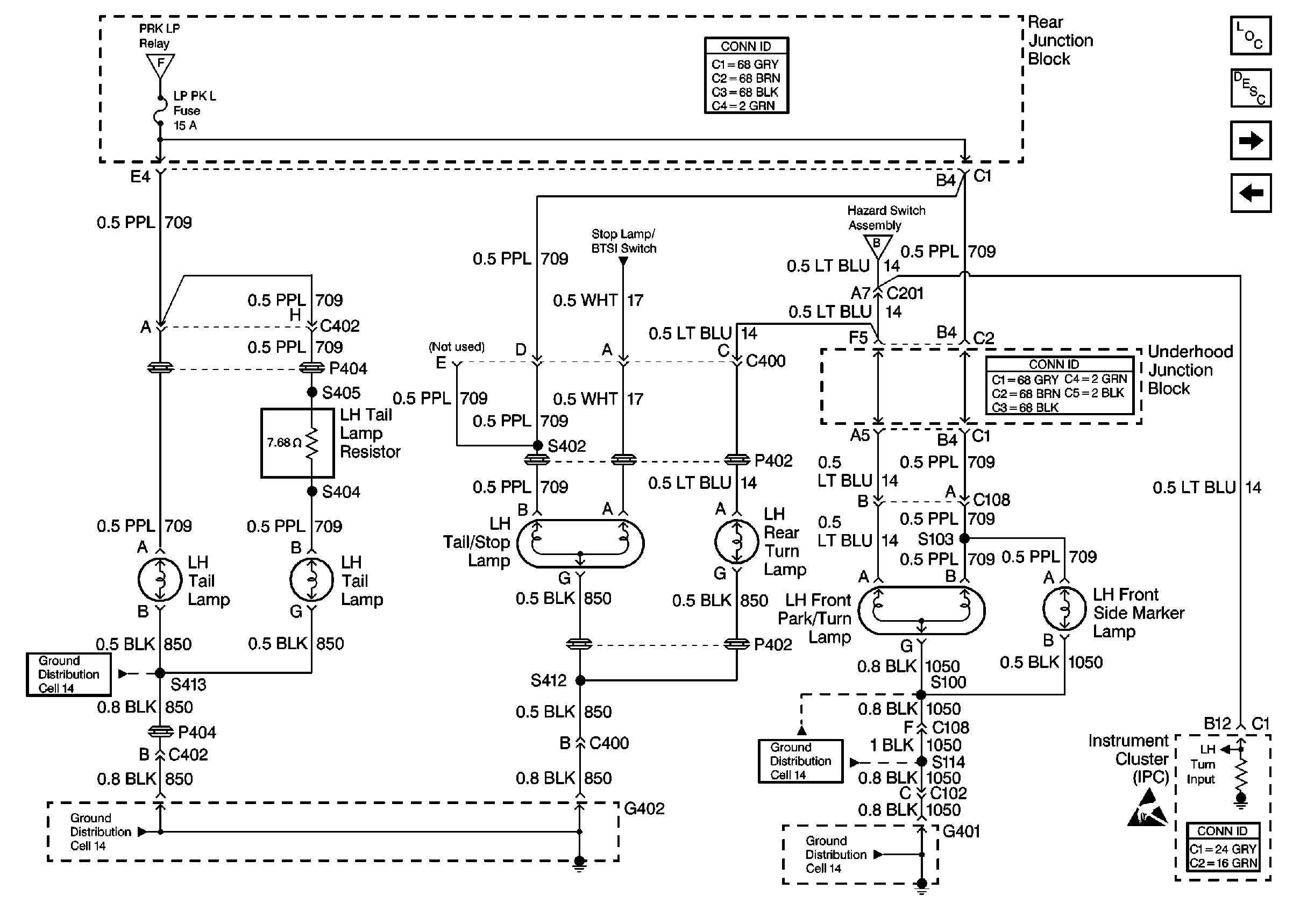

Figure 5:	Cell 110: LH Exterior Lamps Lighting Systems Components Exterior Lights Circuit Description Cell 110: License, Underhood, and Cornering Lamps Cell 110: RH Exterior Lamps Handling ESD Sensitive Parts Notice Cell 14: G401 (3 of 3) Cell 14: G401 (3 of 3) Cell 14: G402 (1 of 2) Cell 14: G402 (2 of 2) Cell 110: Hazard Switch Assembly Cell 110: Stop Lamps Cell 110: RH Exterior Lamps Power and Grounding Connector End Views Instrument Panel, Gages, and Console Connector End Views Power and Grounding Connector End Views

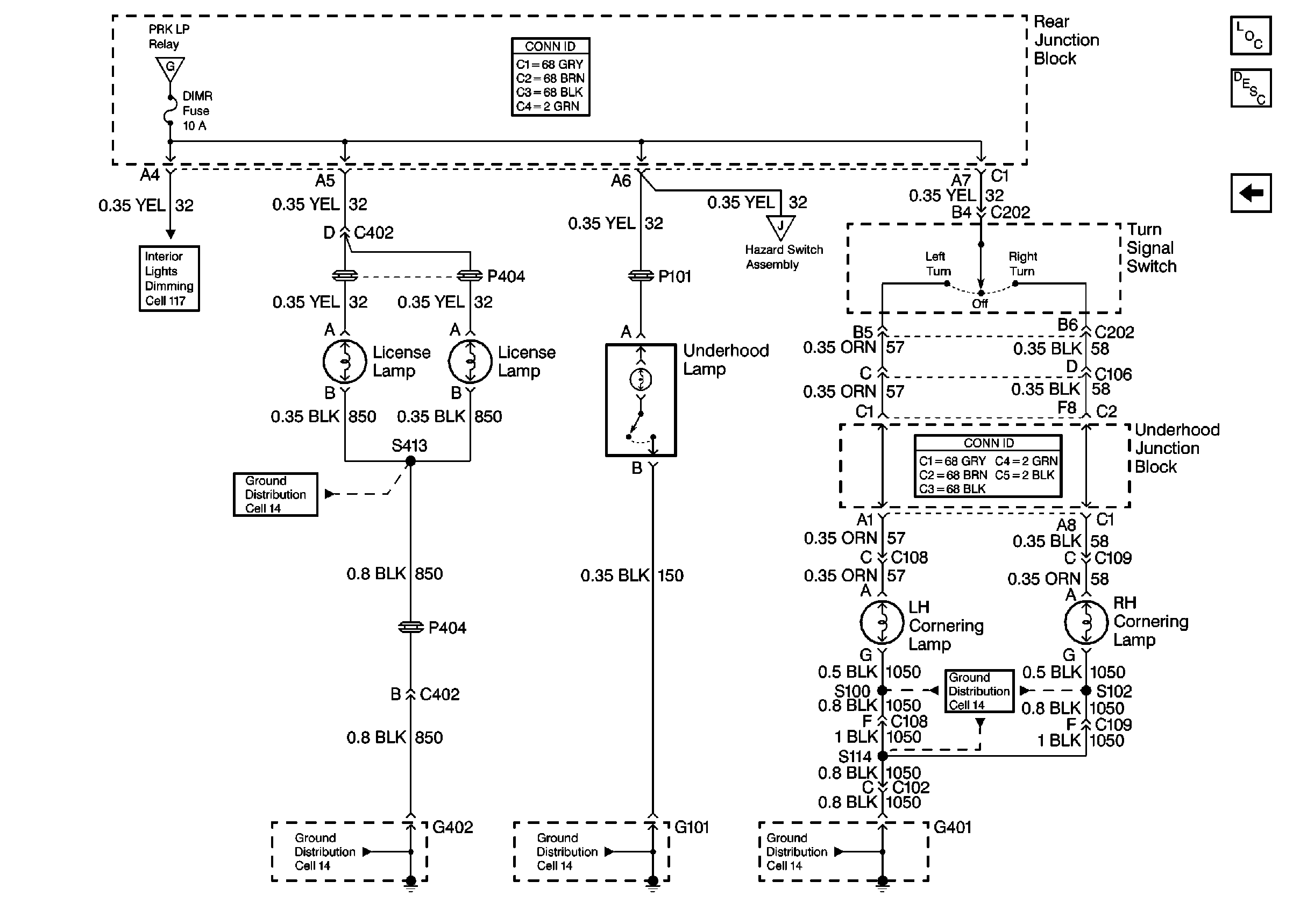

Figure 6:	Cell 110: License, Underhood, and Cornering Lamps Lighting Systems Components Exterior Lights Circuit Description Cell 110: LH Exterior Lamps Cell 14: G101 and G105 Cell 14: G401 (3 of 3) Cell 14: G401 (3 of 3) Cell 14: G402 (1 of 2) Cell 14: G402 (2 of 2) Cell 117: Dimming Control, IP Dimmer Switch Cell 110: RH Exterior Lamps Cell 110: Hazard Switch Assembly Power and Grounding Connector End Views Power and Grounding Connector End Views

Exterior Lights Schematics Export

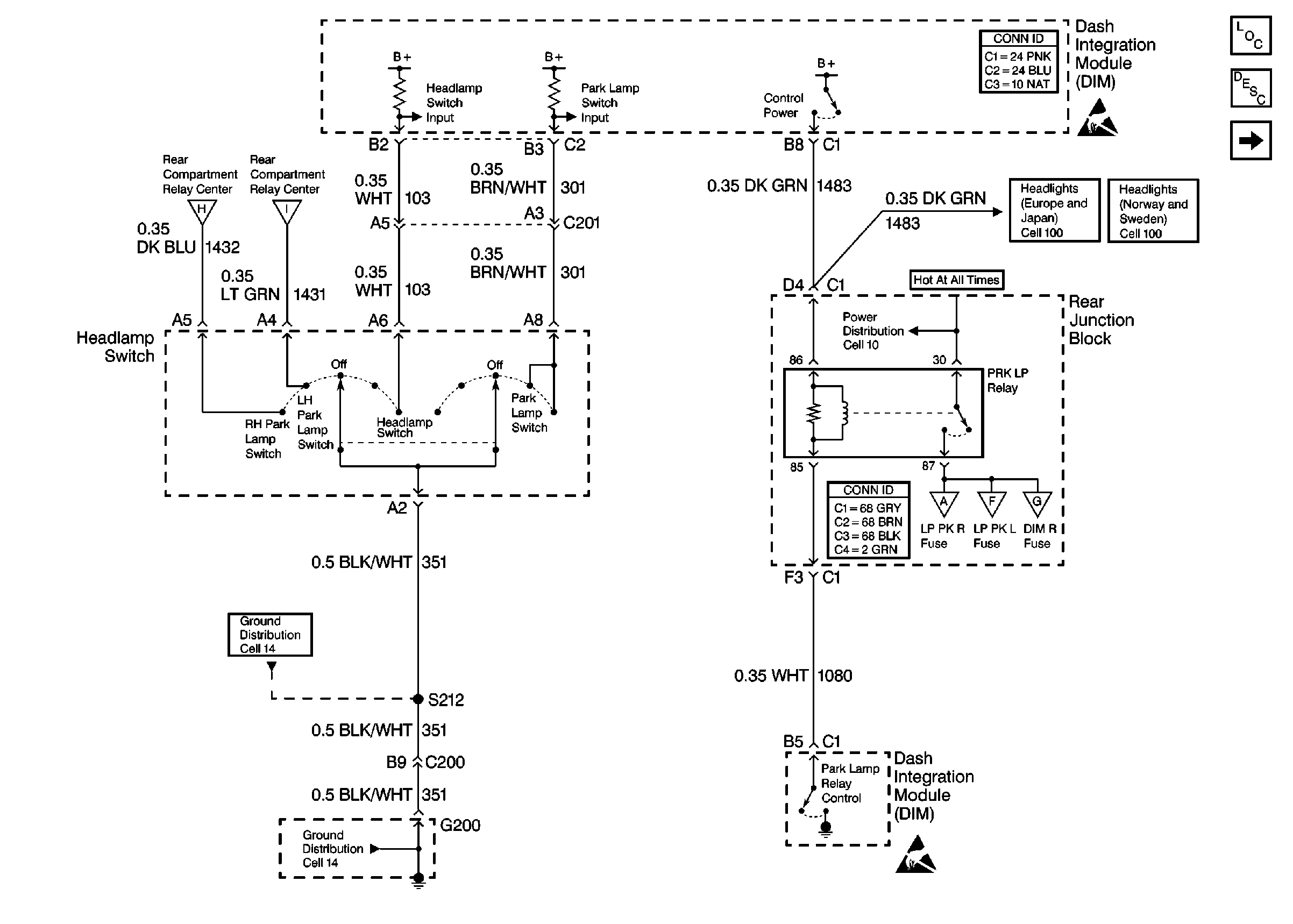

Figure 1:	Cell 110: Headlamp Switch, PRK LP Relay Lighting Systems Components Exterior Lights Circuit Description Cell 110: Hazard Switch Assembly Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 10: LP PK L Fuse Cell 14: G200 (1 of 2) Cell 14: G200 (1 of 2) Cell 100: Low Beam Headlamps Cell 100: DRL, Low Beam Headlamps Cell 110: RH Exterior Lamps Cell 110: LH Exterior Lamps Cell 110: License, Underhood, and Cornering Lamps Cell 110: Position Lamps Cell 110: Position Lamps Body Control System Connector End Views Power and Grounding Connector End Views
Figure 2:	Cell 110: Hazard Switch Assembly Lighting Systems Components Exterior Lights Circuit Description Cell 110: Stop Lamps Cell 110: Headlamp Switch, PRK LP Relay Handling ESD Sensitive Parts Notice Cell 10: MEM T/T, PWWR T/T, and TSIG/HAZ Fuses Cell 10: IGN 1 Relay and SIR, VENT SOL, IGN 1 Fuses Cell 14: G201 (2 of 2) Cell 14: G201 (2 of 2) Cell 110: LH Exterior Lamps Cell 110: RH Exterior Lamps Cell 110: License, Underhood, and Cornering Lamps Power and Grounding Connector End Views Body Control System Connector End Views
Figure 3:	Cell 110: Stop Lamps Lighting Systems Components Exterior Lights Circuit Description Cell 110: RH Exterior Lamps Cell 110: Hazard Switch Assembly Cell 10: AUX PWR, C/LTR, STOP LP, CIGAR, and HVAC BLO Fuses Cell 14: G402 (1 of 2) Cell 14: G401 (2 of 3) Cell 110: LH Exterior Lamps Cell 110: LH Exterior Lamps Cell 110: RH Exterior Lamps Cell 110: RH Exterior Lamps Power and Grounding Connector End Views Tilt Wheel/Column Connector End Views

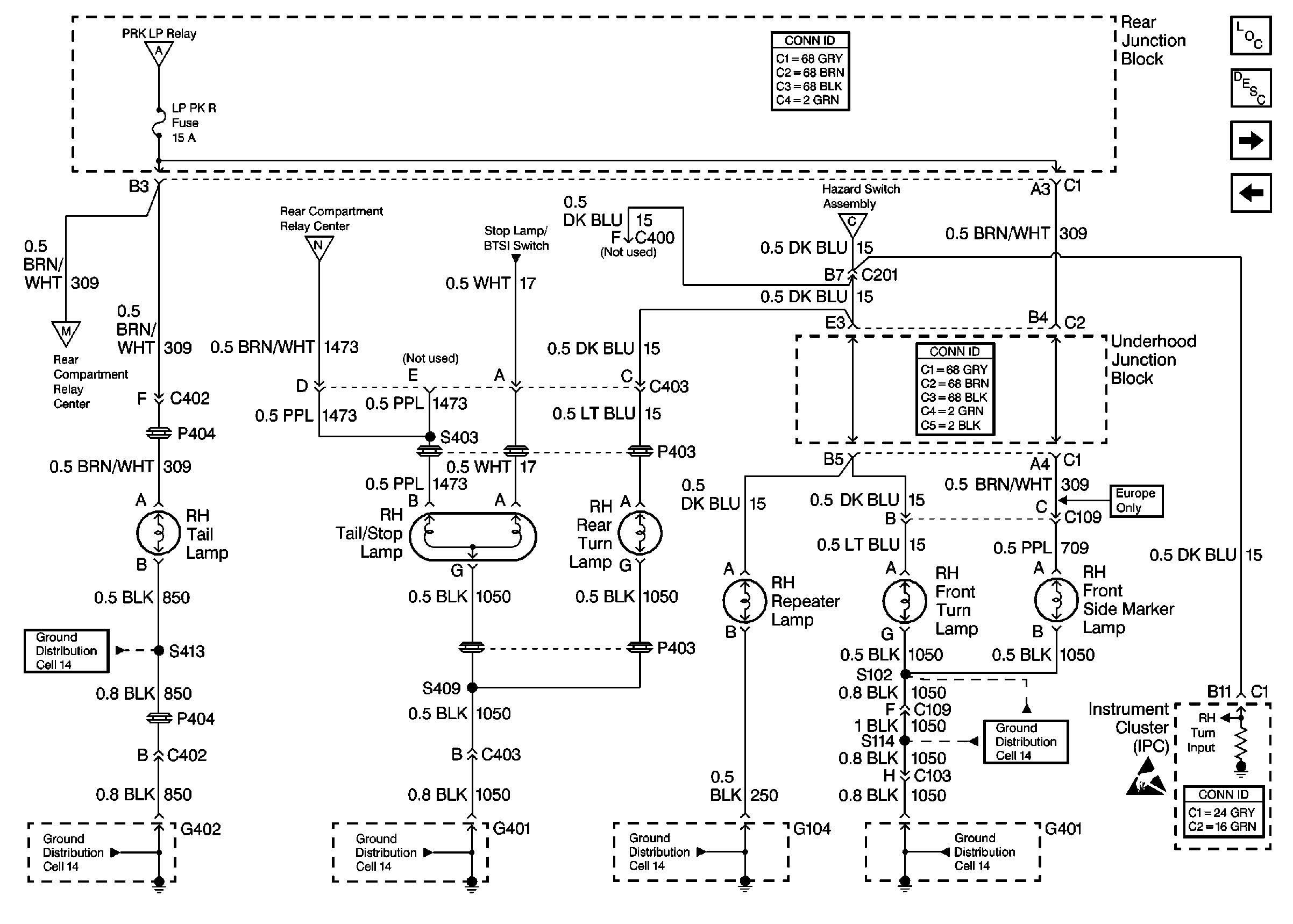

Figure 4:	Cell 110: RH Exterior Lamps Lighting Systems Components Exterior Lights Circuit Description Cell 110: LH Exterior Lamps Cell 110: Stop Lamps Handling ESD Sensitive Parts Notice Cell 14: G104 Cell 14: G401 (1 of 3) Cell 14: G401 (3 of 3) Cell 14: G401 (3 of 3) Cell 14: G402 (1 of 2) Cell 14: G402 (2 of 2) Cell 110: Headlamp Switch, PRK LP Relay Cell 110: Hazard Switch Assembly Cell 110: Stop Lamps Cell 110: Position Lamps Cell 110: Position Lamps Power and Grounding Connector End Views Power and Grounding Connector End Views Instrument Panel, Gages, and Console Connector End Views

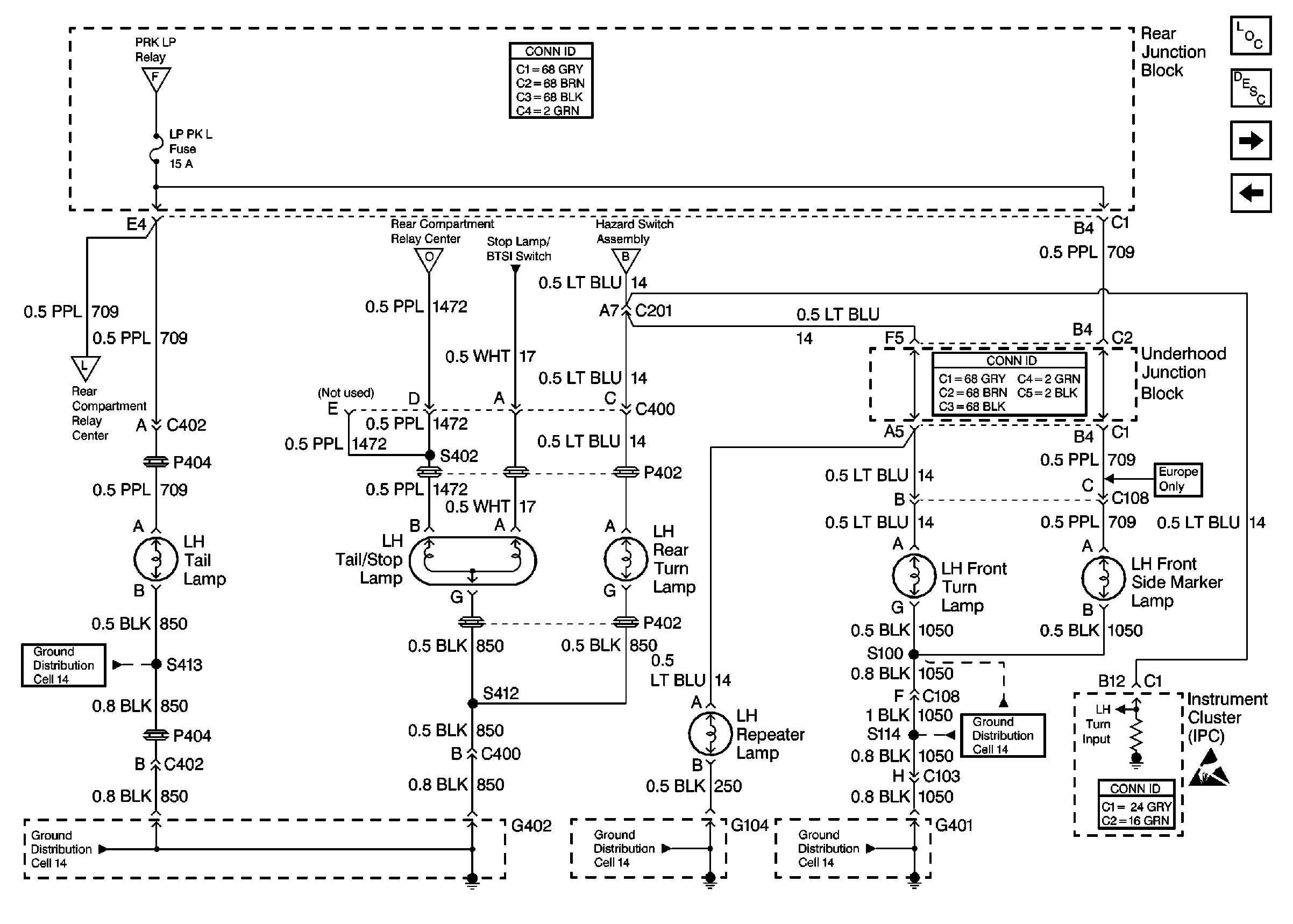

Figure 5:	Cell 110: LH Exterior Lamps Lighting Systems Components Exterior Lights Circuit Description Cell 110: Position Lamps Cell 110: RH Exterior Lamps Handling ESD Sensitive Parts Notice Cell 14: G104 Cell 14: G401 (3 of 3) Cell 14: G401 (3 of 3) Cell 14: G402 (1 of 2) Cell 14: G402 (2 of 2) Cell 110: Hazard Switch Assembly Cell 110: Stop Lamps Cell 110: RH Exterior Lamps Cell 110: Position Lamps Cell 110: Position Lamps Power and Grounding Connector End Views Power and Grounding Connector End Views Instrument Panel, Gages, and Console Connector End Views
Figure 6:	Cell 110: Position Lamps Lighting Systems Components Exterior Lights Circuit Description Cell 110: License, Underhood, and Cornering Lamps Cell 110: LH Exterior Lamps Handling ESD Sensitive Parts Notice Cell 10: RAP and EXPORT LGT Fuses Cell 10: RAP and EXPORT LGT Fuses Cell 14: G401 (3 of 3) Cell 14: G401 (3 of 3) Cell 110: Headlamp Switch, PRK LP Relay Cell 110: Headlamp Switch, PRK LP Relay Cell 110: LH Exterior Lamps Cell 110: RH Exterior Lamps Cell 110: RH Exterior Lamps Cell 110: LH Exterior Lamps Power and Grounding Connector End Views Body Control System Connector End Views

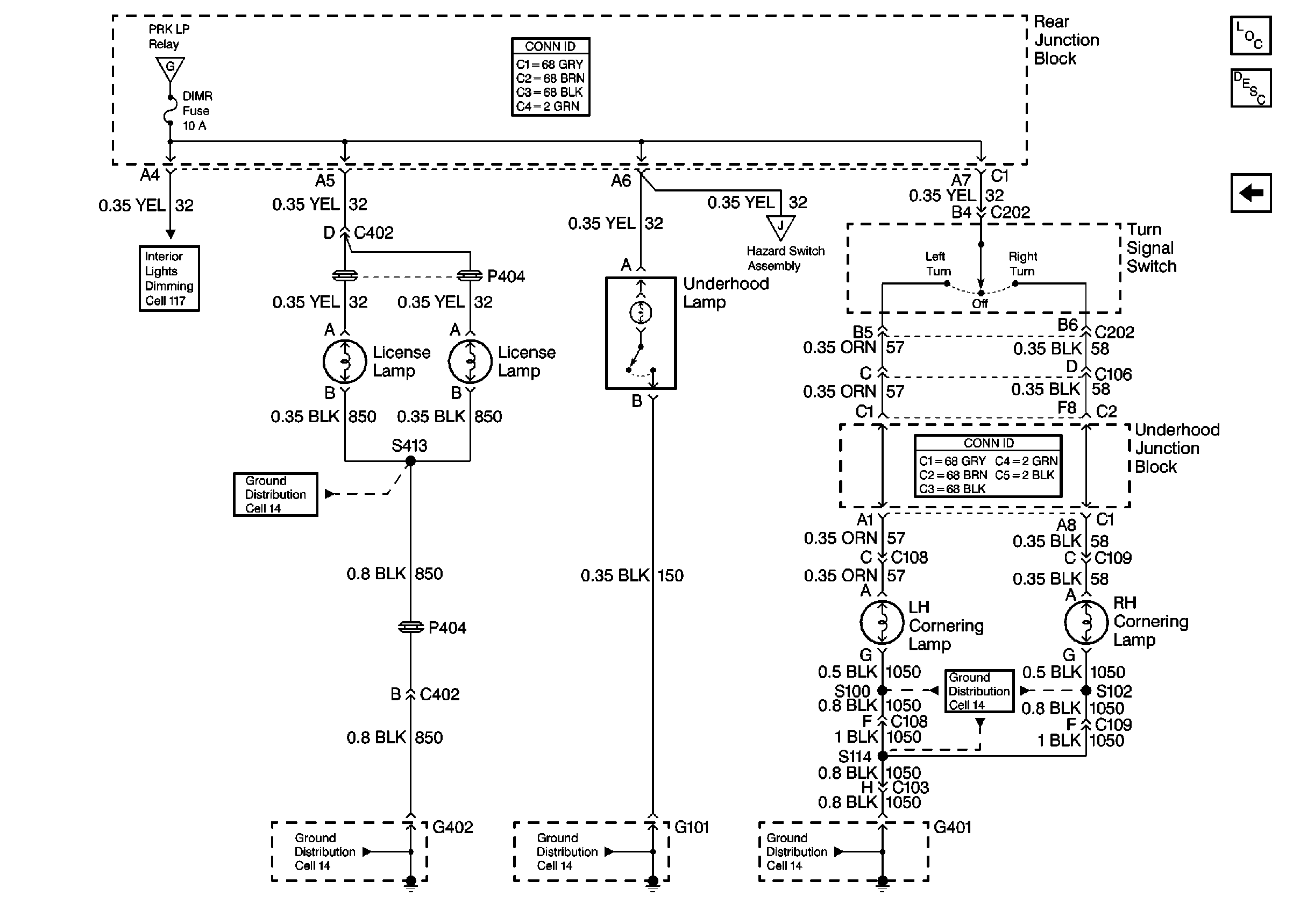

Figure 7:	Cell 110: License, Underhood, and Cornering Lamps Lighting Systems Components Exterior Lights Circuit Description Cell 110: Position Lamps Cell 14: G101 and G105 Cell 14: G401 (3 of 3) Cell 14: G401 (3 of 3) Cell 14: G402 (1 of 2) Cell 14: G402 (2 of 2) Cell 117: Dimming Control, IP Dimmer Switch Cell 110: RH Exterior Lamps Cell 110: Hazard Switch Assembly Power and Grounding Connector End Views Power and Grounding Connector End Views
