Door Control Module Schematics. Cadillac Seville 1998

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 1998 🢒 Seville 🢒 Body and Accessories 🢒 Doors 🢒 Door Control Module Schematics

Figure 1:	Cell 55: LFDM Inputs and Outputs Power Door Systems Component Views Door Description Cell 120 - LH Power Windows Handling ESD Sensitive Parts Notice Cell 120 - LH Power Windows Cell 14: G200 (1 of 2) Cell 10: DRV MDL, PASS MDL, RRDR MDL, and ALDL Fuses Cell 50: Class Serial Data Line (1 of 2)

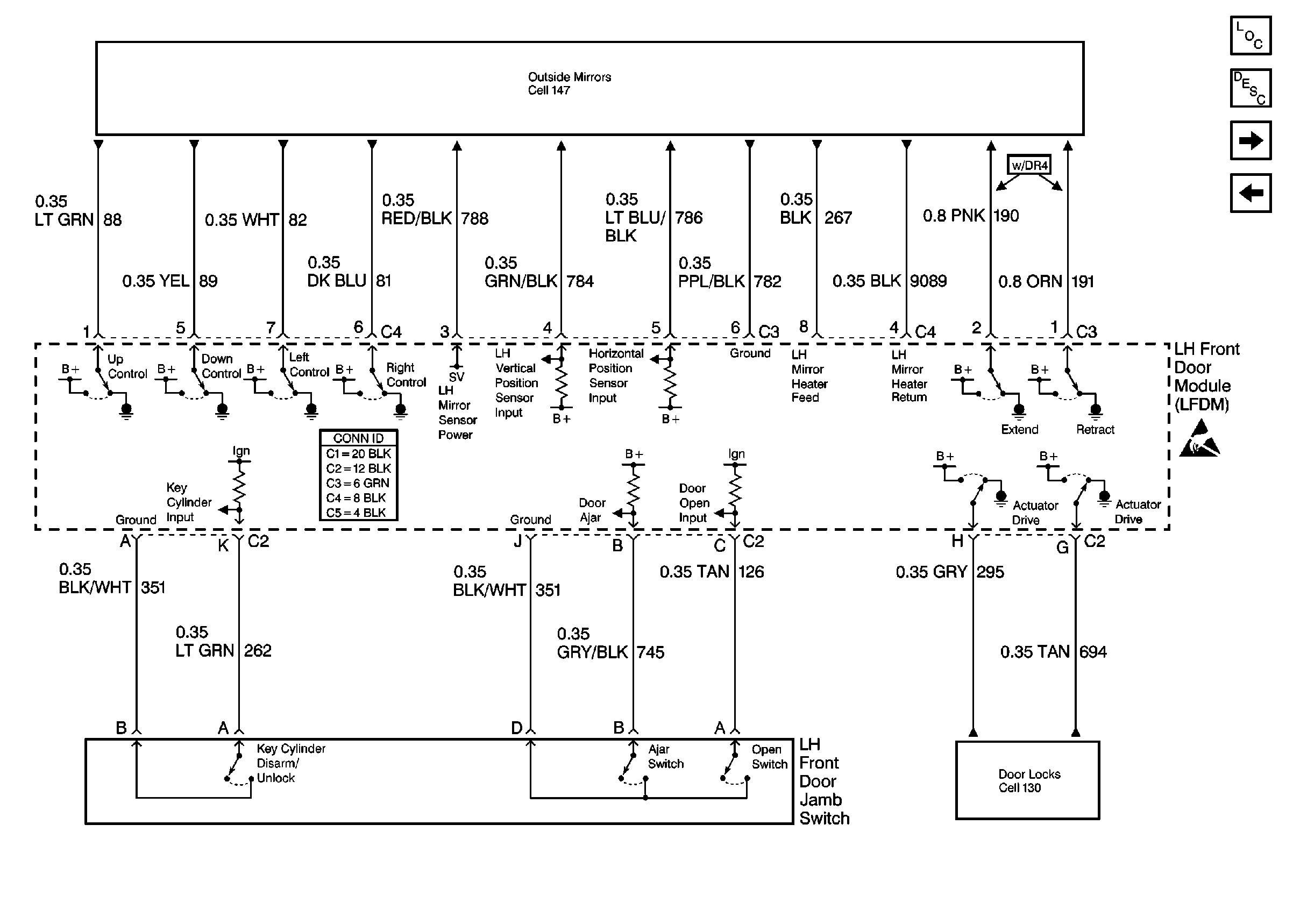

Figure 2:	Cell 55: LFDM Power, Ground, Inputs, and Outputs Power Door Systems Components Cell 55: RFDM Power, Ground, Inputs, and Outputs Cell 55: LFDM Inputs and Outputs Handling ESD Sensitive Parts Notice Cell 130 - LH Power Door Locks Power Door Systems Connector End Views Cell 147 - LH Power Mirror with Memory (A45) Door Description
Figure 3:	Cell 55: RFDM Power, Ground, Inputs, and Outputs Power Door Systems Components Door Description Cell 55: RFDM Inputs and Outputs Cell 55: LFDM Power, Ground, Inputs, and Outputs Handling ESD Sensitive Parts Notice Power Door Systems Connector End Views Cell 14: G201 (1 of 2) Power Door Systems Connector End Views Cell 10: DRV MDL, PASS MDL, RRDR MDL, and ALDL Fuses Cell 120 - RH Power Window

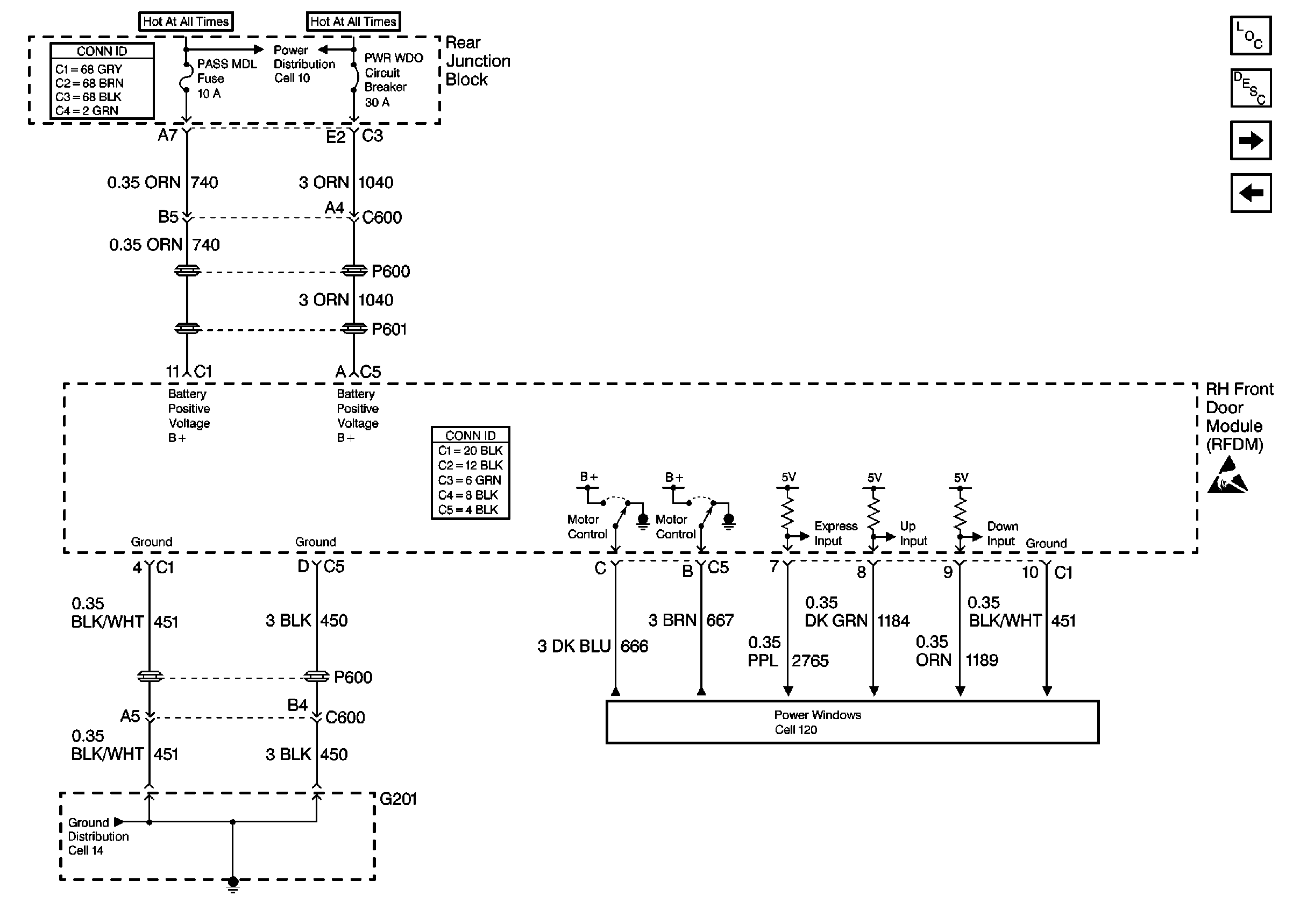

Figure 4:	Cell 55: RFDM Inputs and Outputs Power Door Systems Components Cell 55: LRDM Power, Ground, Inputs, and Outputs Cell 55: RFDM Power, Ground, Inputs, and Outputs Handling ESD Sensitive Parts Notice Cell 130 - RH Power Door Lock Power Door Systems Connector End Views Door Description Cell 147 - RH Power Mirror with Memory (A45)

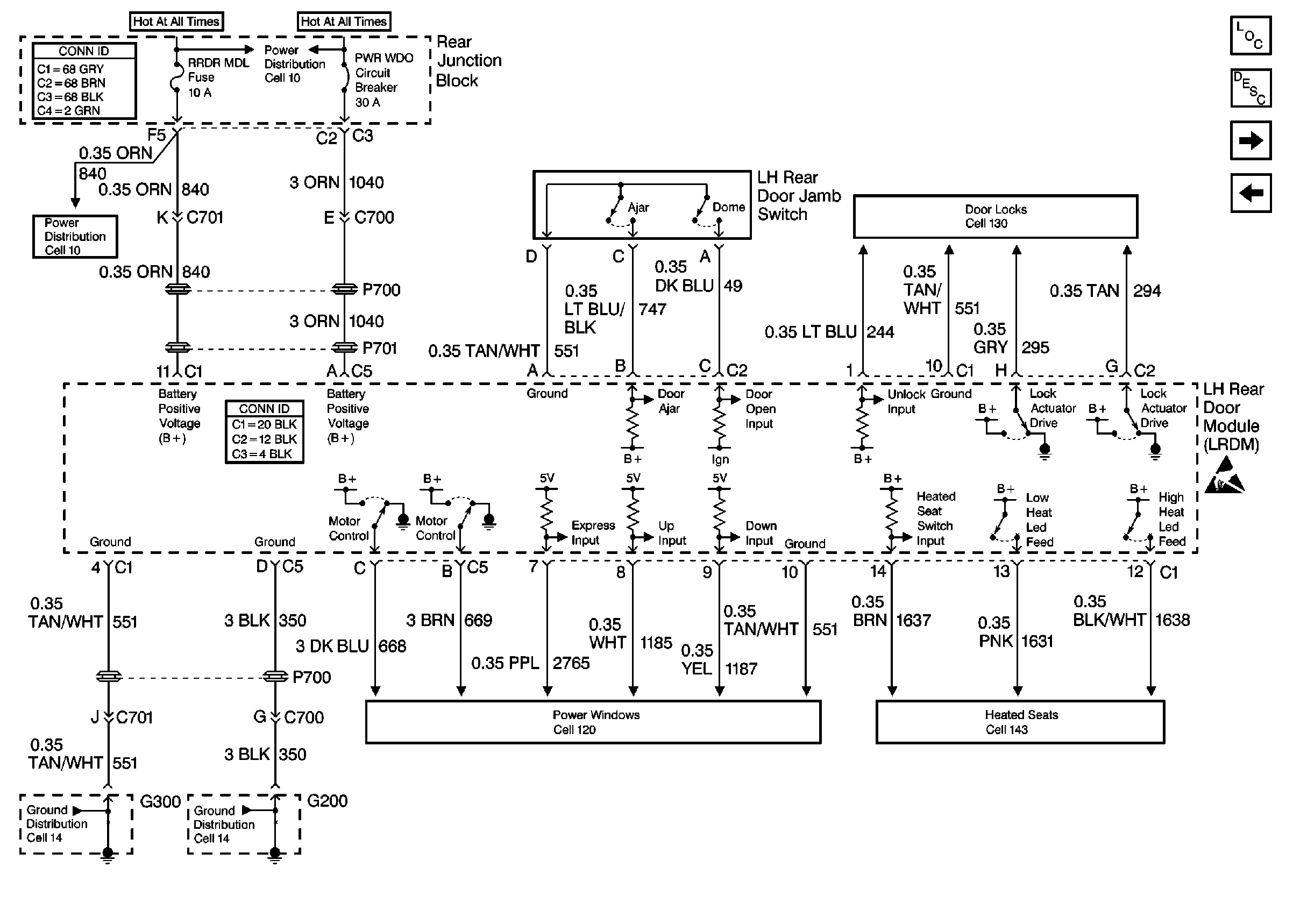

Figure 5:	Cell 55: LRDM Power, Ground, Inputs, and Outputs Power Door Systems Components Door Description Cell 55: RRDM Power, Ground, Inputs, and Outputs Cell 55: RFDM Inputs and Outputs Cell 130 - LH Power Door Locks Handling ESD Sensitive Parts Notice Cell 143: Rear Heated Seat Switches Cell 120 - LH Power Windows Cell 14: G200 (1 of 2) Cell 14: G300 Power Door Systems Connector End Views Cell 10: DRV MDL, PASS MDL, RRDR MDL, and ALDL Fuses Power Door Systems Connector End Views Cell 10: DRV MDL, PASS MDL, RRDR MDL, and ALDL Fuses

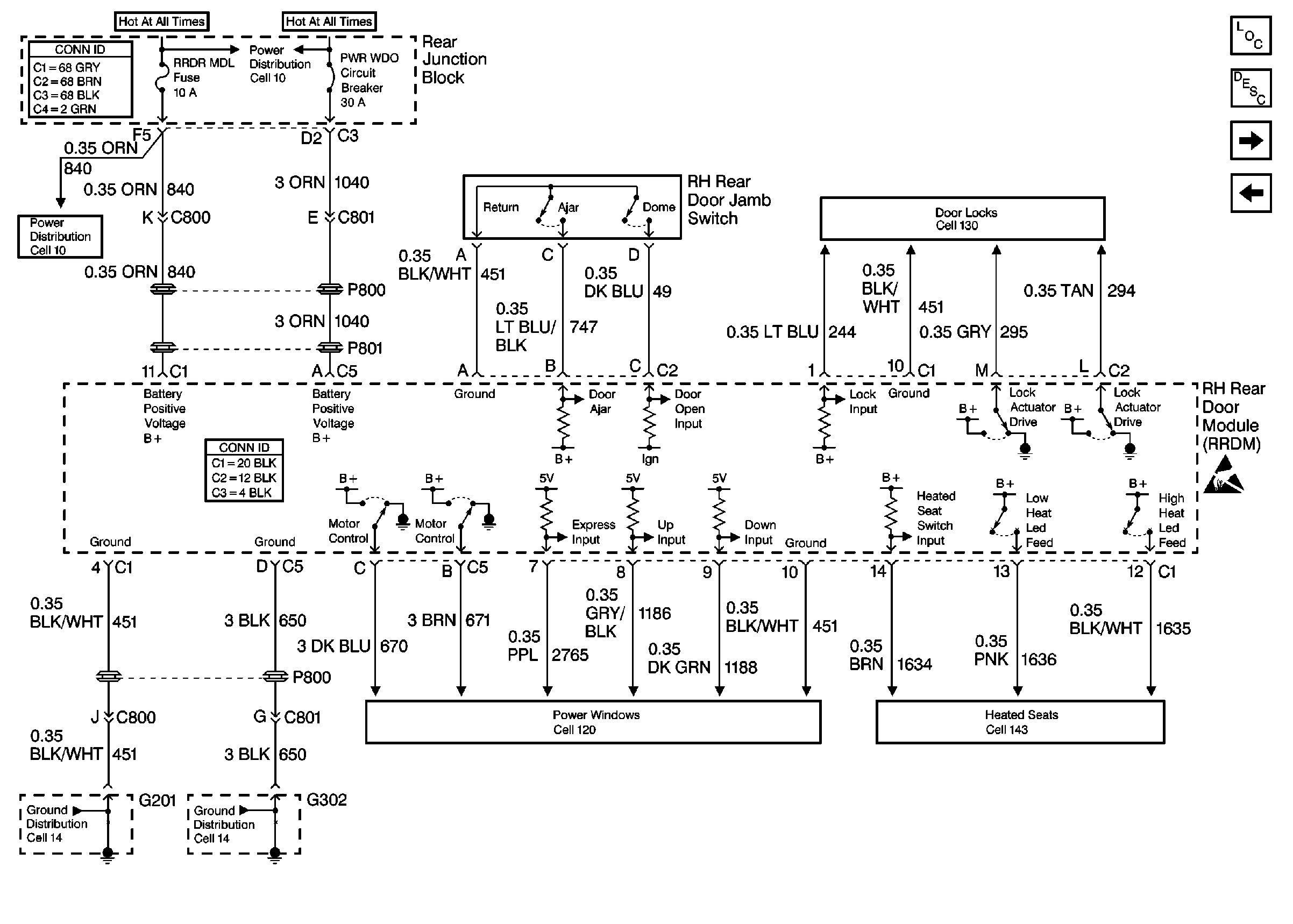

Figure 6:	Cell 55: RRDM Power, Ground, Inputs, and Outputs Power Door Systems Components Door Description Cell 55: LH Front Power Window Switch Cell 55: LRDM Power, Ground, Inputs, and Outputs Handling ESD Sensitive Parts Notice Cell 130 - RH Power Door Lock Cell 143: Rear Heated Seat Switches Cell 120 - RH Power Window Cell 14: G302 Power Door Systems Connector End Views Cell 10: DRV MDL, PASS MDL, RRDR MDL, and ALDL Fuses Power Door Systems Connector End Views Cell 10: DRV MDL, PASS MDL, RRDR MDL, and ALDL Fuses Cell 14: G201 (1 of 2)
Figure 7:	Cell 55: LH Front Power Window Switch Power Door Systems Components Door Description Cell 55: SBI Handling ESD Sensitive Parts Notice Power Door Systems Connector End Views Data Link Connector Schematics Interior Lights Dimming Schematics
Figure 8:	Cell 55: SBI Power Door Systems Components Door Description Cell 55: LH Front Power Window Switch
