Ground Distribution Schematics. Cadillac Seville 1999

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 1999 🢒 Seville 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Ground Distribution Schematics

Figure 1:	Cell 14: G307 Power and Grounding Components Cell 14: G100 Cell 10: Battery Handling ESD Sensitive Parts Notice
Figure 2:	Cell 14: G100 Power and Grounding Components Cell 14: G101 and G105 Cell 14: G307
Figure 3:	Cell 14: G101 and G105 Power and Grounding Components Cell 14: G102 and G103 Cell 14: G100 Handling ESD Sensitive Parts Notice
Figure 4:	Cell 14: G102 and G103 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Power and Grounding Components Cell 14: G104 Cell 14: G101 and G105
Figure 5:	Cell 14: G104 Power and Grounding Components Cell 14: G200 (1 of 2) Cell 14: G102 and G103
Figure 6:	Cell 14: G200 (1 of 2) Power and Grounding Components Cell 14: G202 and G200 (2 of 2) Cell 14: G104 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice SIR Handling Caution Cell 14: G202 and G200 (2 of 2)
Figure 7:	Cell 14: G202 and G200 (2 of 2) Power and Grounding Components Cell 14: G201 (1 of 3) Cell 14: G200 (1 of 2) Cell 14: G200 (1 of 2)
Figure 8:	Cell 14: G201 (1 of 3) Power and Grounding Components Cell 14: G201 (2 of 3) Cell 14: G202 and G200 (2 of 2) Handling ESD Sensitive Parts Notice Cell 14: G201 (2 of 3)

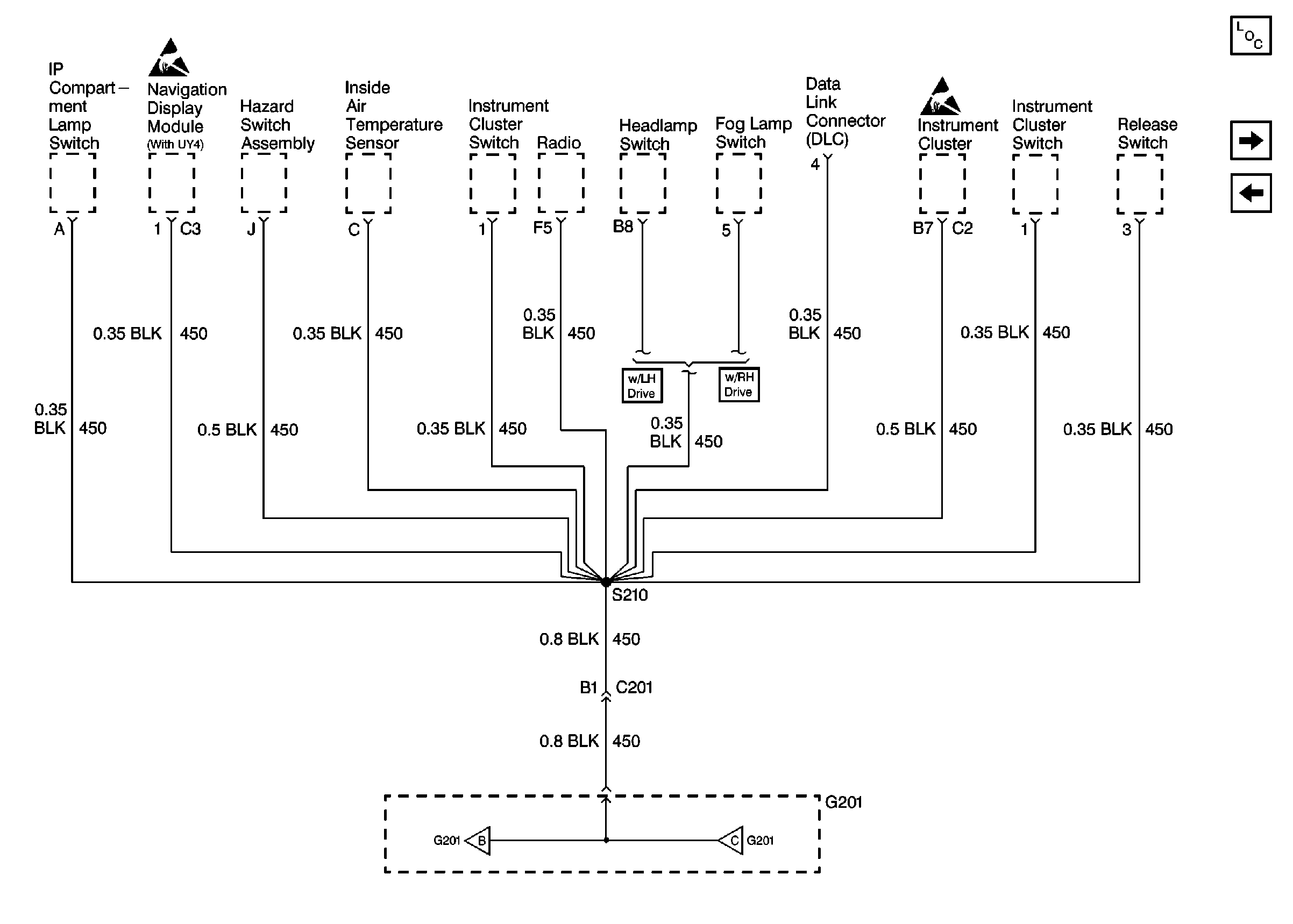

Figure 9:	Cell 14: G201 (2 of 3) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Power and Grounding Components Cell 14: G201 (3 of 3) Cell 14: G201 (1 of 3) Cell 14: G201 (1 of 3) Cell 14: G201 (3 of 3)
Figure 10:	Cell 14: G201 (3 of 3) Power and Grounding Components Cell 14: G300 Cell 14: G201 (2 of 3) Cell 14: G201 (2 of 3) SIR Handling Caution Handling ESD Sensitive Parts Notice

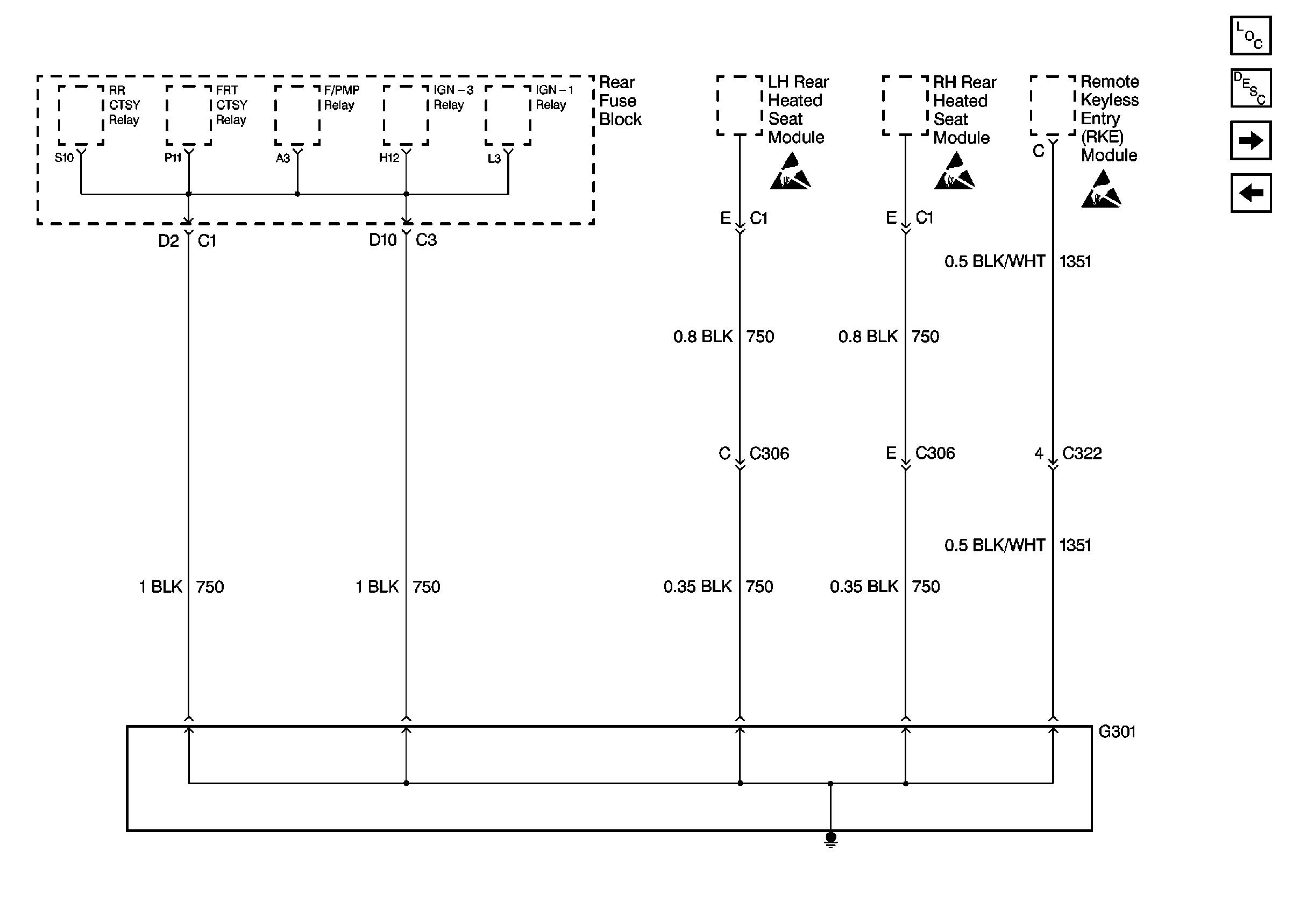

Figure 11:	Cell 14: G300 Power and Grounding Components Cell 14: G301 Cell 14: G201 (3 of 3) Handling ESD Sensitive Parts Notice
Figure 12:	Cell 14: G301 Power and Grounding Components Cell 14: G302 Cell 14: G300 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 13:	Cell 14: G302 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Power and Grounding Components Cell 14: G302 Cell 14: G301
Figure 14:	Cell 14: G302 Power and Grounding Components Cell 14: G306 Cell 14: G302 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 15:	Cell 14: G306 Power and Grounding Components Cell 14: G401 (1 of 3) Cell 14: G302 SIR Handling Caution Handling ESD Sensitive Parts Notice
Figure 16:	Cell 14: G401 (1 of 3) Power and Grounding Components Cell 14: G401 (2 of 3) Cell 14: G306 Handling ESD Sensitive Parts Notice Cell 14: G401 (2 of 3)
Figure 17:	Cell 14: G401 (2 of 3) Handling ESD Sensitive Parts Notice Power and Grounding Components Cell 14: G401 (3 of 3) Cell 14: G401 (1 of 3) Cell 14: G401 (3 of 3) Cell 14: G401 (1 of 3)
Figure 18:	Cell 14: G401 (3 of 3) Power and Grounding Components Cell 14: G402 (1 of 2) Cell 14: G401 (2 of 3) Cell 14: G401 (2 of 3)
Figure 19:	Cell 14: G402 (1 of 2) Power and Grounding Components Cell 14: G402 (2 of 2) Cell 14: G401 (3 of 3) Cell 14: G402 (2 of 2) Handling ESD Sensitive Parts Notice

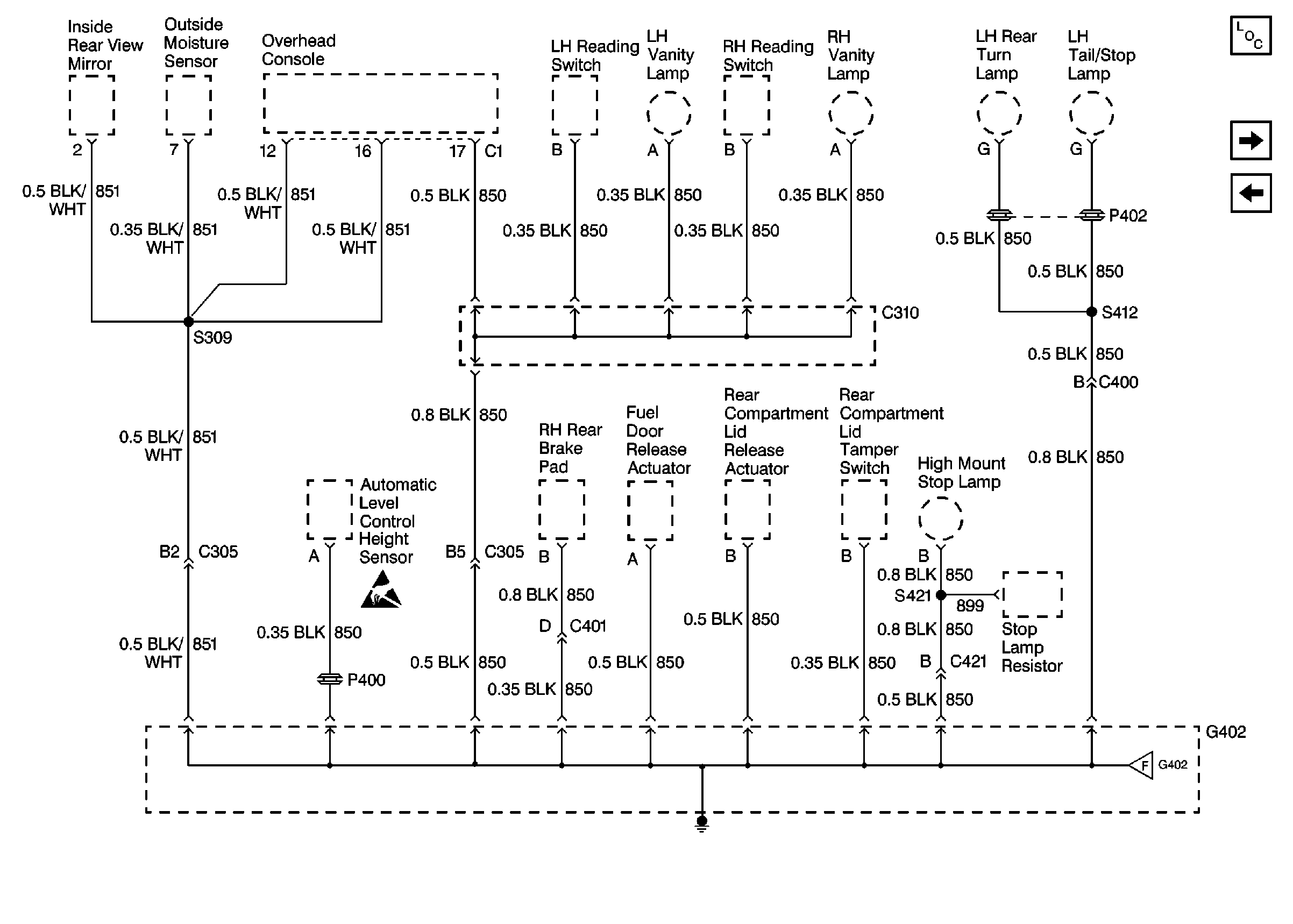

Figure 20:	Cell 14: G402 (2 of 2) Power and Grounding Components Cell 14: G402 (1 of 2) Cell 14: G402 (1 of 2)
