Lumbar Support Schematics. Cadillac Seville 1999

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 1999 🢒 Seville 🢒 Body and Accessories 🢒 Seats 🢒 Lumbar Support Schematics

Lumbar Support Schematics AL2

Cell 142

Object Number: 389946 Size: FS

Power Seat Systems Components
Power Lumbar Circuit Description AL2
Cell 10: PWR WDO and PWR SEAT Circuit Breakers
Cell 14: G302
Cell 14: G302
Cell 14: G302
Cell 10: PWR WDO and PWR SEAT Circuit Breakers
Power and Grounding Connector End Views

Lumbar Support Schematics AC9

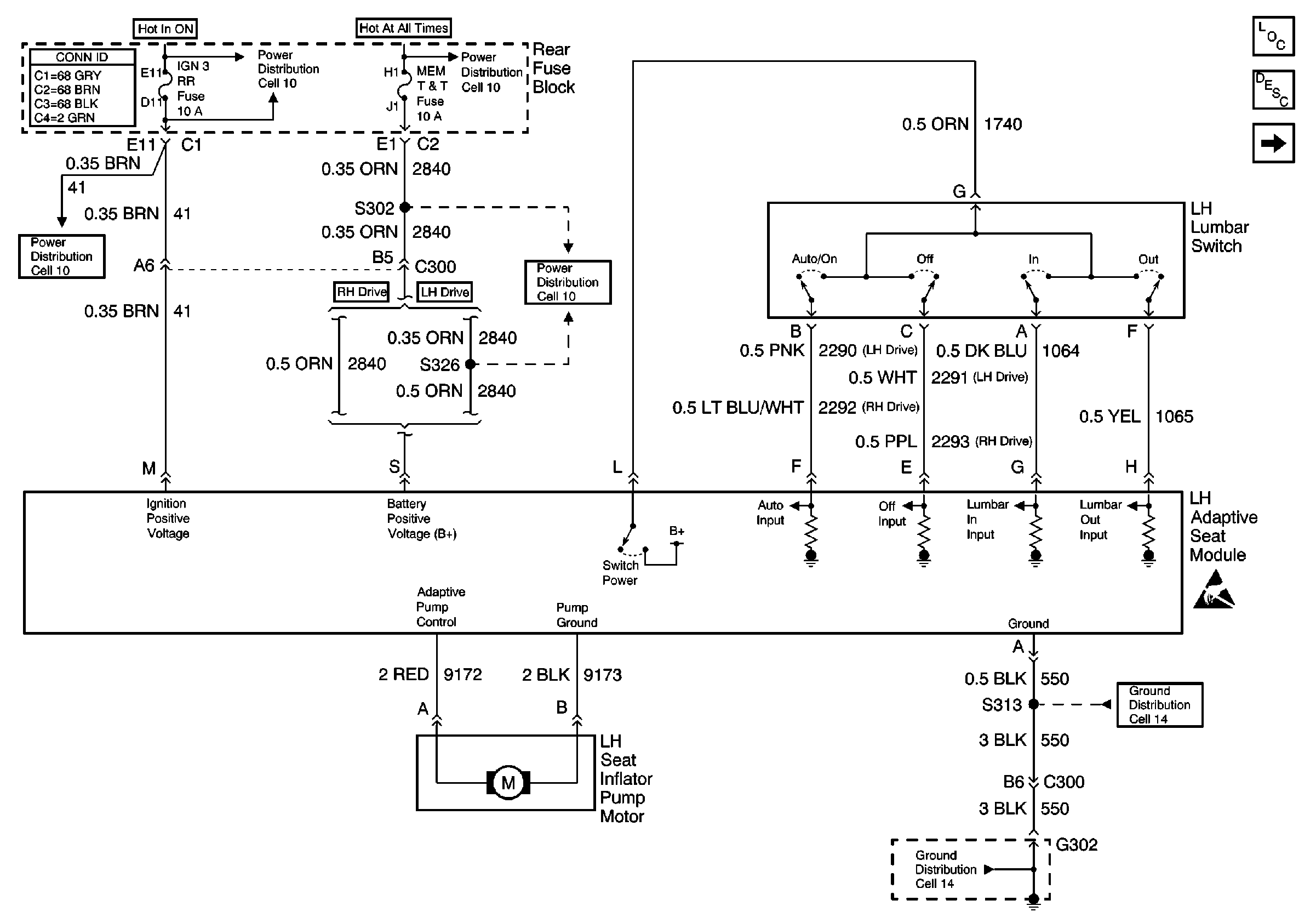

Figure 1:	Cell 142: Left Adaptive Seat Power Seat Systems Components Power Lumbar Circuit Description AC9 Cell 142: Right Adaptive Seat Handling ESD Sensitive Parts Notice Cell 14: G302 Cell 14: G302 Cell 10: IGN 3 RR Fuses Cell 10: IGN 3 RR Fuses Cell 10: MEM T/T PWWR T/T and TSIG/HAZ Fuses Cell 10: MEM T/T PWWR T/T and TSIG/HAZ Fuses Power and Grounding Connector End Views

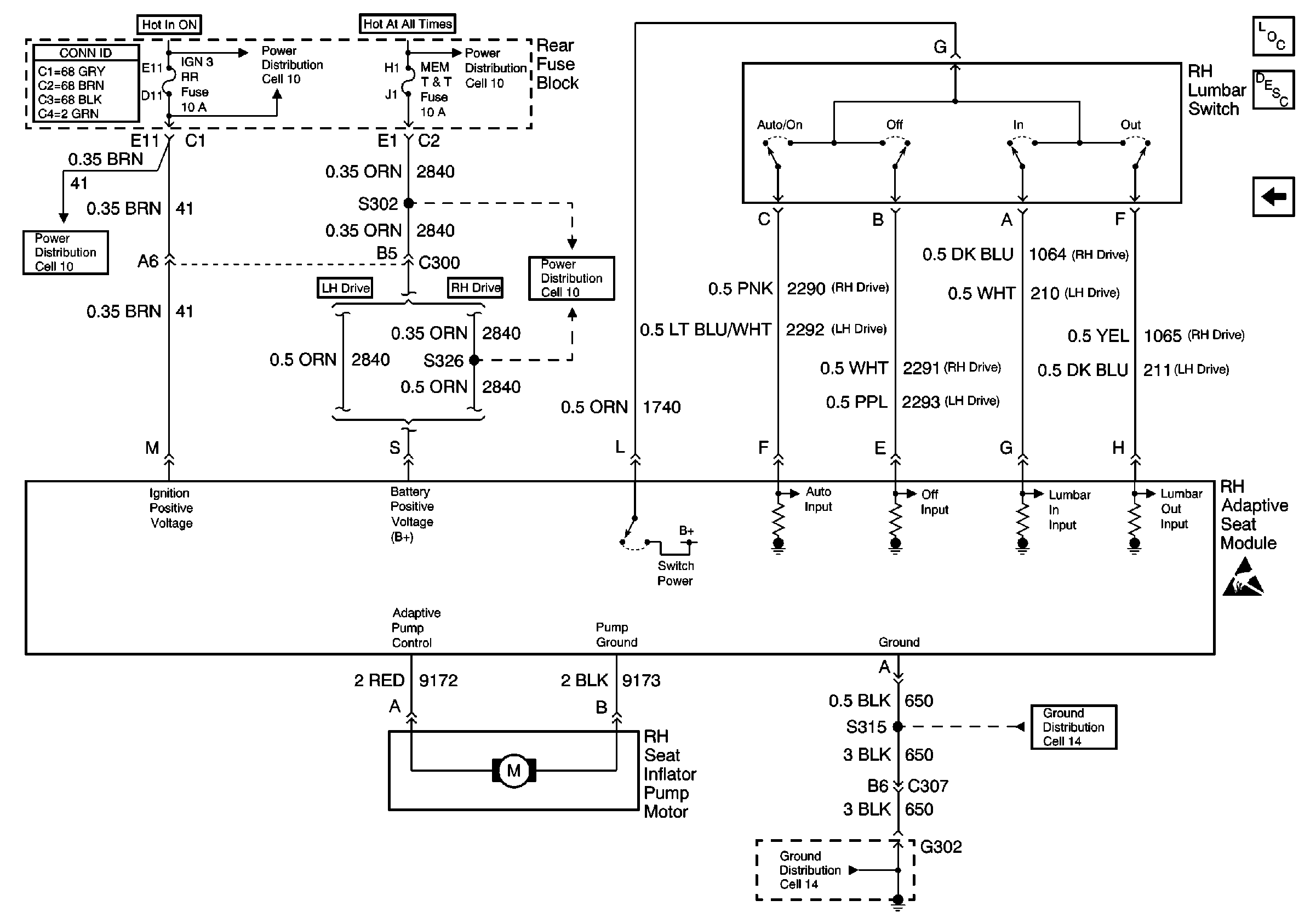

Figure 2:	Cell 142: Right Adaptive Seat Power Seat Systems Components Power Lumbar Circuit Description AC9 Cell 142: Left Adaptive Seat Handling ESD Sensitive Parts Notice Cell 14: G302 Cell 14: G302 Cell 10: IGN 3 RR Fuses Cell 10: IGN 3 RR Fuses Cell 10: MEM T/T PWWR T/T and TSIG/HAZ Fuses Cell 10: MEM T/T PWWR T/T and TSIG/HAZ Fuses Power and Grounding Connector End Views

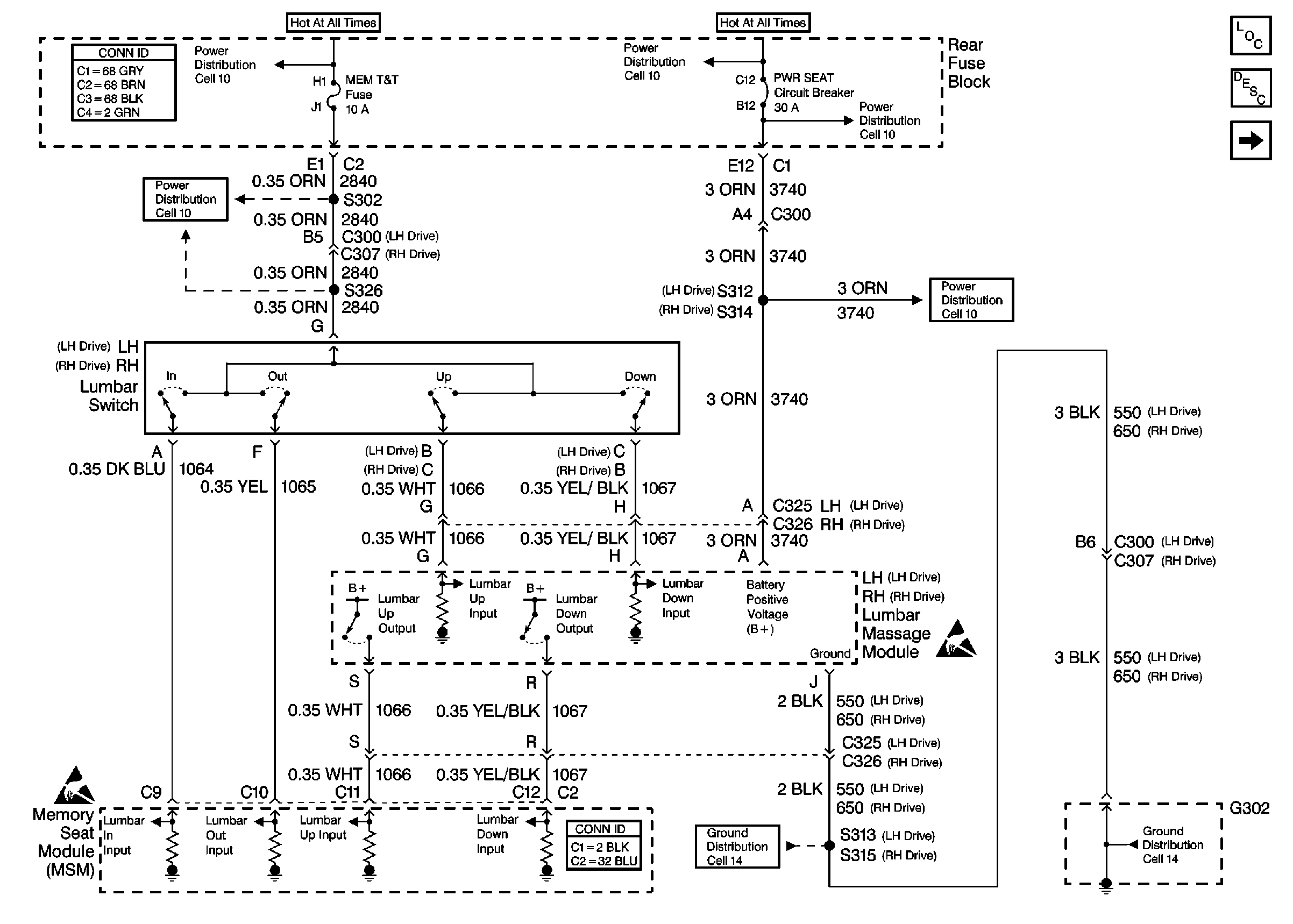

Lumbar Support Schematics A45

Cell 142

Object Number: 392778 Size: FS

Power Seat Systems Components
Power Lumbar Circuit Description A45
Handling ESD Sensitive Parts Notice
Handling ESD Sensitive Parts Notice
Cell 10: MEM T/T PWWR T/T and TSIG/HAZ Fuses
Cell 10: MEM T/T PWWR T/T and TSIG/HAZ Fuses
Cell 141: Front Height, Rear Height, Forward/Back Motors and PositiOn Sensors
Cell 141: Front Height, Rear Height, Forward/Back Motors and PositiOn Sensors
Power and Grounding Connector End Views
Power Seat Connector End Views

Lumbar Support Schematics AM3

Figure 1:	Cell 142: PWR, GND, and Driver Lumbar Switch Power Seat Systems Components Power Lumbar Circuit Description AM3 Cell 142: Driver Lumbar Motors and Position Sensors Cell 10: PWR WDO and PWR SEAT Circuit Breakers Cell 10: PWR WDO and PWR SEAT Circuit Breakers Cell 10: PWR WDO and PWR SEAT Circuit Breakers Cell 10: MEM T/T PWWR T/T and TSIG/HAZ Fuses Cell 10: MEM T/T PWWR T/T and TSIG/HAZ Fuses Cell 14: G302 Cell 14: G302 Power and Grounding Connector End Views Power Seat Connector End Views Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 2:	Cell 142: Driver Lumbar Motors and Position Sensors Power Seat Systems Components Power Lumbar Circuit Description AM3 Cell 142: Passenger Lumbar Cell 142: PWR, GND, and Driver Lumbar Switch Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Power Seat Connector End Views Cell 141: Front Height, Rear Height, Forward/Back Motors and PositiOn Sensors Cell 141: Front Height, Rear Height, Forward/Back Motors and PositiOn Sensors
Figure 3:	Cell 142: Passenger Lumbar Power Seat Systems Components Power Lumbar Circuit Description AM3 Cell 142: Driver Lumbar Motors and Position Sensors Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 14: G302 Cell 14: G302 Cell 10: PWR WDO and PWR SEAT Circuit Breakers Cell 10: PWR WDO and PWR SEAT Circuit Breakers Cell 10: PWR WDO and PWR SEAT Circuit Breakers Power and Grounding Connector End Views
