Disassembled Views. Cadillac Seville 2000

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2000 🢒 Seville 🢒 Engine 🢒 Engine Mechanical - 4.6L 🢒 Disassembled Views

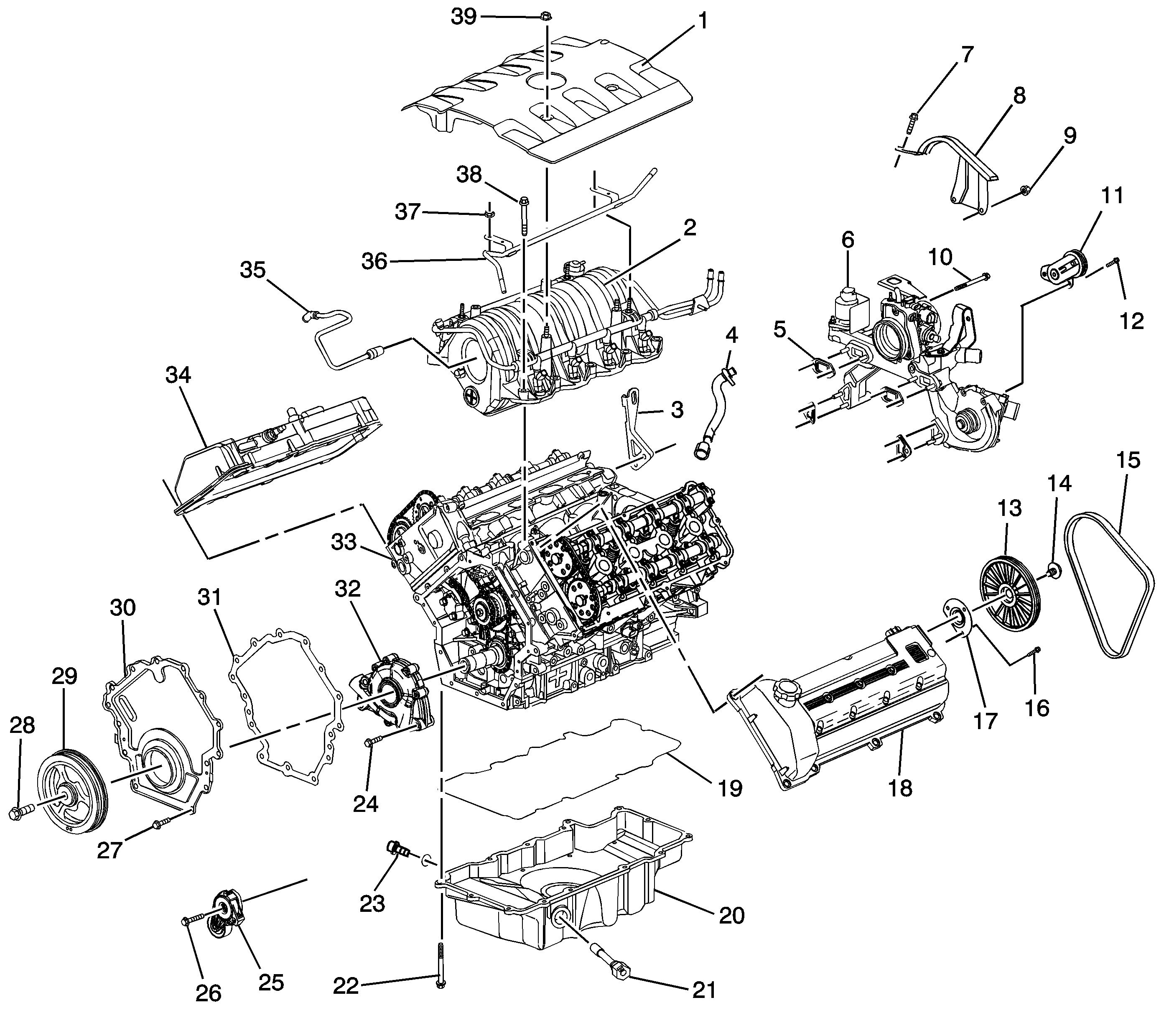

Figure 1:

Engine Covers and Component Assemblies (1 of 2)


(1)	Fuel Injector Sight Shield
(2)	Intake Manifold Assembly
(3)	Engine Lift Bracket
(4)	EGR Valve Inlet Pipe
(5)	Water Crossover Gasket
(6)	Water Crossover Assembly
(7)	Water Pump Drive Belt Shield Bolt
(8)	Water Pump Drive Belt Shield
(9)	Water Pump Drive Belt Shield Nut
(10)	Water Crossover Assembly Bolt
(11)	Water Pump Drive Belt Tensioner
(12)	Water Pump Drive Belt Tensioner Bolt
(13)	Water Pump Drive Pulley
(14)	Water Pump Drive Pulley Cap
(15)	Water Pump Drive Belt
(16)	Camshaft Seal Bolt
(17)	Camshaft Seal
(18)	Left Camshaft Cover Assembly
(19)	Oil Pan Gasket
(20)	Oil Pan
(21)	Oil Level Sensor
(22)	Oil Pan Bolt
(23)	Oil Pan Drain Plug
(24)	Oil Pan Assembly Bolt
(25)	Drive Belt Tensioner
(26)	Drive Belt Tensioner Bolt
(27)	Engine Front Cover Bolt
(28)	Crankshaft Balancer Bolt
(29)	Crankshaft Balancer
(30)	Engine Front Cover
(31)	Engine Front Cover Gasket
(32)	Oil Pump Assembly
(33)	Engine Block Assembly
(34)	Right Camshaft Cover Assembly
(35)	Crankcase Ventilation Tube
(36)	Generator Cooling Pipe
(37)	Generator Cooling Pipe Nut
(38)	Intake Manifold Bolt
(39)	Fuel Injector Sight Shield Nut

Figure 2:

Engine Covers and Component Assemblies (2 of 2)


(1)	Right A.I.R. Control Valve Bolt
(2)	Right A.I.R. Control Valve
(3)	Right A.I.R. Control Valve Pipe Bolt
(4)	Right A.I.R. Control Valve Pipe Gasket
(5)	Starter Motor Wiring Harness
(6)	Starter Motor Bolt
(7)	Starter Motor
(8)	Knock Sensor Wiring Harness
(9)	Engine Block Assembly
(10)	Transaxle Alignment Pin
(11)	Oil Level Indicator Tube Nut
(12)	Oil Level Indicator and Tube
(13)	Generator Engine Coolant Pipe and Hose Assembly Bolt - Eldorado
(14)	Generator Engine Coolant Pipe and Hose Assembly - Eldorado
(15)	Left A.I.R. Control Valve Bolt
(16)	Left A.I.R. Control Valve
(17)	Left A.I.R. Control Valve Pipe Bolt
(18)	Left A.I.R. Control Valve Pipe Gasket
(19)	Left Exhaust Manifold Bolt
(20)	Left Exhaust Manifold
(21)	Exhaust Crossover Pipe
(22)	Exhaust Crossover Pipe Bolt - to Oil Pan
(23)	Left Exhaust Manifold Gasket
(24)	Exhaust Crossover Pipe Bolt
(25)	Oil Filter
(26)	Oil Filter Adapter Assembly Bolt
(27)	Oil Filter Adapter Assembly
(28)	Oil Filter Adapter Assembly O-ring
(29)	Oil Pump Suction Tube Nut
(30)	Oil Pump Suction Tube Bolt
(31)	Oil Pump Suction Tube
(32)	Right Exhaust Manifold
(33)	Right Exhaust Manifold Nut
(34)	Right Exhaust Manifold Gasket

Figure 3:

Camshaft Cover Assembly


(1)	Oil Fill Cap
(2)	Spark Plug Boot
(3)	PCV Fitting
(4)	Ignition Coil Assembly Bolt
(5)	Ignition Module Screw
(6)	Ignition Module
(7)	Ignition Coil Assembly
(8)	Ignition Module Ground/RFI Spring
(9)	Spark Plug
(10)	Camshaft Cover Bolt
(11)	Grommet
(12)	Left Camshaft Cover
(13)	Ignition Module Ground/RFI Spring Port Seal
(14)	Left Camshaft Cover Gasket
(15)	Spark Plug Port Seal
(16)	Right Camshaft Cover Gasket
(17)	Right Camshaft Cover
(18)	Ignition Module Screw
(19)	PCV Valve Grommet
(20)	Fresh Air Hose Fitting
(21)	Ignition Coil Assembly
(22)	Ignition Module
(23)	Sight Shield Bracket
(24)	Sight Shield Bracket Bolt

Figure 4:

Camshaft Timing Components


(1)	Right Secondary Camshaft Drive Chain Guide
(2)	Left Secondary Camshaft Drive Chain Tensioner Bolt
(3)	Left Secondary Camshaft Drive Chain Tensioner
(4)	Left Secondary Camshaft Drive Chain Shoe Bolt
(5)	Left Secondary Camshaft Drive Chain Shoe
(6)	Left Secondary Camshaft Drive Chain
(7)	Left Intake Camshaft Sprocket
(8)	Left Exhaust Camshaft Sprocket
(9)	Left Secondary Camshaft Drive Chain Guide
(10)	Left Secondary Camshaft Drive Chain Guide Bolt
(11)	Camshaft Intermediate Drive Shaft
(12)	Camshaft Intermediate Drive Shaft Bolt
(13)	Camshaft Intermediate Drive Shaft Sprocket
(14)	Camshaft Intermediate Drive Shaft Sprocket Bolt
(15)	Crankshaft Sprocket
(16)	Primary Camshaft Drive Chain Guide
(17)	Primary Camshaft Drive Chain Guide Bolt
(18)	Primary Camshaft Drive Chain
(19)	Primary Camshaft Drive Chain Tensioner
(20)	Primary Camshaft Drive Chain Tensioner Bolt
(21)	Right Secondary Camshaft Drive Chain Tensioner Bolt
(22)	Right Secondary Camshaft Drive Chain Tensioner
(23)	Right Secondary Camshaft Drive Chain Shoe Bolt
(24)	Right Secondary Camshaft Drive Chain Shoe
(25)	Camshaft Sprocket Bolt
(26)	Right Exhaust Camshaft Sprocket
(27)	Right Intake Camshaft Sprocket
(28)	Secondary Camshaft Drive Chain
(29)	Right Secondary Camshaft Drive Chain Guide Bolt

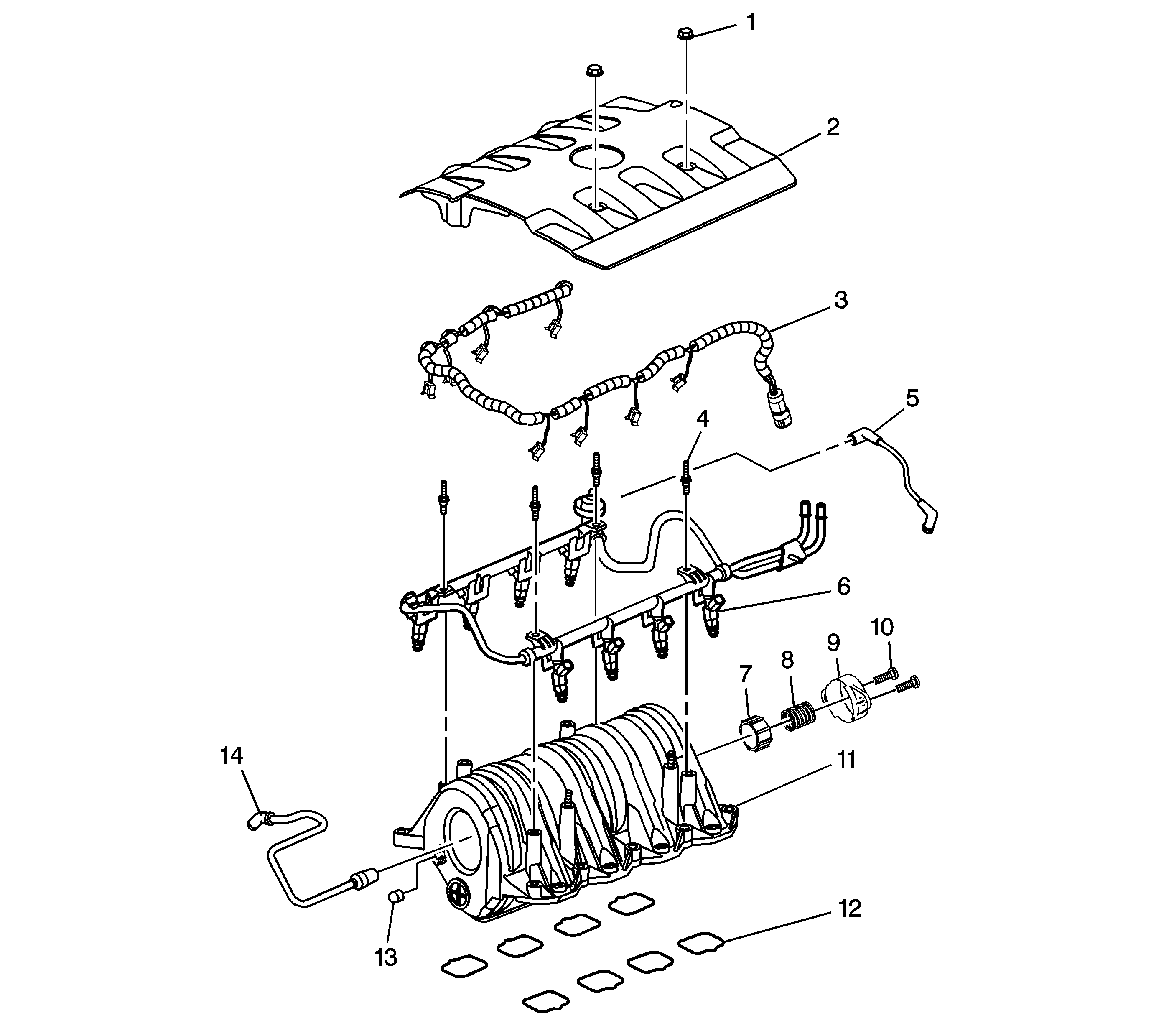

Figure 5:

Intake Manifold


(1)	Fuel Injector Sight Shield Nut
(2)	Fuel Injector Sight Shield
(3)	Fuel Injector Wiring Harness
(4)	Fuel Injector Rail Bolts
(5)	Fuel Pressure Regulator Vacuum Hose
(6)	Fuel Injector Rail
(7)	Pressure Relief Plunger
(8)	Pressure Relief Plunger Spring
(9)	Pressure Relief Housing
(10)	Pressure Relief Housing Bolt
(11)	Intake Manifold
(12)	Intake Manifold Seal
(13)	Vacuum Cap
(14)	PCV Air Tube

Figure 6:

Cylinder Head Assemblies


(1)	SHLA - Stationary Hydraulic Lifter Adjuster
(2)	Valve Stem Oil Seal
(3)	Valve Spring
(4)	Valve Spring Retainer
(5)	Valve Lock Keepers
(6)	Follower - Rocker Arm
(7)	Left Intake Camshaft
(8)	Camshaft Thrust Bearing Cap
(9)	Camshaft Thrust Bearing Cap Bolt
(10)	Camshaft Bearing Cap Bolt
(11)	Camshaft Bearing Cap
(12)	Left Exhaust Camshaft
(13)	Cylinder Head Bolt - M11
(14)	Oil Gallery Plug
(15)	Left Cylinder Head
(16)	Oil Gallery Plug
(17)	Intake Valve
(18)	Left Secondary Camshaft Drive Chain Guide Bolt Access Plug
(19)	Left Secondary Camshaft Drive Chain Shoe Bolt Access Plug
(20)	Right Cylinder Head
(21)	Right Secondary Camshaft Drive Chain Shoe Bolt Access Plug
(22)	Right Secondary Camshaft Drive Chain Guide Bolt Access Plug
(23)	Camshaft Position Sensor Bolt
(24)	Camshaft Position Sensor
(25)	Camshaft Position Sensor O-ring
(26)	Right Exhaust Camshaft
(27)	Right Intake Camshaft
(28)	ECT Sensor
(29)	Cylinder Head Bolt - M6

Figure 7:

Water Crossover and Throttle Body Assembly


(1)	Engine Coolant Fitting
(2)	Engine Lift Bracket
(3)	Engine Lift Bracket Bolt
(4)	Map Sensor
(5)	EGR Valve Gasket
(6)	EGR Valve
(7)	EGR Valve Bolt
(8)	EGR Valve Heat Shield
(9)	EGR Valve Heat Shield Nut
(10)	Plenum Duct and Clamp
(11)	EVAP Purge Solenoid
(12)	EVAP Purge Solenoid Bolt
(13)	EGR Valve Inlet Pipe Bolt
(14)	EGR Valve Inlet Pipe
(15)	Heater inlet Pipe Fitting
(16)	Water Crossover
(17)	Throttle Body Bolt
(18)	Throttle Body
(19)	Accelerator Bracket Bolt
(20)	Accelerator Bracket
(21)	Thermostat
(22)	Thermostat Housing
(23)	Thermostat Housing Bolt
(24)	Water Pump Cover Bolt
(25)	Water Pump Cover
(26)	Water Pump Cover Seal
(27)	Water Pump
(28)	Water Pump Seal

Figure 8:

Oil Pump


(1)	Oil Pump Housing
(2)	Oil Pump Plunger
(3)	Oil Pump Spring
(4)	Oil Pump Pressure Relief Valve Cap O-ring
(5)	Oil Pump Pressure Relief Valve Cap
(6)	Oil Pump Alignment Pin
(7)	Oil Pump Pressure Relief Valve Cap Retaining Pin
(8)	Oil Pump Driven Rotor
(9)	Oil Pump Drive Rotor
(10)	Oil Pump Cover
(11)	Oil Pump Drive Spacer
(12)	Oil Pump Cover Bolts

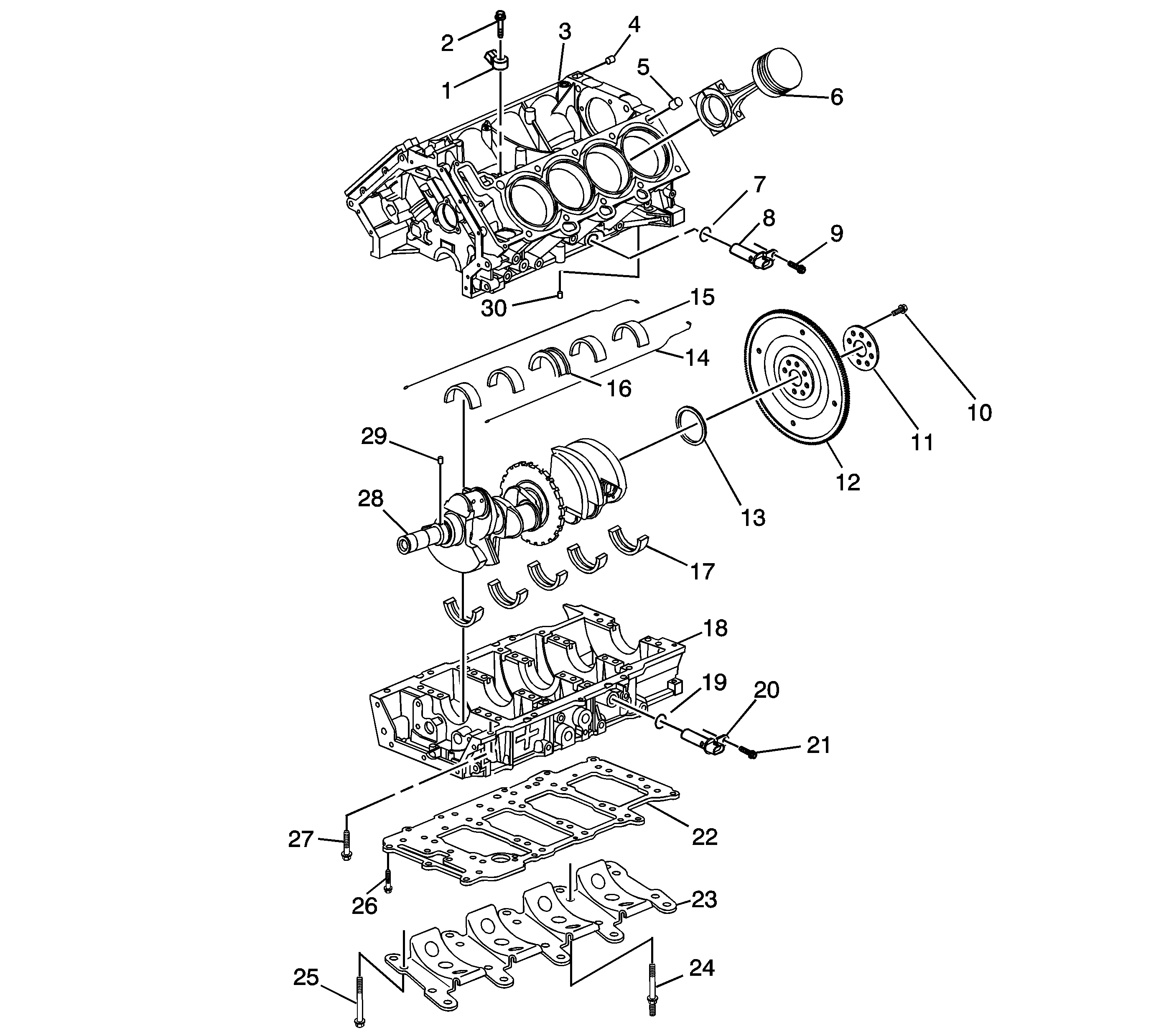

Figure 9:

Engine Block Assembly


(1)	Crankshaft Position Sensor
(2)	Crankshaft Position Sensor Bolt
(3)	Engine Block
(4)	Engine Block Dowel Pins
(5)	Cylinder Head Dowel Pins
(6)	Piston, Rings and Connecting Rod Assembly
(7)	Upper Knock Sensor O-ring
(8)	Upper Knock Sensor
(9)	Upper Knock Sensor Bolt
(10)	Engine Flywheel Bolt
(11)	Engine Flywheel Retainer
(12)	Engine Flywheel
(13)	Crankshaft Rear Oil Seal
(14)	Lower Crankcase-to-Engine Block Seal
(15)	Crankshaft Upper Bearings
(16)	Crankshaft Upper Thrust Bearing
(17)	Crankshaft Lower Bearings
(18)	Lower Crankcase
(19)	Lower Knock Sensor O-ring
(20)	Lower Knock Sensor
(21)	Lower Knock Sensor Bolt
(22)	Engine Oil Manifold
(23)	Engine Oil Pan Baffle
(24)	Lower Crankcase Stud - Oil Pump Suction Pipe
(25)	Lower Crankcase Bolt
(26)	Engine Oil Manifold Bolt
(27)	Lower Crankcase Perimeter Bolt
(28)	Crankshaft
(29)	Crankshaft Pin
(30)	Lower Crankcase-to-Engine Block Pin

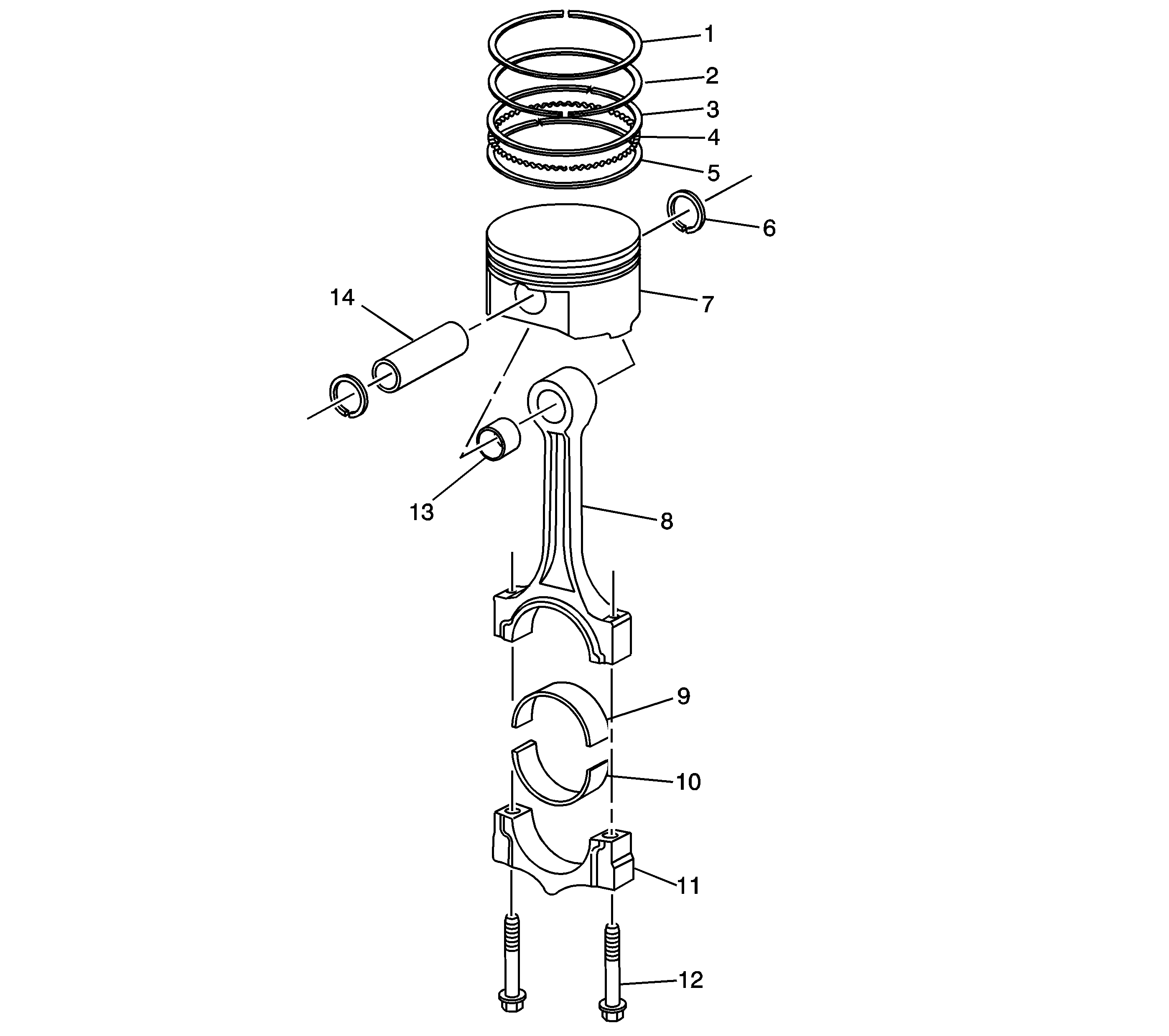

Figure 10:

Piston, Rings, Bearing and Connecting Rod


(1)	Upper Compression Ring
(2)	Lower Compression Ring
(3)	Upper Oil Control Ring
(4)	Oil Control Ring Expander
(5)	Lower Oil Control Ring
(6)	Piston Pin Retainer
(7)	Piston
(8)	Connecting Rod
(9)	Upper Connecting Rod Bearing
(10)	Lower Connecting Rod Bearing
(11)	Connecting Rod Cap
(12)	Connecting Rod Bolt
(13)	Connecting Rod Piston Pin Bushing
(14)	Piston Pin

Figure 11:

Oil Filter Adapter


(1)	Oil Filter Adapter O-ring
(2)	Oil Filter Adapter
(3)	Oil Pressure Switch
(4)	Bypass Hole Plug
(5)	Oil Filter Fitting

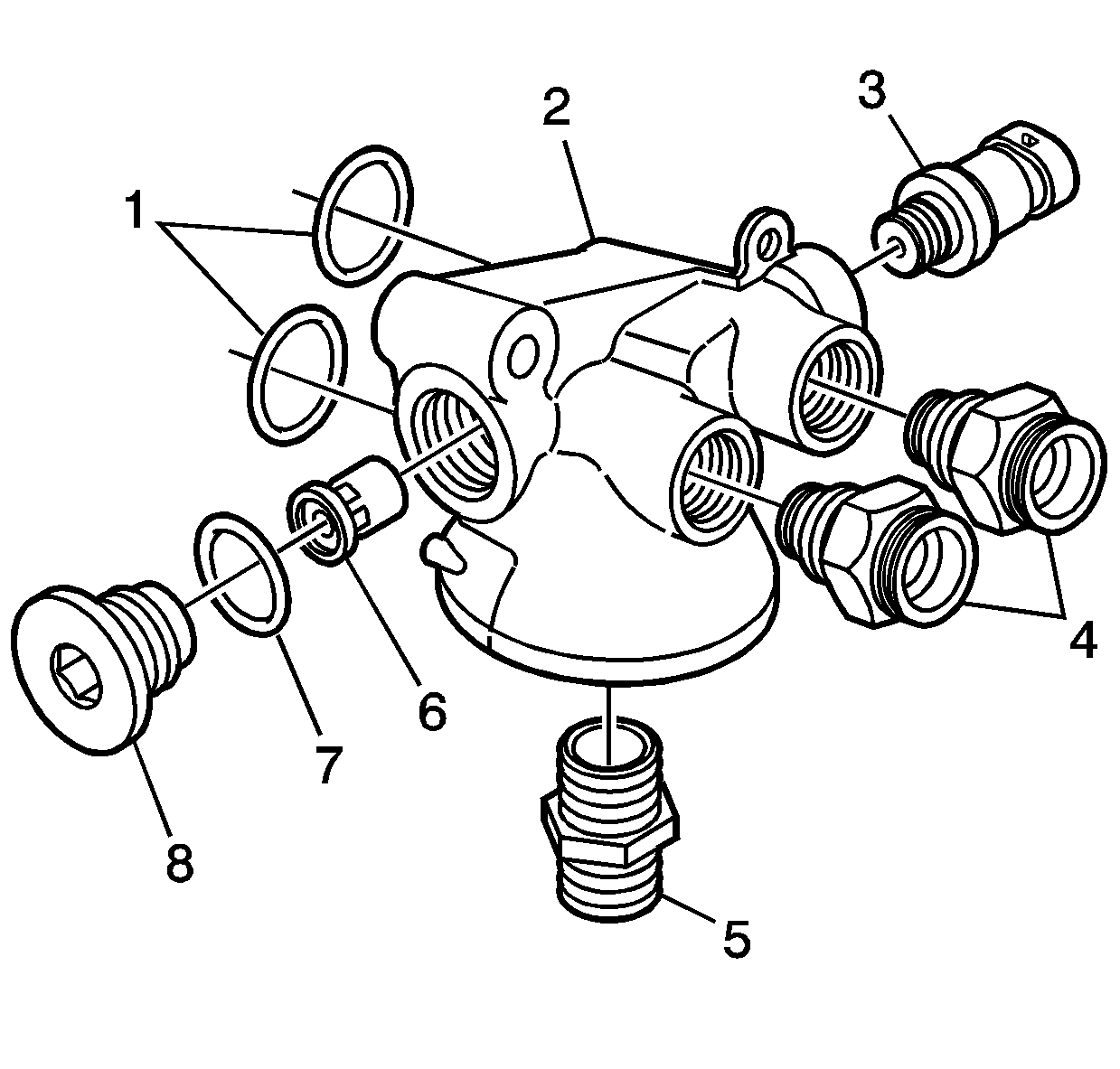

Figure 12:

Oil Filter Adapter with Oil Cooler


(1)	Oil Filter Adapter O-ring
(2)	Oil Filter Adapter
(3)	Oil Pressure Switch
(4)	Oil Cooler Connector Fitting
(5)	Oil Filter Fitting
(6)	Bypass Valve
(7)	Bypass Valve Hole Plug O-ring
(8)	Bypass Valve Hole Plug
