Cellular Telephone Schematics. Cadillac Seville 2000

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2000 🢒 Seville 🢒 Body and Accessories 🢒 Cellular Communication 🢒 Cellular Telephone Schematics

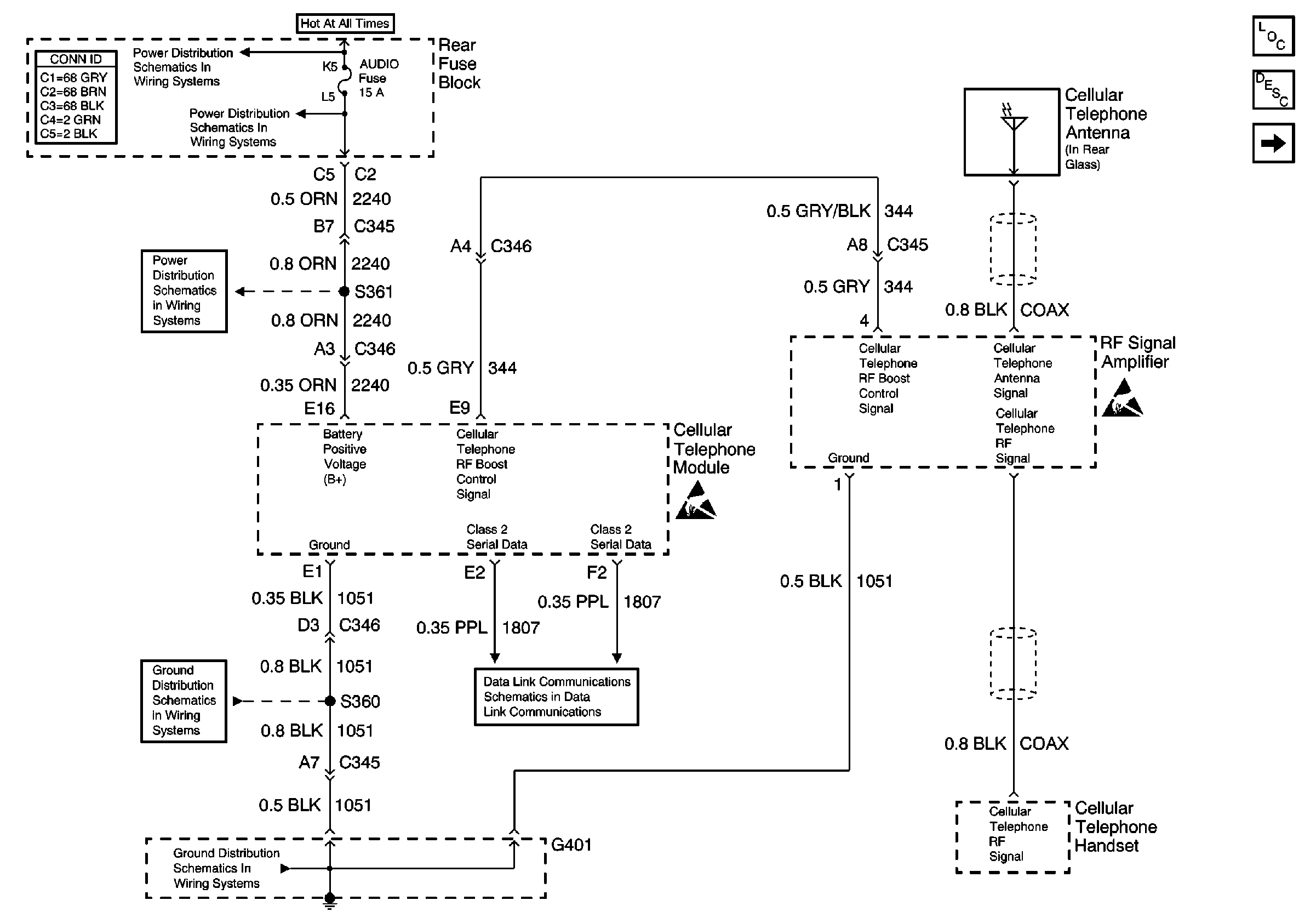

Figure 1:	Power and Grounds (w/UE1)

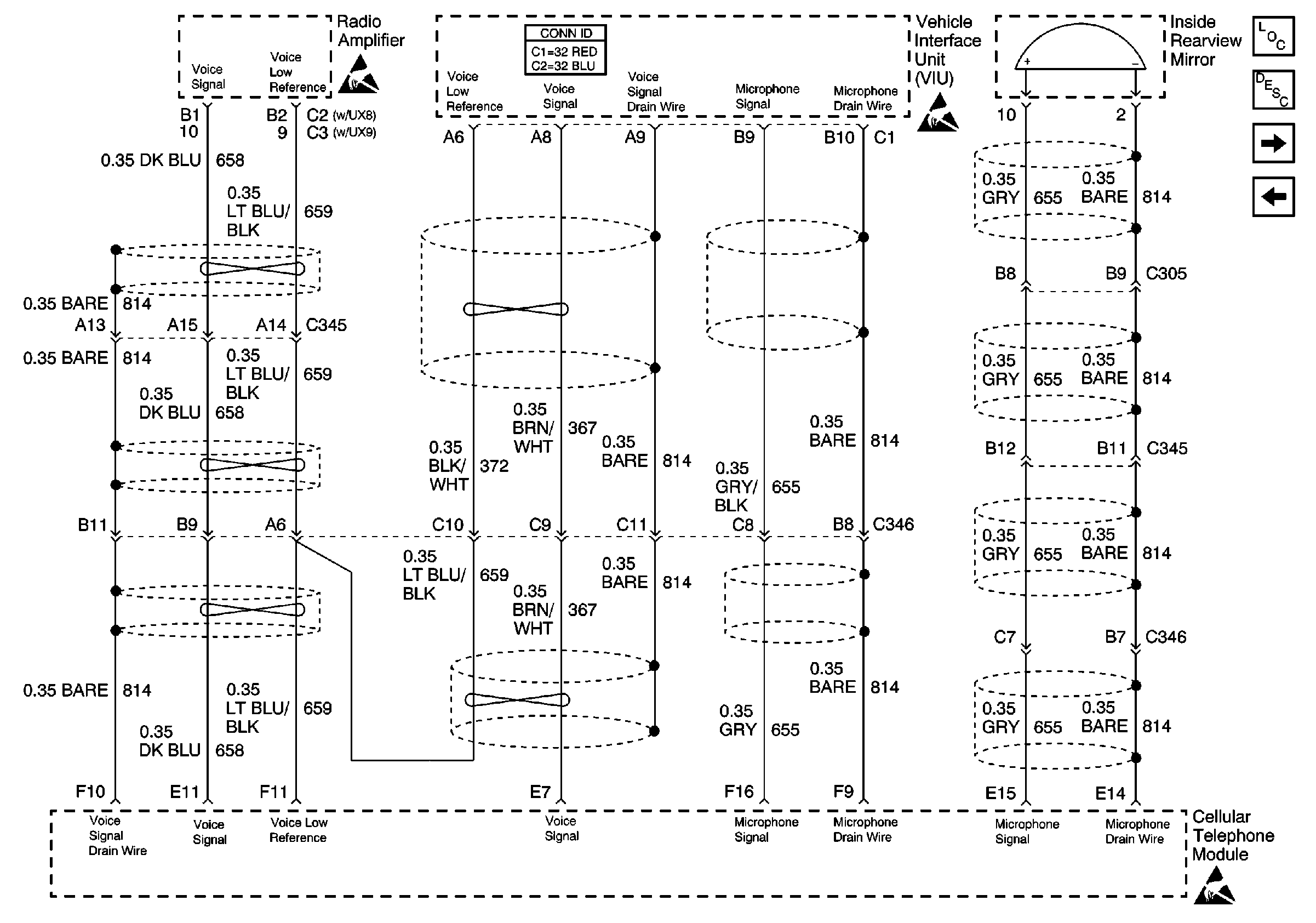

Figure 2:	Vehicle Interface Unit, Microphone, and Radio Amplifier (w/UE1)

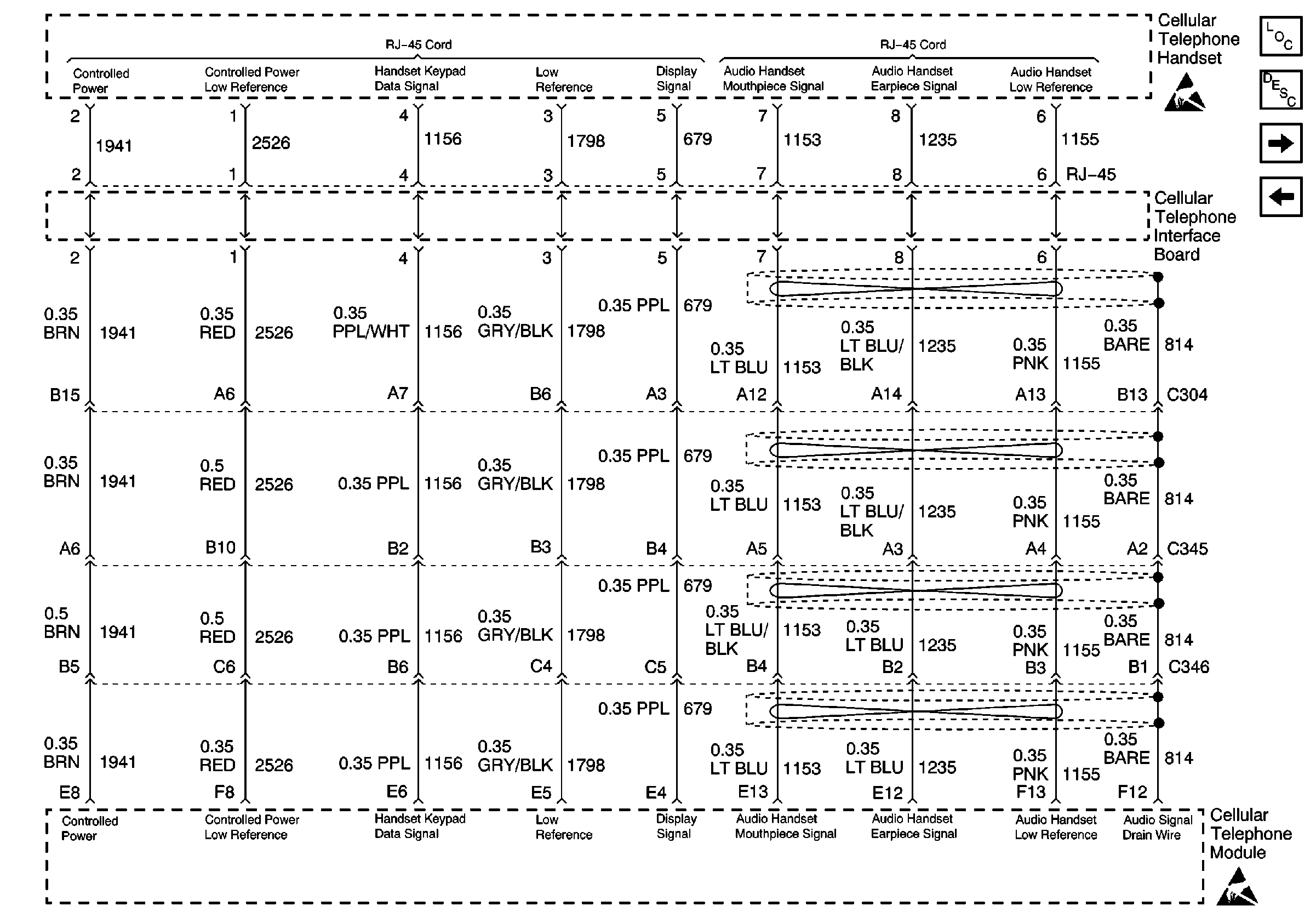

Figure 3:	Cellular Telephone Interface Board (w/UE1)

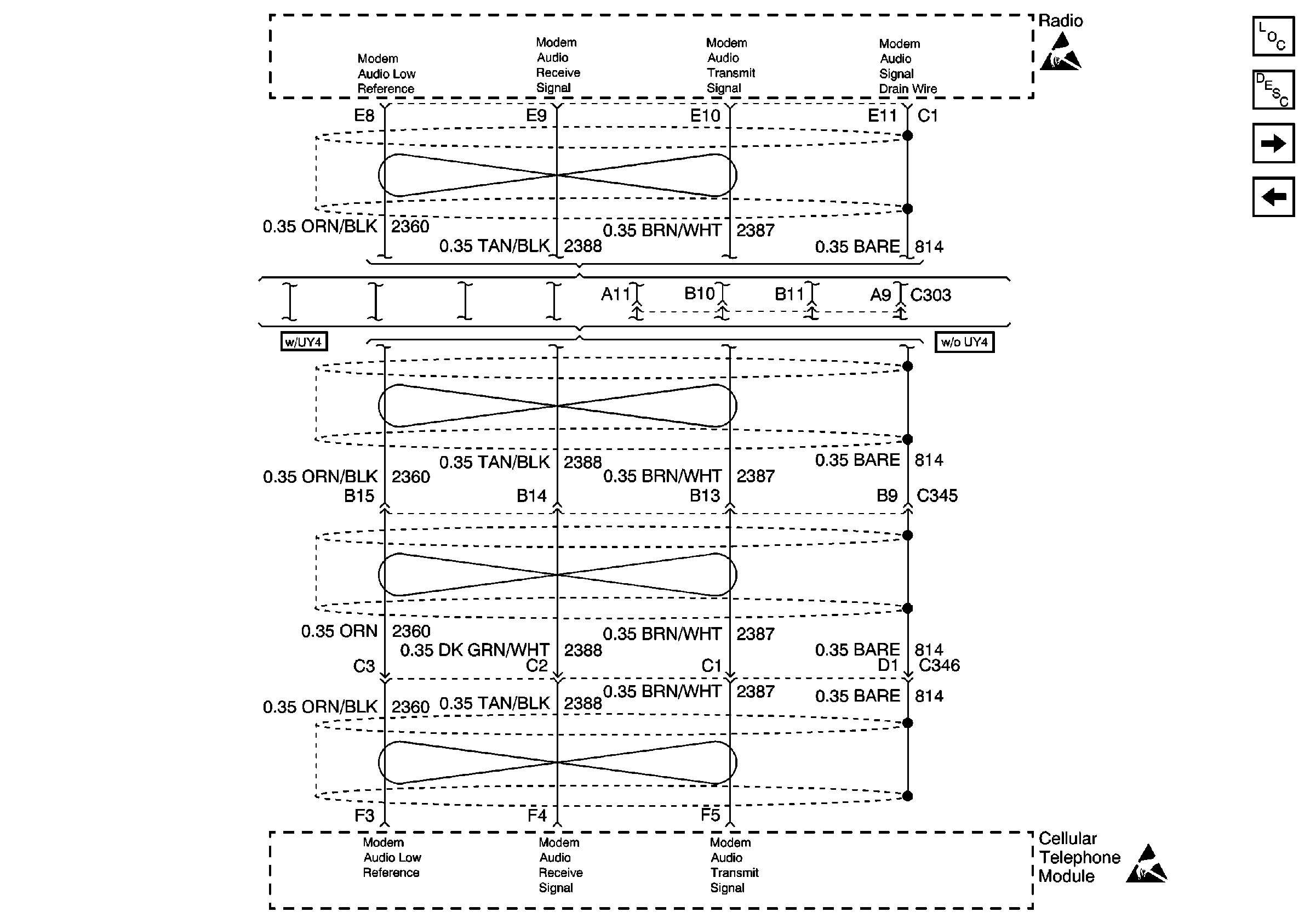

Figure 4:	Modem Signals (w/UE1 and w/U43)
Figure 5:	Power and Ground (w/o UE1) Cellular Communication Components Cellular Telephone Circuit Description Handset and Microphone (w/o UE1) Audio, Audio Amp and DIM Fuses Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice G401 1 of 3
Figure 6:	Handset and Microphone (w/o UE1) Cellular Communication Components Cellular Telephone Circuit Description Handset and Radio Amplifier (w/o UE1) Power and Ground (w/o UE1) Handling ESD Sensitive Parts Notice Class 2 Serial Data Line (LH Drive) Handling ESD Sensitive Parts Notice
Figure 7:	Handset and Radio Amplifier (w/o UE1) Cellular Communication Components Cellular Telephone Circuit Description Handset and Microphone (w/o UE1) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
