Exterior Lights Schematics. Cadillac Seville 2000

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2000 🢒 Seville 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Exterior Lights Schematics

Exterior Lights Schematics Domestic

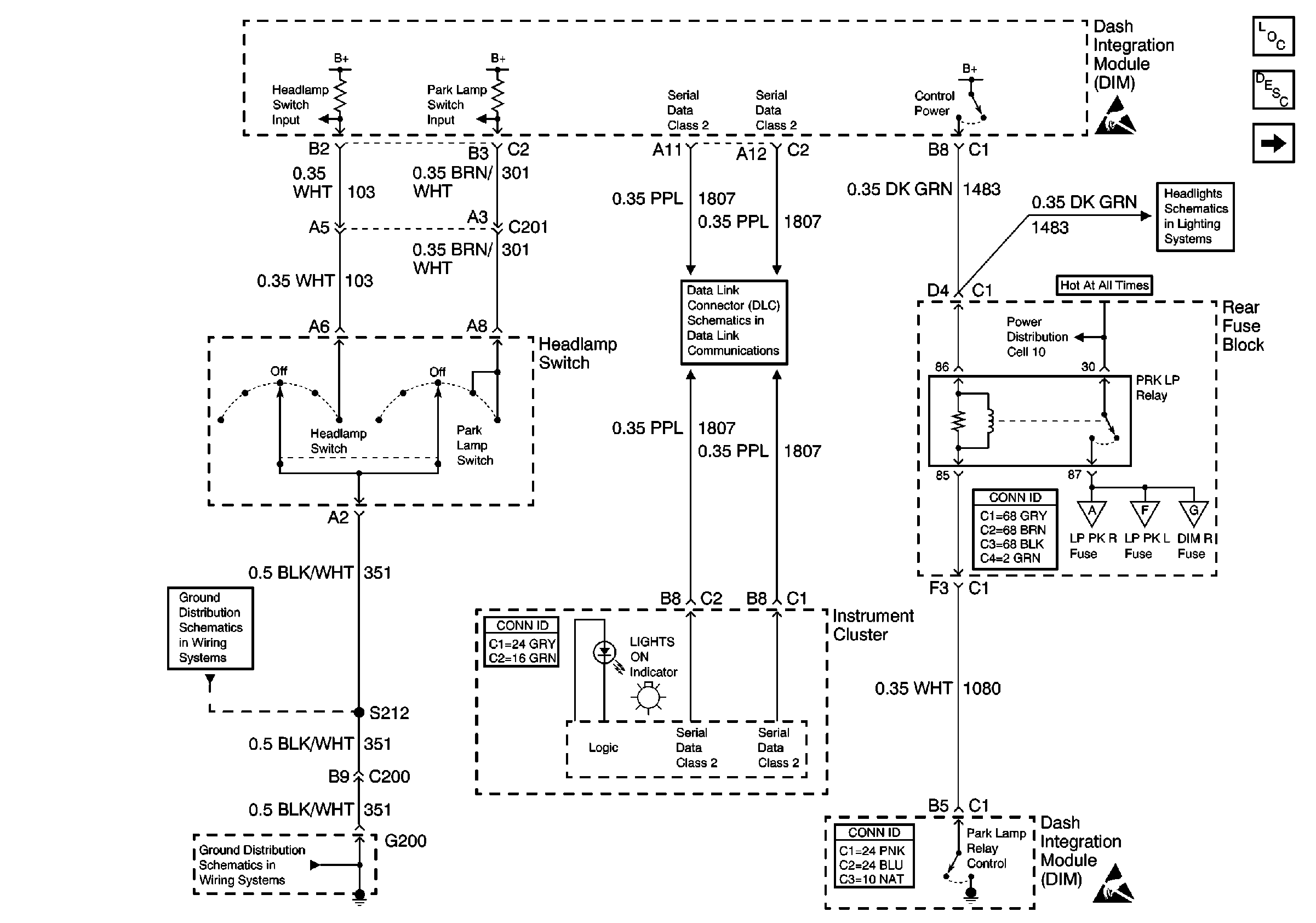

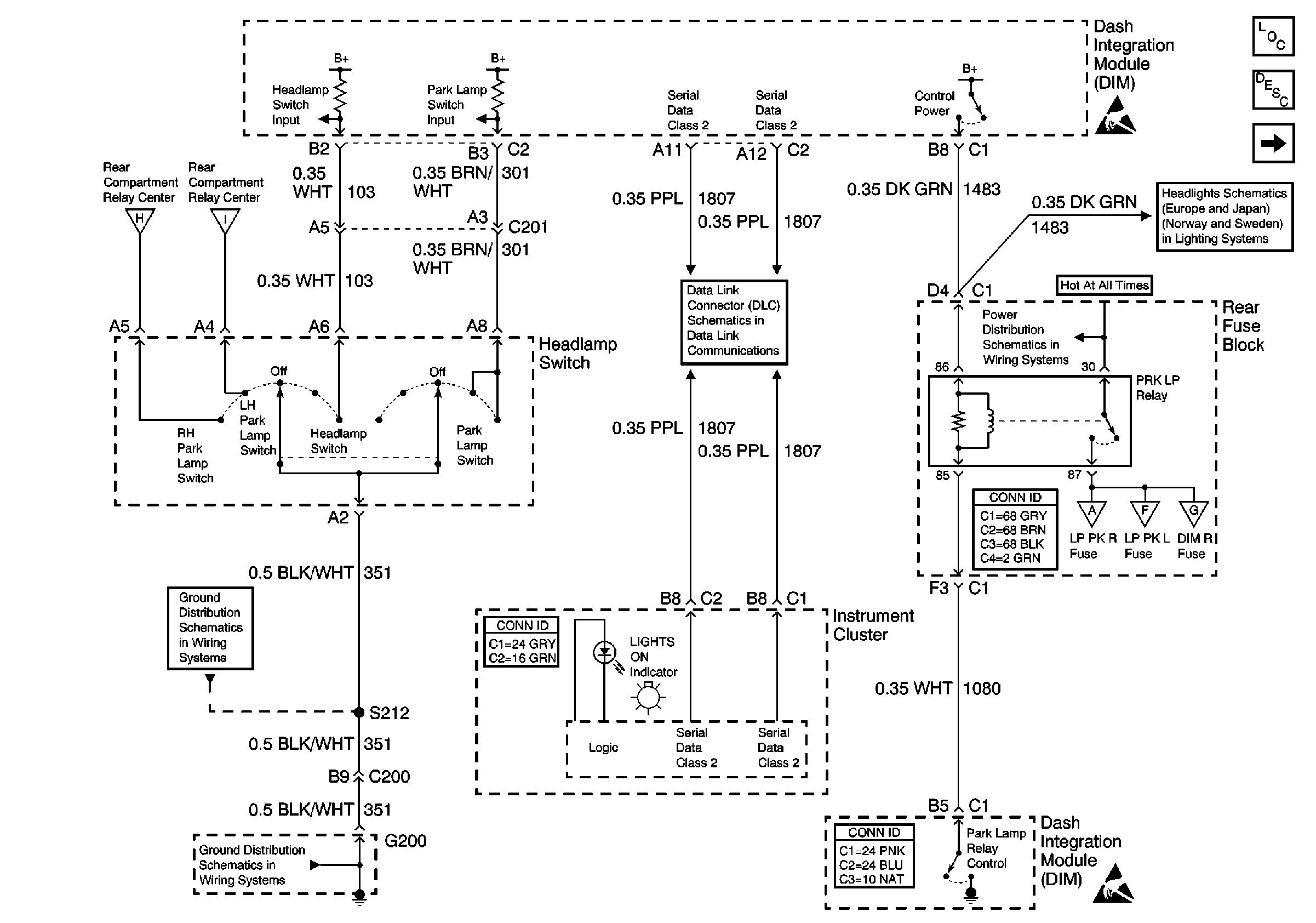

Figure 1:	Headlamp Switch, PRK LP Relay Lighting Systems Components Exterior Lights Circuit Description Hazard Switch Assembly Handling ESD Sensitive Parts Notice Low Beam Headlamps Handling ESD Sensitive Parts Notice Class 2 Serial Data Line (LH Drive) G200 1 of 2 G200 1 of 2 RH Exterior Lamps LH Exterior Lamps License, Underhood, and Cornering Lamps

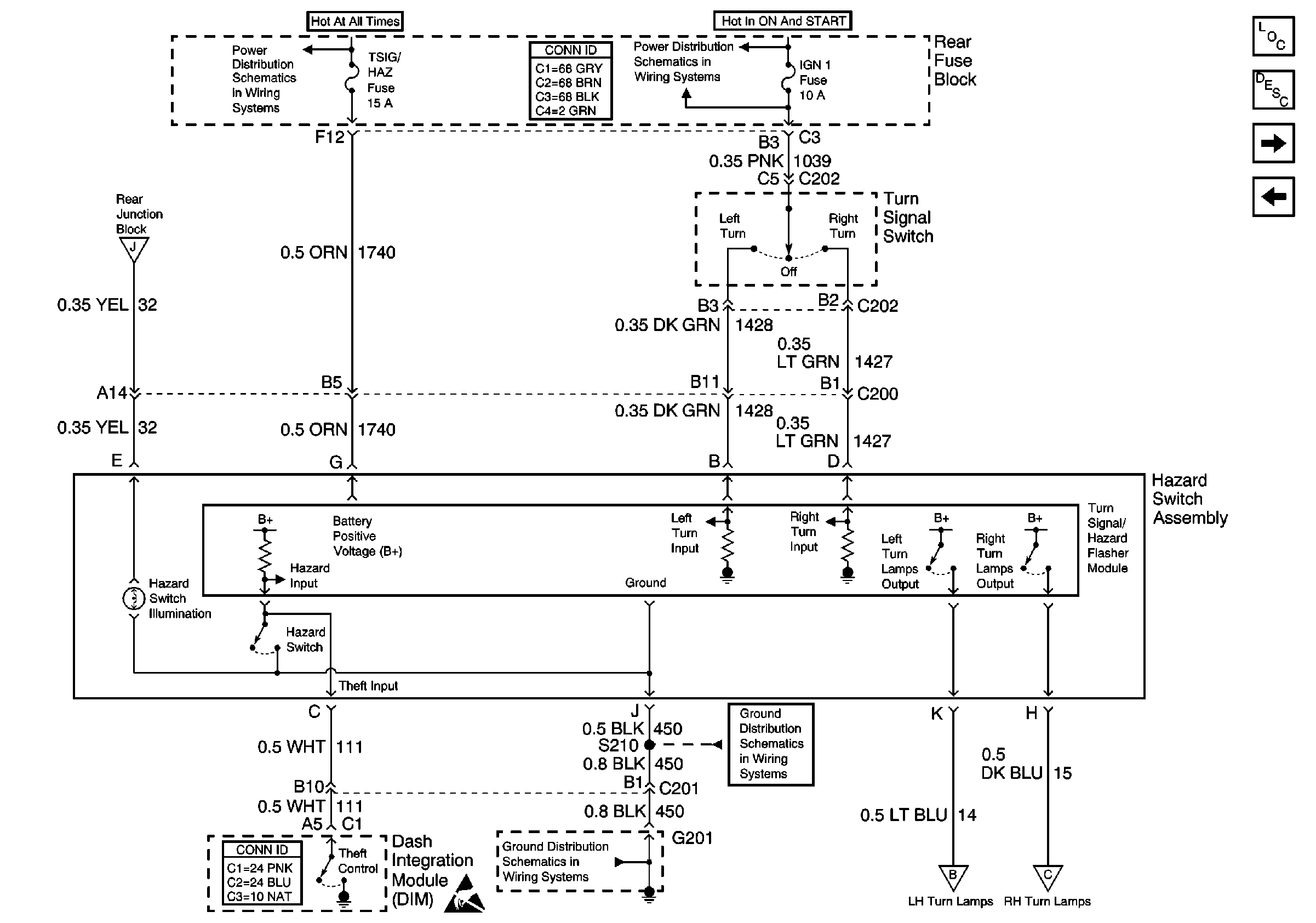

Figure 2:	Hazard Switch Assembly Lighting Systems Components Exterior Lights Circuit Description Stop Lamps Headlamp Switch, PRK LP Relay IGN 1 Relay and SIR, Vent SOL, IGN 1 Fuses MEM T/T, PWR T/T and TSIG/HAZ Fuse License, Underhood, and Cornering Lamps LH Exterior Lamps RH Exterior Lamps G201 Handling ESD Sensitive Parts Notice G201
Figure 3:	Stop Lamps Lighting Systems Components Exterior Lights Circuit Description RH Exterior Lamps Hazard Switch Assembly Aux Pwr, C/LTR, Stop LP, Cigar and BLO Fuses G402 1 of 2 G401 1 of 3

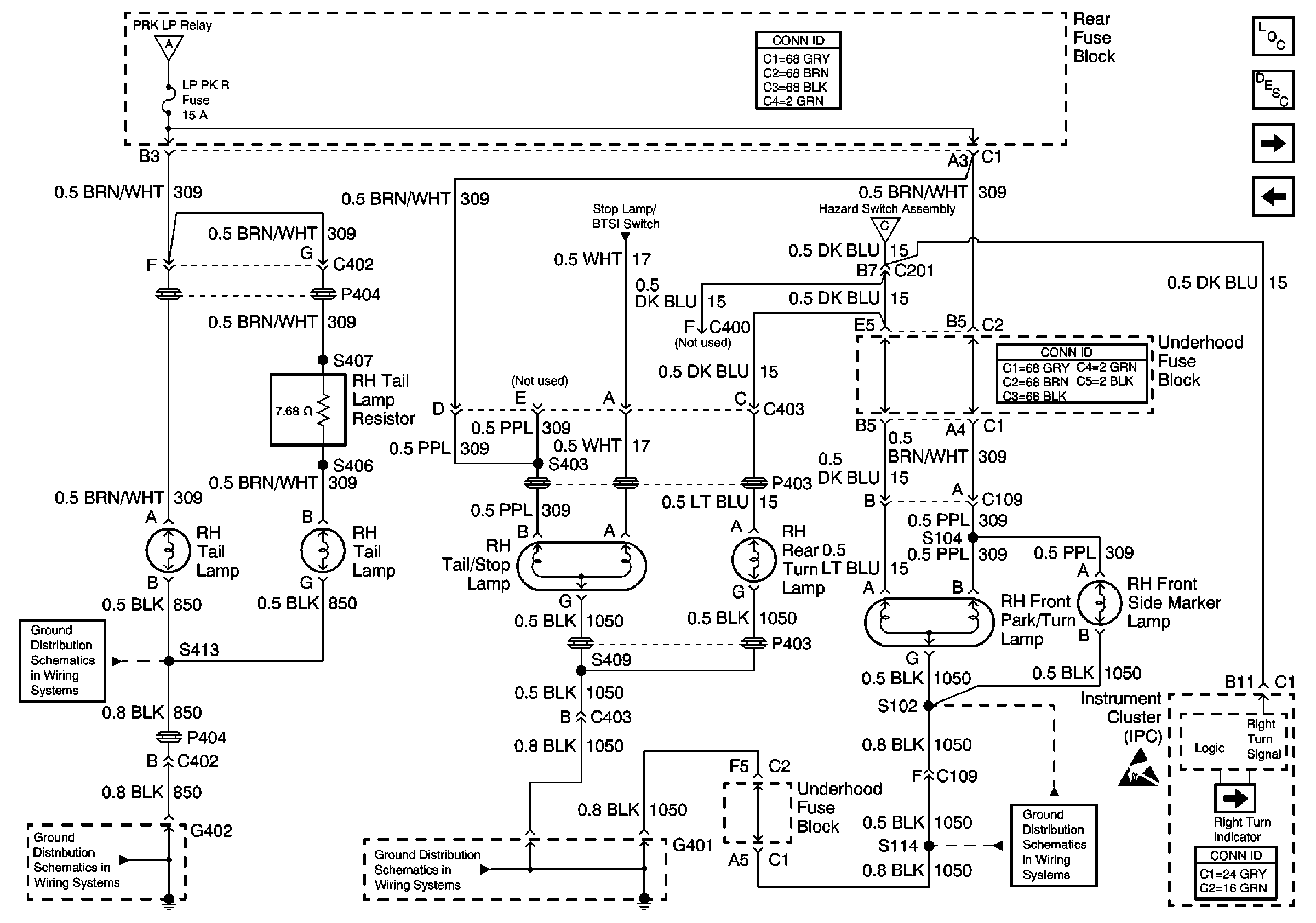

Figure 4:	RH Exterior Lamps Lighting Systems Components Exterior Lights Circuit Description LH Exterior Lamps Stop Lamps Handling ESD Sensitive Parts Notice Headlamp Switch, PRK LP Relay G402 2 of 2 G402 2 of 2 G401 1 of 3 G401 3 of 3 Hazard Switch Assembly

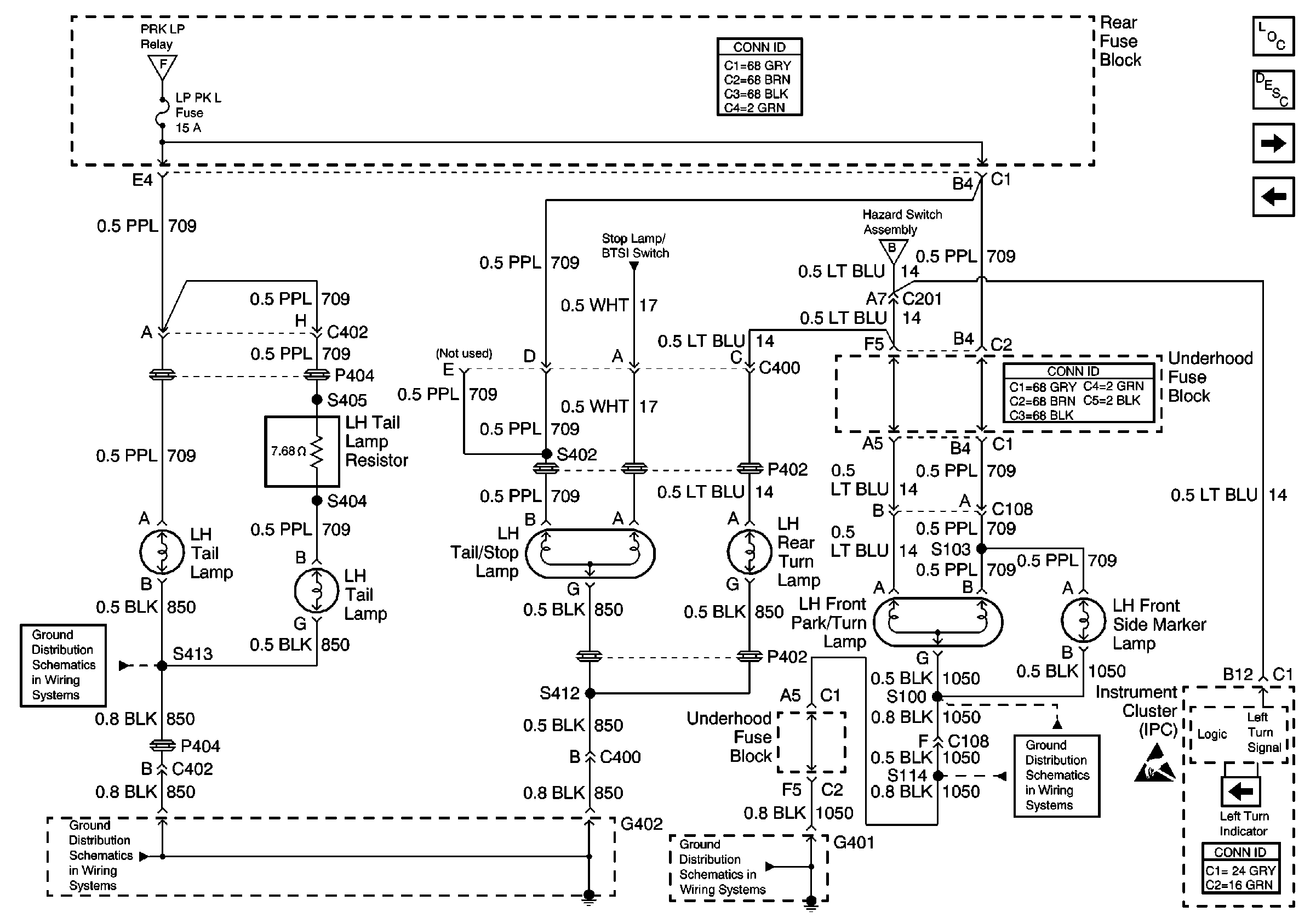

Figure 5:	LH Exterior Lamps Lighting Systems Components Exterior Lights Circuit Description License, Underhood, and Cornering Lamps RH Exterior Lamps Headlamp Switch, PRK LP Relay Hazard Switch Assembly 097050290521 097050290521 G401 1 of 3 Handling ESD Sensitive Parts Notice G401 3 of 3

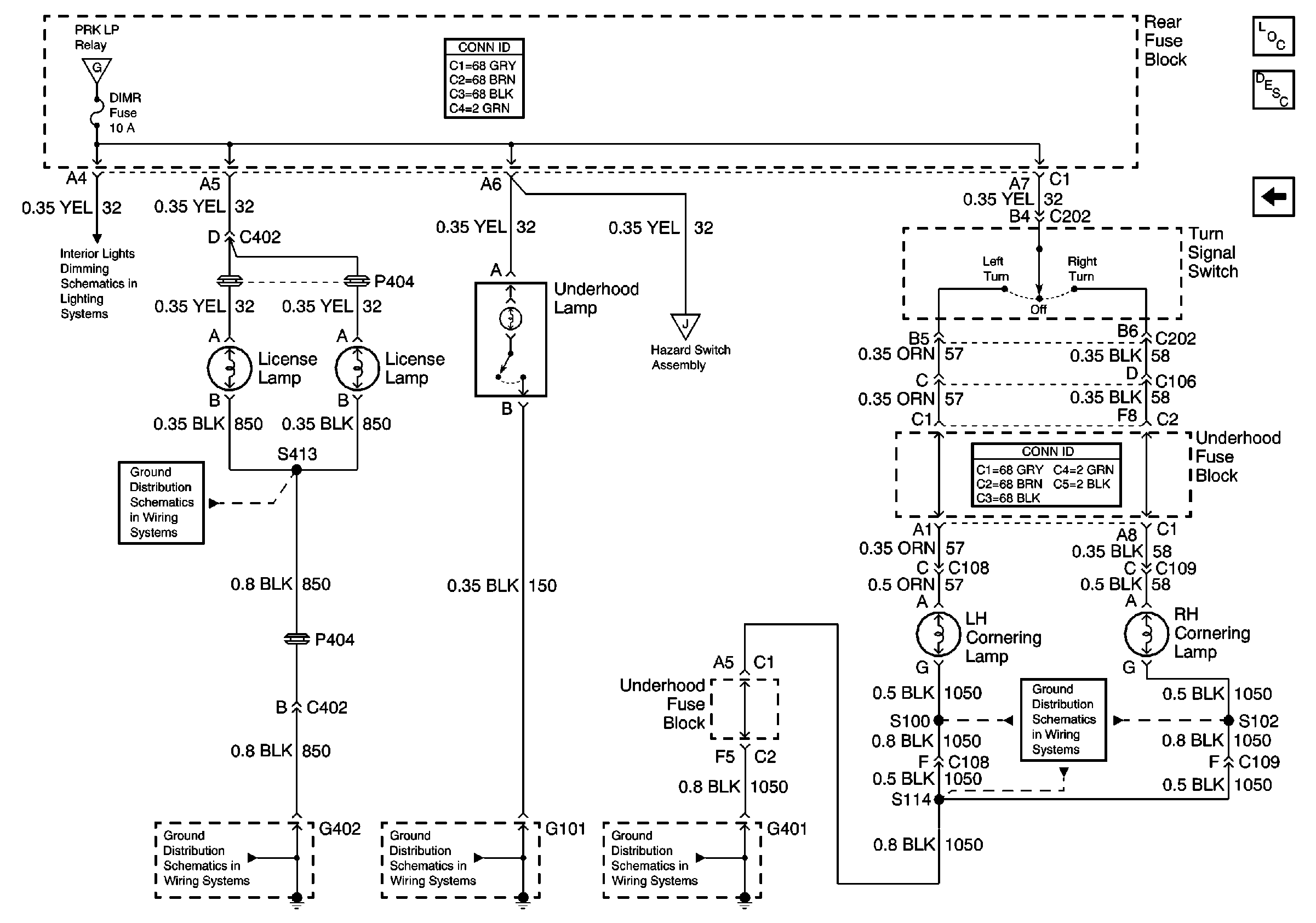

Figure 6:	License, Underhood, and Cornering Lamps Lighting Systems Components Exterior Lights Circuit Description LH Exterior Lamps Headlamp Switch, PRK LP Relay Hazard Switch Assembly Dimming Control, IP Dimmer Switch G402 2 of 2 G402 2 of 2 G101 and G105 G401 3 of 3 G401 3 of 3

Exterior Lights Schematics Export

Figure 1:	Headlamp Switch, PRK LP Relay Lighting Systems Components Exterior Lights Circuit Description Hazard Switch Assembly Class 2 Serial Data Line (LH Drive) Handling ESD Sensitive Parts Notice Position Lamps Low Beam Headlamps RH Exterior Lamps LH Exterior Lamps G200 1 of 2 G200 1 of 2 Handling ESD Sensitive Parts Notice License, Underhood, and Cornering Lamps

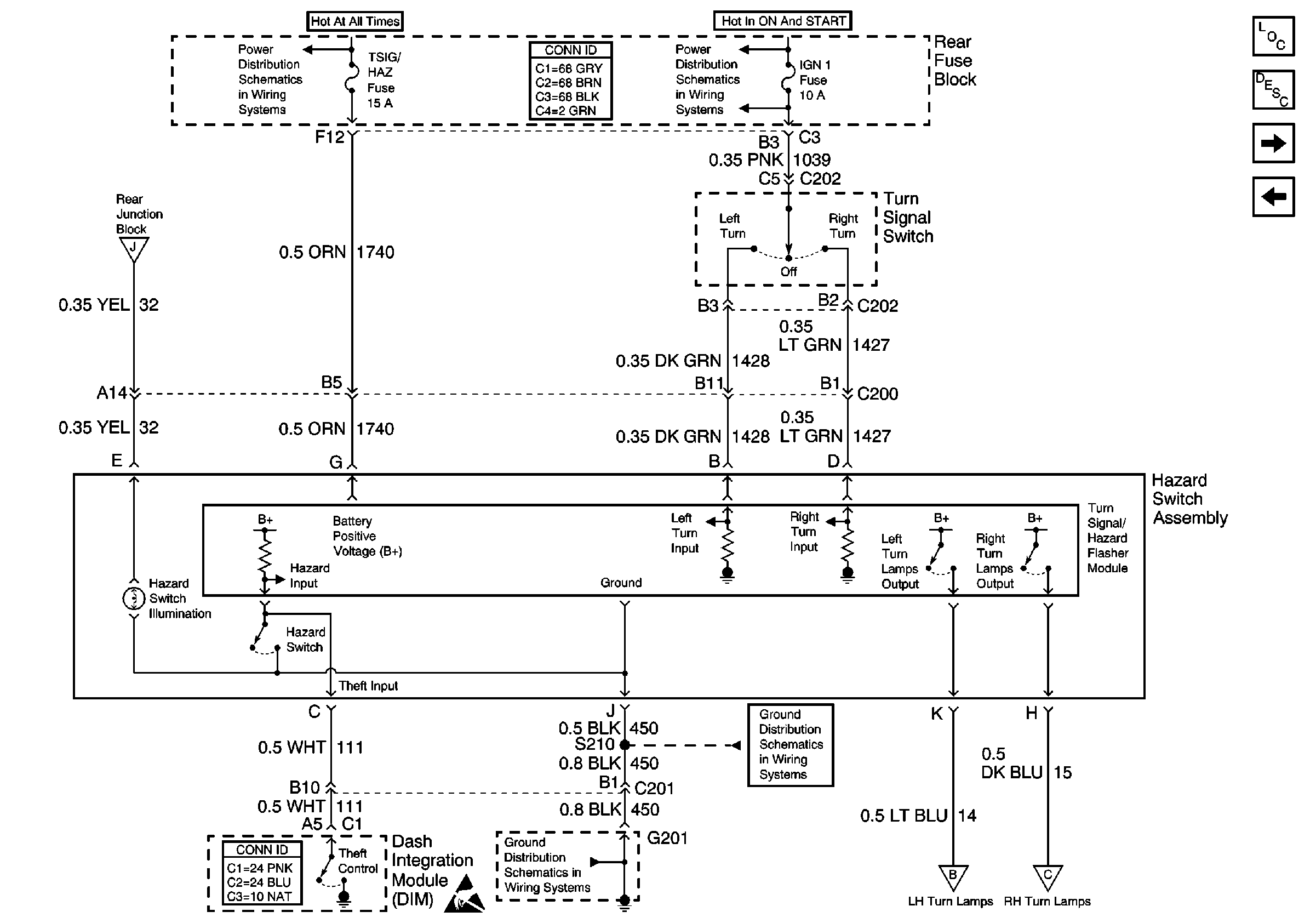

Figure 2:	Hazard Switch Assembly Lighting Systems Components Exterior Lights Circuit Description Stop Lamps Headlamp Switch, PRK LP Relay IGN 1 Relay and SIR, Vent SOL, IGN 1 Fuses MEM T/T, PWR T/T and TSIG/HAZ Fuse License, Underhood, and Cornering Lamps Handling ESD Sensitive Parts Notice G201 LH Exterior Lamps RH Exterior Lamps G201
Figure 3:	Stop Lamps Lighting Systems Components Exterior Lights Circuit Description Aux Pwr, C/LTR, Stop LP, Cigar and BLO Fuses RH Exterior Lamps Hazard Switch Assembly G402 1 of 2 G401 1 of 3

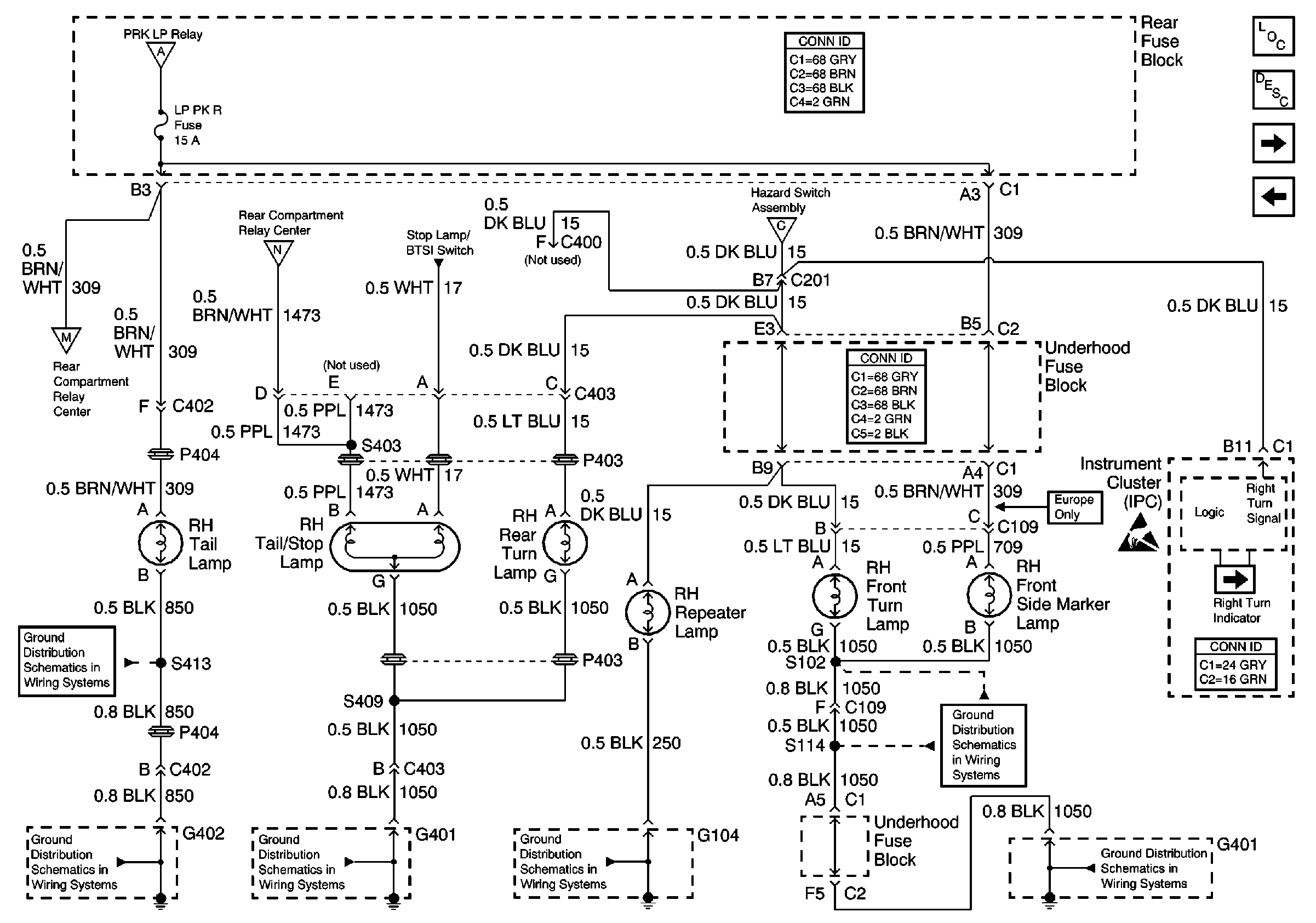

Figure 4:	RH Exterior Lamps Lighting Systems Components Exterior Lights Circuit Description Handling ESD Sensitive Parts Notice LH Exterior Lamps Stop Lamps Headlamp Switch, PRK LP Relay Hazard Switch Assembly Position Lamps Position Lamps G402 2 of 2 G402 2 of 2 G401 1 of 3 G104 G401 3 of 3 G401 3 of 3
Figure 5:	LH Exterior Lamps Lighting Systems Components Exterior Lights Circuit Description Handling ESD Sensitive Parts Notice Position Lamps RH Exterior Lamps Headlamp Switch, PRK LP Relay Position Lamps G402 2 of 2 G402 2 of 2 G104 Position Lamps Hazard Switch Assembly G401 3 of 3 G401 3 of 3

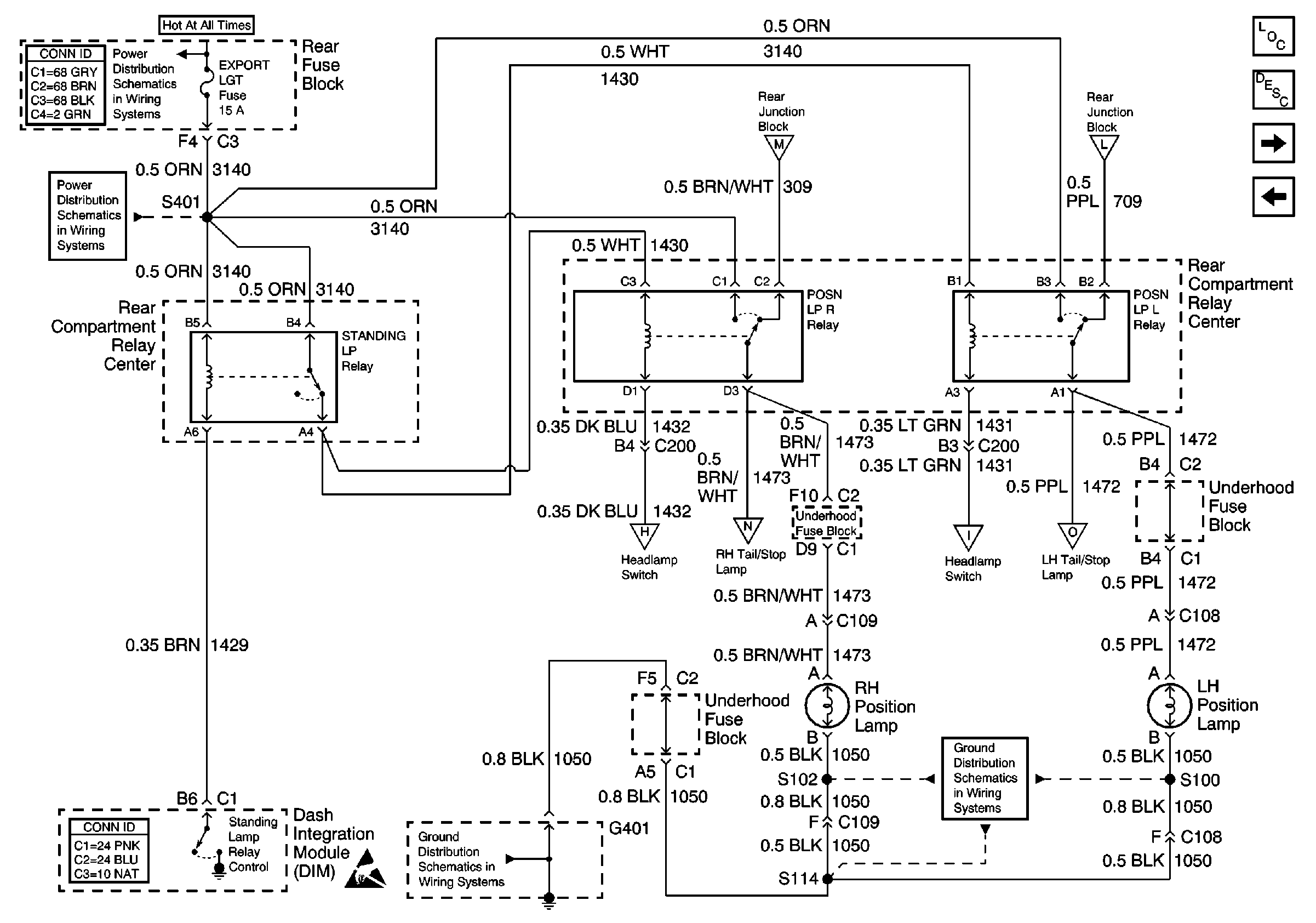

Figure 6:	Position Lamps Lighting Systems Components Exterior Lights Circuit Description License, Underhood, and Cornering Lamps LH Exterior Lamps Handling ESD Sensitive Parts Notice G401 3 of 3 G401 3 of 3 Headlamp Switch, PRK LP Relay Headlamp Switch, PRK LP Relay RH Exterior Lamps LH Exterior Lamps RH Exterior Lamps LH Exterior Lamps RAP and Export LGT Fuses RAP and Export LGT Fuses
Figure 7:	License, Underhood, and Cornering Lamps Lighting Systems Components Exterior Lights Circuit Description Position Lamps Headlamp Switch, PRK LP Relay G402 2 of 2 G402 2 of 2 G101 and G105 G401 3 of 3 G401 3 of 3 Hazard Switch Assembly
