Interior Lights Schematics. Cadillac Seville 2000

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2000 🢒 Seville 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Interior Lights Schematics

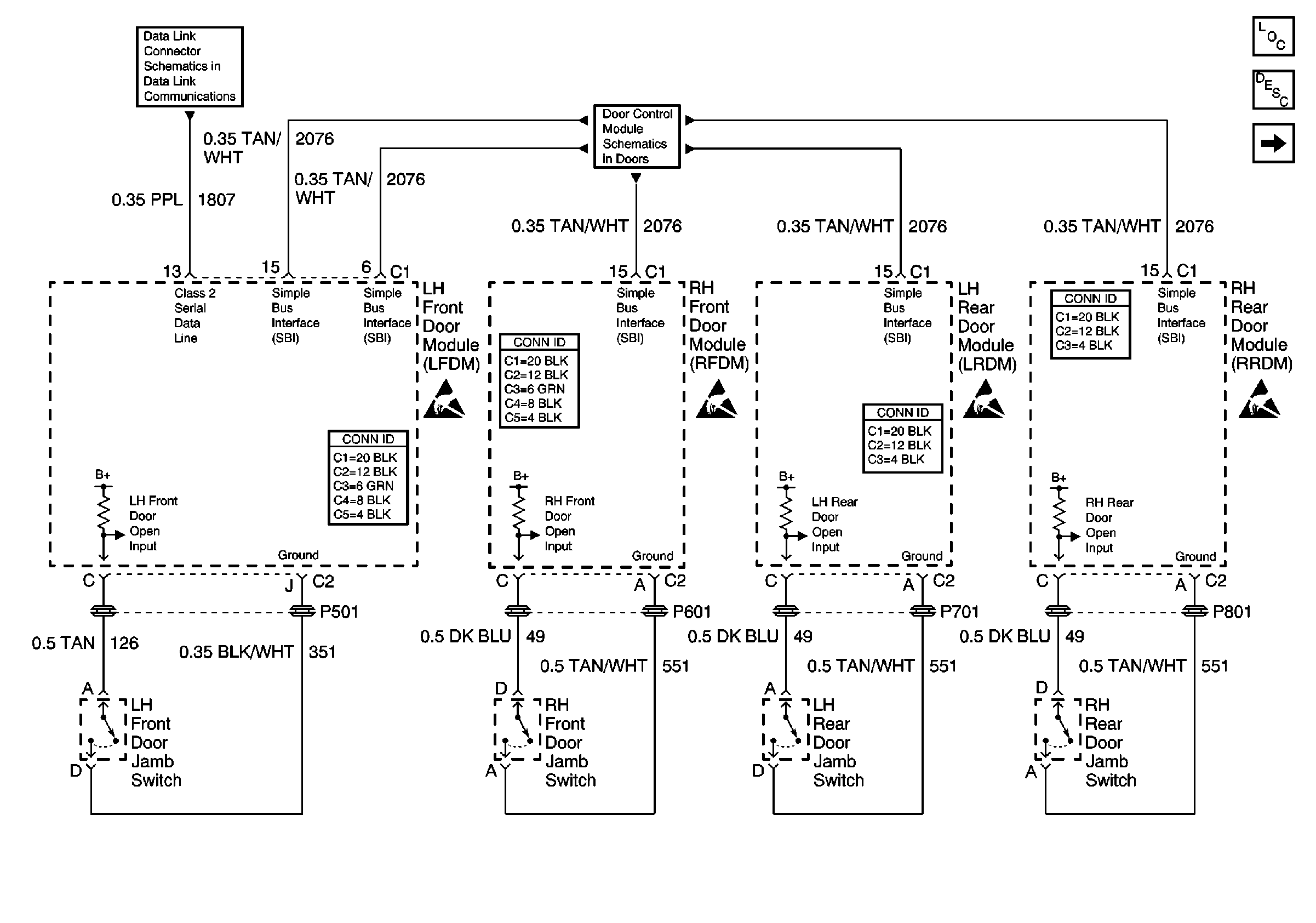

Figure 1:	Door Jamb Switches Lighting Systems Components Interior Lights Circuit Description Interior Lamp Relays Class 2 Serial Data Line (RH Drive) SBI Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

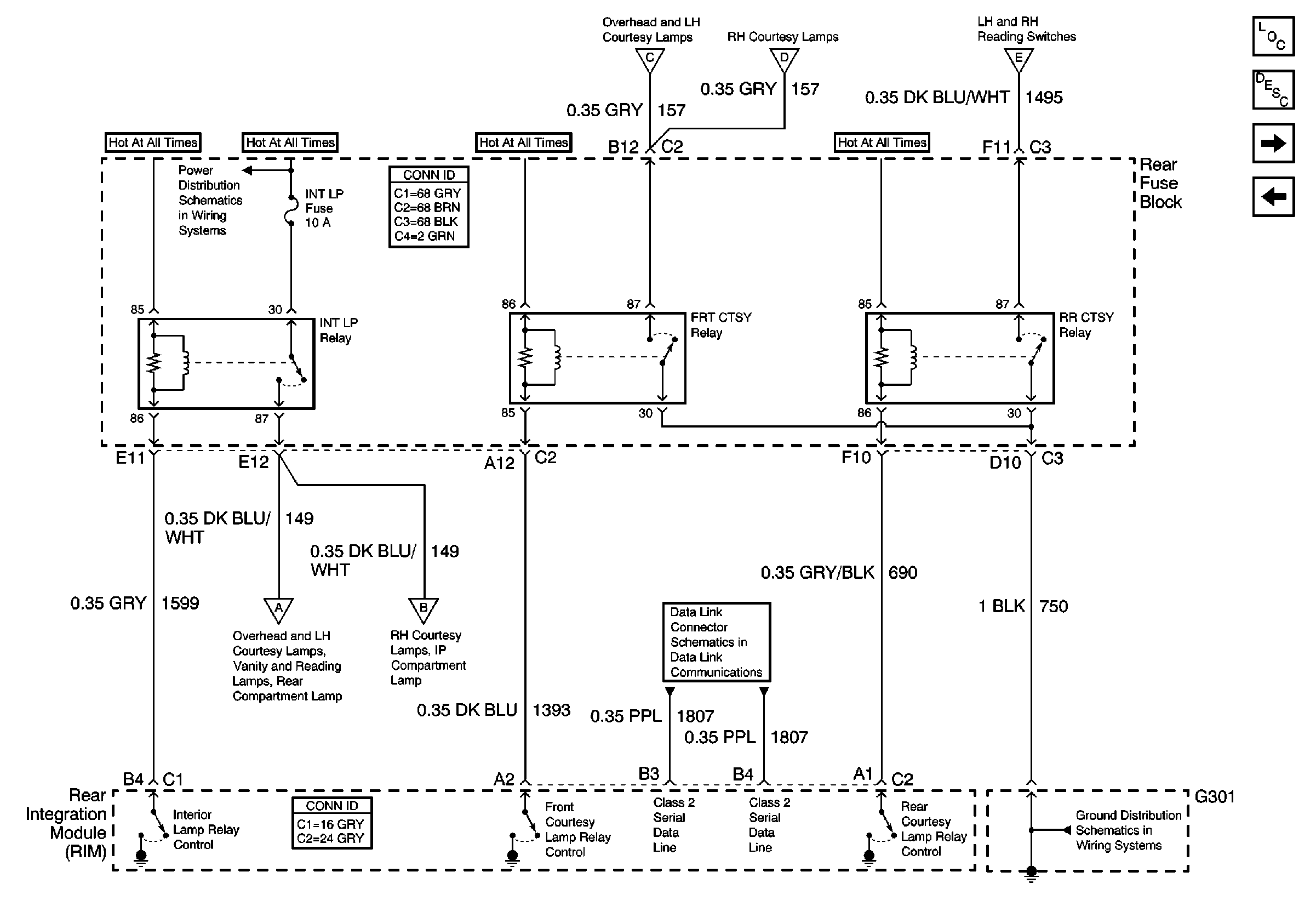

Figure 2:	Interior Lamp Relays Lighting Systems Components Interior Lights Circuit Description Rear Compartment, LH Courtesy, and Overhead Console Lamps Door Jamb Switches INT LP Fuse and Relay Class 2 Serial Data Line (RH Drive) Rear Compartment, LH Courtesy, and Overhead Console Lamps RH Courtesy, IP Compartment, and Ignition Key Cylinder Lamps Vanity and Reading Lamps, Interior Lamp Switch Rear Compartment, LH Courtesy, and Overhead Console Lamps RH Courtesy, IP Compartment, and Ignition Key Cylinder Lamps G301

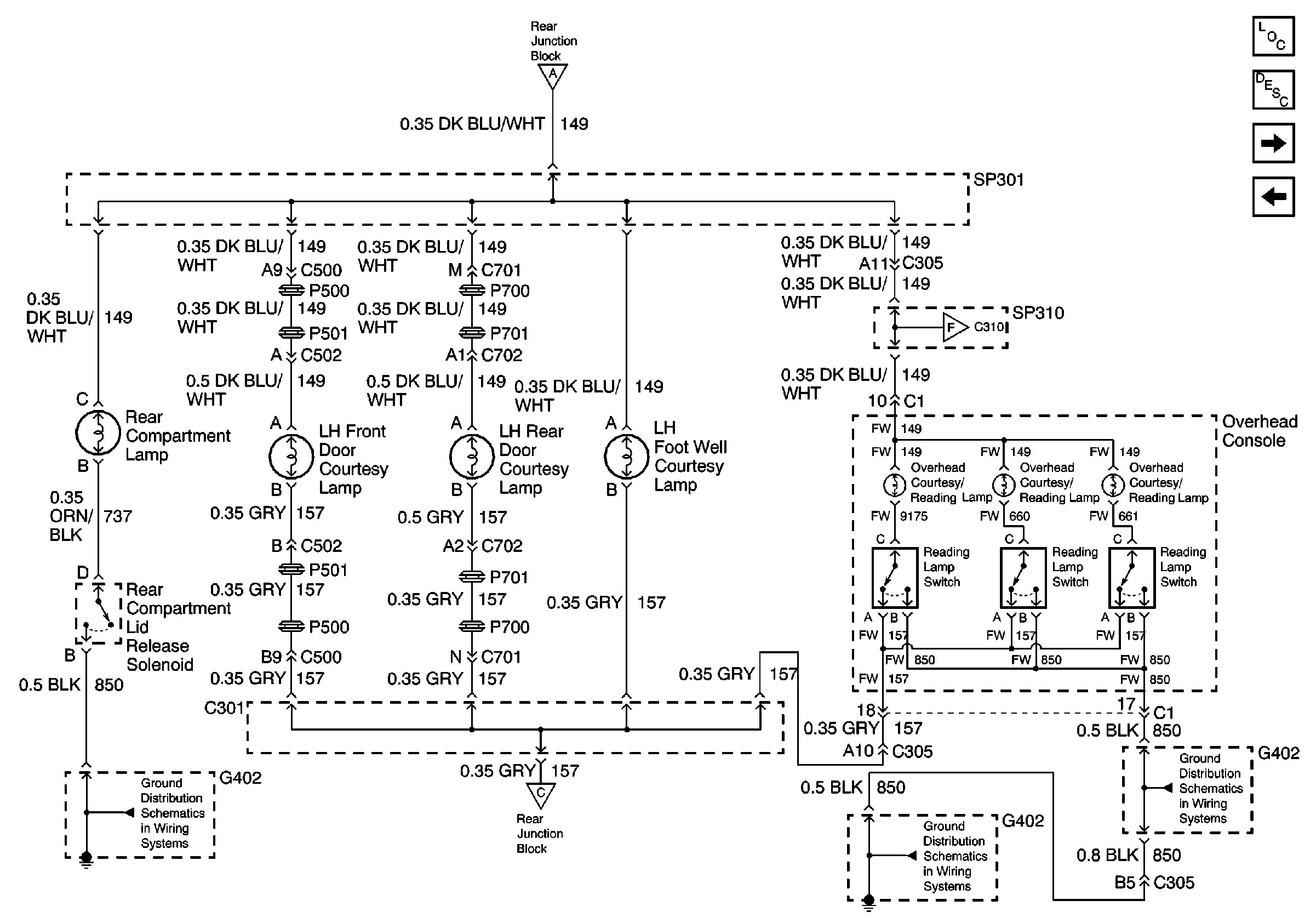

Figure 3:	Rear Compartment, LH Courtesy, and Overhead Console Lamps Lighting Systems Components Interior Lights Circuit Description Vanity and Reading Lamps, Interior Lamp Switch Interior Lamp Relays Interior Lamp Relays Vanity and Reading Lamps, Interior Lamp Switch G402 1 of 2 G402 1 of 2 Interior Lamp Relays G402 1 of 2

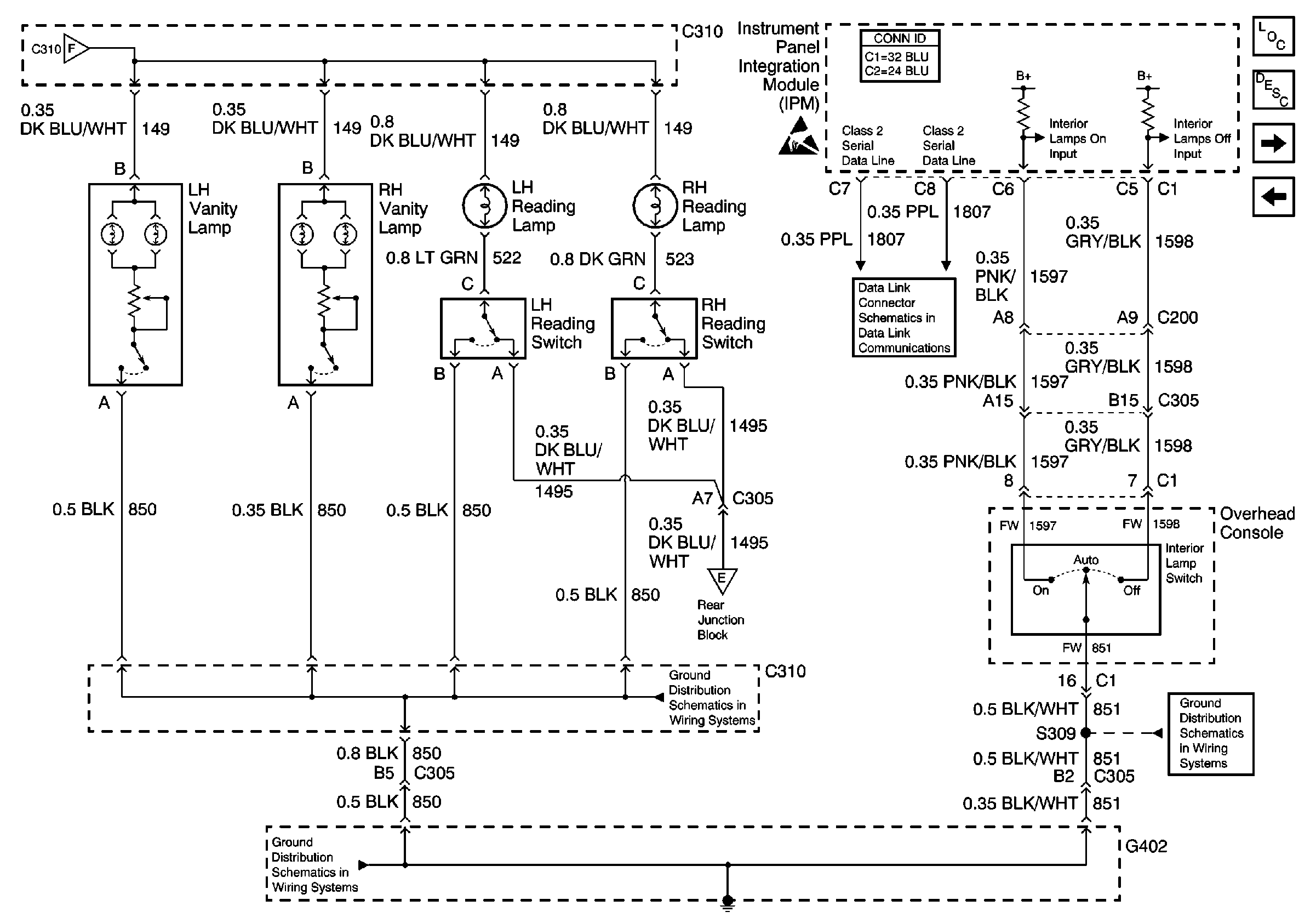

Figure 4:	Vanity and Reading Lamps, Interior Lamp Switch Lighting Systems Components Interior Lights Circuit Description RH Courtesy, IP Compartment, and Ignition Key Cylinder Lamps Rear Compartment, LH Courtesy, and Overhead Console Lamps Class 2 Serial Data Line (LH Drive) Handling ESD Sensitive Parts Notice Rear Compartment, LH Courtesy, and Overhead Console Lamps Interior Lamp Relays G402 1 of 2 G402 1 of 2

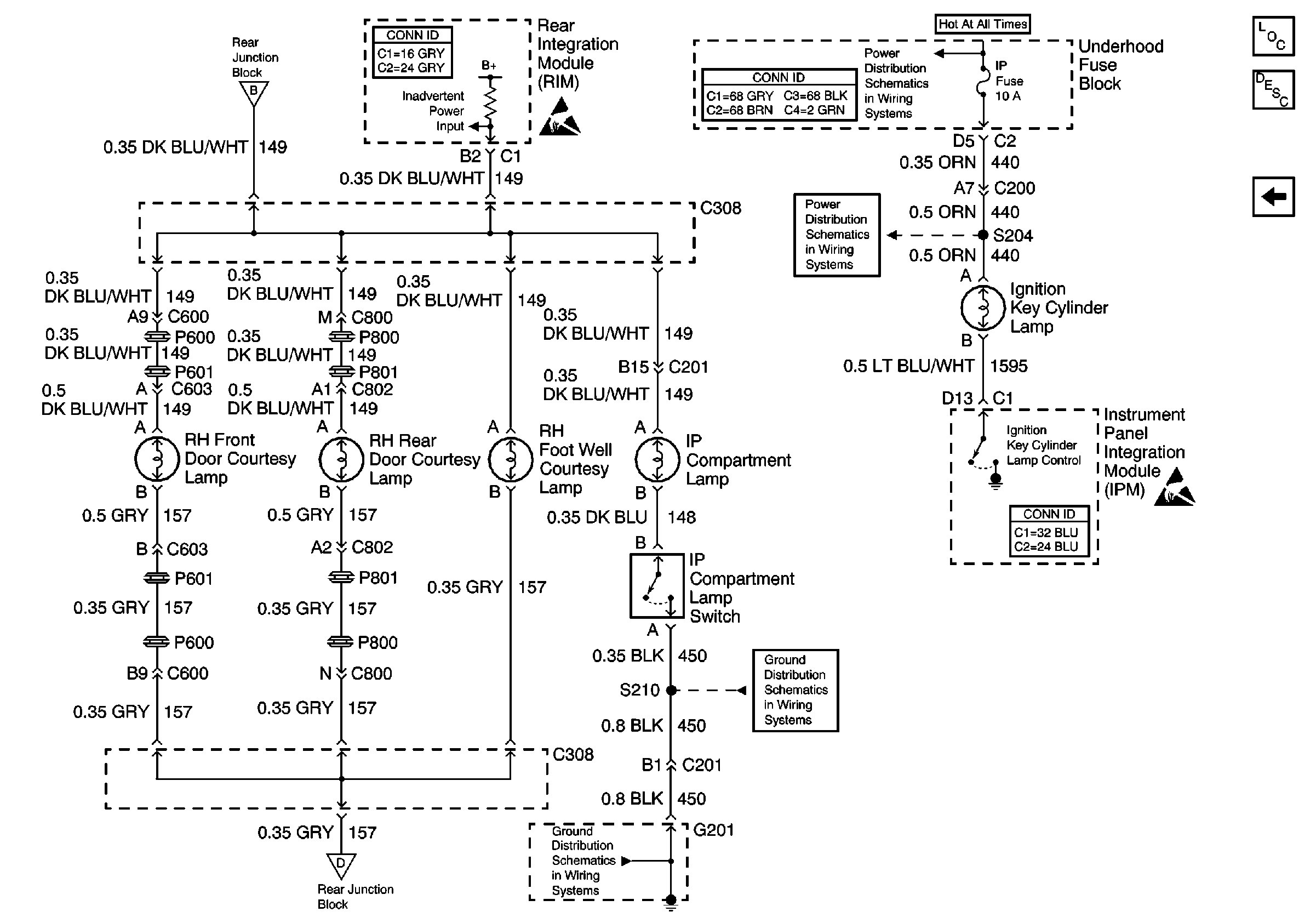

Figure 5:	RH Courtesy, IP Compartment, and Ignition Key Cylinder Lamps Lighting Systems Components Interior Lights Circuit Description Vanity and Reading Lamps, Interior Lamp Switch Handling ESD Sensitive Parts Notice PCM BATT, EXPORT BRK, IP, ABS Sol, and ABS MOT Fuses PCM BATT, EXPORT BRK, IP, ABS Sol, and ABS MOT Fuses Interior Lamp Relays Interior Lamp Relays G201 G201 Handling ESD Sensitive Parts Notice
