Interior Lights Dimming Schematics. Cadillac Seville 2000

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2000 🢒 Seville 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Interior Lights Dimming Schematics

Figure 1:	Class 2 Dimming Communication Lighting Systems Components Interior Lights Dimming Circuit Description Dimming Control, IP Dimmer Switch Handling ESD Sensitive Parts Notice Class 2 Serial Data Line (LH Drive)
Figure 2:	Dimming Control, IP Dimmer Switch Lighting Systems Components Interior Lights Dimming Circuit Description Ashtray Lamp, Steering Wheel Controls, Console Dimming Class 2 Dimming Communication Handling ESD Sensitive Parts Notice Temperature Sensors Low Beam Headlamps Low Beam Headlamps DRL, Low Beam Headlamps LP PK L Fuse DIM R Fuse Ashtray Lamp, Steering Wheel Controls, Console Dimming

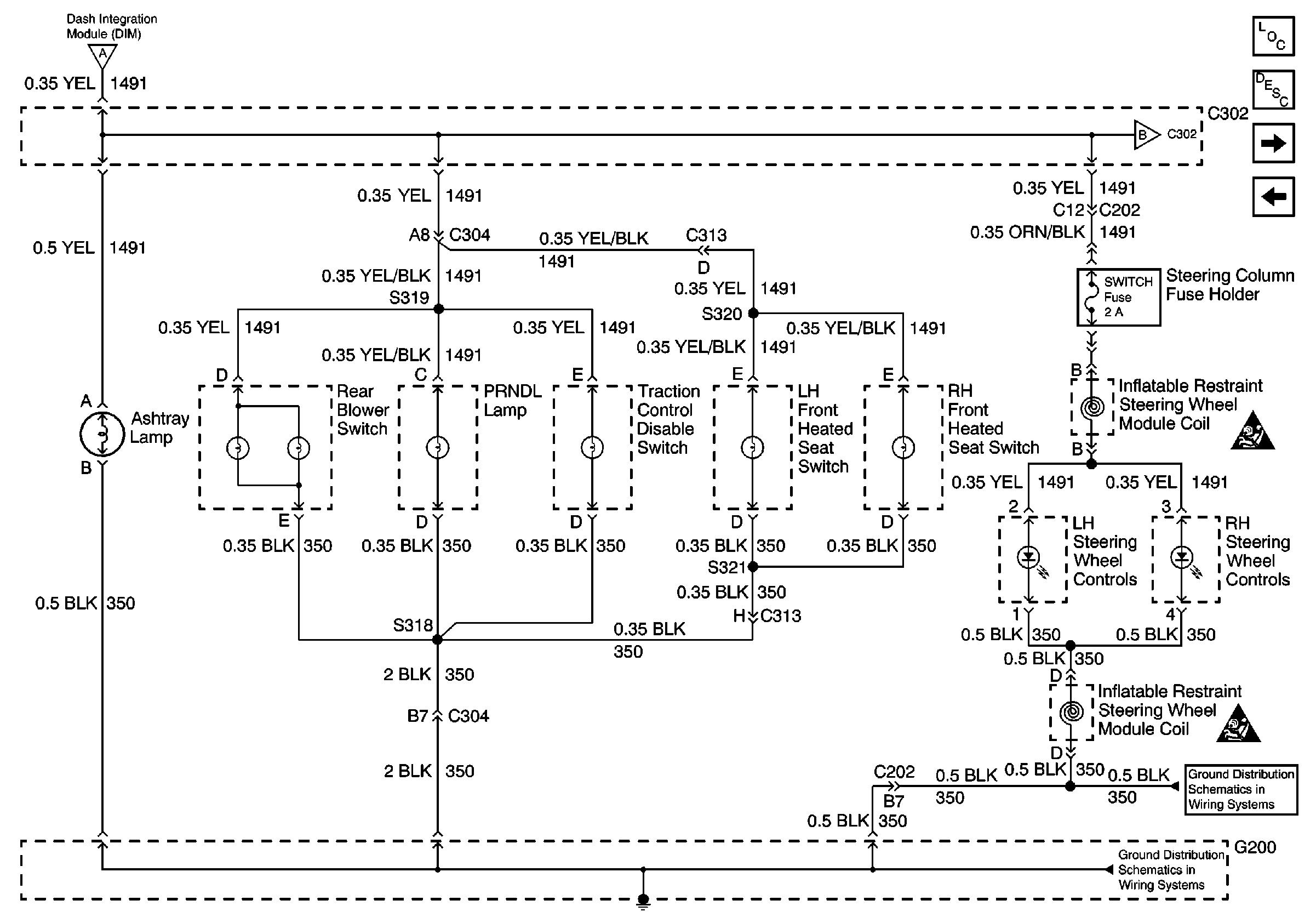

Figure 3:	Ashtray Lamp, Steering Wheel Controls, Console Dimming Lighting Systems Components Interior Lights Dimming Circuit Description Instrument Panel Dimming Dimming Control, IP Dimmer Switch SIR Handling Caution Dimming Control, IP Dimmer Switch Instrument Panel Dimming SIR Handling Caution G200 1 of 2 G200 1 of 2
Figure 4:	Instrument Panel Dimming Lighting Systems Components Interior Lights Dimming Circuit Description Front Door Dimming Ashtray Lamp, Steering Wheel Controls, Console Dimming Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Ashtray Lamp, Steering Wheel Controls, Console Dimming G201 G201
Figure 5:	Front Door Dimming Lighting Systems Components Interior Lights Dimming Circuit Description Rear Door Dimming Instrument Panel Dimming SBI Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

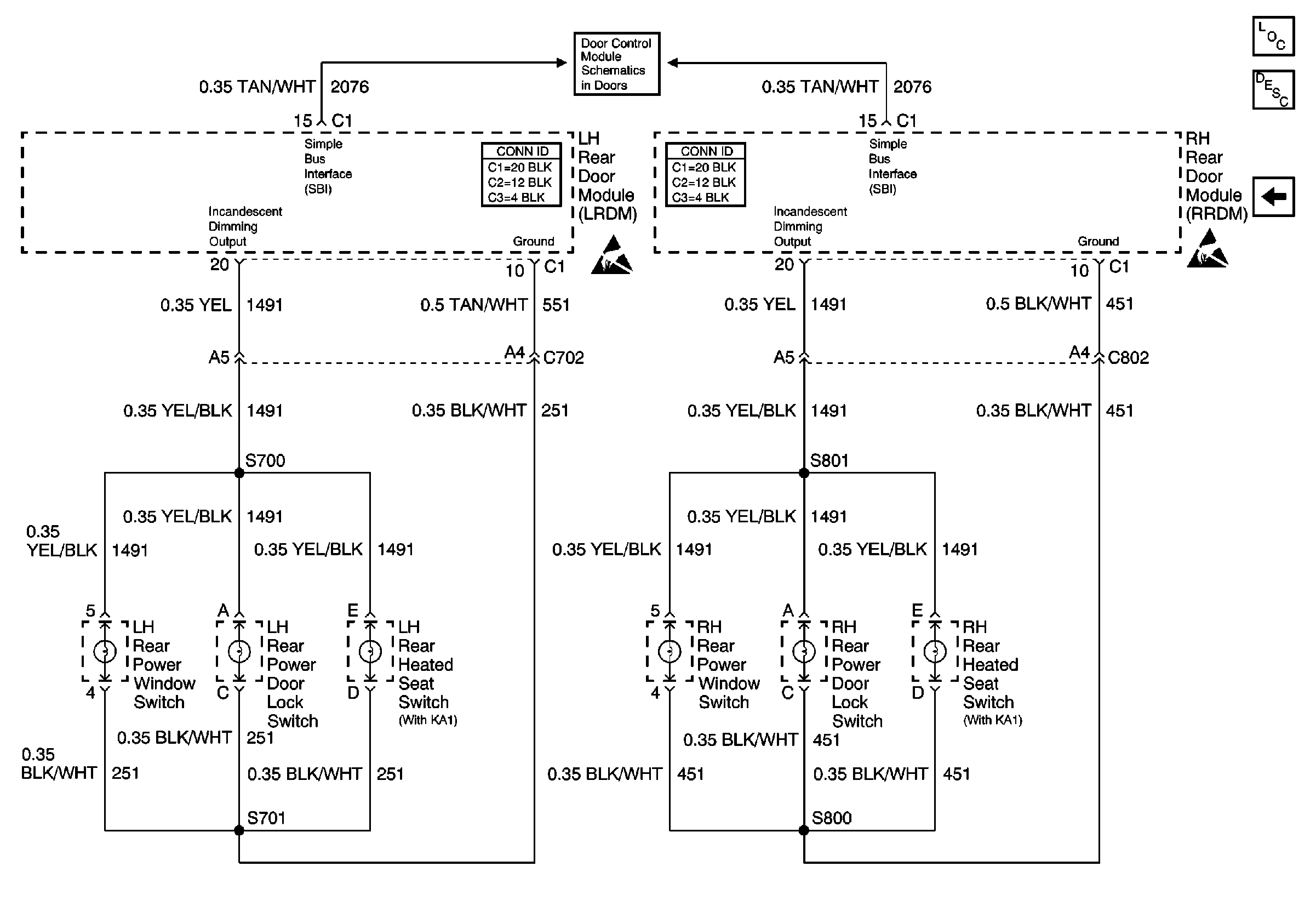

Figure 6:	Rear Door Dimming Lighting Systems Components Interior Lights Dimming Circuit Description Front Door Dimming SBI Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
