Driver Seat Schematics. Cadillac Seville 2004

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2004 🢒 Seville 🢒 Accessories 🢒 Entertainment 🢒 Driver Seat Schematics

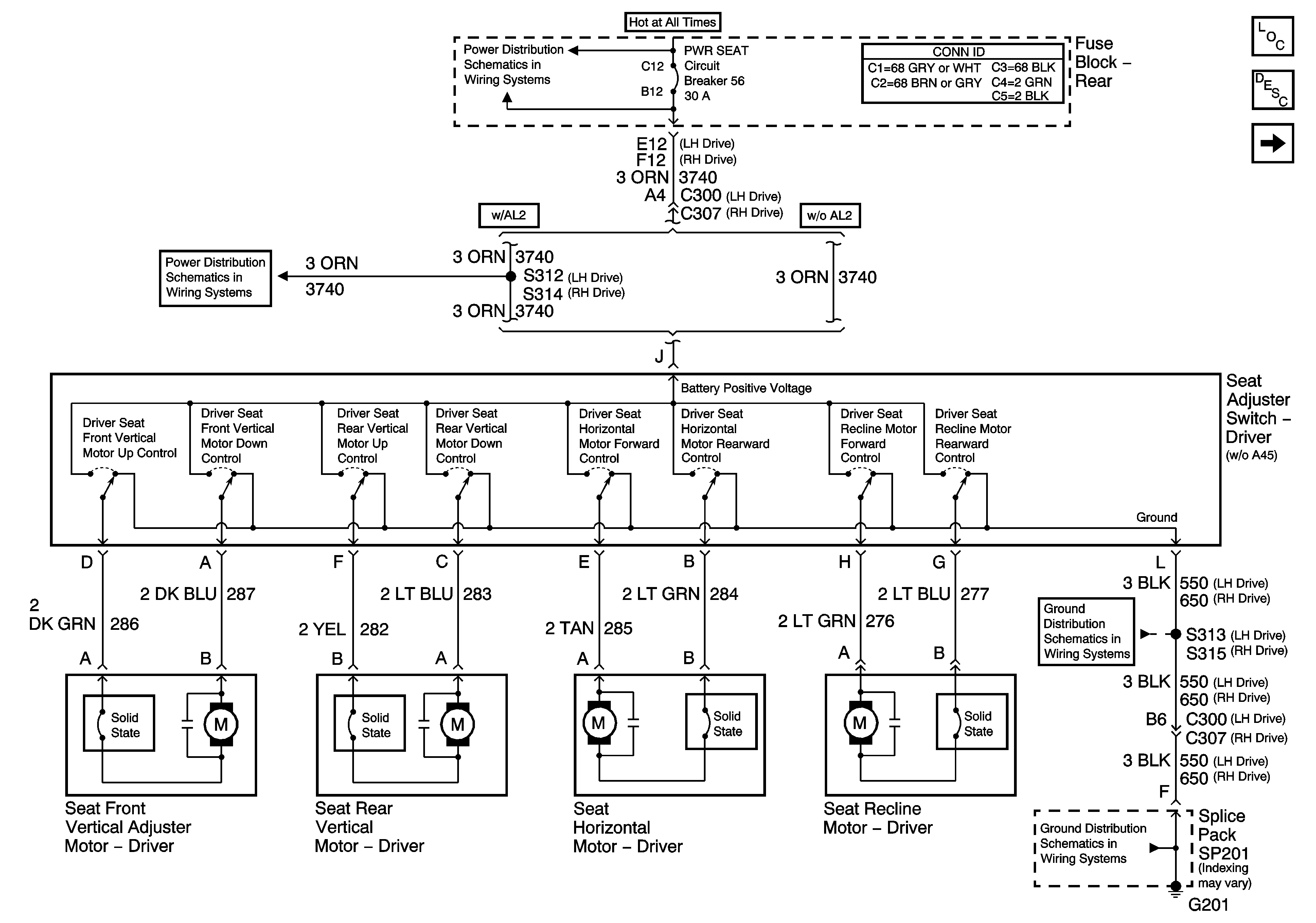

Figure 1:	Power Seat Master Electrical Component List

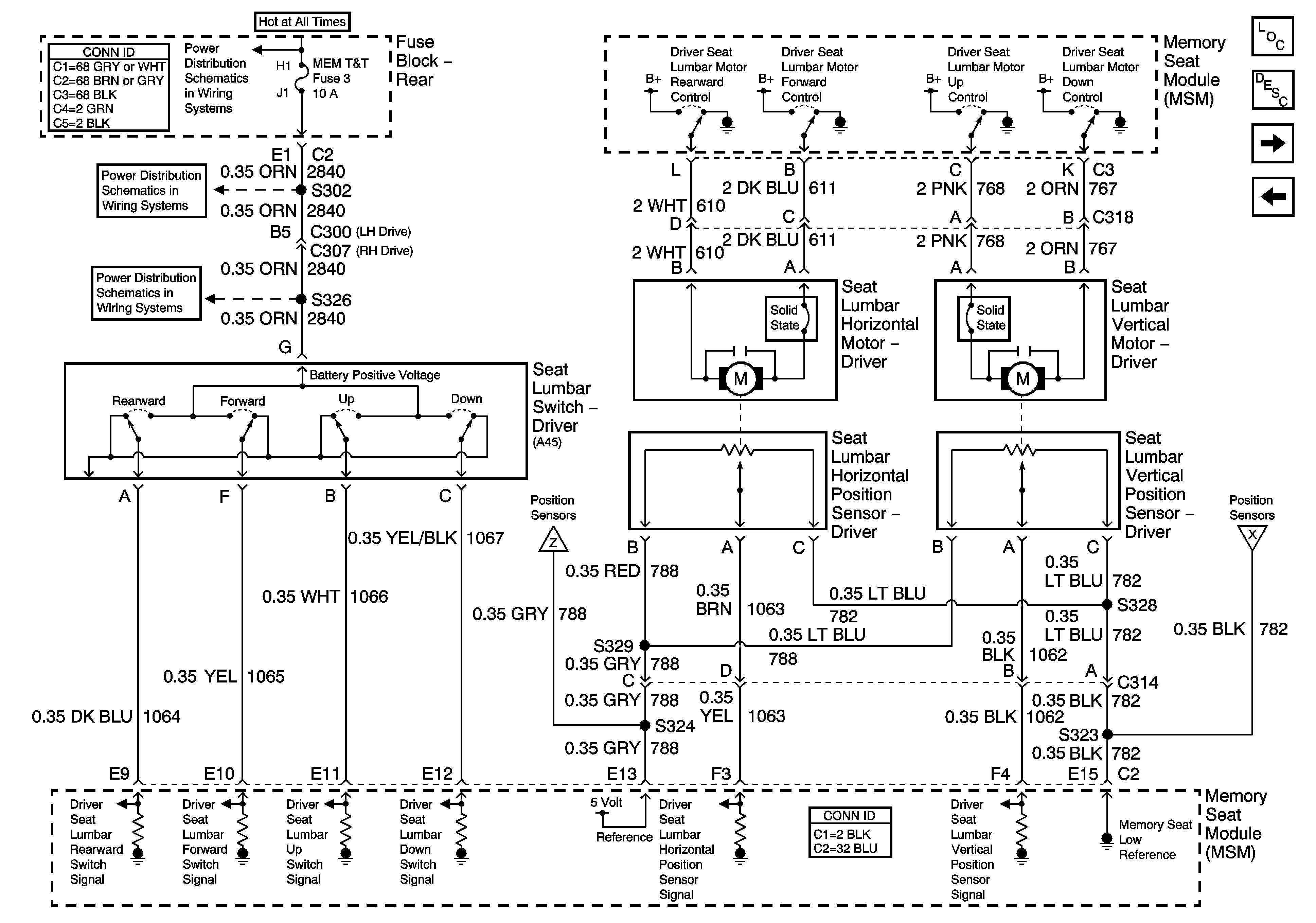

Figure 2:	Power Lumbar Seat Master Electrical Component List

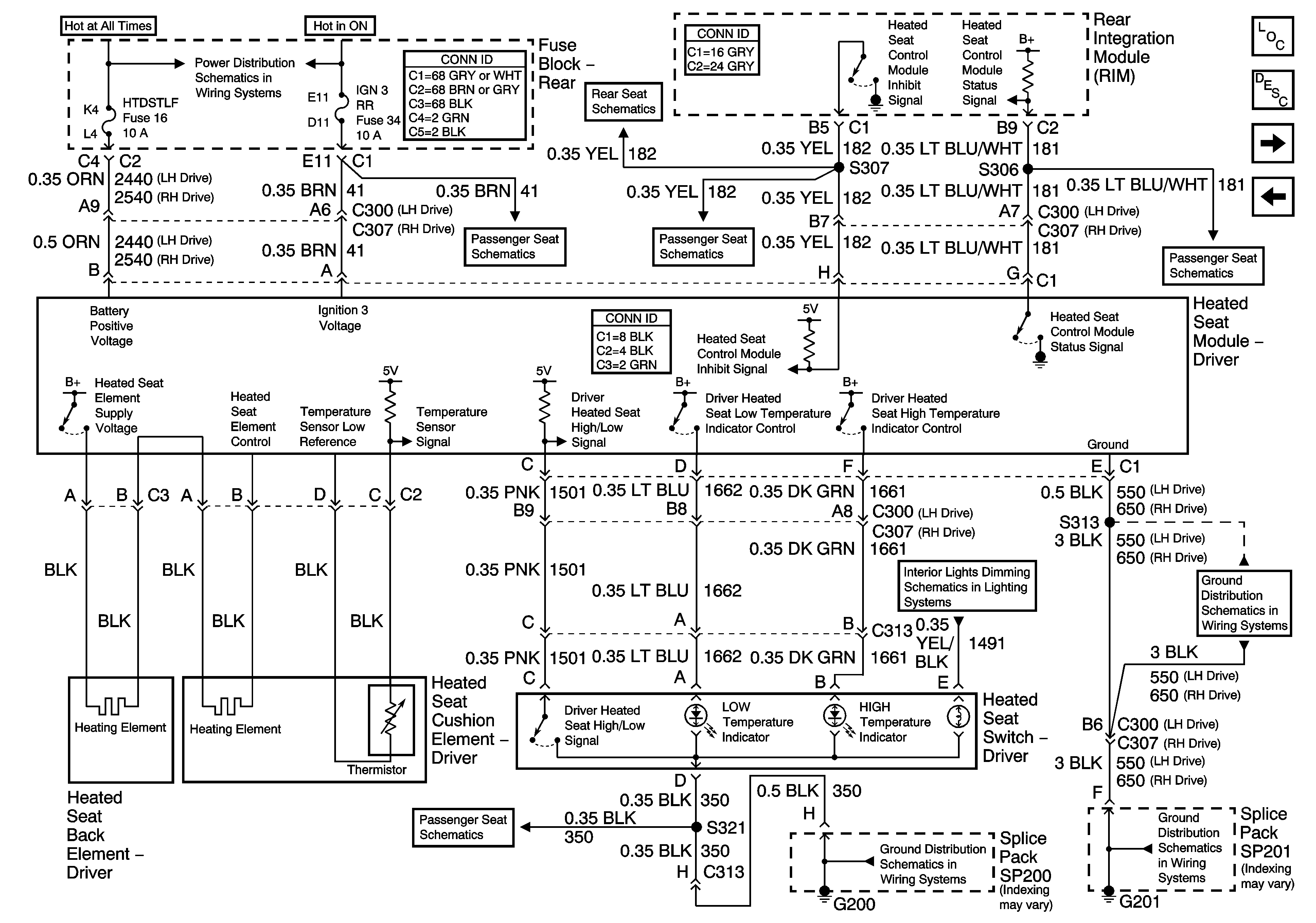

Figure 3:	Heated Seat Master Electrical Component List

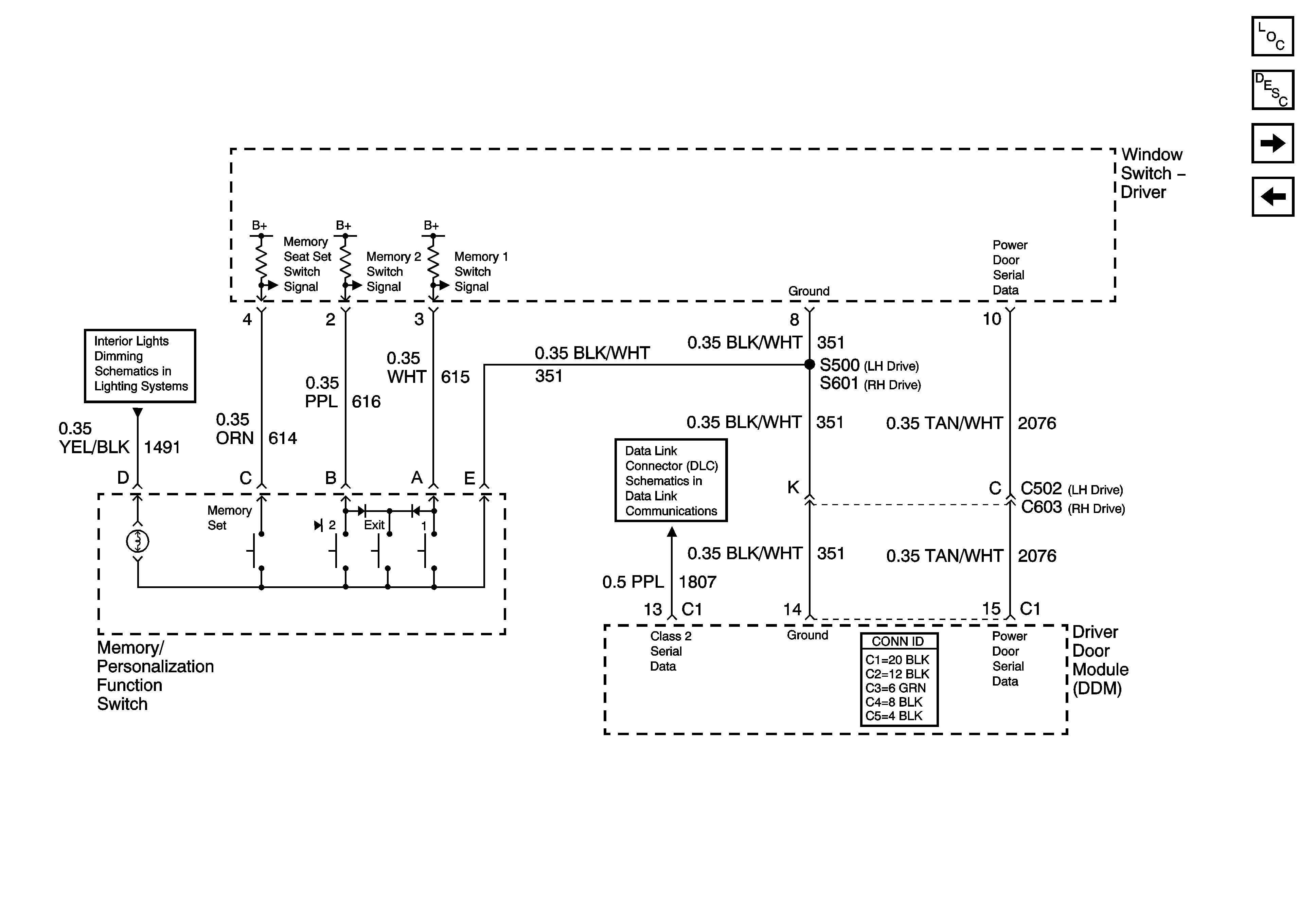

Figure 4:	Memory Seat -- Memory/Personalization Function Switch Master Electrical Component List

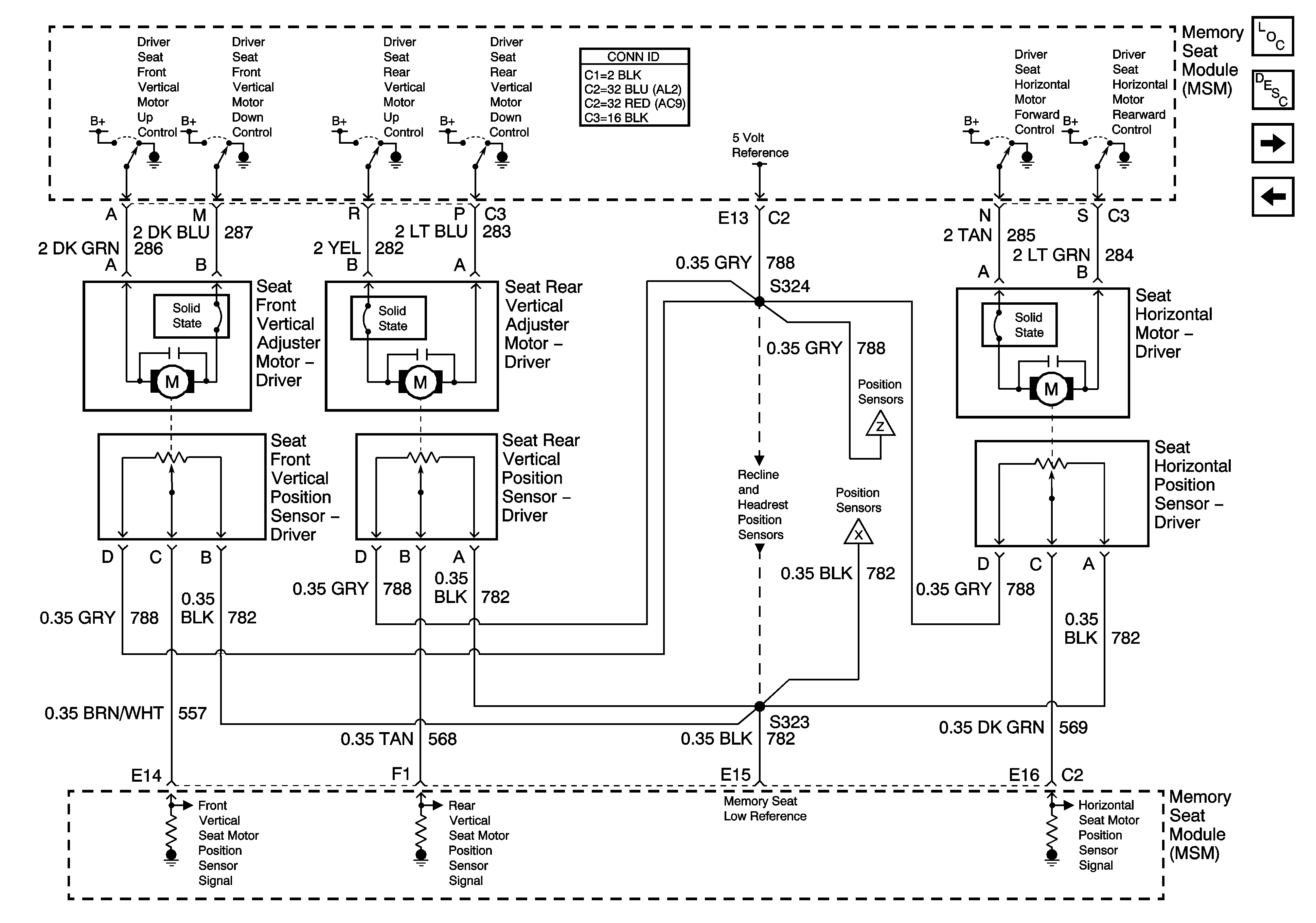

Figure 5:	Memory Seat -- Vertical and Horizontal Motors Master Electrical Component List

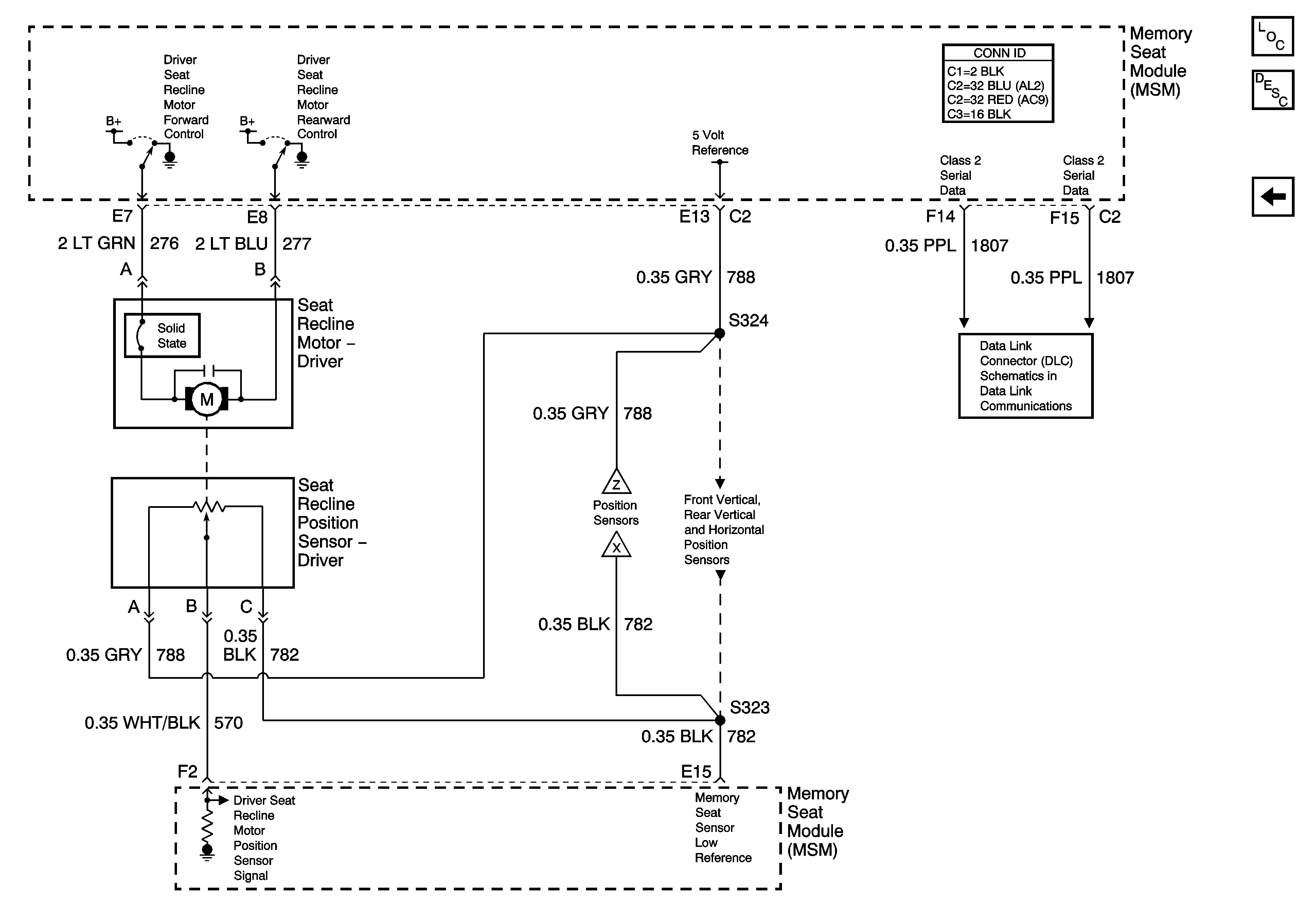

Figure 6:	Memory Seat -- Recline Motor Master Electrical Component List
