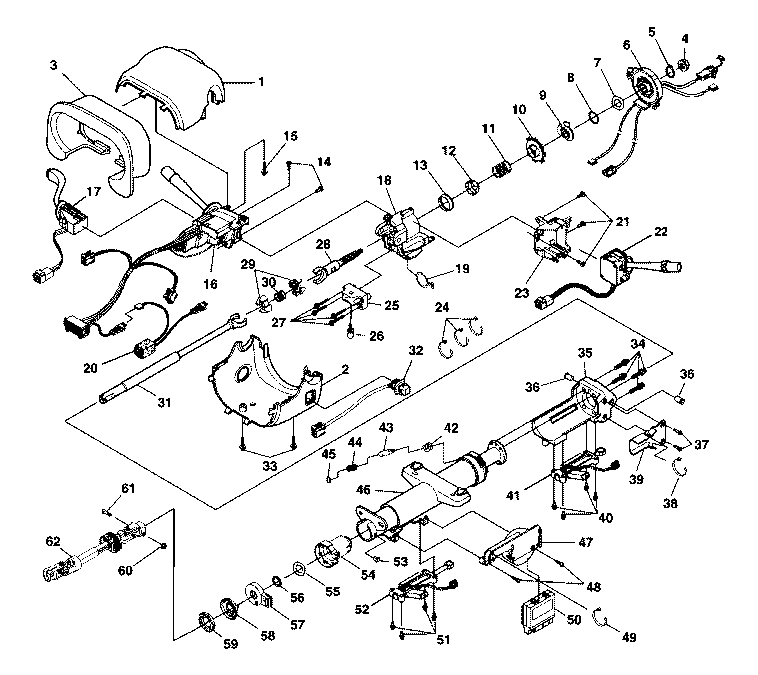

| (1) | Upper Trim Cover |
| (2) | Lower Trim Cover |
| (3) | Steering Column
Closeout Trim Cover |
| (4) | Flanged Prevailing Torque Nut |
| (5) | Retaining Ring |
| (6) | Inflatable Restraint Steering Wheel
Module Coil |
| (7) | Wave Washer |
| (8) | Bearing Retaining |
| (9) | Cam Orientation Plate |
| (10) | Turn Signal Cancel Cam Assembly |
| (11) | Upper Bearing Spring |
| (12) | Upper Bearing Inner Race Seat |
| (13) | Inner
Race |
| (14) | Pan Head Tapping Screw |
| (15) | TORX® Head Screw |
| (16) | Turn Signal
and Multifunction Switch Assembly |
| (17) | Cruise Control Switch Assembly |
| (18) | Upper
Tilt Head Assembly |
| (19) | Wire Harness Strap |
| (20) | Fused Jumper Assembly |
| (21) | Pan Head
Tapping Screw |
| (22) | Windshield Wiper and Washer Switch Assembly |
| (23) | Signal Switch Housing Assembly |
| (24) | Wire Harness Strap |
| (25) | Tilt Housing Adapter |
| (26) | Ball Stud |
| (27) | TORX®
Head Screw |
| (28) | Race and Upper Shaft Assembly |
| (29) | Centering Sphere |
| (30) | Joint Preload
Spring |
| (31) | Lower Steering Shaft Assembly |
| (32) | Power TNT Toggle Switch Assembly |
| (33) | Pan Head Tapping Screw |
| (34) | TORX® Head Screw |
| (35) | Steering Column Support Assembly |
| (36) | Pivot Pin |
| (36) | Pivot Pin |
| (37) | Pan Head Tapping Screw |
| (38) | Wire Harness Strap |
| (39) | Upper Wire
Shield |
| (40) | TORX® Head Screw |
| (41) | Tilt Actuator Assembly |
| (42) | Anti Rotation
Ball |
| (43) | Anti Rotation Pin |
| (44) | Compression Spring |
| (45) | Retaining Ring |
| (46) | Telebearing and Jacket Assembly |
| (47) | Lower Wire Shield |
| (48) | Pan Head Tapping Screw |
| (49) | Wire Harness
Strap |
| (50) | Entertainment and Comfort Interface Module Assembly |
| (51) | TORX®
Head Screw |
| (52) | Telescope Actuator Assembly |
| (53) | Housing Blocking Plug Switch |
| (54) | Adapter and Bearing Assembly |
| (55) | Bearing Preload Washer |
| (56) | Lower Spring Retaining |
| (57) | Dual Triangle Sensor Assembly |
| (58) | Sensor Retainer |
| (59) | Steering Shaft Seal |
| (60) | Pinch Bolt
Nut |
| (61) | Bolt and Retainer Assembly |
| (62) | Intermediate Steering Shaft Assembly |
