Makes 🢒 Cadillac 🢒 1998 🢒 Seville - RHD 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Ground Distribution Schematics

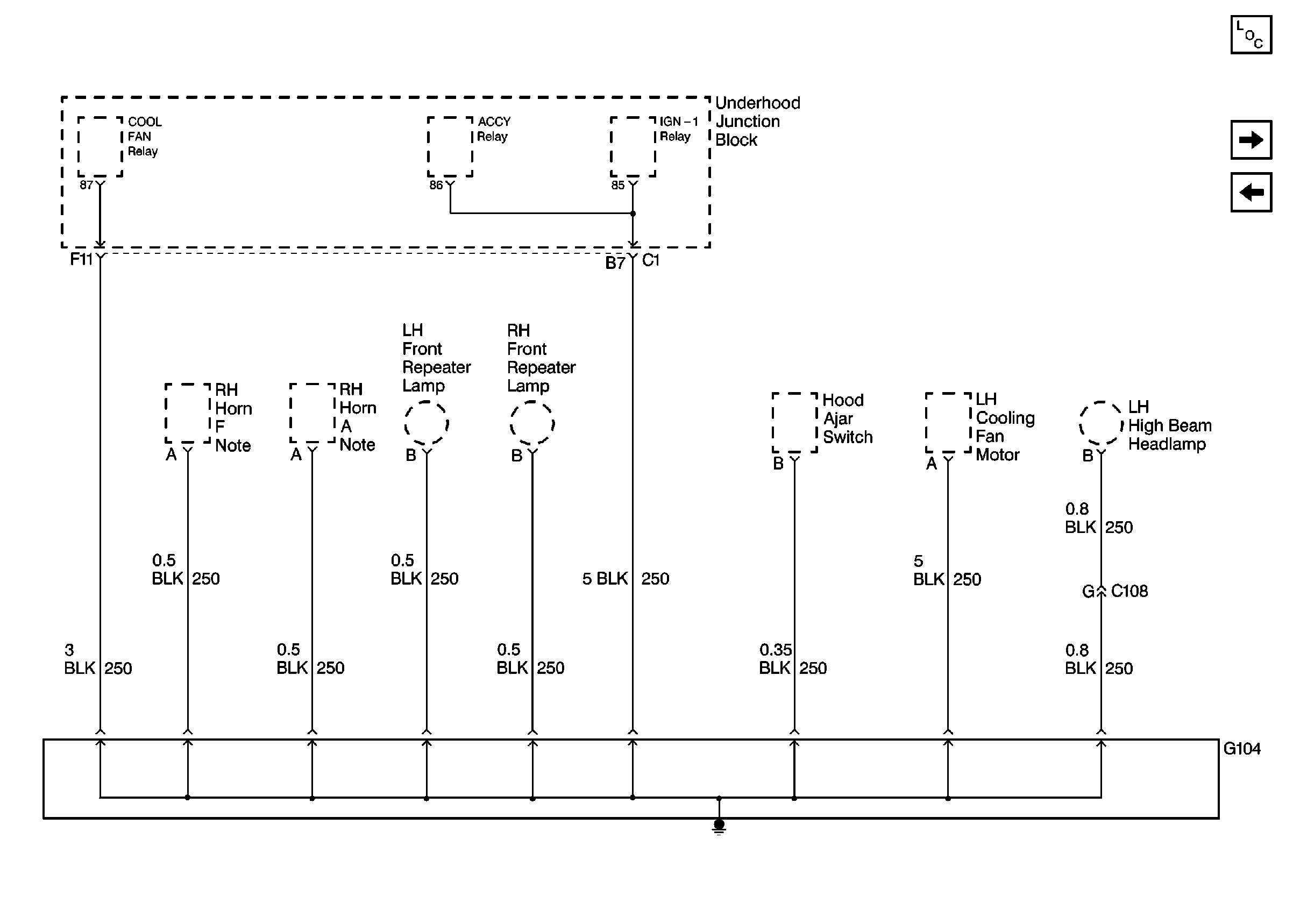

Figure 1:

Cell 14: G104
Object Number: 289229 Size: FS
Figure 2:

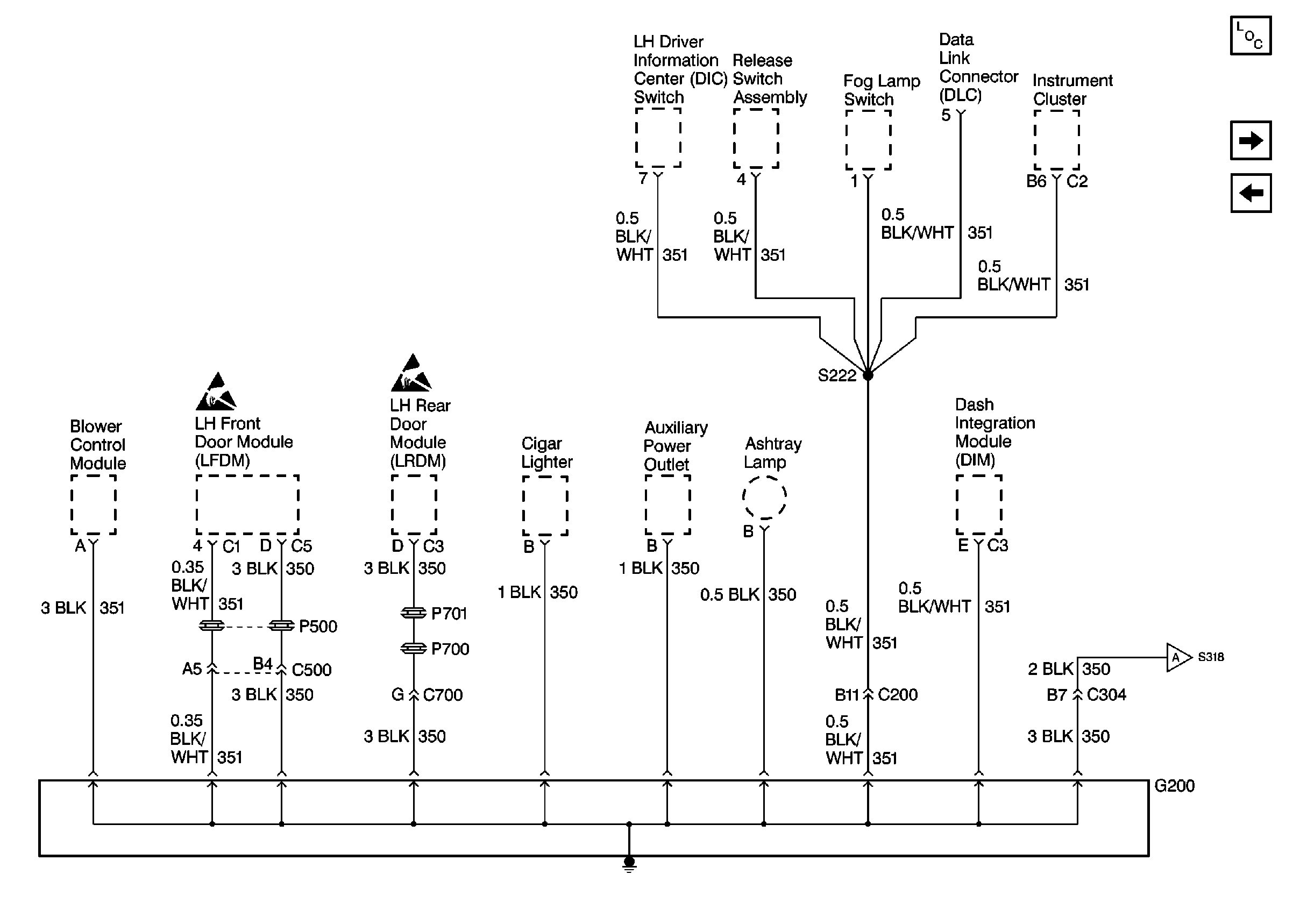

Cell 14: G200
Object Number: 289215 Size: FS

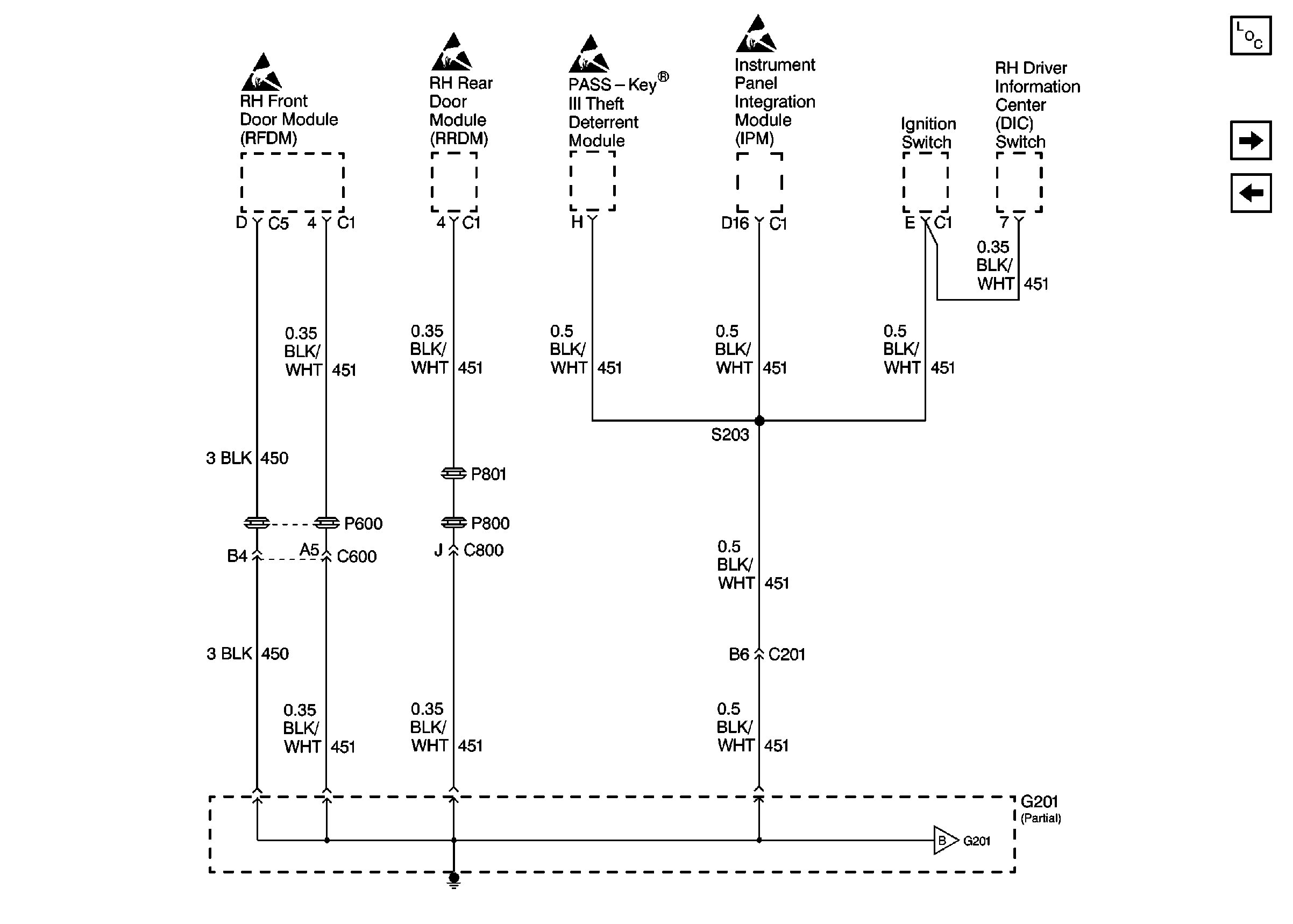

Figure 3:

Cell 14: G201 (1 of 3)
Object Number: 289232 Size: FS
Figure 4:

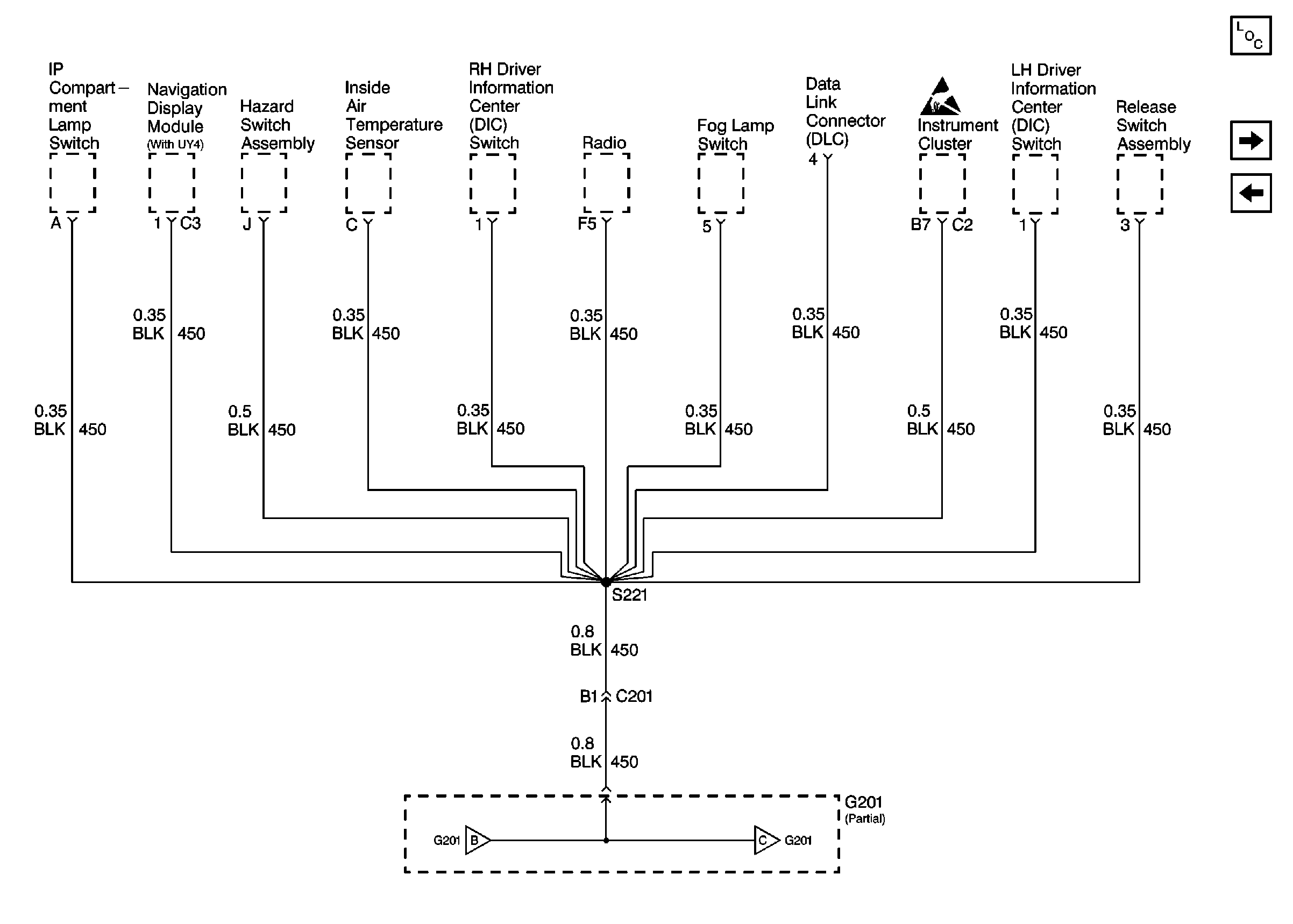

Cell 14: G201 (2 of 3)
Object Number: 289233 Size: FS

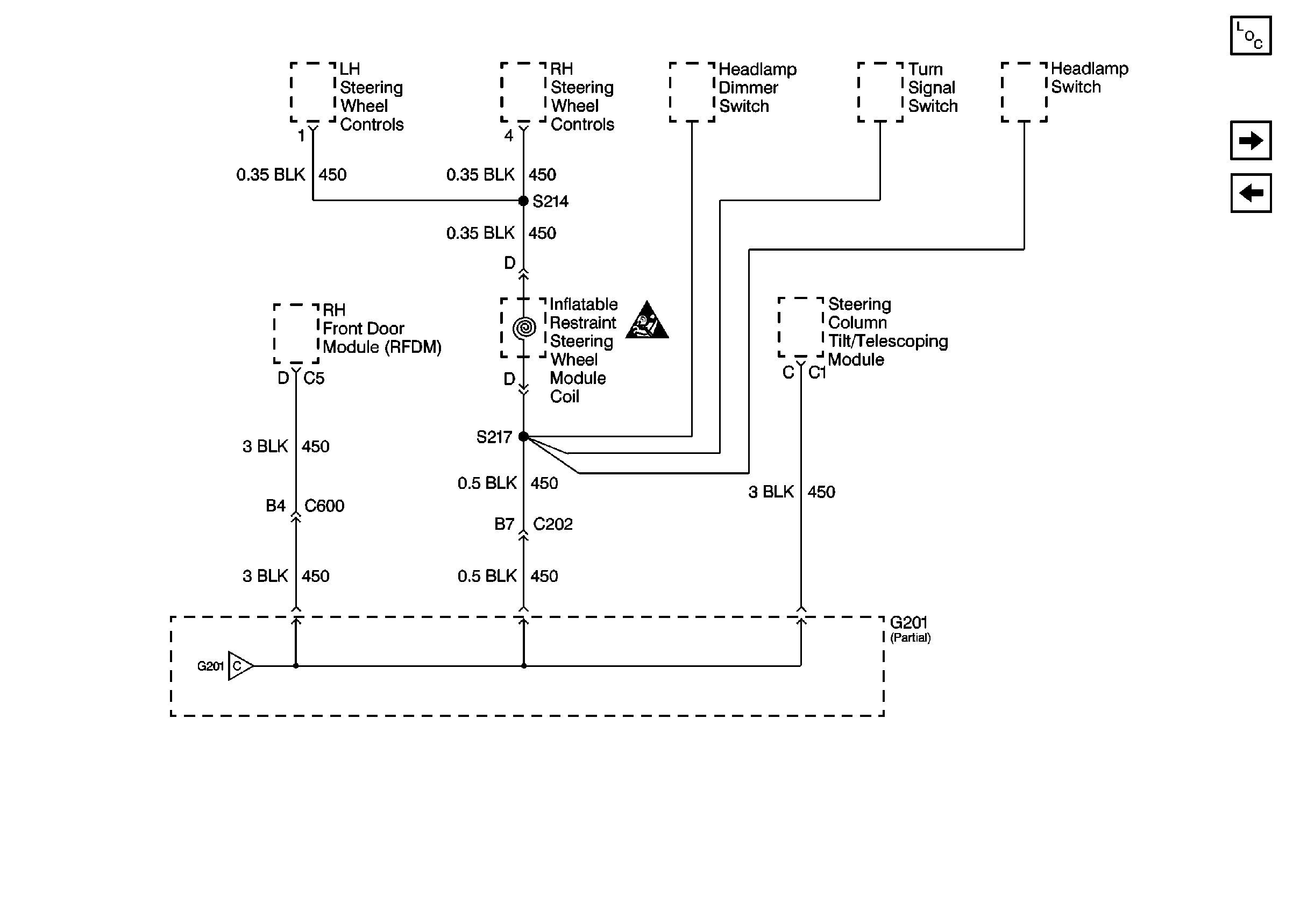

Figure 5:

Cell 14: G201 (3 of 3)
Object Number: 289235 Size: FS

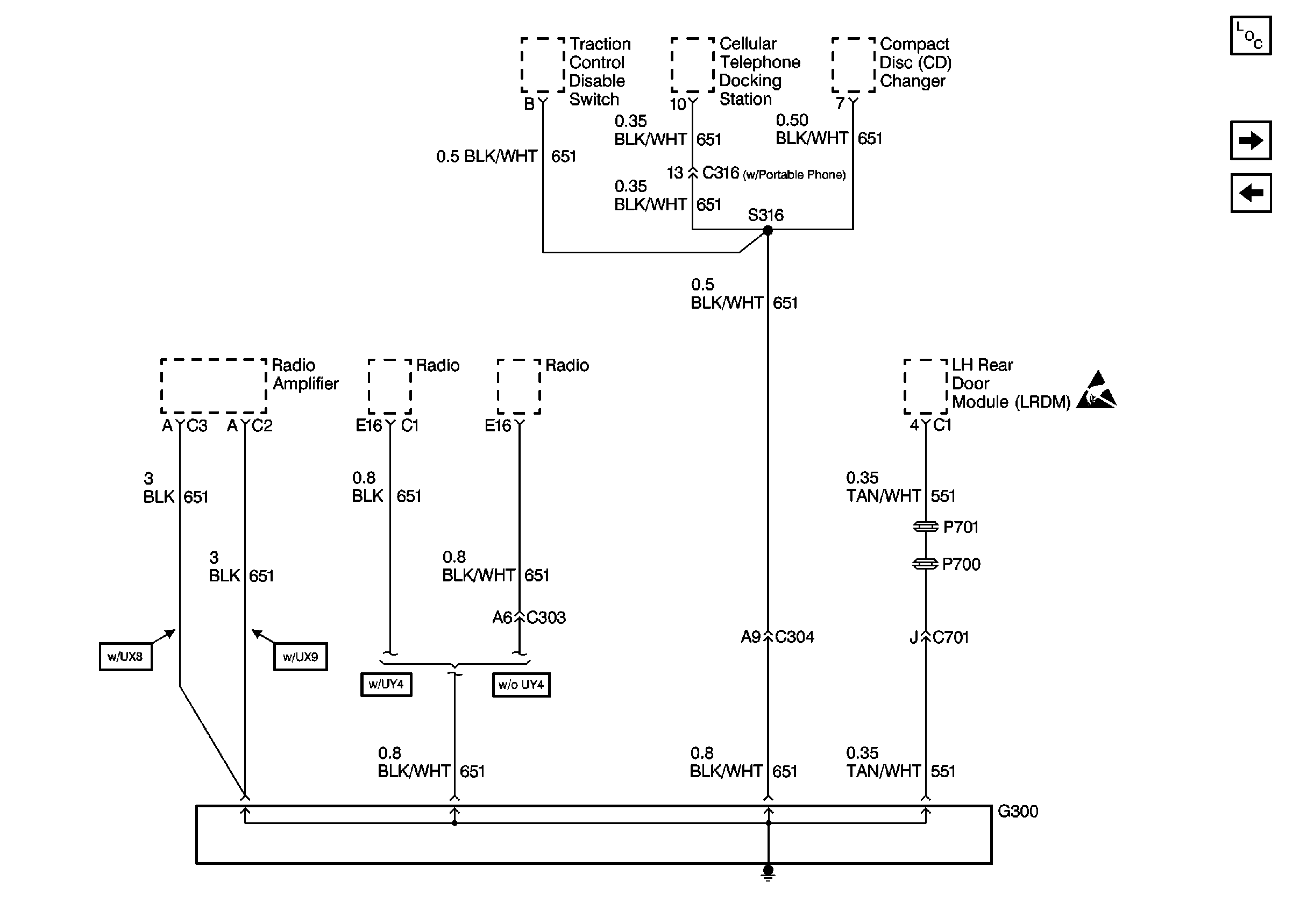

Figure 6:

Cell 14: G300
Object Number: 289230 Size: FS

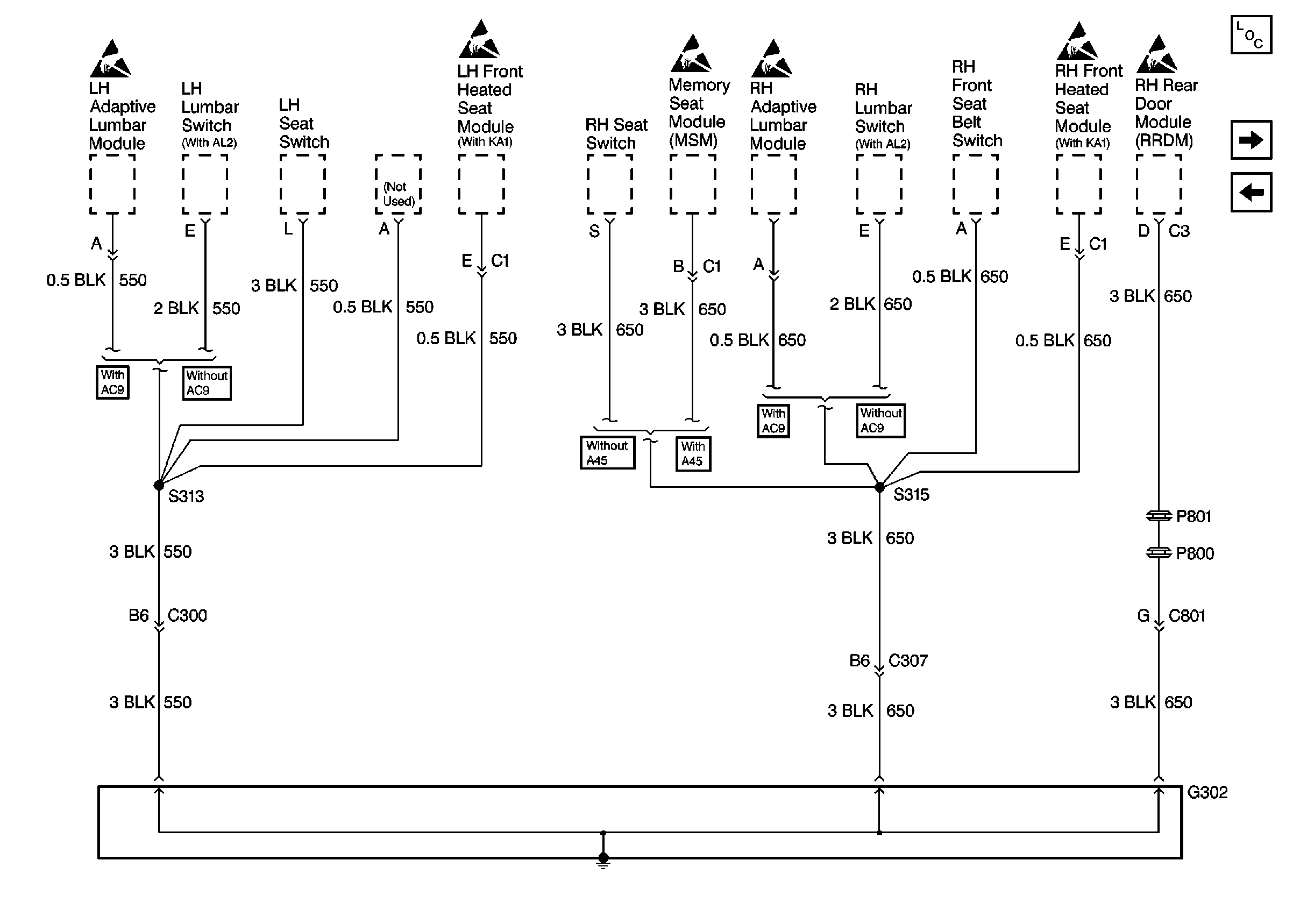

Figure 7:

Cell 14: G302
Object Number: 291179 Size: FS

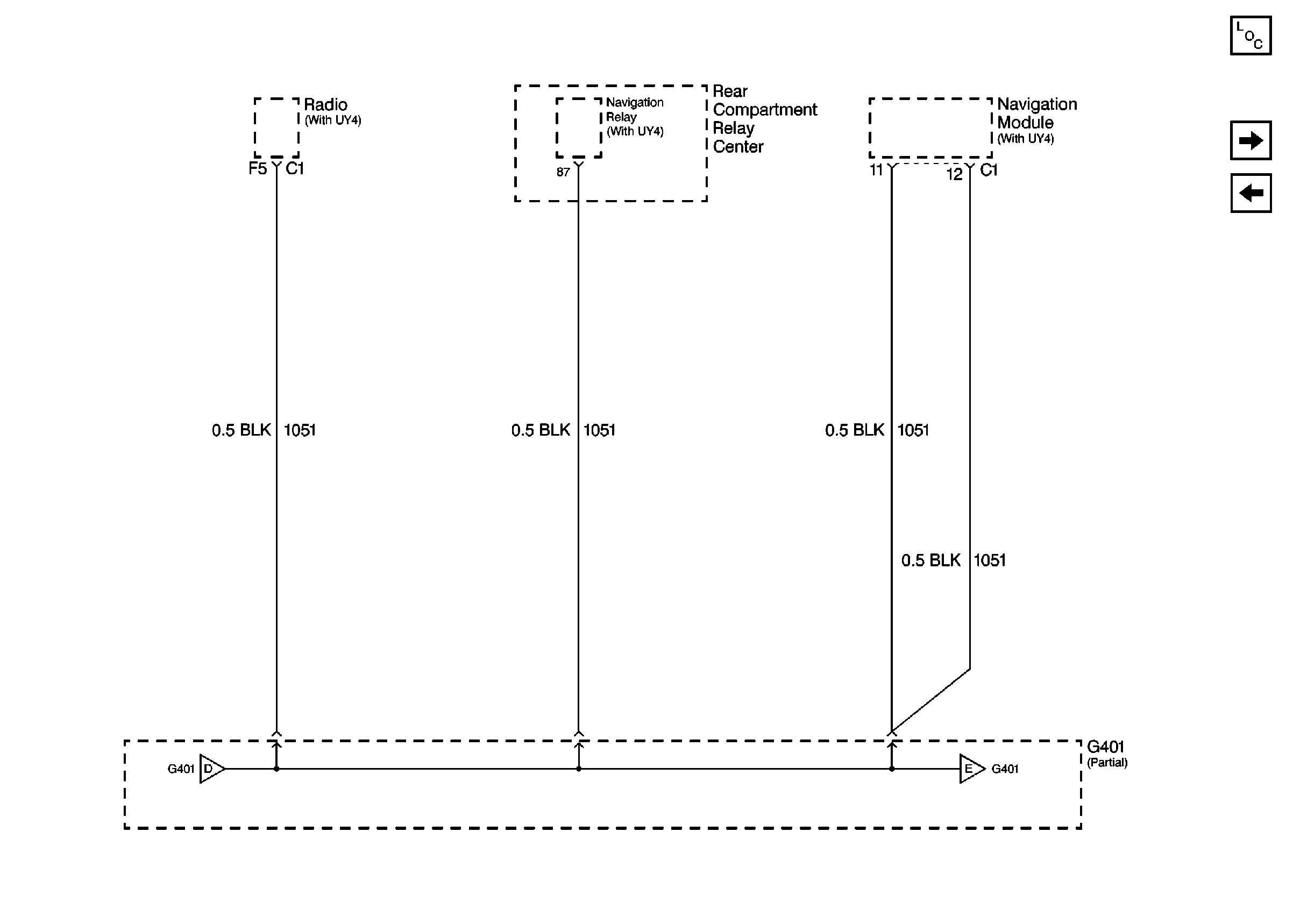

Figure 8:

Cell 14: G401 (1 of 2)
Object Number: 289237 Size: FS

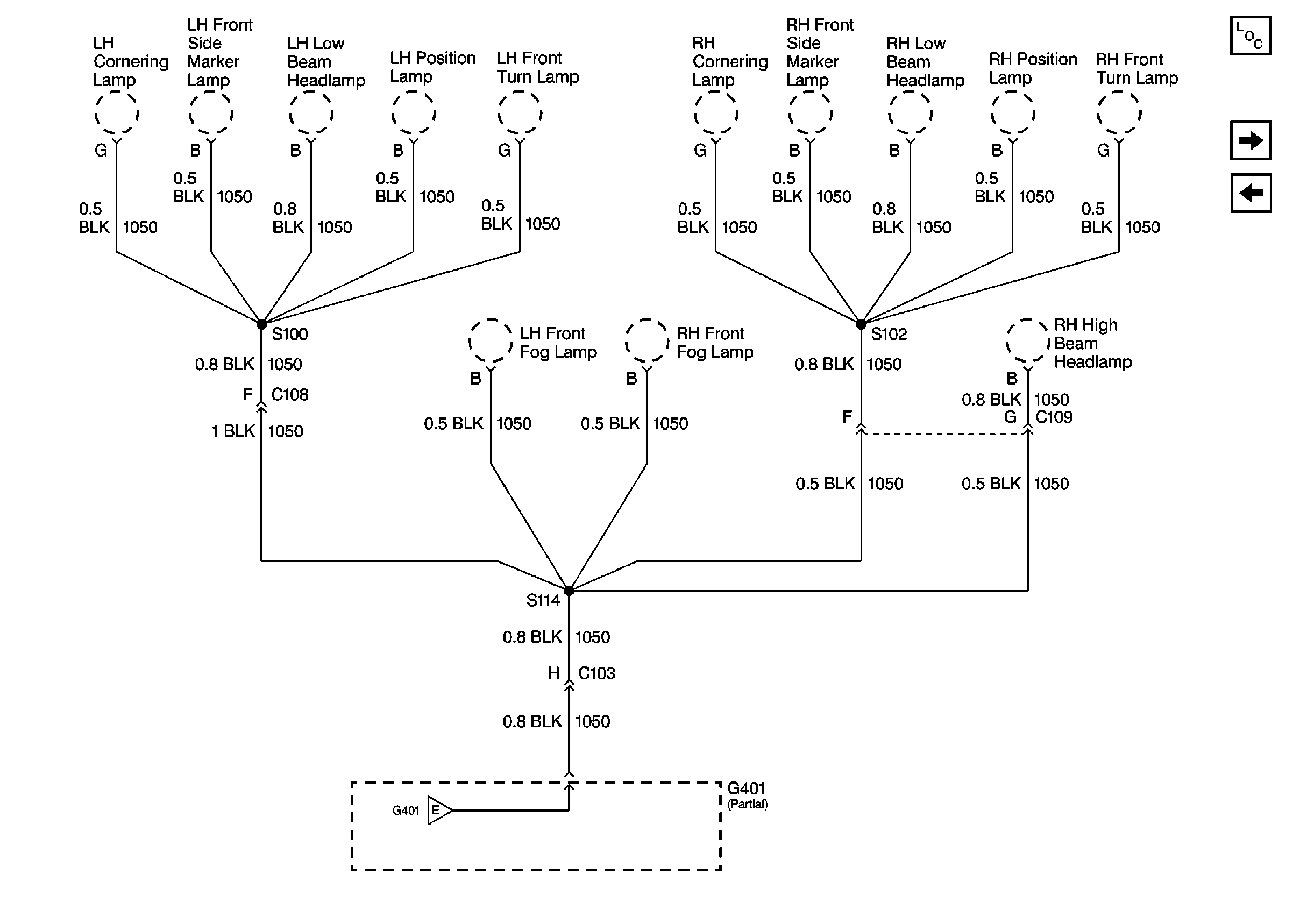

Figure 9:

Cell 14: G401 (2 of 2)
Object Number: 289239 Size: FS

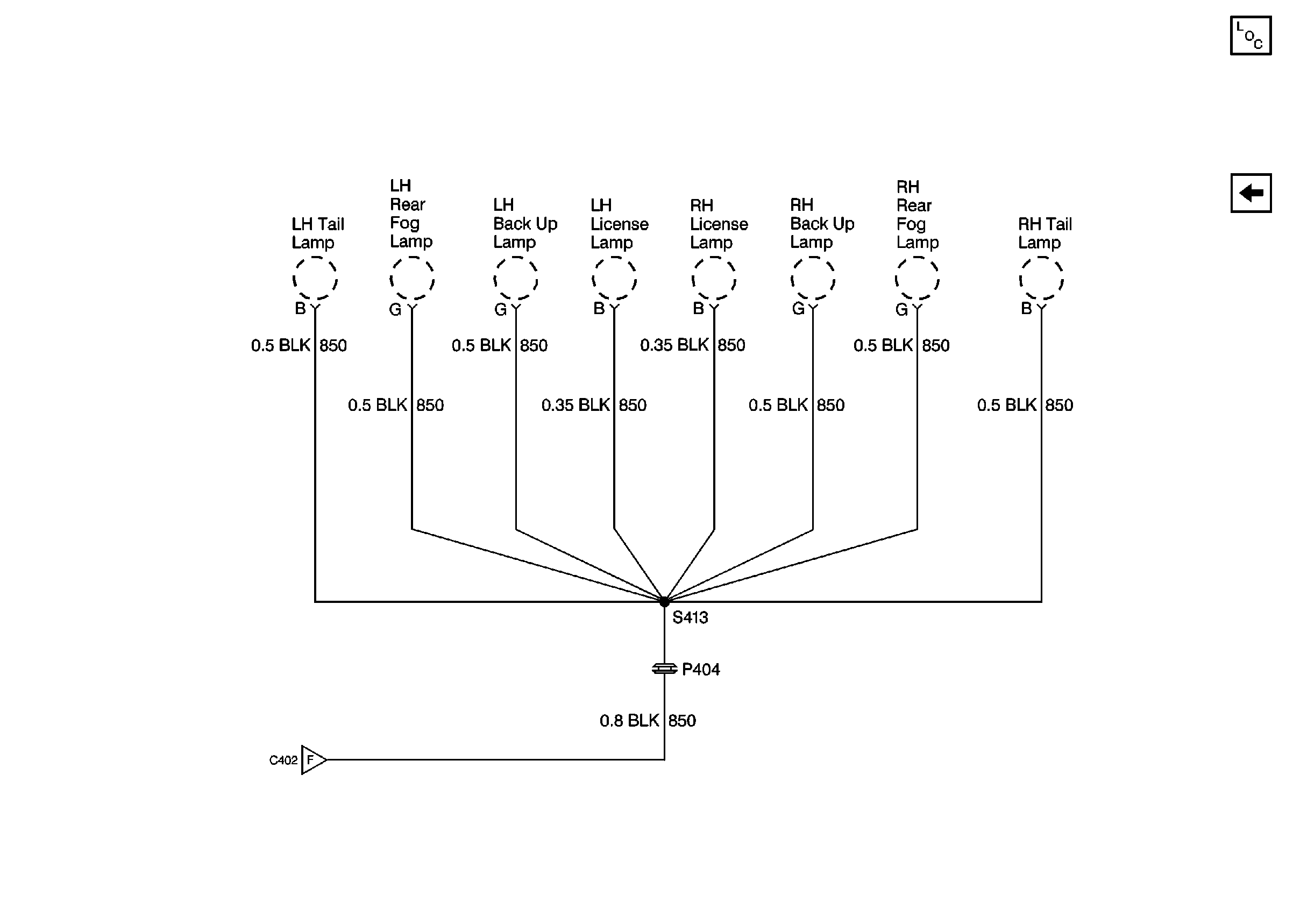

Figure 10:

Cell 14: G402 (2 of 2)
Object Number: 289243 Size: FS
