Interior Lights Schematics. Cadillac Seville - RHD 2001

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2001 🢒 Seville - RHD 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Interior Lights Schematics

Figure 1:	Door Lock Actuators Interior Lamp Relays Lighting Systems Component Views Interior Lighting Systems Description and Operation Power Door Serial Data Class 2 Serial Data Line (LH Drive) (2 of 2)

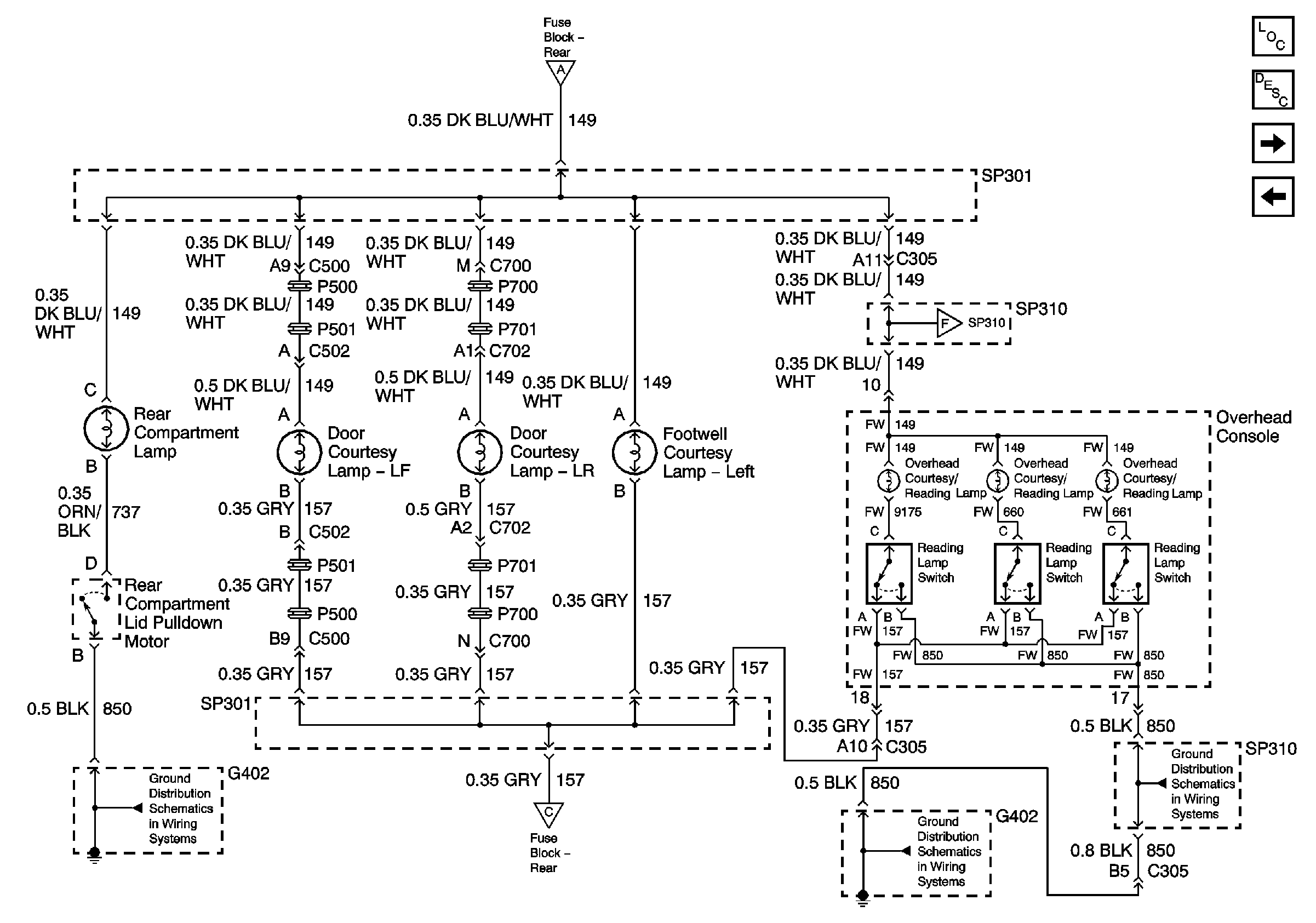

Figure 2:	Interior Lamp Relays Door Lock Actuators Rear Compartment, Courtesy, and Overhead Console Lamps Lighting Systems Component Views Interior Lighting Systems Description and Operation Rear Compartment, Courtesy, and Overhead Console Lamps Right Courtesy, Compartment, and Ignition Key Cylinder Lamps Vanity and Reading Lamps; Interior Lamp Switch Battery Feeds Rear Compartment, Courtesy, and Overhead Console Lamps Right Courtesy, Compartment, and Ignition Key Cylinder Lamps Class 2 Serial Data Line (LH Drive) (1 of 2) G301
Figure 3:	Rear Compartment, Courtesy, and Overhead Console Lamps Interior Lamp Relays Vanity and Reading Lamps; Interior Lamp Switch Lighting Systems Component Views Interior Lighting Systems Description and Operation Interior Lamp Relays Vanity and Reading Lamps; Interior Lamp Switch G402 (1 of 2) Interior Lamp Relays G402 (1 of 2) G402 (1 of 2)
Figure 4:	Vanity and Reading Lamps; Interior Lamp Switch Rear Compartment, Courtesy, and Overhead Console Lamps Right Courtesy, Compartment, and Ignition Key Cylinder Lamps Lighting Systems Component Views Interior Lighting Systems Description and Operation Rear Compartment, Courtesy, and Overhead Console Lamps Class 2 Serial Data Line (LH Drive) (1 of 2) Interior Lamp Relays G402 (1 of 2) G402 (1 of 2) G402 (1 of 2)
Figure 5:	Right Courtesy, Compartment, and Ignition Key Cylinder Lamps Vanity and Reading Lamps; Interior Lamp Switch Lighting Systems Component Views Interior Lighting Systems Description and Operation Interior Lamp Relays Power to Underhood Fuse Block EXPORT BRK, PCM BATT, I/P, and ABS Fuses Interior Lamp Relays G201 (2 of 3) G201 (2 of 3)
