Navigation System Schematics. Cadillac Seville

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2002 🢒 Seville - RHD 🢒 Body and Accessories 🢒 Navigation Systems 🢒 Navigation System Schematics

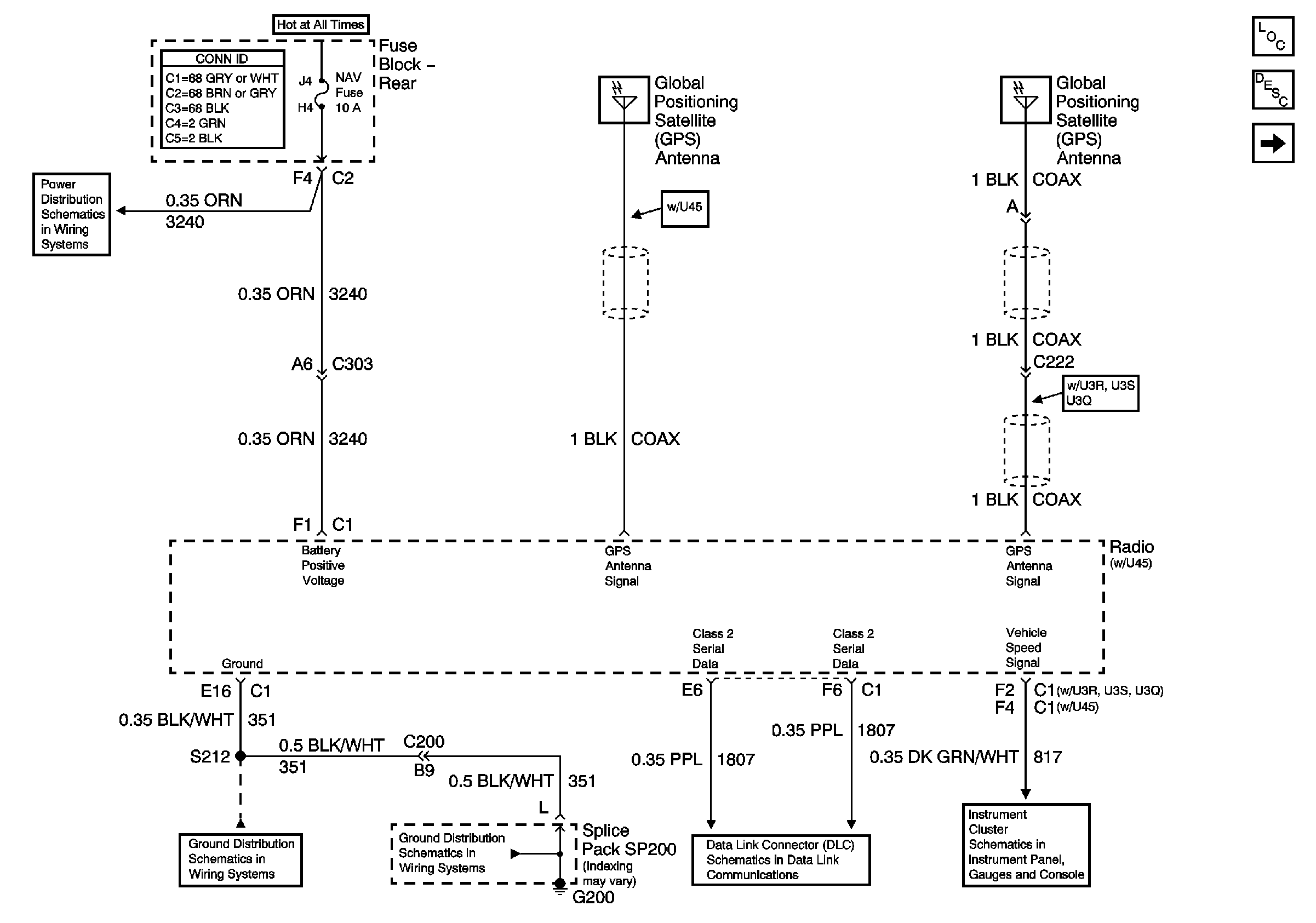

Figure 1:	Power, Ground, Components and GPS Master Electrical Component List Navigation System Description and Operation Auxiliary RCA Video Jacks and Export Microphone PCM Signals Class 2 Serial Data Line (LH Drive) (1 of 2) G200 G200 NAV and EXPORT BRK Fuses
Figure 2:	Auxiliary RCA Video Jacks and Export Microphone Master Electrical Component List Navigation System Description and Operation Domestic Microphone Power, Ground, Components and GPS
Figure 3:	Domestic Microphone Master Electrical Component List Navigation System Description and Operation TV Antenna Module Auxiliary RCA Video Jacks and Export Microphone
Figure 4:	TV Antenna Module Master Electrical Component List Navigation System Description and Operation Traffic Information Receiver (VICS) Domestic Microphone

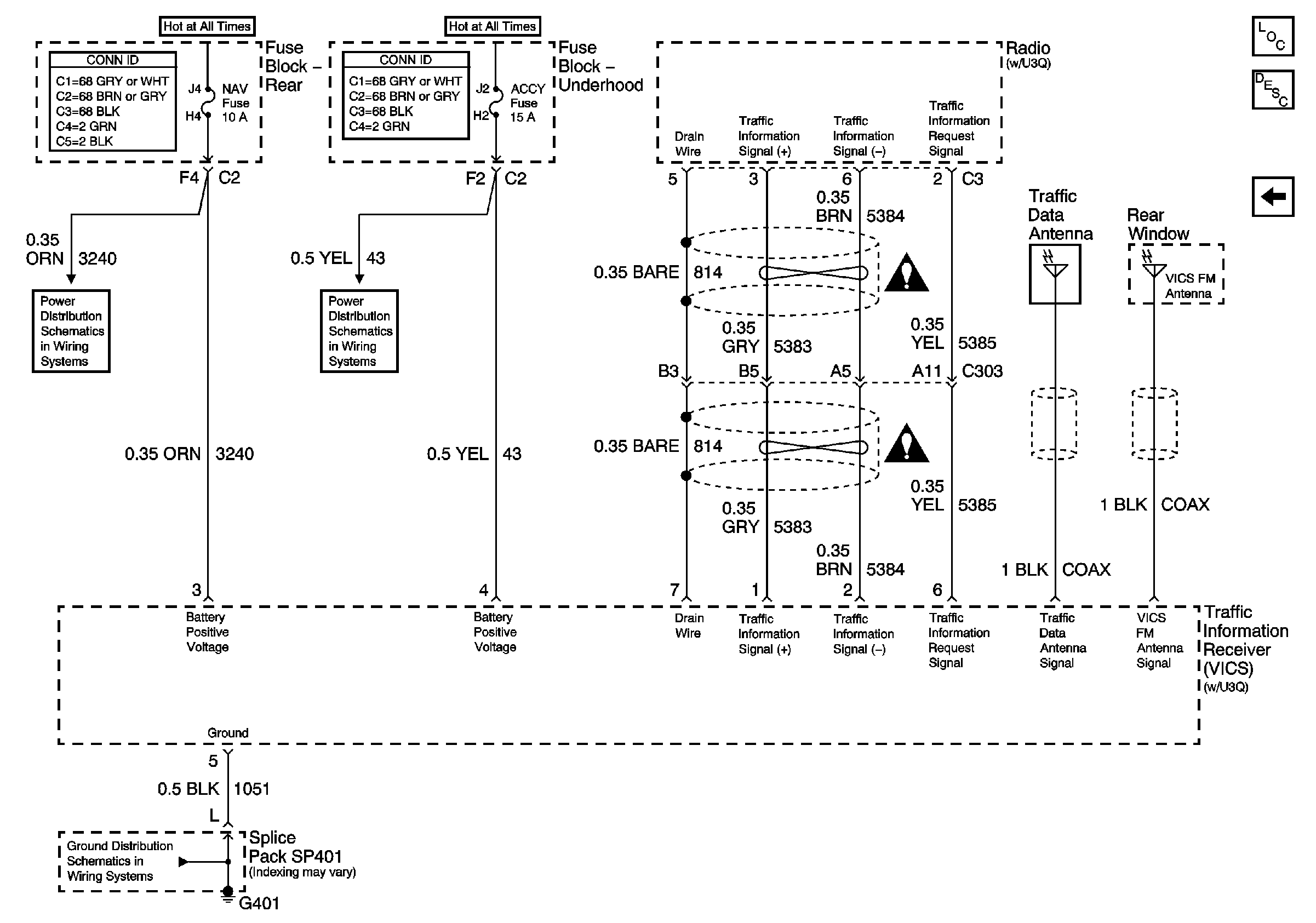

Figure 5:	Traffic Information Receiver (VICS) TV Antenna Module
