Makes 🢒 Cadillac 🢒 2005 🢒 XLR 🢒 Body 🢒 Roof 🢒 Folding Top Disassembled View

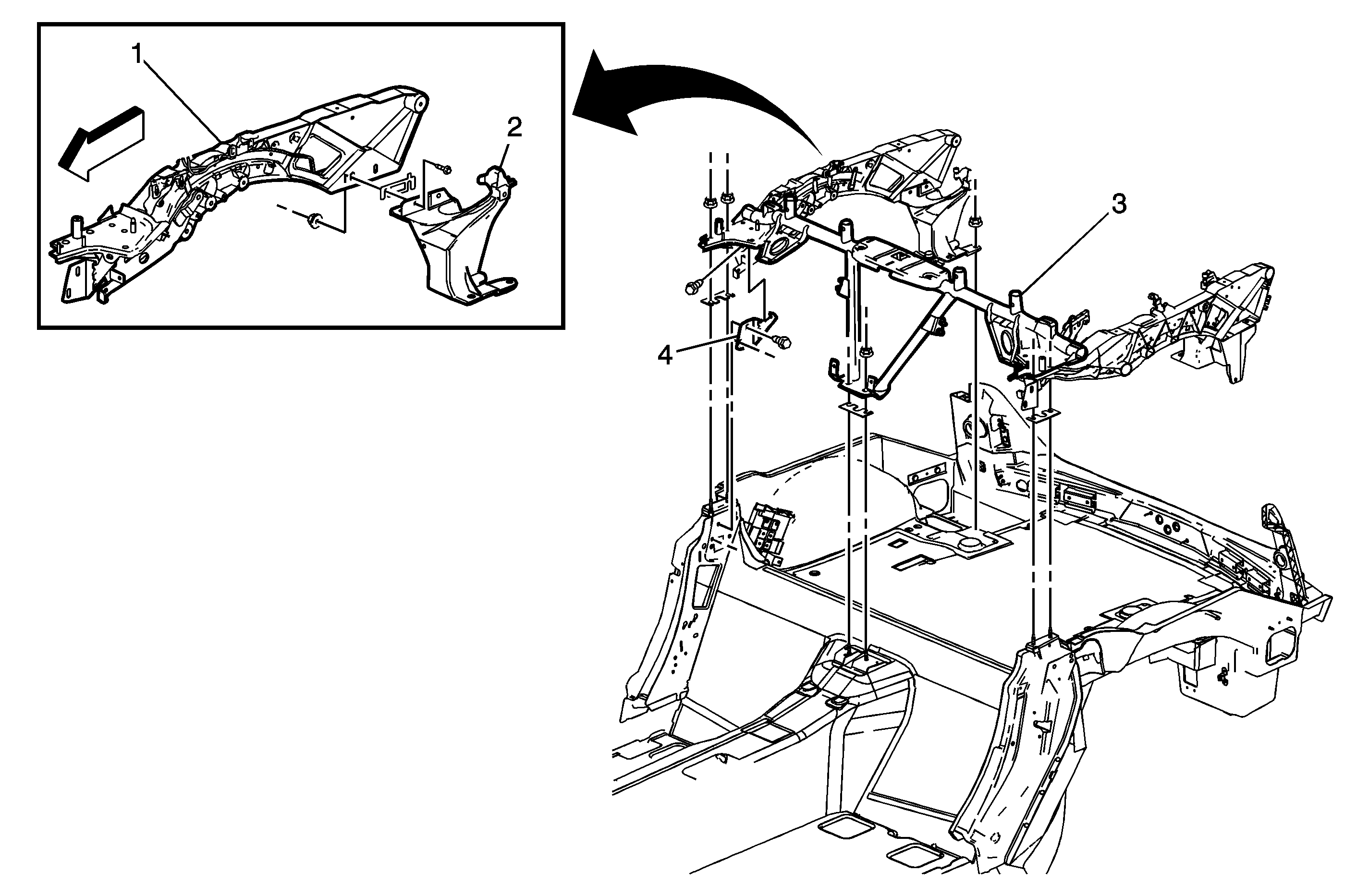

Figure 1:

Folding Top Structure
Object Number: 1373126 Size: MF
(1)Folding Top Quarter Longitudinal Frame Support
(2)Folding Top Quarter Frame Support
(3)Non-Serviced Part of Folding Top Module Assembly
(4)Folding Top Support Bracket

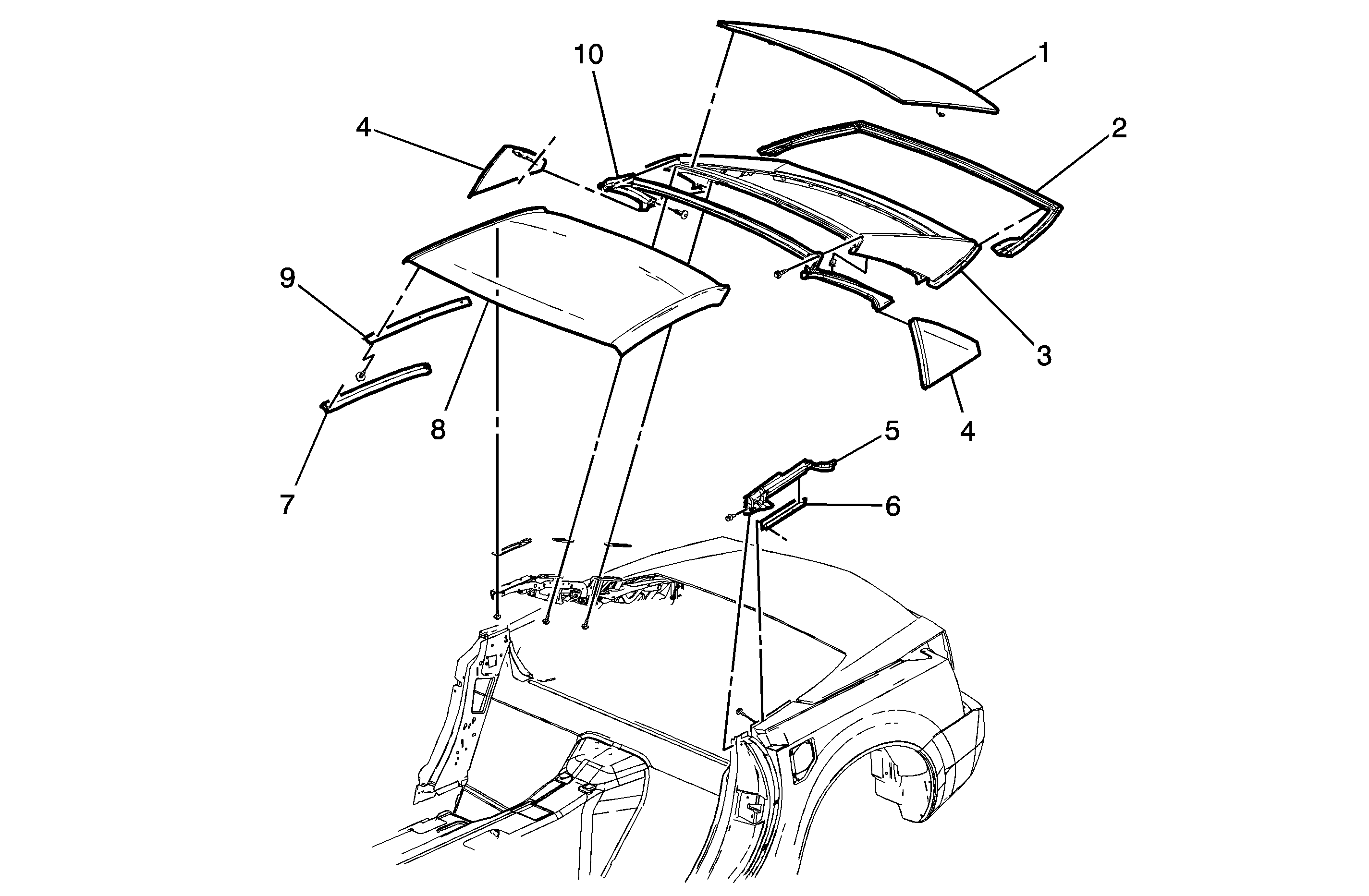

Figure 2:

Folding Top Front Compartment
Object Number: 1373127 Size: MF
(1)Folding Top Rear Window
(2)Folding Top Rear Panel Weatherstrip -- Lower
(3)Folding Top Panel -- Rear
(4)Folding Top Quarter Window
(4)Folding Top Quarter Window
(5)Quarter Window Outer Belt Sealing Strip
(6)Quarter Window Outer Belt Sealing Strip Retainer
(7)Folding Top Weatherstrip -- Side Front
(8)Folding Top Panel -- Front
(9)Folding Top Weatherstrip Retainer -- Side Front
(10)Folding Top Rear Panel Weatherstrip -- Upper

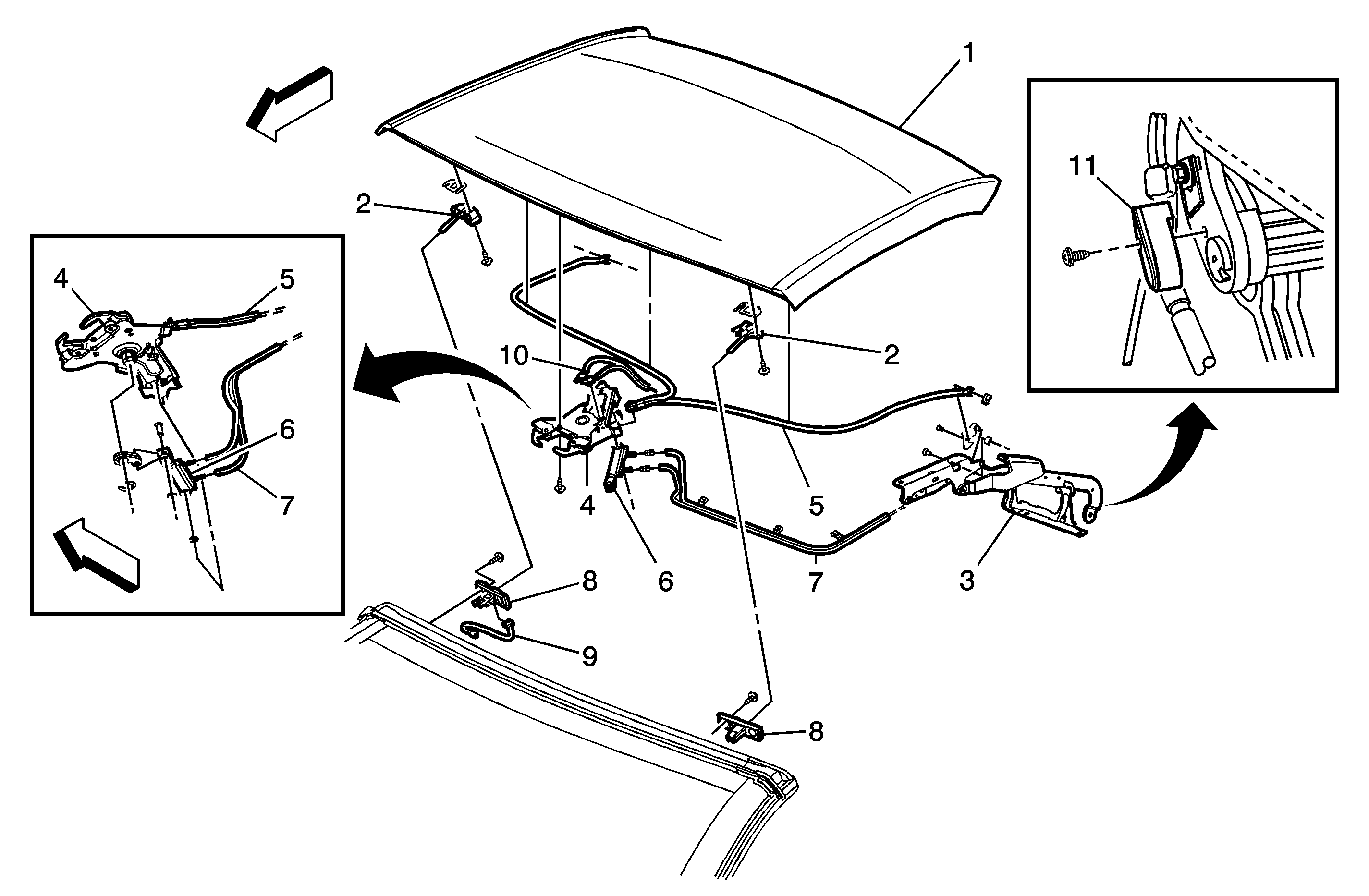

Figure 3:

Folding Top Front Compartment Latching
Object Number: 1373128 Size: MF
(1)Folding Top Panel -- Front
(2)Folding Top Locating Pin -- Front
(2)Folding Top Locating Pin -- Front
(3)Folding Top Panel Link -- Front
(4)Folding Top Latch -- Front
(4)Folding Top Latch -- Front
(5)Folding Top Latch Cable -- Front
(5)Folding Top Latch Cable -- Front
(6)Folding Top Latch Hydraulic Cylinder -- Front
(6)Folding Top Latch Hydraulic Cylinder -- Front
(7)Folding Top Hydraulic Cylinder Hose -- All
(7)Folding Top Hydraulic Cylinder Hose -- All
(8)Folding Top Locating Pin Receiver -- Front
(8)Folding Top Locating Pin Receiver -- Front
(9)Folding Top Locating Pin Receiver Position Sensor Switch -- Front
(10)Folding Top Latch Position Sensor Switch -- Front
(11)Folding Top Potentiometer

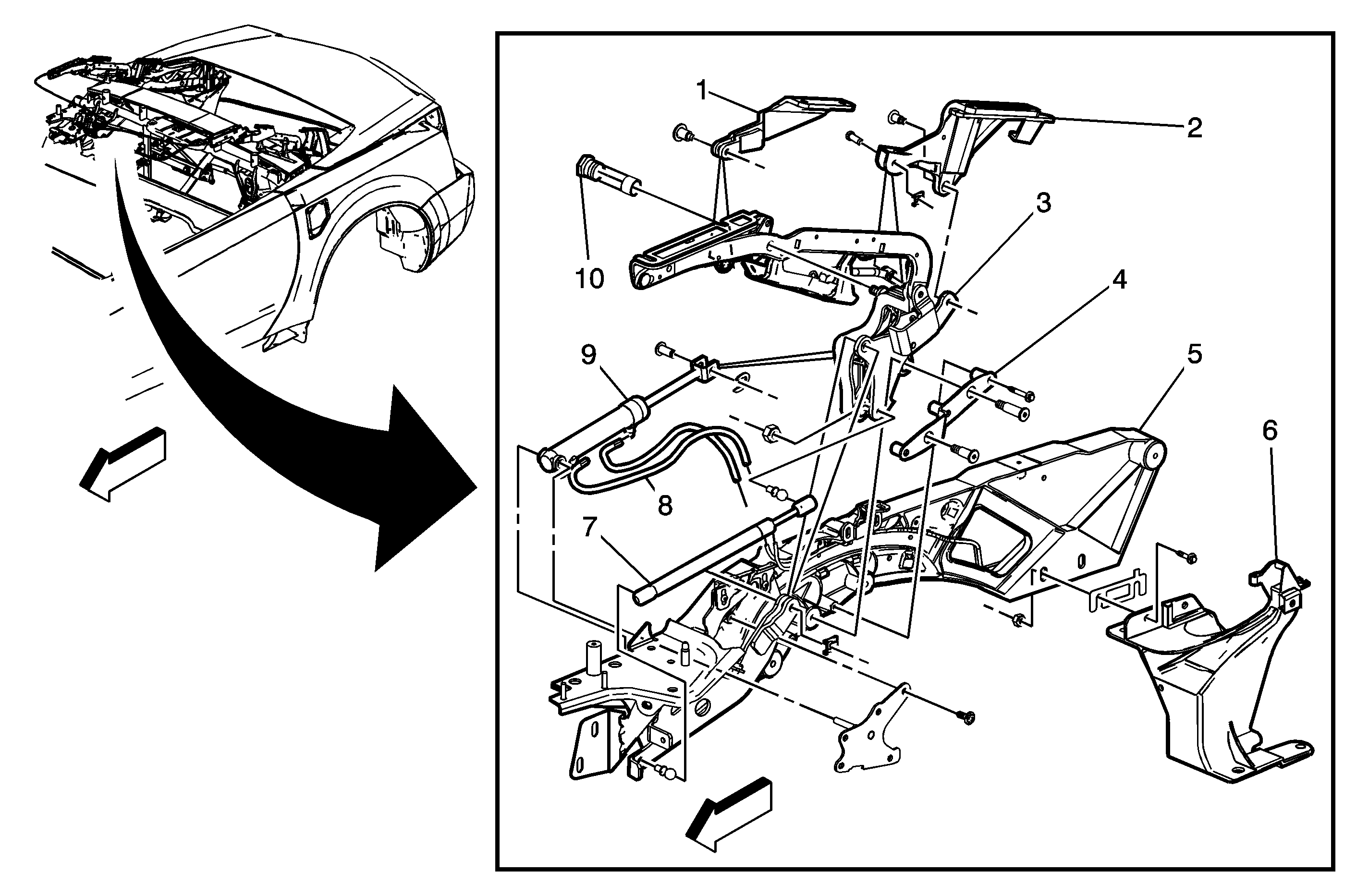

Figure 4:

Folding Top Front Compartment Link
Object Number: 1373129 Size: MF
(1)Folding Top Pivot Link Bracket -- Rear Upper
(2)Folding Top Pivot Link Bracket -- Rear Lower
(3)Folding Top Panel Link -- Front
(4)Folding Top Panel Hold Down Link -- Front
(5)Folding Top Quarter Longitudinal Frame Support
(6)Folding Top Quarter Frame Support
(7)Folding Top Panel Strut Actuator
(8)Folding Top Hydraulic Cylinder Hose -- All
(9)Folding Top Hydraulic Cylinder
(10)Folding Top Striker -- Rear

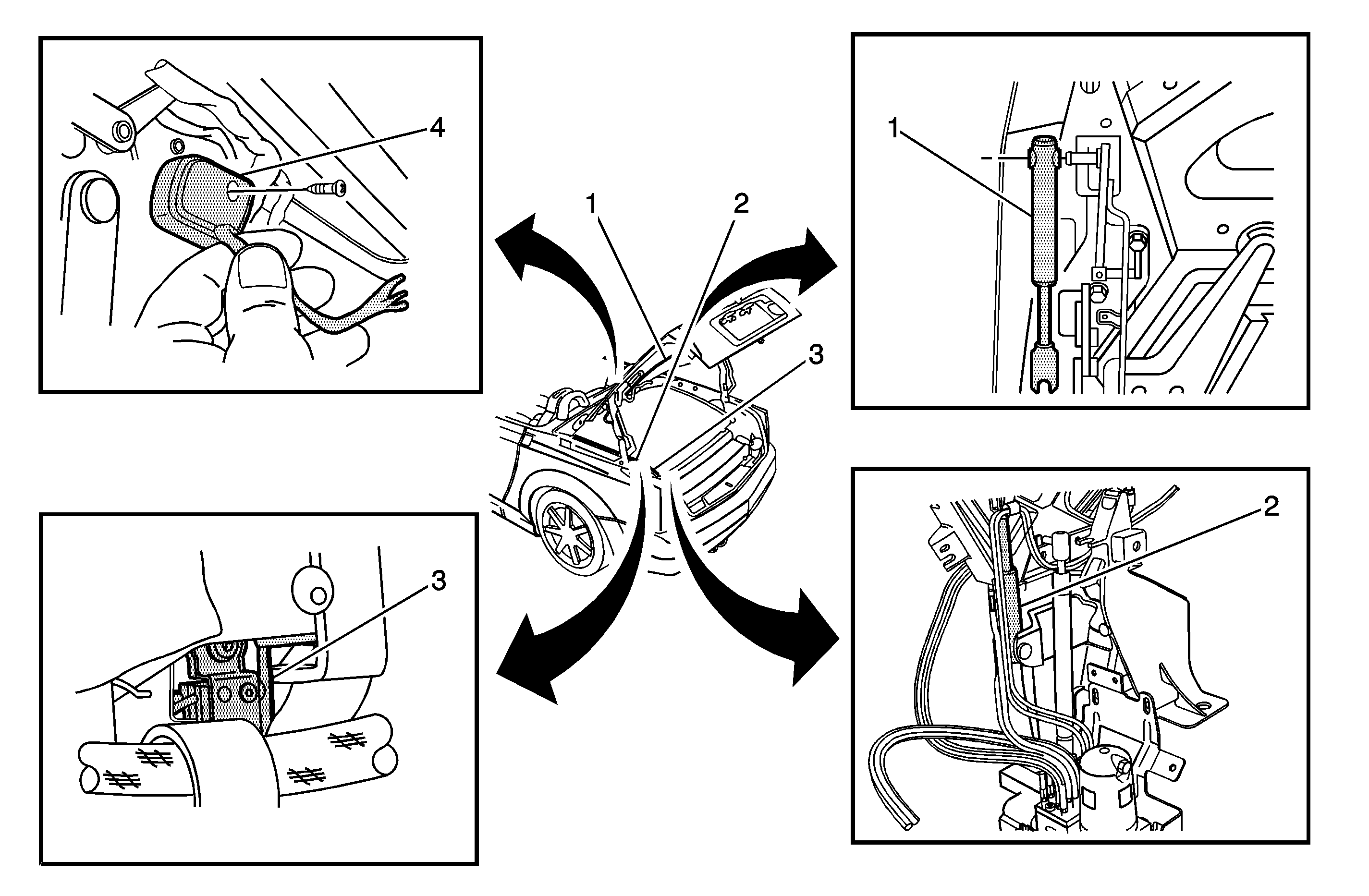

Figure 5:

Folding Top Rear Compartment Actuator
Object Number: 1373130 Size: MF
(1)Folding Top Storage Compartment Panel Hydraulic Cylinder - Rear
(1)Folding Top Storage Compartment Panel Hydraulic Cylinder - Rear
(2)Folding Top Compartment Lid Hydraulic Cylinder - Rear
(2)Folding Top Compartment Lid Hydraulic Cylinder - Rear
(3)Folding Top Compartment Lid Position Sensor Switch - Rear
(4)Folding Top Storage Compartment Panel Position Switch - Rear
(4)Folding Top Storage Compartment Panel Position Switch - Rear

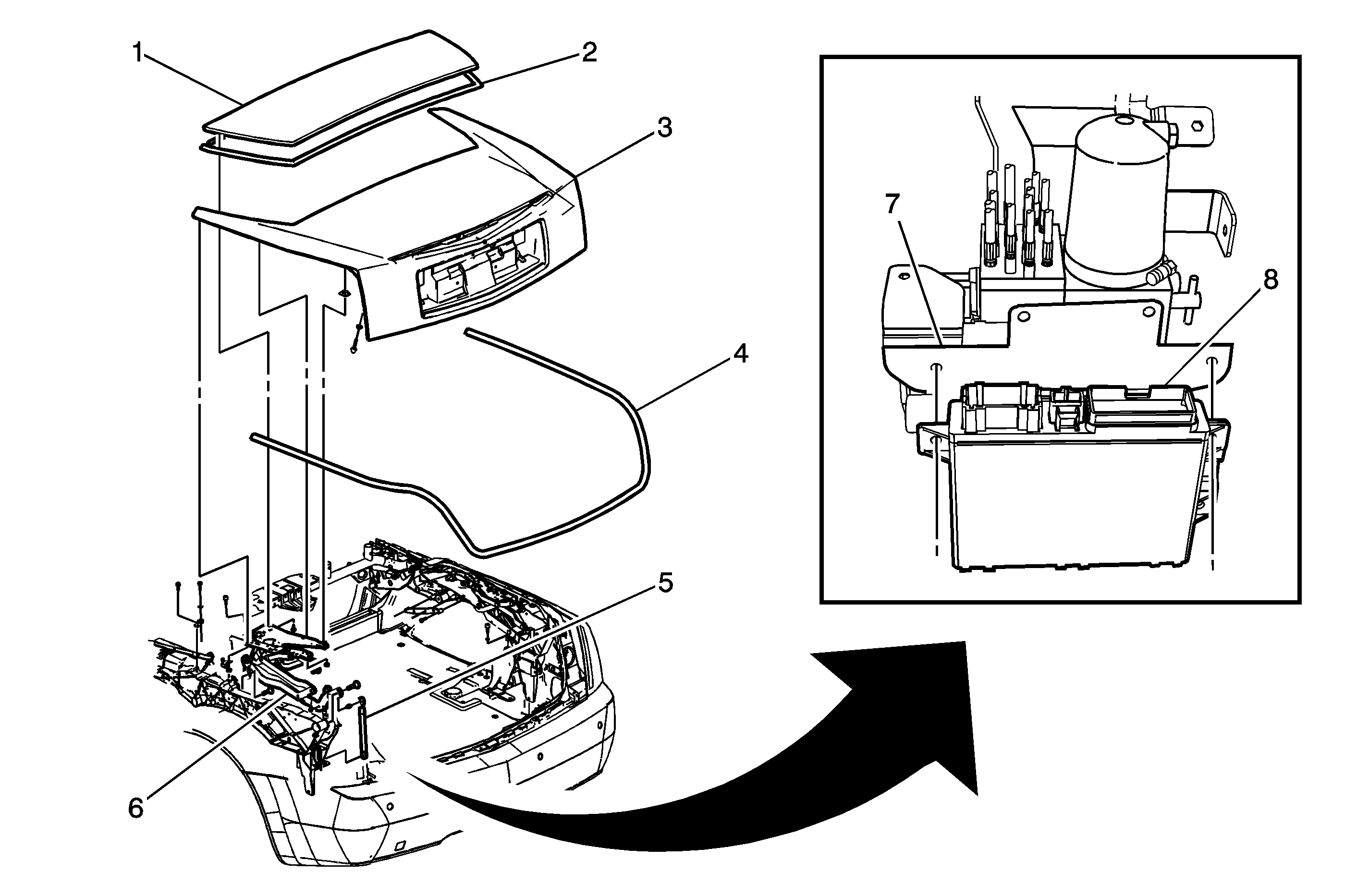

Figure 6:

Folding Top Rear Compartment
Object Number: 1373132 Size: MF
(1)Folding Top Storage Compartment Panel -- Rear
(2)Folding Top Storage Compartment Panel Seal -- Rear
(3)Folding Top Compartment Lid -- Rear
(4)Folding Top Compartment Lid Seal -- Rear
(5)Folding Top Compartment Lid Strut Actuator -- Rear
(6)Folding Top Compartment Lid Link -- Rear
(7)Folding Top Pump and Motor
(8)Folding Top Control Module

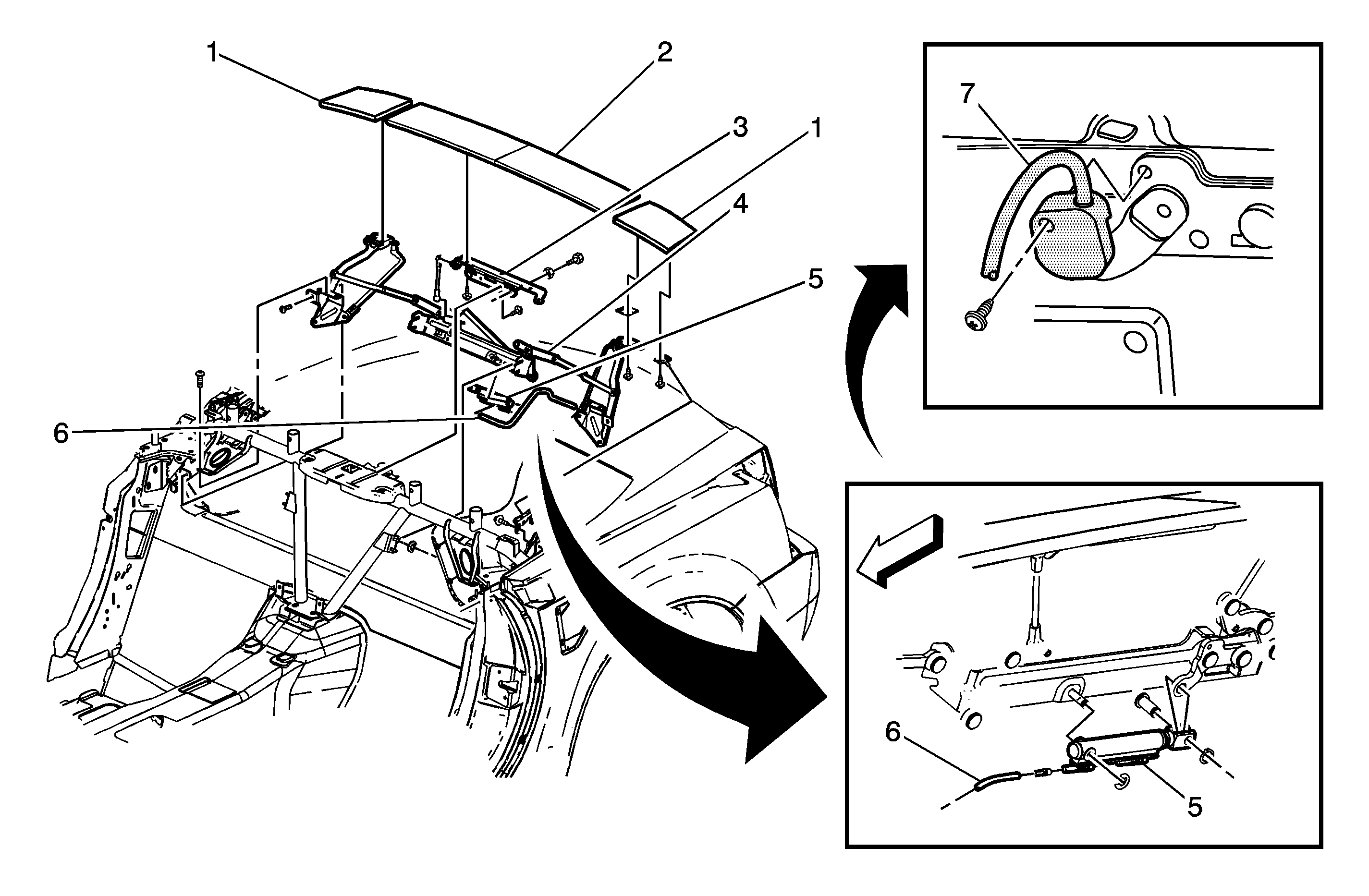

Figure 7:

Folding Top Front Storage Compartment
Object Number: 1373133 Size: MF
(1)Folding Top Storage Compartment Closeout Panel -- Front Outer
(1)Folding Top Storage Compartment Closeout Panel -- Front Outer
(2)Folding Top Storage Compartment Closeout Panel -- Front
(3)Folding Top Storage Compartment Closeout Panel Hinge -- Front
(4)Folding Top Storage Compartment Closeout Panel Link -- Front
(5)Folding Top Storage Compartment Closeout Panel Hydraulic Cylinder -- Front
(5)Folding Top Storage Compartment Closeout Panel Hydraulic Cylinder -- Front
(6)Folding Top Hydraulic Cylinder Hose -- All
(6)Folding Top Hydraulic Cylinder Hose -- All
(7)Folding Top Storage Compartment Closeout Panel Potentiometer -- Front
