Engine Controls Schematics. Cadillac XLR 2006

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2006 🢒 XLR 🢒 Engine 🢒 Engine Controls - 4.4L 🢒 Engine Controls Schematics

Figure 1:	DLC, Ground, MIL, and Power Master Electrical Component List Engine Control Module Description Control Module References 5-Volt Reference Bussing Engine Controls Schematic Icons Fuse Block Underhood Fuses: ABS, AMP, BATT2, COOLFAN, ECM/TCM, HORN, HVAC, MRRTD, W/S WASH Fuse Block Underhood Fuses: EMISSION, ETC, EVEN INJ, FUEL, O2SEN, and ODD INJ Fuse Block Underhood Fuses: EMISSION, ETC, EVEN INJ, FUEL, O2SEN, and ODD INJ BCM Fuses: AC LATCH/PK BRK B, CLUSTER, DOOR LOCKS, HVAC/PWR SND, INTERIOR LIGHTS, ISRVM/HVAC, and TUTD SW/STRG COL SW BCM Fuses: ECM, GMLAN Devices, RPA/H/C SEAT and SDM/PSIR SW, Fuse Block Underhood Fuses - ABS/MRRTD, and ACC/TCM 06 XLR Body Control System Schematics - DLC, Power, and Ground 06 XLR Body Control System Schematics - DLC, Power, and Ground 06 XLR Body Control System Schematics - DLC, Power, and Ground Class 2 GM LAN Fuse Block Underhood Fuses: ABS, AMP, BATT2, COOLFAN, ECM/TCM, HORN, HVAC, MRRTD, W/S WASH 06 XLR Body Control System Schematics - DLC, Power, and Ground G104 and G106 G104 and G106
Figure 2:	5-Volt Reference Bussing Master Electrical Component List Engine Control Module Description Control Module References Low Reference Bussing 06 GMX215 Y Cad DLC, Ground, MIL and Power Engine Controls Schematic Icons
Figure 3:	Low Reference Bussing Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors - ECT, MAP, MAF/IAT 5-Volt Reference Bussing Engine Controls Schematic Icons
Figure 4:	Engine Data Sensors - ECT, MAP,and MAF/IAT Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors - Oxygen Sensors Low Reference Bussing Engine Controls Schematic Icons Fuse Block Underhood Fuses: EMISSION, ETC, EVEN INJ, FUEL, O2SEN, and ODD INJ Fuse Block Underhood Fuses: EMISSION, ETC, EVEN INJ, FUEL, O2SEN, and ODD INJ Gages Stop Lamps Shift Lever G104 and G106
Figure 5:	Engine Data Sensors - Oxygen Sensors Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors - Electronic Throttle Controls Engine Data Sensors - ECT, MAP, MAF/IAT Engine Controls Schematic Icons
Figure 6:	Engine Data Sensors - Electronic Throttle Controls Master Electrical Component List Engine Control Module Description Control Module References Engine Controls Data Sensors SCIAP, IAT2, BARO, and Supercharger Vacuum Bypass Valve Engine Data Sensors - Oxygen Sensors Engine Controls Schematic Icons
Figure 7:	Engine Data Sensors - SCIAP, IAT2, BARO and Supercharger Vacuum Bypass Valve Master Electrical Component List Engine Control Module Description Control Module References Cad Ignition System - Bank 1 Engine Data Sensors - Electronic Throttle Controls Engine Controls Schematic Icons Fuse Block Underhood Fuses: EMISSION, ETC, EVEN INJ, FUEL, O2SEN, and ODD INJ Fuse Block Underhood Fuses: EMISSION, ETC, EVEN INJ, FUEL, O2SEN, and ODD INJ
Figure 8:	Ignition System - Bank 1 Master Electrical Component List Engine Control Module Description Control Module References Ignition System - Bank 2 Engine Controls Data Sensors SCIAP, IAT2, BARO, and Supercharger Vacuum Bypass Valve Engine Controls Schematic Icons Fuse Block Underhood Fuses: EMISSION, ETC, EVEN INJ, FUEL, O2SEN, and ODD INJ G105 and G107
Figure 9:	Ignition System - Bank 2 Master Electrical Component List Engine Control Module Description Control Module References Ignition Controls - CKP and Knock Sensors Cad Ignition System - Bank 1 Engine Controls Schematic Icons Fuse Block Underhood Fuses: EMISSION, ETC, EVEN INJ, FUEL, O2SEN, and ODD INJ G105 and G107
Figure 10:	Ignition Controls - CKP and KS Sensors Master Electrical Component List Engine Control Module Description Control Module References Ignition Controls - CMP Sensors and Controls Ignition System - Bank 2 Engine Controls Schematic Icons Instrument Cluster Gages Schematics Engine Controls Schematic Icons Engine Controls Schematic Icons Engine Controls Schematic Icons Engine Controls Schematic Icons
Figure 11:	Ignition Controls - CMP Sensors and Solenoids Master Electrical Component List Engine Control Module Description Control Module References Fuel Controls - Fuel Injectors and Fuel Pump Controls Ignition Controls - CKP and Knock Sensors Engine Controls Schematic Icons
Figure 12:	Fuel Controls - Fuel Injectors and Fuel Pump Controls Master Electrical Component List Engine Control Module Description Control Module References Fuel Controls - EVAP Controls Ignition Controls - CMP Sensors and Controls Engine Controls Schematic Icons Fuse Block Underhood Fuses: EMISSION, ETC, EVEN INJ, FUEL, O2SEN, and ODD INJ
Figure 13:	Fuel Controls - EVAP Controls Master Electrical Component List Engine Control Module Description Control Module References Fuel Pump Controls Fuel Controls - Fuel Injectors and Fuel Pump Controls Engine Controls Schematic Icons Fuse Block Underhood Fuses: ABS, AMP, BATT2, COOLFAN, ECM/TCM, HORN, HVAC, MRRTD, W/S WASH Fuse Block Underhood Fuses: EMISSION, ETC, EVEN INJ, FUEL, O2SEN, and ODD INJ Fuse Block Underhood Fuses: ABS, AMP, BATT2, COOLFAN, ECM/TCM, HORN, HVAC, MRRTD, W/S WASH Fuel Pump Controls Fuel Pump Controls

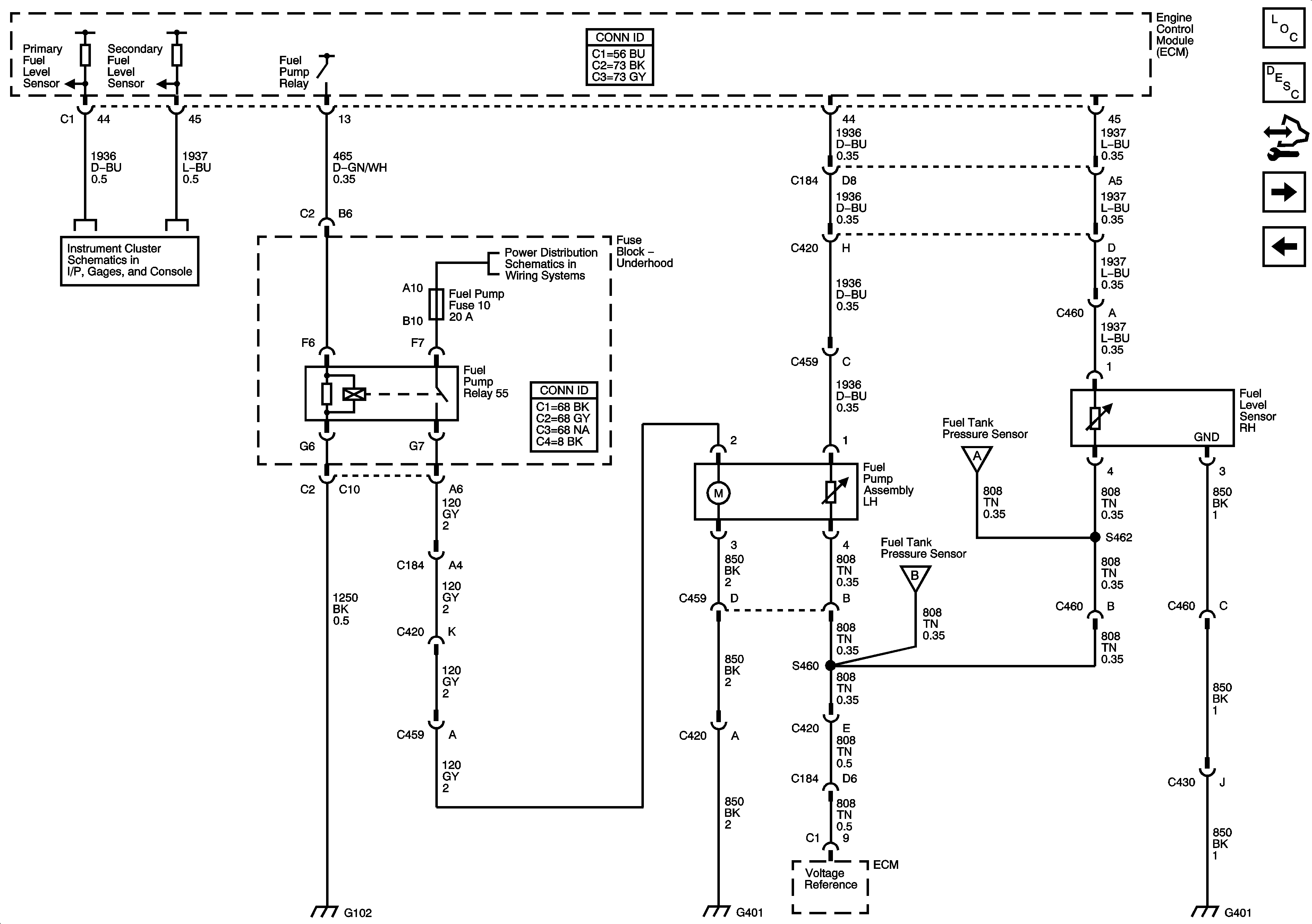

Figure 14:	Fuel Controls - Fuel Pump Controls Master Electrical Component List Engine Control Module Description Control Module References Controlled, Monitored Subsystem References Fuel Controls - EVAP Controls Engine Controls Schematic Icons Gages Fuse Block - Underhood Bussing Low Reference Bussing G102 G302, G401, and G402 G302, G401, and G402

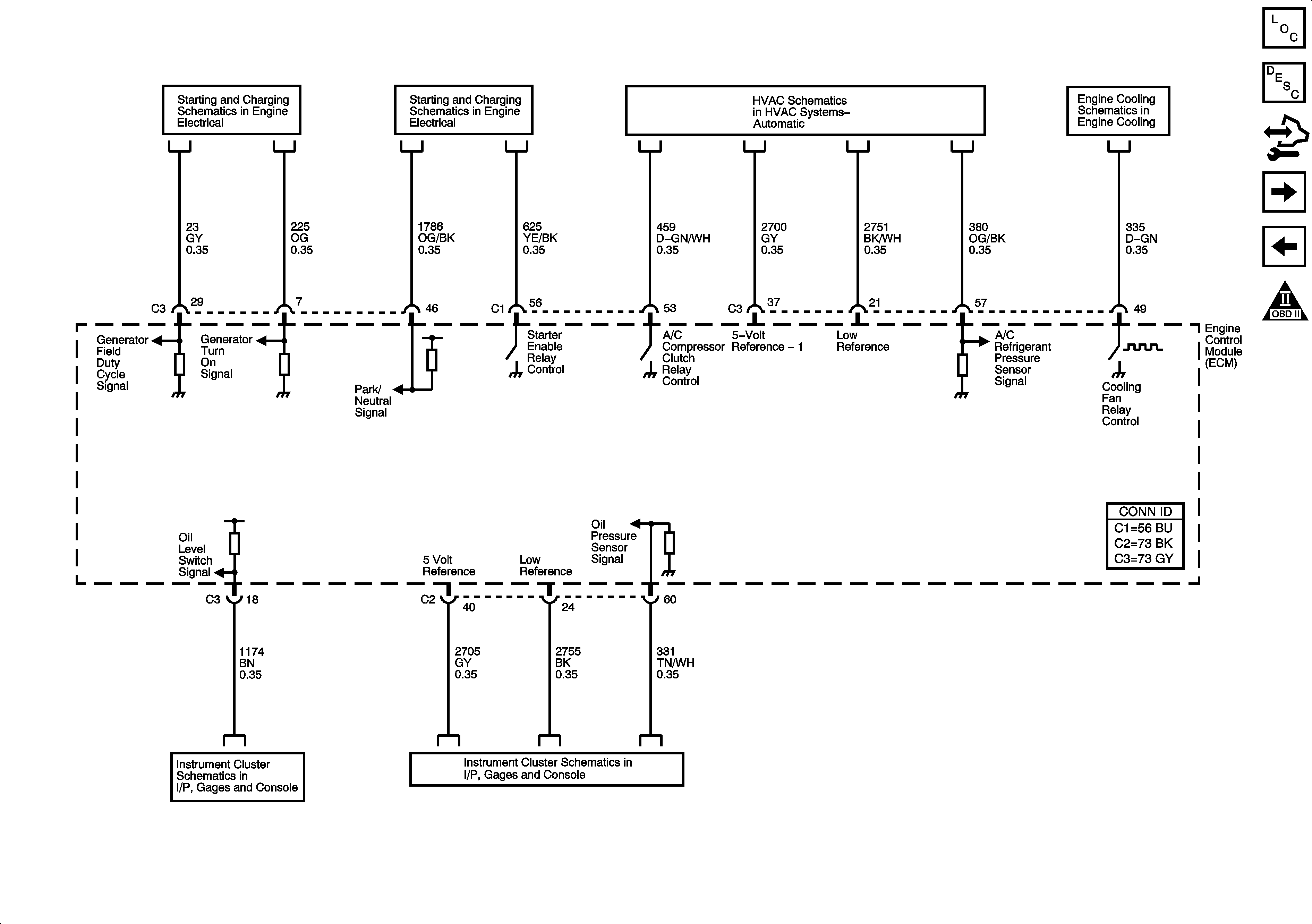

Figure 15:	Controlled/Monitored Subsystem References Master Electrical Component List Engine Control Module Description Control Module References Fuel Pump Controls Engine Controls Schematic Icons Starting and Charging Schematics (LC3) Starting and Charging - Cranking Schematics (LC3) HVAC Compressor Controls LH2 Instrument Cluster Messages Schematics Instrument Cluster Gages Schematics

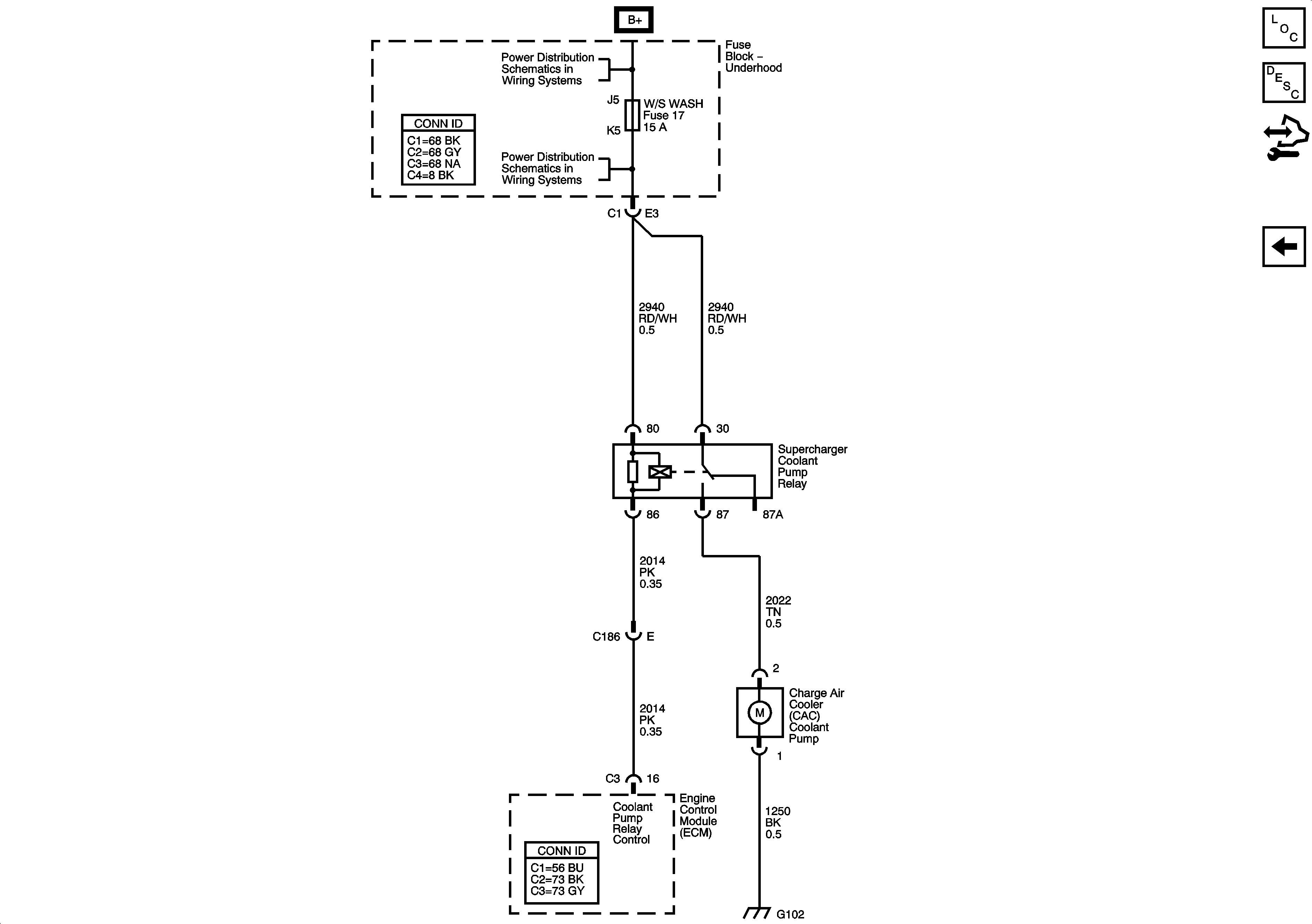

Figure 16:	Charge Air Cooler (CAC) Coolant Pump Master Electrical Component List Engine Control Module Description Control Module References 5-Volt Reference Bussing Engine Controls Schematic Icons Fuse Block Underhood Fuses: ABS, AMP, BATT2, COOLFAN, ECM/TCM, HORN, HVAC, MRRTD, W/S WASH Fuse Block Underhood Fuses: EMISSION, ETC, EVEN INJ, FUEL, O2SEN, and ODD INJ Fuse Block Underhood Fuses: EMISSION, ETC, EVEN INJ, FUEL, O2SEN, and ODD INJ BCM Fuses: AC LATCH/PK BRK B, CLUSTER, DOOR LOCKS, HVAC/PWR SND, INTERIOR LIGHTS, ISRVM/HVAC, and TUTD SW/STRG COL SW BCM Fuses: ECM, GMLAN Devices, RPA/H/C SEAT and SDM/PSIR SW, Fuse Block Underhood Fuses - ABS/MRRTD, and ACC/TCM 06 XLR Body Control System Schematics - DLC, Power, and Ground 06 XLR Body Control System Schematics - DLC, Power, and Ground 06 XLR Body Control System Schematics - DLC, Power, and Ground Class 2 GM LAN Fuse Block Underhood Fuses: ABS, AMP, BATT2, COOLFAN, ECM/TCM, HORN, HVAC, MRRTD, W/S WASH 06 XLR Body Control System Schematics - DLC, Power, and Ground G104 and G106 G104 and G106
