Radio/Audio System Schematics. Cadillac XLR 2006

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2006 🢒 XLR 🢒 Accessories 🢒 Entertainment 🢒 Radio/Audio System Schematics

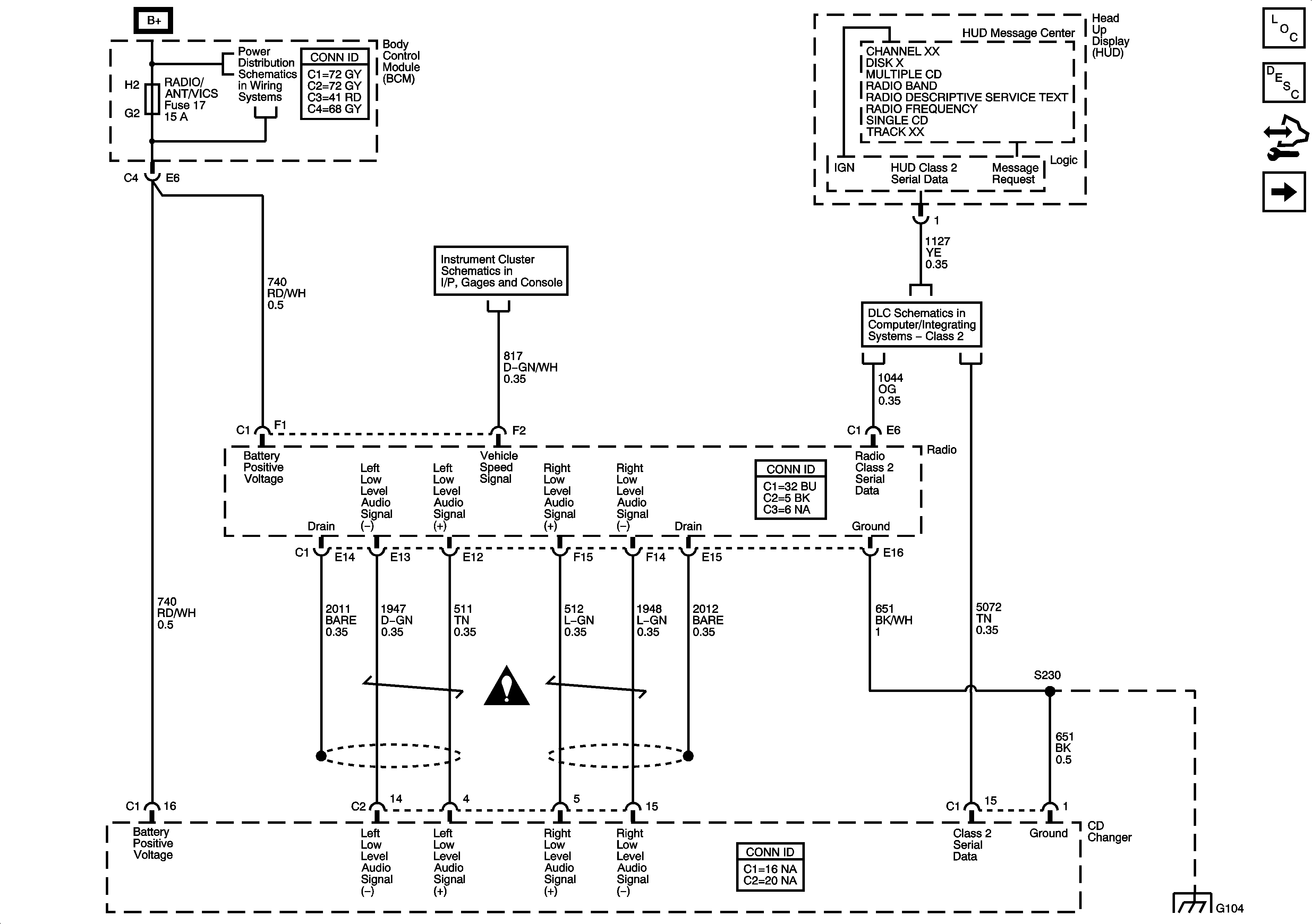

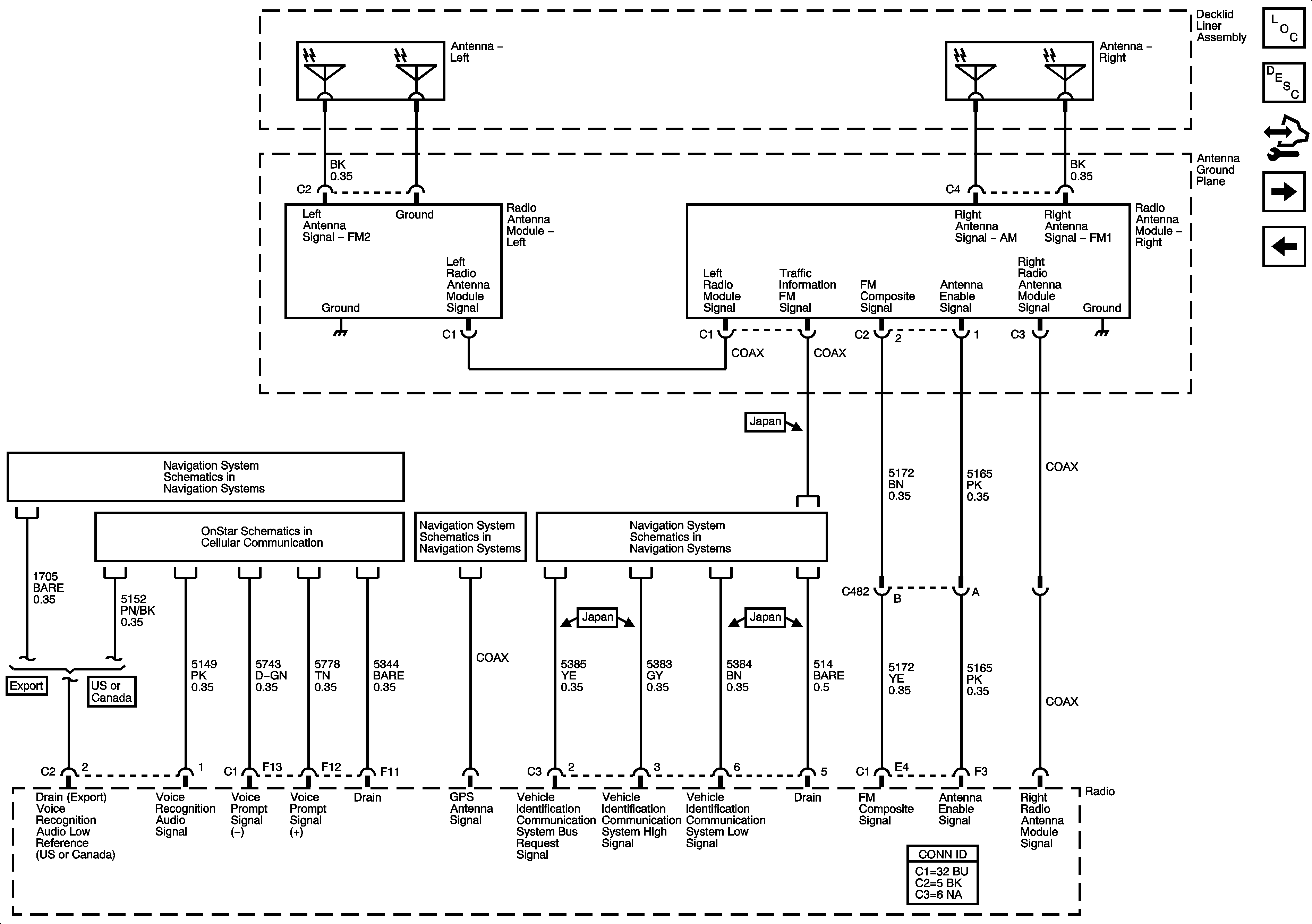

Figure 1:	CD Player and Radio Audio Signals, Ground, Messages, and Power Master Electrical Component List Radio/Audio System Description and Operation Control Module References Amplification Fuse Block Underhood Fuses: BATT3, STOP/BULPS, BCM Fuses: BTSI SOL/COL LOCK, PWR FLDG MIR-EXT/RET, RADIO/ANT/VICS, REAR FOG/ALDL TOPSW, REVERSE LPS Gages Class 2 Entertainment Schematic Icons G104 and G106
Figure 2:	Amplification Master Electrical Component List Radio/Audio System Description and Operation Control Module References Antennas, except S-Band and References to Navigation and OnStar Antennas, except S-Band and References to Navigation and OnStar Entertainment Schematic Icons Fuse Block Underhood Fuses: ABS, AMP, BATT2, COOLFAN, ECM/TCM, HORN, HVAC, MRRTD, W/S WASH Class 2 G104 and G106
Figure 3:	Antennas Except S-Band, and References to Navigation and OnStar Master Electrical Component List Radio/Audio System Description and Operation Control Module References Digital Radio Receiver Amplification Except Japan Audio Output Except Japan Japan
Figure 4:	Digital Radio Receiver Master Electrical Component List Radio/Audio System Description and Operation Control Module References Antennas, except S-Band and References to Navigation and OnStar Fuse Block Underhood Fuses: BATT3, STOP/BULPS, BCM Fuses: BTSI SOL/COL LOCK, PWR FLDG MIR-EXT/RET, RADIO/ANT/VICS, REAR FOG/ALDL TOPSW, REVERSE LPS Class 2 G104 and G106
Figure 5:	Redundant Steering Wheel Controls Master Electrical Component List Radio/Audio System Description and Operation Control Module References BCM Fuses: ECM, GMLAN Devices, RPA/H/C SEAT and SDM/PSIR SW, Fuse Block Underhood Fuses - ABS/MRRTD, and ACC/TCM BCM Fuses: AC LATCH/PK BRK B, CLUSTER, DOOR LOCKS, HVAC/PWR SND, INTERIOR LIGHTS, ISRVM/HVAC, and TUTD SW/STRG COL SW Class 2 SIR Schematic Icons
