Makes 🢒 Chevrolet 🢒 2001 🢒 Alero Export 🢒 Engine 🢒 Engine Controls - 3.4L 🢒 Engine Controls Connector End Views
Table 1: Camshaft Position (CMP) Sensor
Table 2: Crankshaft Position (CKP) Sensor B
Table 3: Crankshaft Position (CKP) Sensor A
Table 4: Engine Coolant Temperature (ECT) Sensor
Table 5: Evaporative Emission (EVAP) Canister Purge Solenoid
Table 6: Evaporative Emission (EVAP) Canister Vent Solenoid
Table 7: Exhaust Gas Recirculation (EGR) Valve
Table 8: Fuel Injector 1
Table 9: Fuel Injector 2
Table 10: Fuel Injector 3
Table 11: Fuel Injector 4
Table 12: Fuel Injector 5
Table 13: Fuel Injector 6
Table 14: Fuel Pump and Sender Assembly
Table 15: Fuel Tank Pressure Sensor
Table 16: Ignition Control Module (ICM), C1
Table 17: Ignition Control Module (ICM), C2
Table 18: Ignition Control Module (ICM), C3
Table 19: Heated Oxygen Sensor (HO2S) Sensor 1
Table 20: Heated Oxygen Sensor (HO2S) Sensor 2
Table 21: Idle Air Control (IAC) Valve
Table 22: Intake Air Temperature (IAT) Sensor
Table 23: Knock Sensor (KS)
Table 24: Manifold Absolute Pressure (MAP) Sensor
Table 25: Mass Air Flow (MAF) Sensor
Table 26: Park/Neutral Position (PNP) Switch, C1
Table 27: Park Neutral Position (PNP) Switch, C2
Table 28: Throttle Position (TP) Sensor
Table 29: Vehicle Speed Sensor (VSS)

Camshaft Position (CMP) Sensor


Object Number: 68730 Size: CH

Connector Part Information
    • 12110293
    • 3-Way F Metri-Pack 150 Series Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

RED/WHT

812

12 Volt Reference

B

BRN/WHT

633

CMP Sensor Signal

C

BLK

407

Low Reference

Crankshaft Position (CKP) Sensor B


Object Number: 232831 Size: CH

Connector Part Information
    • 12162195
    •  2-Way F Metri-Pack 150.2 Series Sealed Pull-to-Seat (BLK)

Pin

Wire Color

Circuit No.

Function

A

YEL

573

CKP Sensor 1 Signal

B

PPL

574

Low Reference

Crankshaft Position (CKP) Sensor A


Object Number: 68730 Size: CH

Connector Part Information
    • 12110293
    •  3-Way F Metri-Pack 150 Series Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

RED/WHT

812

12 Volt Reference

B

LT BLU/BLK

647

Medium Resolution Engine Speed Signal

C

BLK

407

Low Reference

Engine Coolant Temperature (ECT) Sensor


Object Number: 232831 Size: CH

Connector Part Information
    • 12162194
    •  2-Way F Metri-Pack 150.2 Series Sealed Pull-to Seat (BLK)

Pin

Wire Color

Circuit No.

Function

A

ORN/BLK

469

Low Reference

B

YEL

410

ECT Sensor Signal

Evaporative Emission (EVAP) Canister Purge Solenoid


Object Number: 35437 Size: CH

Connector Part Information
    • 12052643
    • 2-Way F Metri-Pack 150 Series Sealed (RED)

Pin

Wire Color

Circuit No.

Function

A

BRN

241

Ignition 3 Voltage

B

DK GRN/WHT

428

EVAP Canister Purge Solenoid Control

Evaporative Emission (EVAP) Canister Vent Solenoid


Object Number: 334626 Size: CH

Connector Part Information
    • 12059863
    • 2-Way F Metri-Pack 150 Series Sealed (BRN)

Pin

Wire Color

Circuit No.

Function

A

BRN

241

Ignition 3 Voltage

B

WHT

1310

EVAP Canister Vent Solenoid Control

Exhaust Gas Recirculation (EGR) Valve


Object Number: 287962 Size: CH

Connector Part Information
    • 15326389
    •  5-Way F Global Terminal 150 Pull-to-Seat Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY

435

EGR Solenoid Low Control

B

BLK

2753

Low Reference

C

BRN/WHT

1456

EGR Valve Position Signal

D

BRN/WHT

2702

5 Volt Reference

E

RED

1676

EGR Solenoid High Control

Fuel Injector 1


Object Number: 334635 Size: CH

Connector Part Information
    • 15326179
    • 2-Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

PNK

639

Ignition 1 Voltage

B

BLK

1744

Fuel Injector 1 Control

Fuel Injector 2


Object Number: 334635 Size: CH

Connector Part Information
    • 15326179
    • 2-Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

PNK

639

Ignition 1 Voltage

B

LT GRN/BLK

1745

Fuel Injector 2 Control

Fuel Injector 3


Object Number: 334635 Size: CH

Connector Part Information
    • 15326179
    • 2-Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

PNK

639

Ignition 1 Voltage

B

PNK/BLK

1746

Fuel Injector 3 Control

Fuel Injector 4


Object Number: 334635 Size: CH

Connector Part Information
    • 15326179
    • 2-Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

PNK

639

Ignition 1 Voltage

B

LT BLU/BLK

844

Fuel Injector 4 Control

Fuel Injector 5


Object Number: 334635 Size: CH

Connector Part Information
    • 15326179
    • 2-Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

PNK

639

Ignition 1 Voltage

B

BLK/WHT

845

Fuel Injector 5 Control

Fuel Injector 6


Object Number: 334635 Size: CH

Connector Part Information
    • 15326179
    • 2-Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

PNK

639

Ignition 1 Voltage

B

YEL/BLK

846

Fuel Injector 6 Control

Fuel Pump and Sender Assembly


Object Number: 704047 Size: CH

Connector Part Information
    • 12059110
    •  2-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BLK

150

Ground

B

GRY

120

Fuel Pump Supply Voltage

Fuel Tank Pressure Sensor


Object Number: 62453 Size: CH

Connector Part Information
    • 12059595
    •  3-Way F Metri-Pack 150 Series Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

ORN/BLK

469

Low Reference

B

DK GRN

890

Fuel Tank Pressure Sensor Signal

C

GRY

2709

5 Volt Reference

Ignition Control Module (ICM), C1


Object Number: 40442 Size: CH

Connector Part Information
    • 12162261
    • 6-Way F Metri-Pack 150.2 Series Pull-to-Seat Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

TAN/BLK

424

IC Timing Signal

B

WHT

423

IC Timing Signal

C-D

--

--

Not Used

E

PPL/WHT

430

Low Resolution Engine Speed Signal

F

RED/BLK

453

Low Reference

Ignition Control Module (ICM), C2


Object Number: 73223 Size: CH

Connector Part Information
    • 12162186
    • 3-Way F Metri-Pack 150.2 Series Pull-to-Seat Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

YEL

573

CKP Sensor (1) Signal

B

--

--

Not Used

C

PPL

574

Low Reference

Ignition Control Module (ICM), C3


Object Number: 232831 Size: CH

Connector Part Information
    • 12162195
    • 2-Way F Metri-Pack 150.2 Series Pull-to-Seat Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

BLK

450

Ground

B

PNK

239

Ignition Feed

Heated Oxygen Sensor (HO2S) Sensor 1


Object Number: 258300 Size: CH

Connector Part Information
    • 12176897
    • 4-Way F Metri-Pack 150 Series Sealed (GRY)

Pin

Wire Color

Circuit No.

Function

A

TAN

413

HO2S Low Signal

B

PPL

412

HO2S 1 Signal

C

BLK/WHT

3113

HO2S Ground

D

BRN

241

Ignition 3 Voltage

Heated Oxygen Sensor (HO2S) Sensor 2


Object Number: 280761 Size: CH

Connector Part Information
    • 12160825
    • 4-Way M Metri-Pack 150 Series Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

TAN/WHT

1669

HO2S Low Signal (-Bank 1 Sensor X)

B

PPL/WHT

1668

HO2S High Signal (-Bank 1 Sensor X)

C

BLK

250

Ground

D

BRN

241

Ignition 3 Voltage

Idle Air Control (IAC) Valve


Object Number: 38608 Size: CH

Connector Part Information
    • 12162190
    • 4-Way F Metri-Pack 150.2 Series Pull to Seat Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

LT GRN/BLK

444

IAC Coil B Low Control

B

LT GRN/WHT

1749

IAC Coil B High Control

C

LT BLU/BLK

1748

IAC Coil B Low Control

D

LT BLU/WHT

1747

IAC Coil A High Control

Intake Air Temperature (IAT) Sensor


Object Number: 68719 Size: CH

Connector Part Information
    • 12162199
    • 2-Way F Metri-Pack 150.2 Series Pull to Seat Sealed (GRY)

Pin

Wire Color

Circuit No.

Function

A

BLK

2760

Low Reference

B

TAN

472

IAT Sensor Signal

Knock Sensor (KS)


Object Number: 95764 Size: CH

Connector Part Information
    • 12176800
    • 1-Way F Metri-Pack 150 Series Sealed (GRY)

Pin

Wire Color

Circuit No.

Function

1

DK BLU

496

KS (1) Signal

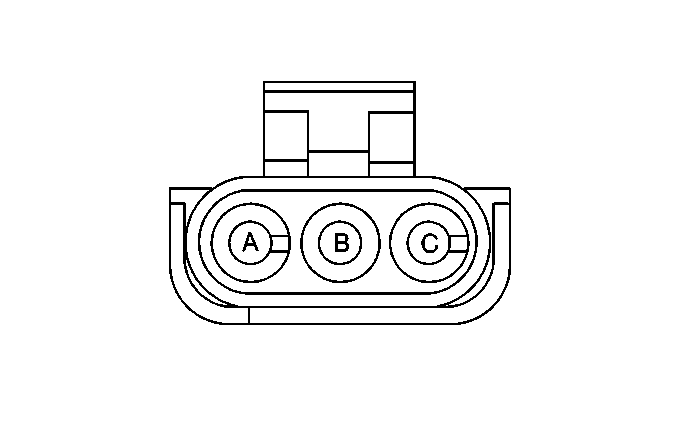

Manifold Absolute Pressure (MAP) Sensor


Object Number: 95766 Size: CH

Connector Part Information
    • 12020403
    • 3-Way M Weather Pack Sealed (DK GRN)

Pin

Wire Color

Circuit No.

Function

A

ORN/BLK

469

Low Reference

B

LT GRN

432

MAP Sensor Signal

C

GRY

2704

5 Volt Reference

Mass Air Flow (MAF) Sensor


Object Number: 62453 Size: CH

Connector Part Information
    • 12059595
    • 3-Way M Metri-Pack 150 Series Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

YEL

492

MAF Sensor Signal

B

BLK/WHT

451

Ground

C

PNK

639

Ignition 1 Voltage

Park/Neutral Position (PNP) Switch, C1


Object Number: 68780 Size: CH

Connector Part Information
    • 12129840
    • 7-Way F Metri-Pack Mixed Series Sealed (GRY)

Pin

Wire Color

Circuit No.

Function

A

--

--

Not Used

B

PNK

539

Ignition 1 Voltage

C

LT GRN

275

Park Neutral Position Switch Park Signal

D

BLKWHT

451

Ground

E

PPL

6

Starter Solenoid Crank Voltage

F

LT GRN

24

Backup Lamp Supply Voltage

G

YEL

5

Crank Voltage

Park Neutral Position (PNP) Switch, C2


Object Number: 40412 Size: CH

Connector Part Information
    • 12191757
    • 4-Way F Metri-Pack 150 Series Sealed (NAT)

Pin

Wire Color

Circuit No.

Function

A

WHT

776

Transmission Range Switch Signal P

B

YEL

772

Transmission Range Switch Signal

C

GRY

773

Transmission Range Switch Signal C

D

BLK/WHT

771

Transmission Range Switch Signal A

Throttle Position (TP) Sensor


Object Number: 62485 Size: CH

Connector Part Information
    • 12110192
    • 3-Way F Metri-Pack 150 Series Pull-to-Seat Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY/BLK

2701

5 Volt Reference

B

BLK

2752

Low Reference

C

DK BLU

417

TP Sensor Signal

Vehicle Speed Sensor (VSS)


Object Number: 62471 Size: CH

Connector Part Information
    • 12162195
    • 2-Way F Metri-Pack 150.2 Series Pull-to-Seat Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

PPL

401

Signal Low - Front

B

YEL

400

Signal High - Front
