Exterior Lights Schematics. Chevrolet Alero Export 2001

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2001 🢒 Alero Export 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Exterior Lights Schematics

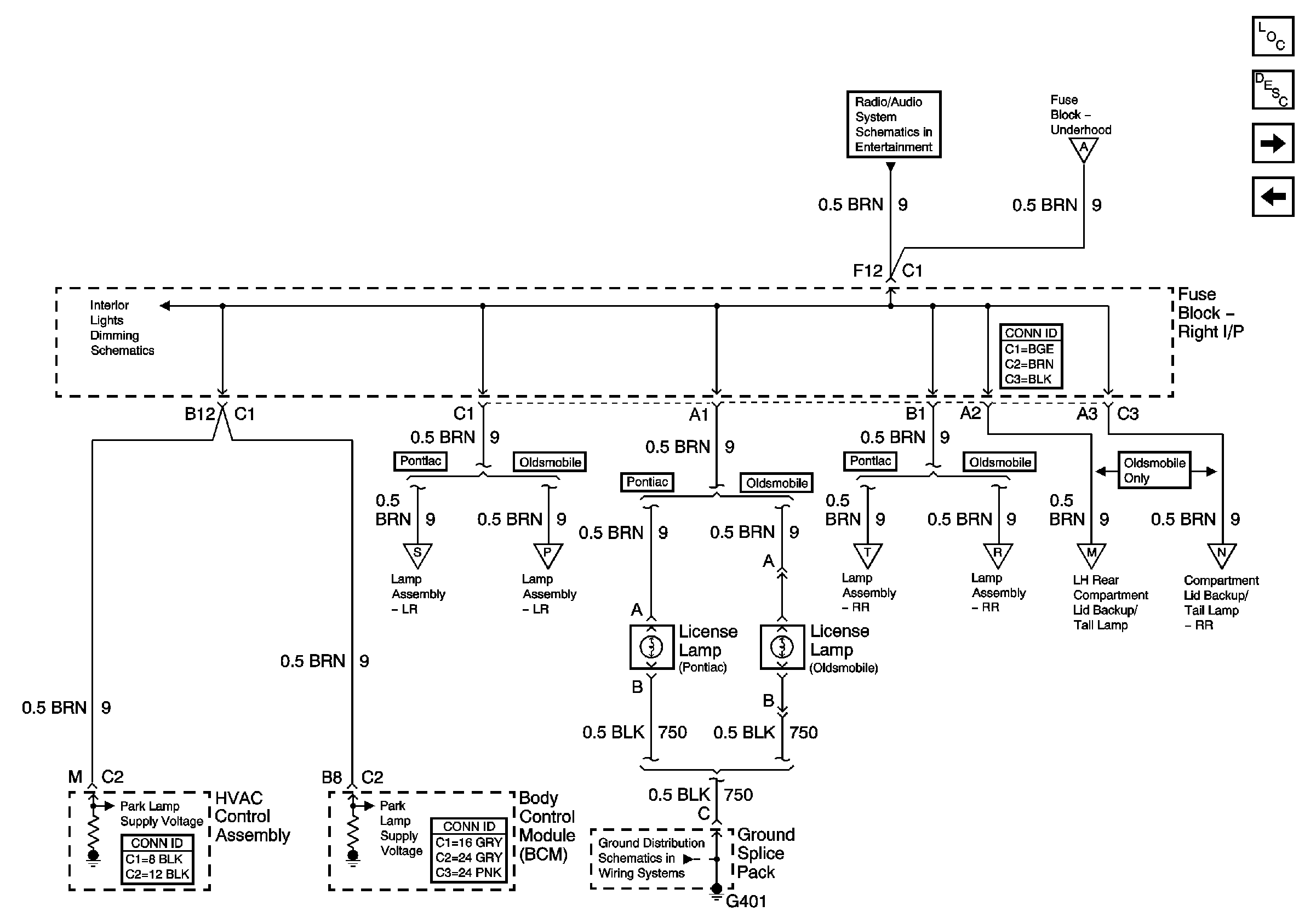

Figure 1:	Marker Lamps, Park Lamps, and Turn Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Hazard Switch Hazard Switch License Lamps LH BEC BATT1, AUX PWR/CIGAR, PARK LPS, PCM BATT, PWR MIRROR, DR LOCK, TRUNK REL/RFA/Radio Amp Fuses, and RWR SEAT Circuit Breaker Hazard Switch G101

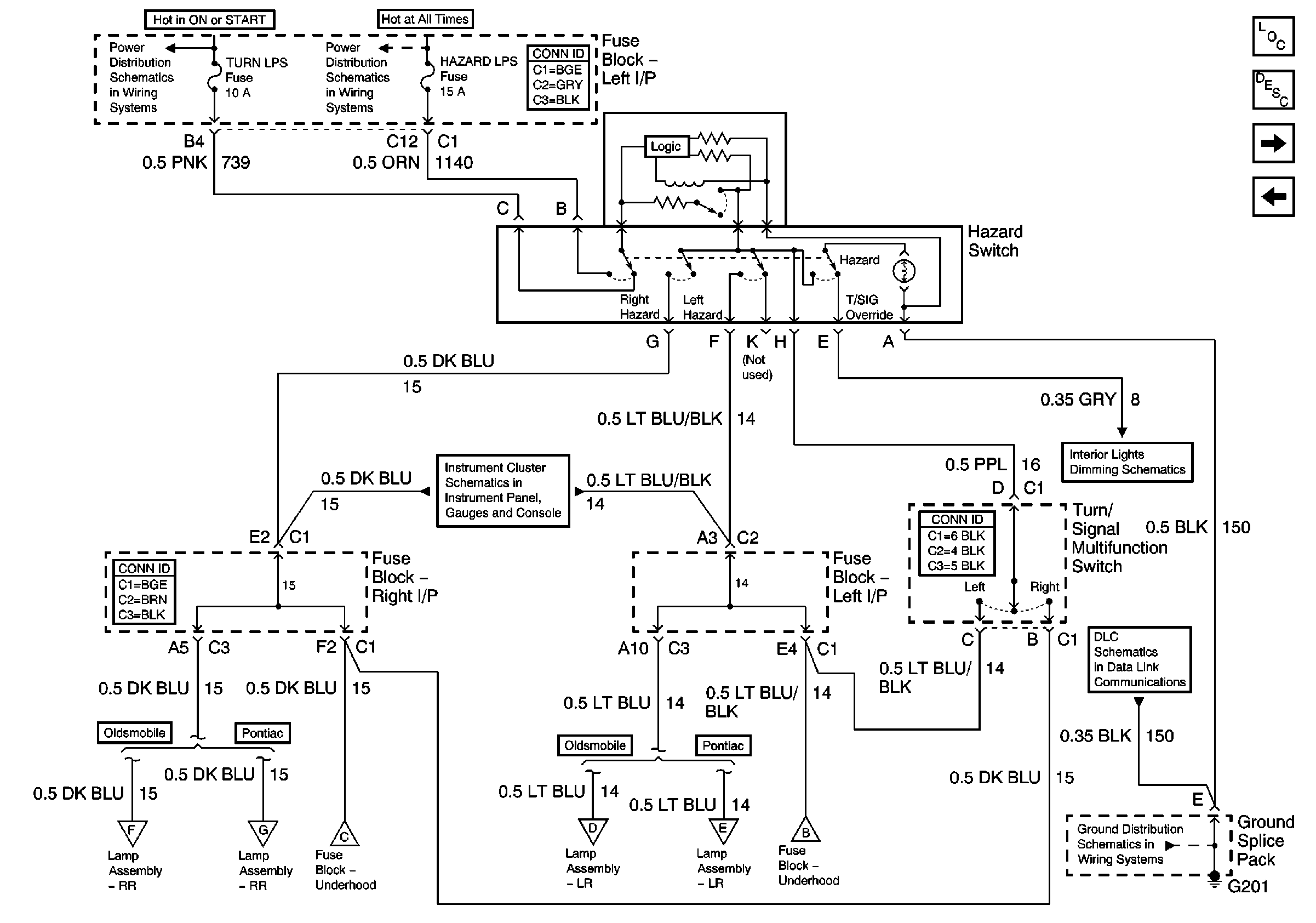

Figure 2:	Hazard Switch Master Electrical Component List Exterior Lighting Systems Description and Operation High Mounted Stop Lamp Assembly Marker Lamps, Park Lamps, and Turn Lamps Instrument Panel Lamps Data Link Connector Schematics G201 Marker Lamps, Park Lamps, and Turn Lamps Rear Lamps (Pontiac) Rear Backup Lamps Fault Indicators Marker Lamps, Park Lamps, and Turn Lamps Rear Lamps (Pontiac) Rear Lamps (Oldsmobile) RH HDLP, LH HDLP, GEN BATT, LH BEC BATT 2, STOP LPS, HAZARD LPS, IPC/HVACBATT, BFC BATT Fuses IGN SW-BATT2, WIPER, AIR BAG, TURN LPS, IGN MOD, BU LMP, PCM IGN, F/PINJR, A/C BFC, AUTO TRANS, ABS, IGN Fuses
Figure 3:	High Mounted Stoplamp Assembly Master Electrical Component List Exterior Lighting Systems Description and Operation License Lamps Hazard Switch Rear Lamps (Oldsmobile) Rear Lamps (Pontiac) Rear Lamps (Oldsmobile) Rear Lamps (Pontiac) G401 RH HDLP, LH HDLP, GEN BATT, LH BEC BATT 2, STOP LPS, HAZARD LPS, IPC/HVACBATT, BFC BATT Fuses
Figure 4:	License Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation PNP Switch and Backup Lamp Switch High Mounted Stop Lamp Assembly Marker Lamps, Park Lamps, and Turn Lamps Power, Ground, and Antenna Rear Lamps (Oldsmobile) Rear Lamps (Oldsmobile) Rear Lamps (Oldsmobile) Rear Lamps (Pontiac) G401 Rear Lamps (Oldsmobile) Rear Lamps (Pontiac) IP Dimmer Switch

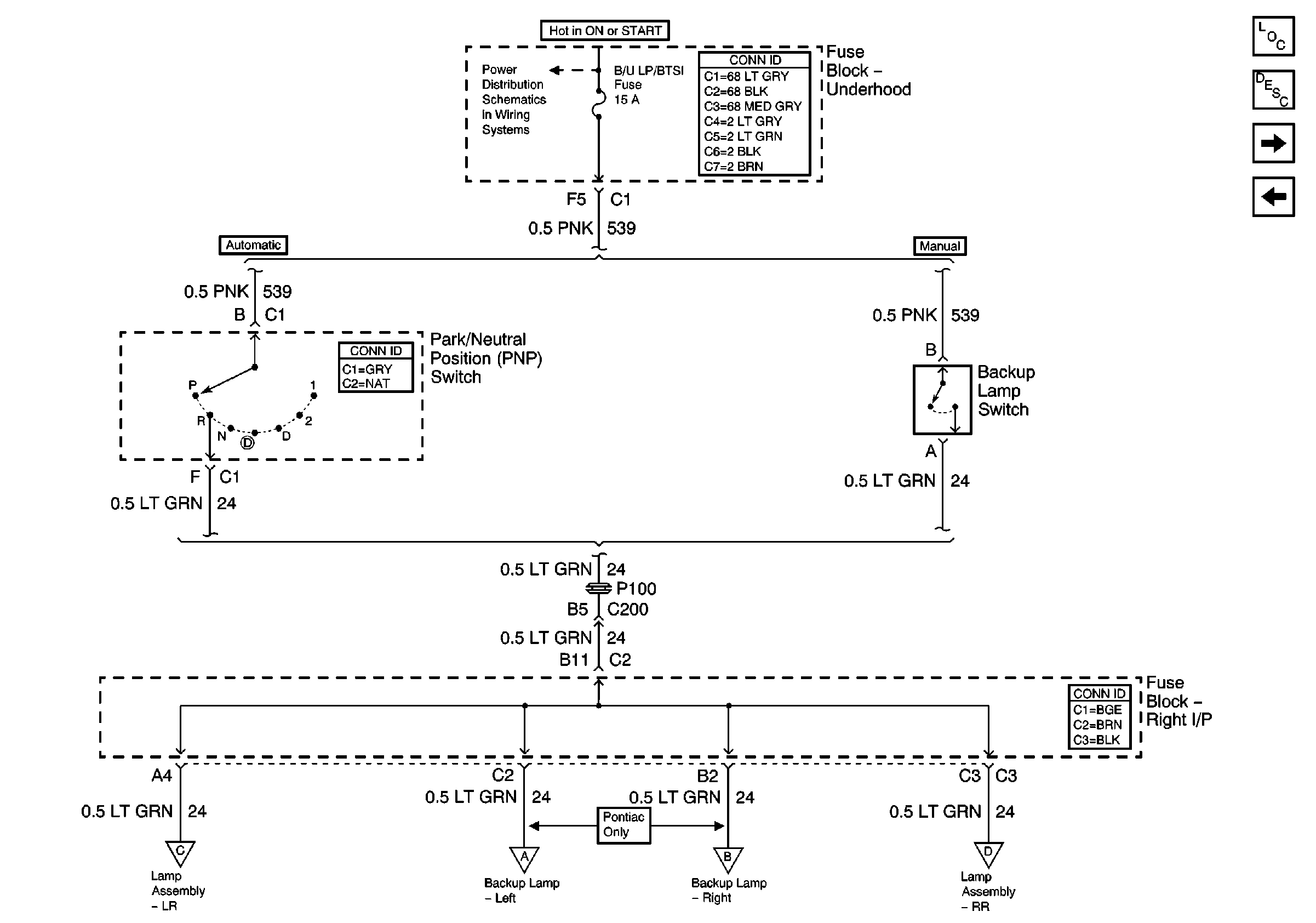

Figure 5:	PNP Switch and Backup Lamp Switch Master Electrical Component List Exterior Lighting Systems Description and Operation Rear Backup Lamps License Lamps Rear Backup Lamps Rear Backup Lamps Rear Backup Lamps Rear Backup Lamps IGN SW-BATT2, WIPER, AIR BAG, TURN LPS, IGN MOD, BU LMP, PCM IGN, F/PINJR, A/C BFC, AUTO TRANS, ABS, IGN Fuses

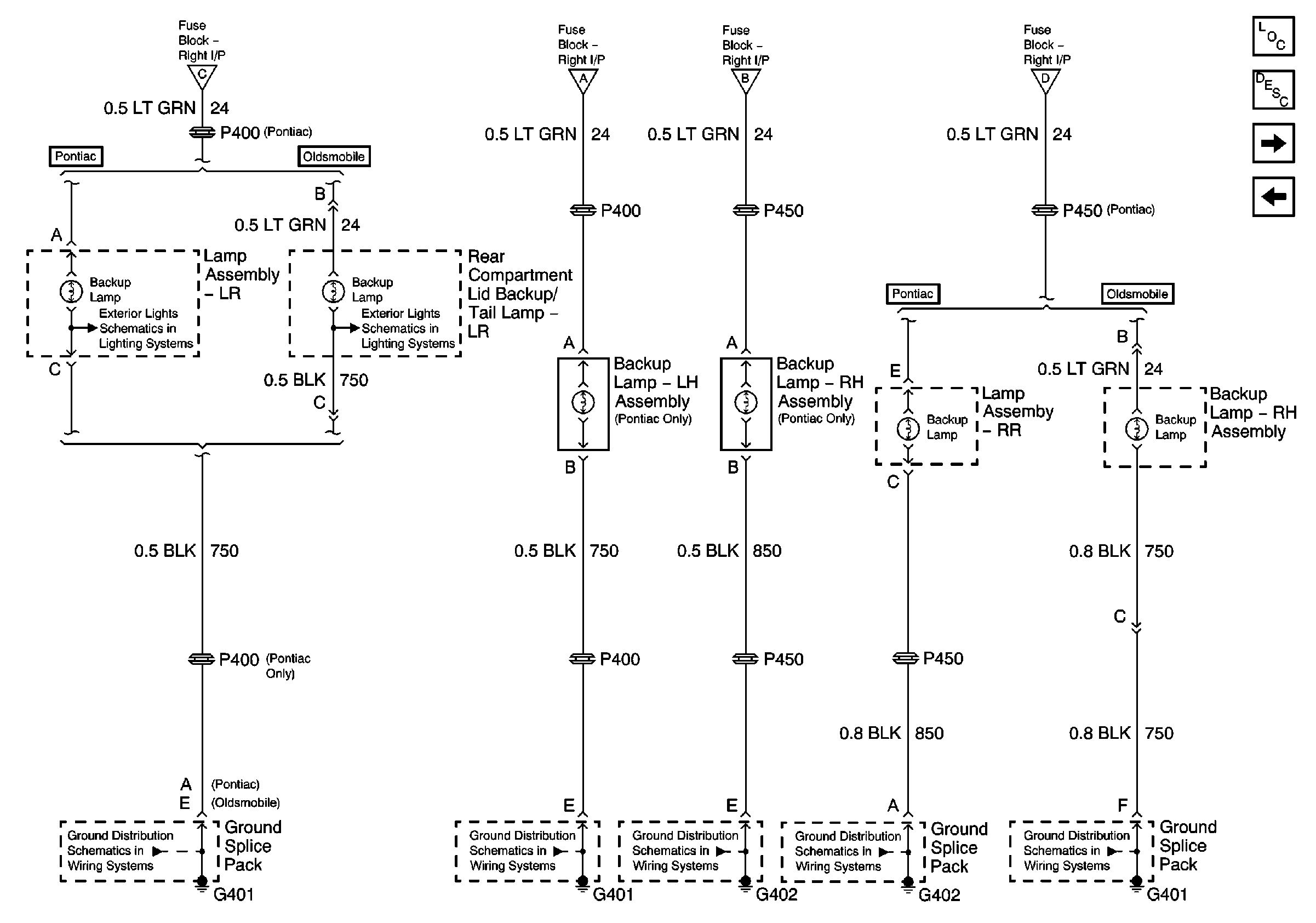

Figure 6:	Rear Backup Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Rear Lamps (Pontiac) PNP Switch and Backup Lamp Switch PNP Switch and Backup Lamp Switch PNP Switch and Backup Lamp Switch PNP Switch and Backup Lamp Switch PNP Switch and Backup Lamp Switch G401 G402 G402 G401 G401

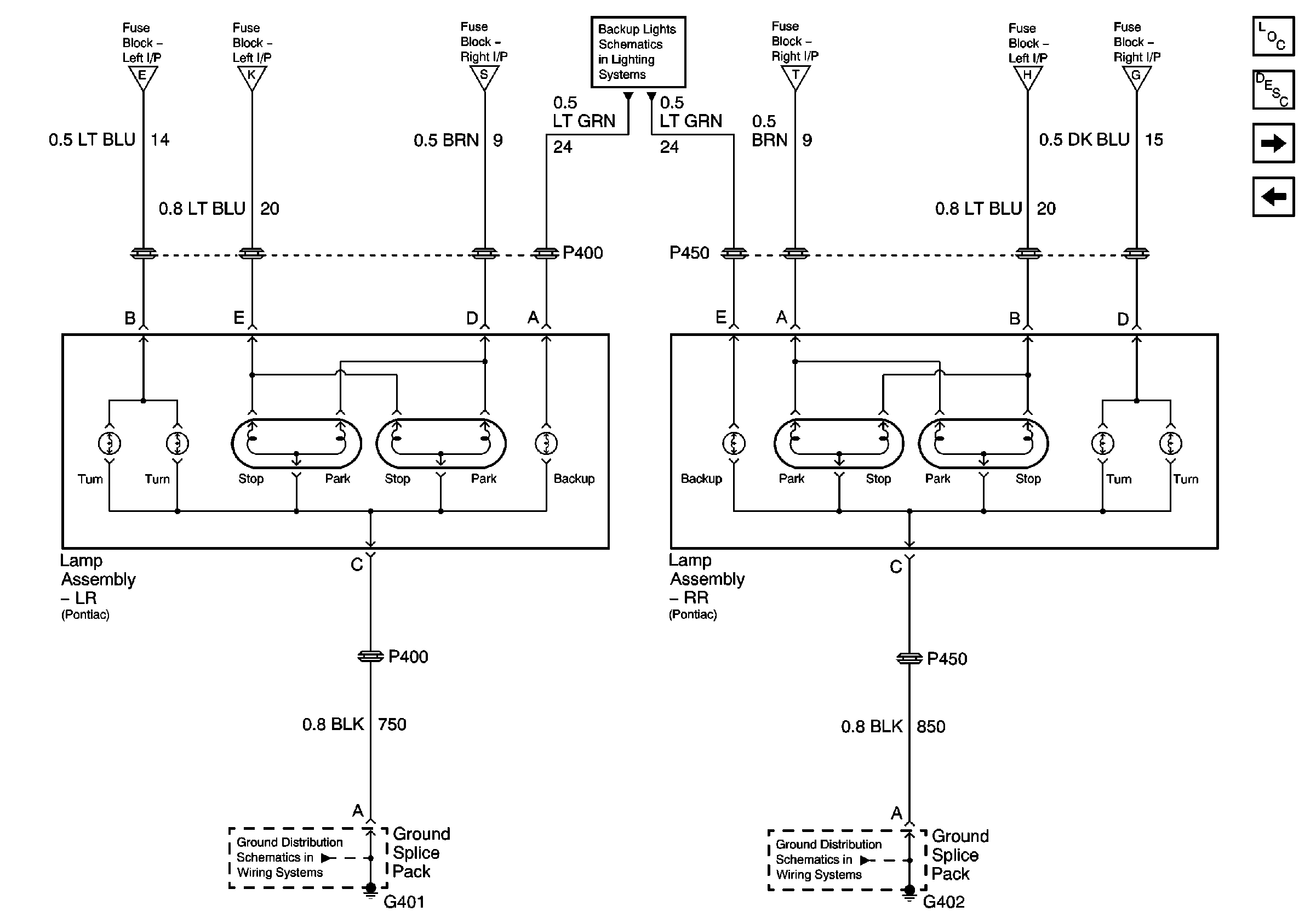

Figure 7:	Rear Lamps (Pontiac) Master Electrical Component List Exterior Lighting Systems Description and Operation Rear Lamps (Oldsmobile) Rear Backup Lamps Hazard Switch Hazard Switch High Mounted Stop Lamp Assembly License Lamps PNP Switch and Backup Lamp Switch License Lamps High Mounted Stop Lamp Assembly Hazard Switch Hazard Switch G402 G401

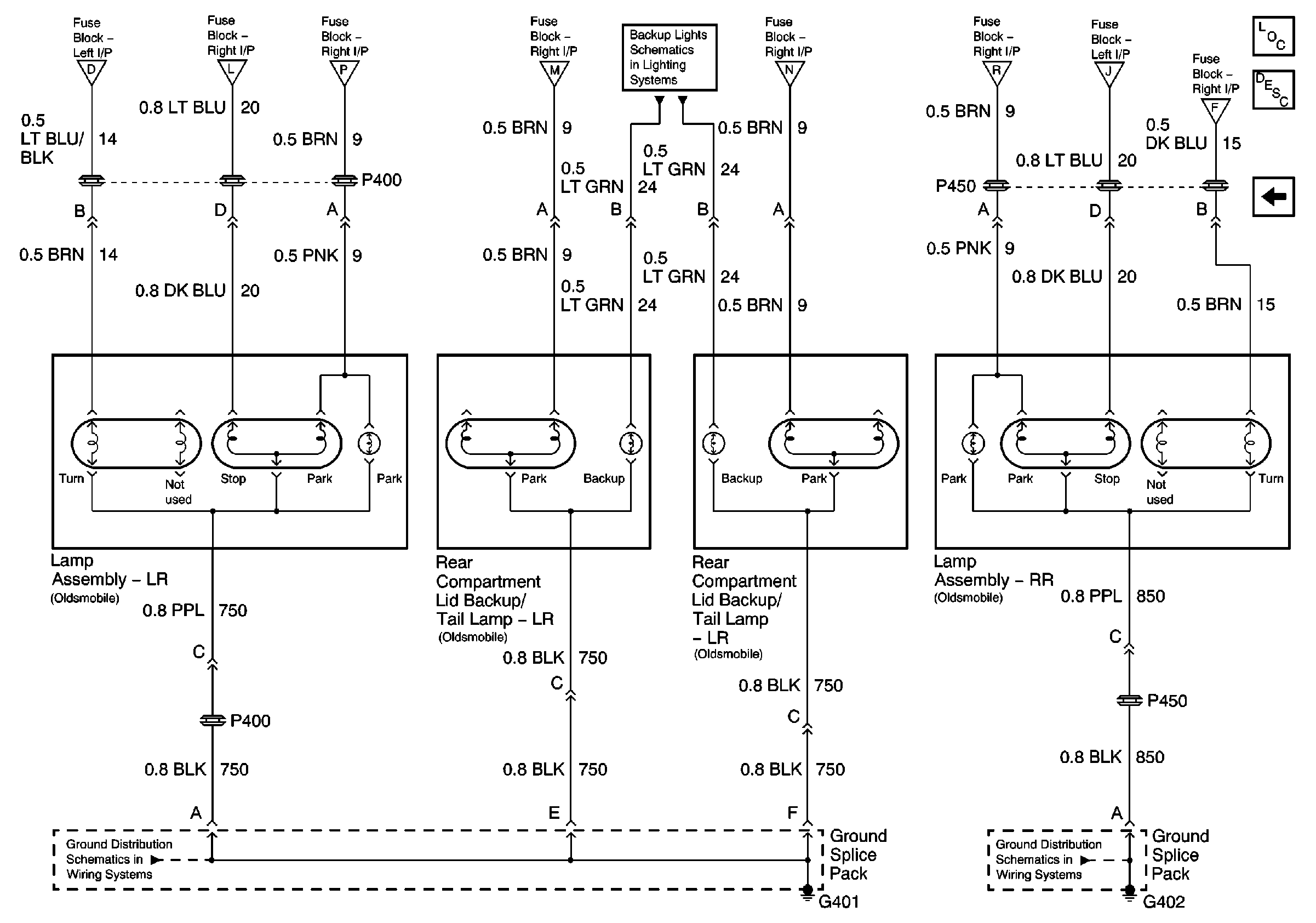

Figure 8:	Rear Lamps (Oldsmobile) Master Electrical Component List Exterior Lighting Systems Description and Operation Rear Lamps (Pontiac) Hazard Switch High Mounted Stop Lamp Assembly License Lamps PNP Switch and Backup Lamp Switch License Lamps License Lamps High Mounted Stop Lamp Assembly Hazard Switch G402 G401
