Radio/Audio System Schematics. Chevrolet Alero Export 2001

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2001 🢒 Alero Export 🢒 Body and Accessories 🢒 Entertainment 🢒 Radio/Audio System Schematics

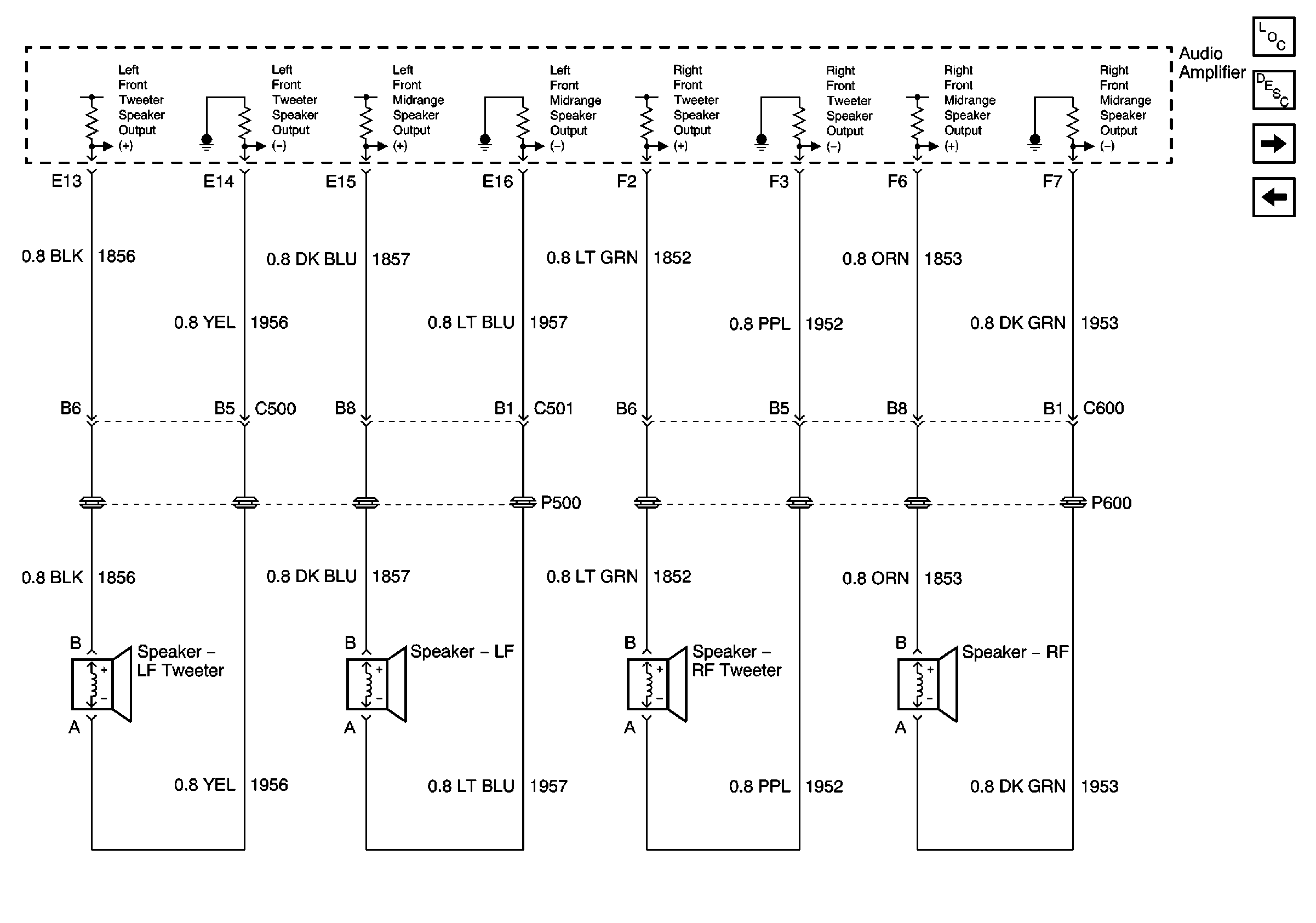

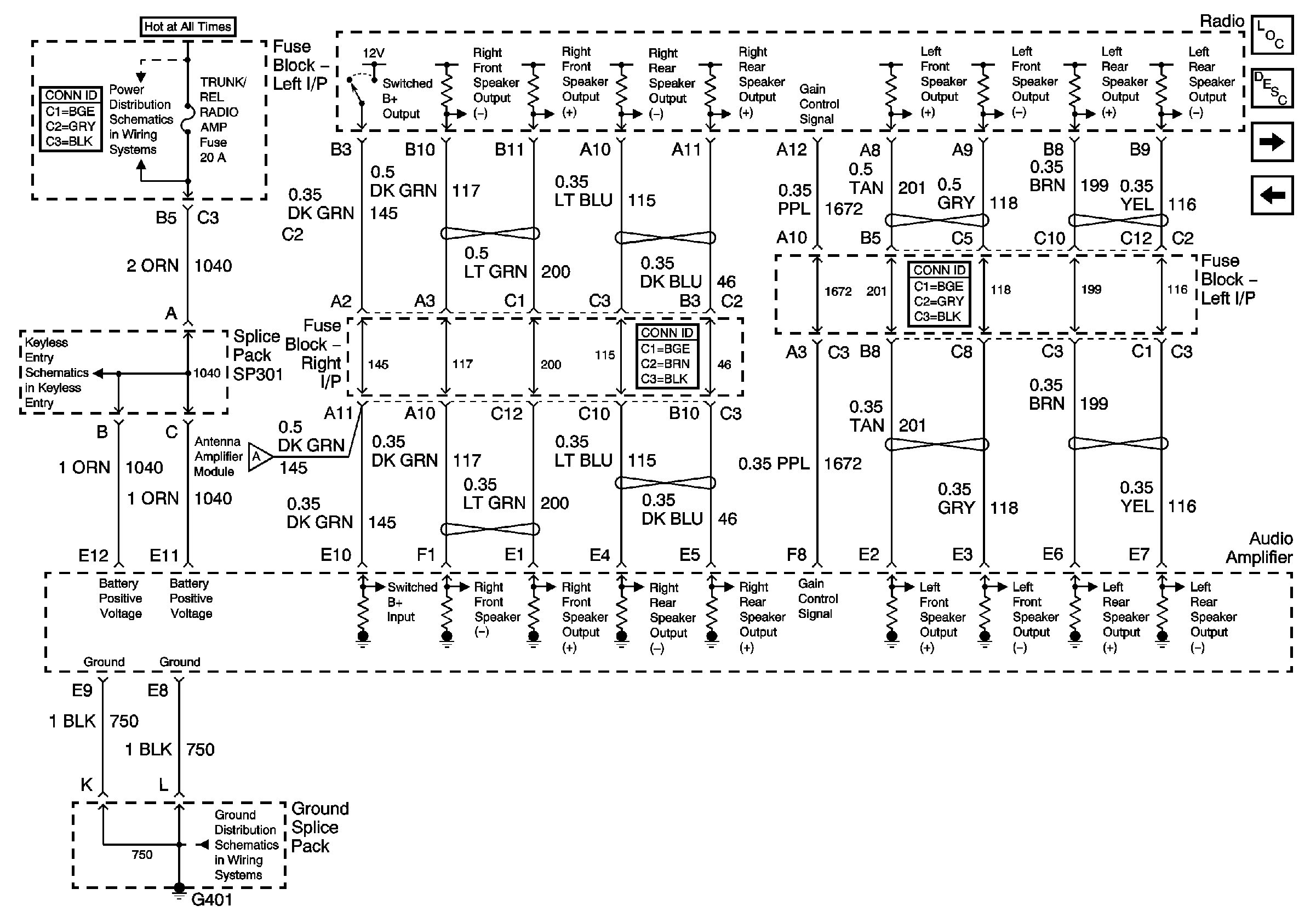

Figure 1:	Power, Ground, and Antenna Master Electrical Component List Radio/Audio System Description and Operation Front Speakers; UQ2 and UQ8 Amplifier; U85
Figure 2:	Front Speakers; UQ2 and UQ8 Master Electrical Component List Radio/Audio System Description and Operation Rear Speakers; UQ2 and UQ8 Power, Ground, and Antenna
Figure 3:	Rear Speakers; UQ2 and UQ8 Master Electrical Component List Radio/Audio System Description and Operation Amplifier; U85 Front Speakers; UQ2 and UQ8

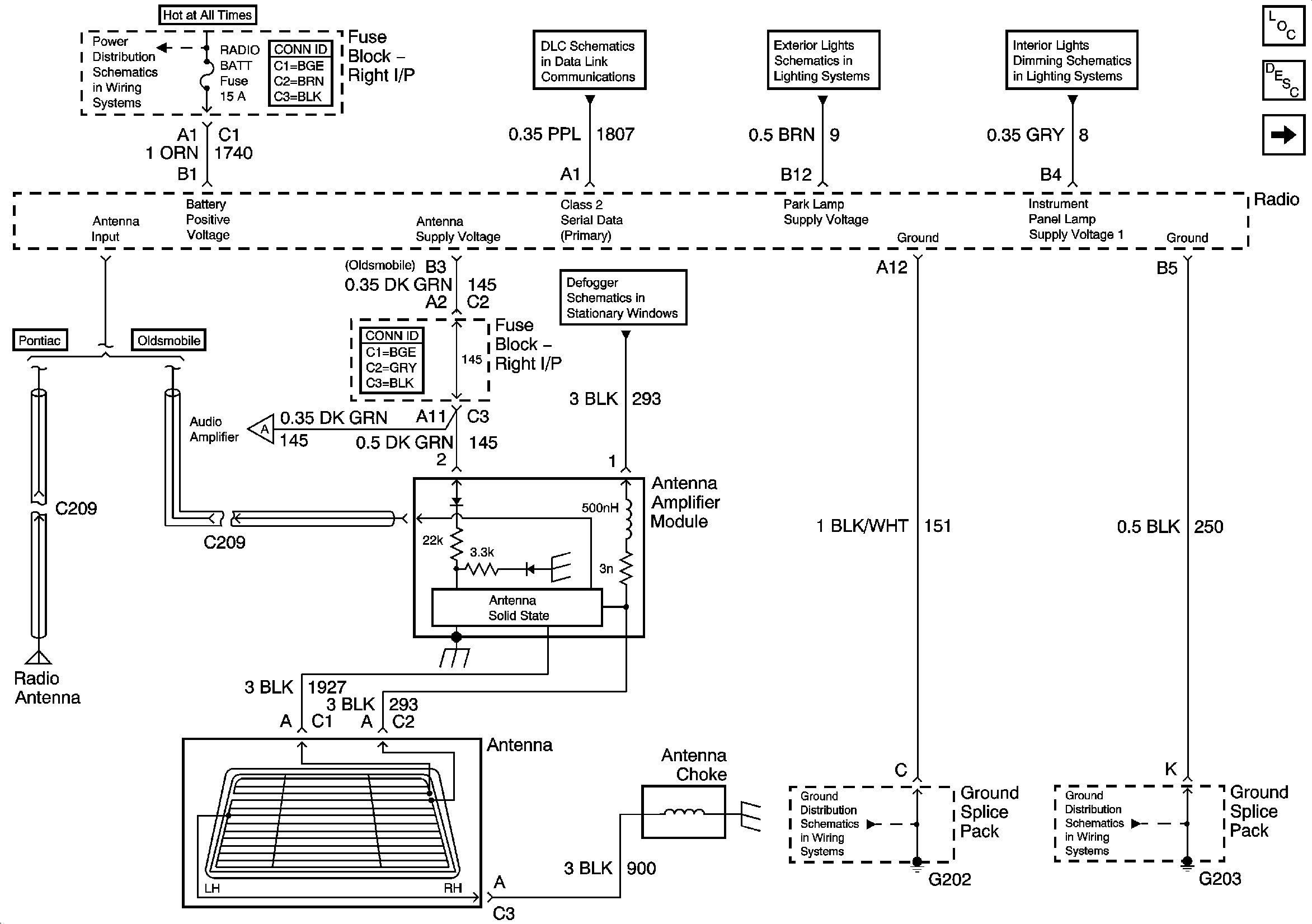

Figure 4:	Amplifier; U85 Master Electrical Component List Radio/Audio System Description and Operation Front Speakers; U85 Rear Speakers; UQ2 and UQ8 Power, Ground, and Antenna G401 LH BEC BATT1, AUX PWR/CIGAR, PARK LPS, PCM BATT, PWR MIRROR, DR LOCK, TRUNK REL/RFA/Radio Amp Fuses, and RWR SEAT Circuit Breaker

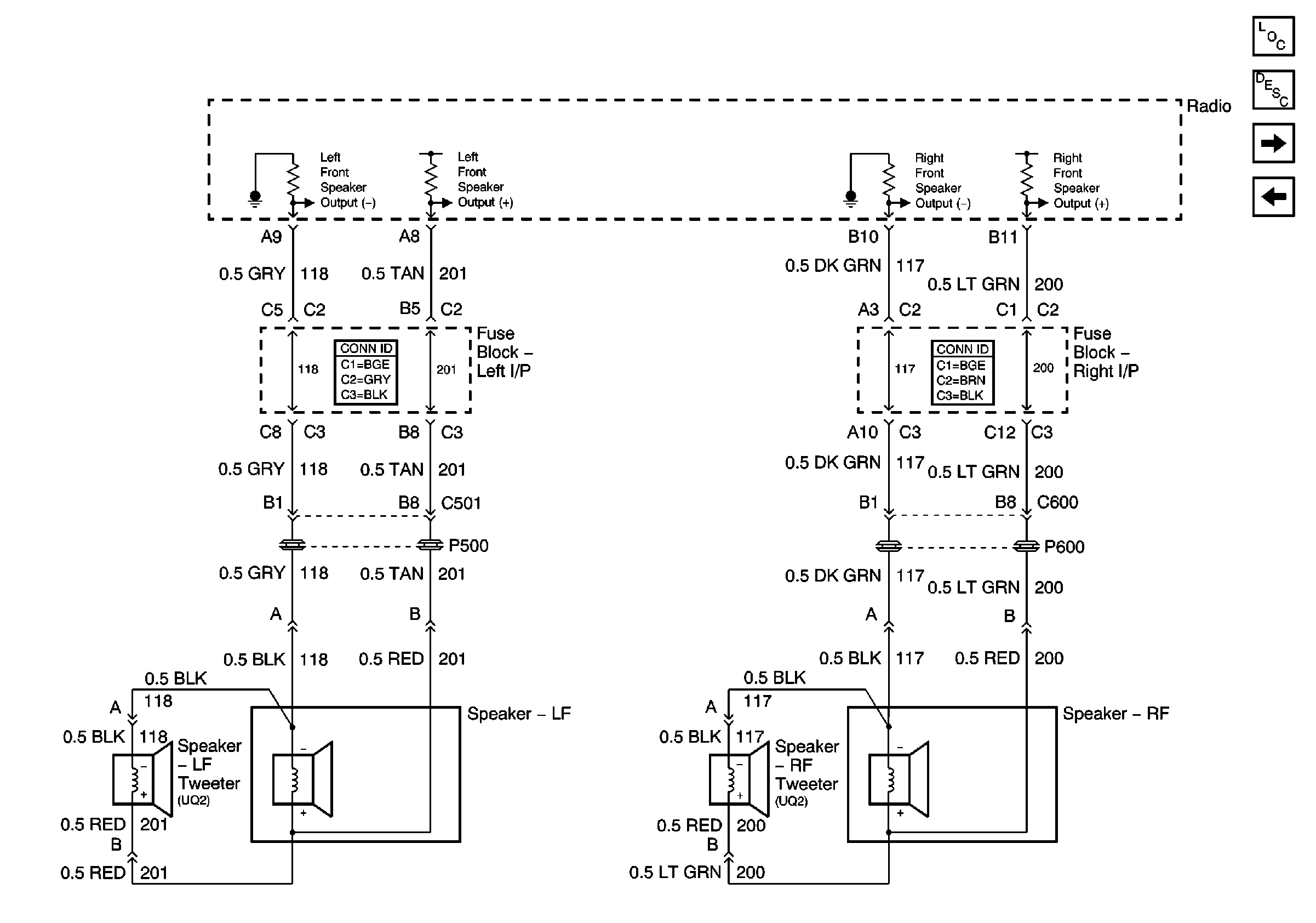

Figure 5:	Front Speakers; U85 Master Electrical Component List Radio/Audio System Description and Operation Rear Speakers; U85 Amplifier; U85

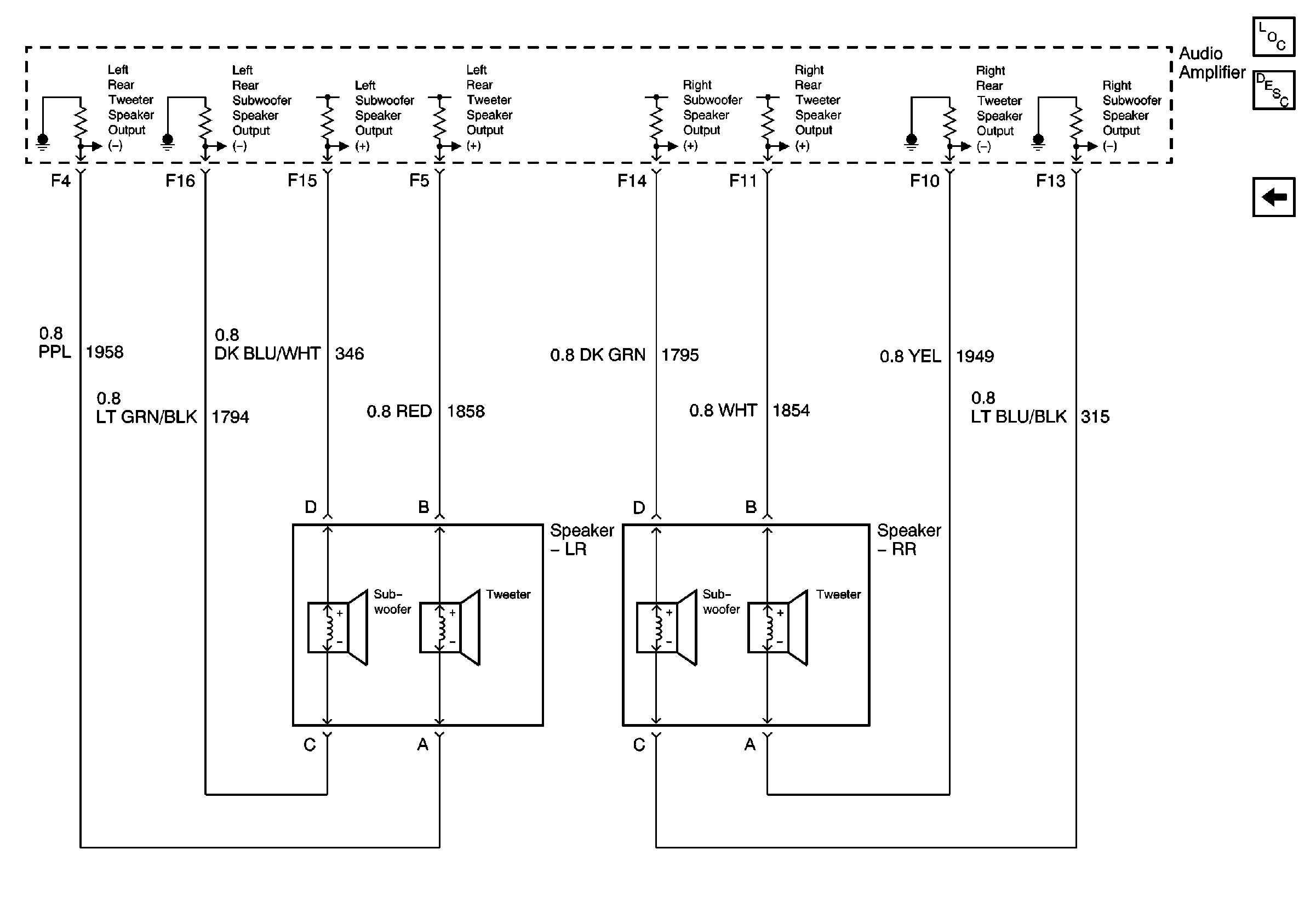

Figure 6:	Rear Speakers; U85 Master Electrical Component List Radio/Audio System Description and Operation Front Speakers; U85
