Makes 🢒 Chevrolet 🢒 2001 🢒 Alero Export 🢒 Body and Accessories 🢒 Instrument Panel, Gauges, and Console 🢒 Instrument Panel, Gages, and Console Component Views
Figure 1:

Instrument Cluster-Pontiac Domestic
Object Number: 331027 Size: MF
Figure 2:

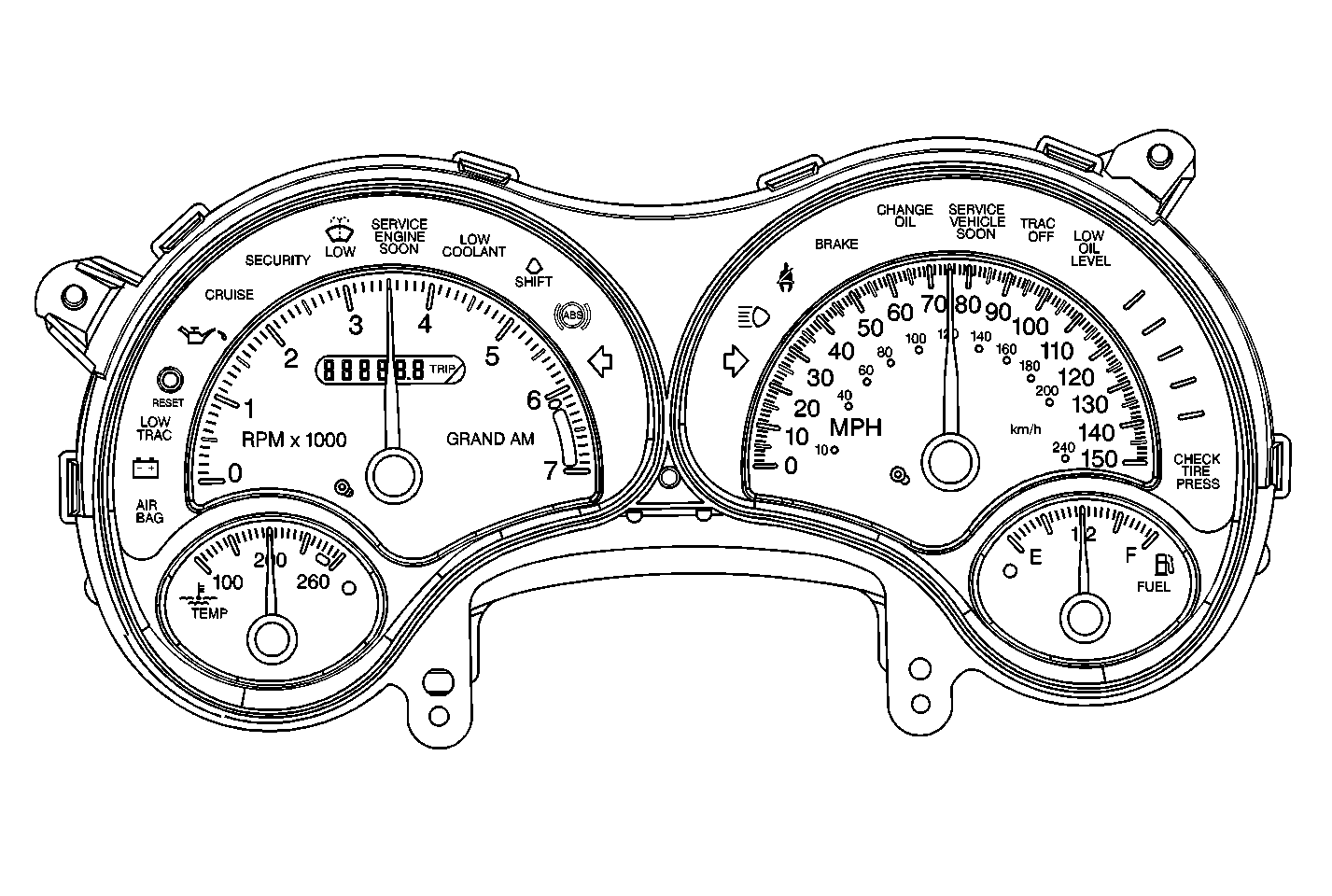

Instrument Cluster - Pontiac Domestic GT
Object Number: 331058 Size: MF
Figure 3:

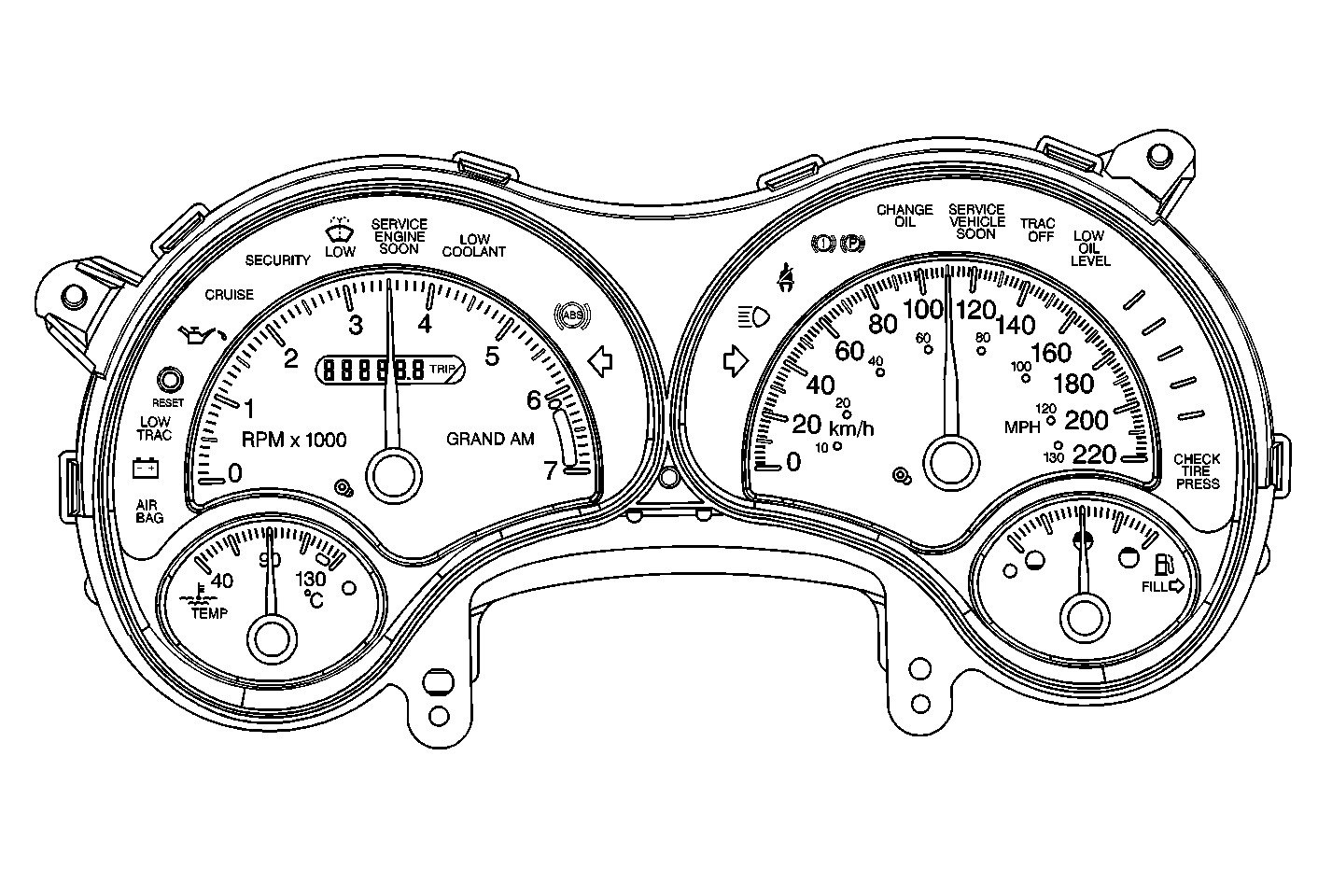

Instrument Cluster - Pontiac Canada
Object Number: 331258 Size: MF
Figure 4:

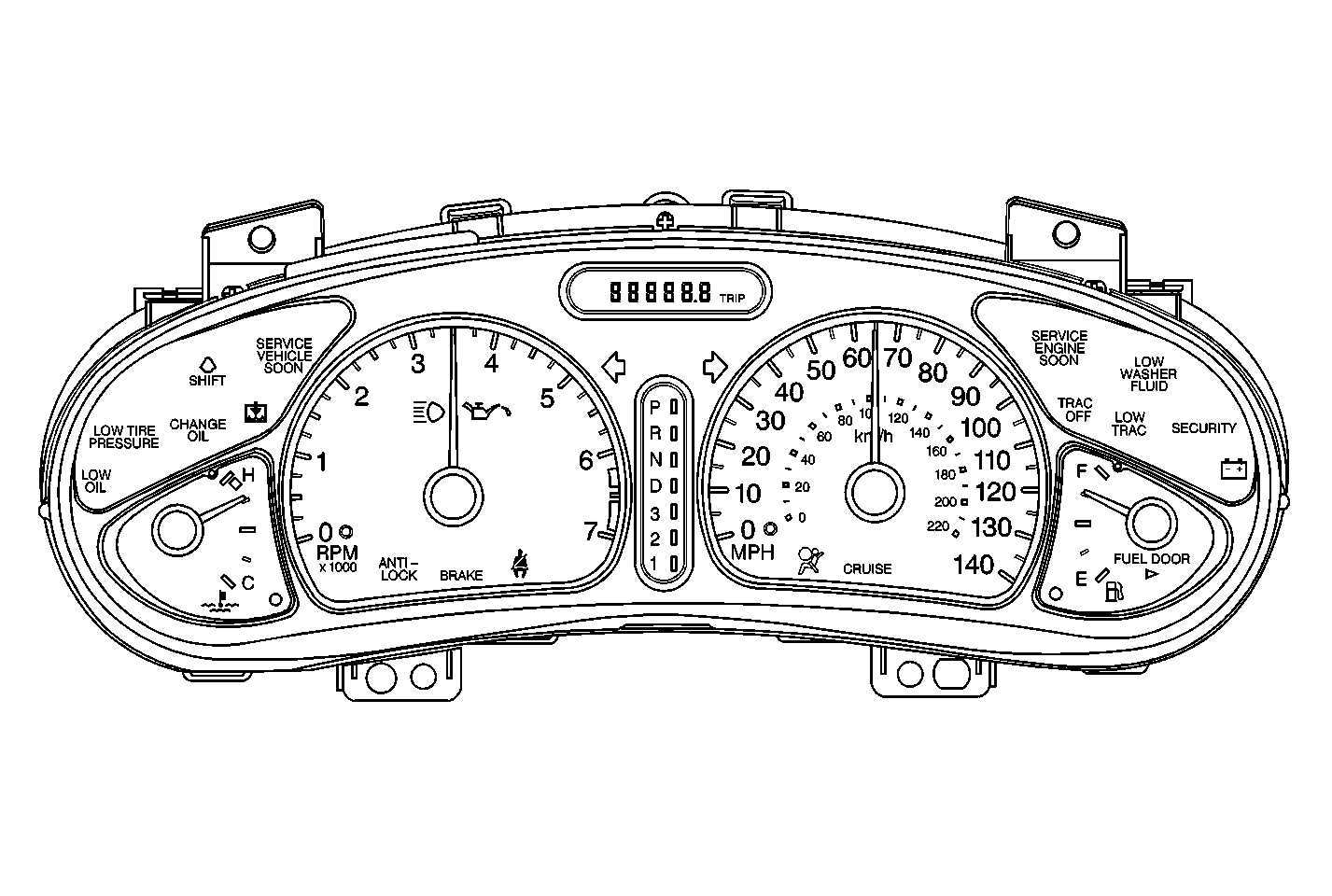

Instrument Cluster - Oldsmobile Domestic
Object Number: 331272 Size: MF
Figure 5:

Instrument Cluster - Oldsmobile Canada
Object Number: 331322 Size: MF
Figure 6:

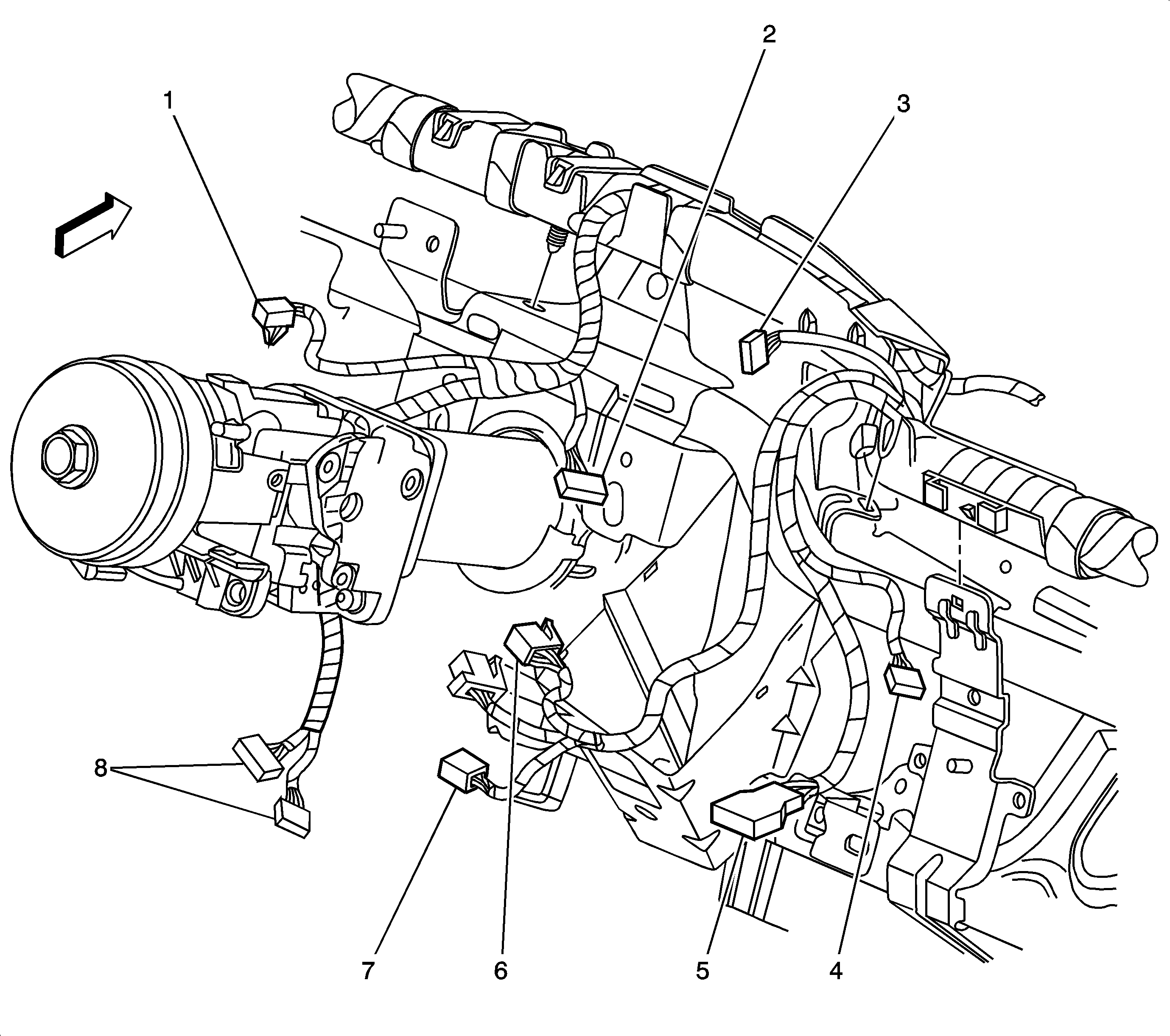

I/P Wiring Harness
Object Number: 390006 Size: LF
(1)Cruise Control ON/OFF Switch Connector
(2)Turn Signal/Multifunction Switch Connector
(3)Odometer Reset Switch Connector - Oldsmobile
(4)Hazard Switch Connector
(5)Instrument Panel Cluster (IPC) Connector
(6)Ignition Switch Connectors
(7)Passlock Sensor Connector
(8)Turn Signal/Multifunction Switch Connector
