Makes 🢒 Chevrolet 🢒 1998 🢒 Astro - 4WD 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Power and Grounding Connector End Views

Auxiliary Power Outlet Rear Connector


Object Number: 258167 Size: CH

Connector Part Information
    • 12033934
    • 2-Way Female 56 Series

Pin

Wire Color

Circuit No.

Function

A

ORN

840

Fuse Output Battery Type 3 Fuse

B

BLK

1350

Ground

Auxiliary Power Outlet Front #1


Object Number: 258167 Size: CH

Connector Part Information
    • 12033934
    • 2-Way Female 56 Series

Pin

Wire Color

Circuit No.

Function

A

ORN

840

Fuse Output Battery Type 3 Fuse

B

BLK

1050

Ground

Auxiliary Power Outlet Front #2


Object Number: 258167 Size: CH

Connector Part Information
    • 12033934
    • 2-Way Female 56 Series

Pin

Wire Color

Circuit No.

Function

A

ORN

840

Fuse Output Battery Type 3 Fuse

B

BLK

1050

Ground

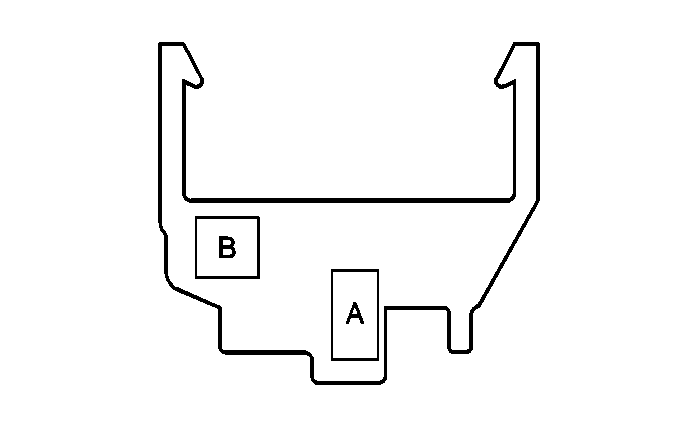

Cigarette Lighter Connector


Object Number: 306259 Size: CH

Connector Part Information
    • 12047699
    • 2-Way Pull-To-Seat

Pin

Wire Color

Circuit No.

Function

A

ORN

640

Fuse Output Battery Type 3 Fuse

B

BLK

1050

Ground
