Removal Procedure

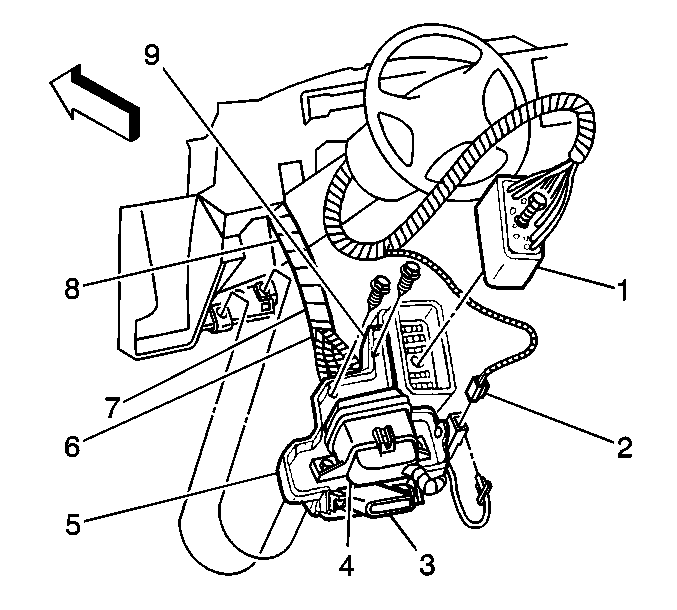

    Object Number: 596055 Size: SH
  1. Remove the left side of the knee bolster. Refer to Driver Knee Bolster Replacement in Instrument Panel, Gages and Console.
  2. Remove the cover (4) from the block to expose the DRL daytime running lights relay.
  3. Remove the relay from the block.

Installation Procedure
  1. Install the relay to the block.
  2. Install the cover (4) to the block for the DRL daytime running lights relay.

    3. Object Number: 596055 Size: SH
  3. Install the left side of the knee bolster. Refer to Driver Knee Bolster Replacement in Instrument Panel, Gages and Console.
